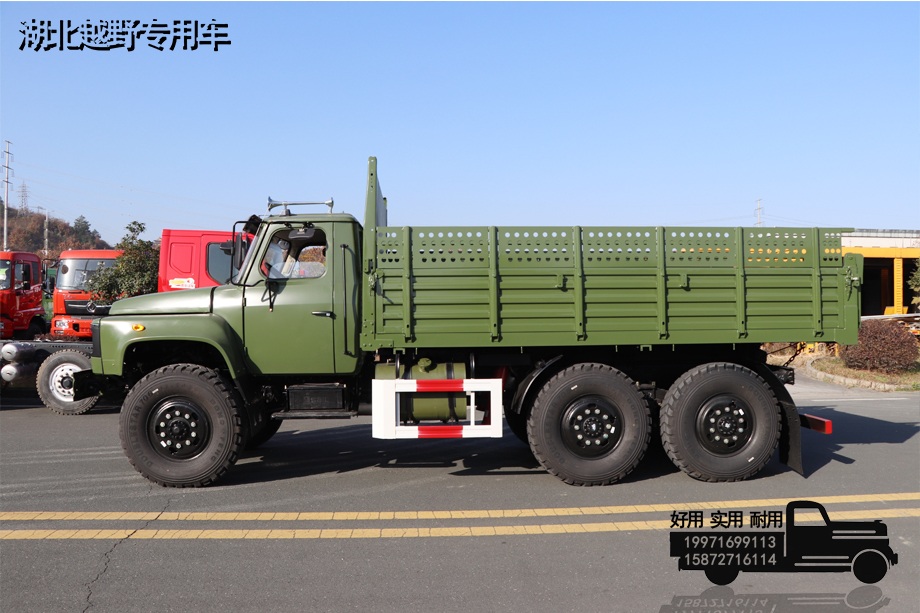

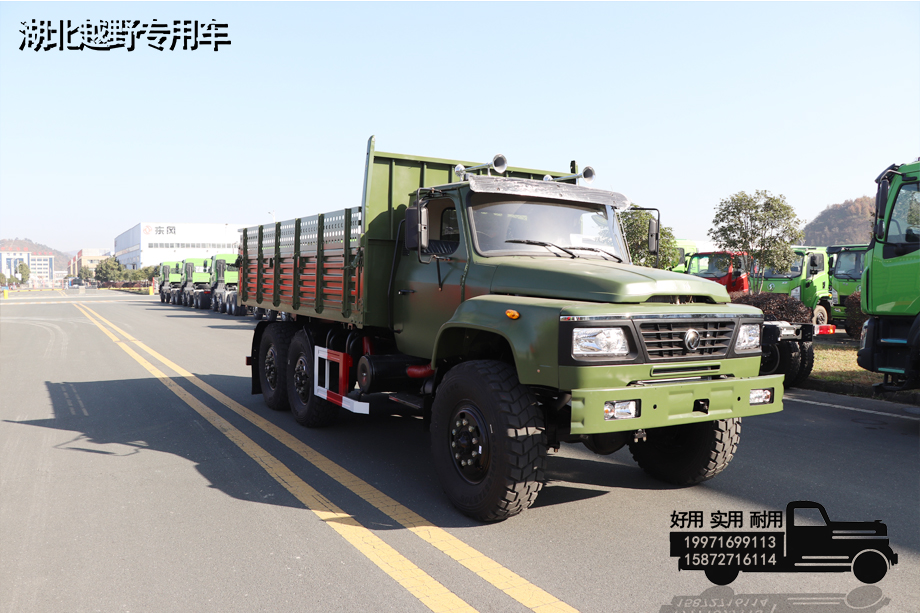

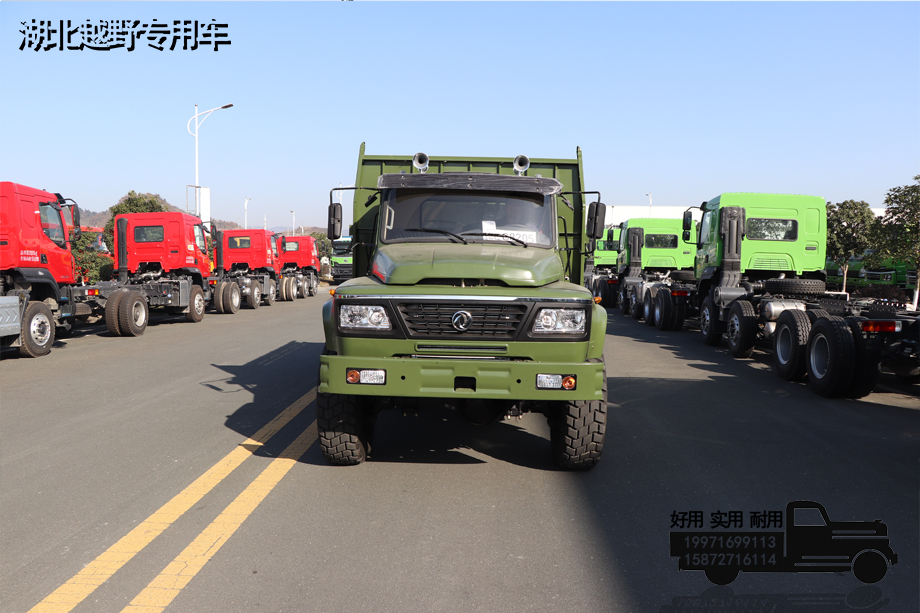

DF245 is a three-and-a-half-ton off-road truck developed by the DF company. It is equipped with special facilities such as a winch and flip-up seats. It is mainly used to carry people and cargo. The 6x6 drive can travel in forests, deserts, and swamps, and it also has certain wading capabilities. The engine has a preheating function, and the vehicle can start smoothly at an ambient temperature of -41°C.
| Basic information | |
| drive | 6*6 |
| direction | left rudder |
| Vehicle size | 7180×2420×2815mm (excluding tarpaulin poles) |
| total mass | 10800kg |
| curb weight | 7110kg |
| Chassis configuration | |

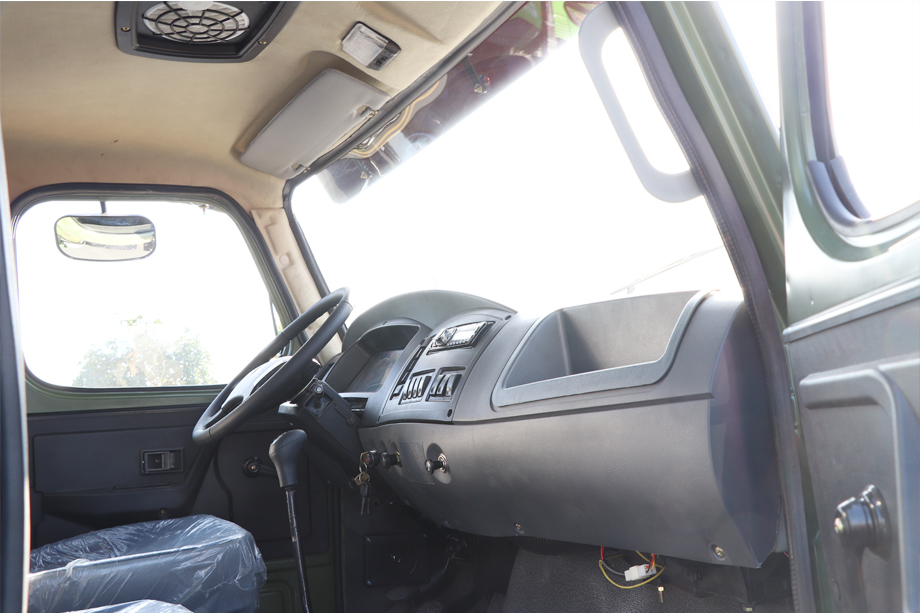

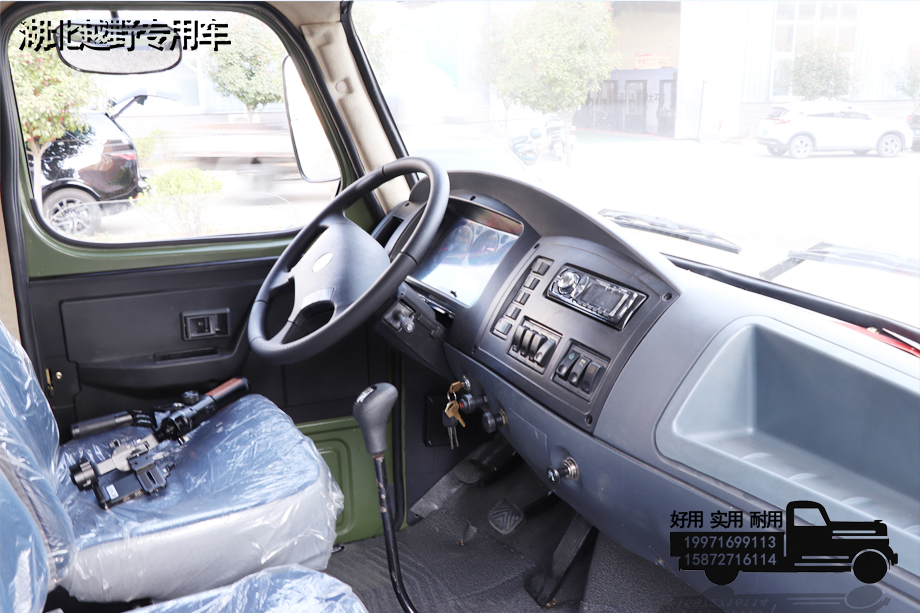

| Cab | Pointed, single row, air-conditioned |
| Number of seats | 3 people |
| Wheelbase | 3600+1250mm |
| Frame | 860*232mm |
| engine | Cummins B190 33/B210 33 |
| Gearbox assembly | Manual 5-speed/6-speed/small eight-speed |
| transfer case assembly | High and low gears |
| Maebashi | 3.5T |
| middle bridge | 3.5T |
| rear axle | 3.5T |
| tank | 210L |
| circuit | 24V circuit system |
| suspension system | Leaf spring8/12 |
| Braking method | Air brake |
| tire | 12.5R20 (6+1) |
| Bodywork configuration | |

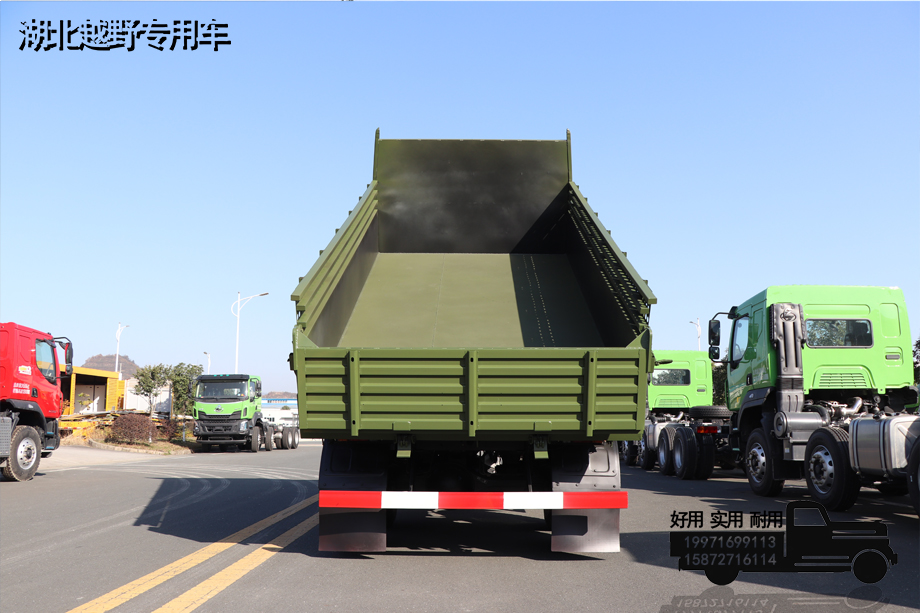

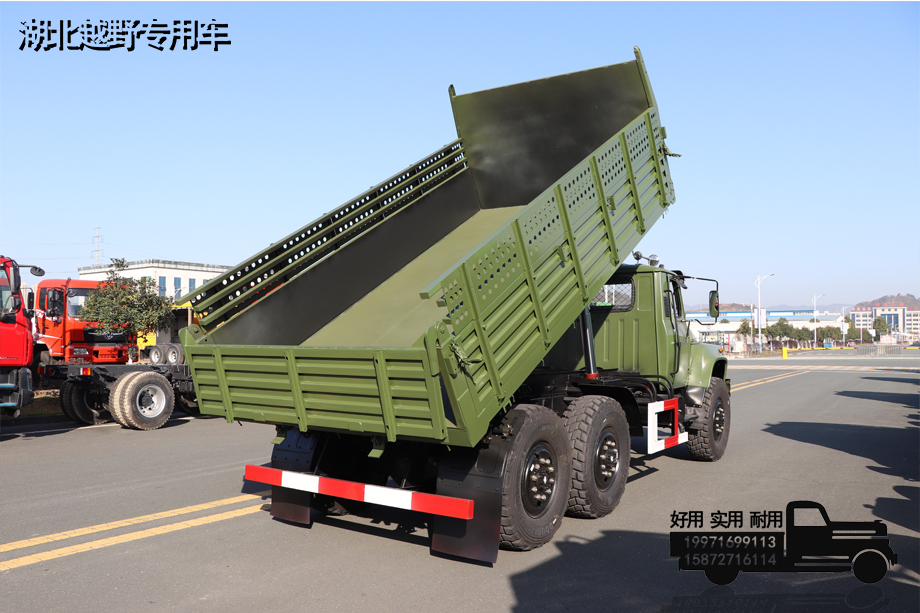

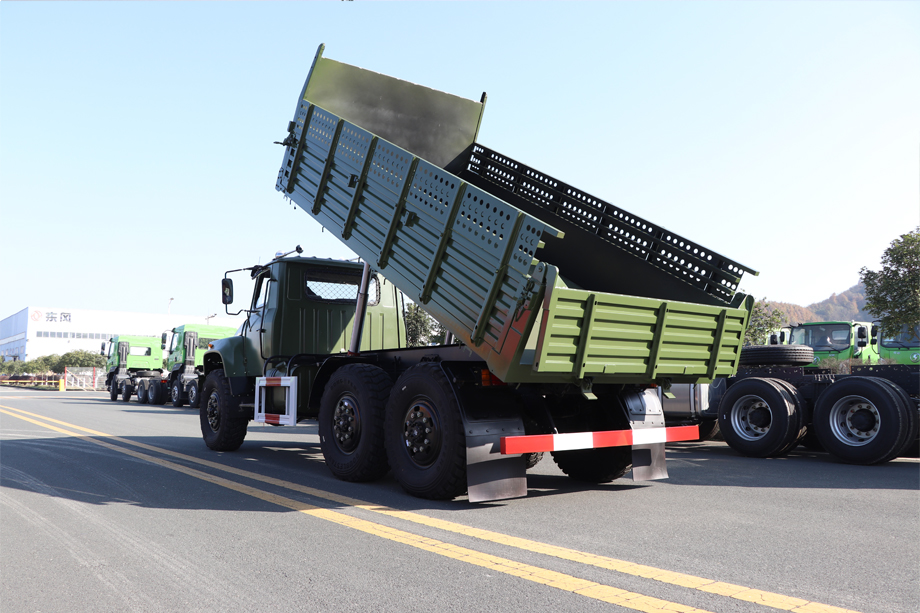

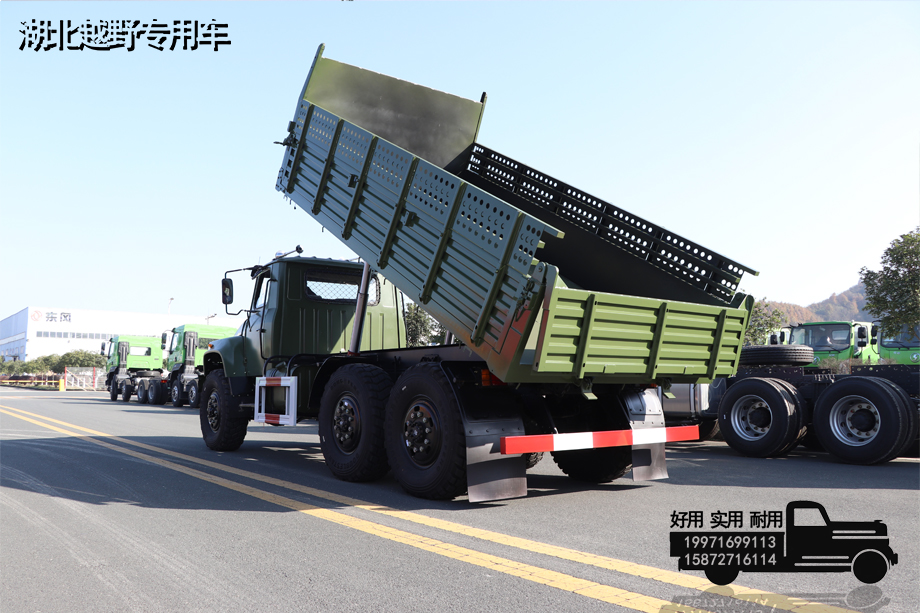

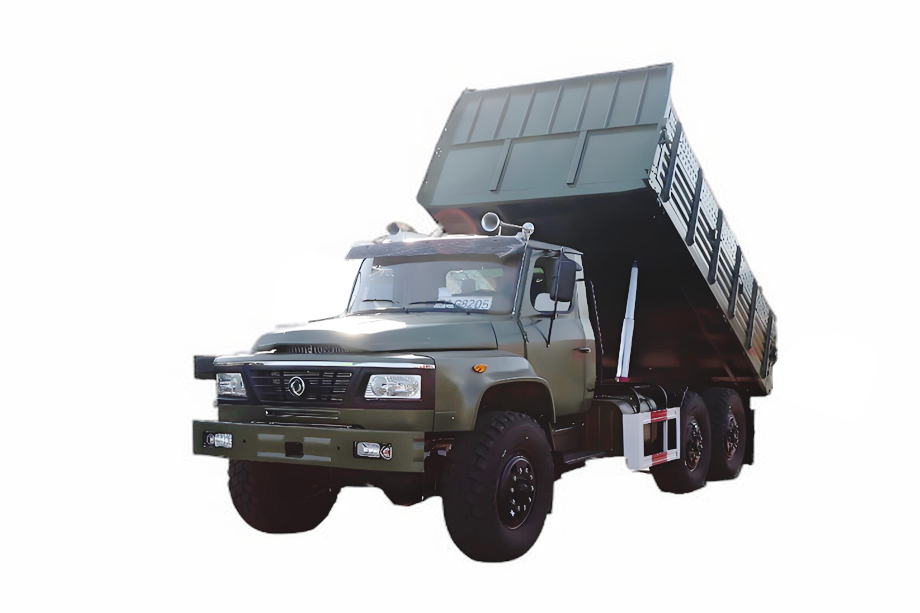

| Dump | 4200*2300*900mm |
| engine | |
| engine | Cummins B190 33 |
| horsepower | 190 |
| emission | National Three |
| Displacement | 5.9L |
| Number of cylinders | 6 |
| Output power | 140kw |
| Torque | 640N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 88km/h |
| approach angle | 30° |
| departure angle | 18° |
| Wheelbase | 1900/1895/1910mm |
| ground clearance | 310mm |
| gradeability | 60% |
| standing slope | 40% |
| other | |
| other | Vehicle tools |
