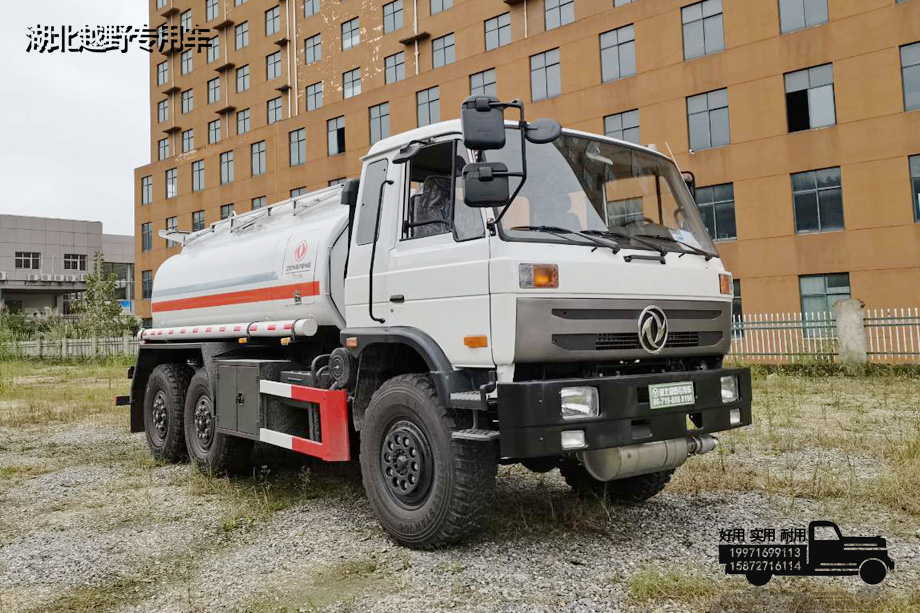

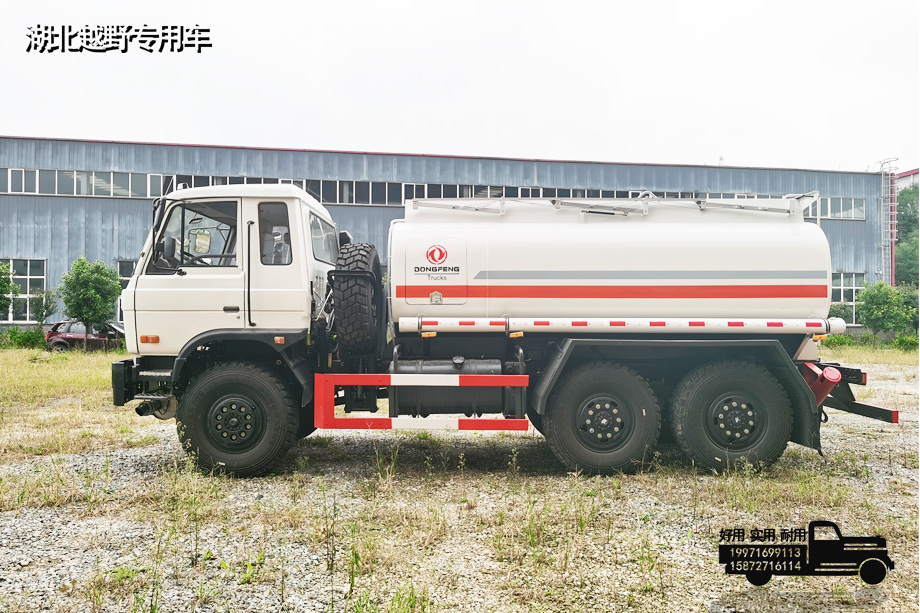

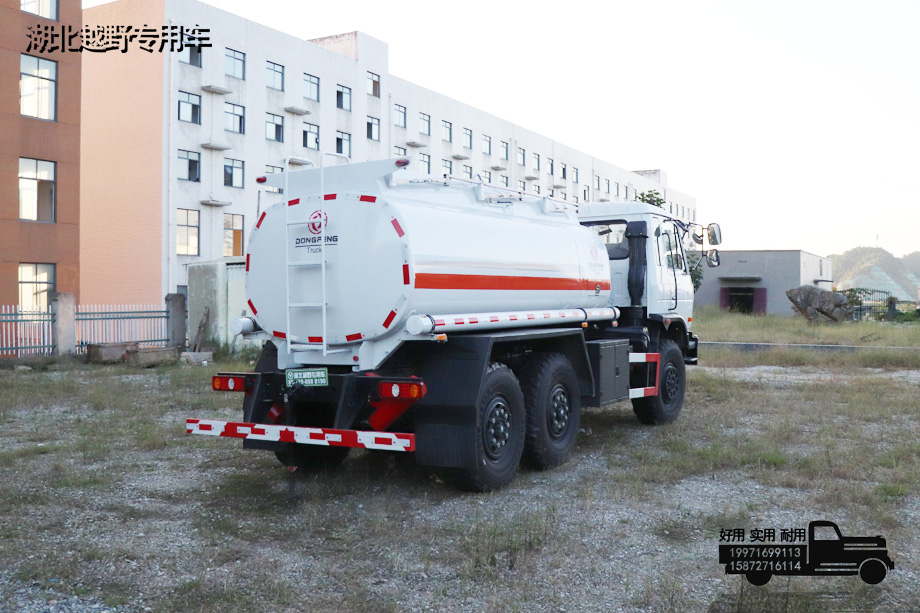

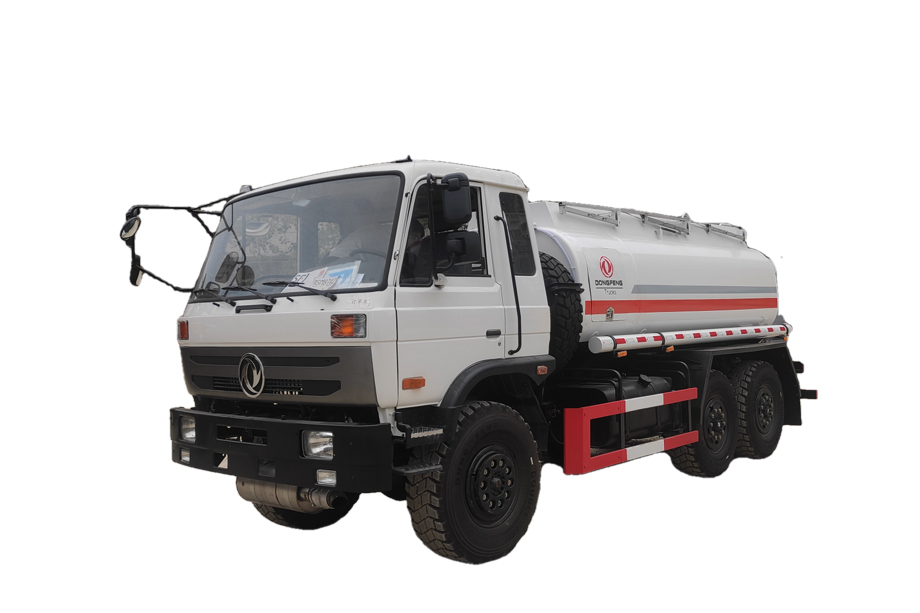

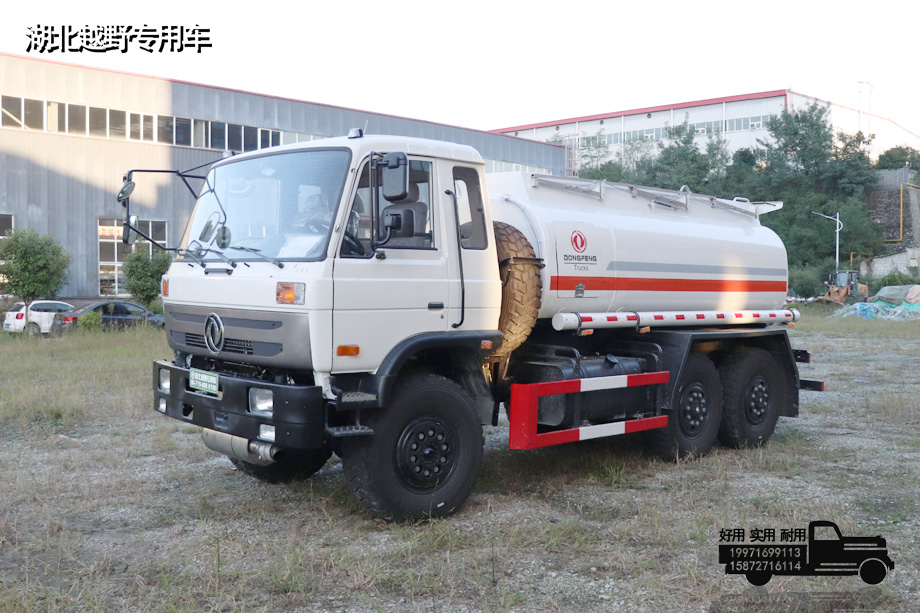

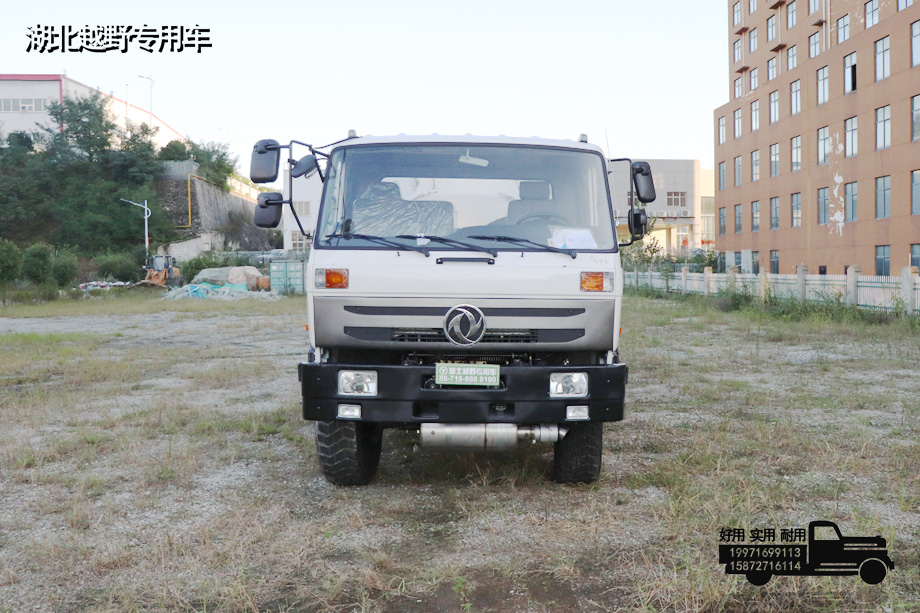

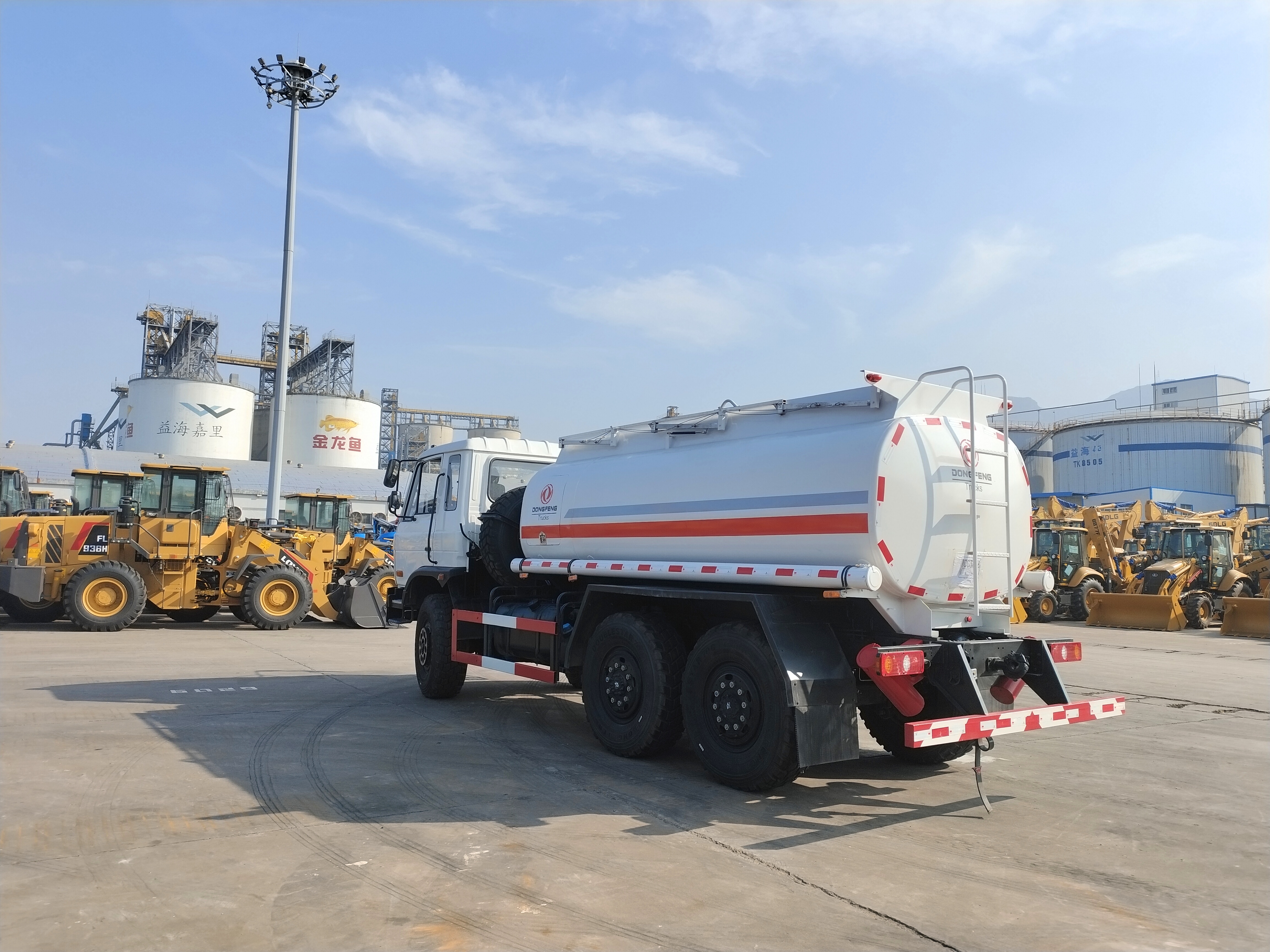

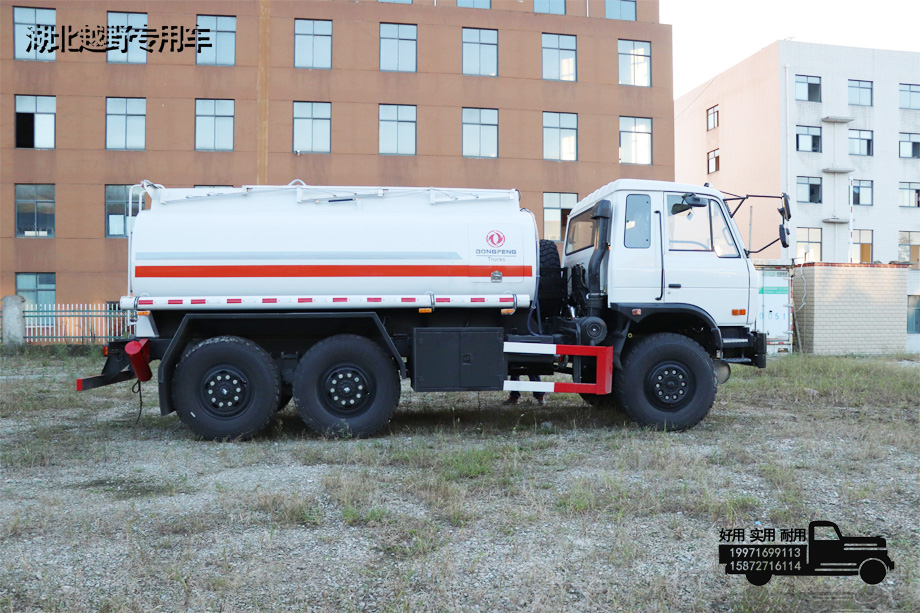

DF246 is a three-and-a-half-ton off-road fuel tanker truck developed by DF. The 6x6 drive can travel in forests, deserts, and swamps, and it also has certain water wading capabilities. The engine has a preheating function, and the vehicle can start smoothly at an ambient temperature of -41°C.
| Basic information | |
| drive | 6*6 |
| direction | left rudder |
| Chassis size | / |
| Vehicle size | 7230×2460×2705mm |
| total mass | 10800kg |
| curb weight | 7700kg |
| Chassis configuration | |

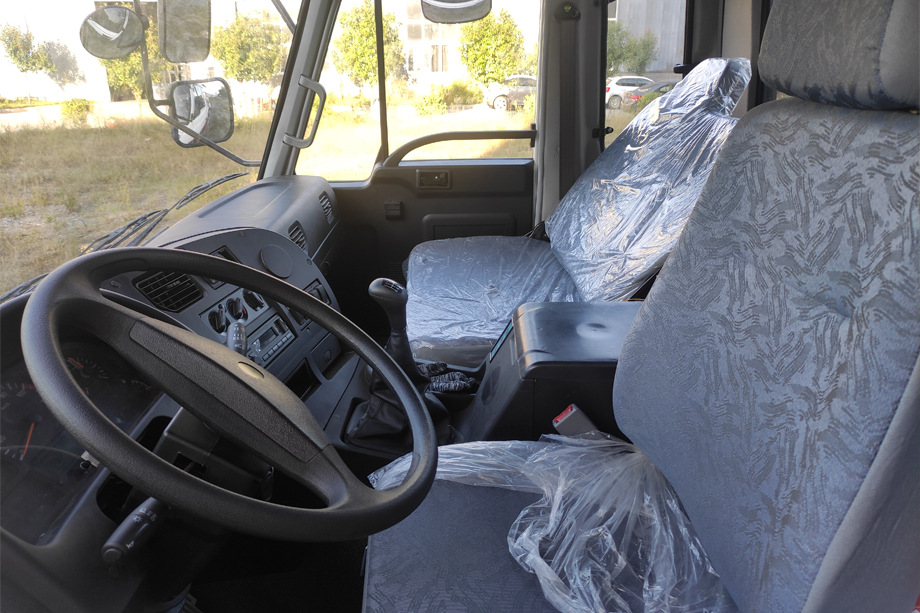

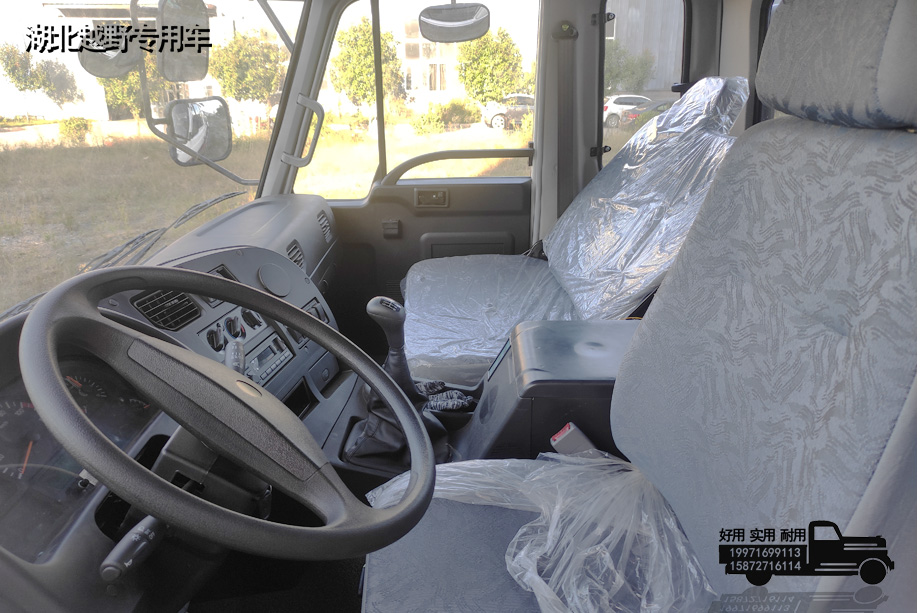

| cab | Flat head, one and a half rows, with air conditioning |
| Number of seats | 3 people |
| Wheelbase | 3475+1250mm |
| Frame | 860*232mm |
| engine | Cummins ISB190 40/B210 33 |
| Gearbox assembly | Manual 6-speed/5-speed/small eight-speed |
| transfer case assembly | High and low gears |
| Maebashi | 3.5T |
| middle bridge | 3.5T |
| rear axle | 3.5T |
| tank | 230L (can be made as large as possible according to space location) |
| circuit | 24V circuit system |
| suspension system | leaf spring |
| Braking method | Air brake |
| tire | 12.5R20 (6+1) |
| Bodywork configuration | |

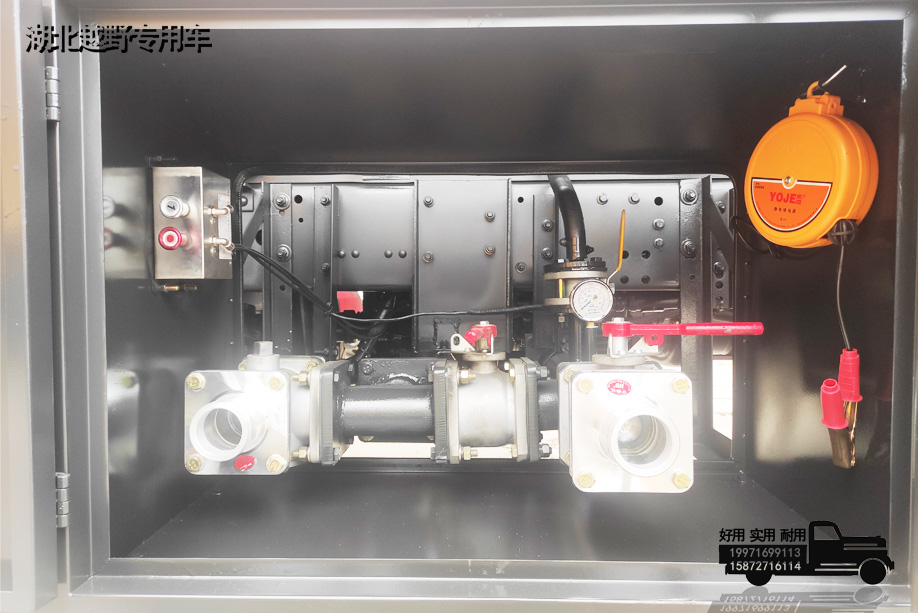

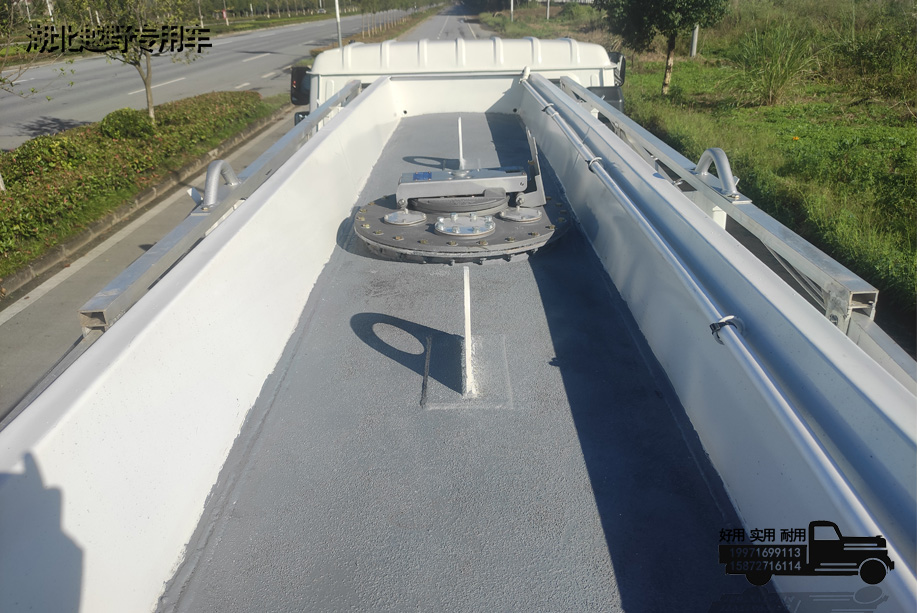

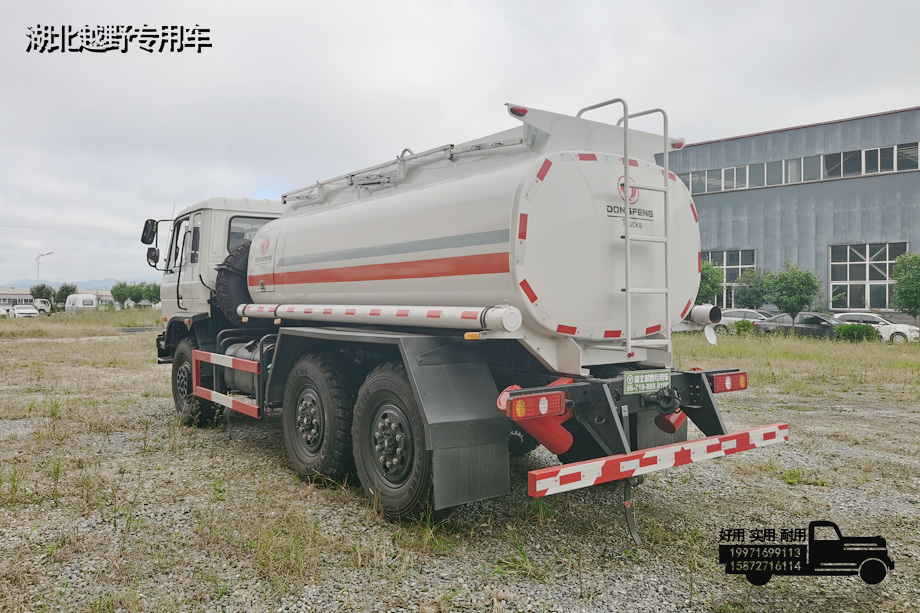

| Tops | 6m³, 1 aluminum alloy European standard inlet cover, oil pump, operation compartment on the top of the tank: There is a tanker operation compartment in the front of the tank, a 20-meter refueling reel and a tanker are installed in the tank, with explosion-proof lighting, aluminum alloy lifting guardrails on the left and right sides of the tank top, 2 4kg fire extinguishers and 2 static conductive belts. |
| engine | |
| engine | Cummins ISB190 40 |
| horsepower | 190 |
| emission | Country 4 |
| Displacement | 5.9L |
| Number of cylinders | 6 |
| Output power | 140kw |
| Torque | 640N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 88km/h |
| approach angle | 31° |
| departure angle | 22° |
| front overhang | 1200mm |
| Rear suspension | 1575mm |
| Wheelbase | 1900/1880/1880mm |
| ground clearance | 305mm |
| Obstacle clearance height | 480mm |
| Wading height | 505mm |
| gradeability | 60% |
| standing slope | 40% |
| other | |
| other | Water buckets, oil buckets, fire extinguishers, vehicle tools, tarpaulin poles |
