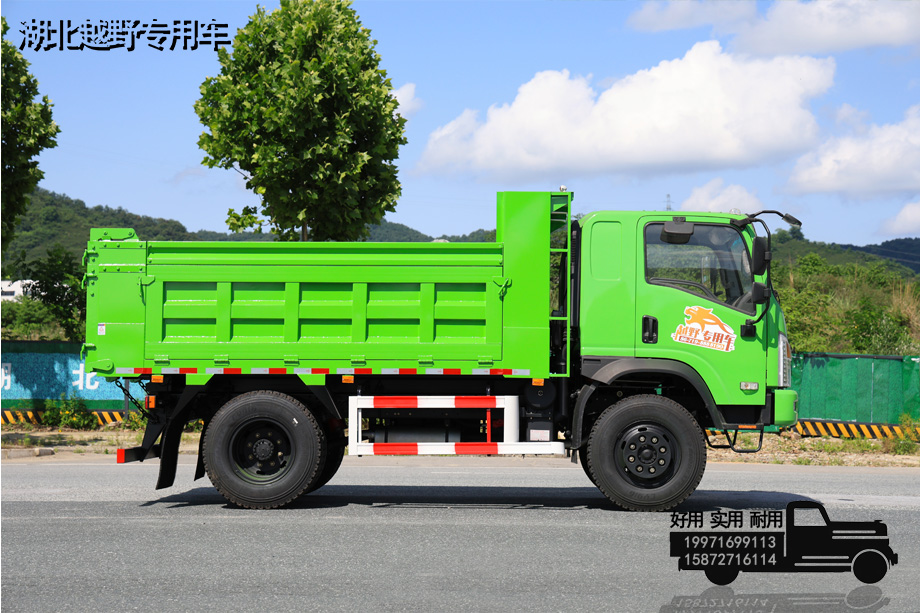

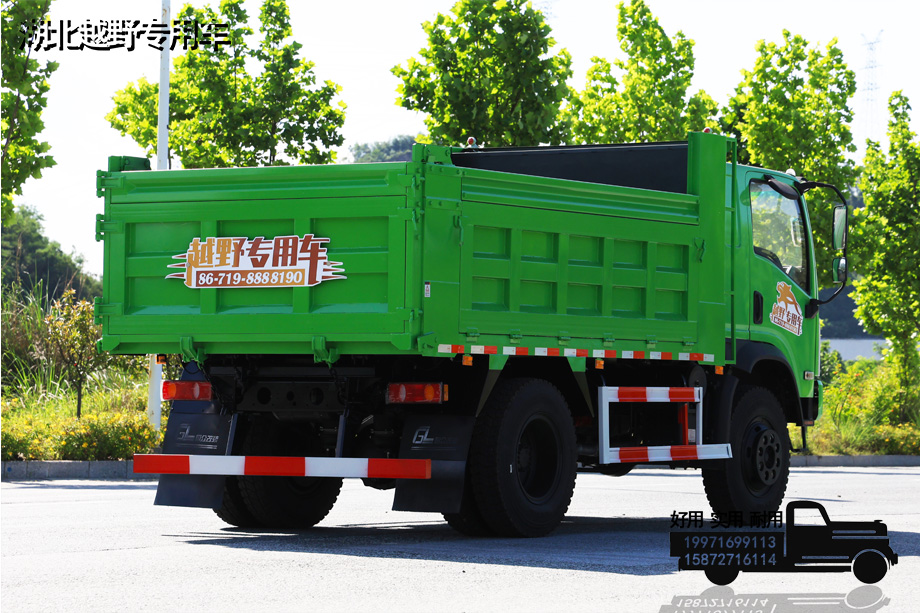

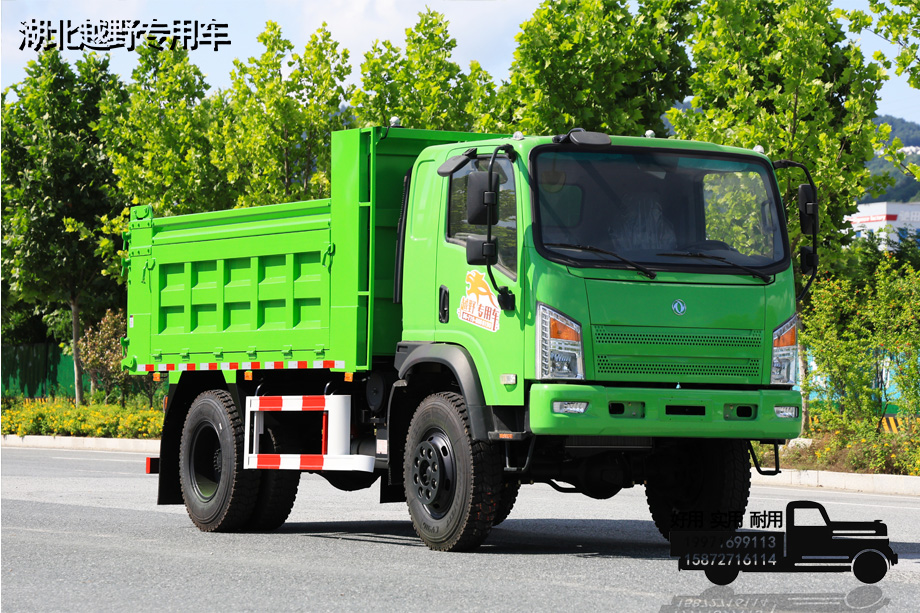

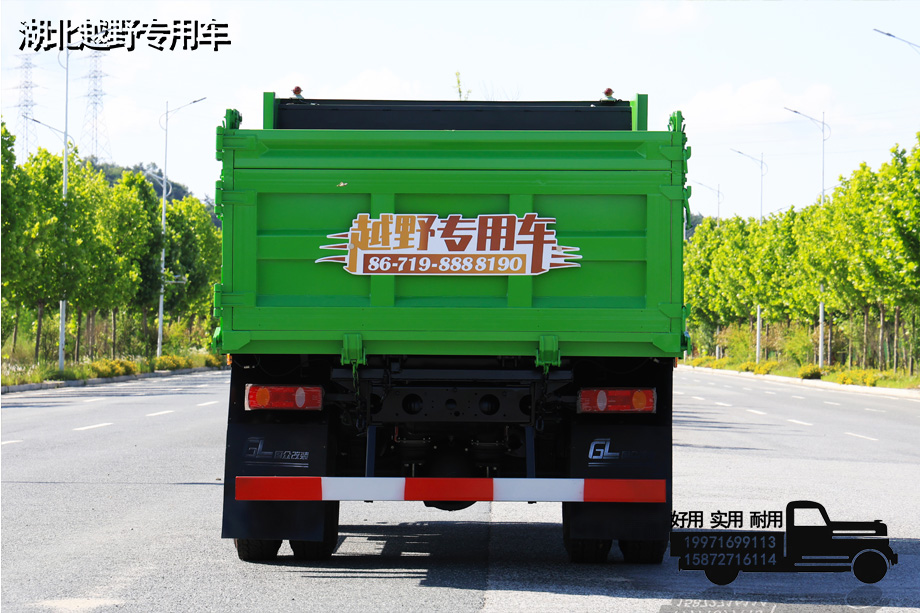

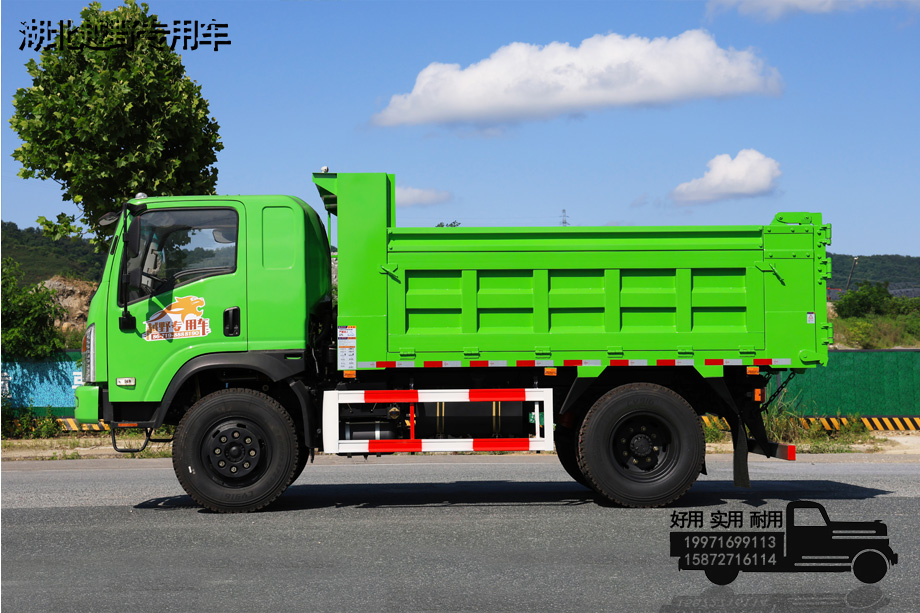

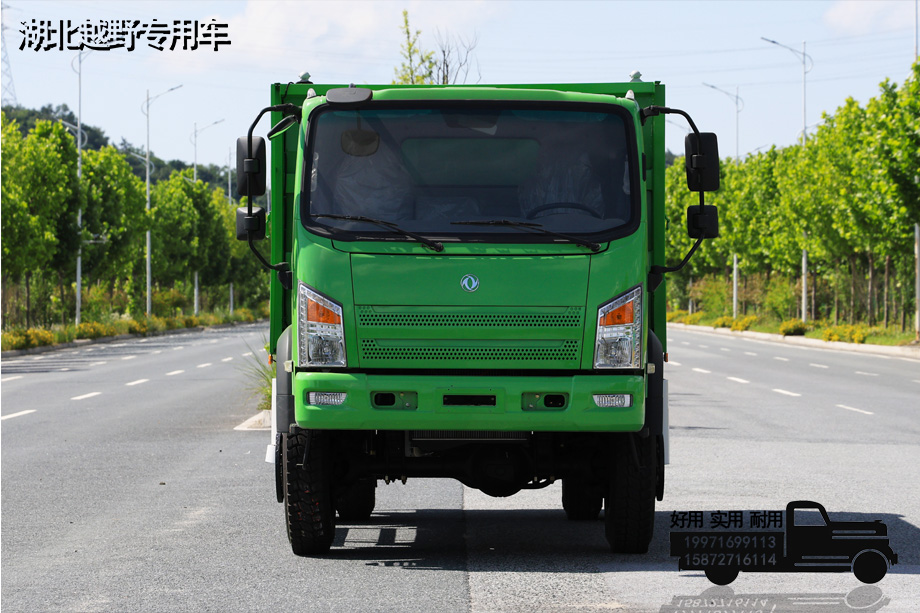

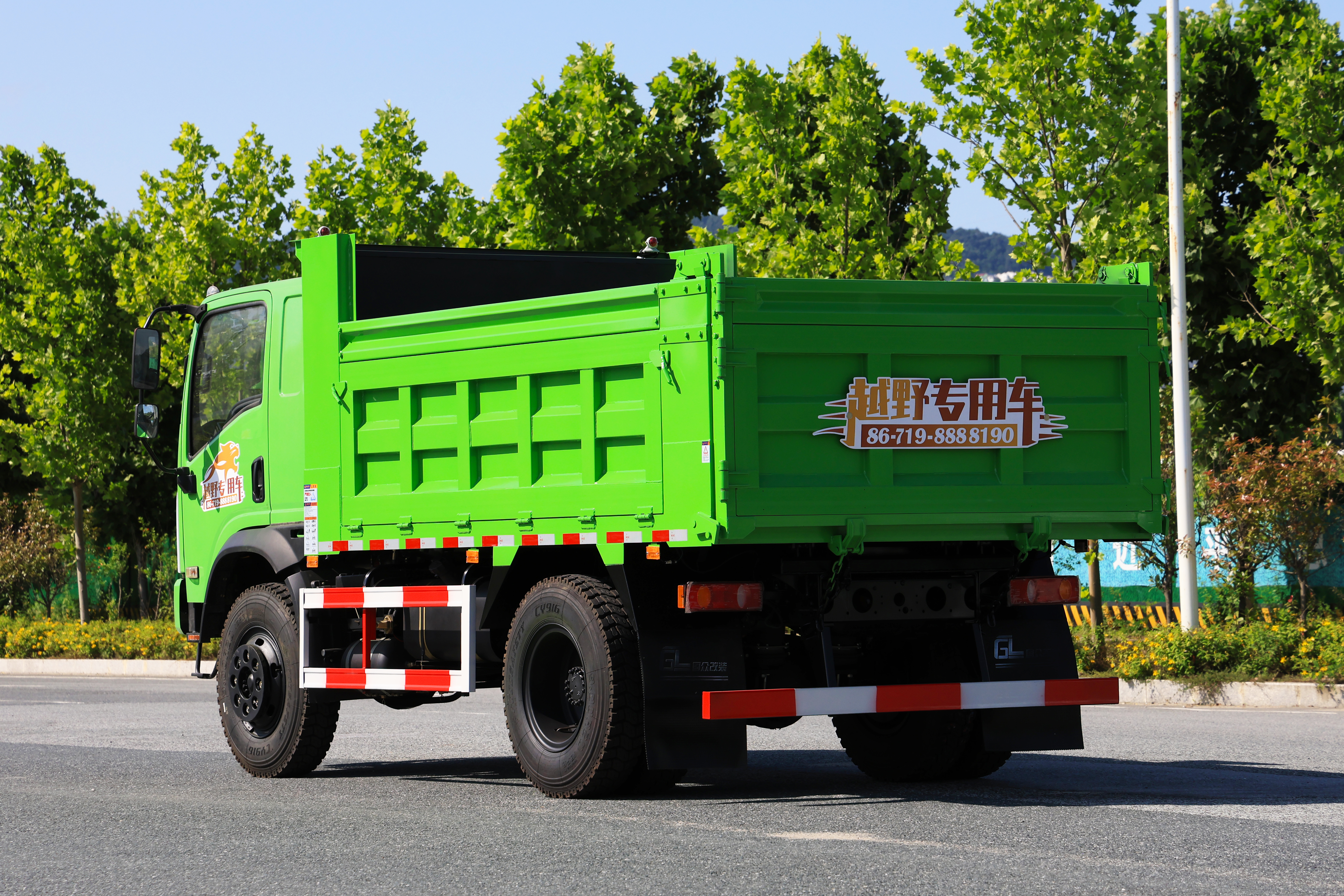

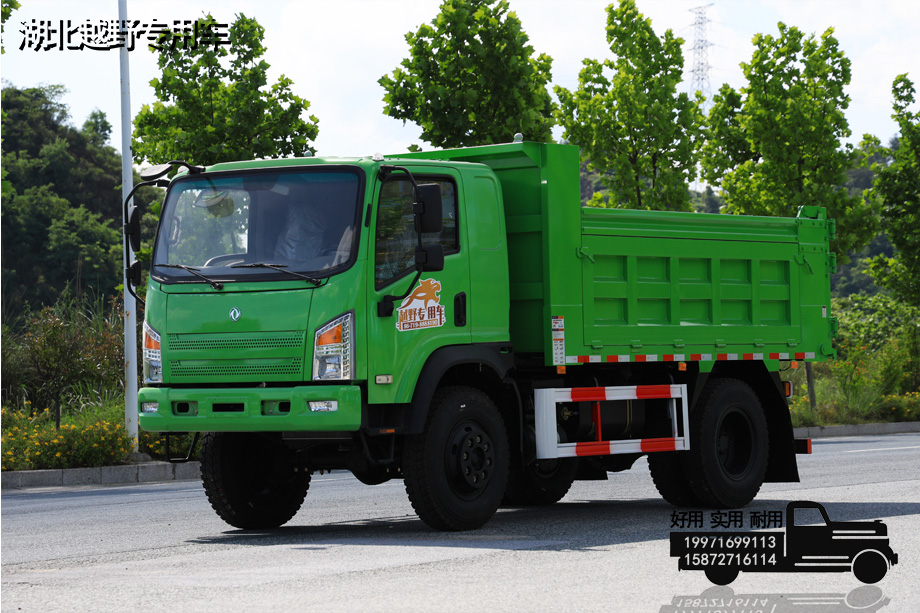

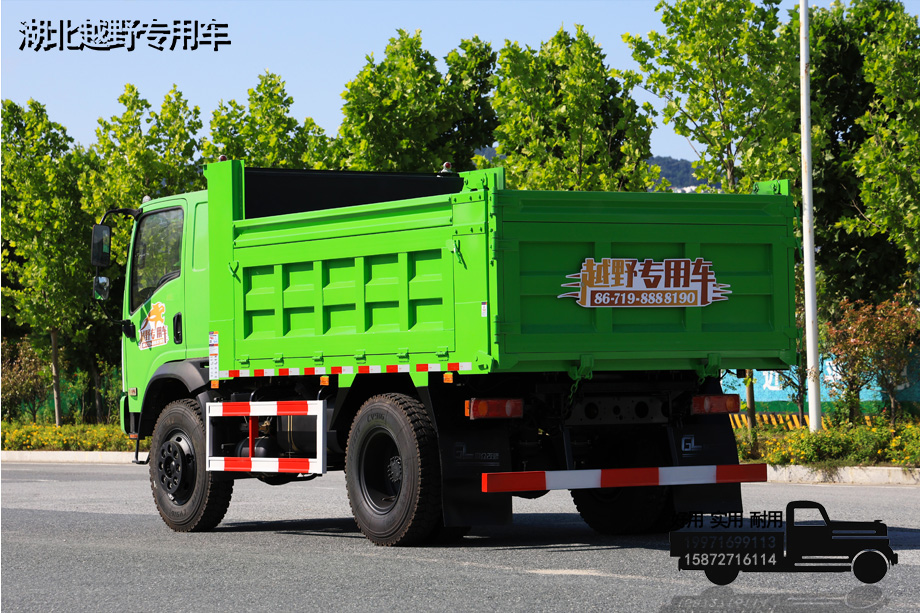

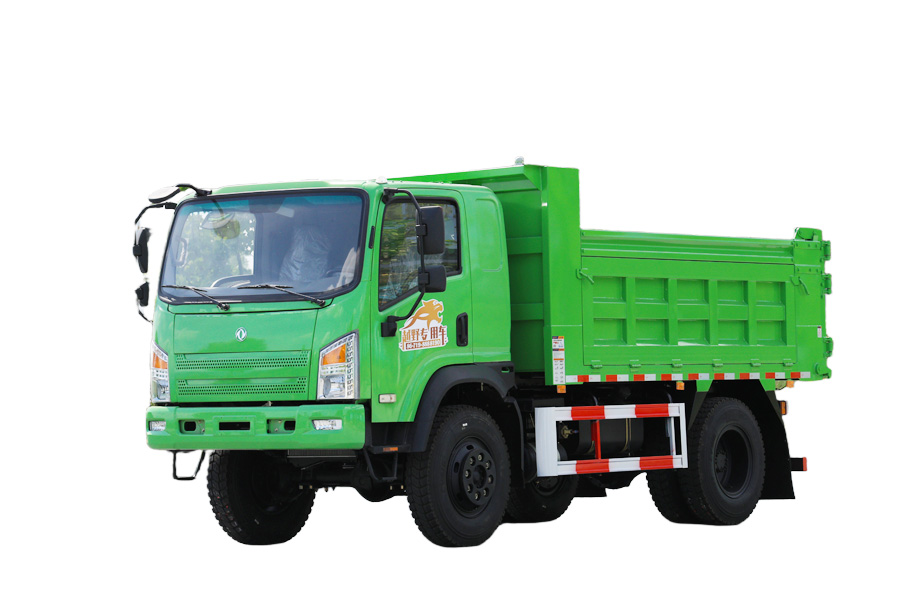

The 4×2/4×4 chassis is our company’s classic light-duty special vehicle chassis. It features lightweight, reliable, durable, and highly modifiable features. It is widely used in excavator boards, flatbeds, vans, warehouses, sanitation, engineering vehicles, etc.
| Basic information | |
| drive | 4*4 |
| direction | Left rudder/right rudder |
| Chassis size | 5700*2360*2650mm |
| Vehicle size | 6370*2480*2650mm |
| total mass | 10700kg |
| curb weight | 6410kg |
| Chassis configuration | |

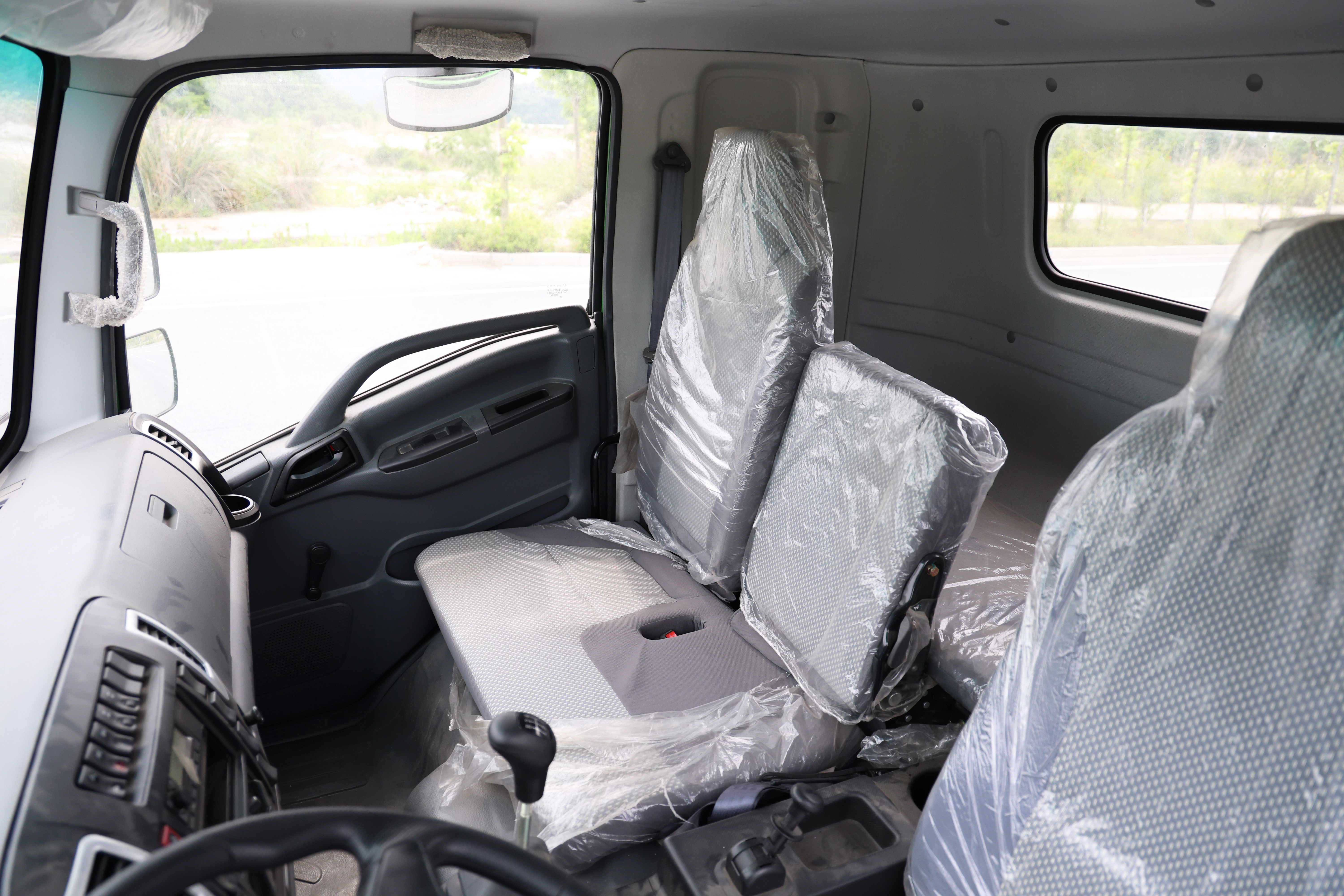

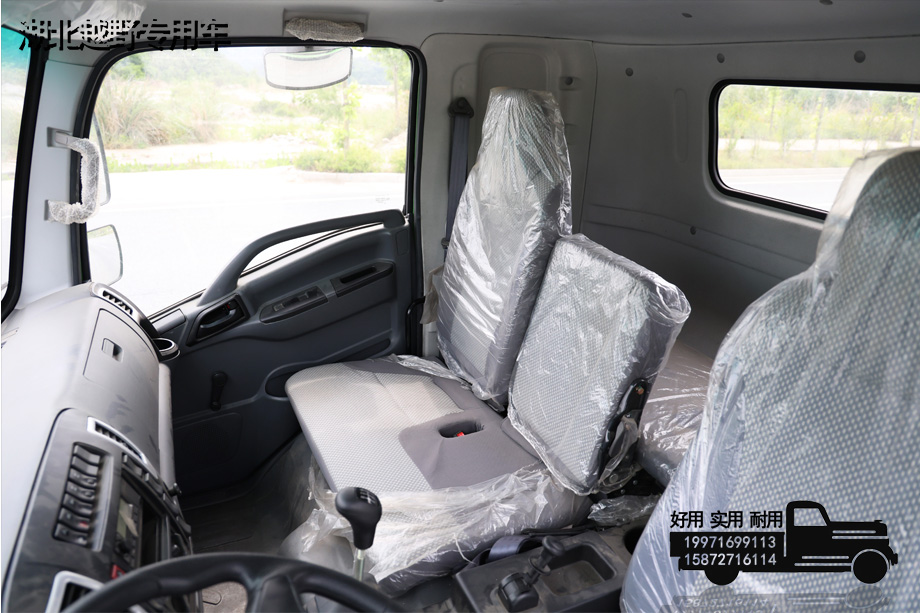

| cab | Flat head, one and a half rows, with air conditioning |
| Number of seats | 3 people |
| Wheelbase | 3300mm |
| Frame | 860*232(8+6)mm |
| engine | Cummins B170 33/190 33/B210 33 |
| Gearbox assembly | Manual 5th gear/6th gear/8th gear |
| transfer case assembly | High and low gears |
| Maebashi | 2.7T |

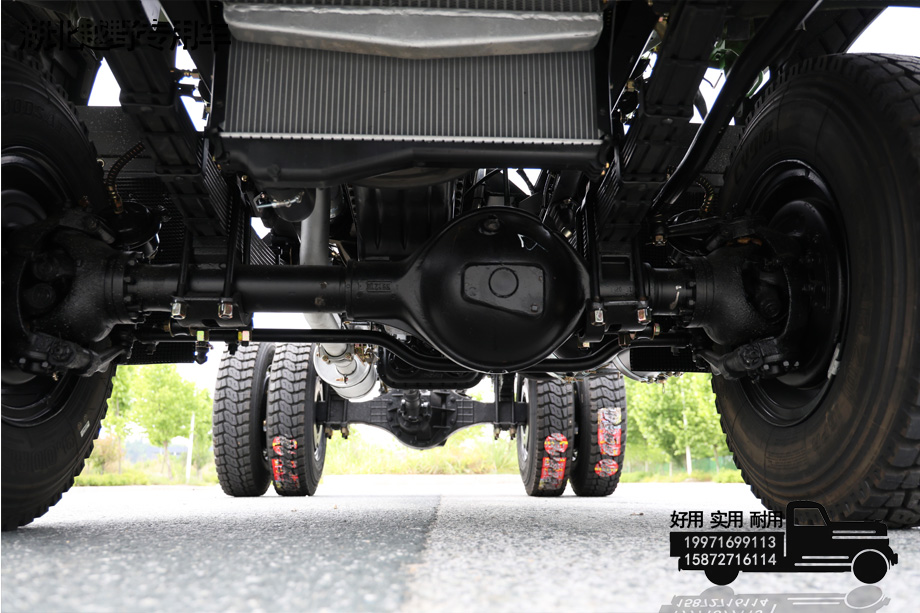

| rear axle | 8T |
| tank | 160L (can be adjusted according to space location) |
| circuit | 24V circuit system |

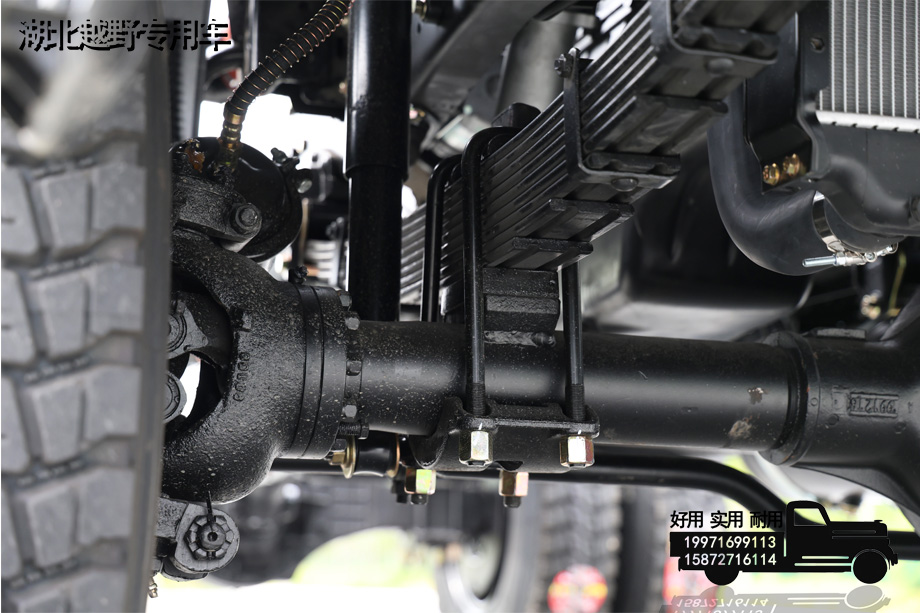

| suspension system | Leaf spring 9/8+10 |
| Braking method | Air brake |
| tire | 9.00R20 (6+1) |
| Bodywork configuration | |
| Tops | 3950*2450*1100mm (outside ) 3800*2200* (800+200)mm (inside) |
| engine | |
| engine | Cummins 170 33 |
| horsepower | 170 |
| emission | National Three |
| Displacement | 5.9L |
| Number of cylinders | 6 |
| Output power | 125kw |
| Torque | 560N.m |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 85km/h |
| approach angle | 21° |
| departure angle | 16° |
| Wheelbase | 1780/1840mm |
| ground clearance | 280mm |
| The upper plane of the frame is off the ground | 1040mm (chassis status) |
| gradeability | 60% |
| standing slope | 40% |
| wading | 620mm |
| Overcome obstacles | 280mm |
| other | |
| other | Fire extinguishers, vehicle tools |
