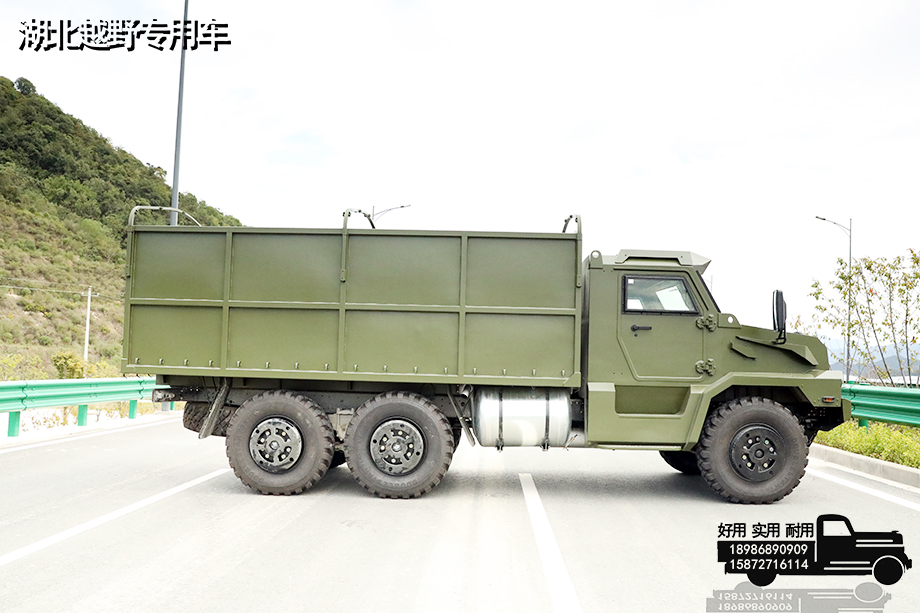

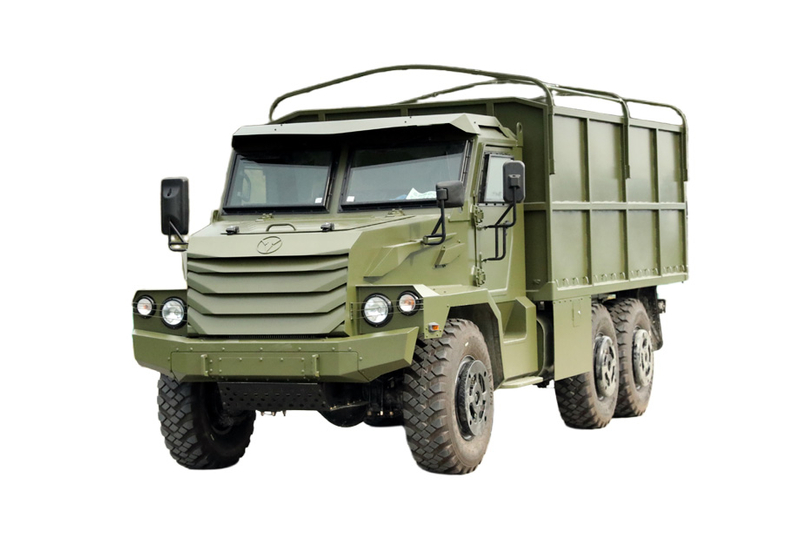

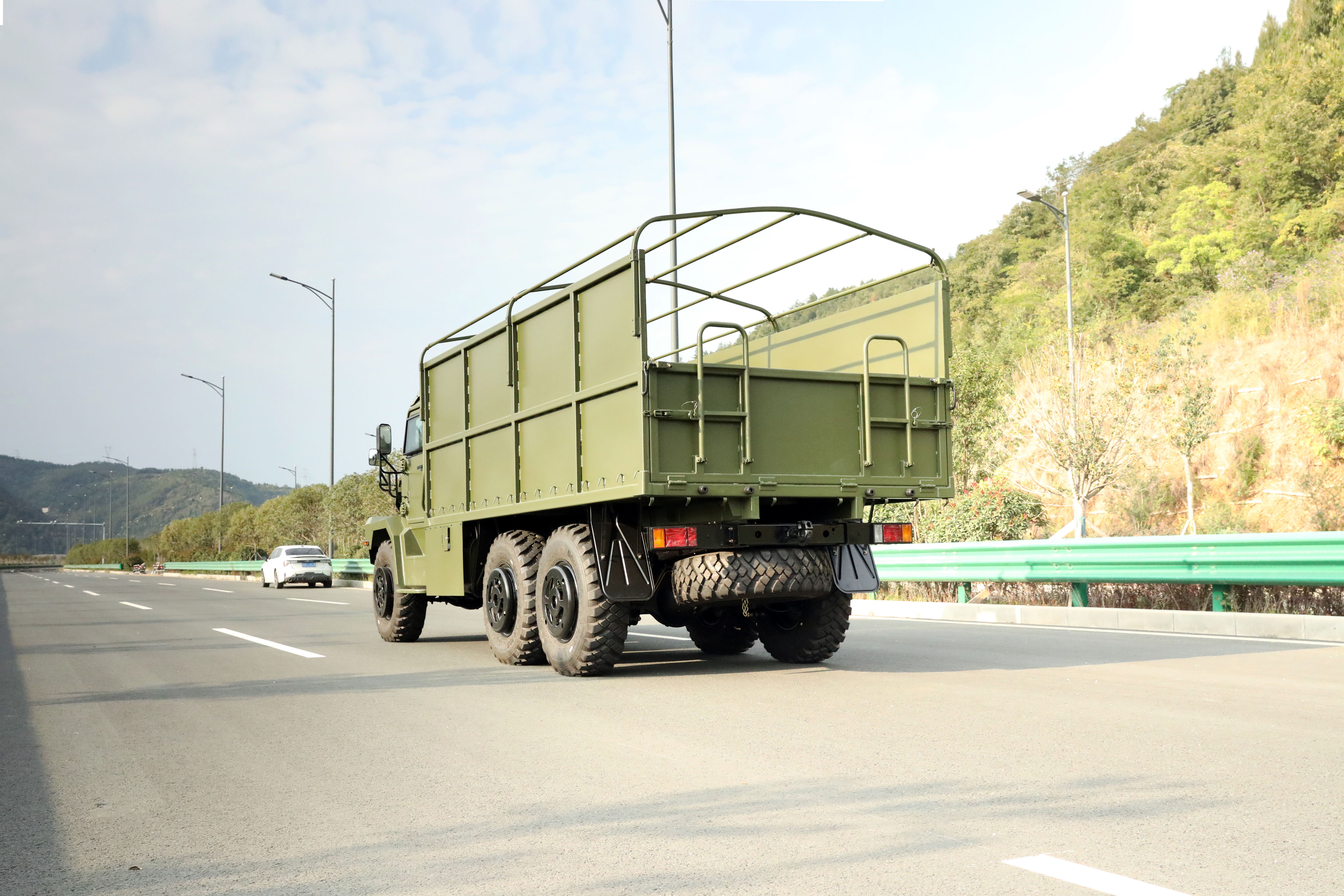

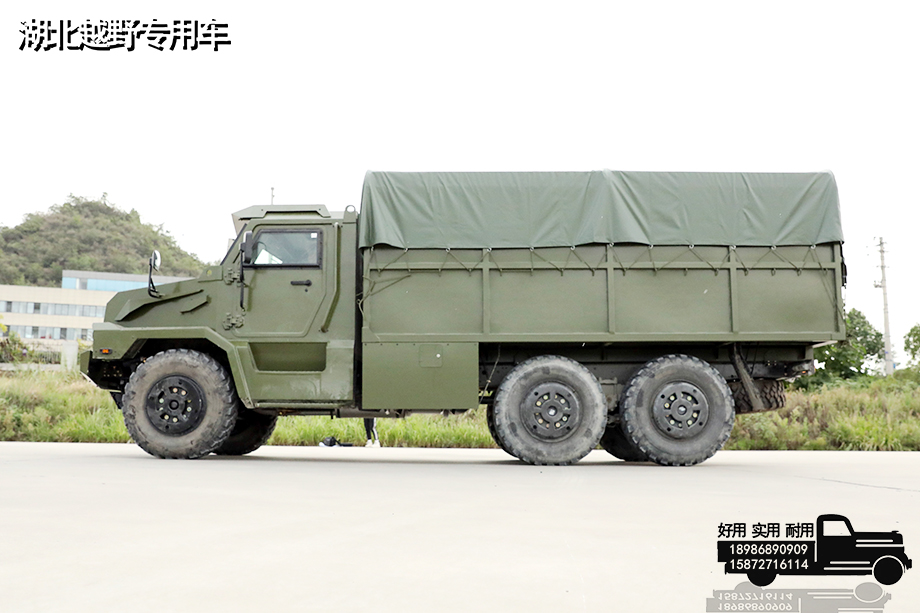

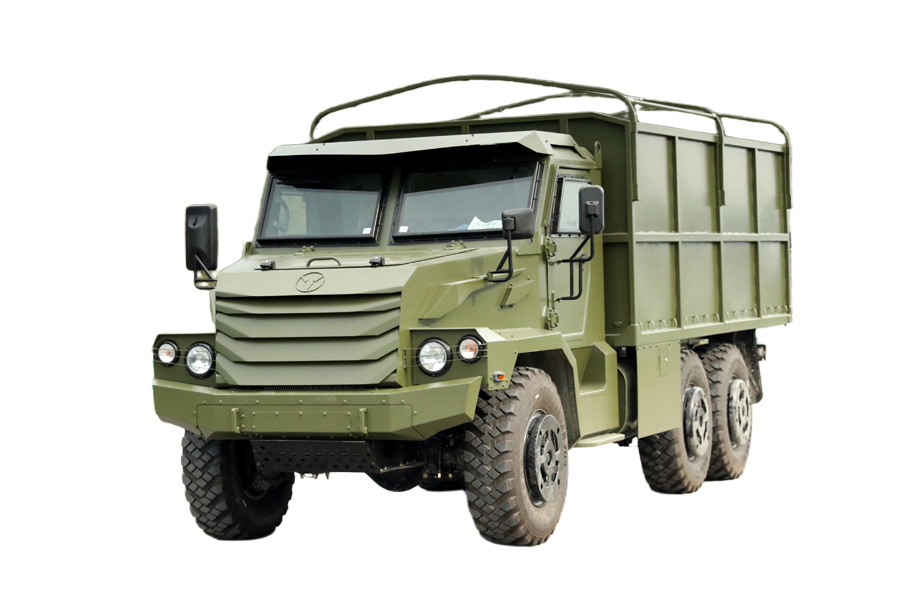

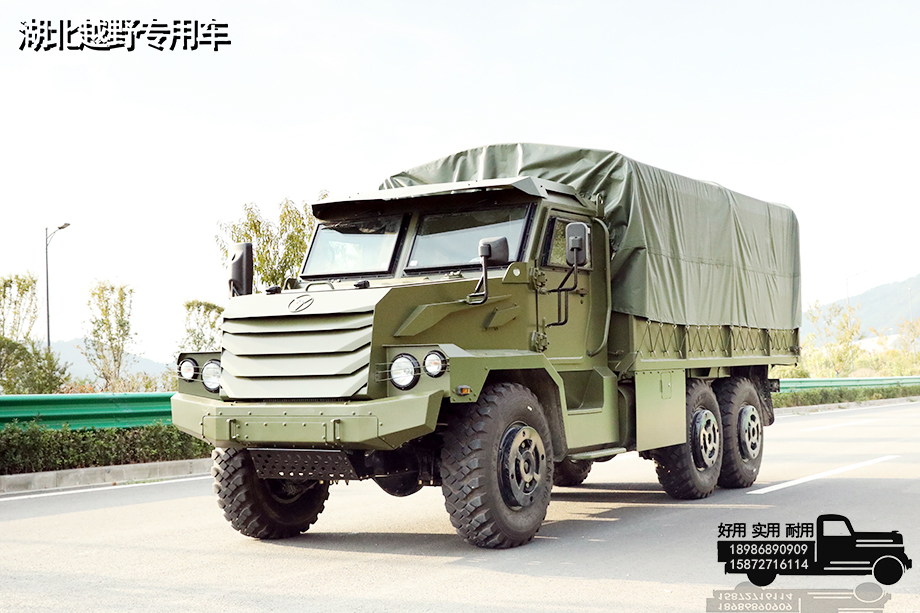

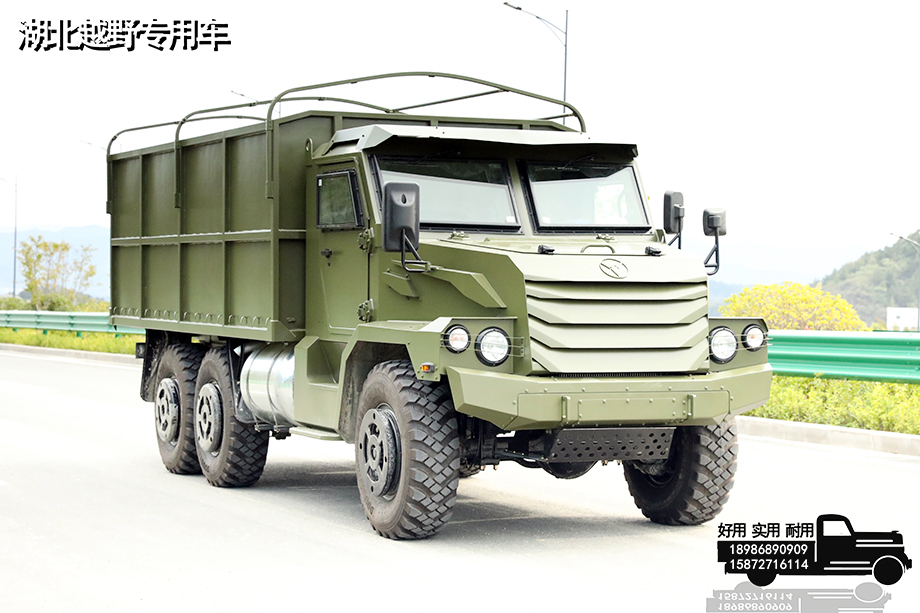

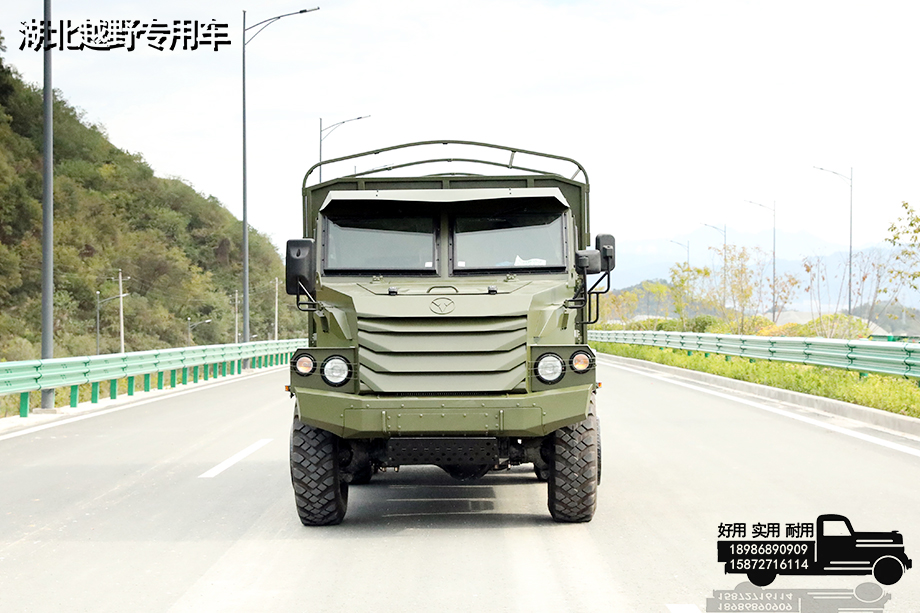

DF245 is a three-and-a-half-ton off-road truck developed by the DF company. It is equipped with special facilities such as a winch and flip-up seats. It is mainly used to carry people and cargo. The 6x6 drive can travel in forests, deserts, and swamps, and it also has certain wading capabilities.

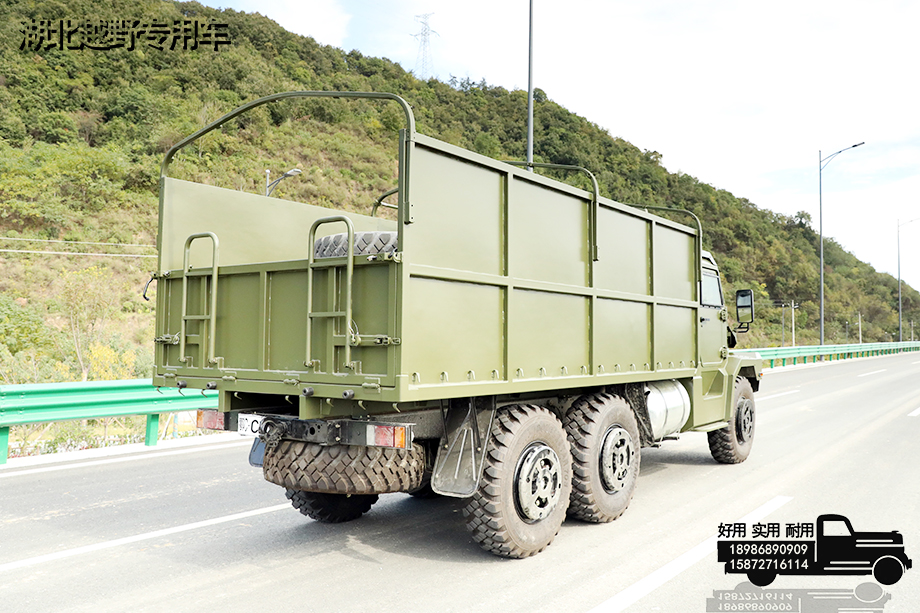

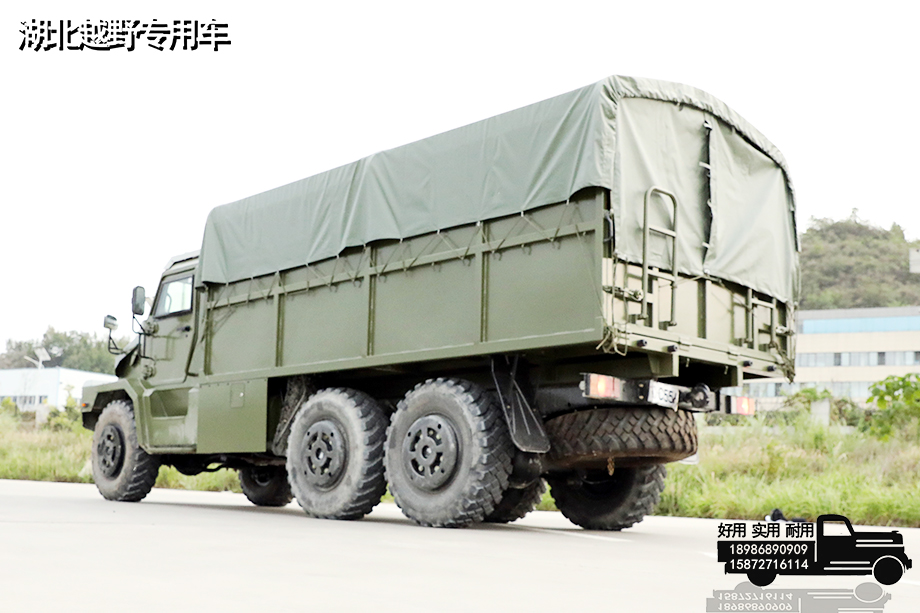

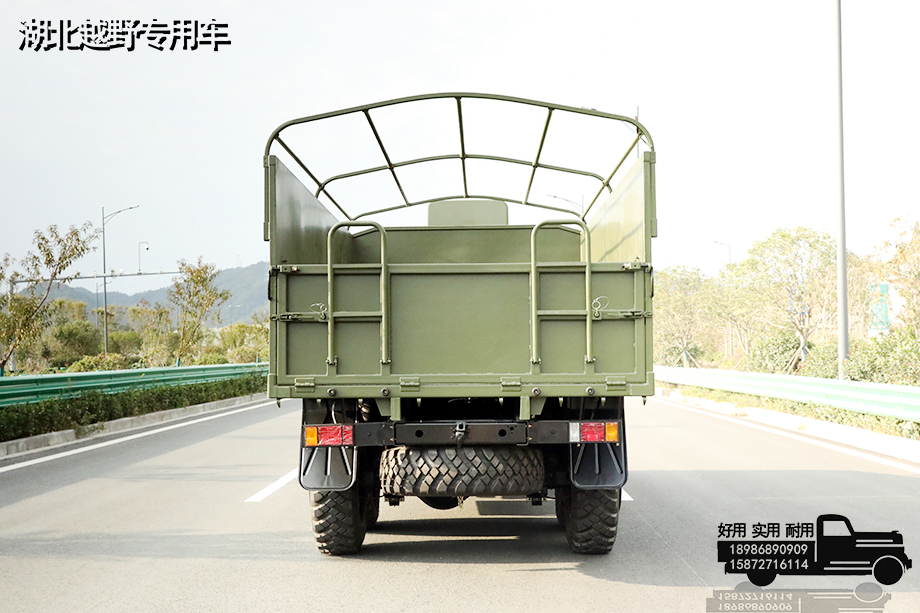

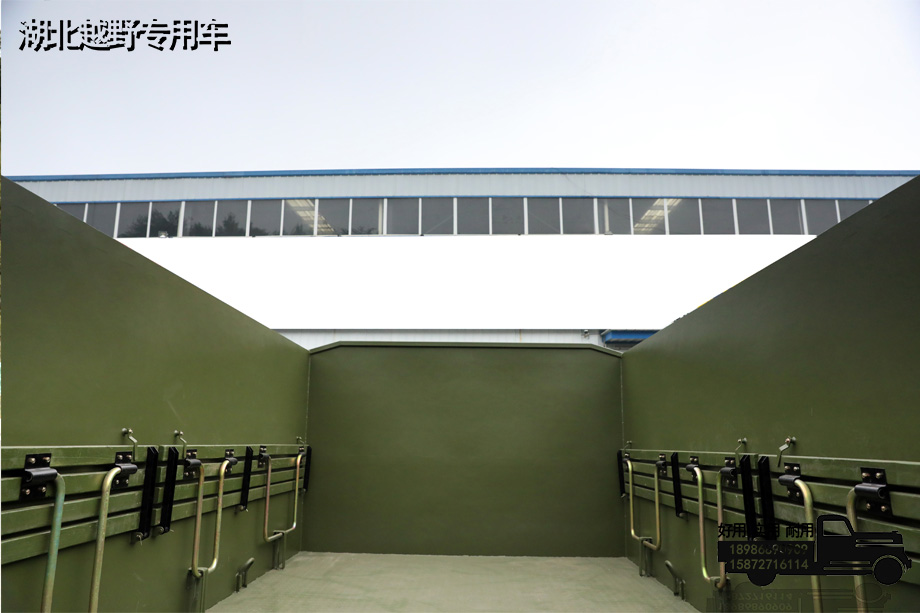

The engine has a preheating function, and the vehicle can start smoothly at an ambient temperature of -41°C. The cargo box floor is made of pure iron with anti-slip patterns. Folding seats are installed on the side panels on both sides, a fixed chain is installed inside the cargo box, and the tail box panel can be opened with 2 folding ladders. The tarpaulin poles are removable and can effectively protect the people and materials in the cargo box in windy and rainy weather.
| Basic information | |
| drive | 6*6/6*4/6*2 |
| direction | Left rudder/right rudder |
| Vehicle size | 7500*2450*3270mm |
| total mass | 14000kg |
| curb weight | 8480kg |
| Chassis configuration | |

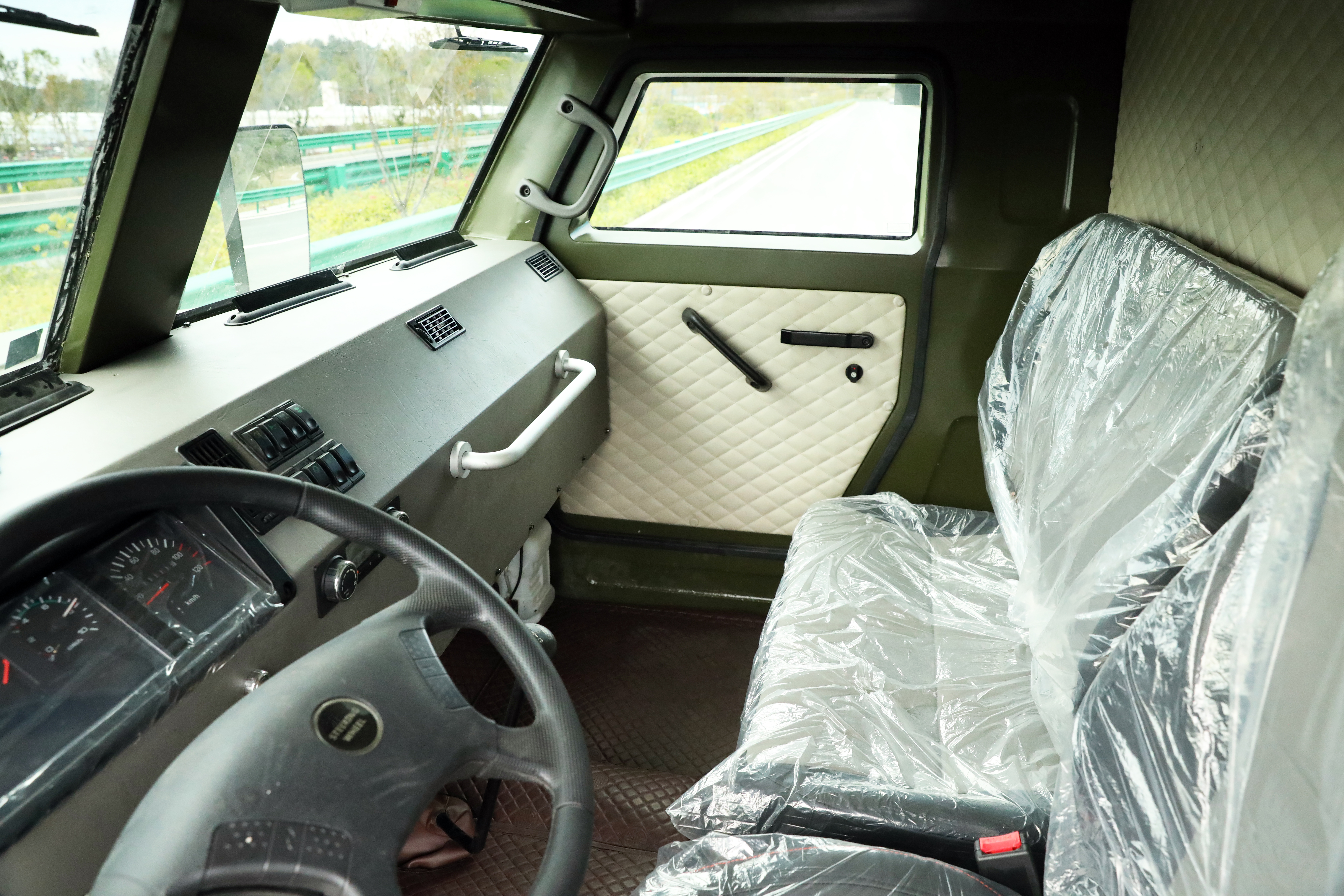

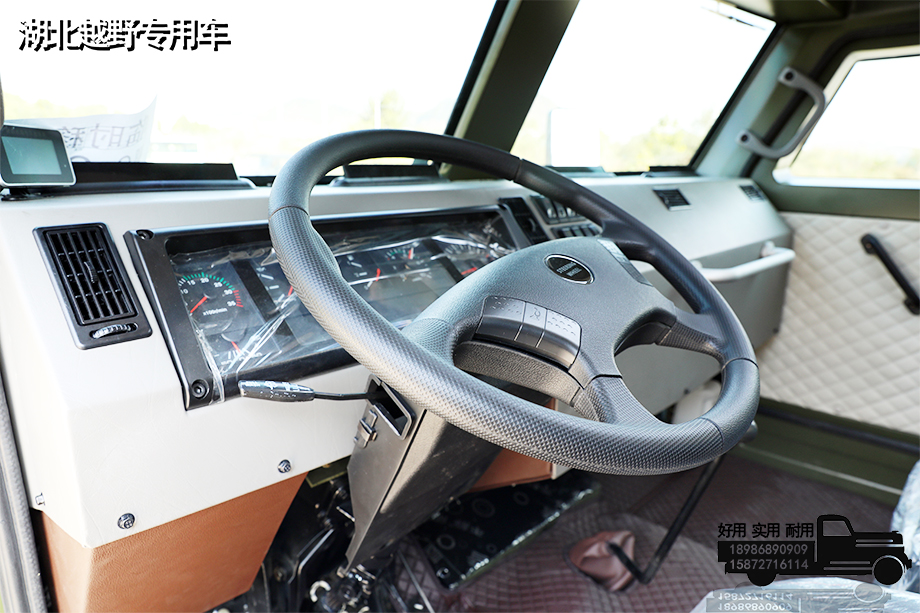

| cab | Pointed, single row, air-conditioned |
| Number of seats | 3 people |
| Wheelbase | 3475+1250mm |
| Frame | 860*232mm |
| engine | Cummins B210 33/optional B190 33 |
| Gearbox assembly | Manual 5-speed/6-speed/small 8-speed |
| transfer case assembly | High and low gears |
| Maebashi | 3.5T |
| middle bridge | 3.5T |
| rear axle | 3.5T |
| tank | 210L |
| circuit | 24V circuit system |
| suspension system | Leaf spring8/12 |
| Braking method | Air brake |
| tire | 12R20(6+1) |
| Bodywork configuration | |
| cargo box | 4650*2400*1630mm |
| engine | |
| engine | Cummins B210 33 |
| horsepower | 210 |
| emission | National Three |
| Displacement | 5.9L |
| Number of cylinders | 6 |
| Output power | 155kw |
| Torque | 700N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 88km/h |
| approach angle | 35° |
| departure angle | 34° |
| front overhang | 1140mm |
| Rear suspension | 1635mm |
| Obstacle clearance height | 400mm |
| Wheelbase | 1876/1870/1870mm |
| ground clearance | 305mm |
| wading depth | 1000mm |
| trench width | 700mm |
| gradeability | 60% |
| standing slope | 40% |
| other | |
| other | Water buckets, oil buckets, fire extinguishers, vehicle tools, tarpaulin poles |
