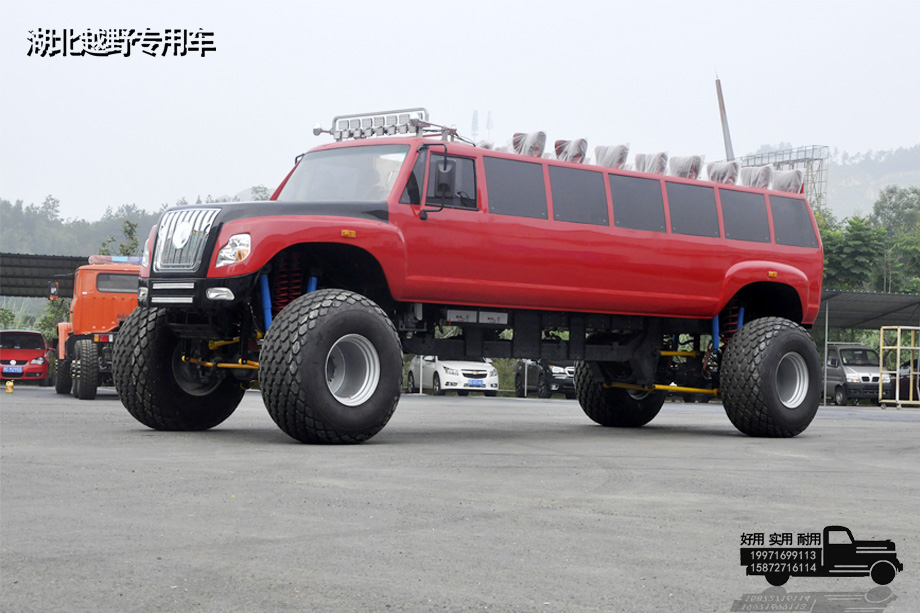

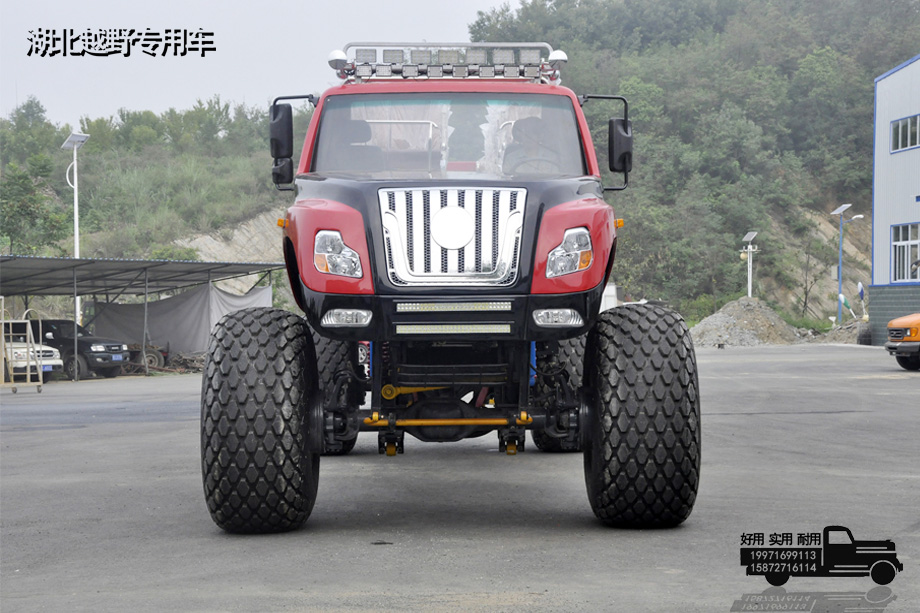

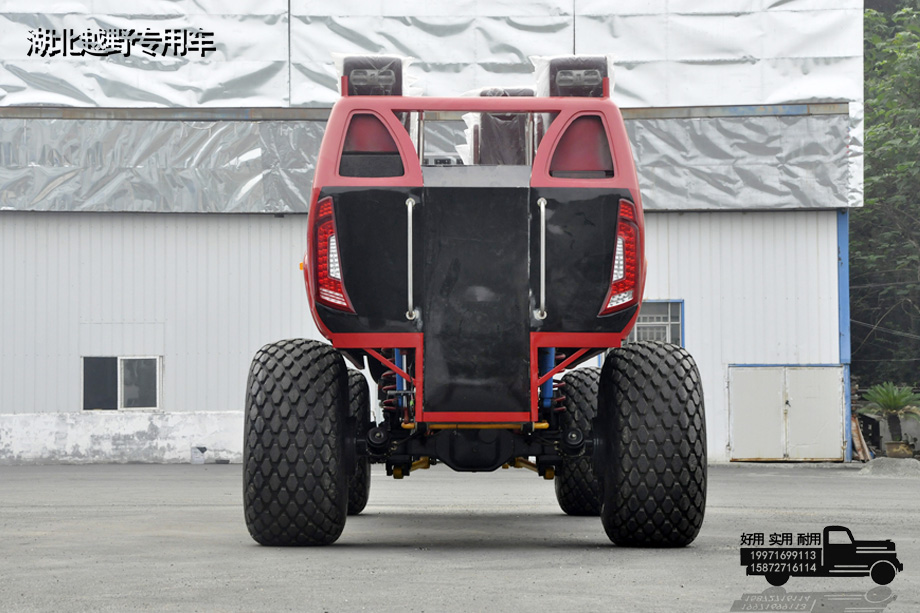

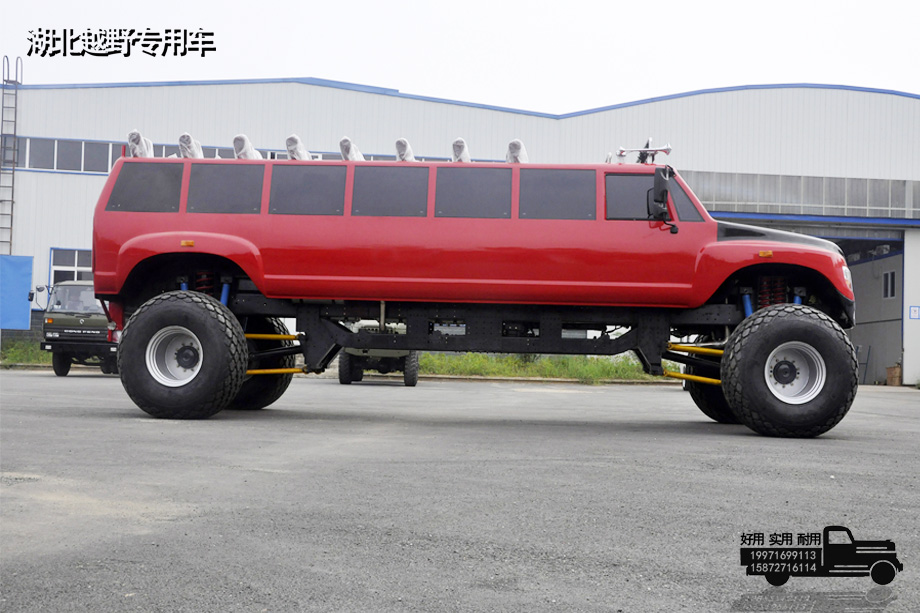

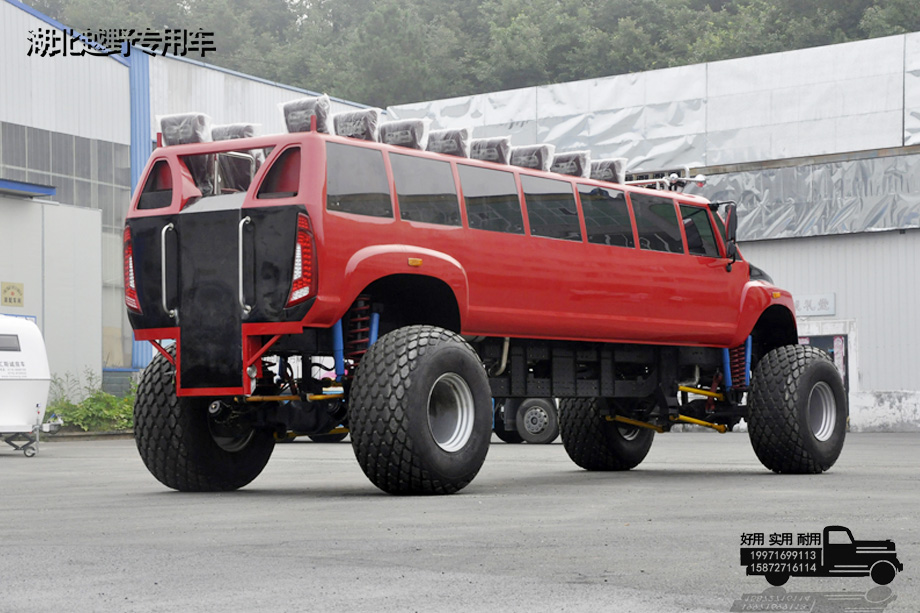

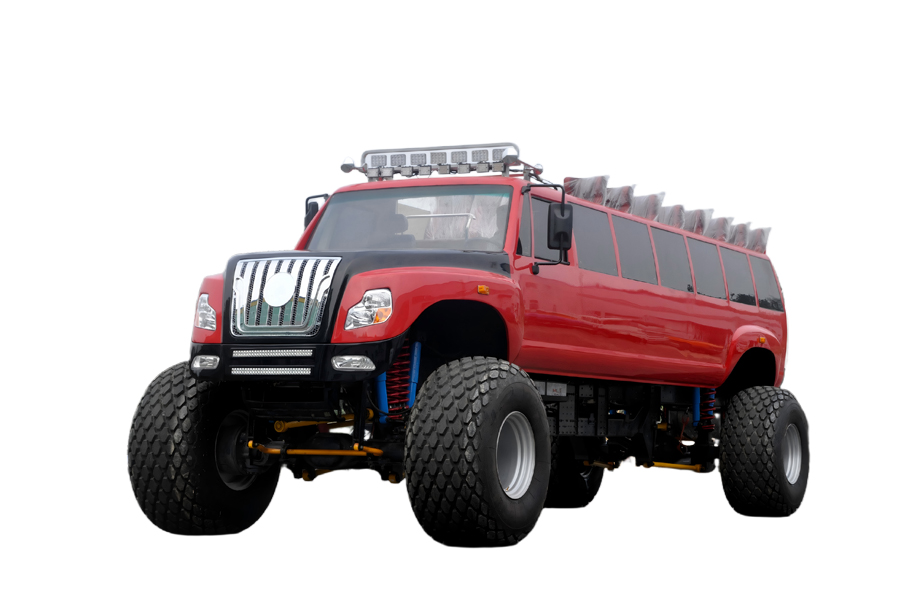

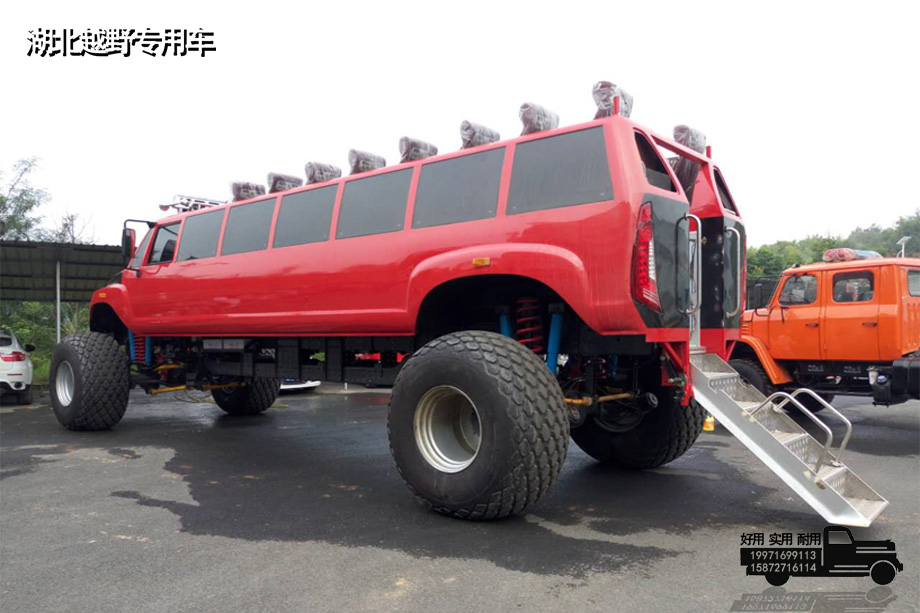

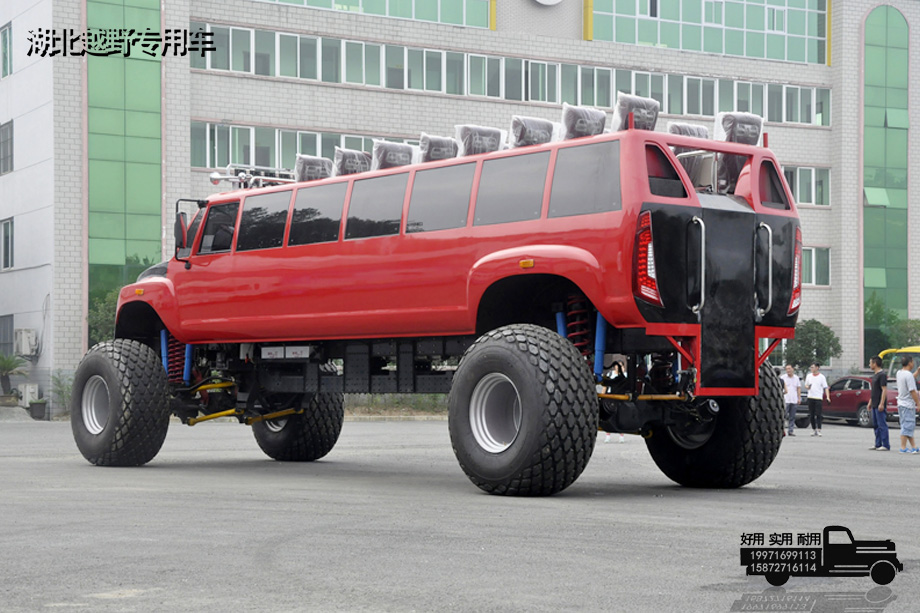

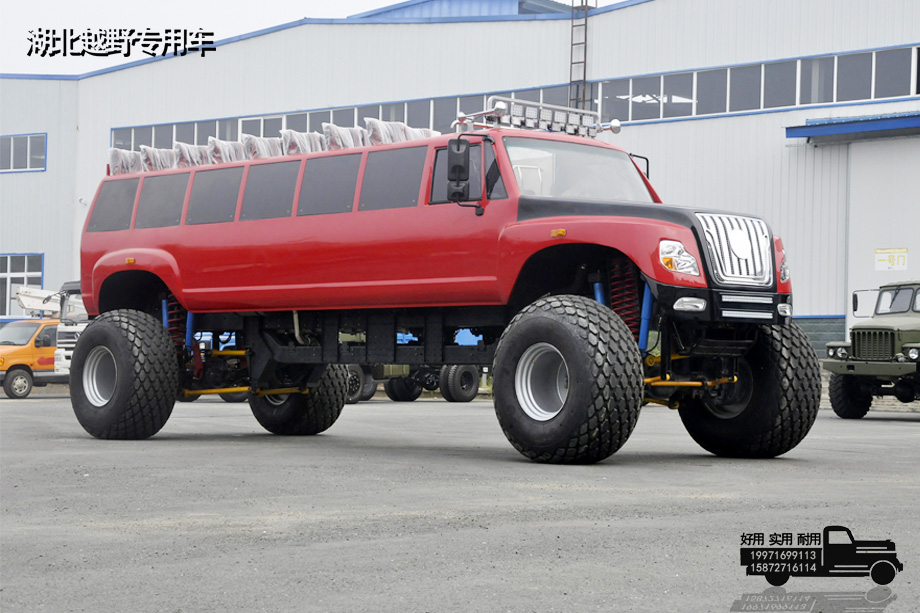

The four-wheel drive desert scenic surf car developed and designed by our company is a customized off-highway personnel transport vehicle. It is mainly used for tourists in desert areas and can accommodate 18 people.
| Basic information | |
| drive | 4*4 |
| direction | Left rudder/right rudder |
| Chassis size | / |
| Vehicle size | 10200×3400×3580mm |
| total mass | 22000kg |
| curb weight | 8000kg |
| Chassis configuration | |
| cab | crew cut |
| Number of seats | 16+2 people |
| Wheelbase | 7600mm |
| Frame | 860*280 (double layer) mm |
| engine | Cummins I375 30 |
| Gearbox assembly | Manual 9 speed |
| transfer case assembly | High and low gears |
| Maebashi | 9T |
| rear axle | 13T |
| tank | 380L |
| circuit | 24V circuit system |
| suspension system | leaf spring |
| Braking method | Air brake |
| tire | Desert tires (4) |
| Bodywork configuration | |
| cargo box | / |
| engine | |
| engine | Cummins L375 30 |
| horsepower | 375 |
| emission | National Three |
| Displacement | 8.9L |
| Number of cylinders | 6 |
| Output power | 276kw |
| Torque | 1480N.m |
| Speed | 2200rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | Recommended ≤60km/h |
| wading depth | 1900mm |
| approach angle | 50° |
| departure angle | 34° |
| front overhang | 1774mm |
| Rear suspension | 1250mm |
| Overcome obstacles | 1000mm |
| ground clearance | 605mm (lower end of front axle housing) |
| gradeability | 60% |
| other | |
| other | Vehicle tools. |









The first step: Negotiate purchase requirements
Customers can inform us of their needs by phone/WeChat or on-site inspection.
Step 2: Customize the plan
The company will recommend corresponding models or customize vehicle configurations according to your needs.
Step Three: Sign the Contract
Both parties sign a vehicle purchase and sale contract and pay the contract deposit in advance (the contract can be signed by fax or in person).
Step 4: Arrange production
Issue production plans and arrange production.
Step Five: Vehicle Completion
After the vehicle is offline for inspection, the remaining balance of the vehicle must be paid and relevant procedures completed.
Step Six: Logistics Departure
Customers can pick up the vehicle from the factory, or negotiate with our company to arrange delivery to a designated location.
other :
1. The company can provide customers with export customs declaration services.
2. Complete after-sales service station to solve your worries!
