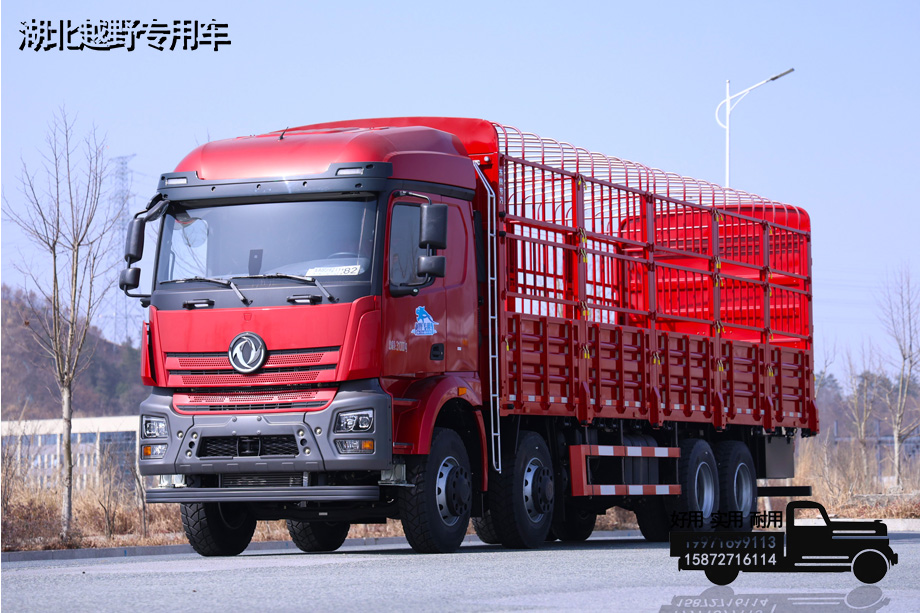

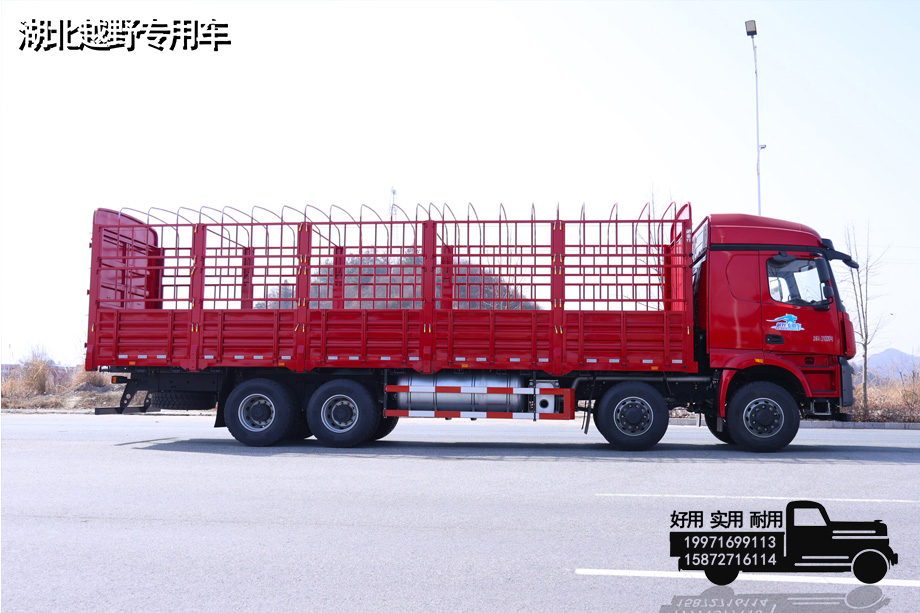

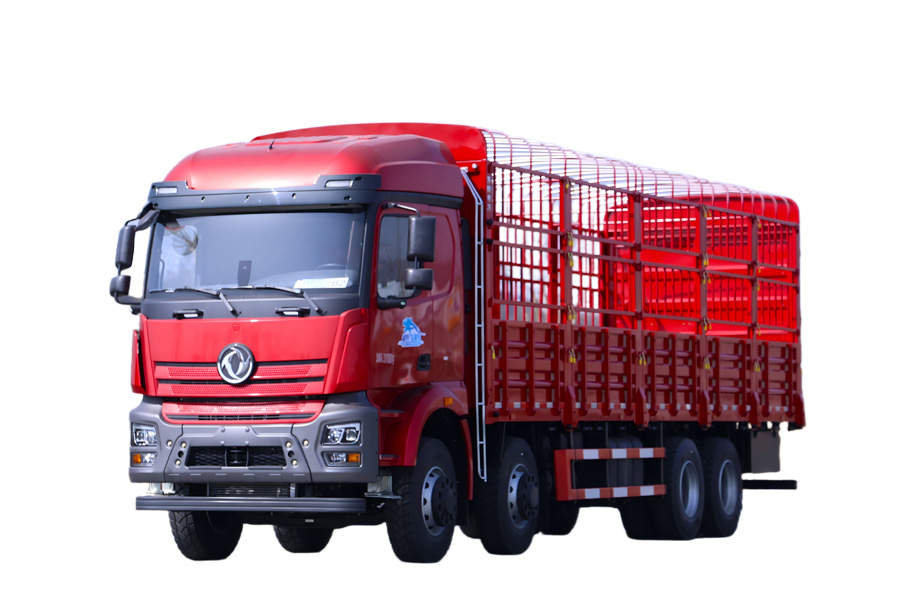

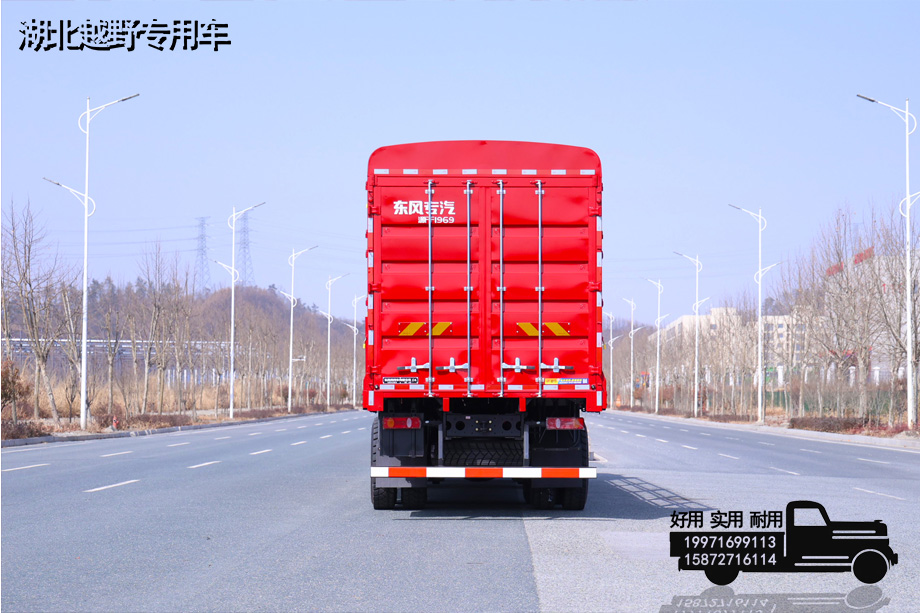

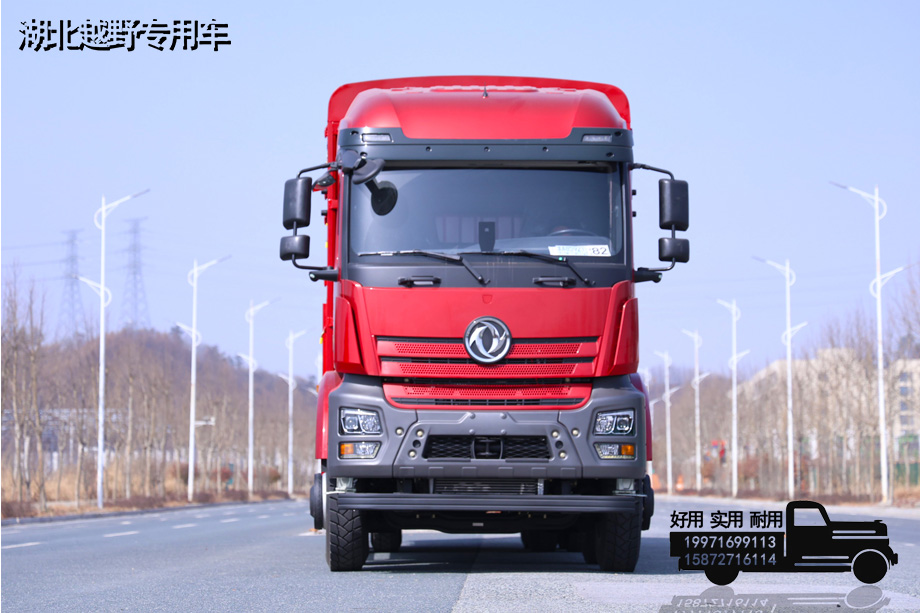

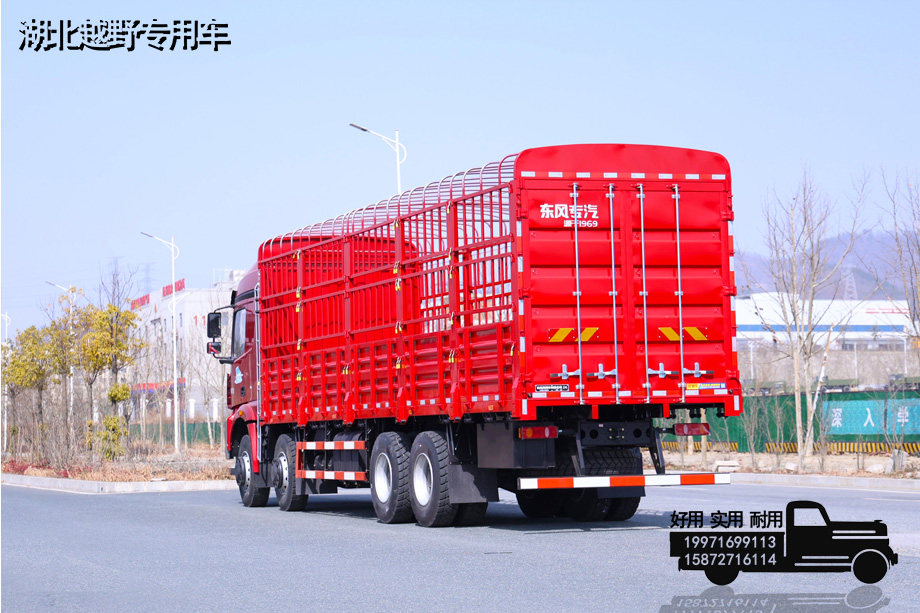

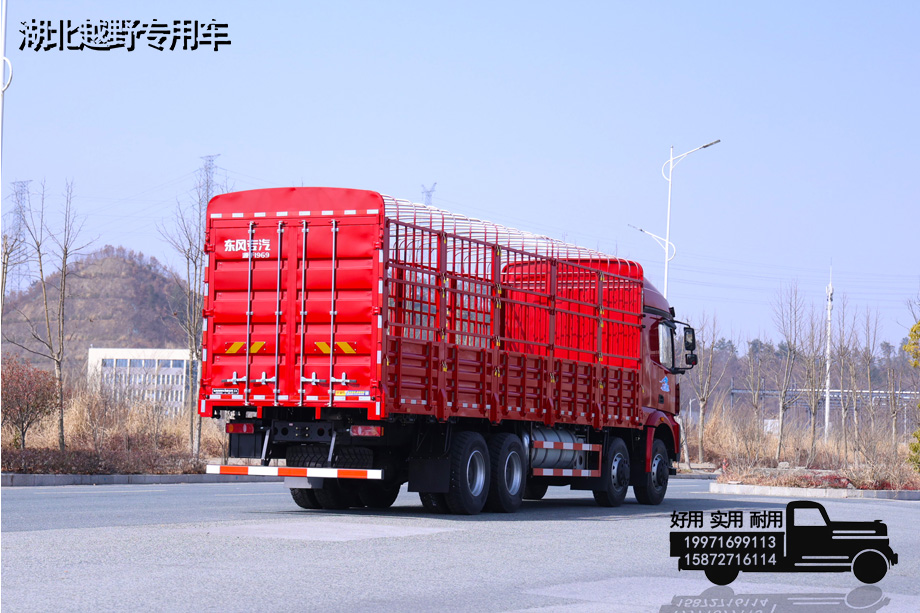

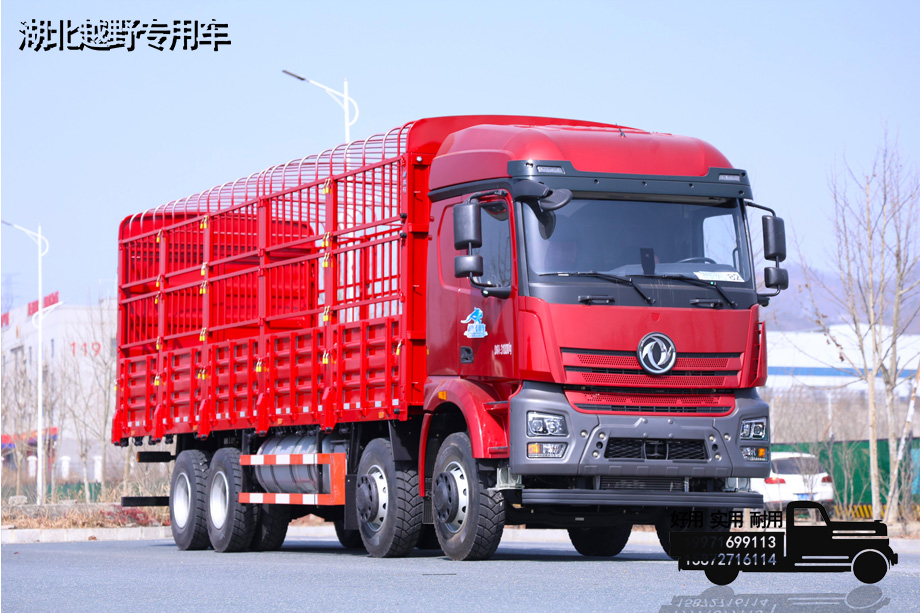

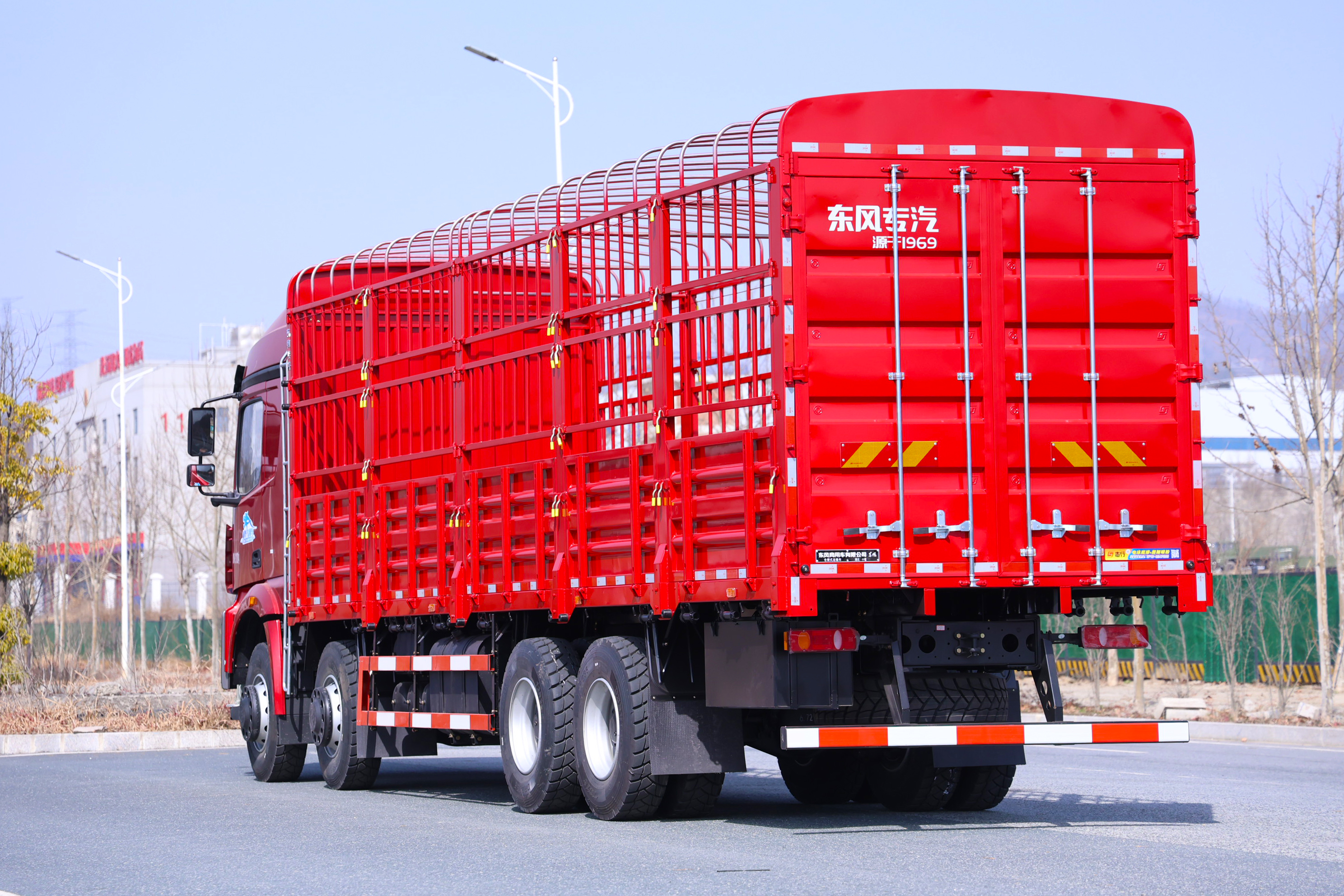

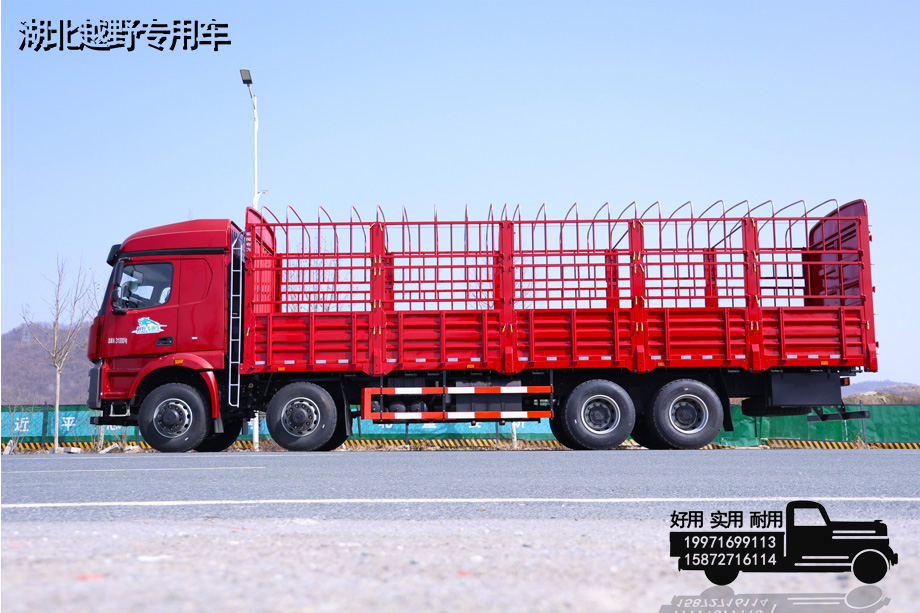

The 8×4 (four at the front and eight at the rear) 9600mm warehouse truck is the mainstream heavy-duty truck in China. Its core advantages are strong load-bearing capacity, large volume, and high versatility. It is widely used in trunk lines and medium and long-distance transportation of general cargo, green transportation, livestock and poultry, and building materials.
| Basic information | |
| drive | 8*4 |
| direction | Left rudder/right rudder |
| Chassis size | / |
| Vehicle size | 12300*2580*3870mm |
| total mass | 31000kg |
| curb weight | 14150kg |
| Chassis configuration | |

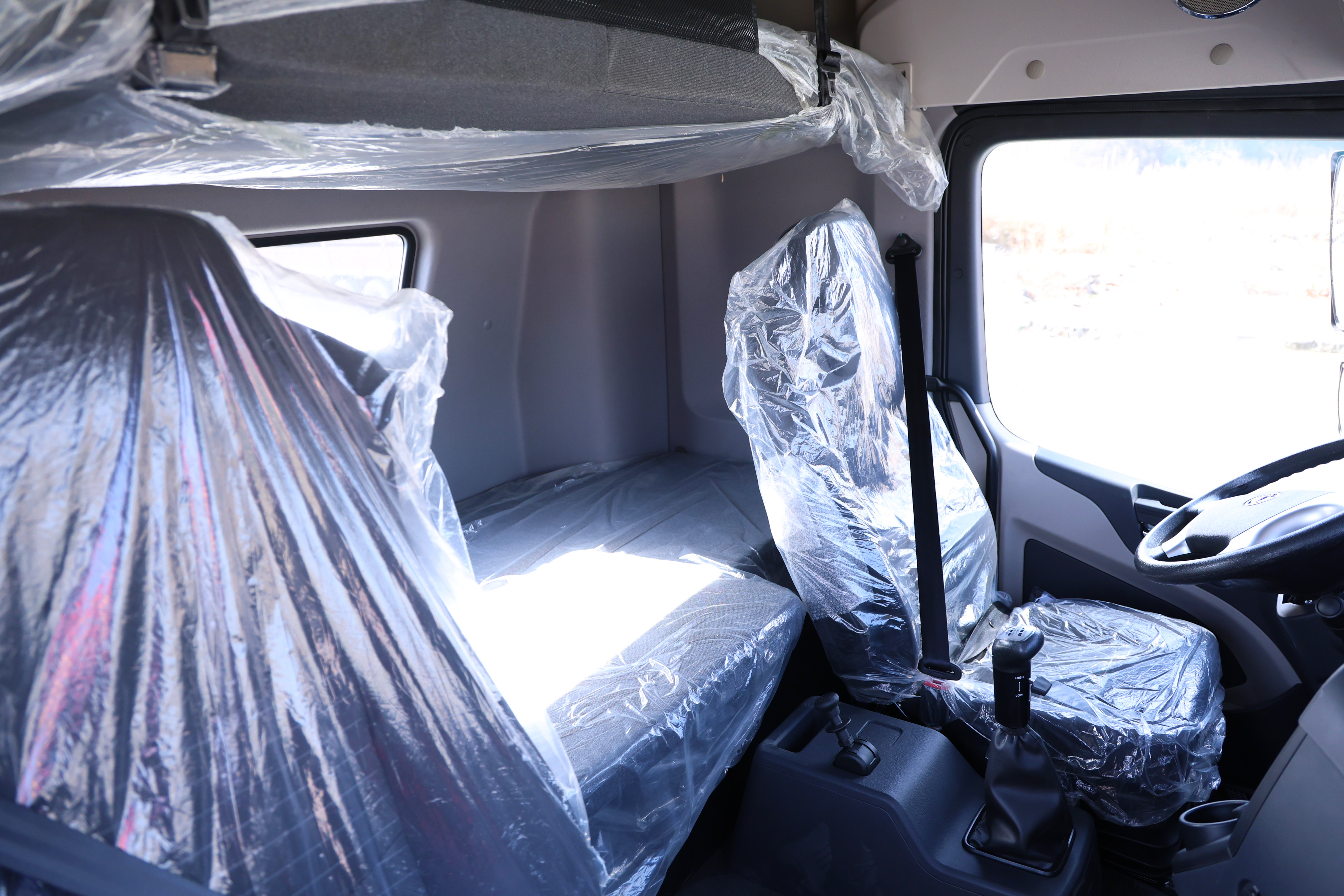

| cab | Flat top, one and a half rows, high ceiling two bedrooms, with air conditioning |
| Number of seats | 3 people |
| Wheelbase | 1950+4600+1350mm |
| Frame | 850*300(8+6+4)mm |
| engine | Weichai WP13.500E201 |
| Gearbox assembly | Manual 12 gears |
| Qian Shuangqiao | 7T/7T |
| Rear double bridge | 16T/16T |
| tank | 380L (can be made as large as possible according to space location) |
| circuit | 24V circuit system |

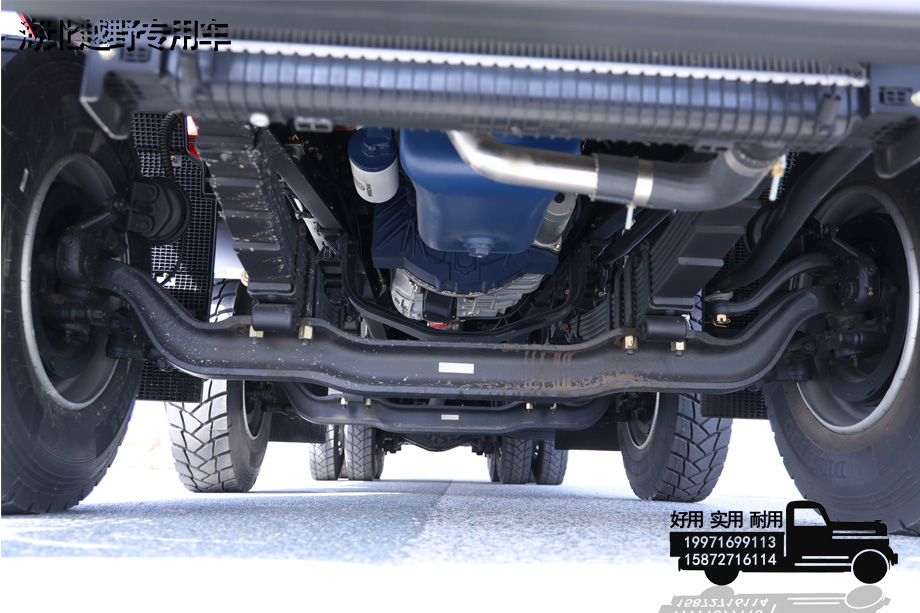

| suspension system | Leaf Spring9/9/10 |
| Braking method | Air brake |
| tire | 12R22.5 (12+1) |
| Bodywork configuration | |

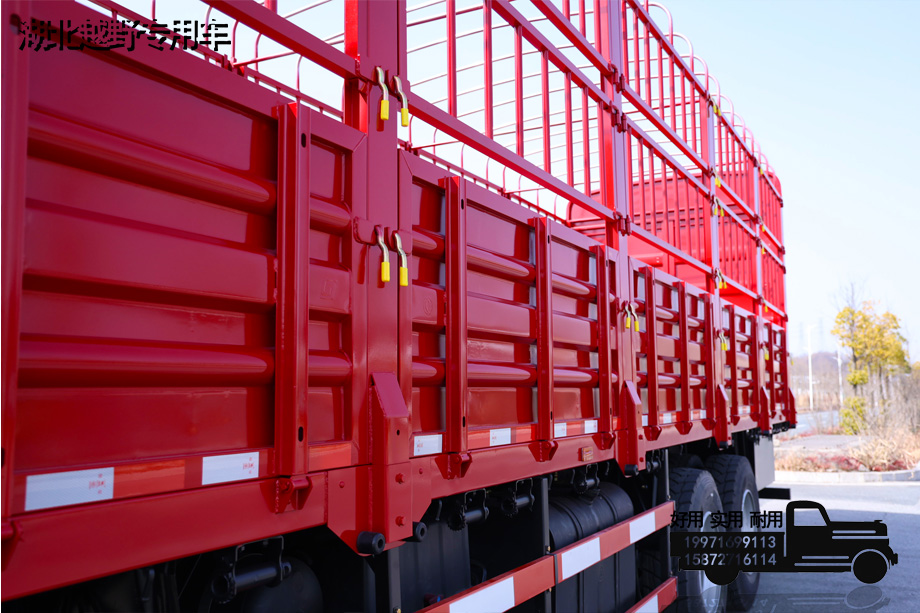

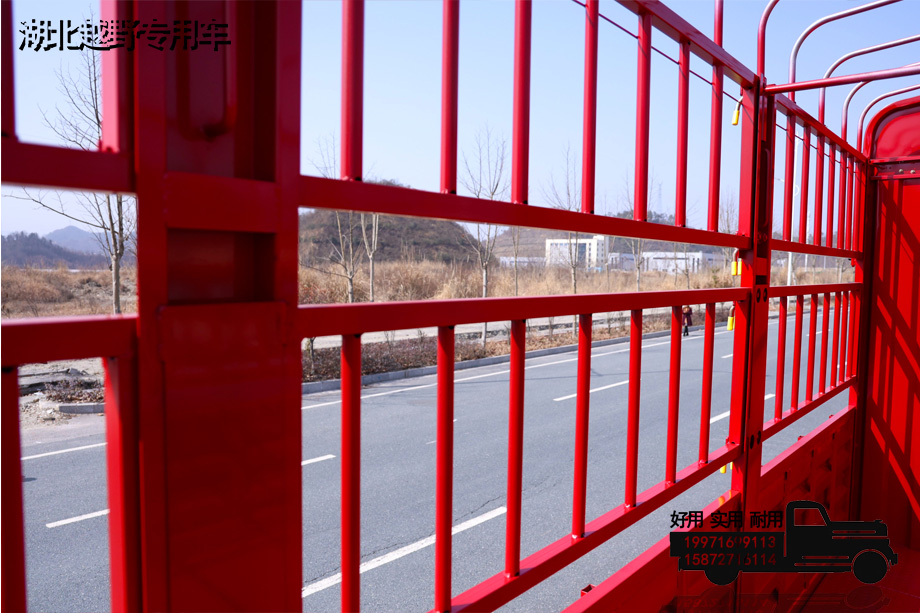

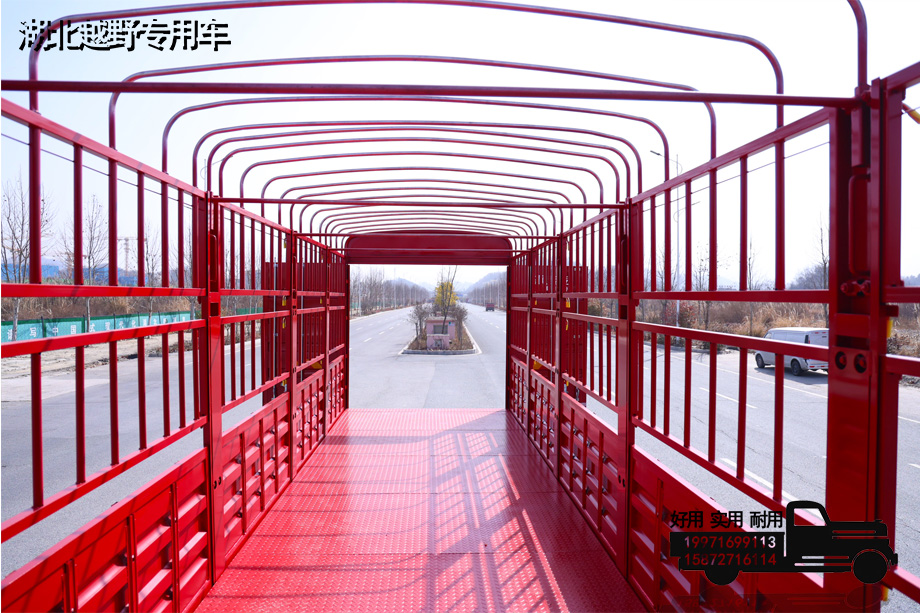

| cargo box | 9600*2350*2530mm |
| engine | |
| engine | Weichai WP13.500E201 |
| horsepower | 500 |
| emission | Second grade |
| Displacement | 12.54L |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 90km/h |
| approach angle | 20° |
| departure angle | 10° |
| Wheelbase | 2020/1820mm |
| ground clearance | 290mm |
| Obstacle clearance height | 435mm |
| Wading height | 660mm |
| gradeability | 60% |
| standing slope | 40% |
| other | |
| other | Fire extinguishers, vehicle tools |
