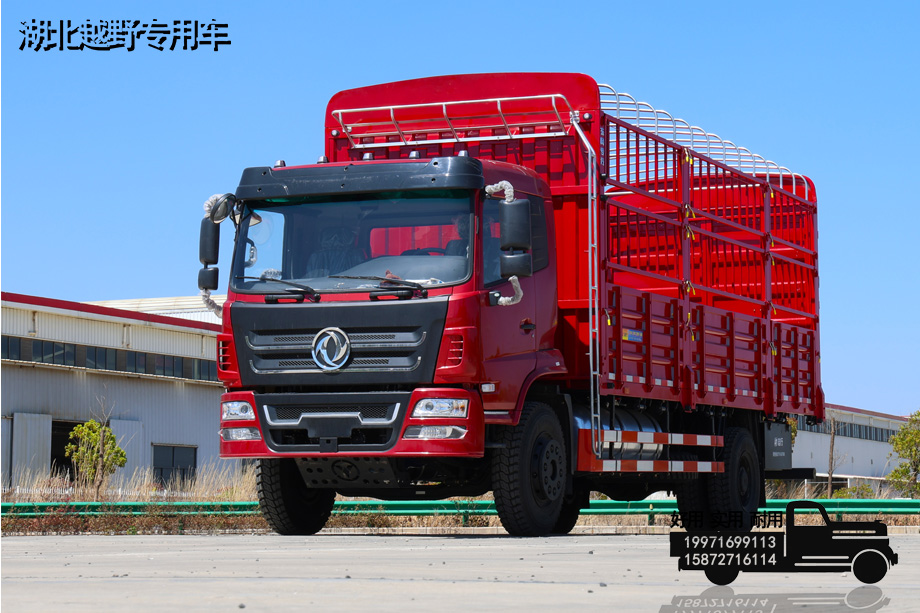

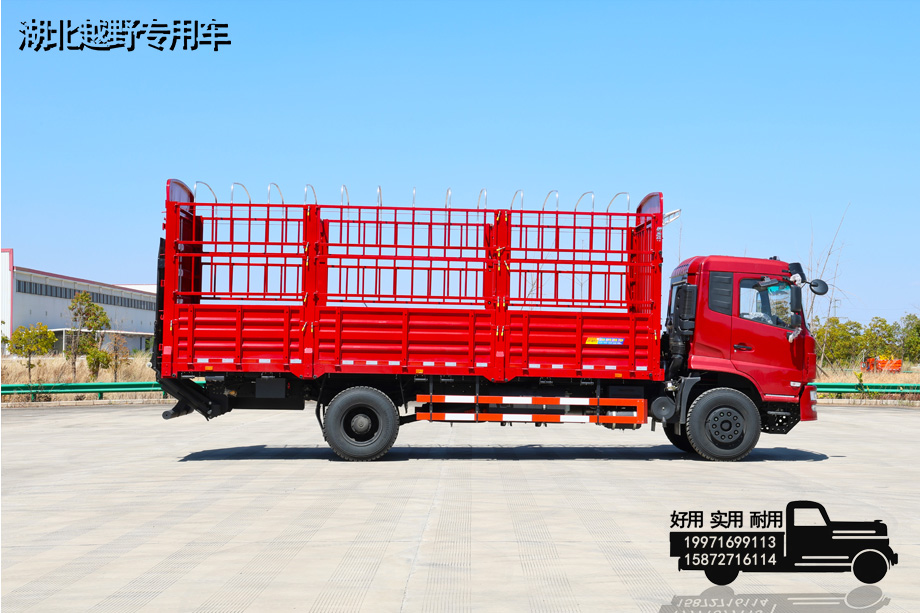

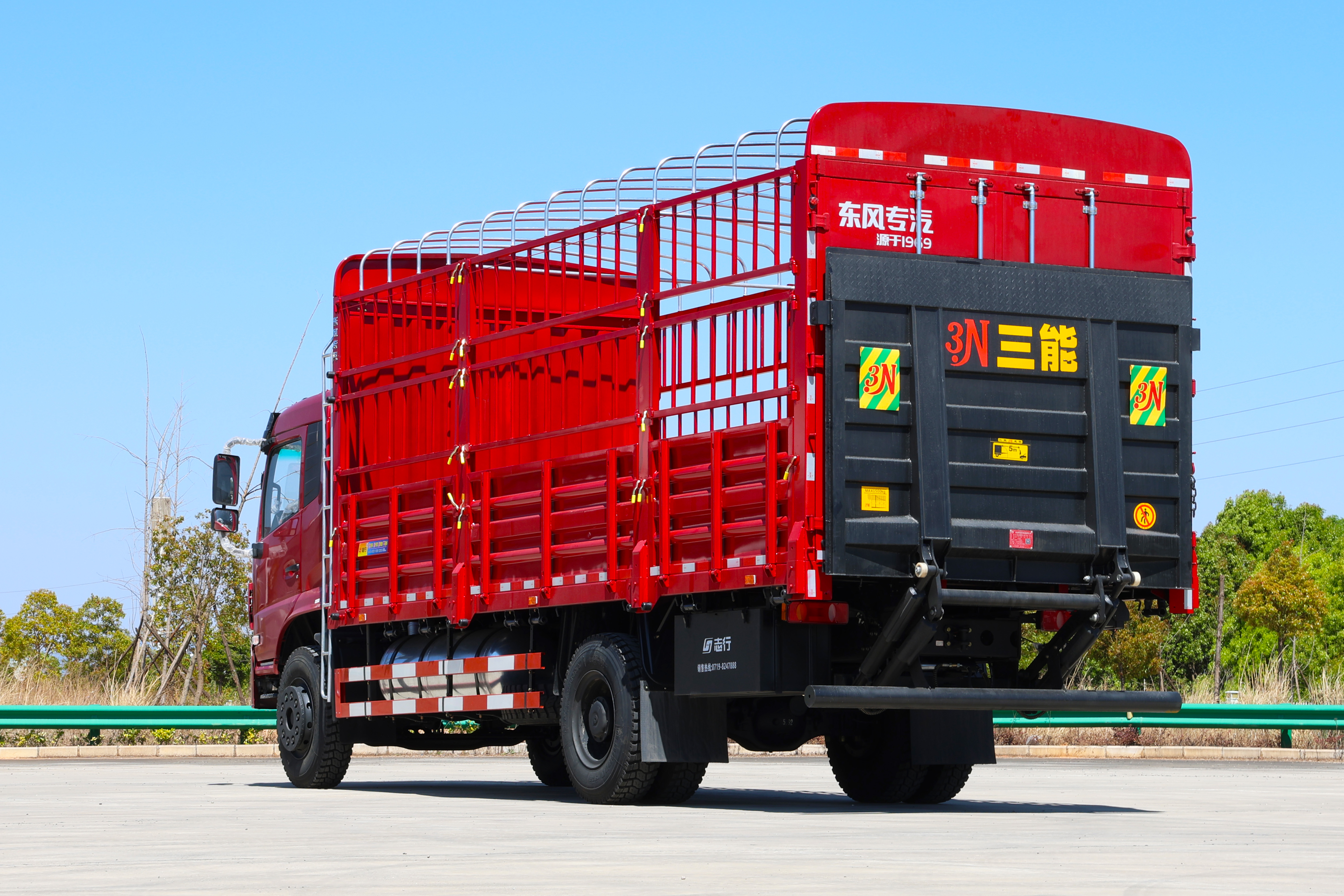

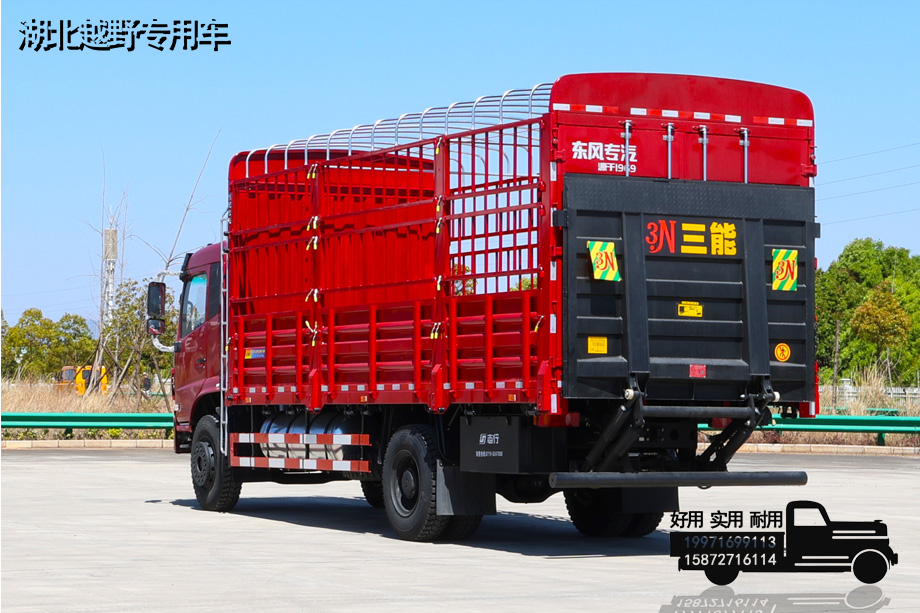

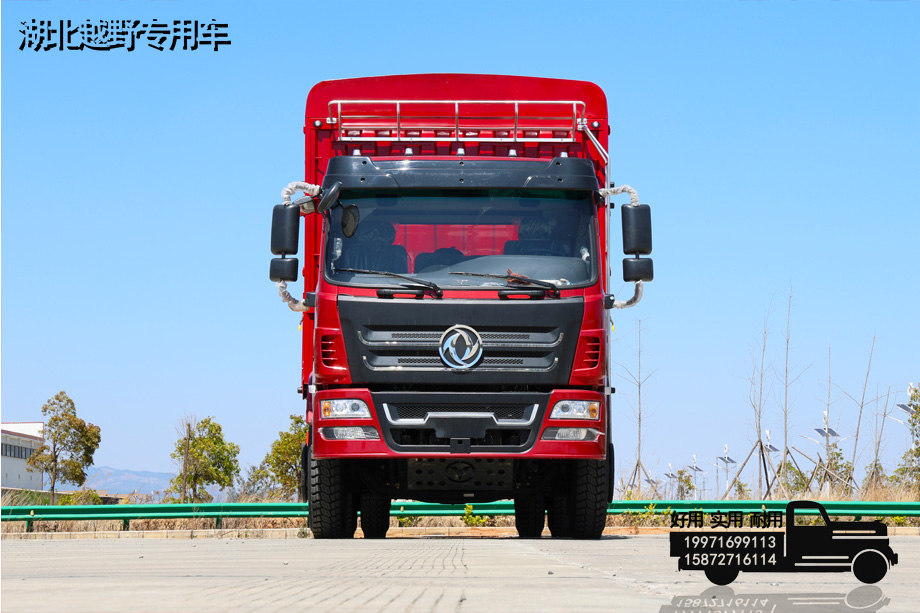

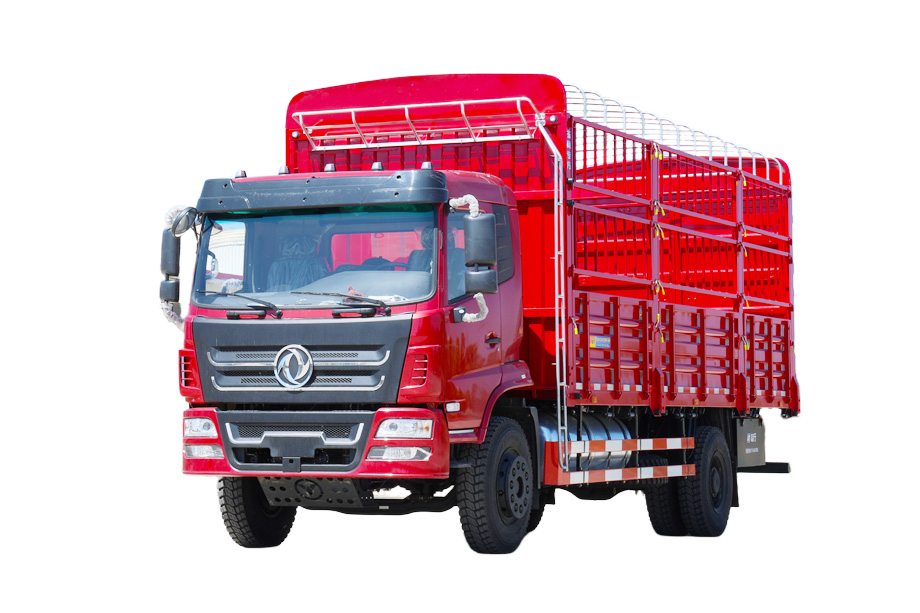

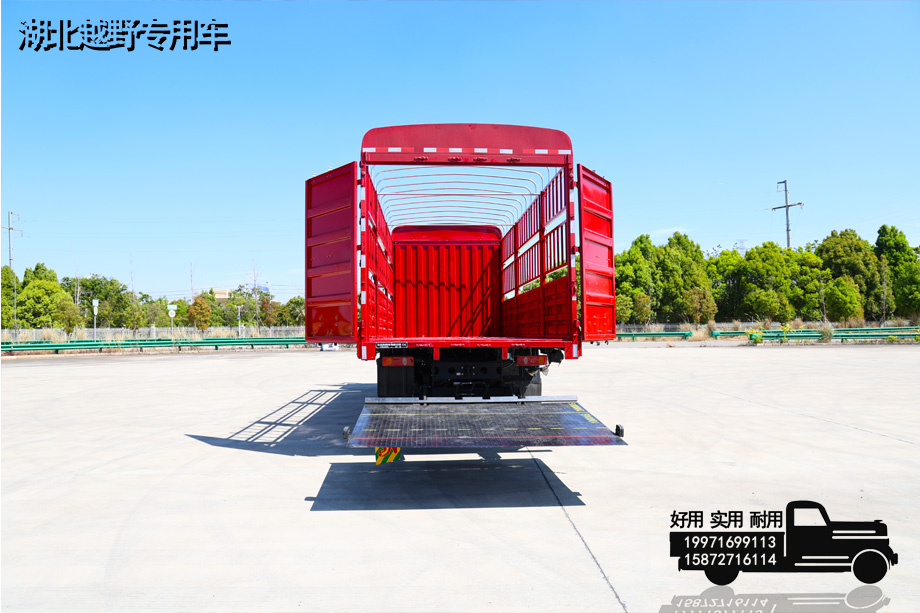

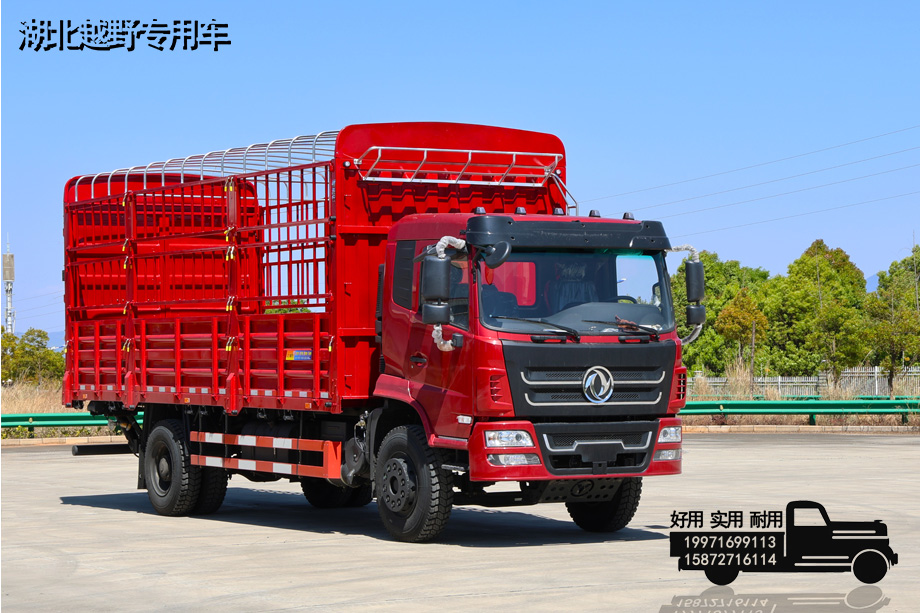

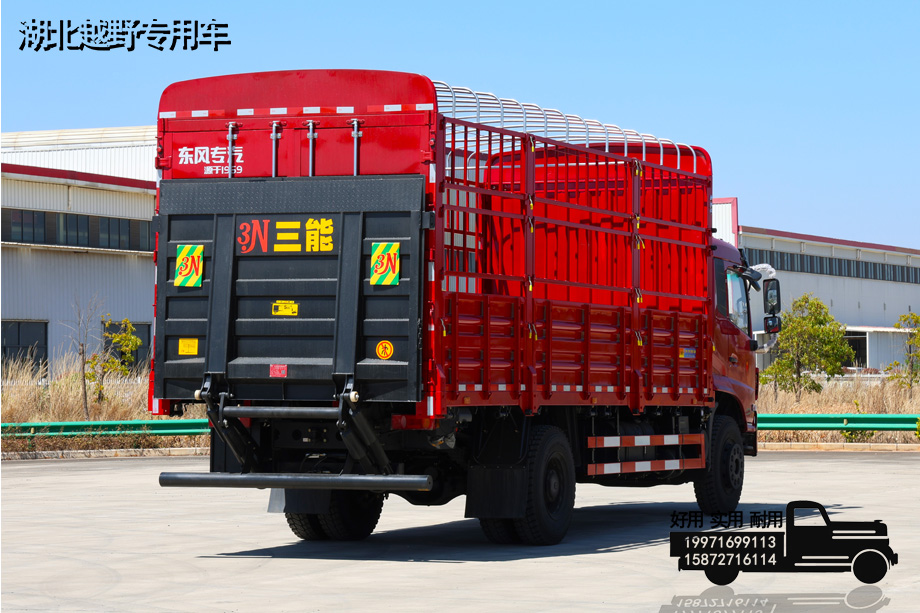

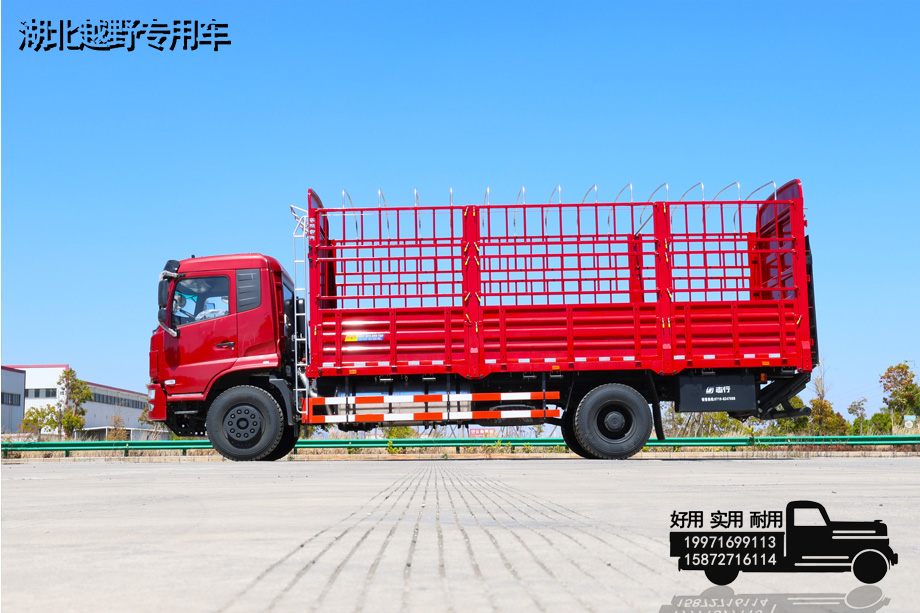

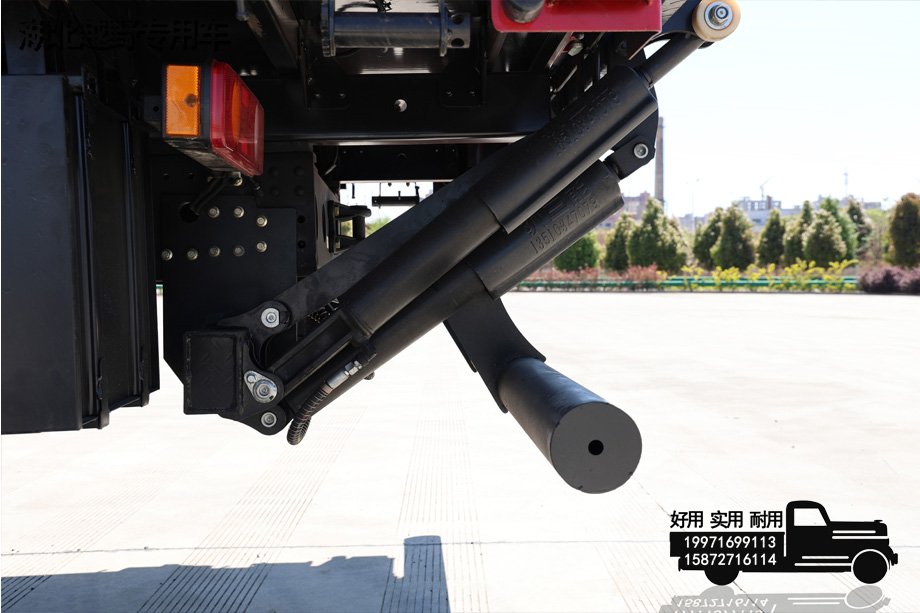

The vehicle is a 4×2 rear-wheel drive light truck, equipped with a hydraulic lifting tailgate at the rear, and the cargo box is neat and spacious. Relying on the hydraulic tailgate, cargo lifting, loading and unloading can be completed independently without the need for an auxiliary forklift. A single person can operate the operation, making loading and unloading convenient and labor-saving. It has flexible access into the city and is suitable for short-distance transportation scenarios such as urban supermarket distribution, home appliances and furniture, cold chain fresh food, and less-than-truckload freight. It has stable cargo loading and strong practicality.
| Basic information | |
| drive | 4*2 |
| direction | Left rudder/right rudder |
| Chassis size | 8630*2490*3000mm |
| Vehicle size | 9420*2640*3940mm |
| total mass | 18000kg |
| curb weight | 8600kg |
| Chassis configuration | |

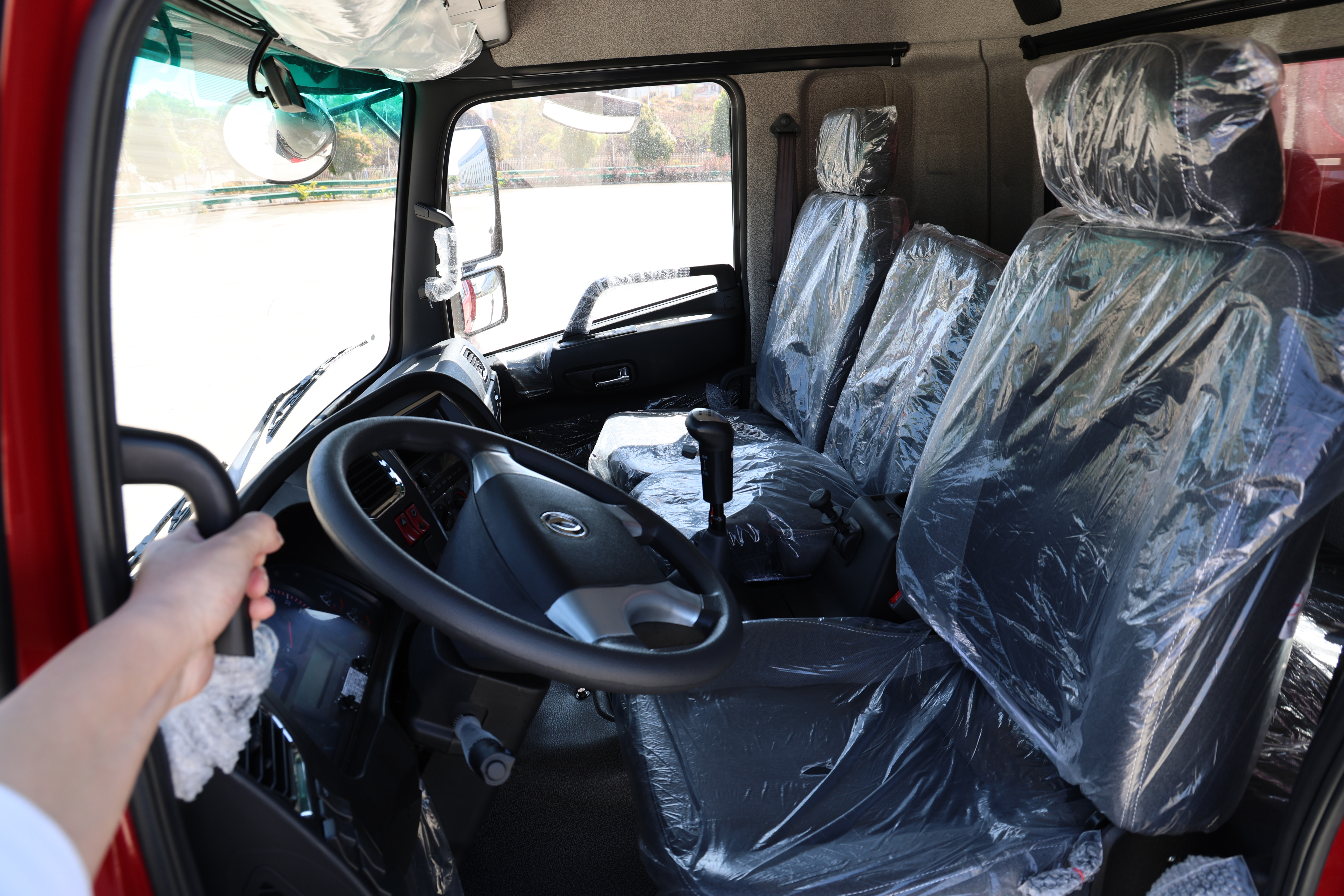

| cab | Flat head, one and a half rows, with air conditioning |
| Number of seats | 3 people |
| Wheelbase | 5100mm |
| Frame | 860*250(8+8)mm, partially strengthened |
| engine | WP615.62/Cummins B190 33/B170 33/B210 33 |
| Gearbox assembly | Manual 10-speed/5-speed/6-speed/8-speed |
| transfer case assembly | / |
| Maebashi | 6.5T |
| rear axle | 16T, wheel speed reduction |
| tank | 300L (can be adjusted according to space location) |
| circuit | 24V circuit system |
| suspension system | Leaf spring 9/10+8 |
| Braking method | Air brake |
| tire | 10.00R20 (6+1) |
| Bodywork configuration | |

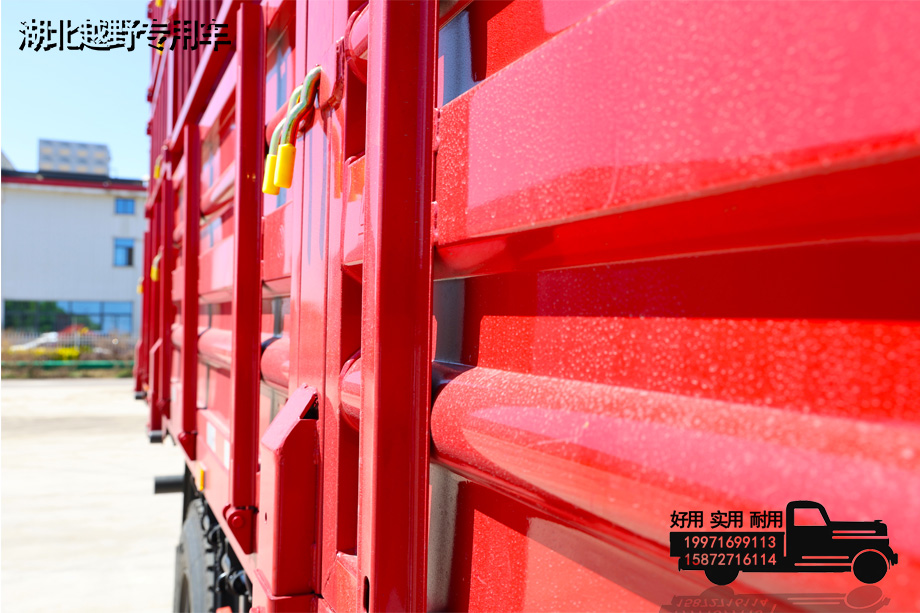

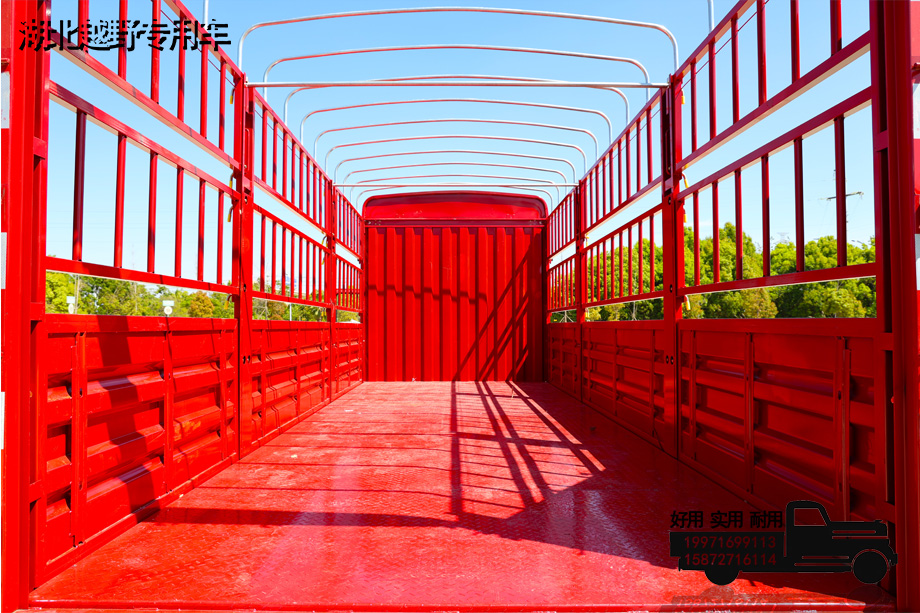

| Tops | 6800*2640*800mm (excluding fence ) 6650*2400*2640mm (inner size) |
| engine | |
| engine | Weichai WP615.62 |
| horsepower | 266 |
| emission | Country 2 |
| Displacement | 9.726L |
| Number of cylinders | 6 |
| Output power | 196kW |
| Torque | 1100N.m |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 88km/h |
| approach angle | 21° |
| departure angle | 11° |
| Wheelbase | 2020/1890mm |
| ground clearance | 300mm |
| gradeability | 60% |
| standing slope | 40% |
| Overcome obstacles | 420mm |
| other | |
| other | Fire extinguishers, vehicle tools |
