The Chinese Automobile Company initially developed a long-distance off-road vehicle called the EQ140 (25Y), which achieved many achievements on the battlefield and was dubbed a 'hero vehicle'.

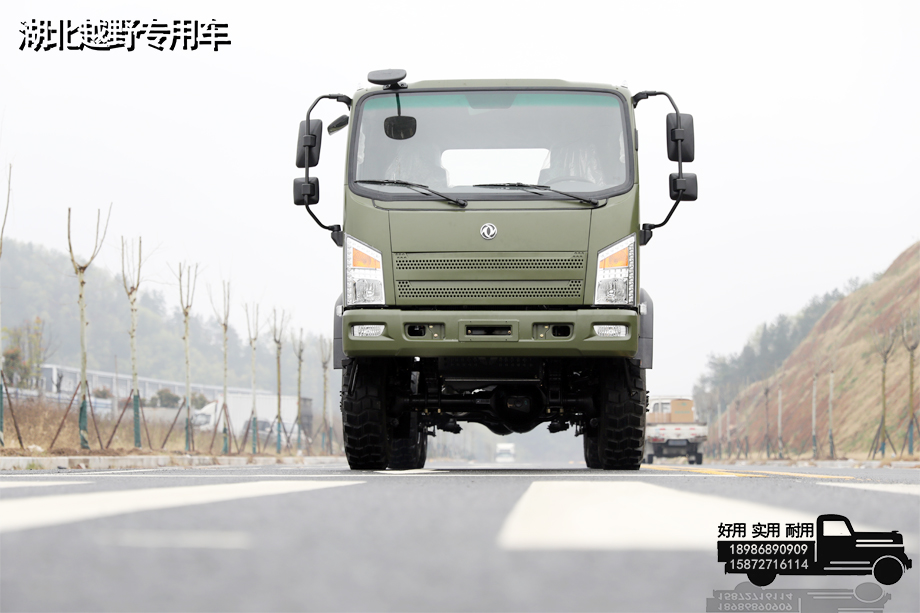

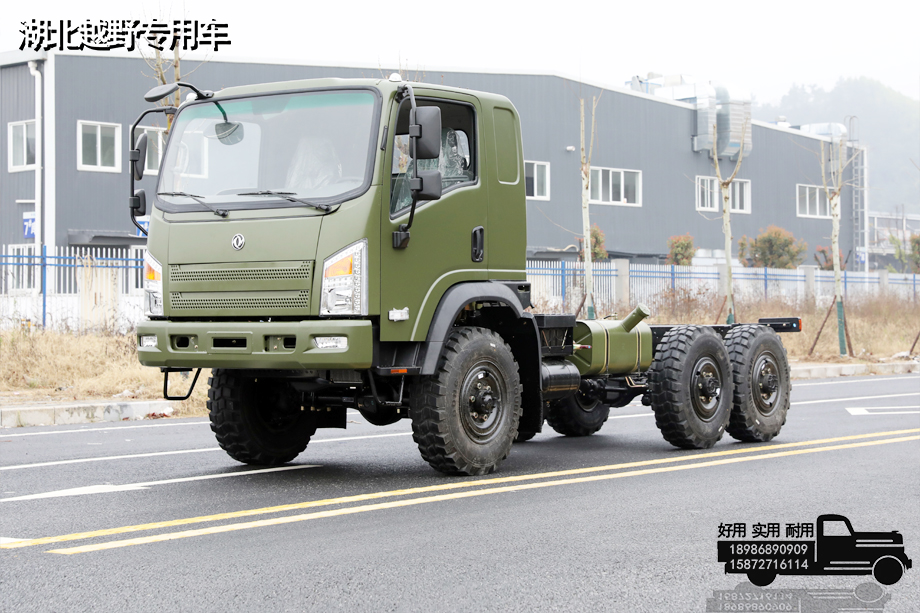

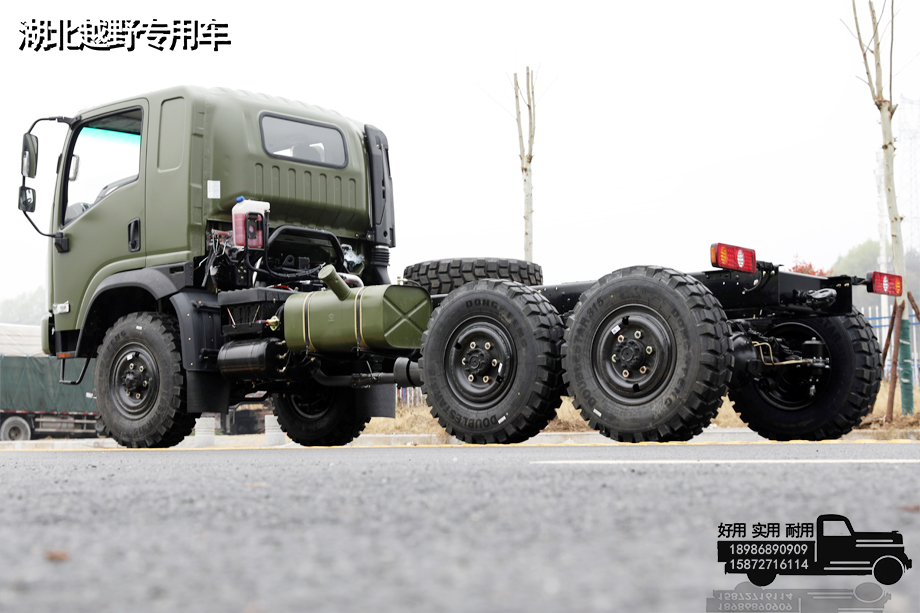

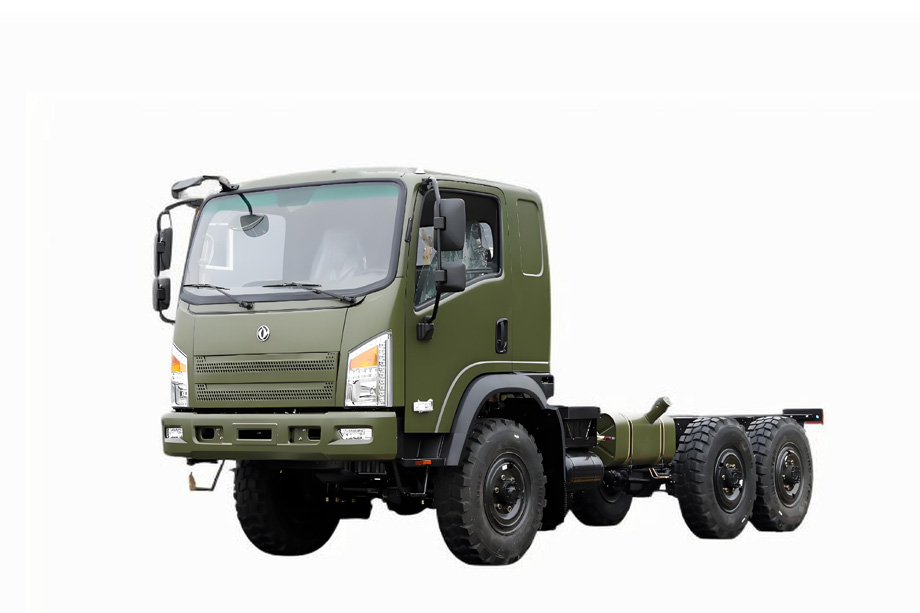

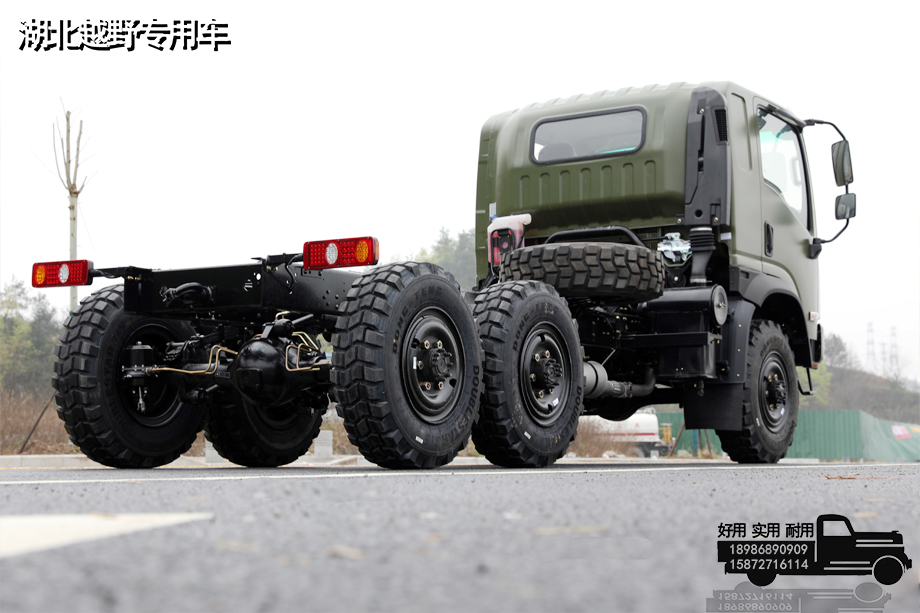

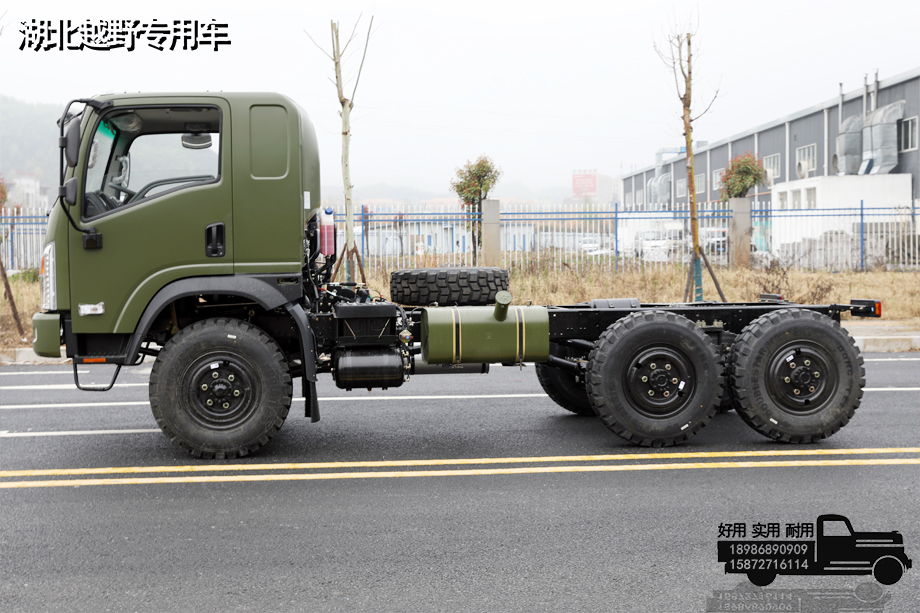

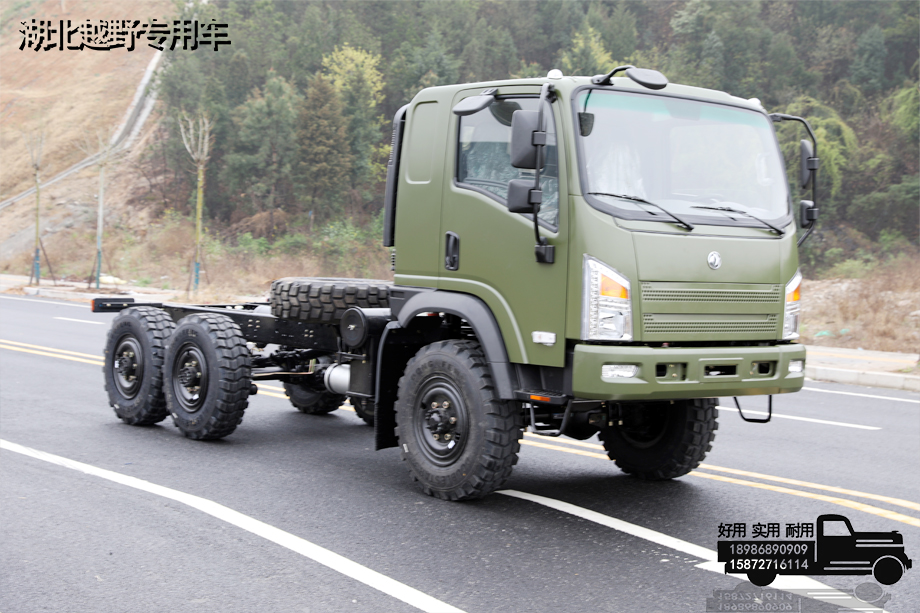

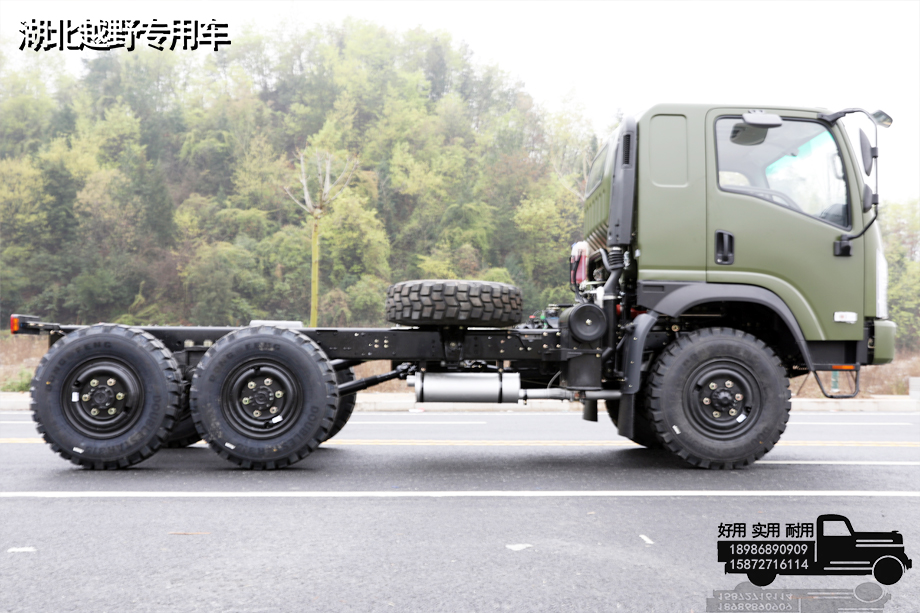

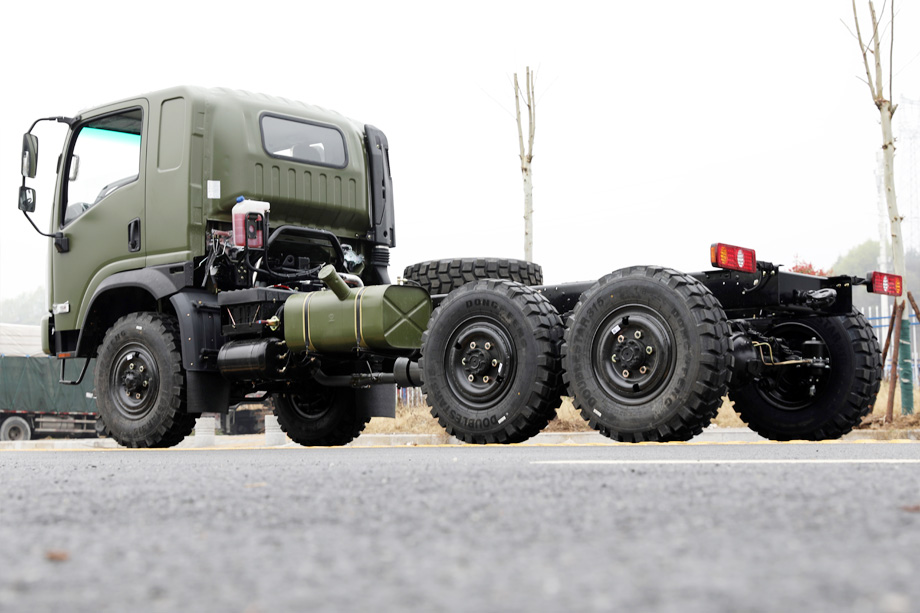

This flat-head 'Bobcat' off-road truck is a modified and upgraded version of the 'Hero Truck' 25Y. Our company has launched a flat-head six-wheel drive off-road truck chassis based on demand that is more in line with the market. This new vehicle inherits the superior performance of the original with even greater functionality and maneuverability. The vehicle can be converted into a truck, sprinkler truck, oil truck, van, truck-mounted crane transport vehicle, RV, etc., and is highly favored by users at home and abroad.
| Basic information | |
| drive | 6*6 |
| direction | left rudder |
| Chassis size | 6260×2320×2660mm |
| Vehicle size | / |
| total mass | 7800kg |
| curb weight | 4340kg |
| Chassis configuration | |

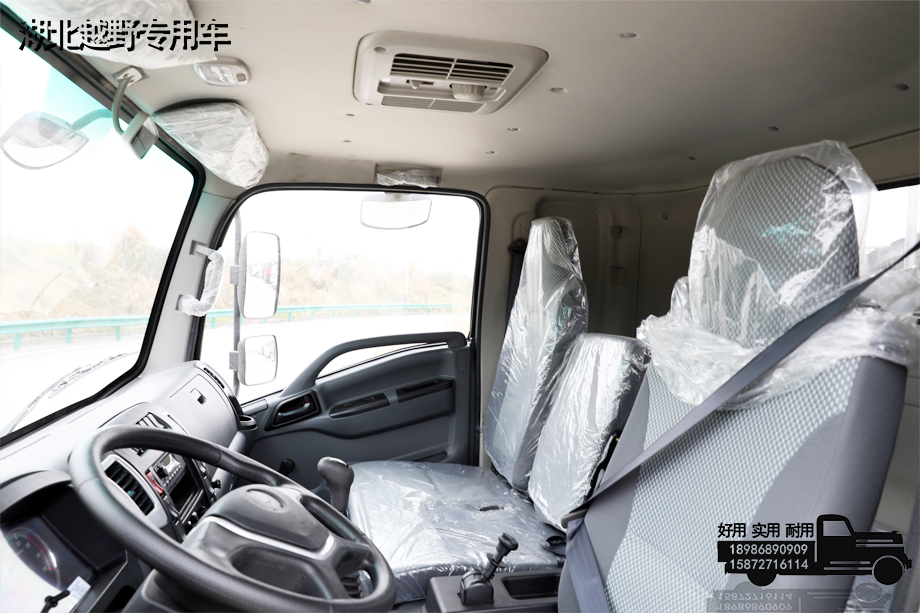

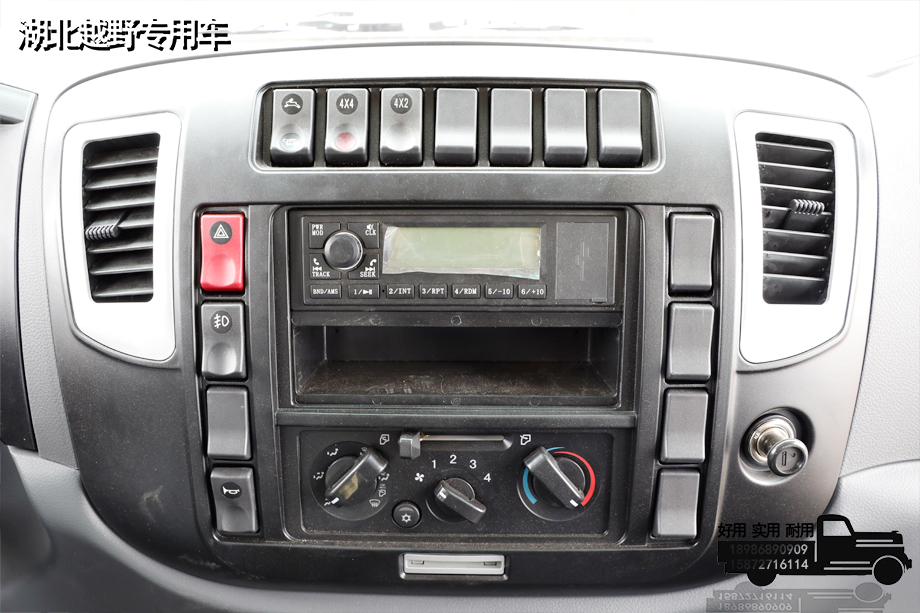

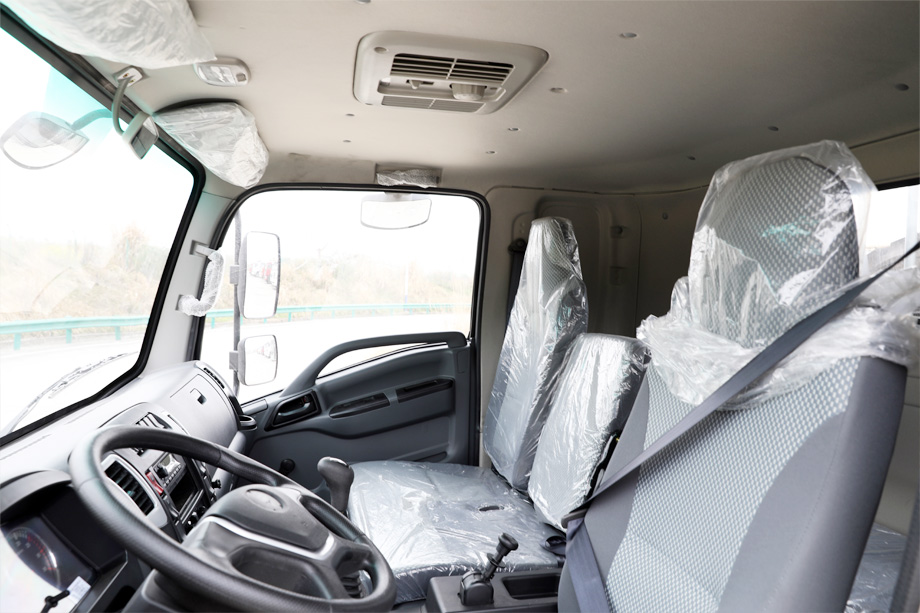

| Cab | Flat head, one and a half rows, with air conditioning |
| Number of seats | 3 people |
| Wheelbase | 3130+1065mm |
| Frame | 860*232mm |
| engine | Cummins B170 33 |
| Gearbox assembly | Manual 5 speed |
| transfer case assembly | High and low gears |

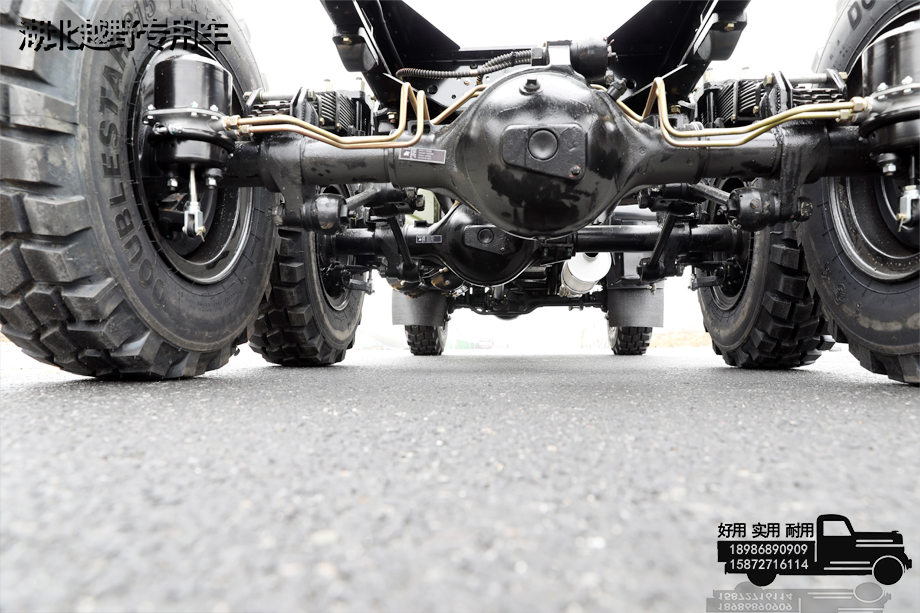

| Maebashi | 2.5T |
| middle bridge | 2.5T |
| rear axle | 2.5T |
| tank | 160L |
| circuit | 24V circuit system |
| suspension system | Leaf spring 9*13 |
| Braking method | Air brake |
| tire | 11R18 (6+1) |
| Bodywork configuration | |
| Modification size | ≥3700mm |
| engine | |
| engine | Cummins B170 33 |
| horsepower | 170 |
| emission | National Three |
| Displacement | 5.9L |
| Number of cylinders | 6 |
| Output power | 125kw |
| Torque | 560N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 85km/h |
| wading depth | 535mm |
| approach angle | 27° |
| departure angle | 44° |
| front overhang | 1340 |
| Rear suspension | 630 |
| Wheelbase | 1774mm |
| ground clearance | 285mm |
| gradeability | 60% |
| Obstacle clearance height | 415mm |
| other | |
| other | Water buckets, oil buckets, fire extinguishers, vehicle tools, tarpaulin poles |
