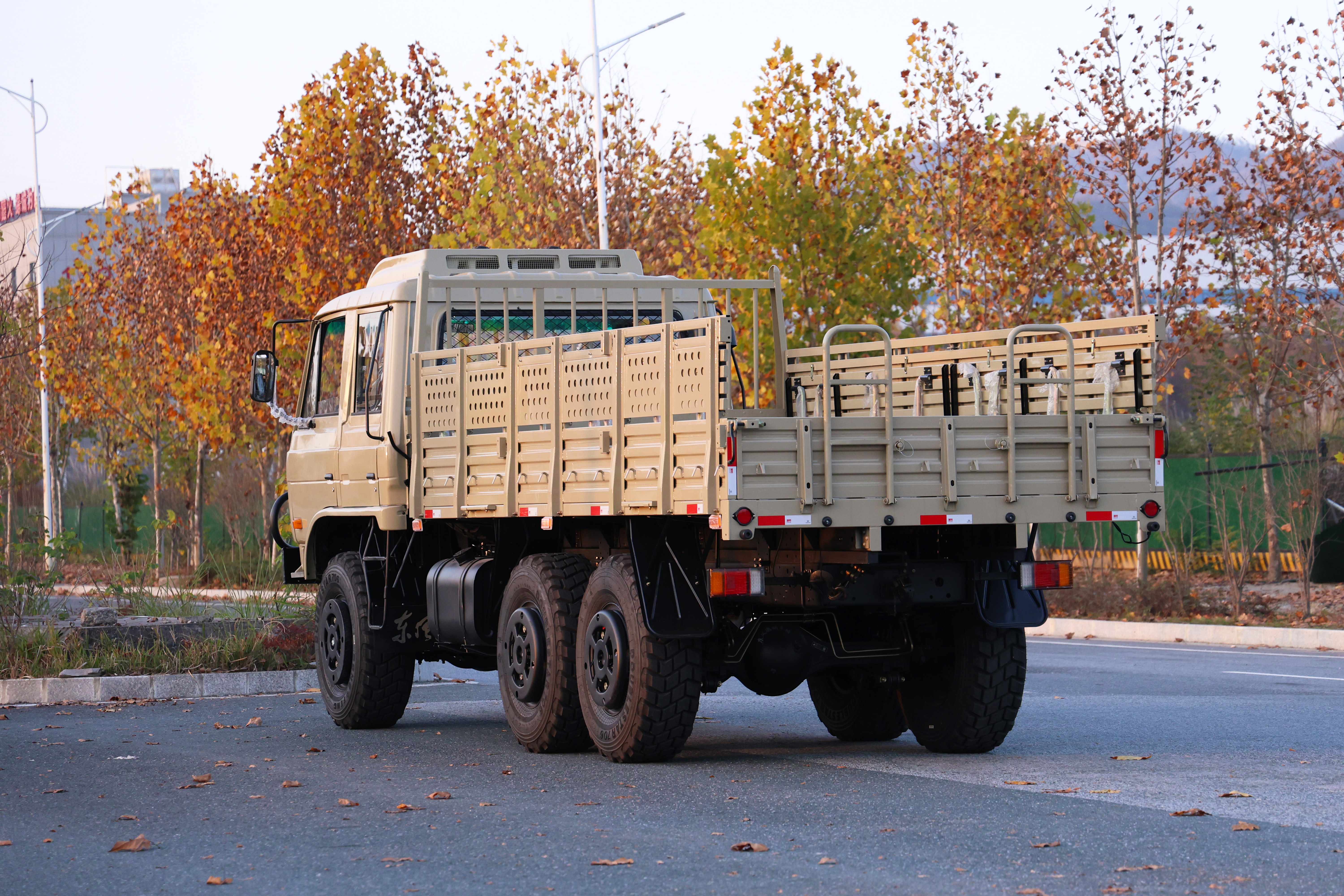

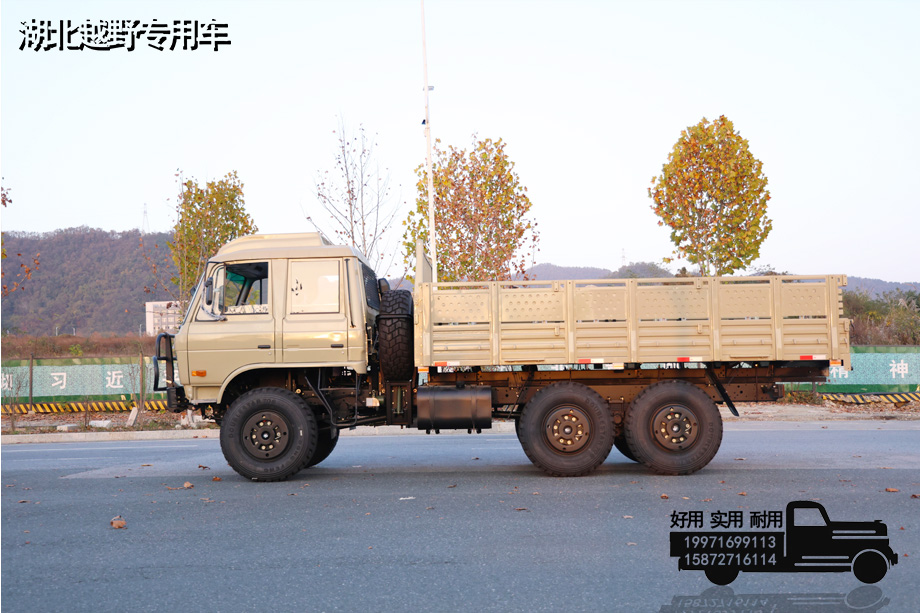

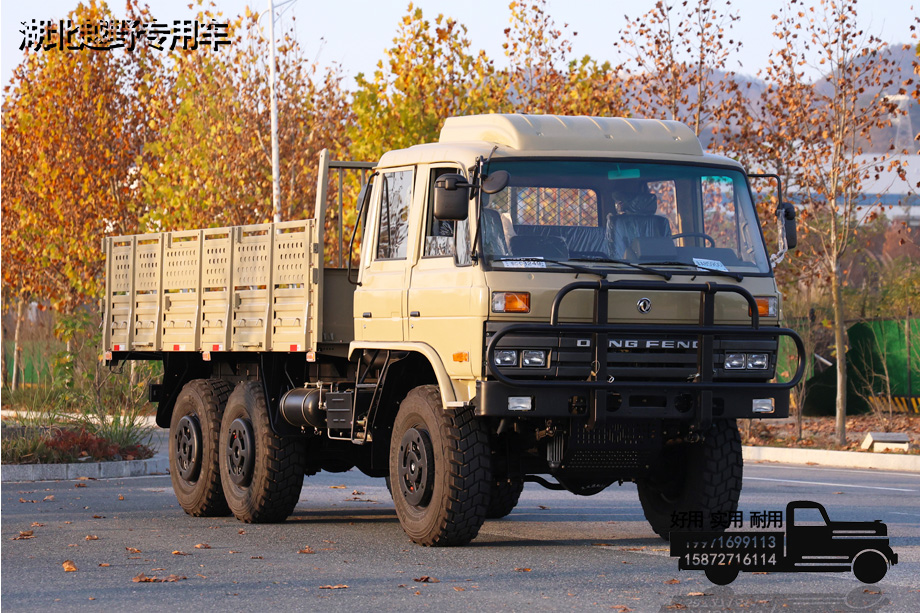

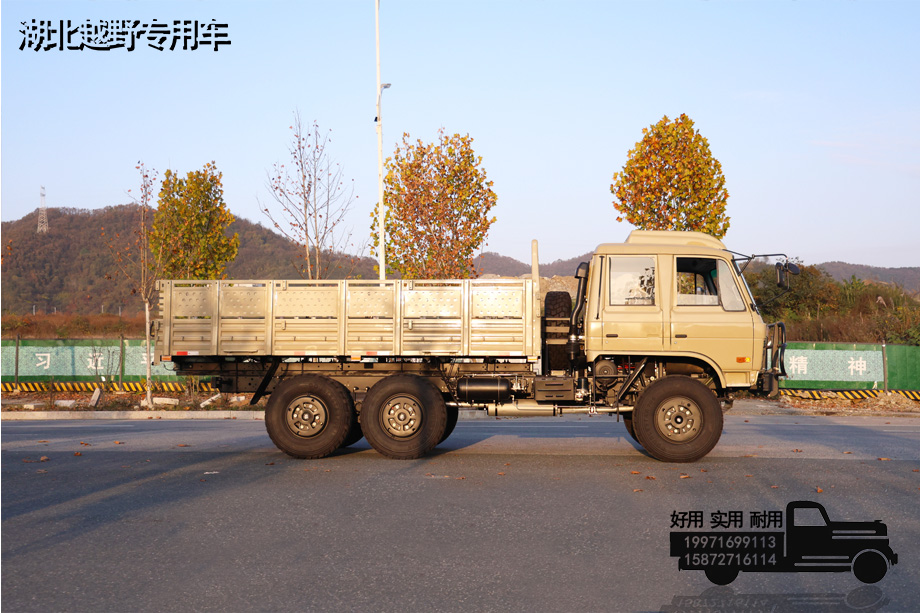

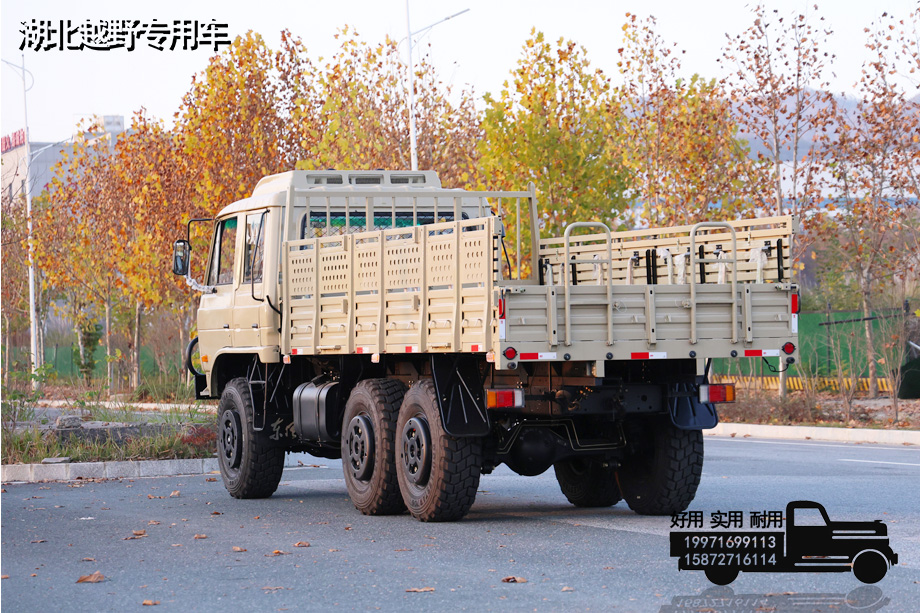

DF246 is a three-ton semi-load off-road truck developed by DF company. It is equipped with special facilities such as a winch, flip-up seats, etc. It is mainly used to carry people and cargo. The 6x6 drive can drive in forests, deserts, and swamps, and it also has certain wading capabilities. This site is the second-class chassis status of the DF EQ2102 double-row model. The engine has a preheating function, and the vehicle can start smoothly at an ambient temperature of -41°C.

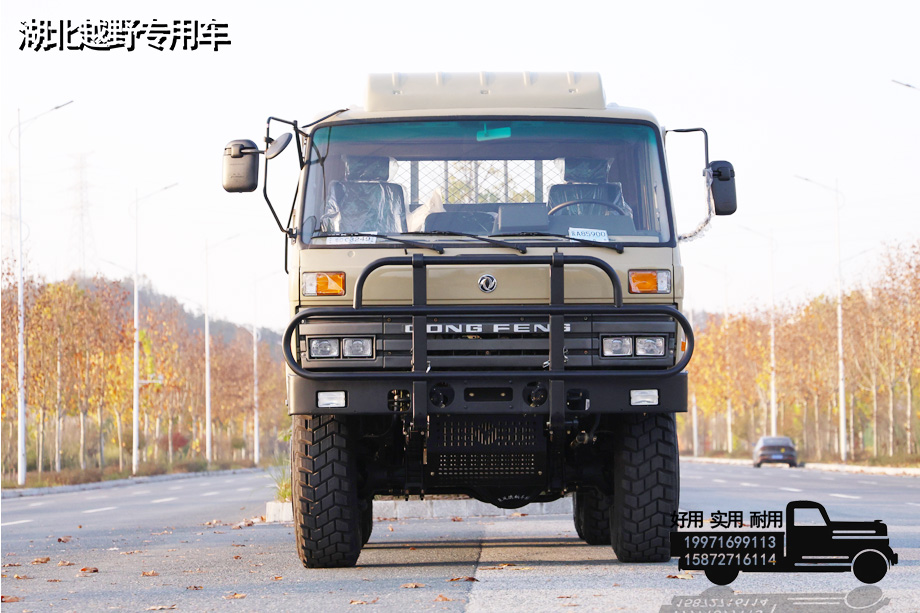

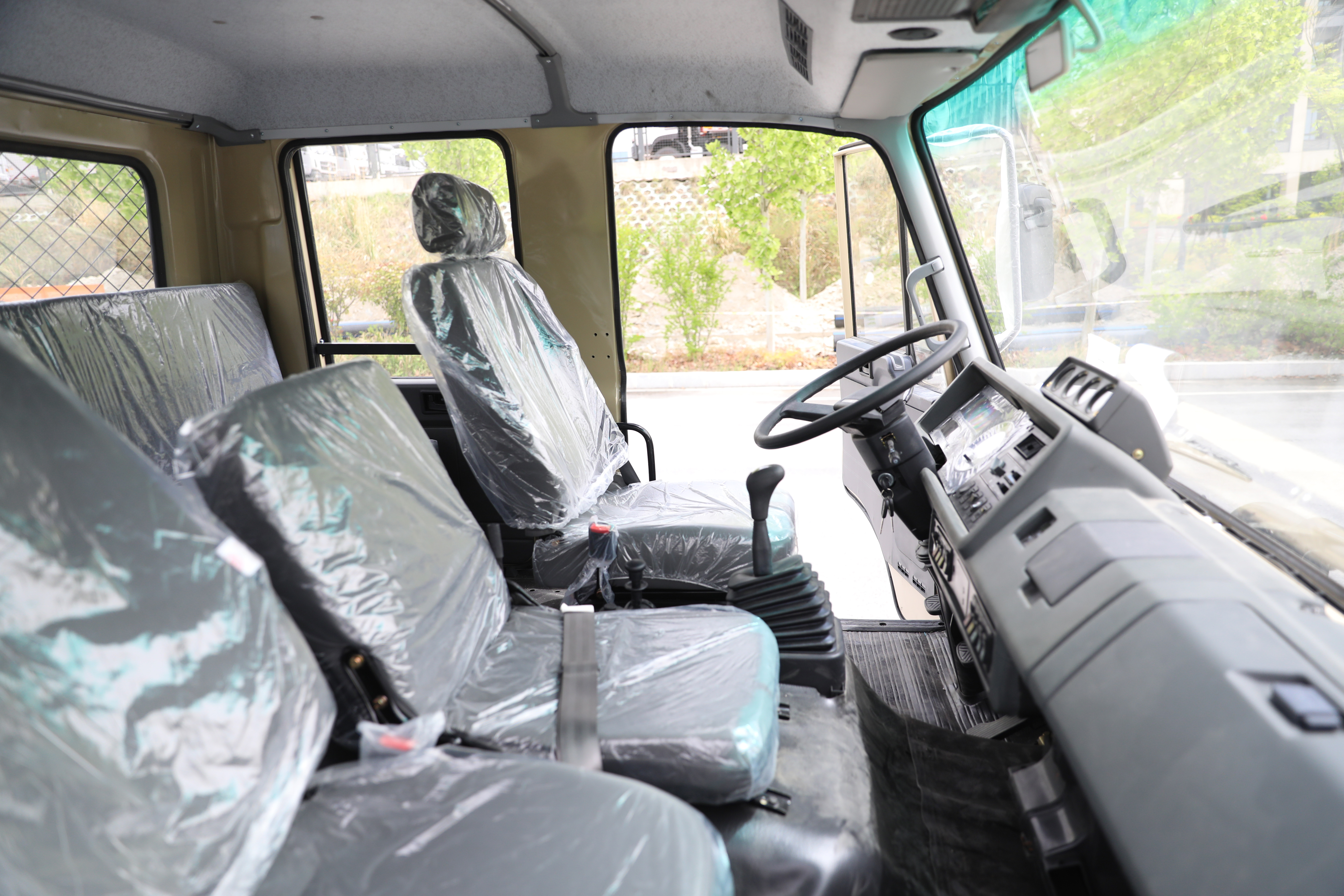

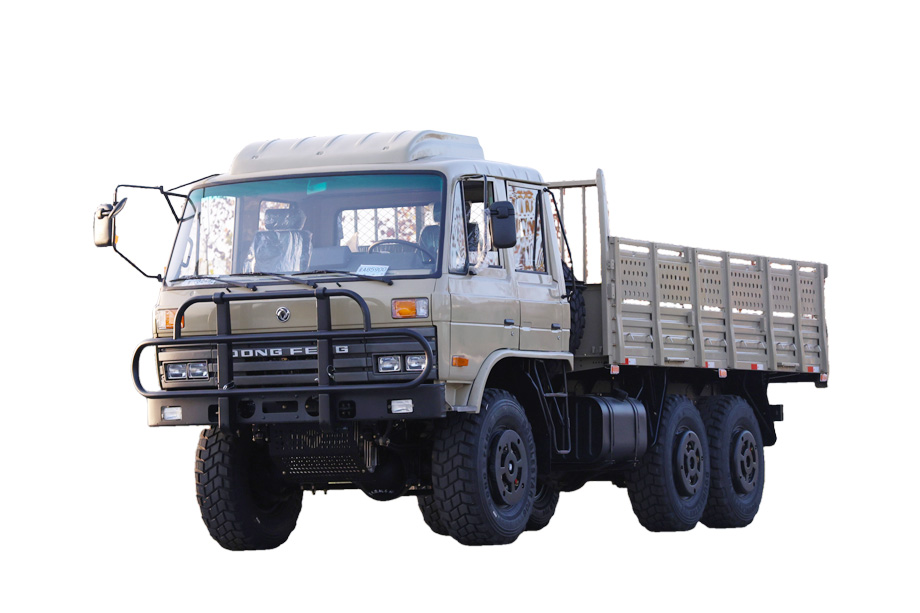

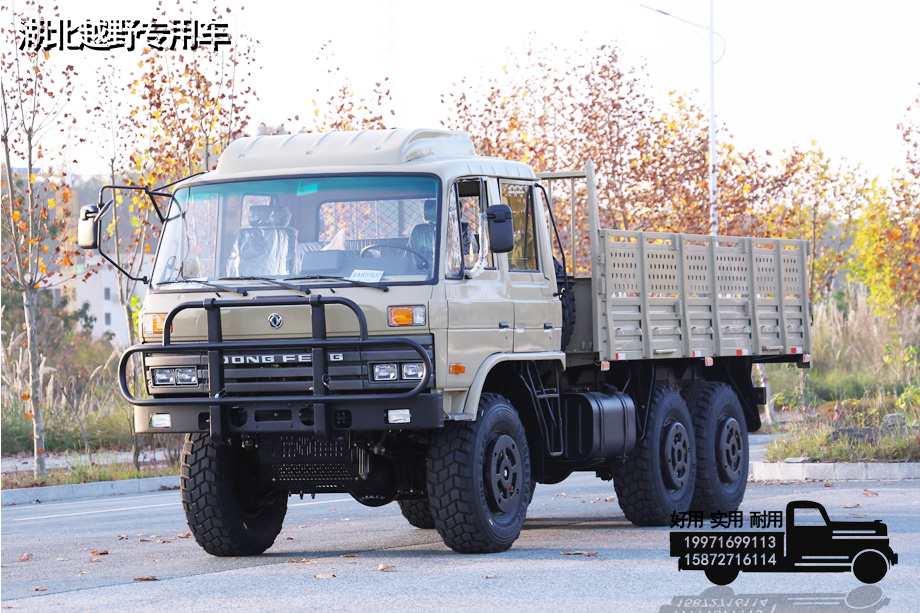

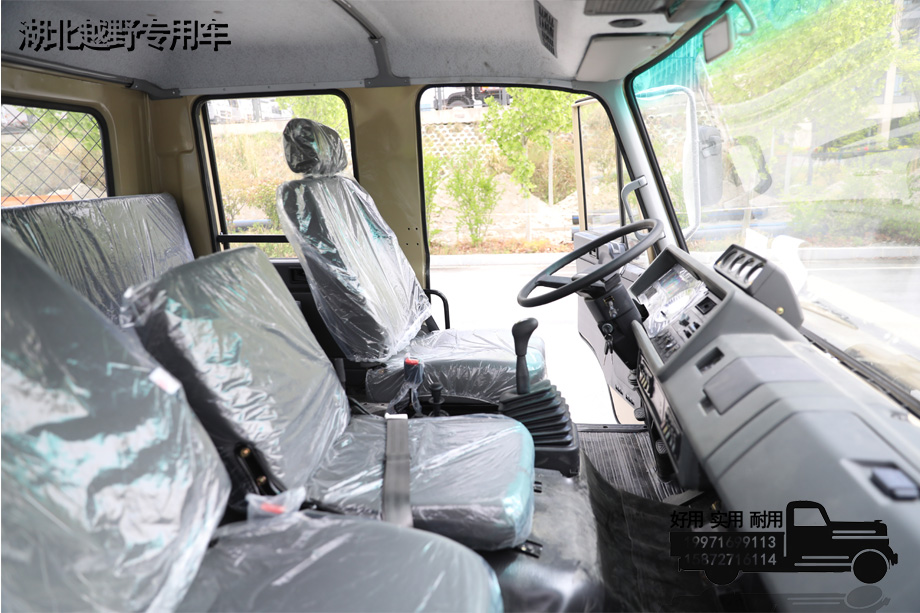

DF EQ2102N is DF a high-end version of the EQ2102 series 6×6 flat-top off-road truck. It focuses on high passability and harsh environment adaptability. It is widely used in military transportation, field operations, rescue and disaster relief and other scenarios. Double row four-door cab: all-metal welded closed structure, can seat 5-6 people, meeting the needs of personnel transportation. Top-mounted high-power air conditioner: The original factory standard DF Pine overhead refrigeration air conditioner is not afraid of high temperature environments and ensures driving comfort.

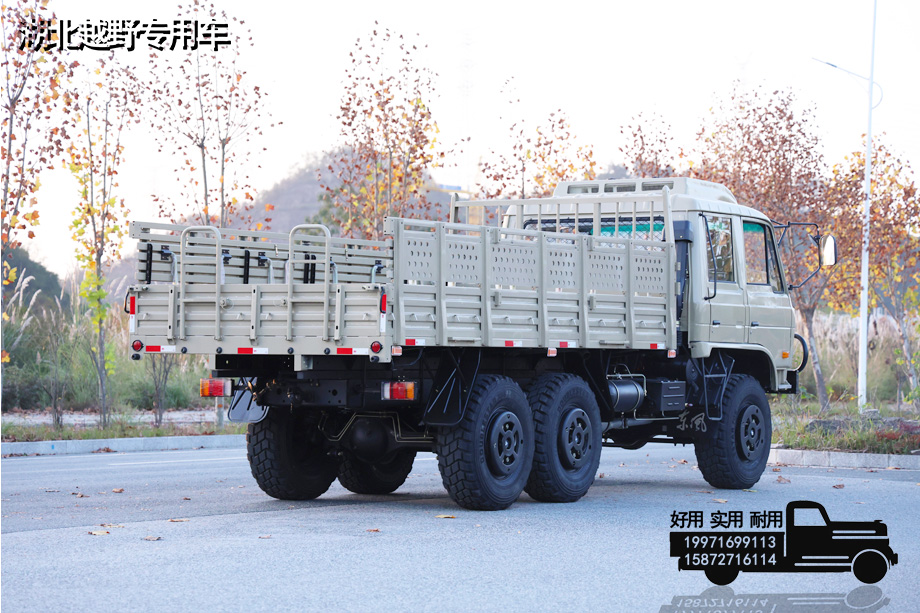

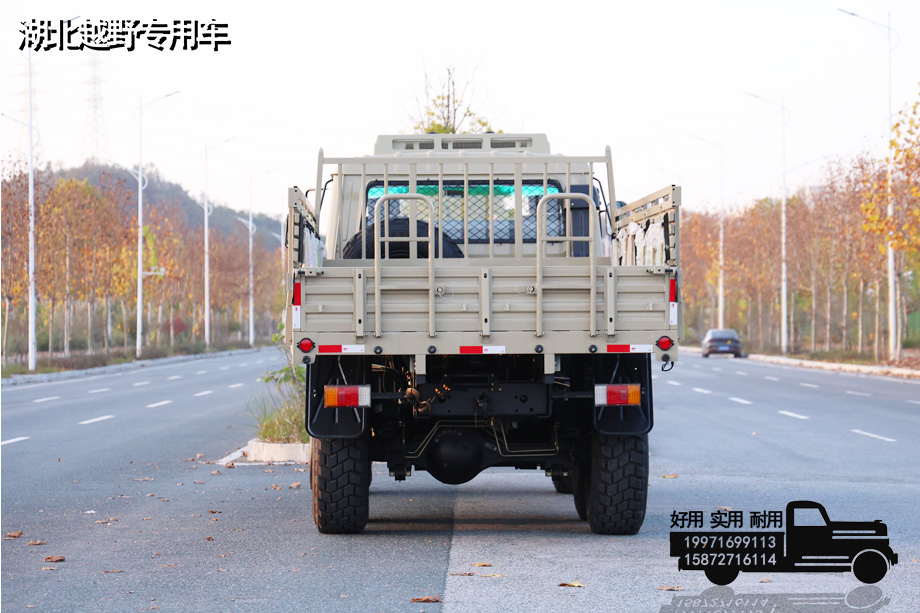

24V circuit system, suitable for long-term field operations. The cargo box has strong load-bearing capacity; there are 2 folding ladders at the rear, and folding seats can be installed on the inside to accommodate both troop transport and cargo loading. It comes standard with a removable pole tarpaulin to protect against rain and sun; the spare tire is hydraulically lifted for easy loading and unloading; and a front winch is optional to enhance self-rescue and rescue capabilities.


Basic information
drive6*6
directionleft rudder
Chassis size

7490×2470×3040mm

Vehicle size8090*2470*3040mm/3440mm (tarpaulin pole)
total mass
10850kg
curb weight7260kg
Chassis configuration
cab
Flat head, double row, with air conditioning
Number of seats4~5 people
Wheelbase3475+1250mm
Frame860*232mm
engineCummins B190 33/B210 33
Gearbox assemblyManual 6-speed/5-speed/small eight-speed
transfer case assemblyHigh and low gears

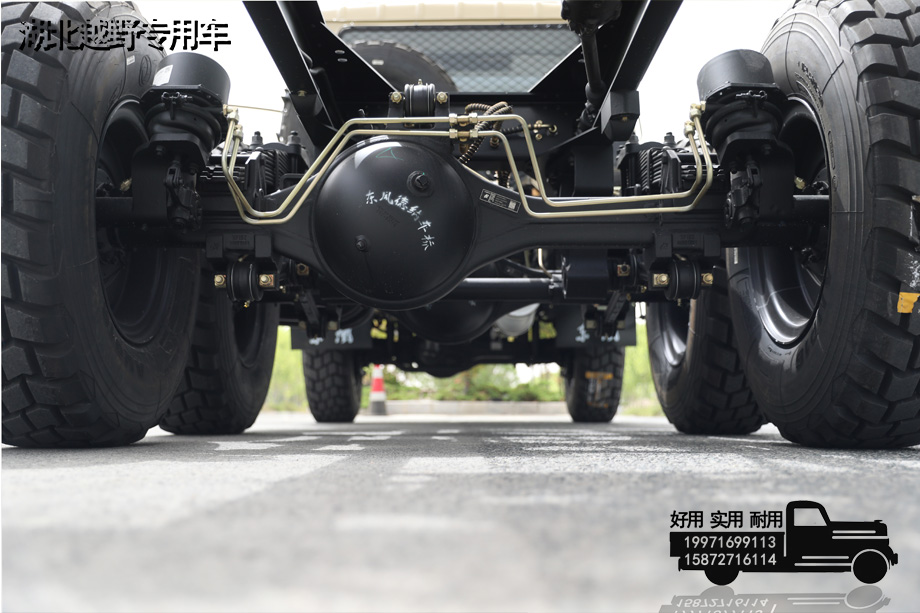

Maebashi3.5T
middle bridge3.5T
rear axle

3.5T

tank160+80L (can be adjusted according to space location)
circuit24V circuit system

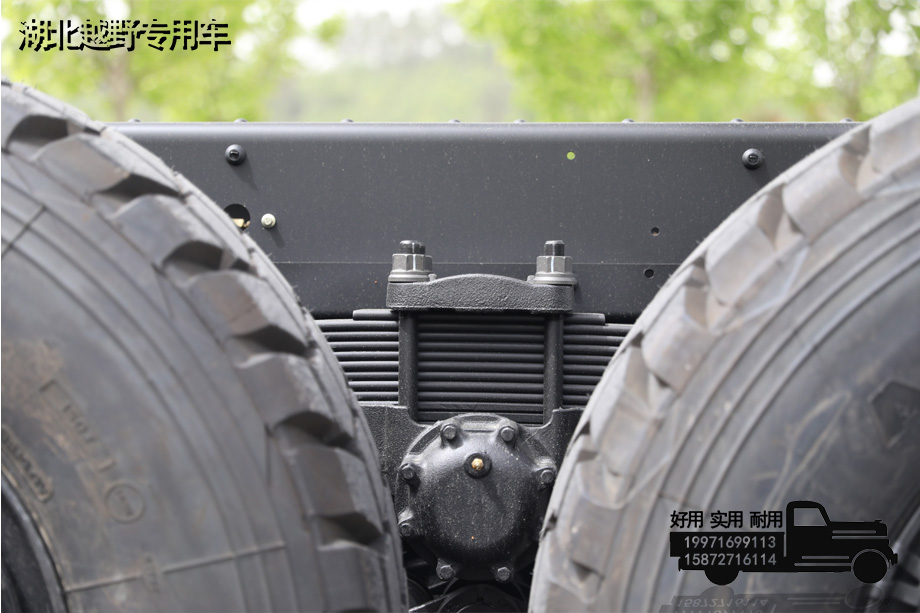

suspension systemLeaf spring10/12
Braking methodAir brake
tire

12.5R20 (6+1)

Bodywork configuration

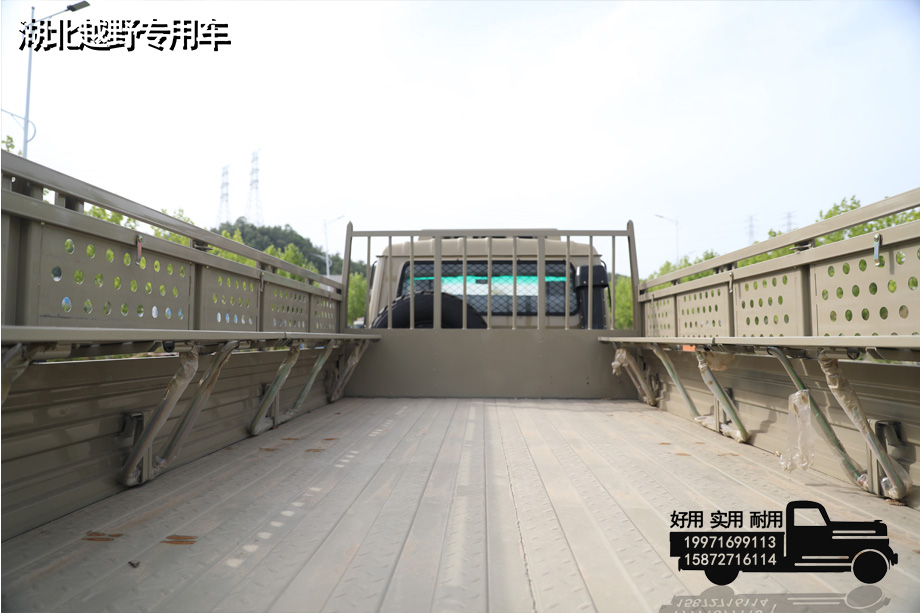

cargo box4800*2300*900mm
engine
engineCummins B190 33
horsepower190
emissionNational Three
Displacement5.9L
Number of cylinders6
Output power140kw
Torque640N.m
Speed2500rpm
Fuel typediesel fuel
Performance parameters
speed
90km/h
approach/departure angle35°/27°
front/rear suspension1305mm/2060mm
Wheelbase1890mm
ground clearance315mm
Obstacle clearance height420mm
Wading height
1125mm
gradeability60%
standing slope40%
other
otherWater barrels, oil barrels, fire extinguishers, vehicle tools




71312910811612354

The first step: Negotiate purchase requirements

Customers can inform us of their needs by phone/WeChat or on-site inspection.


Step 2: Customize the plan

The company will recommend corresponding models or customize vehicle configurations according to your needs.


Step Three: Sign the Contract

Both parties sign a vehicle purchase and sale contract and pay the contract deposit in advance (the contract can be signed by fax or in person).


Step 4: Arrange production

Issue production plans and arrange production.


Step Five: Vehicle Completion

After the vehicle is offline for inspection, the remaining balance of the vehicle must be paid and relevant procedures completed.


Step Six: Logistics Departure

Customers can pick up the vehicle from the factory, or negotiate with our company to arrange delivery to a designated location.


other :

1. The company can provide customers with export customs declaration services.

2. Complete after-sales service station to solve your worries!
