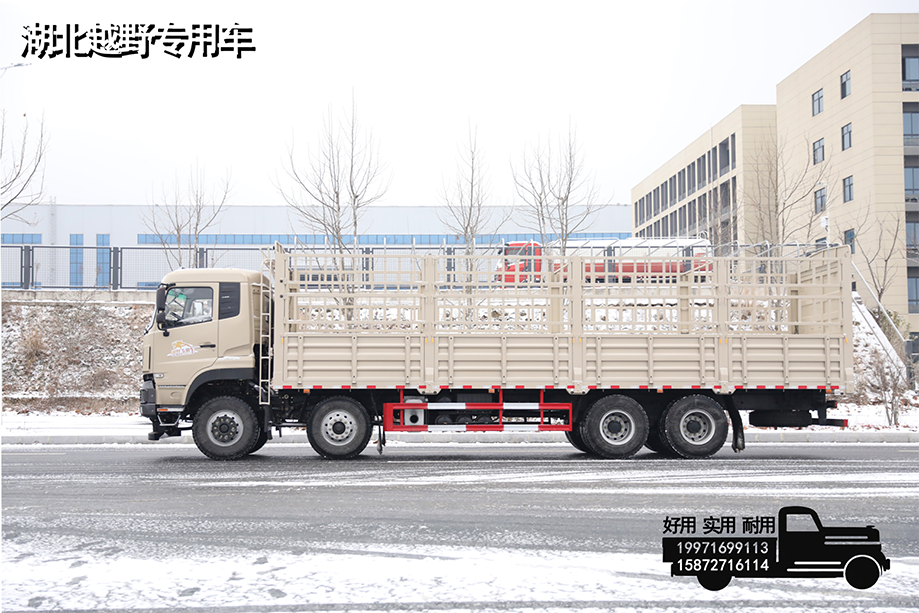

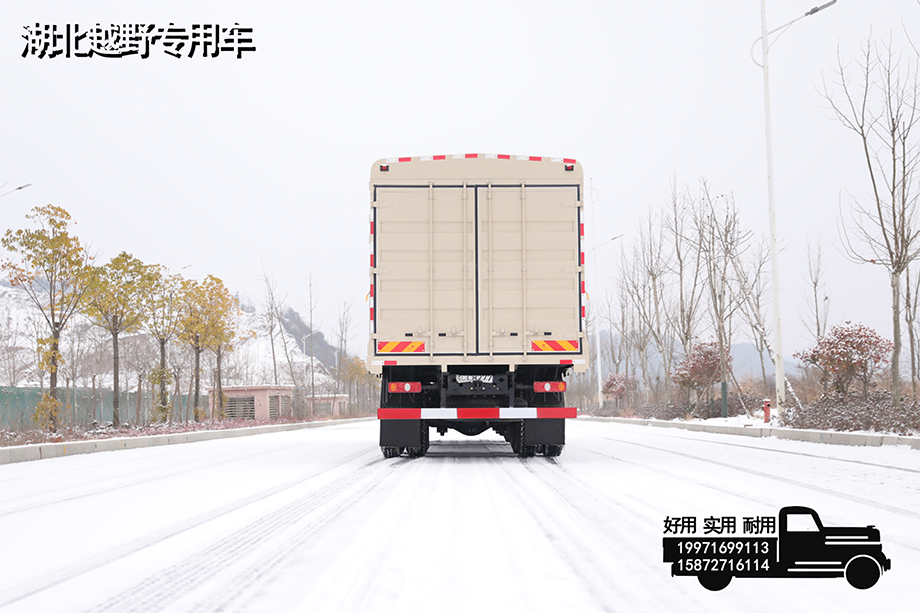

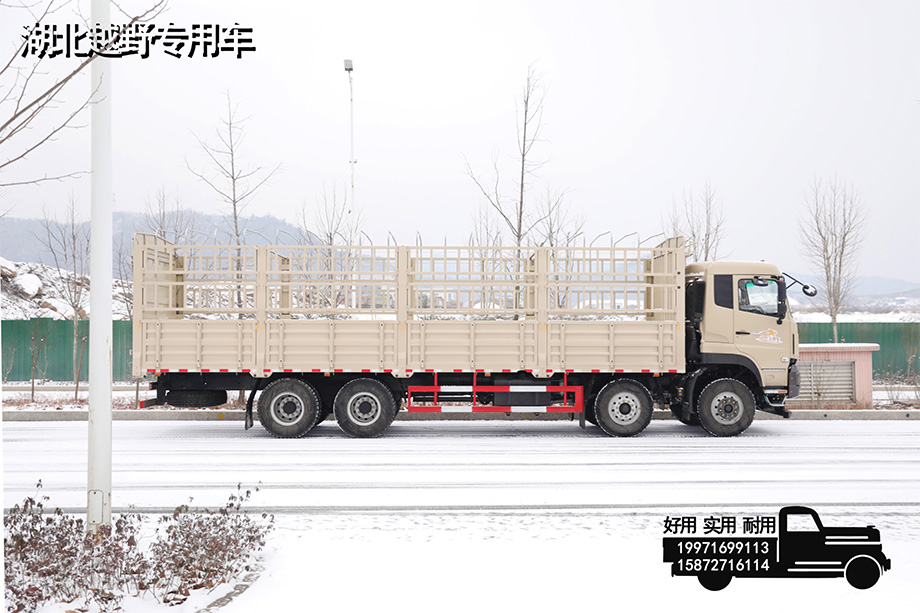

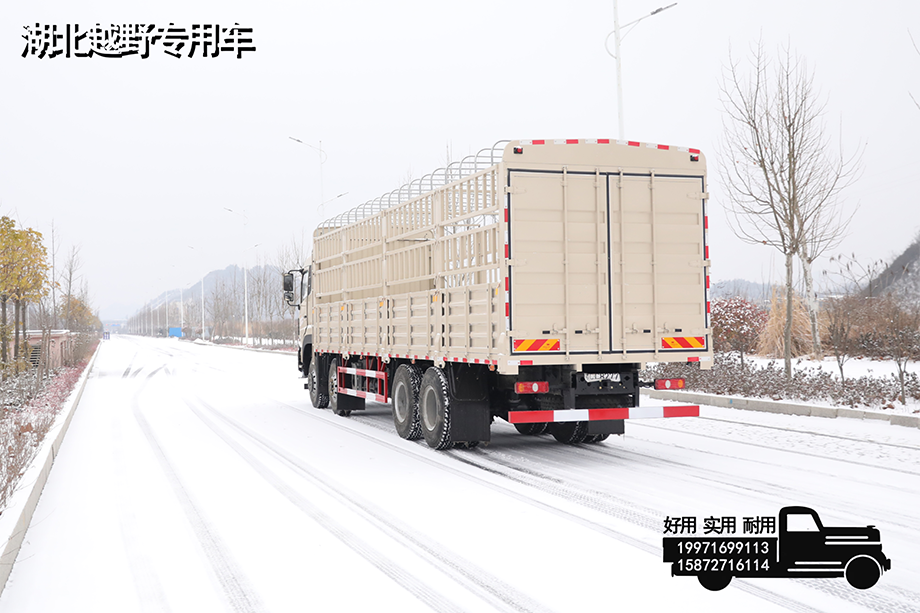

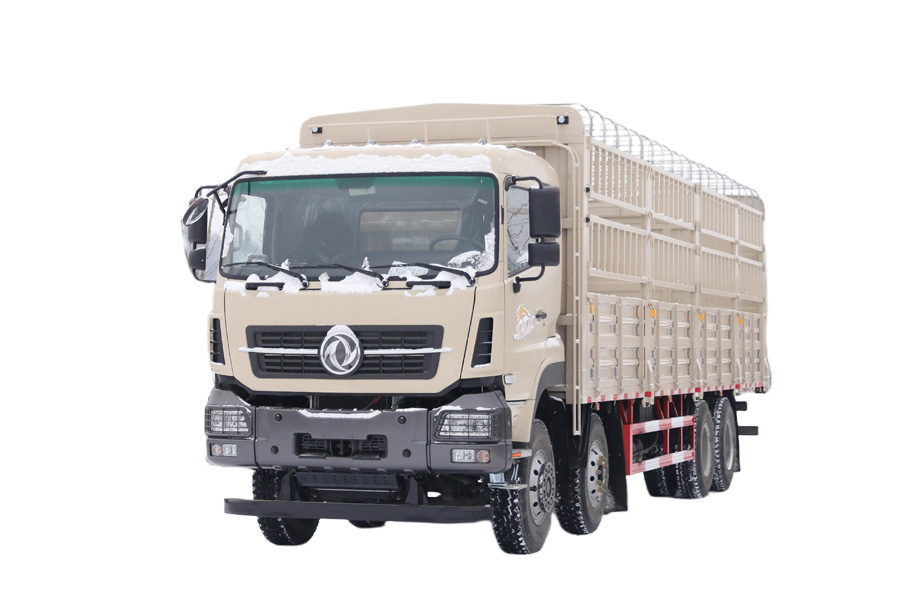

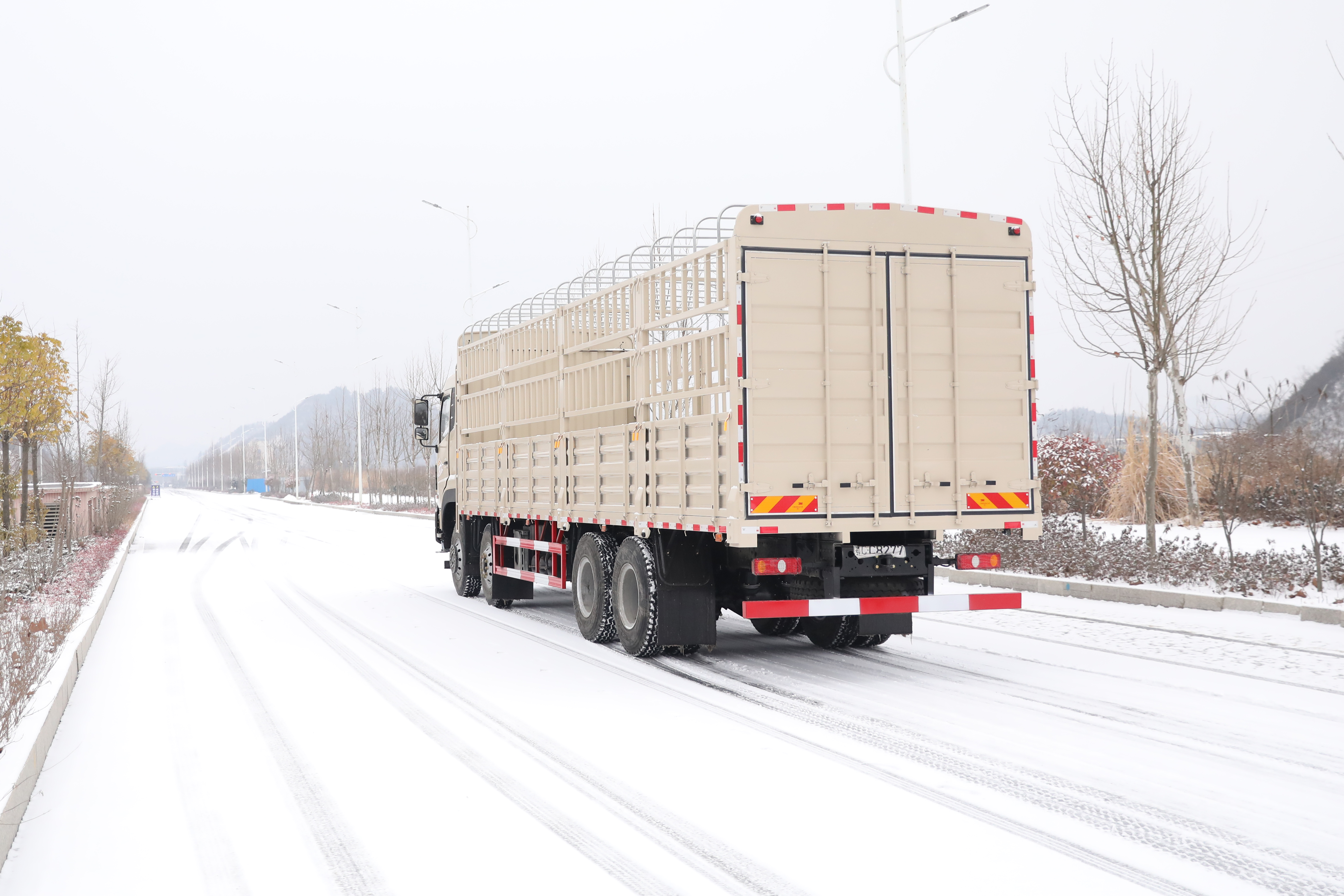

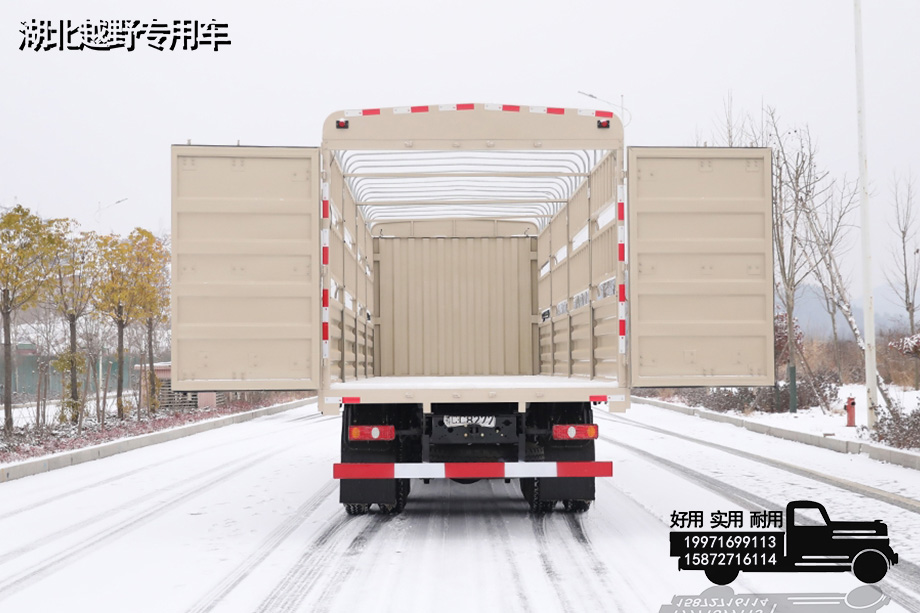

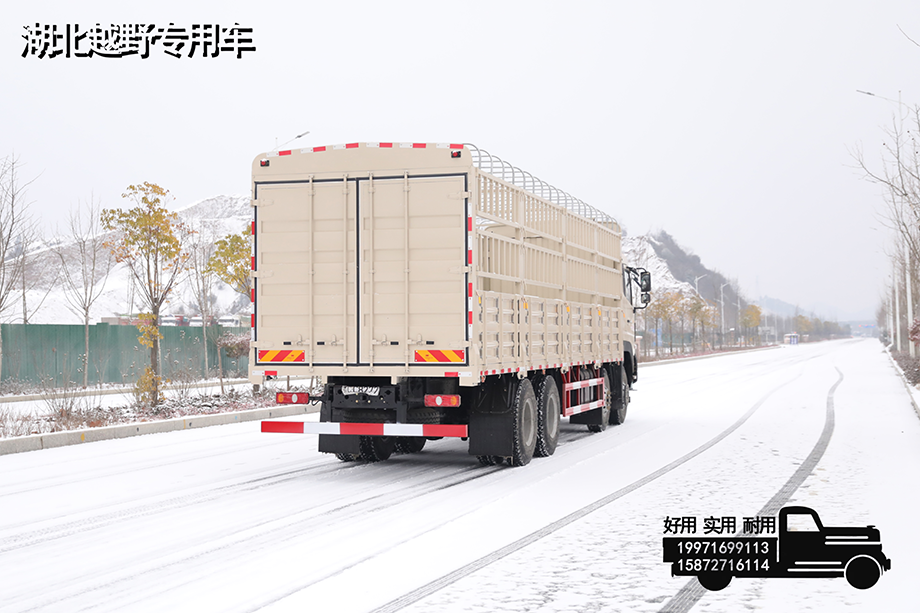

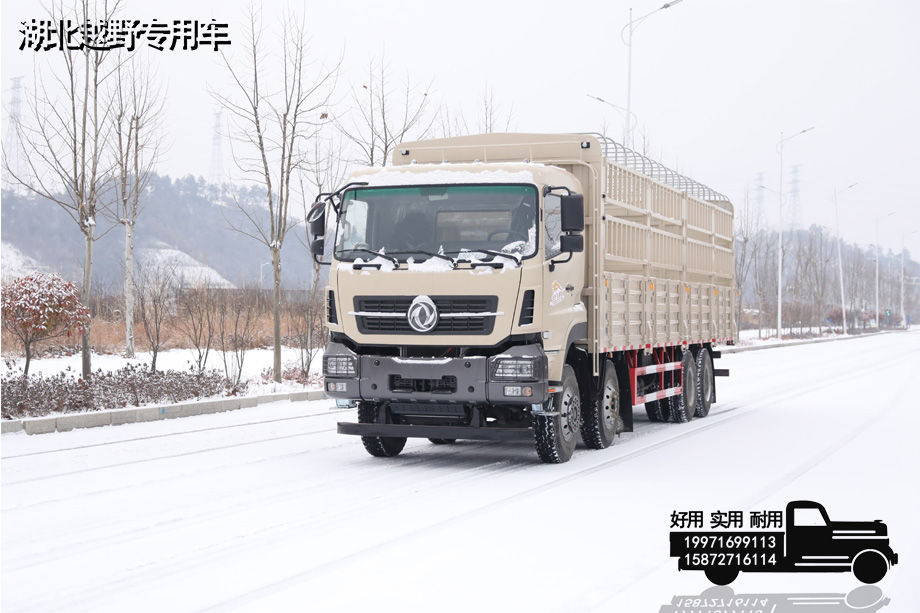

The 8×4 cargo box uses high-strength steel to create a double-layer fence structure, which is transparent, ventilated, and anti-spill. Most of the tails have outward-opening doors, making it convenient to load and unload cargo. The vehicle has abundant power, strong load-bearing capacity, and a solid and stable chassis, taking into account heavy-duty and long-distance driving requirements. It is widely used in scenarios such as fresh fruits and vegetables, livestock and poultry breeding, less-than-truckload logistics, and general cargo trunk transportation. It is a mainstream heavy-duty vehicle for highway freight. The 8×4 warehouse transport vehicle is a heavy-duty four-axle freight vehicle with an 8×4 drive mode (four steering axles at the front and a dual drive axle at the rear). The load-bearing structure is stable. The braking and driving systems are adapted to heavy-load conditions. It complies with National VI emission standards and is compliant on the road. The overall dimensions of the vehicle are regular. The length of the mainstream cargo box is 9.6 meters. The box body adopts a thickened profile and welded warehouse grid frame. The layered fence design is ventilated and breathable. It can not only fix the goods and prevent them from being scattered, but also meet the transportation requirements of live livestock and poultry, fresh agricultural and sideline products.
It has strong power output, excellent fuel economy, and stable performance when climbing hills and long distances at high speeds. The cab has spacious space and good driving comfort. The vehicle has a large rated load capacity, sufficient loading space, and is extremely versatile. It can be used in a variety of operating scenarios such as trunk logistics, urban and rural distribution, green transportation, and bulk cargo transfer. Taking into account both practicality and durability, it is the main heavy-duty transportation equipment in the logistics industry.
8×4 truck with four front and eight rear axles, four heavy-duty axles, a compliant total mass of 31 tons, and a full carrying capacity. The 9.6-meter large-capacity warehouse-grid cargo box is ventilated and prevents spills, and is efficient in loading and unloading. It is suitable for multiple categories of goods. The powerful chassis ensures stable driving and is fully adaptable to long-distance, green transportation, general cargo, and livestock and poultry transportation. The high-strength grating box is strong and durable, has National VI emissions, and can travel across the country. It is the first choice for freight transportation.
| Basic information | |
| drive | 8*4 |
| direction | Left rudder/right rudder |
| Chassis size | / |
| Vehicle size | 11780*2650*3635mm |
| total mass | 31000kg |
| curb weight | 11970kg |
| Chassis configuration | |

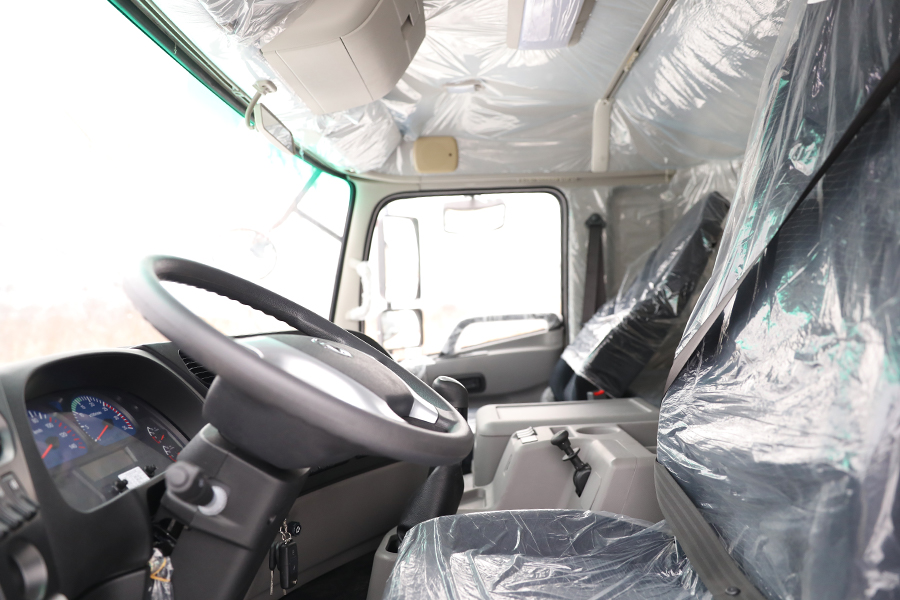

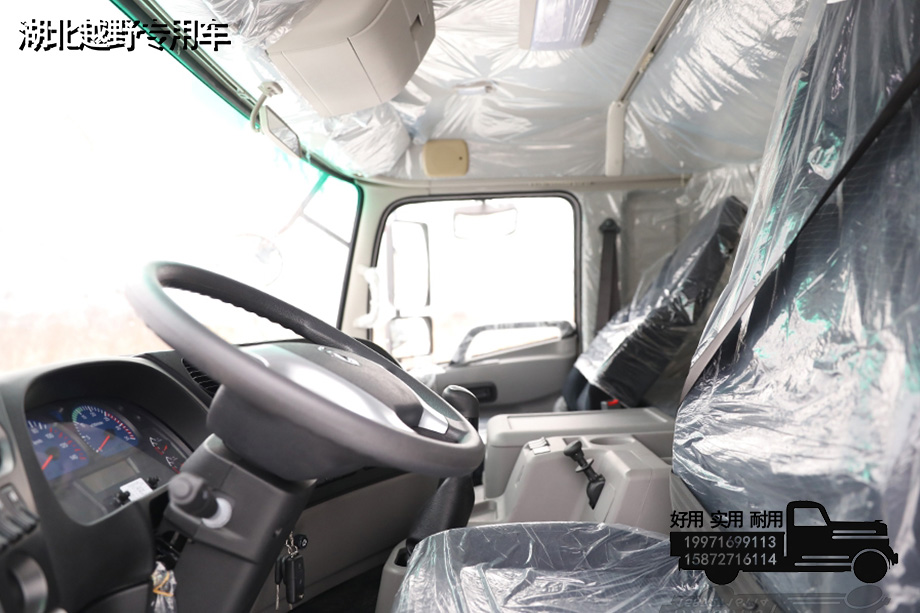

| cab | Flat head, one and a half rows, with air conditioning |
| Number of seats | 3 people |
| Wheelbase | 1800+4560+1330mm |
| Frame | 860*280 (double layer) |
| engine | Yuchai YC6MK420-33 |
| Gearbox assembly | Manual 12 gears |
| Qian Shuangqiao | 5T/5T |

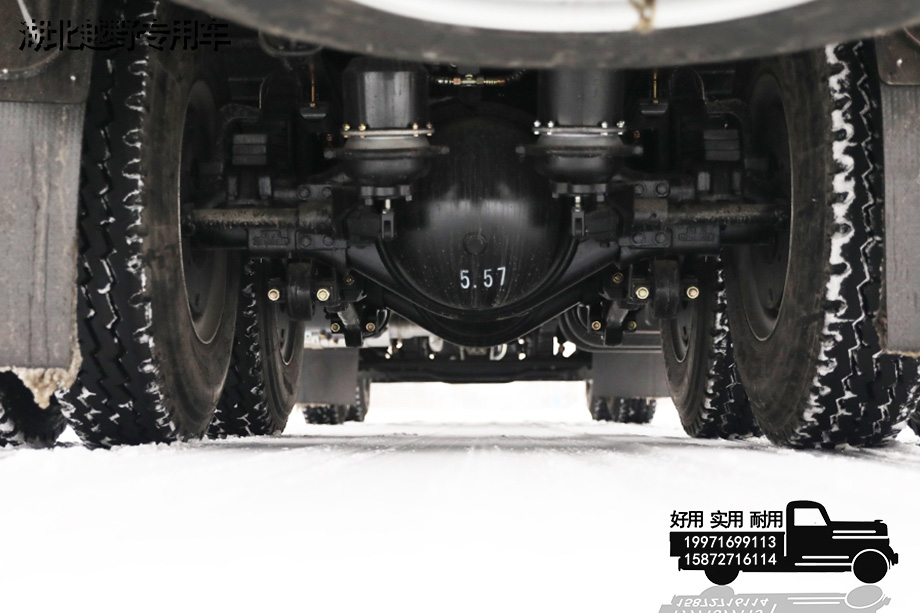

| Rear double bridge | 10T/10T |
| tank | 420L (can be made as large as possible according to space location) |
| circuit | 24V circuit system |
| suspension system | Leaf Spring9/9/10 |
| Braking method | Air brake |
| tire | 11.00R20 (12+1) |
| Bodywork configuration | |
| cargo box | 9600*2450*800mm |
| engine | |
| engine | Weichai YC6MK420-33 |
| horsepower | 420 |
| emission | Country 3 |
| Displacement | 10.338L |
| power | 309kW |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 85km/h |
| Wheelbase | 1990/1990/1874/1874mm |
| ground clearance | 300mm |
| Obstacle clearance height | 435mm |
| Wading height | 580mm |
| approach/departure angle | 16°/10° |
| front/rear suspension | 1370mm/2720mm |
| gradeability | 60% |
| standing slope | 40% |
| other | |
| other | Fire extinguishers, vehicle tools |













The first step: Negotiate purchase requirements
Customers can inform us of their needs by phone/WeChat or on-site inspection.
Step 2: Customize the plan
The company will recommend corresponding models or customize vehicle configurations according to your needs.
Step Three: Sign the Contract
Both parties sign a vehicle purchase and sale contract and pay the contract deposit in advance (the contract can be signed by fax or in person).
Step 4: Arrange production
Issue production plans and arrange production.
Step Five: Vehicle Completion
After the vehicle is offline for inspection, the remaining balance of the vehicle must be paid and relevant procedures completed.
Step Six: Logistics Departure
Customers can pick up the vehicle from the factory, or negotiate with our company to arrange delivery to a designated location.
other :
1. The company can provide customers with export customs declaration services.
2. Complete after-sales service station to solve your worries!
