In response to customer demand, our company has developed a trailer chassis, which will eventually be used to launch drones in the firefighting field.

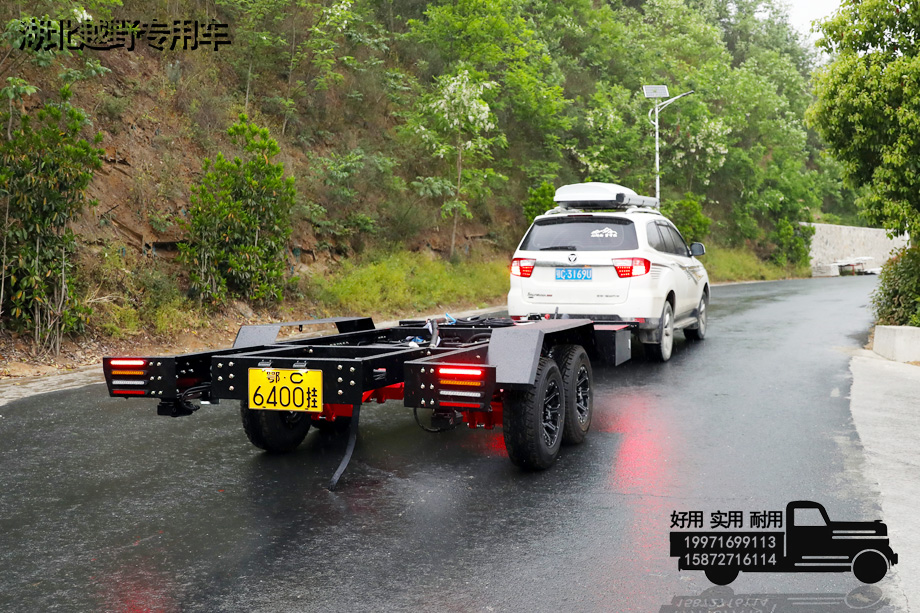

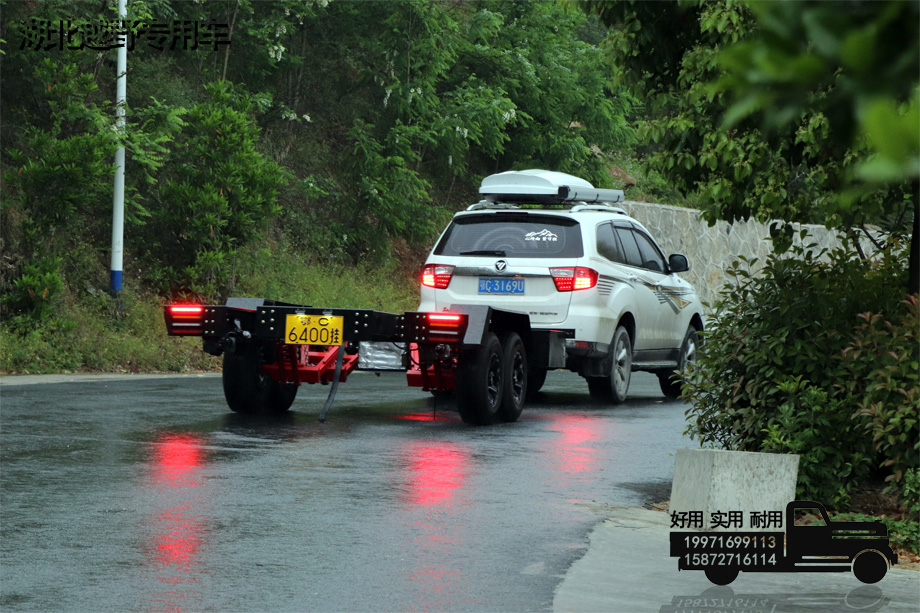

The trailer chassis mainly relies on the power of the vehicle in front, so it does not need an engine.
Taking into account the space reserved when the drone is launched, our company's designers constantly communicate with the customer and finally determine the chassis style.

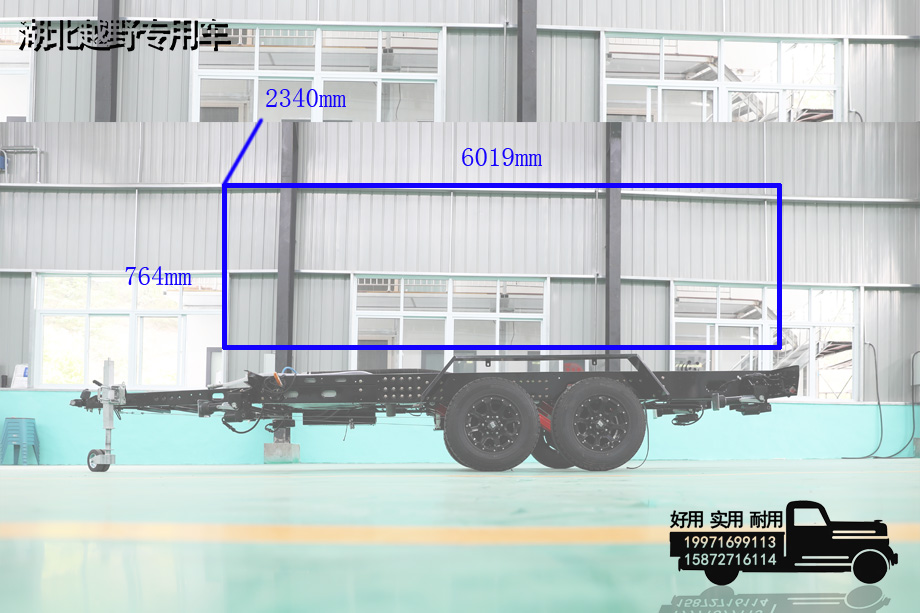

The chassis is 6019mm long, 2340mm wide and 764mm high. It can install a 4200mm long box to carry the drone.

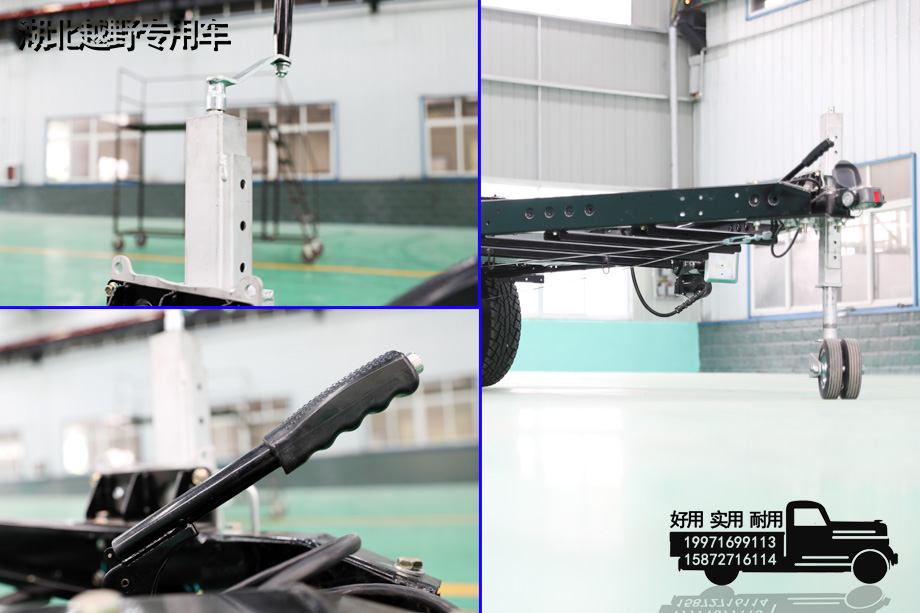

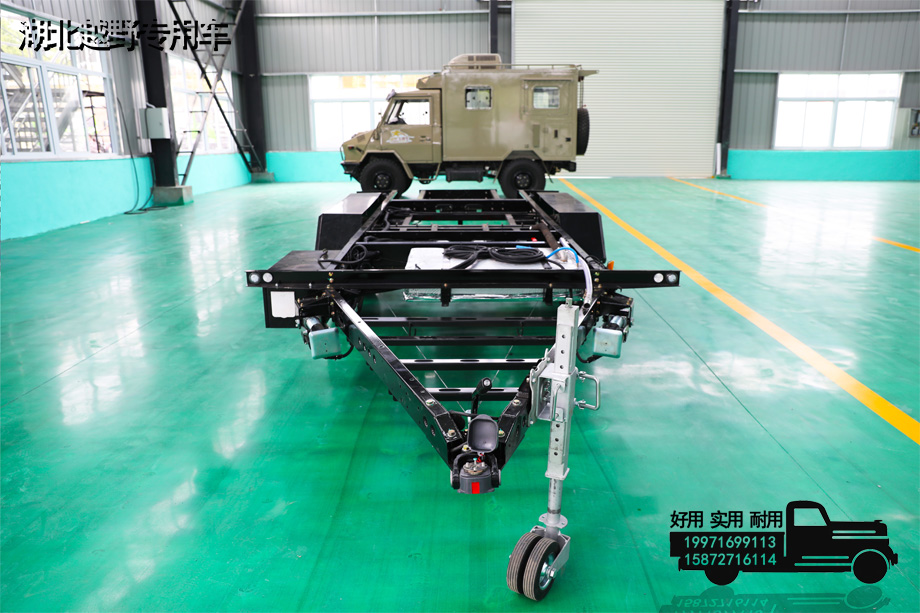

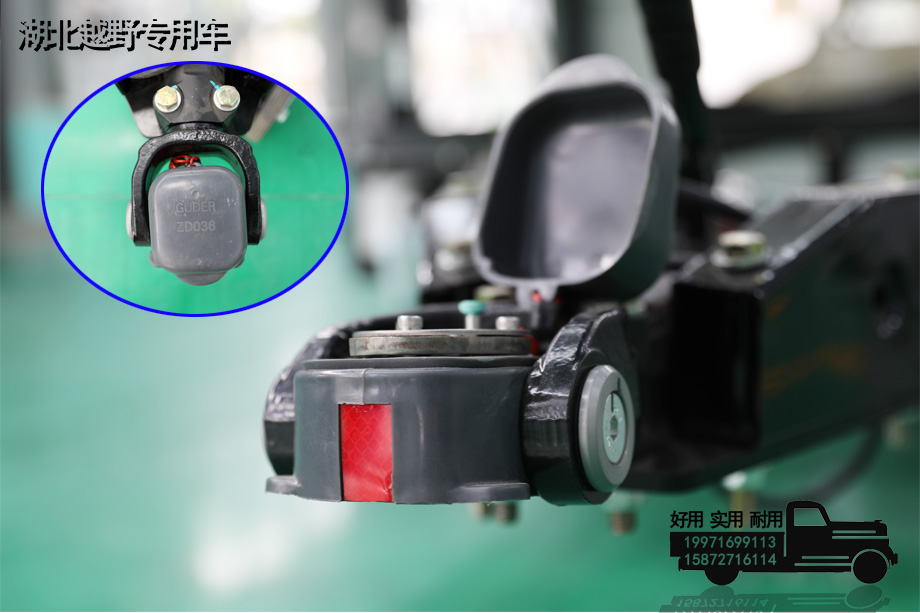

The 3.5-ton universal traction head is used to connect and fix the front vehicle. The reinforced guide wheels are used to move in the non-traction state (must be stowed in the traction state). The handbrake must be released during driving and moving.

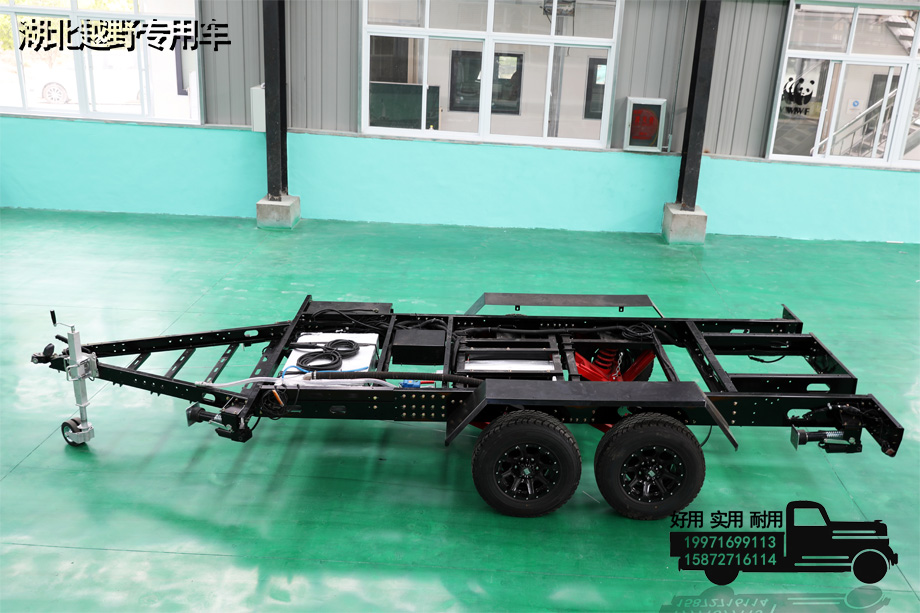

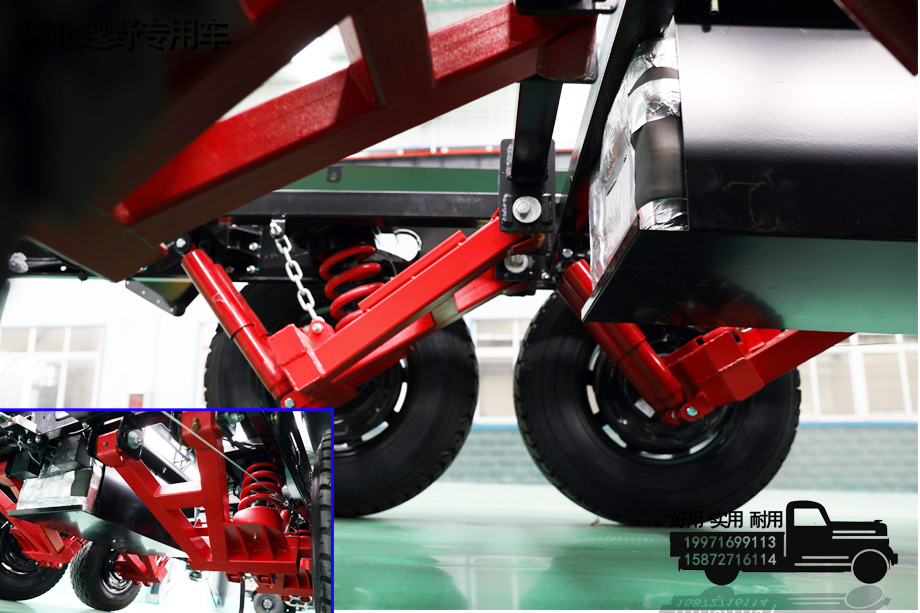

The entire chassis adopts dual-axle independent suspension, 4 off-road-specific tires, and multiple shock-absorbing holes are all stamped and formed at one time. There is no welding process and all are fixed with screws, which has excellent off-road performance and stability.
The chassis can carry 6 tons of weight, so drones are no problem. There are 4 electric outriggers, each of which can carry 3 tons. They can be lowered and leveled with one click to avoid uneven stress on the chassis caused by the cargo falling to one side.

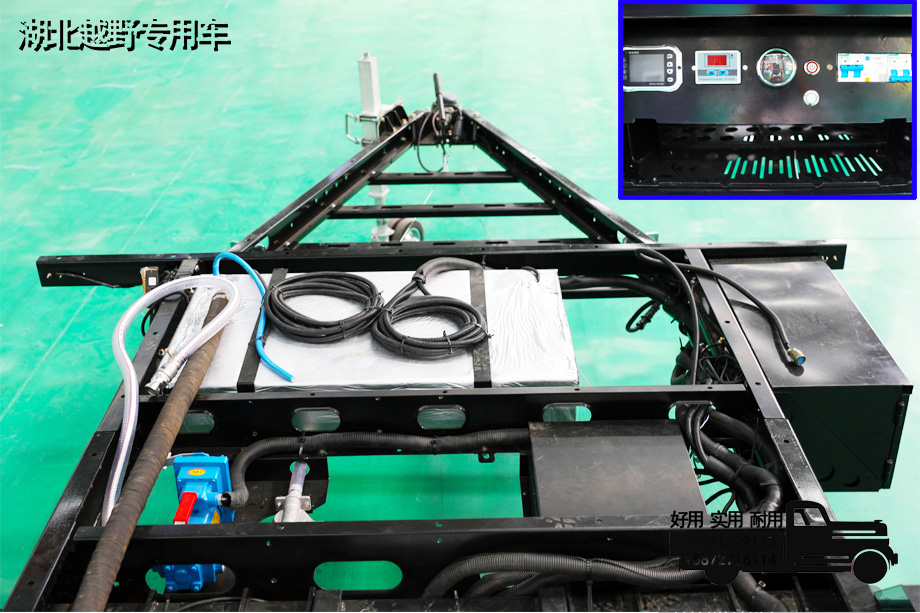

According to the customer's requirements, we installed a set of refueling equipment and circuit system to provide fuel and power to the drone.
