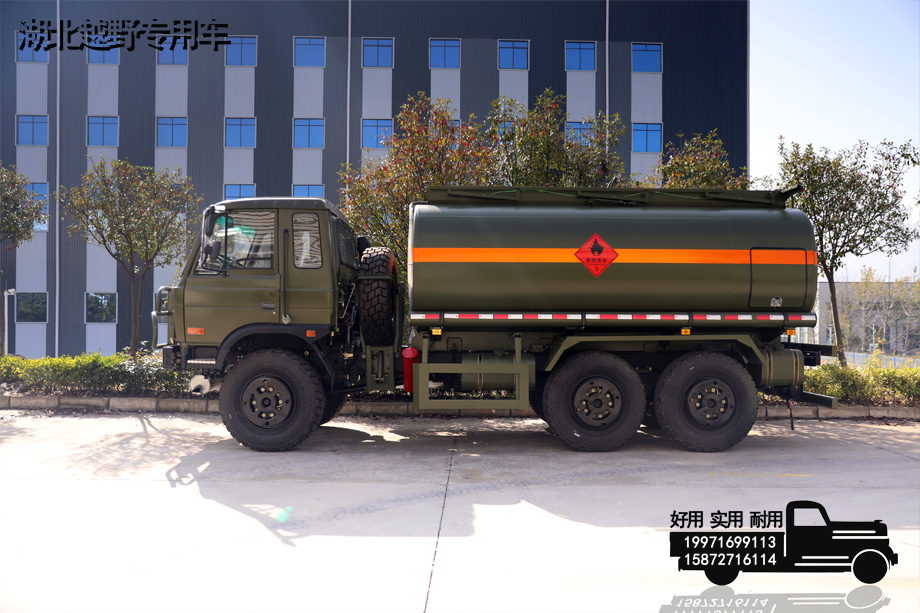

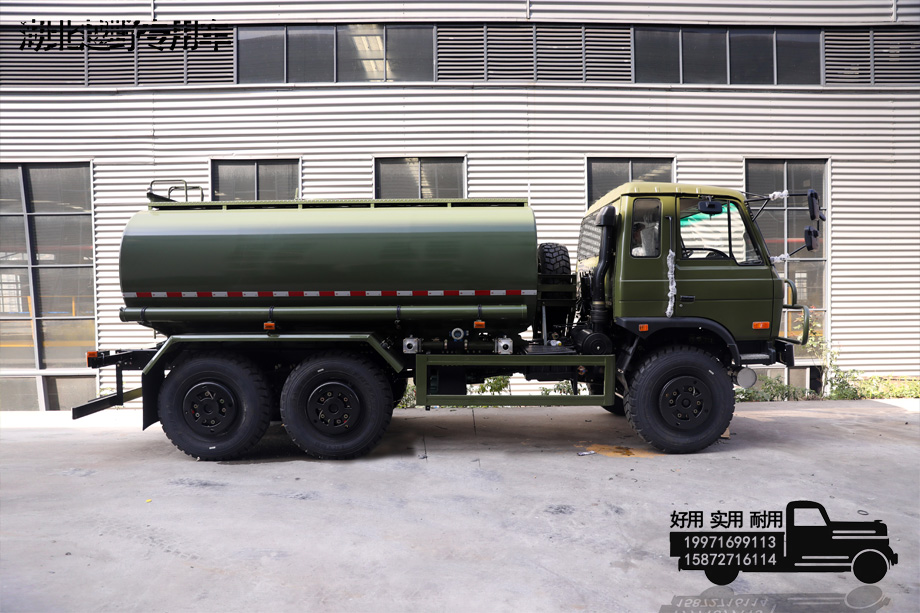

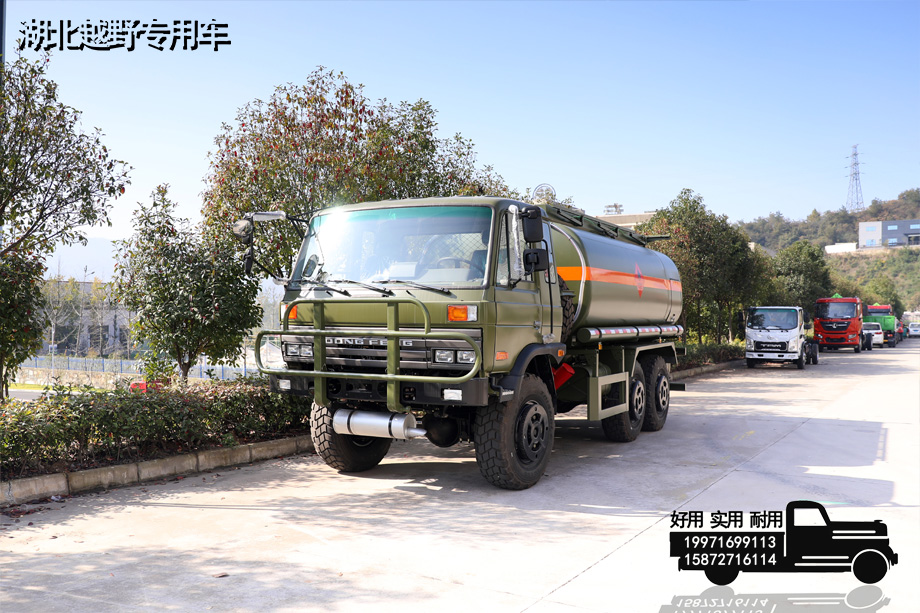

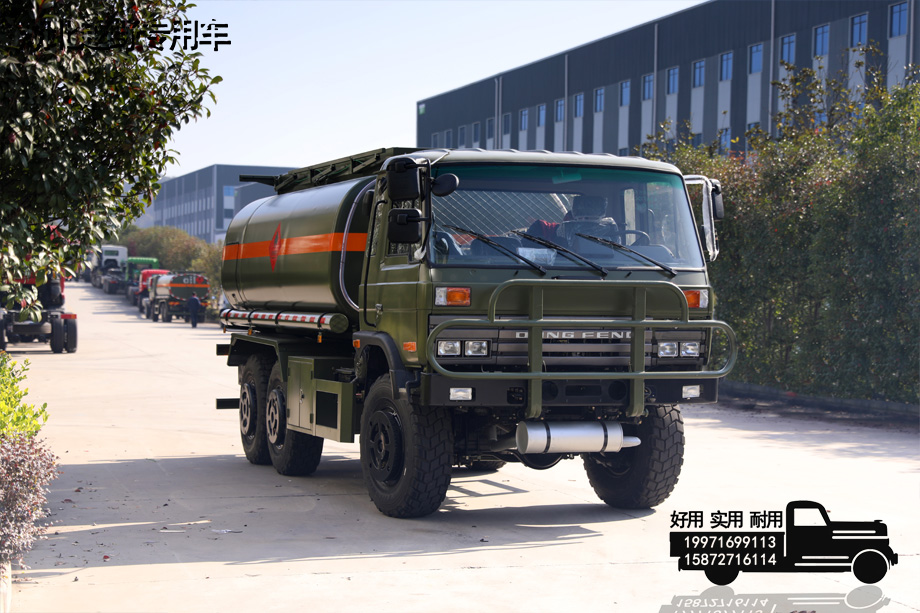

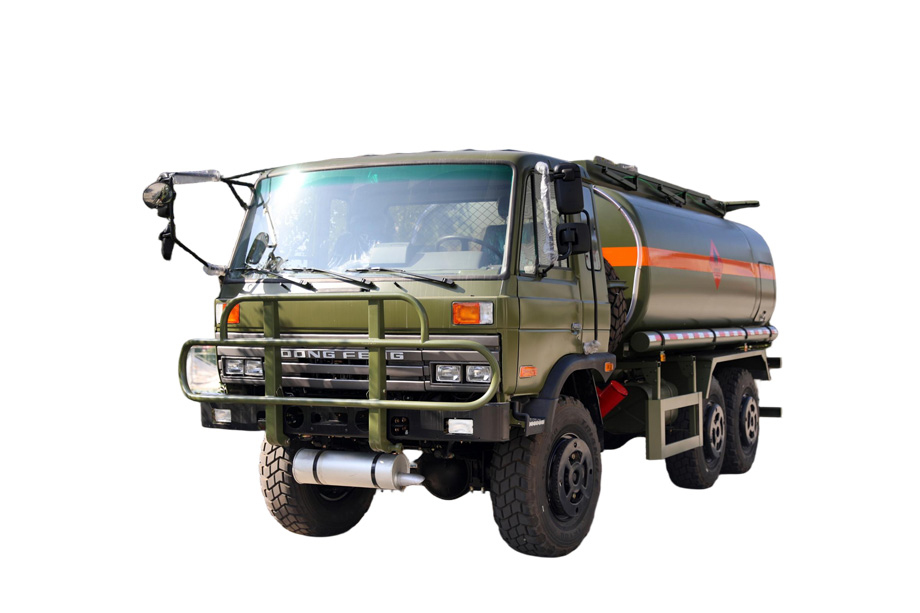

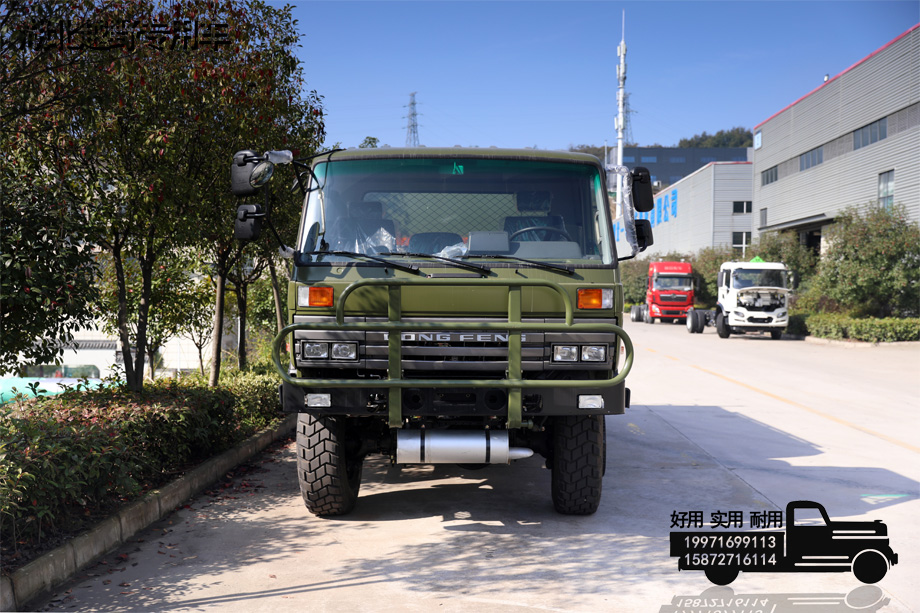

DF246 is a three-and-a-half-ton off-road vehicle developed by DF. The 6x6 drive can drive in forests, deserts, and swamps, and it also has certain wading capabilities. The engine has a preheating function, and the vehicle can start smoothly at an ambient temperature of -41°C.
| Basic information | |
| drive | 6*6 |
| direction | left rudder |
| Chassis size | / |
| Vehicle size | 7586×2320×2740mm |
| total mass | 10435kg |
| curb weight | 5725kg |
| Chassis configuration | |

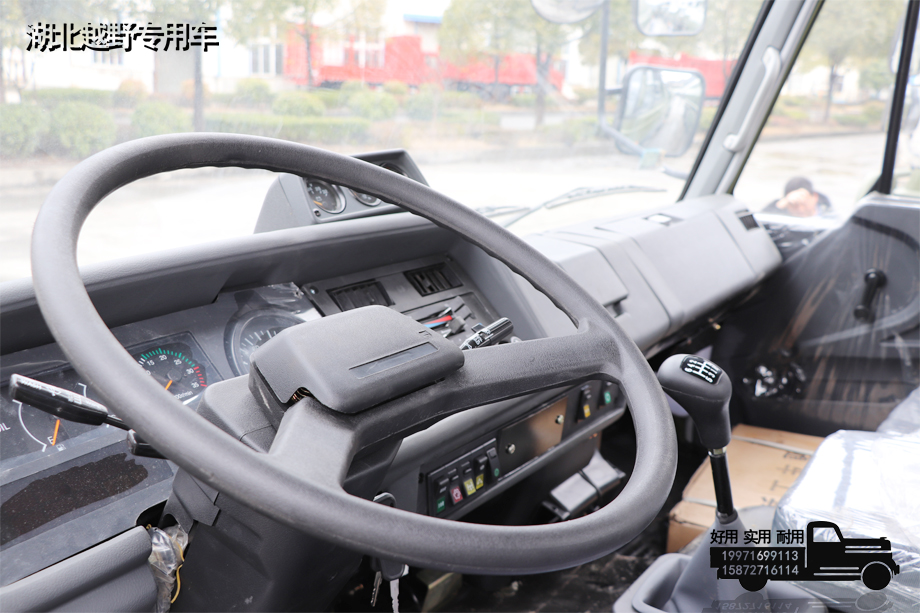

| cab | Flat head, one and a half rows, with air conditioning |
| Number of seats | 3 people |
| Wheelbase | 3475+1250mm |
| Frame | 860*232mm |
| engine | Cummins B190 33/B210 33 |
| Gearbox assembly | Manual 6-speed/5-speed/small eight-speed |
| transfer case assembly | High and low gears |
| Maebashi | 3.5T |
| middle bridge | 3.5T |
| rear axle | 3.5T |
| tank | 160+60L (can be made as large as possible according to the space location) |
| circuit | 24V circuit system |
| suspension system | leaf spring |
| Braking method | Air brake |
| tire | 12.5R20 (6+1) |
| Bodywork configuration | |

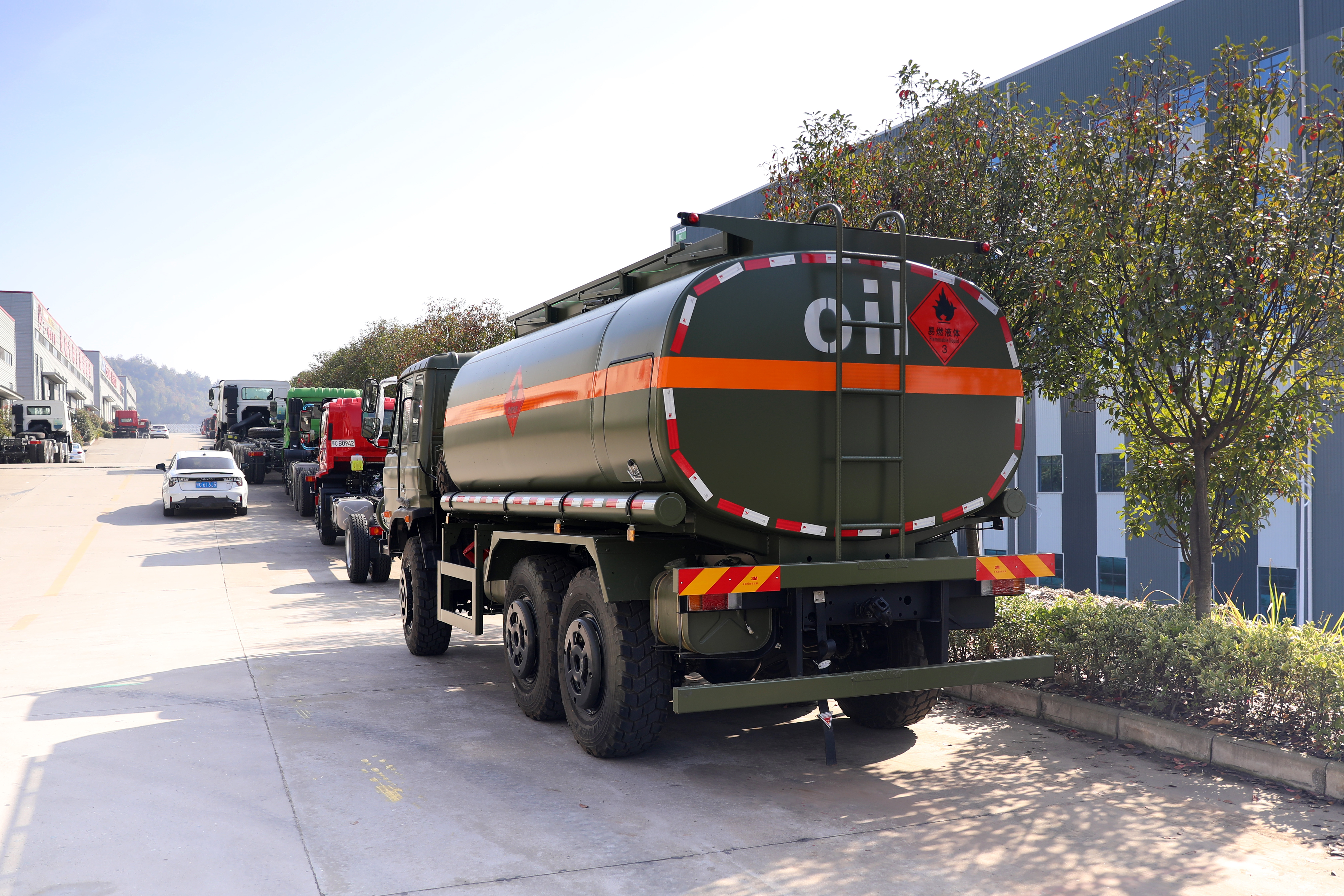

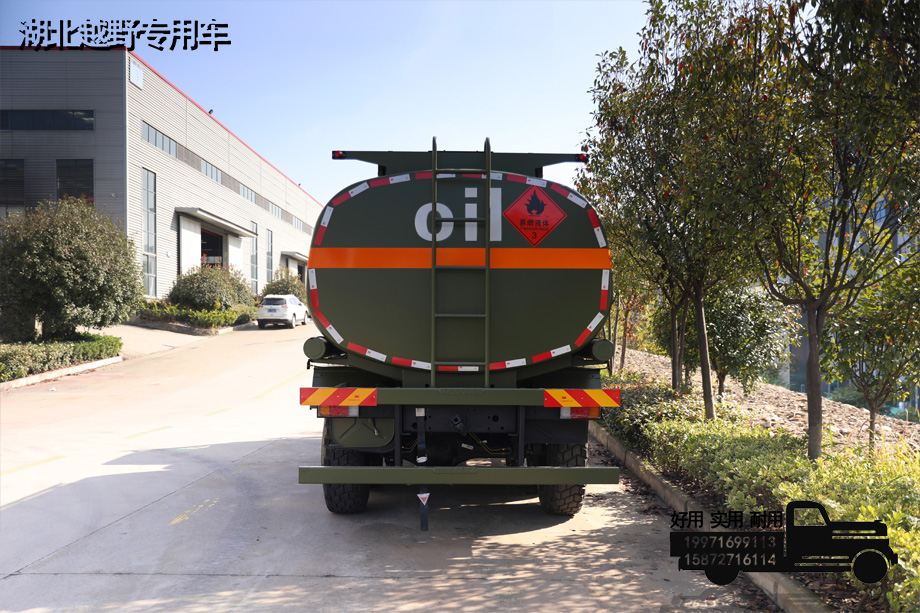

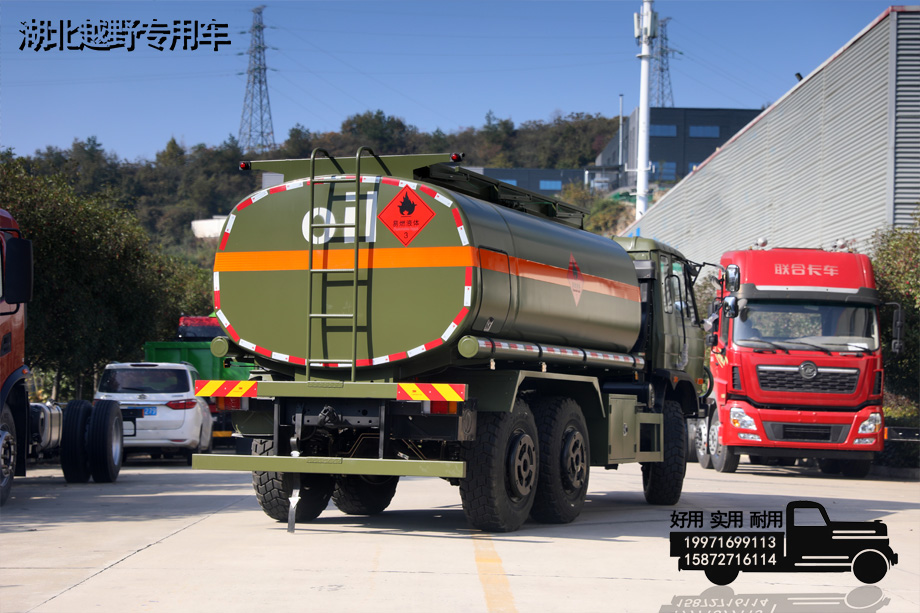

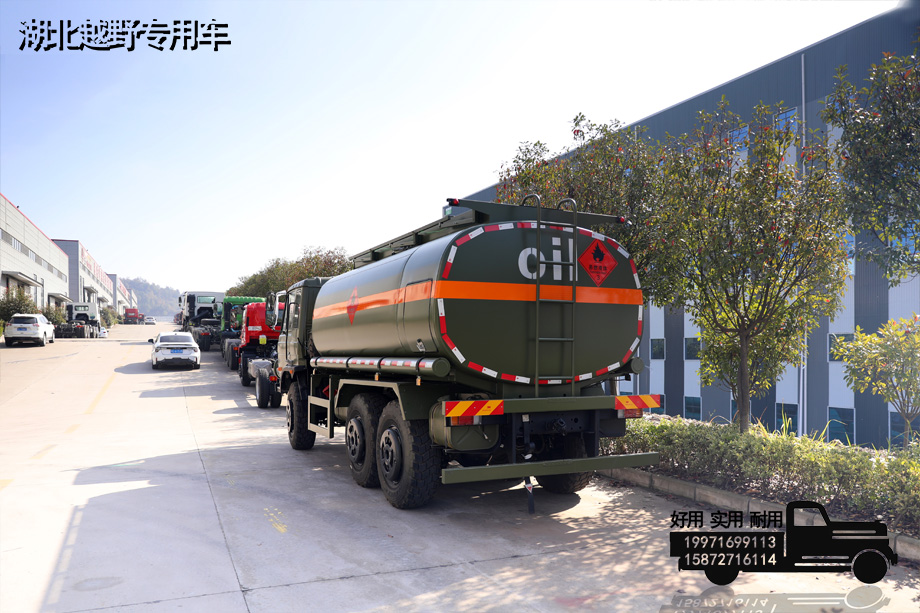

| cargo box | 10m³, 1. Anti-rust treatment inside the tank; 2. Make two wave-blocking plates inside the tank; a second water tank on the top of the car body near the front end of the car for water inlet; 3. The tank body is installed close to the front of the car and supported on both sides; 4. The thickness of the steel plate of the ladder tank body is 4mm, and the thickness of the front and rear side plates is 5m; 5. Make a channel directly under the tank at the rear end of the car leading to the rear water outlet. It is required to install an electrically controlled ball valve to facilitate the driver to electrically control the water out of the tank in the cab. The electrically controlled ball valve is 100mm. |
| engine | |
| engine | Cummins B190 33 |
| horsepower | 190 |
| emission | National Three |
| Displacement | 5.9L |
| Number of cylinders | 6 |
| Output power | 140kw |
| Torque | 640N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 88km/h |
| approach angle | 35° |
| departure angle | 34° |
| Wheelbase | 1920/1876/1885mm |
| ground clearance | 305mm |
| Obstacle clearance height | 340mm |
| turning radius | ≮9.4m |
| gradeability | 60% |
| standing slope | 40% |
| other | |
| other | Vehicle tools |
