DF246 is a three-ton semi-load off-road truck developed by DF company. It is equipped with special facilities such as a winch, flip-up seats, etc. It is mainly used to carry people and cargo. The 6x6 drive can drive in forests, deserts, and swamps, and it also has certain wading capabilities. This site is the second-class chassis status of the DF EQ2102 double-row model. The engine has a preheating function, and the vehicle can start smoothly at an ambient temperature of -41°C.

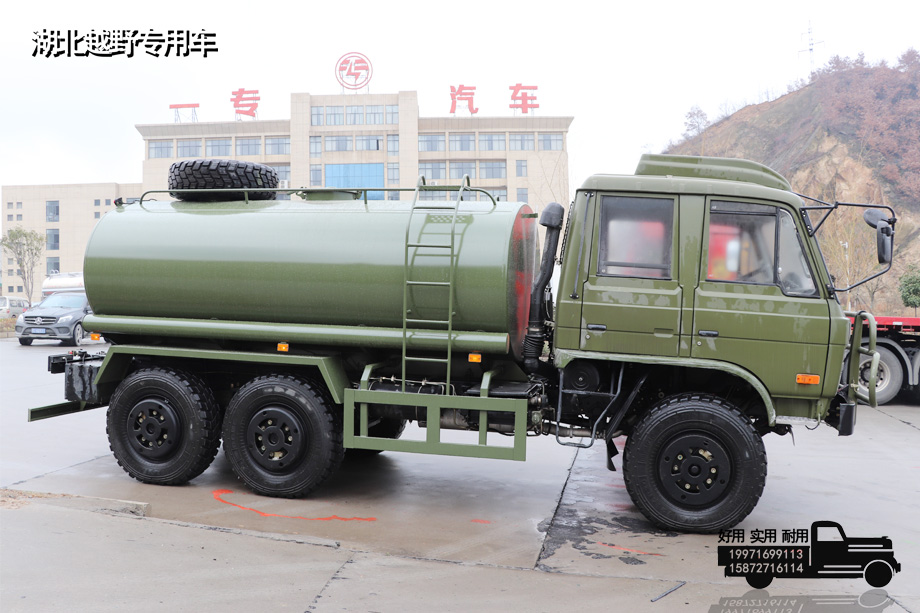

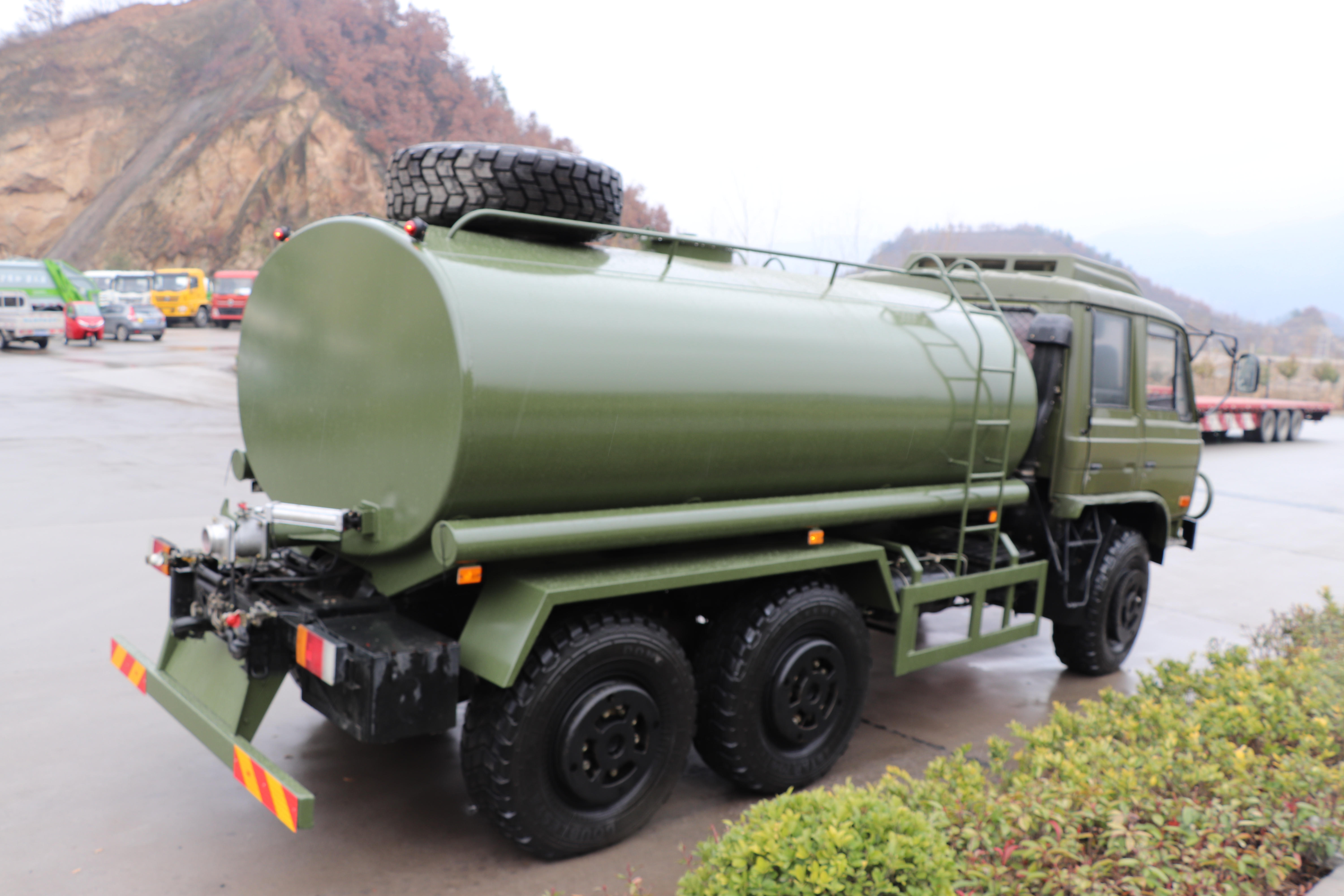

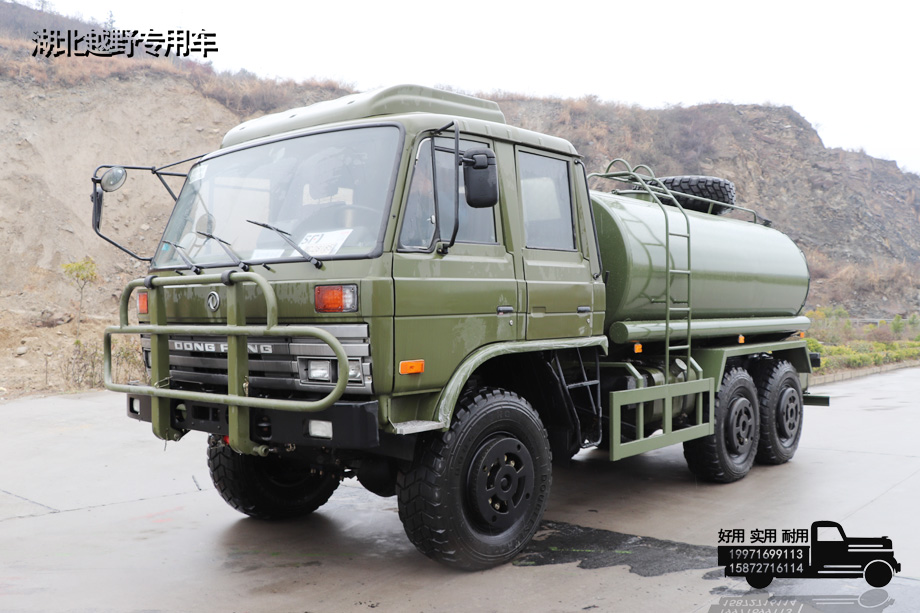

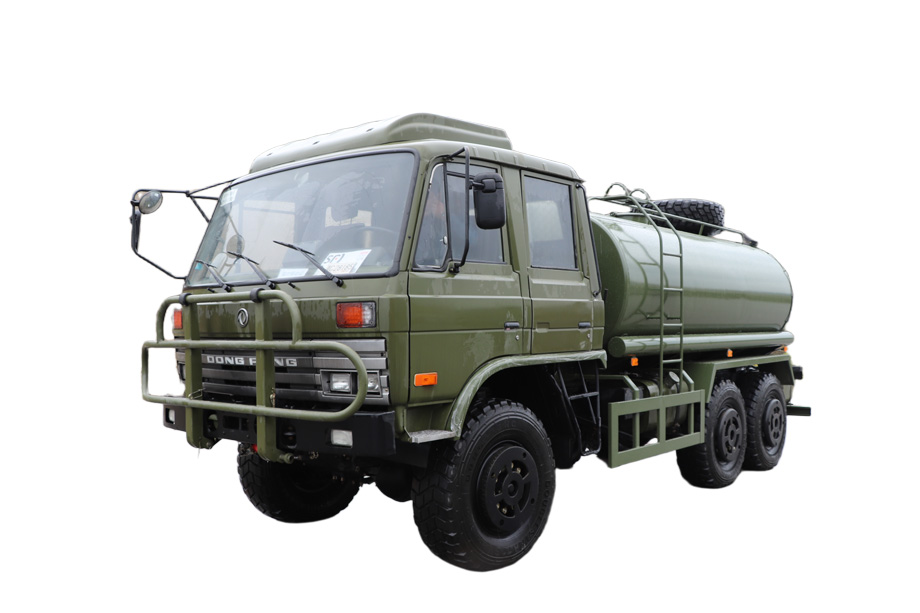

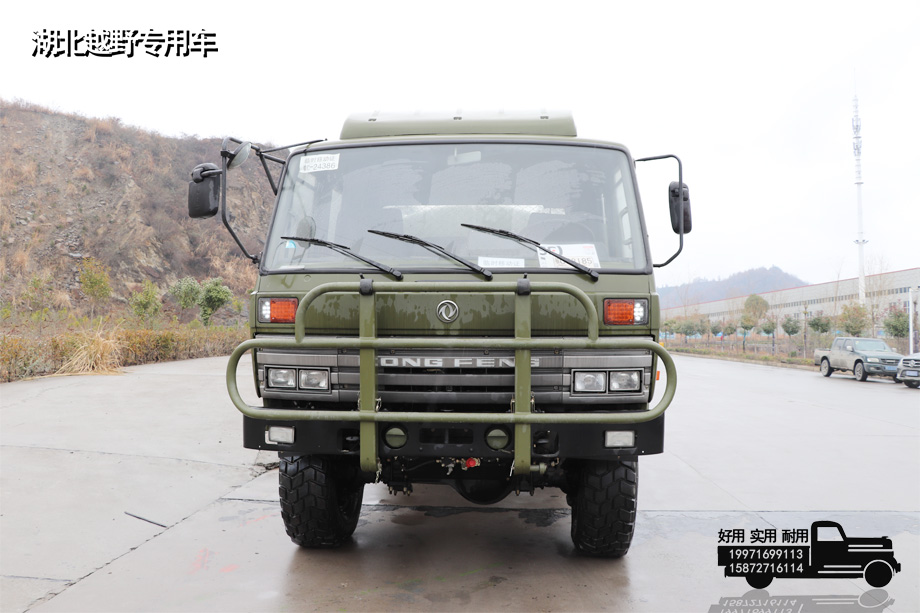

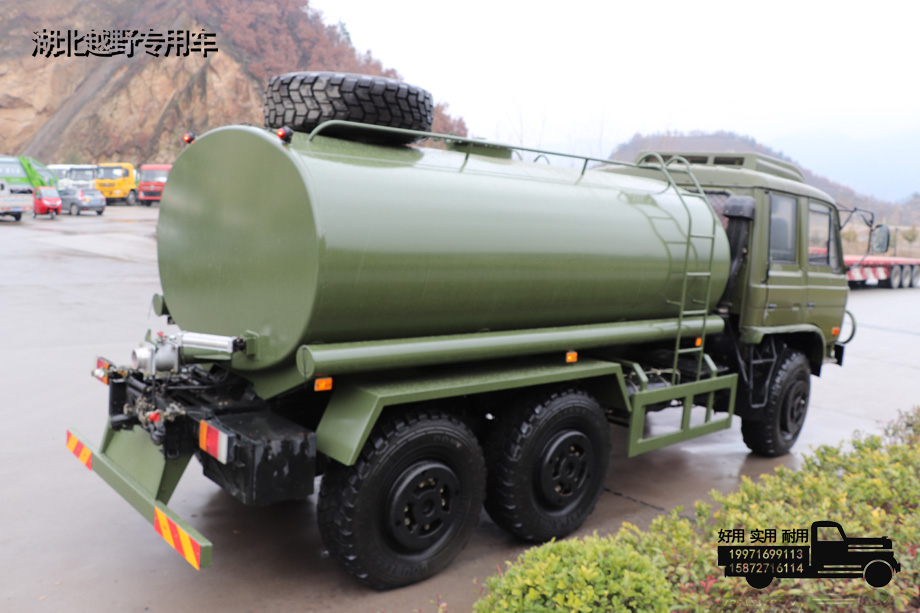

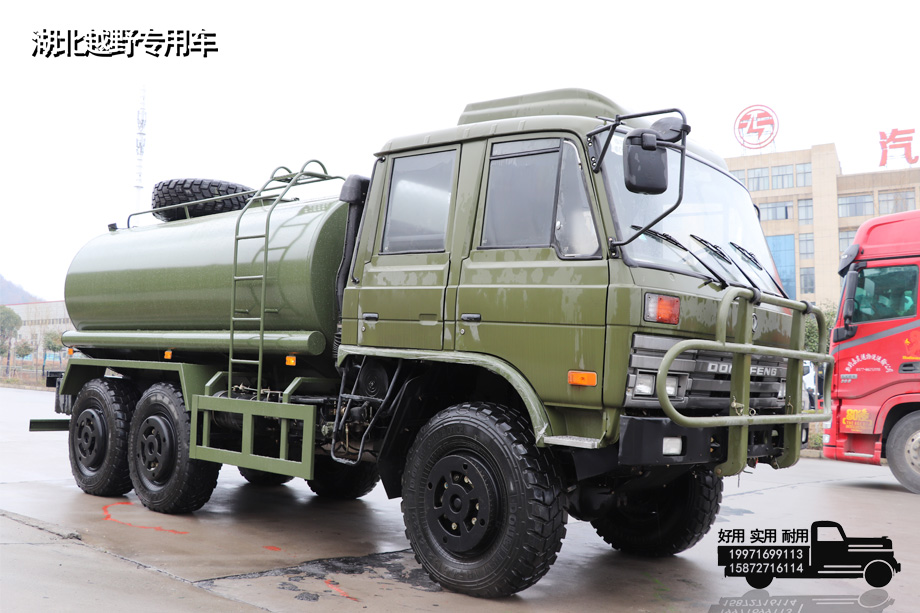

DF EQ2102N water tank truck is modified from DF EQ2102N 6×6 off-road chassis. It has a double-row four-door cab with overhead air-conditioning. It has strong all-terrain passability and has multiple functions such as water transportation, water sprinkling, emergency water supply and forest firefighting. It is a special water supply equipment in the wild and harsh environments. The volume is optional, the inner wall is anti-corrosion, and both ends are equipped with anti-wave plates to reduce driving vibration. Equipped with a special sprinkler/fire pump, it can be used for sprinkling, irrigation, and emergency water supply. It is suitable for forest firefighting, field water supply, road dust suppression, drought relief, and mining area sprinkling.
| Basic information | |
| drive | 6*6 |
| direction | left rudder |
| Chassis size | / |
| Vehicle size | 7340*2470*3040mm |
| total mass | 10850kg |
| curb weight | 7800kg |
| Chassis configuration | |

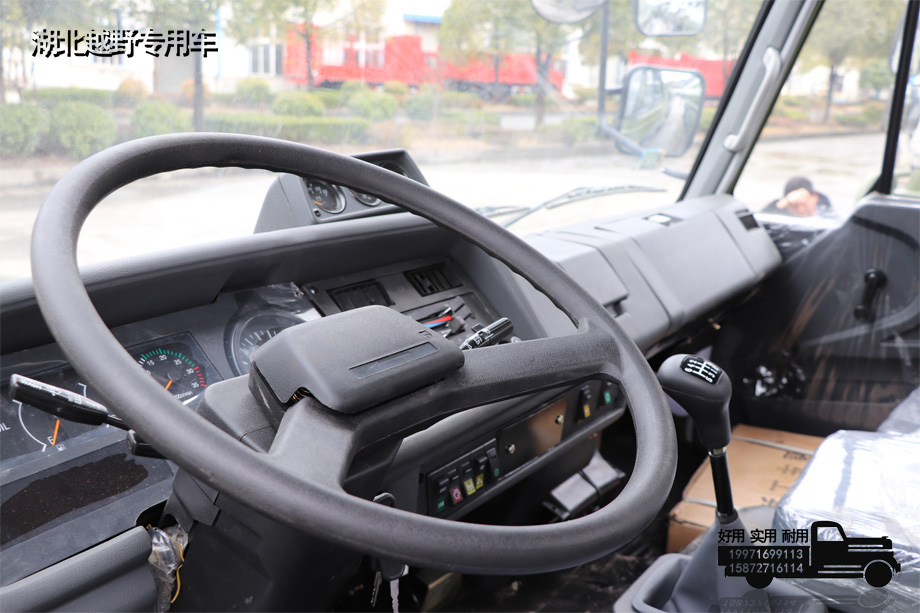

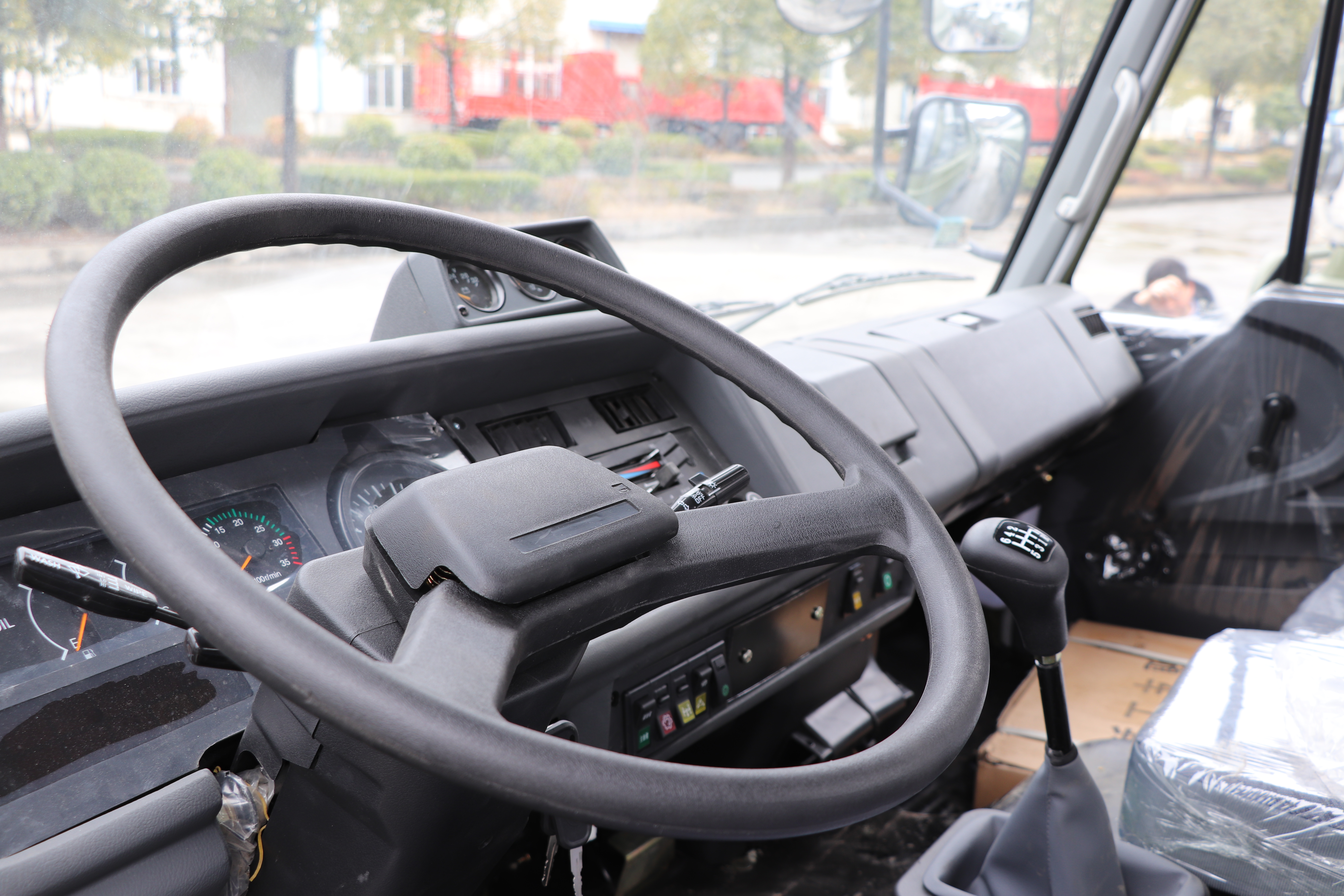

| cab | Flat head, double row, with air conditioning |
| Number of seats | 4~5 people |
| Wheelbase | 3475+1250mm |
| Frame | 860*232mm |
| engine | Cummins B190 33/B210 33 |
| Gearbox assembly | Manual 6-speed/5-speed/small eight-speed |
| transfer case assembly | High and low gears |
| Maebashi | 3.5T |
| middle bridge | 3.5T |
| rear axle | 3.5T |
| tank | 160+80L (can be adjusted according to space location) |
| circuit | 24V circuit system |
| suspension system | Leaf spring10/12 |
| Braking method | Air brake |

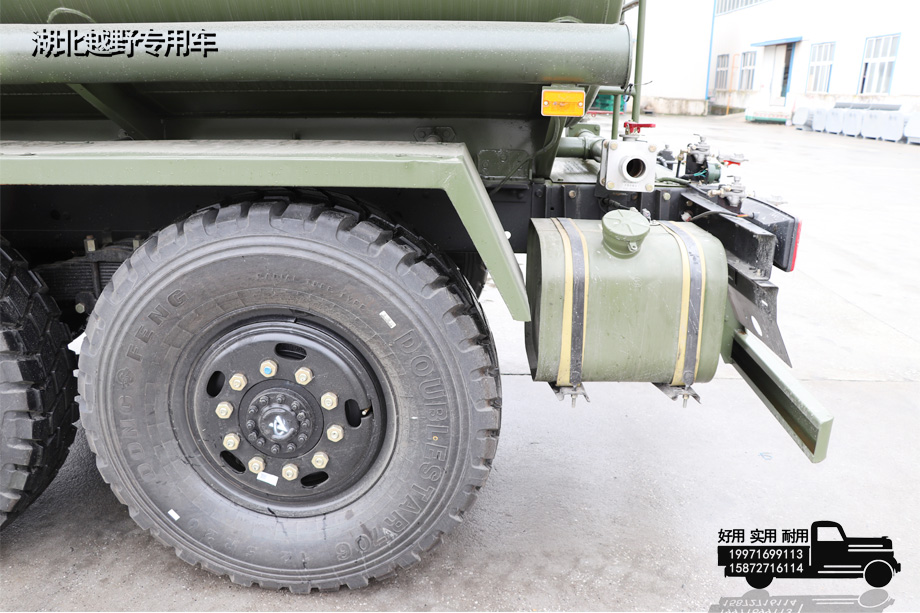

| tire | 12.5R20 (6+1) |
| Bodywork configuration | |
| Tank volume | 5/6/8/10/12/15/20/25m³ |
| engine | |
| engine | Cummins B190 33 |
| horsepower | 190 |
| emission | National Three |
| Displacement | 5.9L |
| Number of cylinders | 6 |
| Output power | 140kw |
| Torque | 640N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 90km/h |
| Wheelbase | 1890mm |
| ground clearance | 305mm |
| Obstacle clearance height | 420mm |
| Wading height | 1125mm |
| gradeability | 60% |
| standing slope | 40% |
| other | |
| other | Water barrels, oil barrels, fire extinguishers, vehicle tools |
