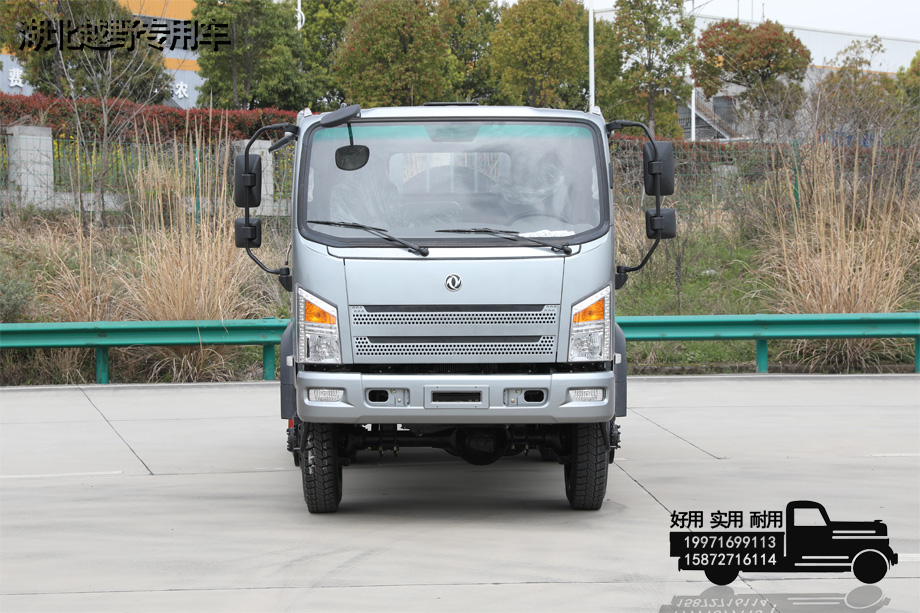

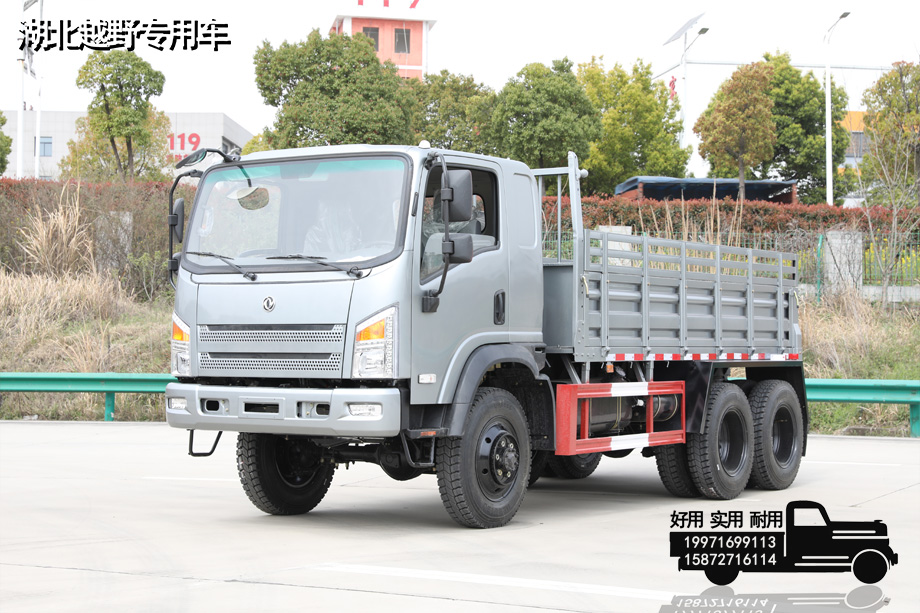

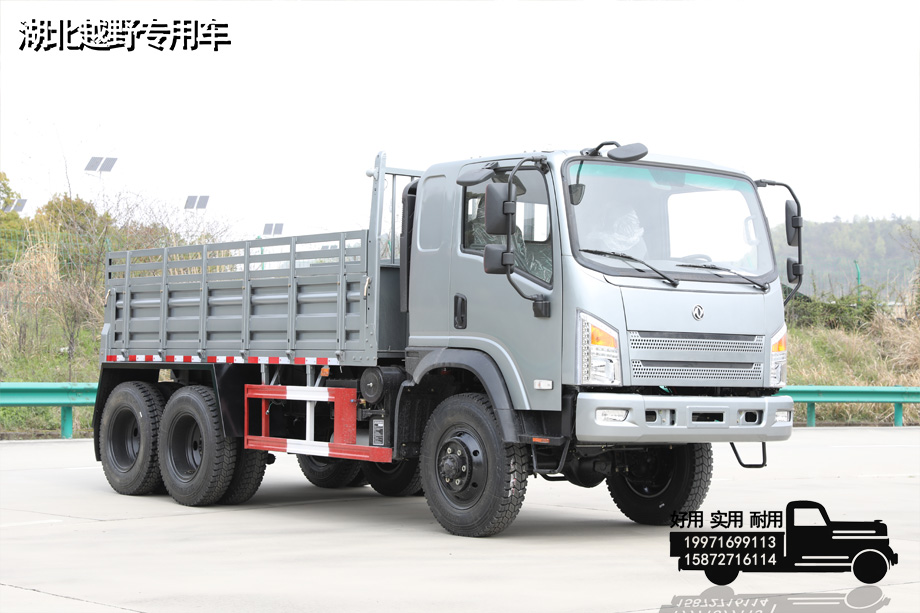

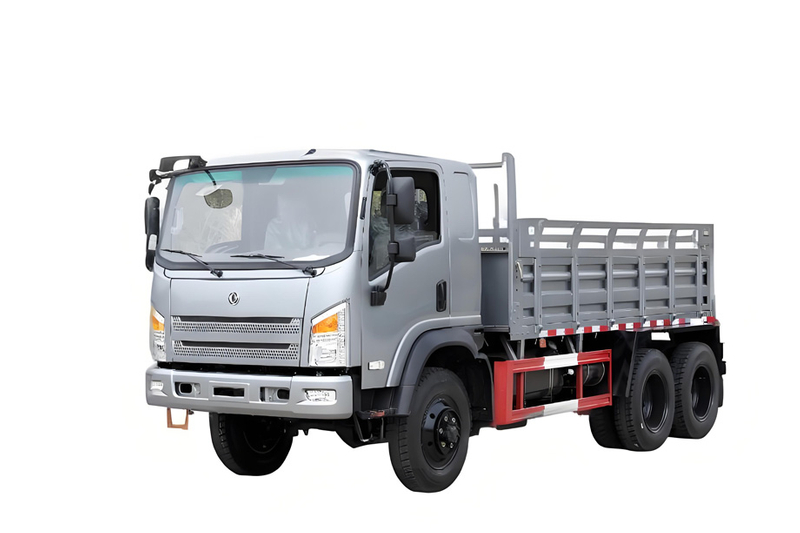

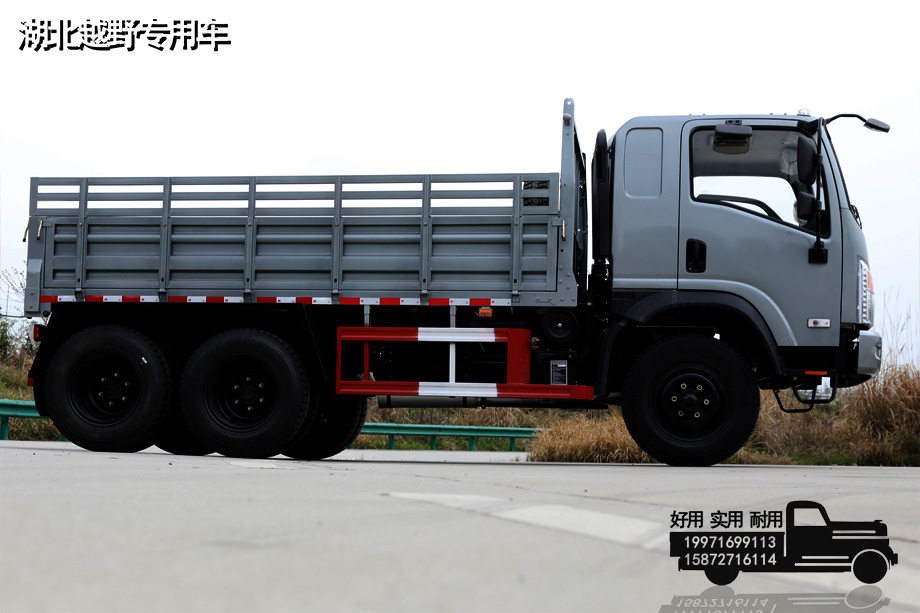

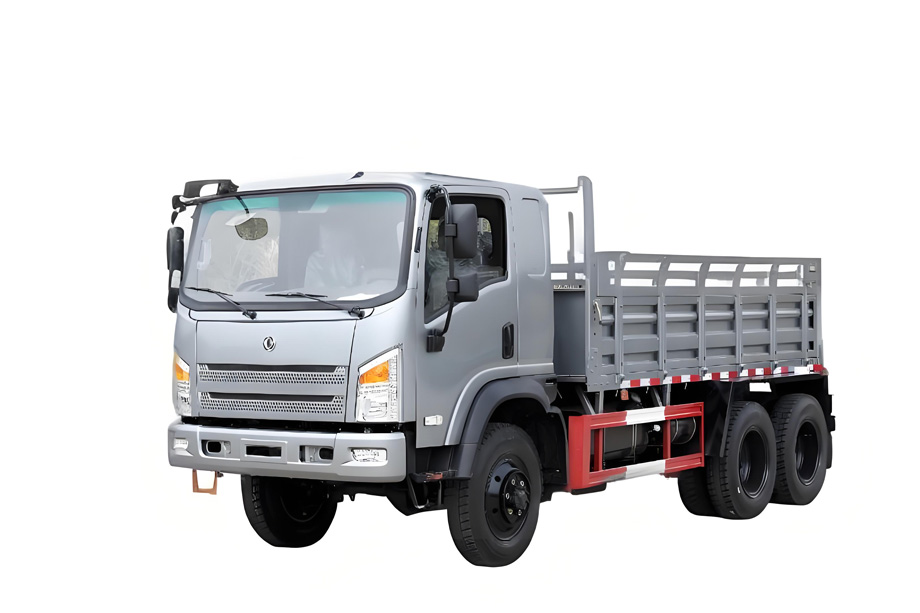

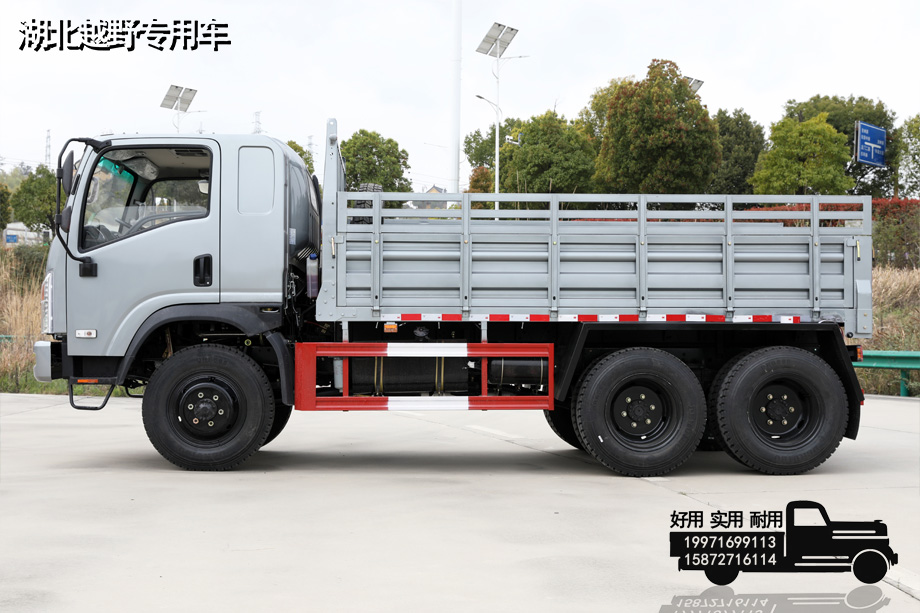

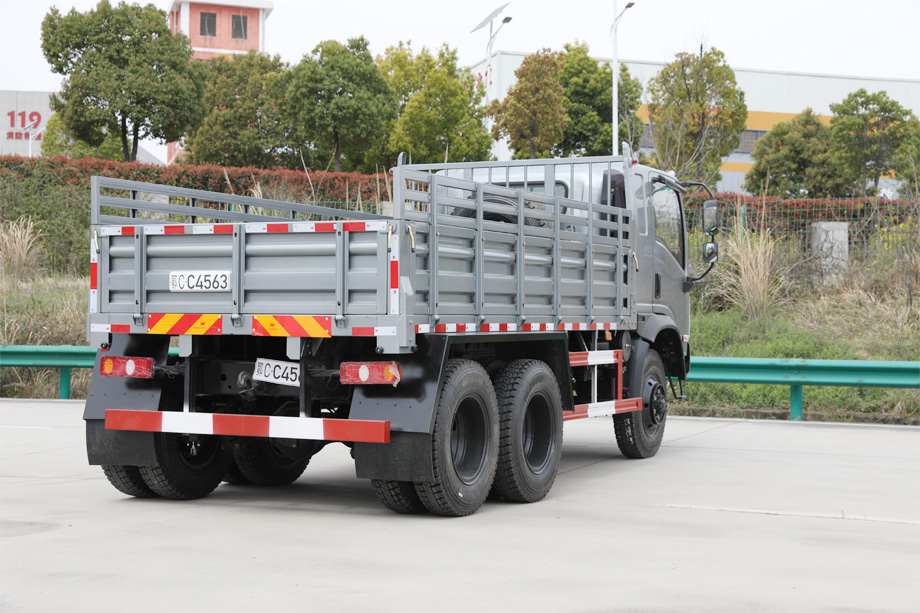

This flat-head 'Bobcat' off-road truck is a modified and upgraded version of the 'Hero Truck' 25Y. Our company launched a flat-head six-wheel drive off-road truck based on demand that is more in line with the market. This new vehicle inherits the superior performance of the original with even greater functionality and maneuverability.

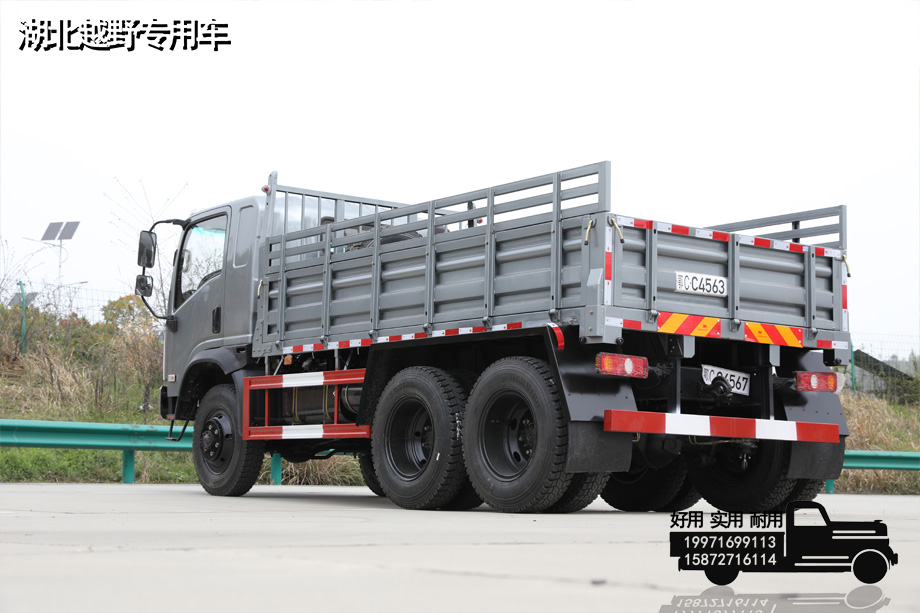

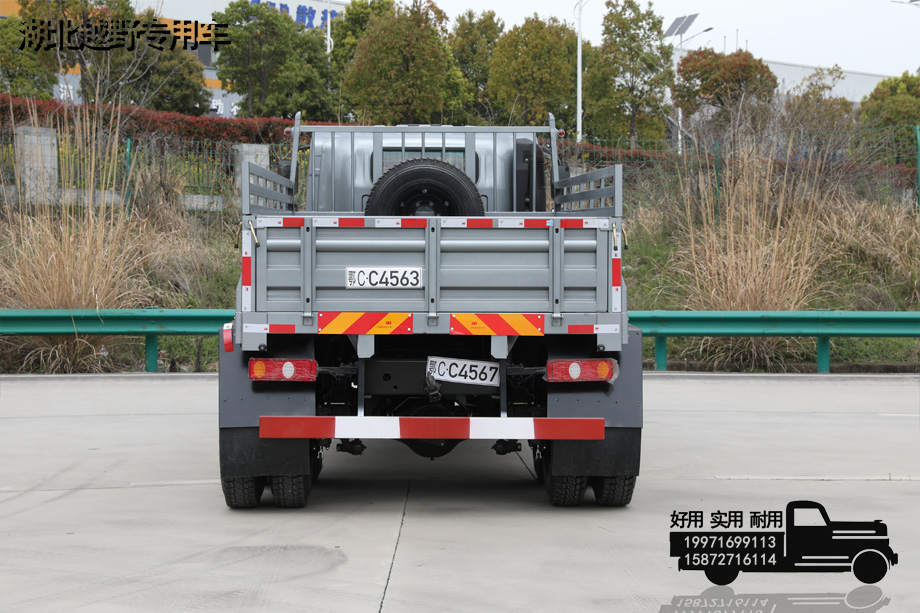

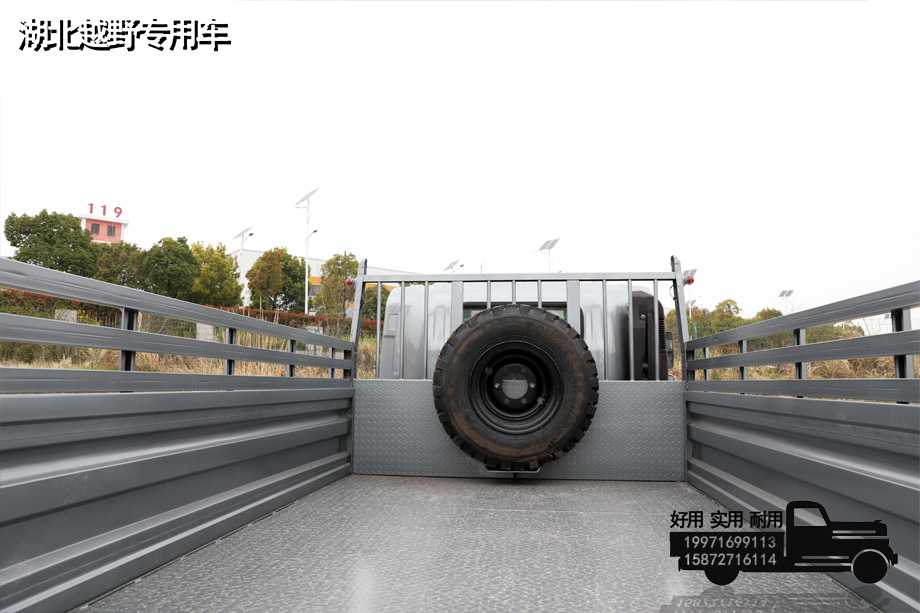

'Bobcat' six-wheel drive off-road truck is an improvement of our company on the basis of DF classic model EQ2082E6D two-and-a-half-ton long-head diesel off-road vehicle. The cab adopts a flat-top one-row and a half cab, which is comfortable and luxurious and has a wide field of view. The same length, but more powerful functions. The cargo box is 4 meters long and can carry 2.5 tons of cargo on off-road conditions. It can carry at least 4 tons on flat and solid road surfaces. The cargo box floor is made of pure iron with anti-slip patterns. Folding seats are installed on both side panels, and there are 2 folding ladders at the rear.
| Basic information | |
| drive | 6*6 |
| direction | left rudder |
| Chassis size | / |
| Vehicle size | 6720×2480×2700mm |
| total mass | 7800kg |
| curb weight | 5250kg |
| Loading quality | 2500kg (off-road) |

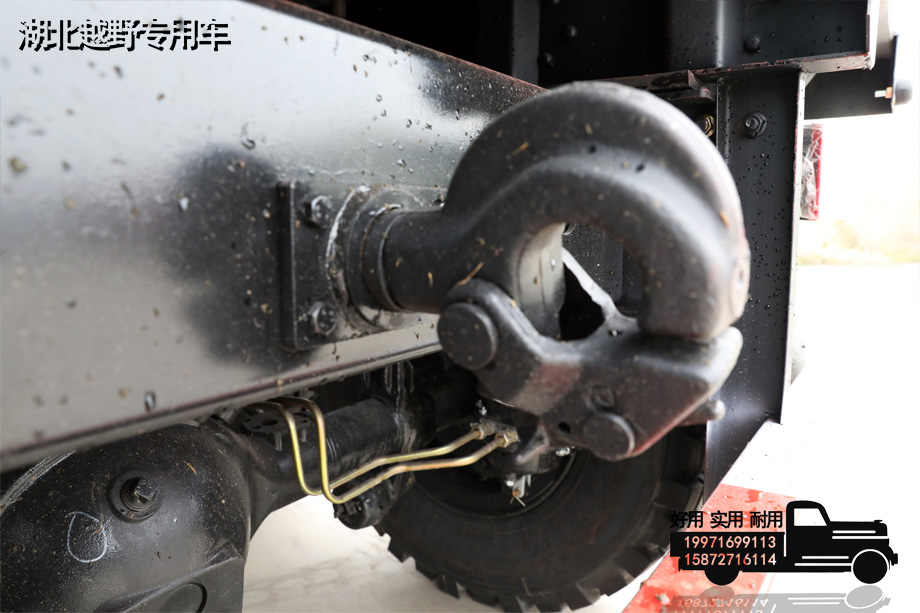

| Traction quality | 2500kg |

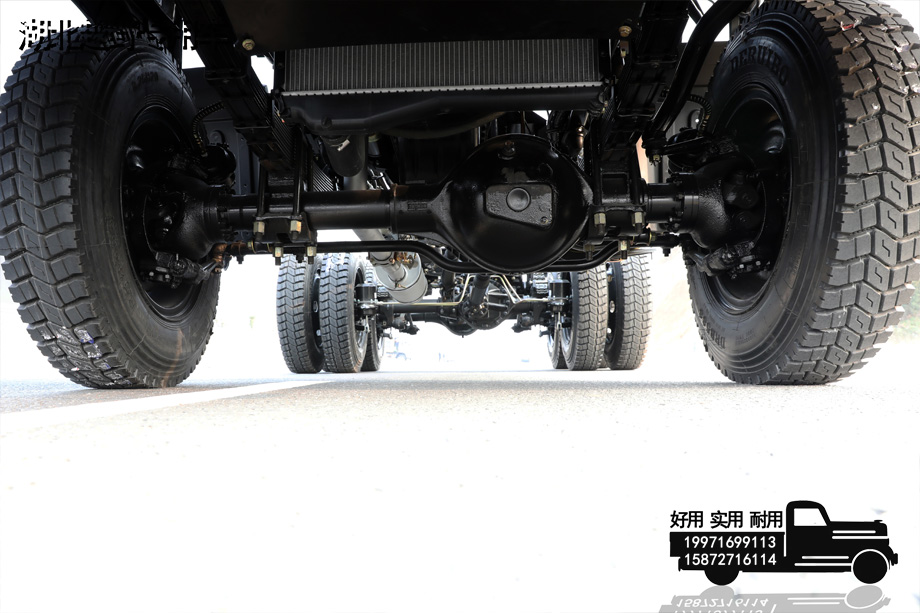

| Chassis configuration | |

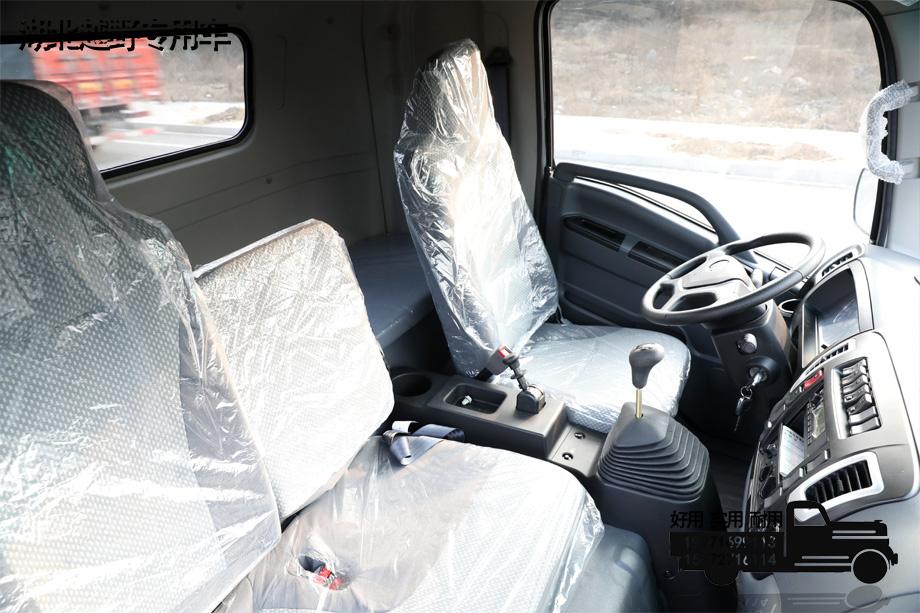

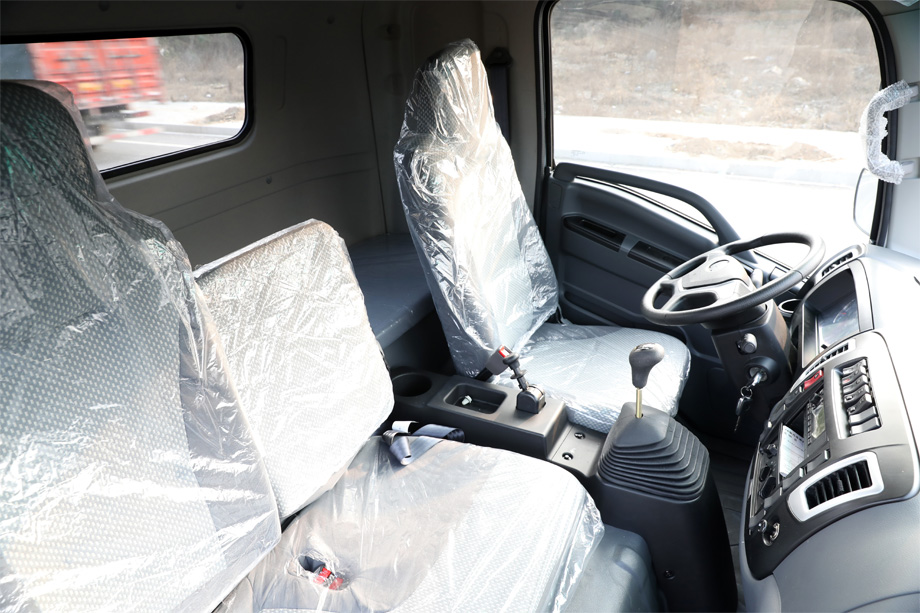

| Cab | Flat head, one and a half rows, with air conditioning |
| Number of seats | 3 people |
| Wheelbase | 3130+1065mm |
| Frame | 860*232mm |
| engine | Cummins B170 33 |
| Gearbox assembly | Manual 5 speed |
| transfer case assembly | High and low gears |
| Maebashi | 2.5T |
| middle bridge | 2.5T |
| rear axle | 2.5T |
| tank | 160L |
| circuit | 24V circuit system |
| suspension system | Leaf spring 9*13 |
| Braking method | Air brake |

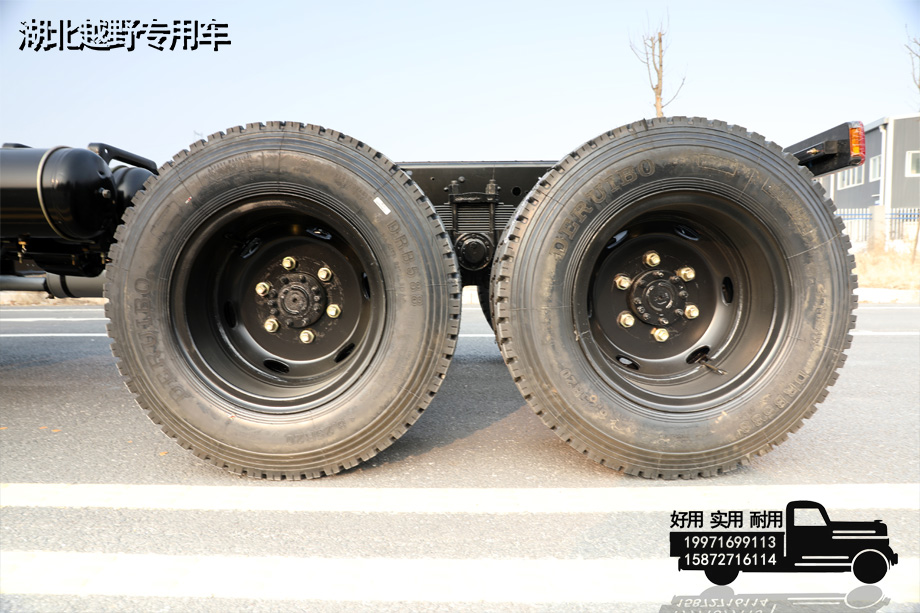

| tire | 8.25R20 (10+1) |
| Bodywork configuration | |

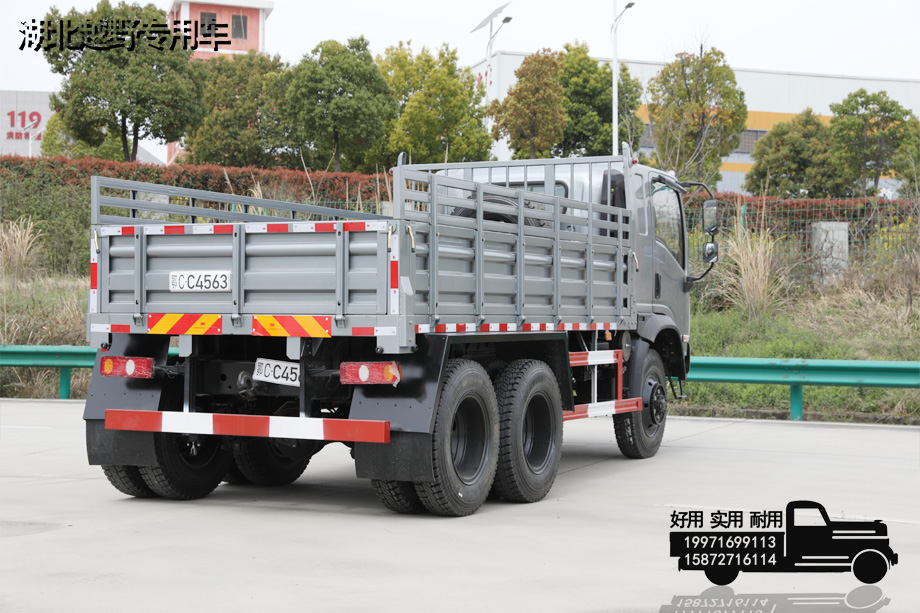

| Tops | Cargo box, 4000×2300×800mm |
| engine | |
| engine | Cummins B170 33 |
| horsepower | 170 |
| emission | National Three |
| Displacement | 5.9L |
| Number of cylinders | 6 |
| Output power | 125kw |
| Torque | 560N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 87km/h |
| wading depth | 1100mm |
| approach angle | 27° |
| departure angle | 43° |
| front overhang | 1340 |
| Rear suspension | 770 |
| Wheelbase | 1680/1996/1996mm |
| ground clearance | 280mm |
| gradeability | 60% |
| Slope holding ability | 40% |
| other | |
| other | Water buckets, oil buckets, fire extinguishers, vehicle tools, tarpaulin poles |
