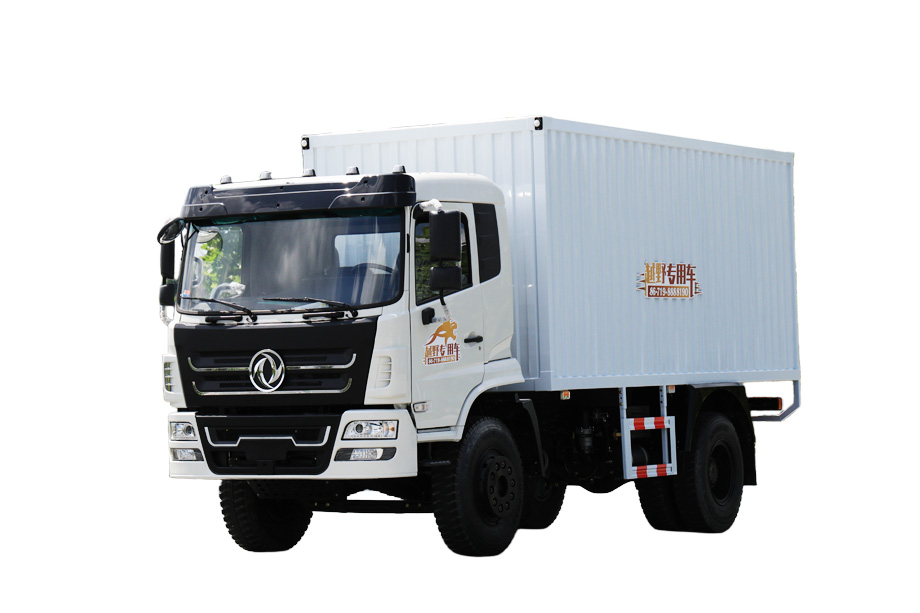

4×2 drive mode: two-axle truck (front axle steering, rear axle drive); the number means that the total number of wheel ends of the vehicle is 4 and the number of drive wheels is 2. It is the most mainstream light/medium-sized van drive solution in the freight field. It has light weight, economical fuel consumption, and flexible turning.

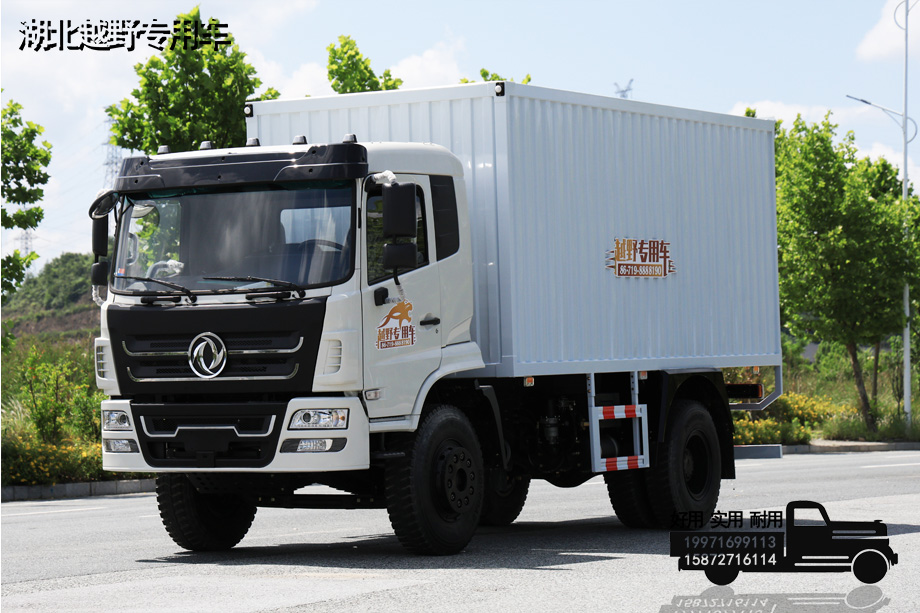

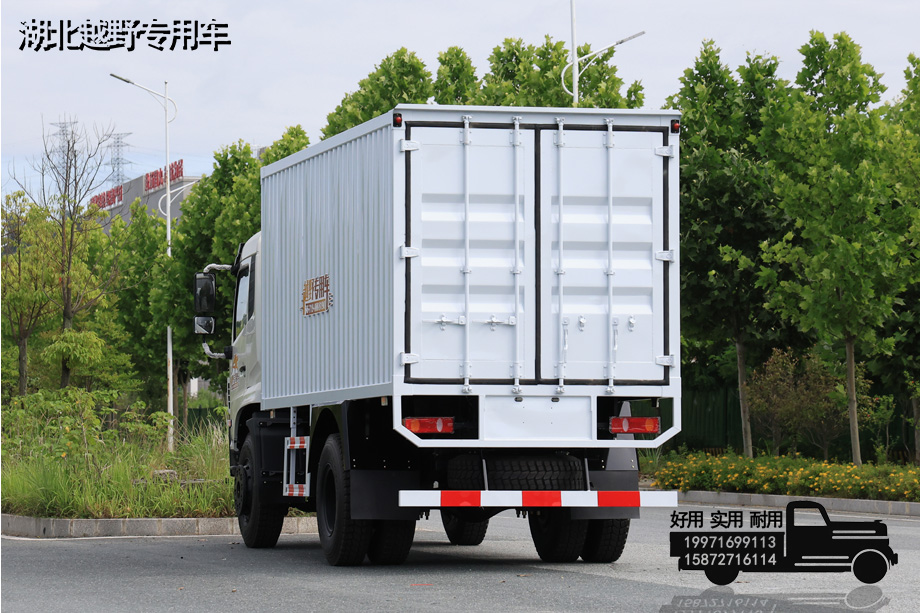

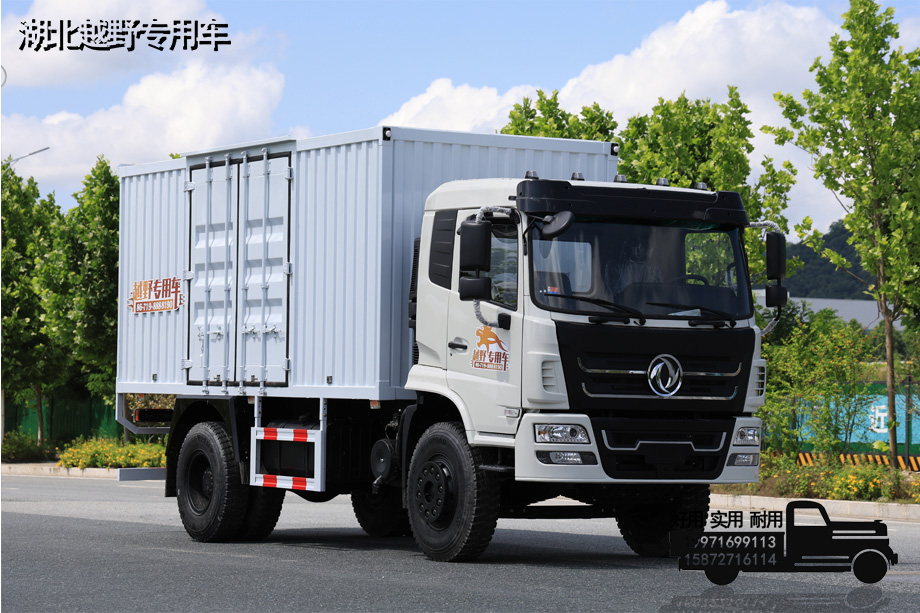

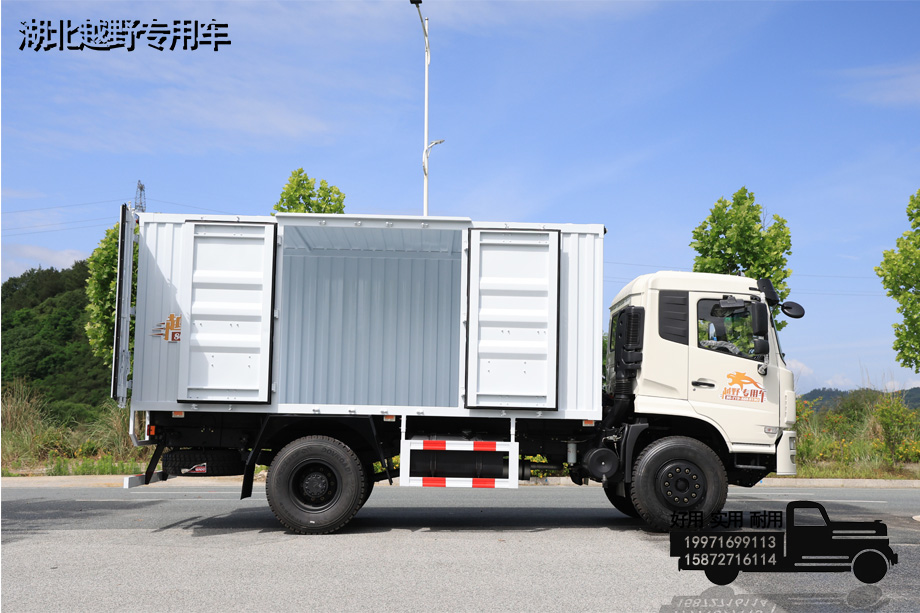

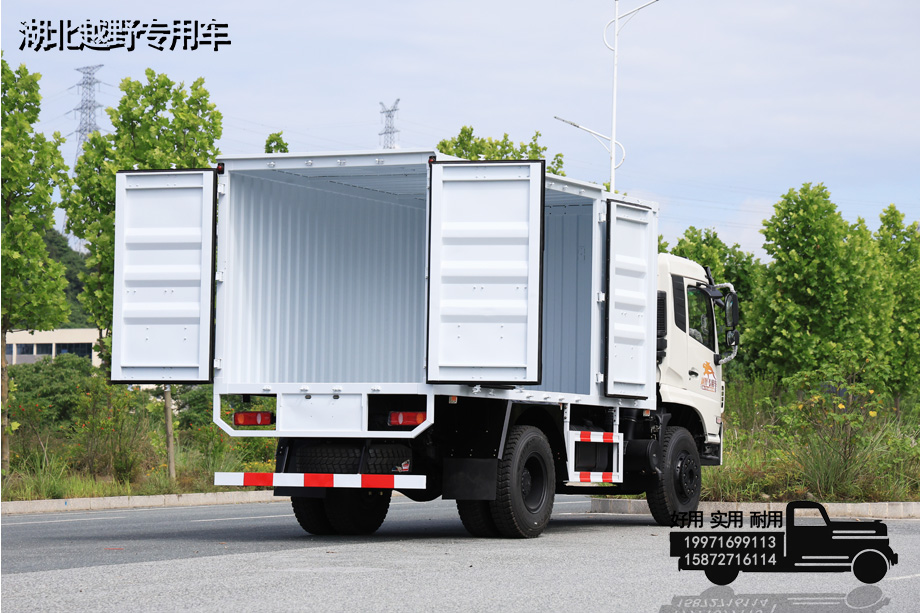

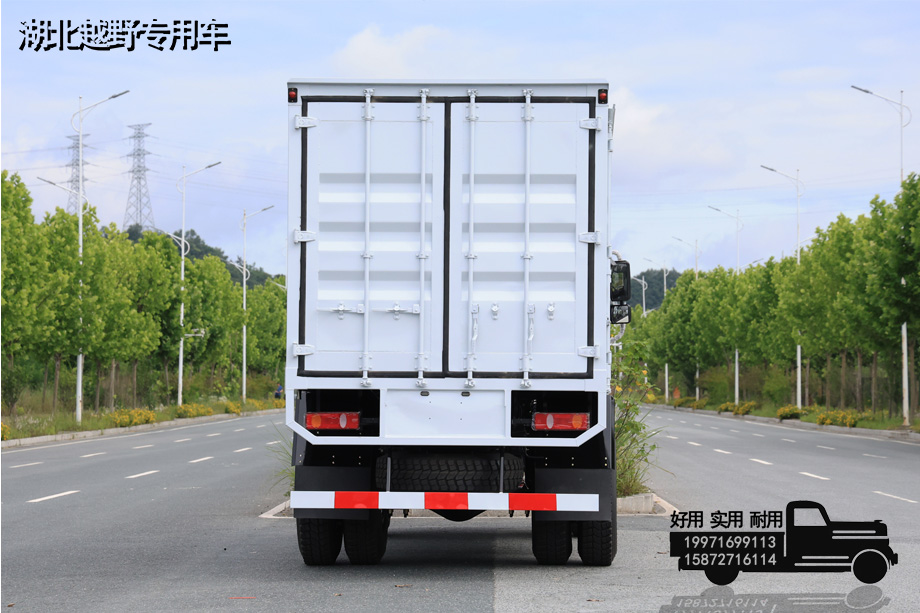

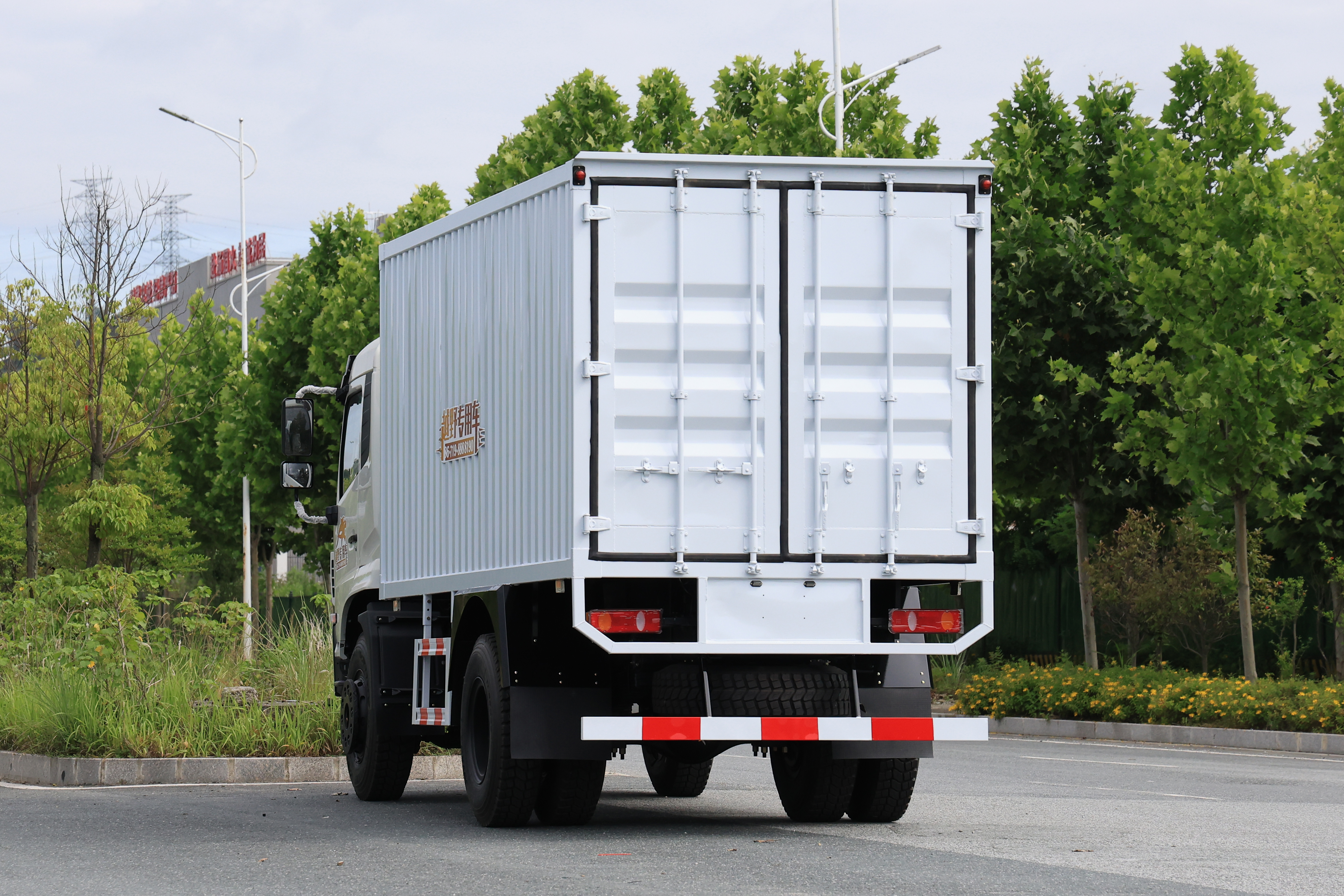

Van body: a closed rigid cargo compartment with bi-fold doors, side doors, wingspan doors, etc. It is sealed against rain and dust, and can be equipped with thermal insulation/refrigeration. It is the main vehicle for urban distribution and less-than-truckload transportation.
The core features of the whole vehicle: the vehicle structure is 4×2 single-axle design, the body is light and flexible, and it can turn easily. It has no pressure to pass through urban and rural roads, it is easy to get the license plate, and it has wide right of way. Warehouse railing protection to prevent cargo from spilling. Economical and durable, low fuel consumption, cheap maintenance, quick return on short-distance transportation.
| Basic information | |
| drive | 4*2 |
| direction | Left rudder/right rudder |
| Chassis size | 7360*2540*2930mm |

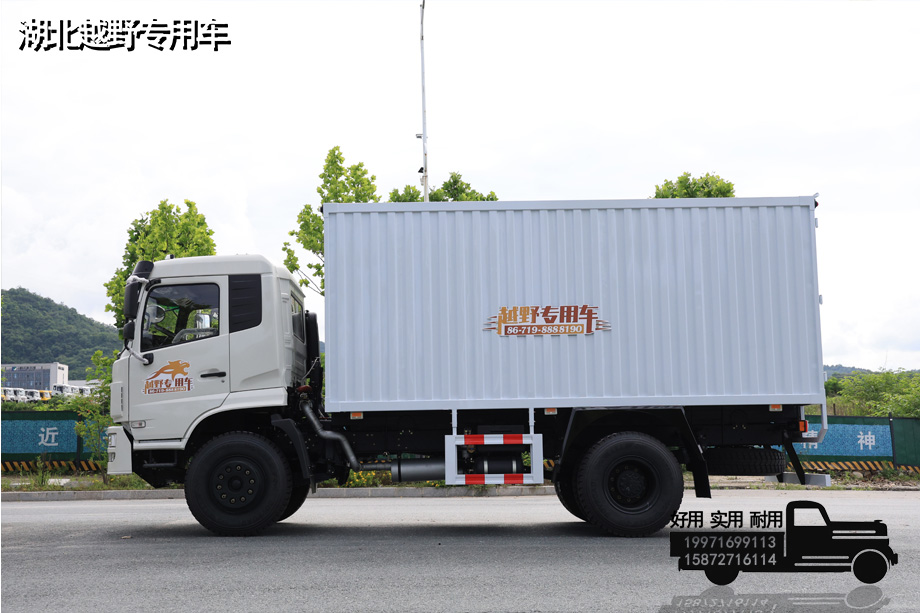

| Vehicle size | 7540*2540*3600mm |
| total mass | 18000kg |
| curb weight | 7820kg |
| Chassis configuration | |

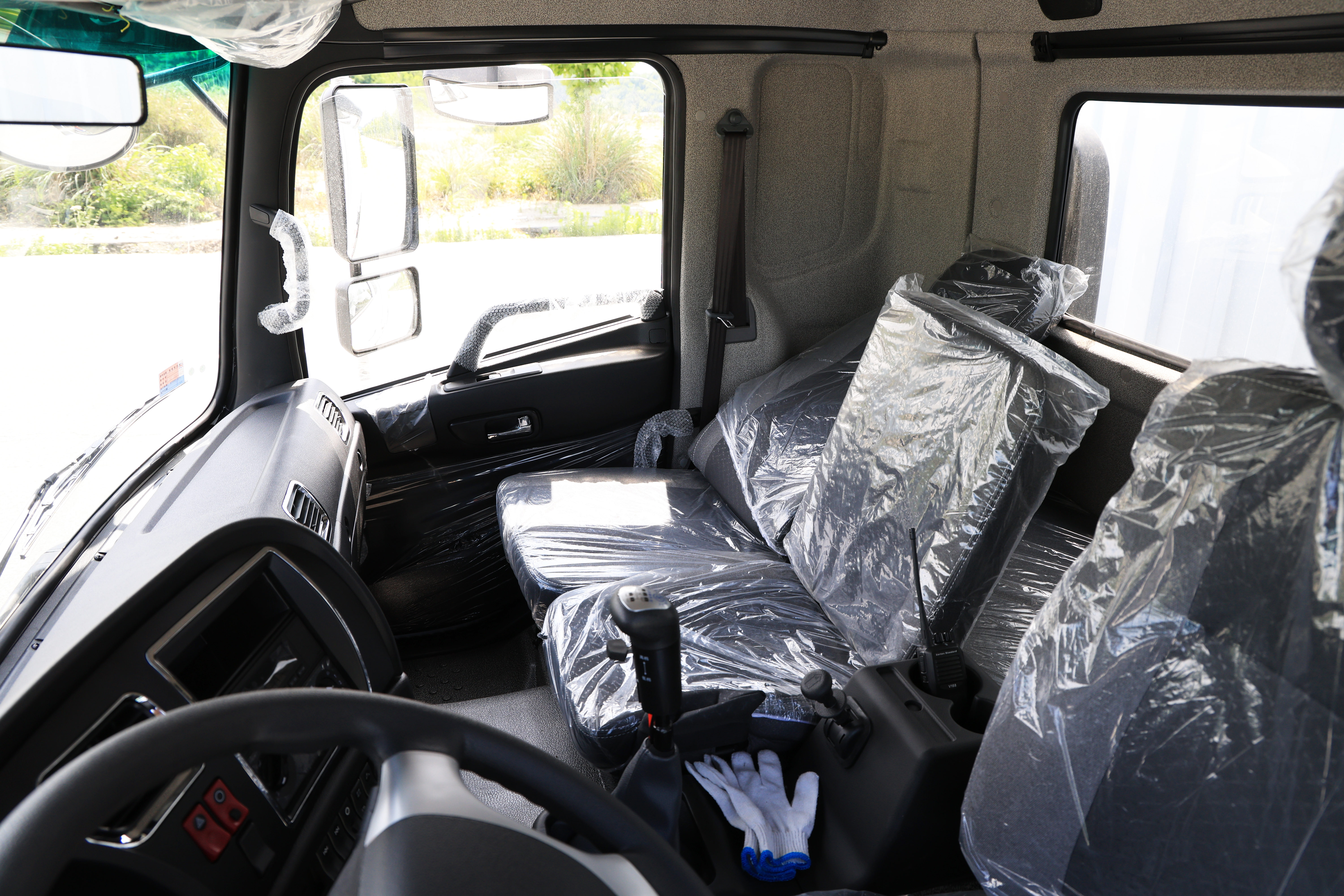

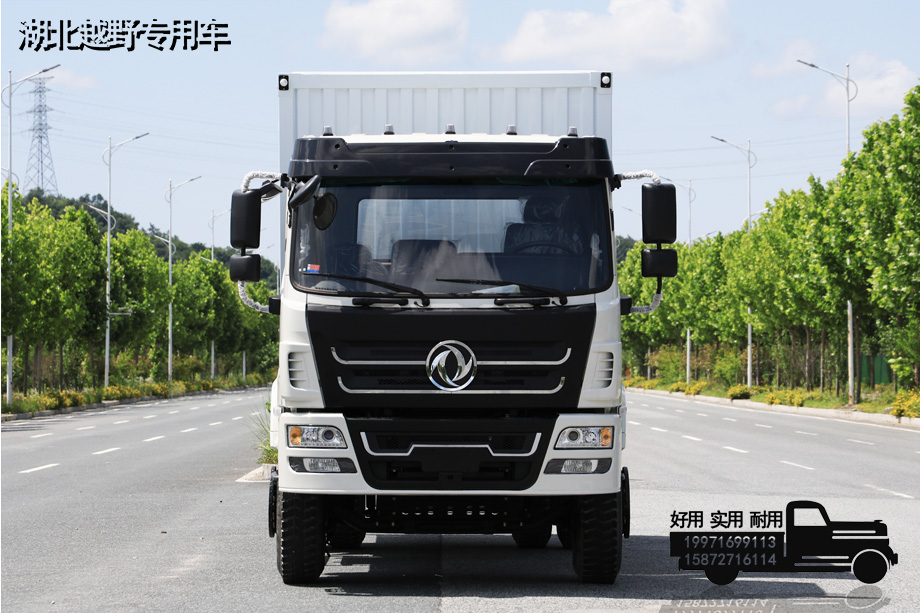

| cab | Flat head, one and a half rows, with air conditioning |
| Number of seats | 3 people |
| Wheelbase | 3950mm |
| engine | Weichai 210 horsepower |
| Gearbox assembly | Manual 10-speed/6-speed/small eight-speed |
| transfer case assembly | / |
| Maebashi | 5T |

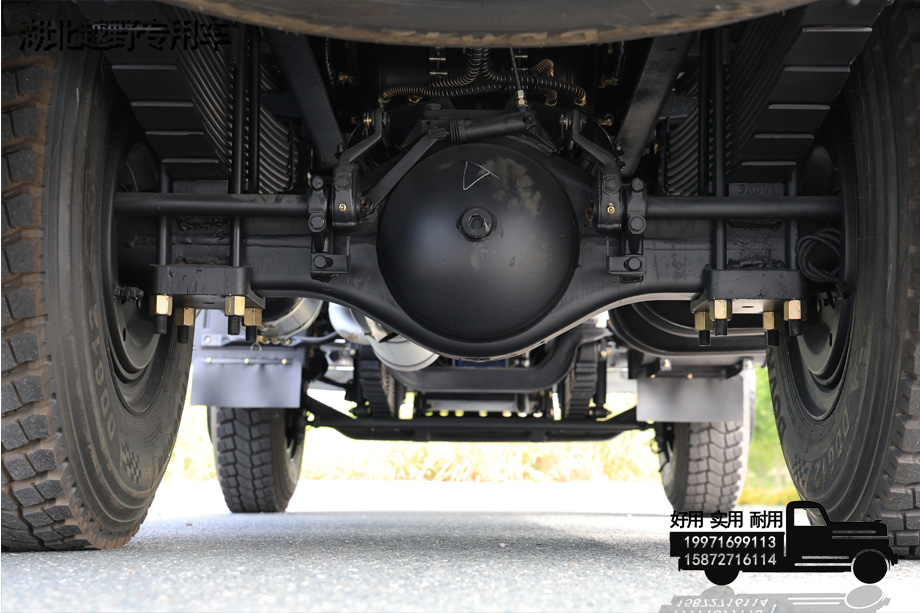

| rear axle | 13T |
| tank | 300L (can be adjusted according to space layout) |
| circuit | 24V circuit system |
| suspension system | leaf spring |
| Braking method | Air brake |
| tire | 11.00R20 (6+1) |
| Bodywork configuration | |

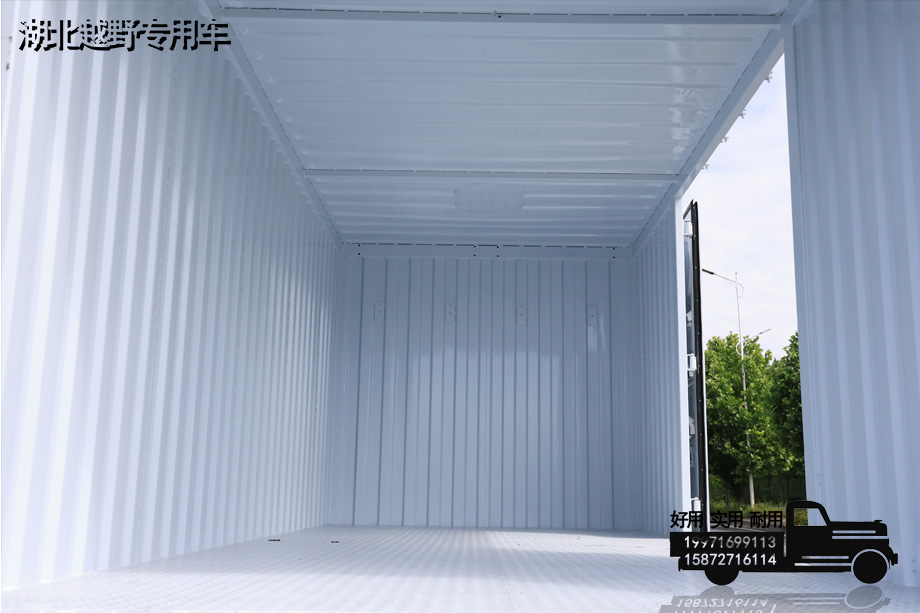

| Tops | 5200*2310*2250mm |
| engine | |
| engine | Weichai 210 |
| horsepower | 210 |
| emission | National Three |
| Displacement | 6.23L |
| Number of cylinders | 6 |
| Output power | 155kw |
| Torque | 750N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 85km/h |
| approach angle | 19° |
| departure angle | 16° |
| Wheelbase | 1790mm |
| ground clearance | 330mm |
| Overcome obstacles | 330mm |
| wading | 500mm |
| gradeability | 60% |
| standing slope | 40% |
| other | |
| other | Fire extinguishers, vehicle tools |
