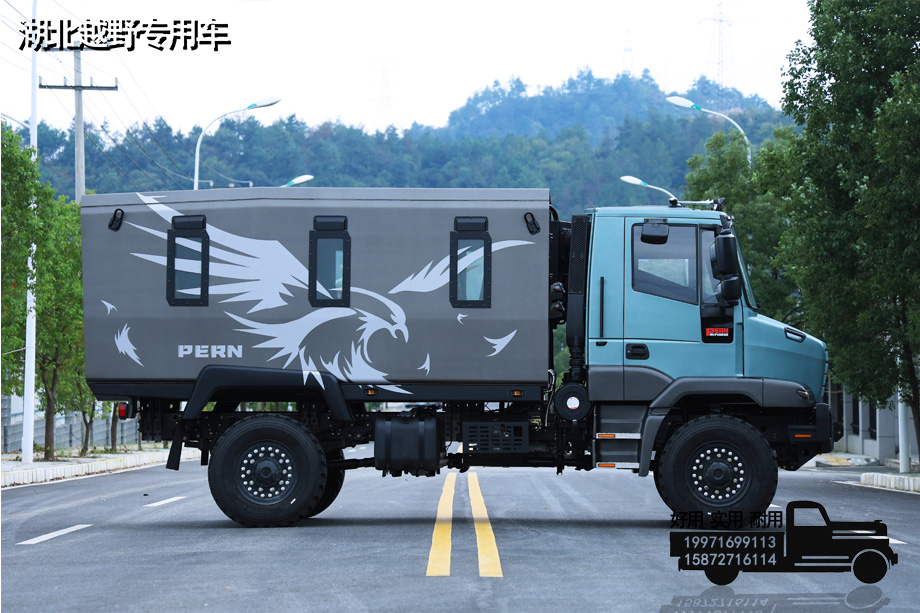

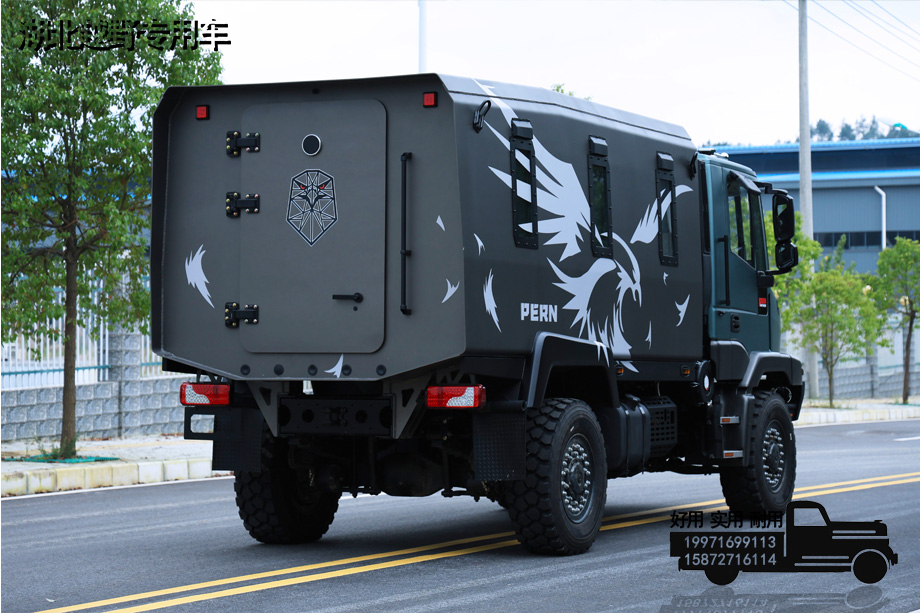

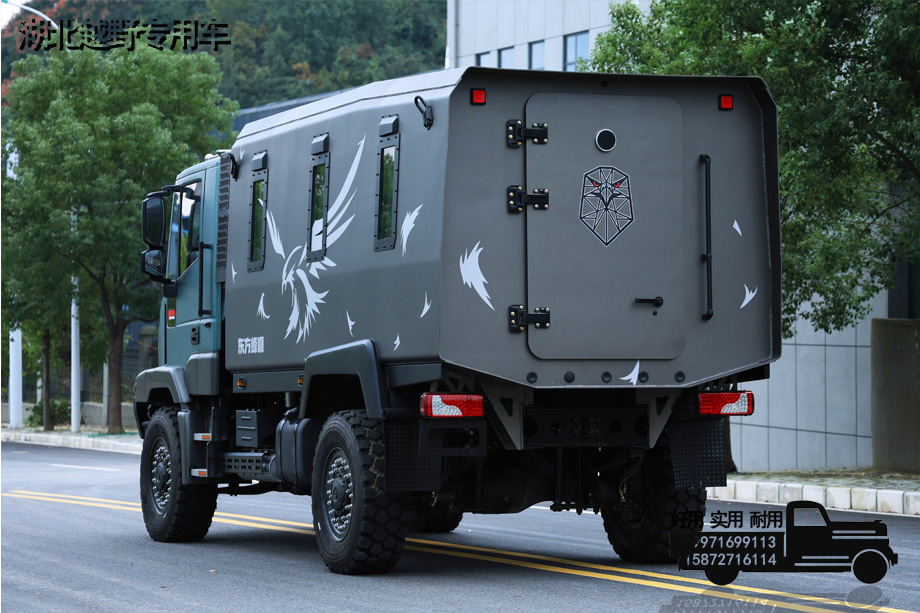

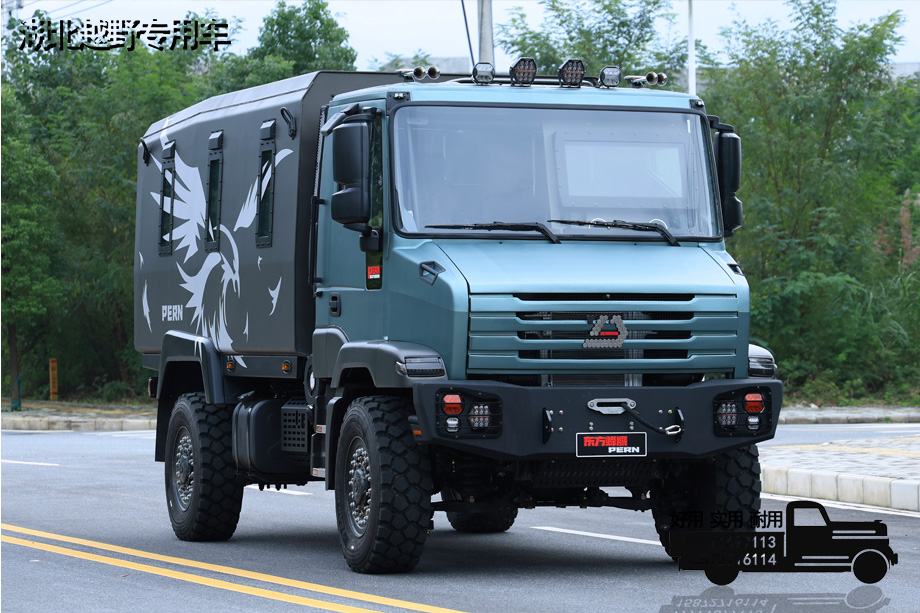

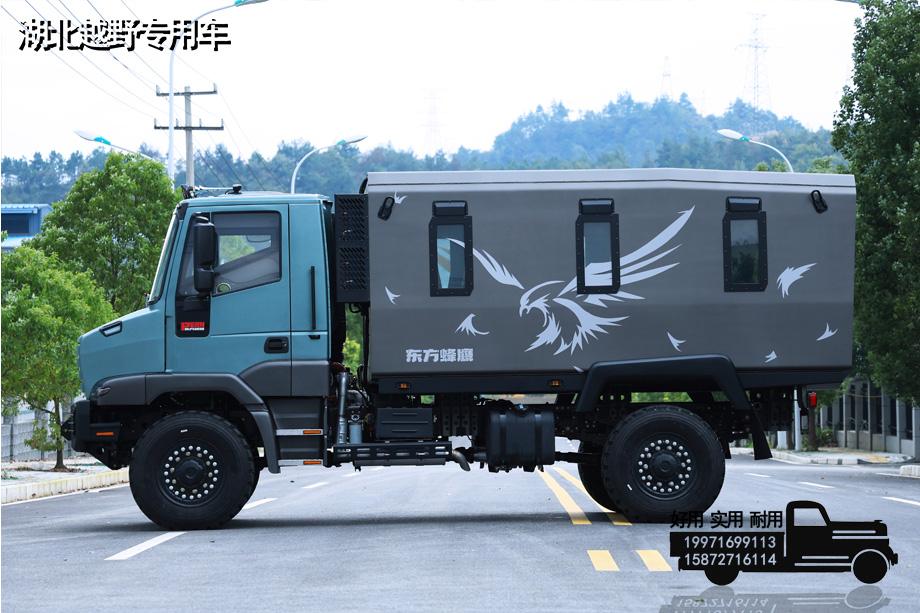

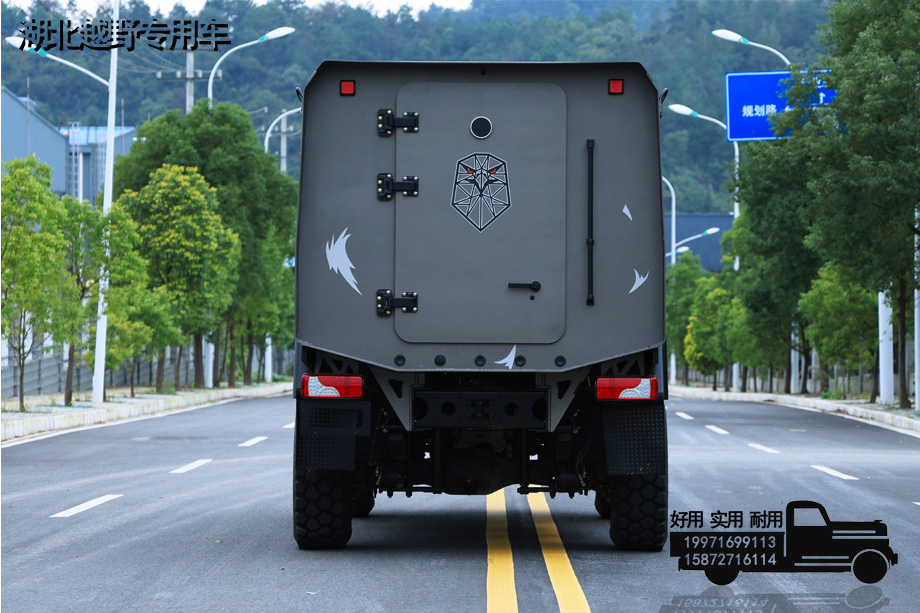

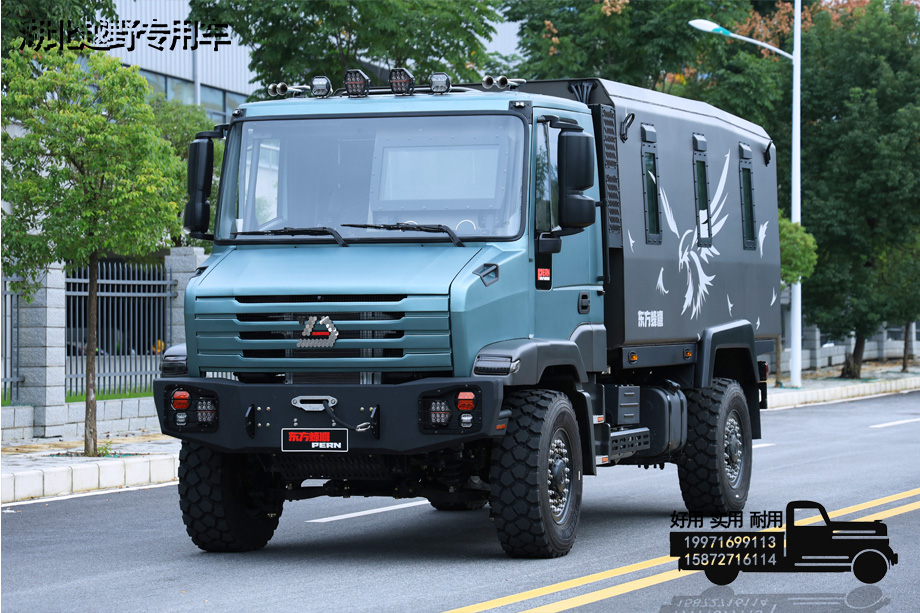

This chassis is a combination of front independent suspension + rear leaf spring non-independent suspension. It relies on a non-load-bearing girder frame and takes into account highway driving comfort, off-road passing ability and heavy load carrying capacity. It is mainly used for special vehicles, shelters, emergency rescue, exploration and scientific research, off-road special equipment and other modification applications.


Basic information
drive4*4
directionLeft rudder/right rudder
Chassis size

/

Vehicle size6200*2500*2600mm
total mass
12000kg
curb weight6500kg
Chassis configuration
Wheelbase3700mm
FrameStraight-through frame/ladder frame, double-layer welded closed
engineCummins ISDe6.7-330
Gearbox assemblyManual automatic/Allison automatic 6-speed/Double special automatic 6-speed/Manual 5-speed
transfer case assemblyHigh and low gears
Maebashi4T
middle bridge/
rear axle

8T

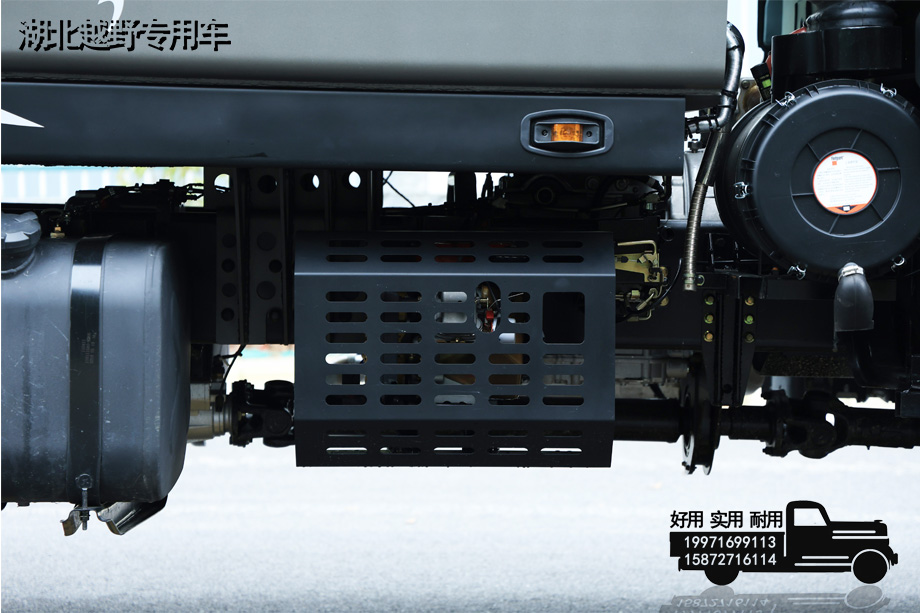

tank100+100L (can be made as large as possible according to the space location)
circuit24V circuit system

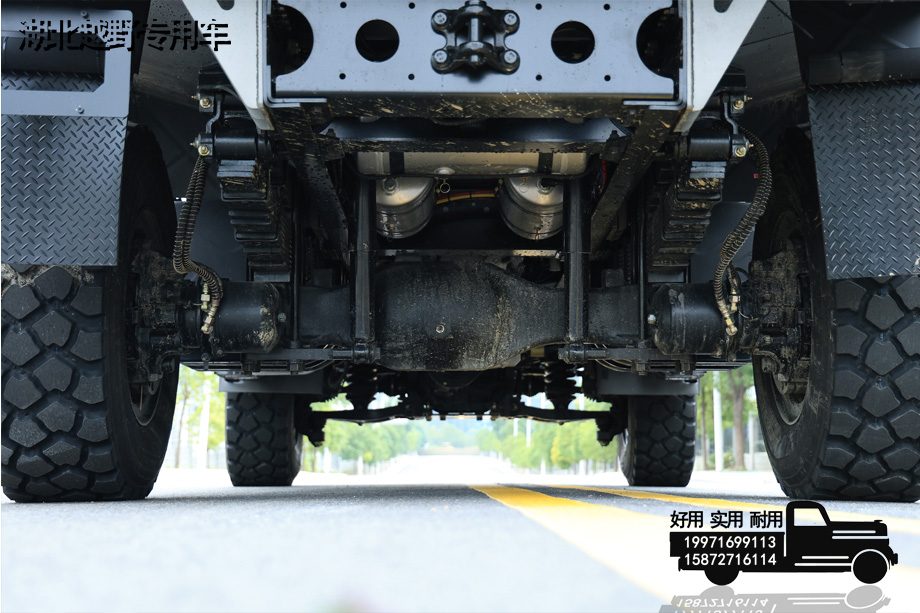

suspension systemFront independent suspension + rear leaf spring
Braking methoddisc brake
tire

365/8R20 (4+1)

Bodywork configuration

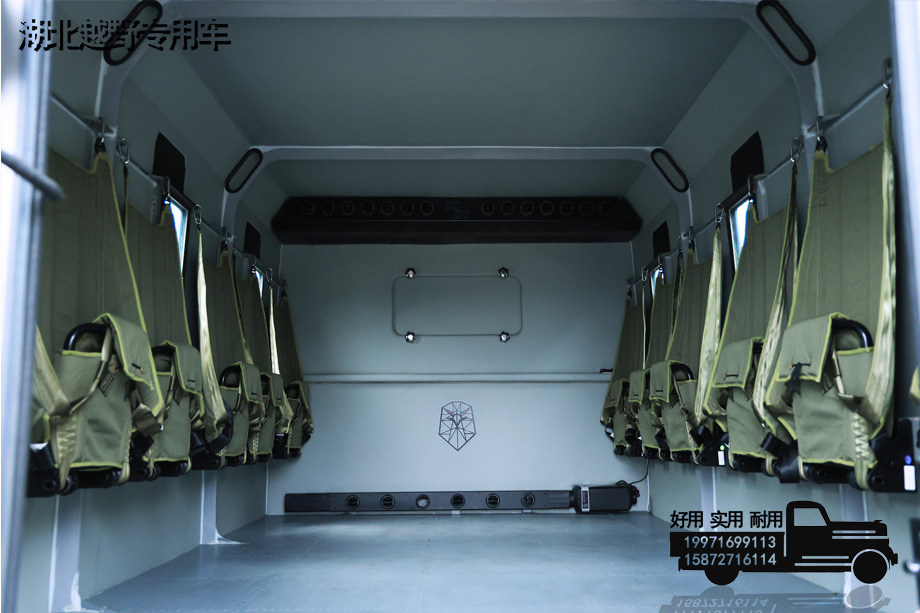

cabinet4000*2200*1900mm
engine
engineCummins ISDe6.7-330
horsepower330
emissionCountry 4
Displacement6.7L
Number of cylinders6
Output power243kw
Fuel typediesel fuel
Performance parameters
speed
120km/h
approach angle40°
departure angle25°
front overhang1050mm
Rear suspension1150mm
ground clearance370mm
Obstacle clearance height500mm
Wading height
1000mm
gradeability60%
standing slope40%
other
otherFire extinguisher, vehicle tools, optional winch




141110798121354615132

The first step: Negotiate purchase requirements

Customers can inform us of their needs by phone/WeChat or on-site inspection.


Step 2: Customize the plan

The company will recommend corresponding models or customize vehicle configurations according to your needs.


Step Three: Sign the Contract

Both parties sign a vehicle purchase and sale contract and pay the contract deposit in advance (the contract can be signed by fax or in person).


Step 4: Arrange production

Issue production plans and arrange production.


Step Five: Vehicle Completion

After the vehicle is offline for inspection, the remaining balance of the vehicle must be paid and relevant procedures completed.


Step Six: Logistics Departure

Customers can pick up the vehicle from the factory, or negotiate with our company to arrange delivery to a designated location.


other :

1. The company can provide customers with export customs declaration services.

2. Complete after-sales service station to solve your worries!
