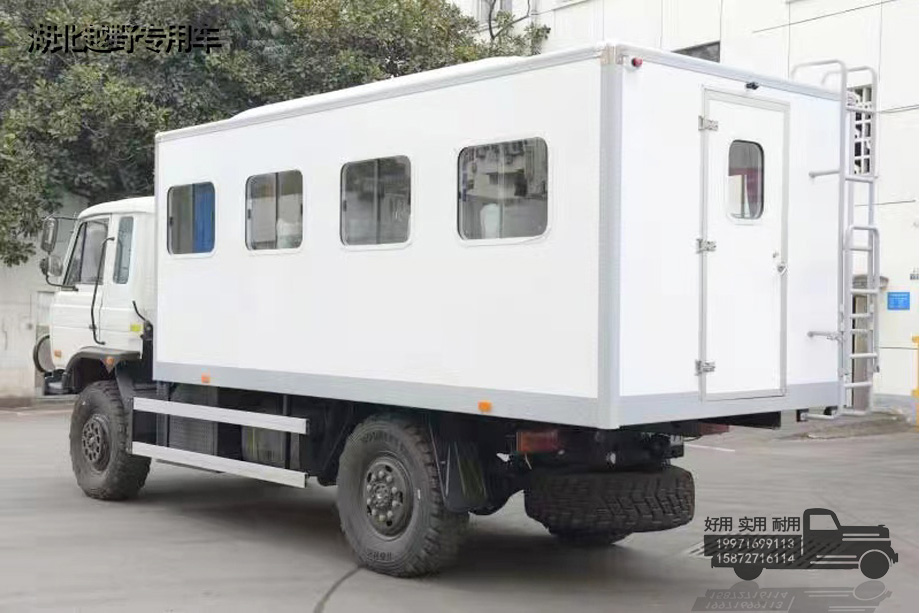

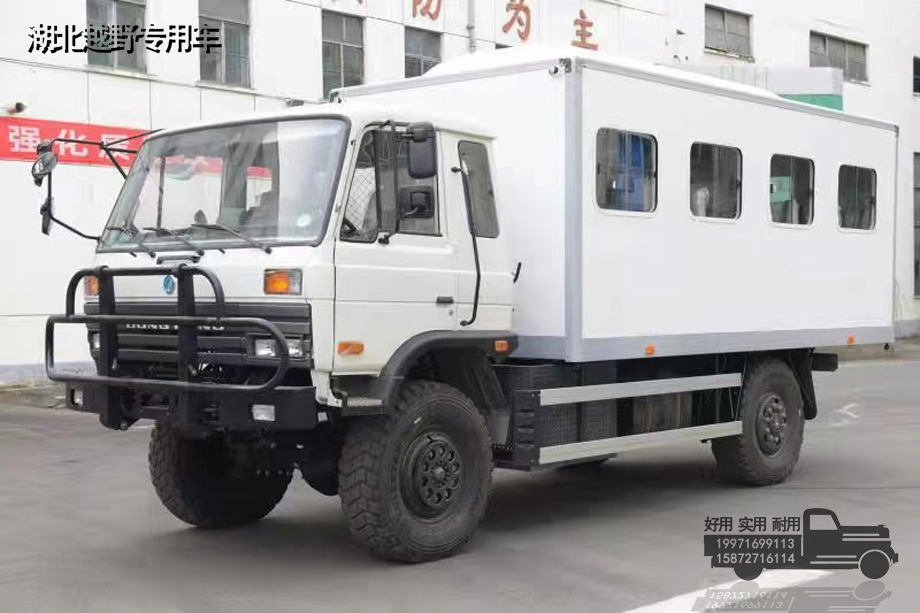

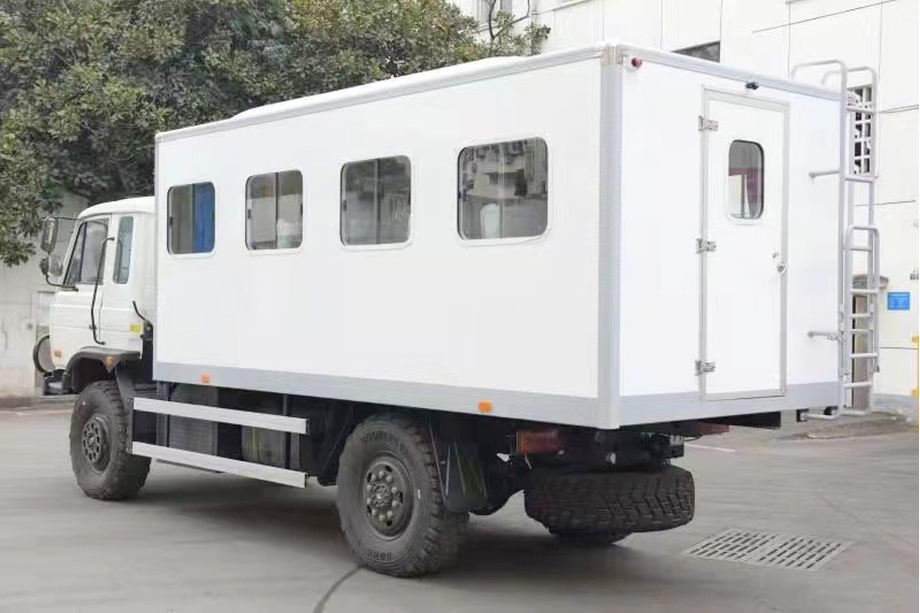

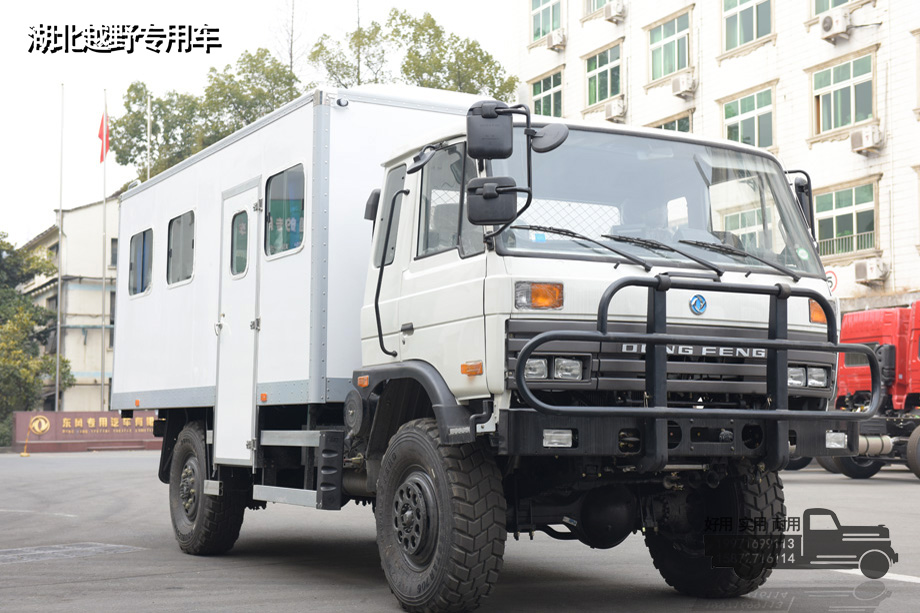

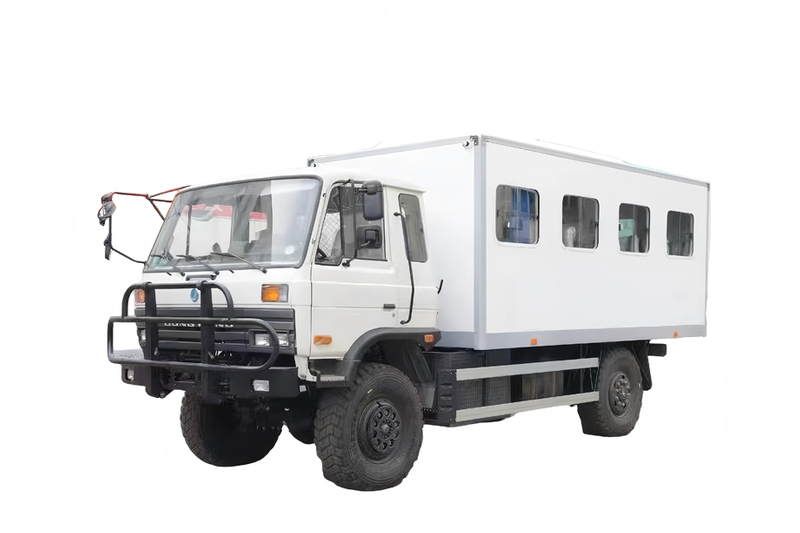

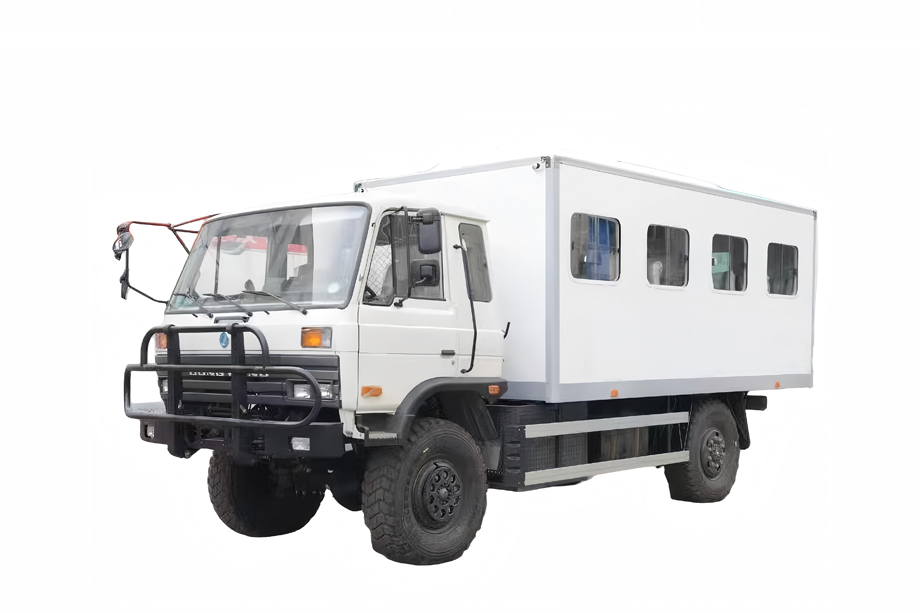

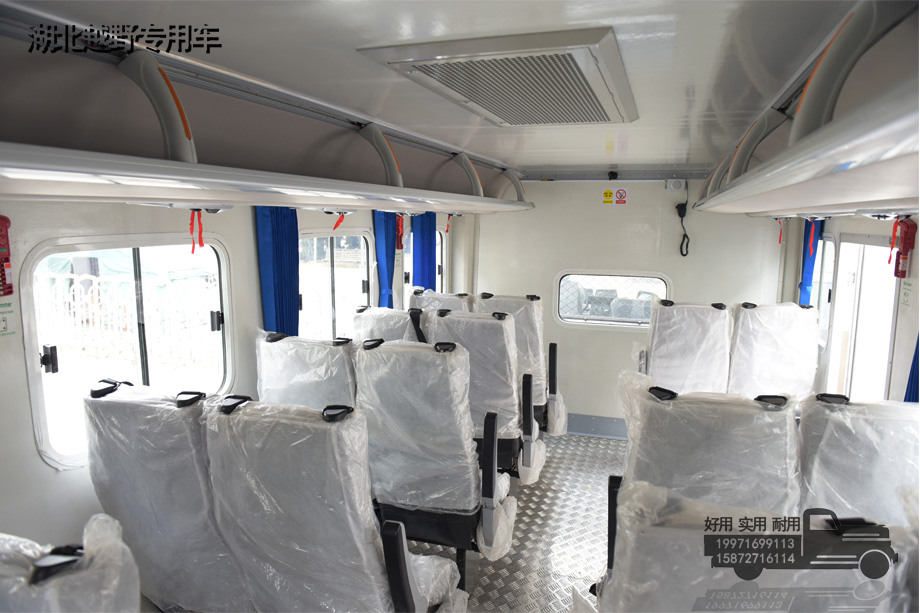

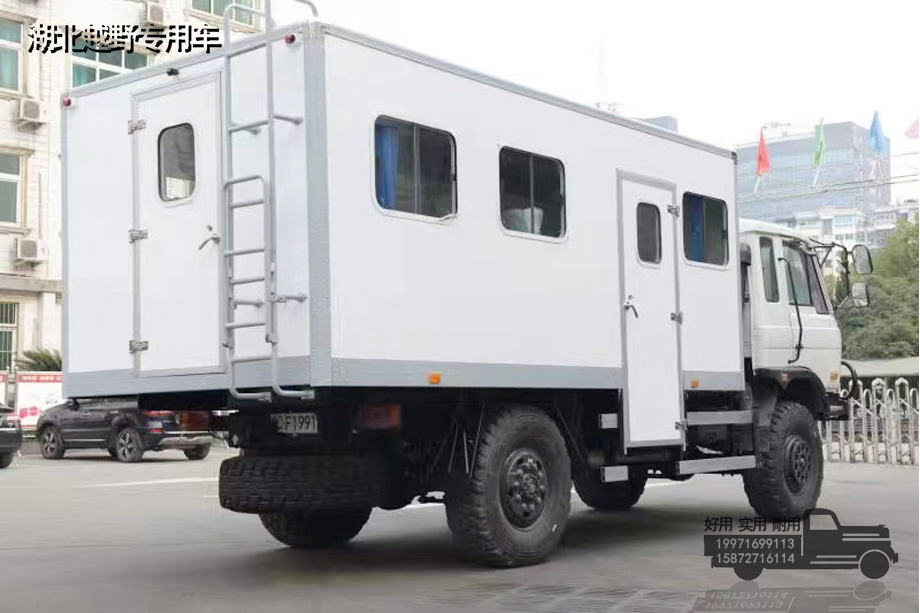

The four-wheel drive RV is based on the classic DF EQ2070 chassis and is converted into a cabin car based on its original excellent performance. It has 16/20/24/28/32/40 seats for convenient travel. It is based on the classic DFEQ2070 chassis and is converted into a four-wheel drive cabin vehicle based on its original excellent performance.
| Basic information | |
| drive | 4*4 |
| direction | Left rudder/right rudder |
| Vehicle size | 6900*2500*3780mm |
| curb weight | 8820kg |
| Chassis configuration | |
| Cab | Flat head, one and a half rows, with air conditioning |
| Number of seats | 3 people |
| Wheelbase | 3600mm |
| Frame | 860*232mm |
| engine | Cummins B190 33/B210 33 |
| Gearbox assembly | Manual 5-speed/6-speed/small eight-speed |
| transfer case assembly | High and low gears |
| Maebashi | 3.6T |
| rear axle | 4.1T |
| tank | Make it as large as possible according to the spatial location |
| circuit | 24V circuit system |
| suspension system | Leaf spring8/12 |
| Braking method | Air brake |
| tire | 12.50R20 (4+1) |
| Bodywork configuration | |

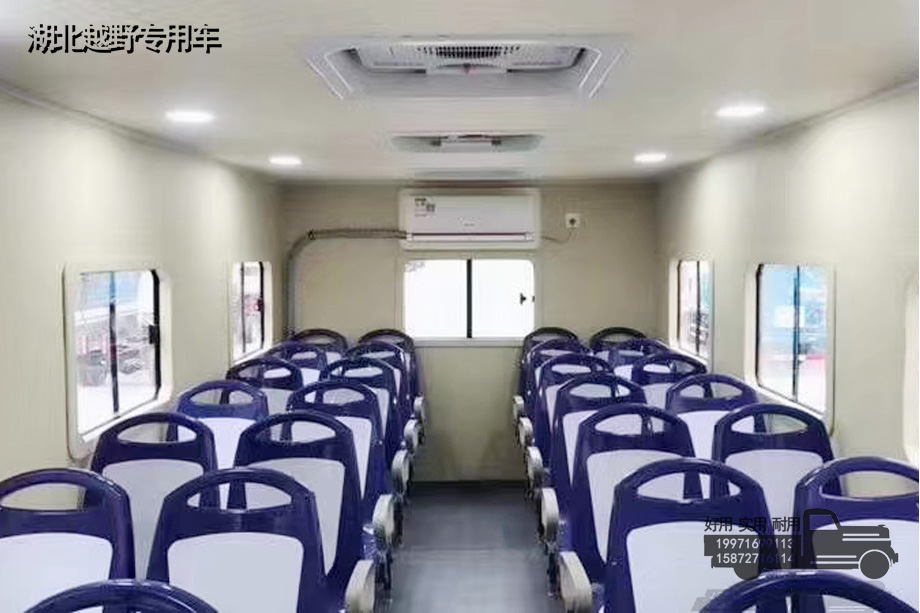

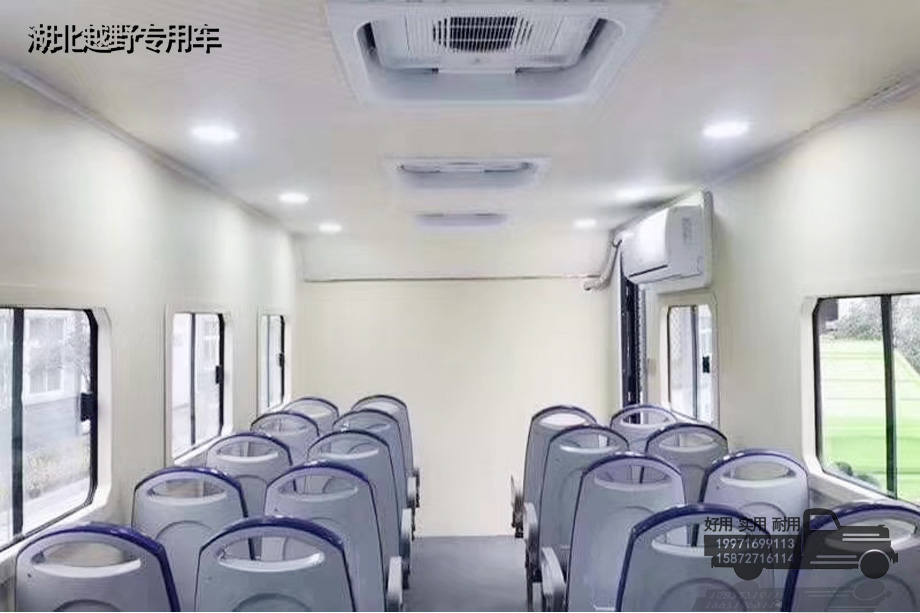

| Tops | 3600*2400*1900mm (adjusted according to the actual number of seats), air conditioning can be installed |
| engine | |
| engine | Cummins B190 33 |
| horsepower | 190 |
| emission | National Three |
| Displacement | 5.9L |
| Number of cylinders | 6 |
| Output power | 140kw |
| Torque | 640N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 88km/h |
| approach/departure angle | 35°/32° |
| front/rear suspension | 1500/1800mm |
| Wheelbase | 1876/1870mm |
| ground clearance | 400mm |
| gradeability | 60% |
| Mileage | 500km |
| other | |
| other | Vehicle tools |
