DF246 is a three-ton semi-load off-road truck developed by DF company. It is equipped with special facilities such as a winch, flip-up seats, etc. It is mainly used to carry people and cargo. The 6x6 drive can drive in forests, deserts, and swamps, and it also has certain wading capabilities. This site is the second-class chassis status of the DF EQ2102 double-row model. The engine has a preheating function, and the vehicle can start smoothly at an ambient temperature of -41°C.

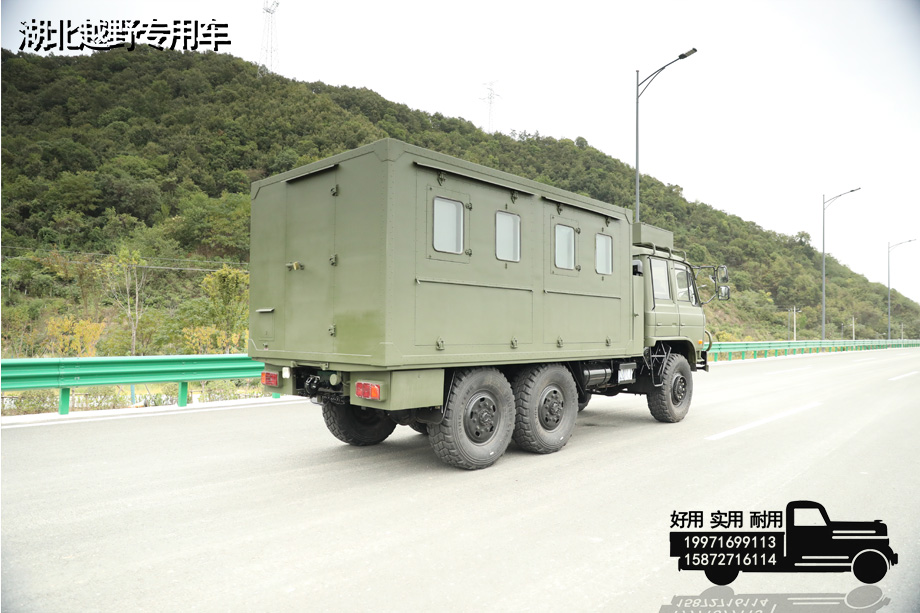

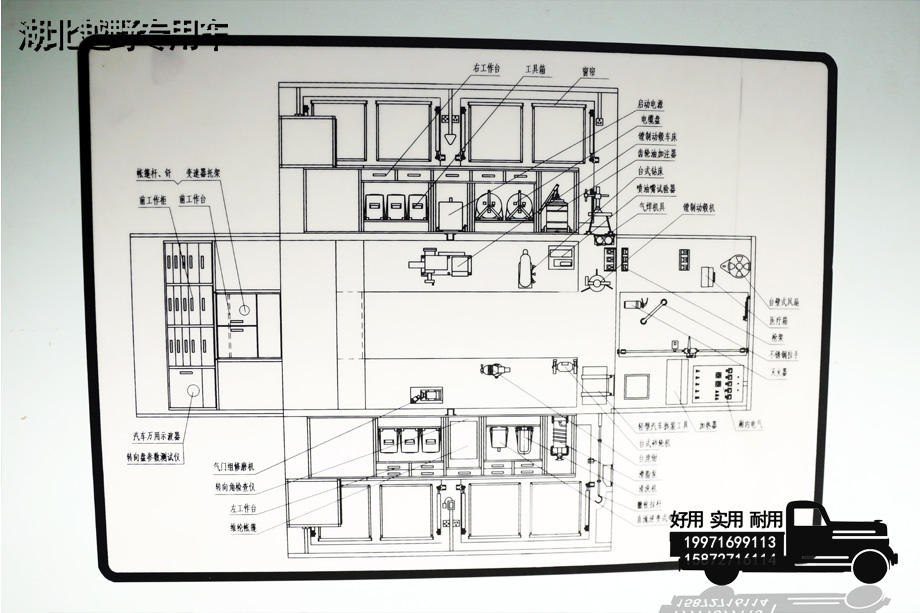

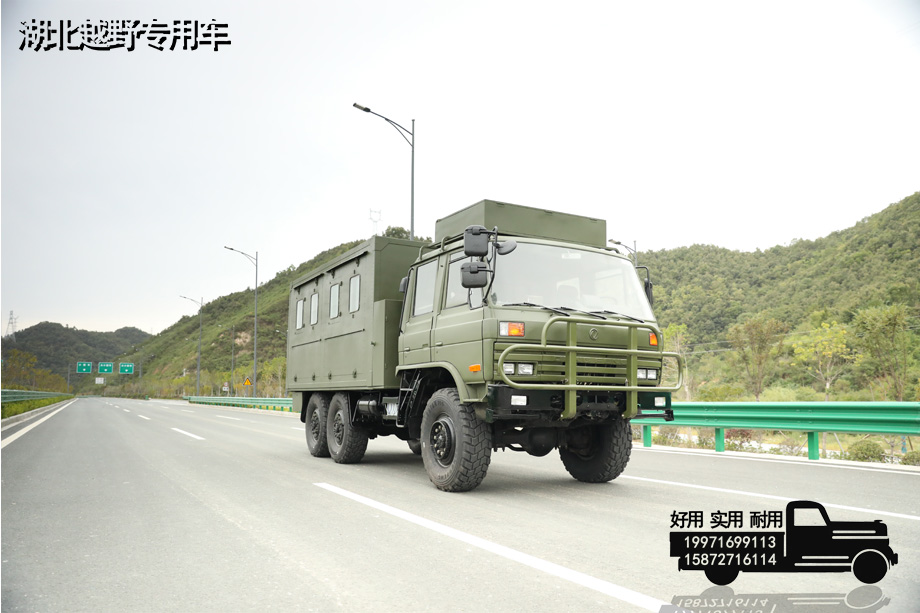

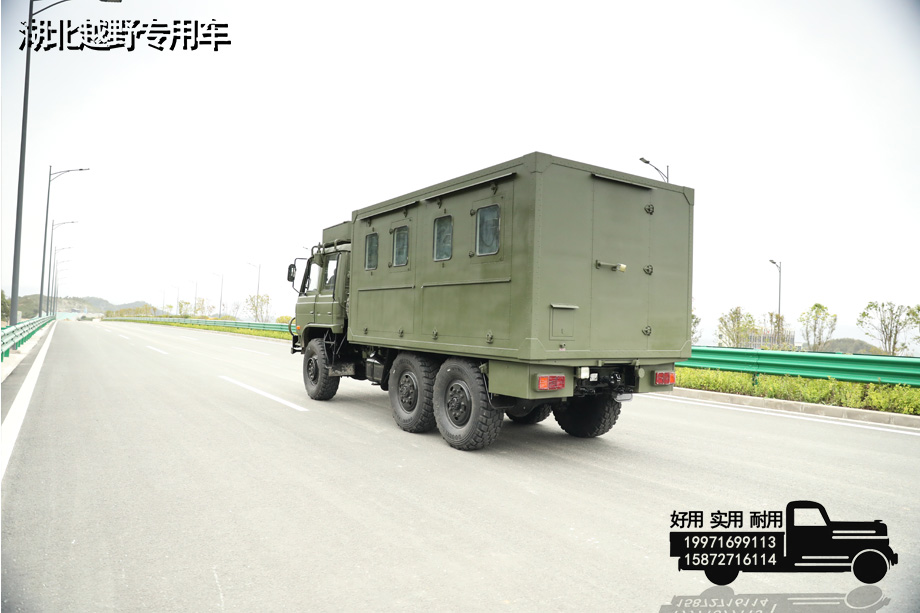

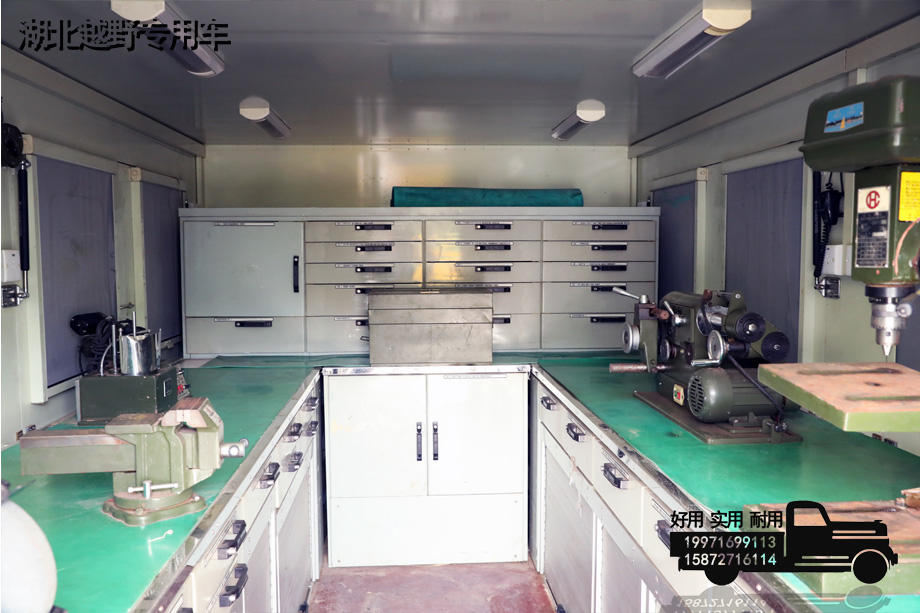

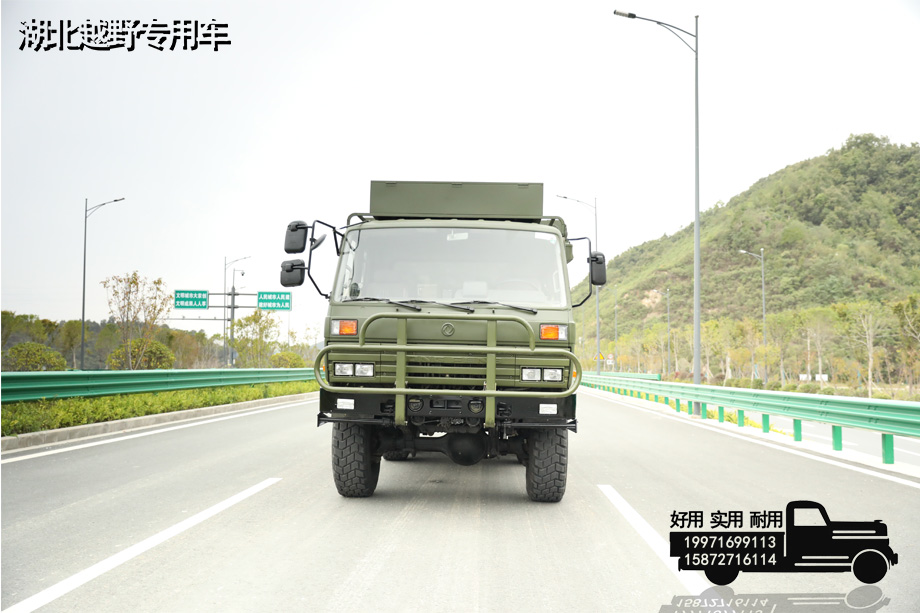

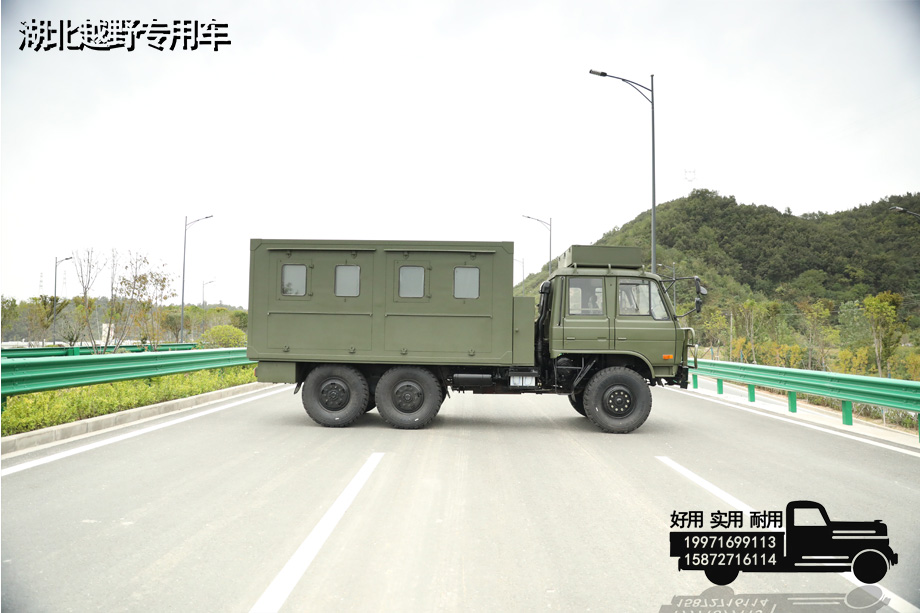

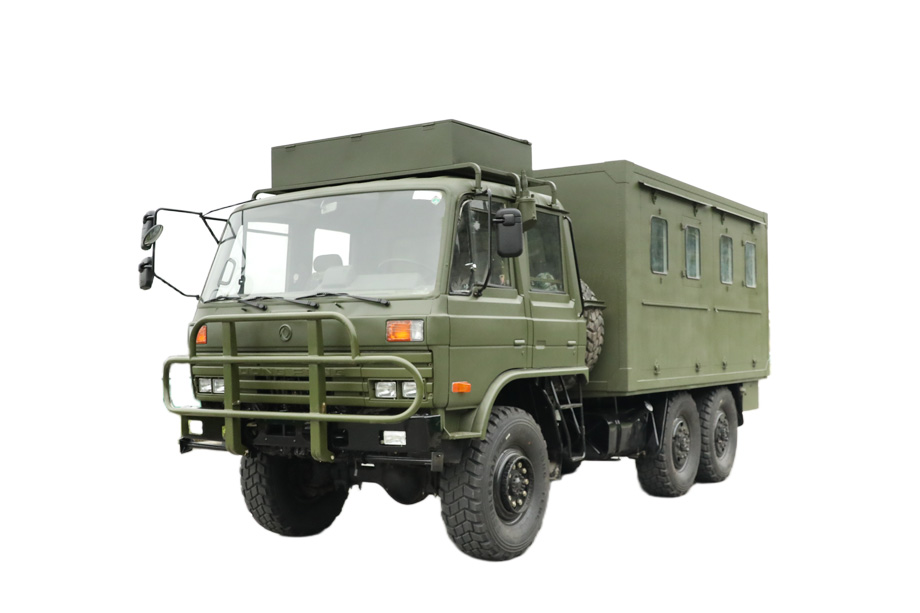

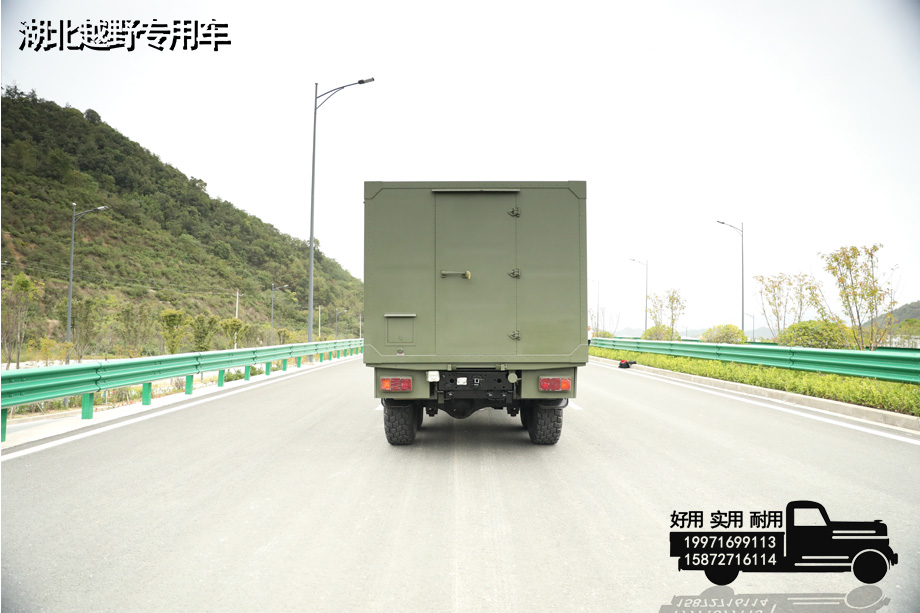

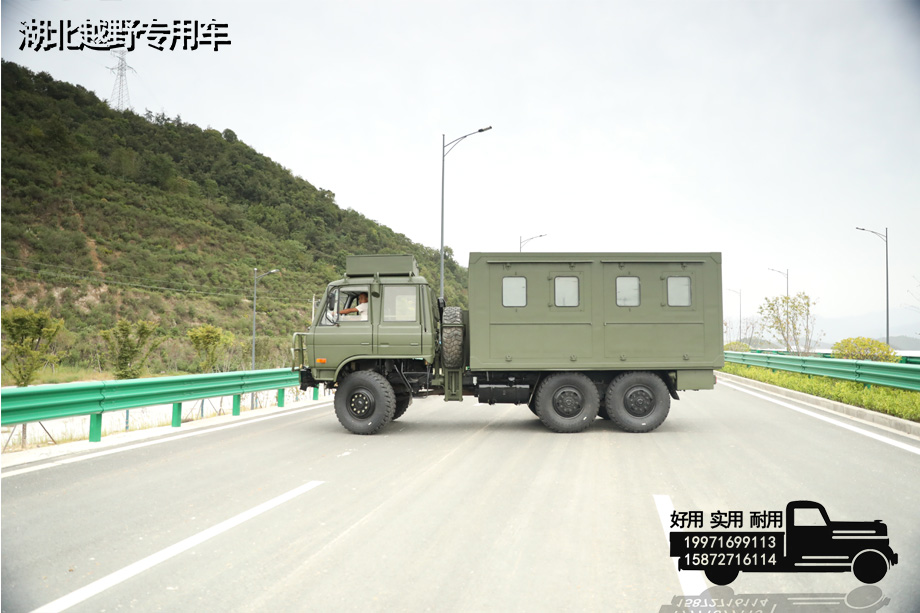

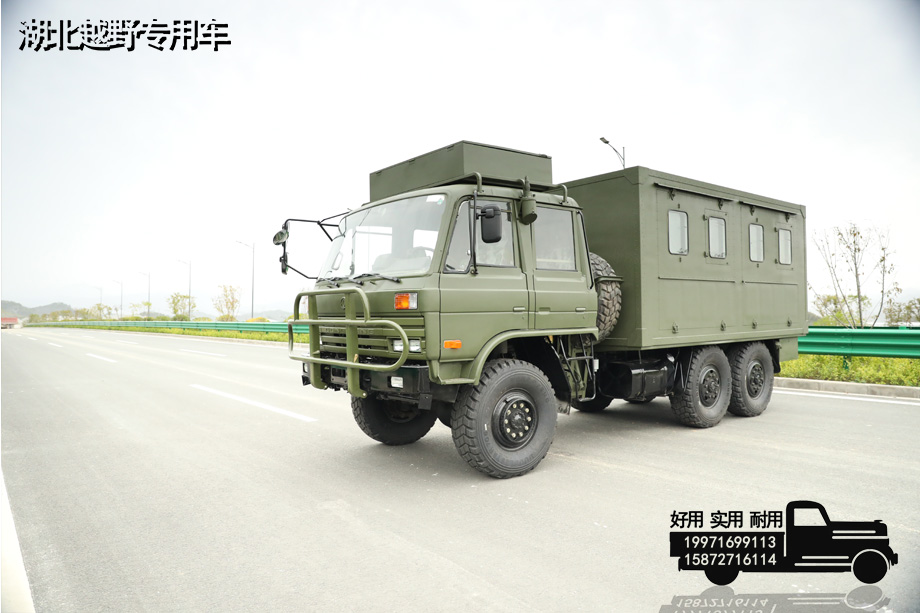

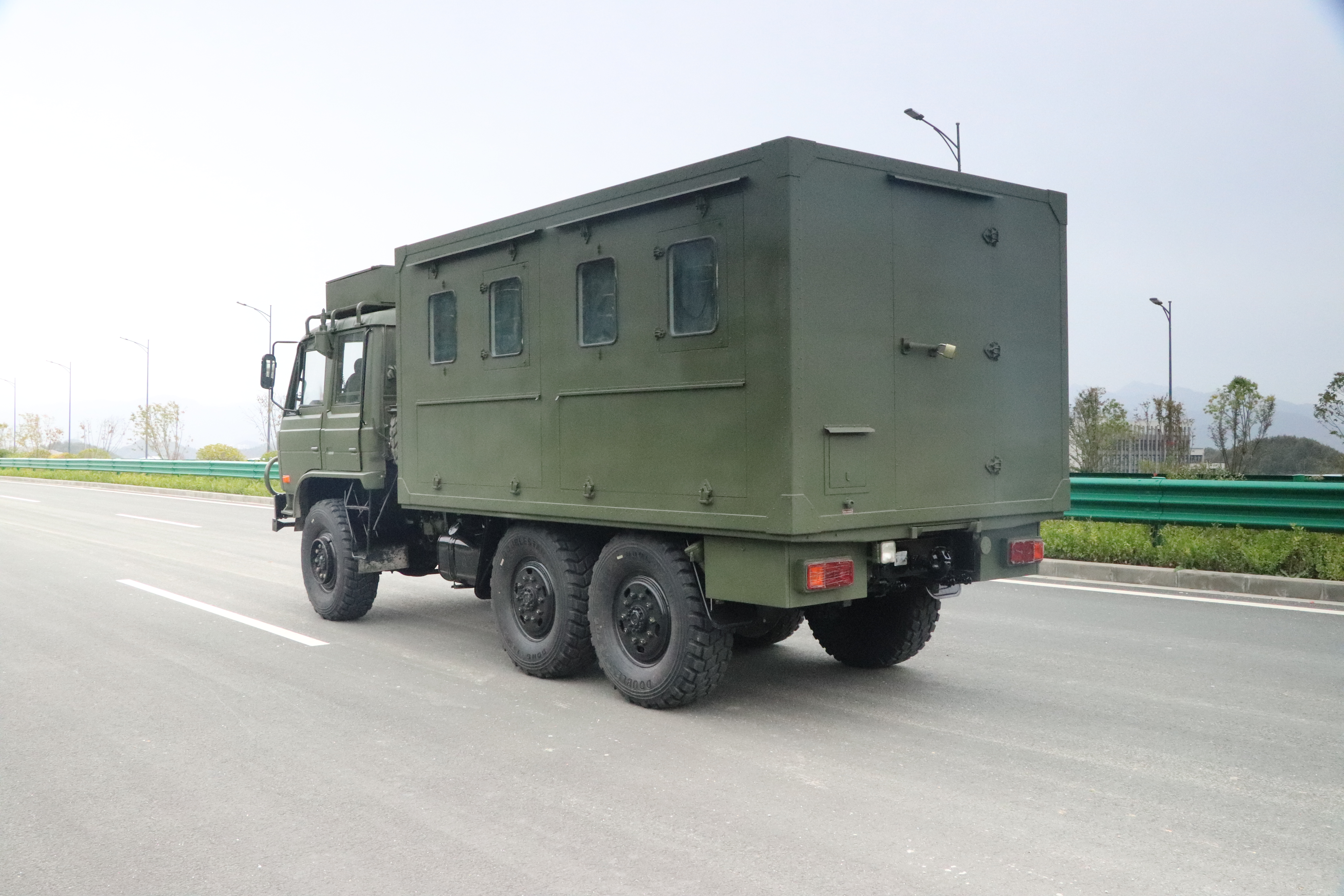

EQ2102 double-row van maintenance and support vehicle is a military/civilian integrated field maintenance vehicle built by DF based on the classic 6×6 6×6 off-road chassis. It focuses on equipment emergency repair, parts supply and on-site maintenance under extreme road conditions, and has both strong off-road passability and professional operation functions. Developed and manufactured by our company, the prototype is the third-generation 3.5-ton flat-head diesel off-road military vehicle EQ2102, a modification plan with a double-row cab + enclosed square cabin body. It is designed to provide mobile maintenance workshop services for field troops, engineering teams, and rescue sites.
| Basic information | |
| drive | 6*6 |
| direction | left rudder |
| Chassis size | 7350×2360×2740mm |
| Vehicle size | 7510*2450*3145mm |
| total mass | 10740kg |
| curb weight | 10400kg (including various equipment in the car) |
| Chassis configuration | |

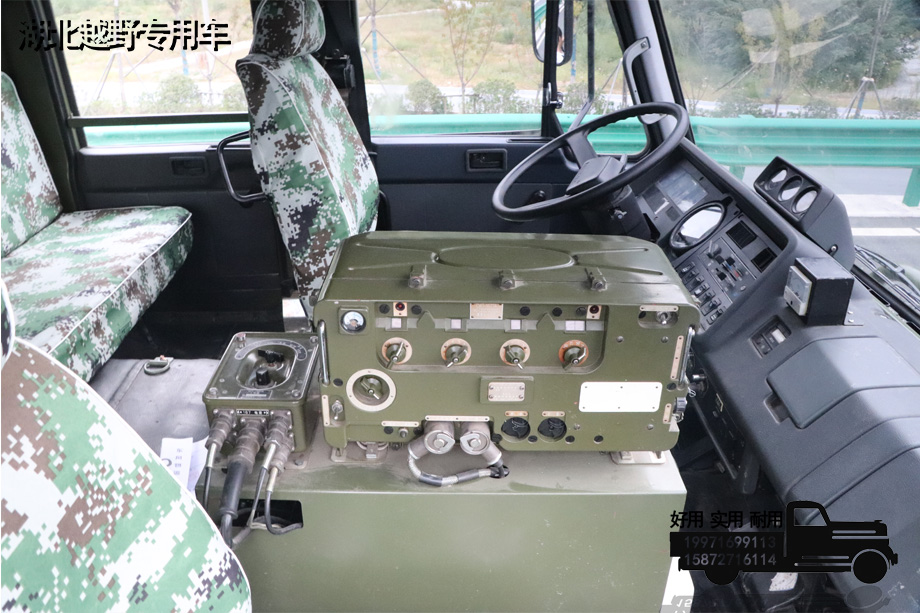

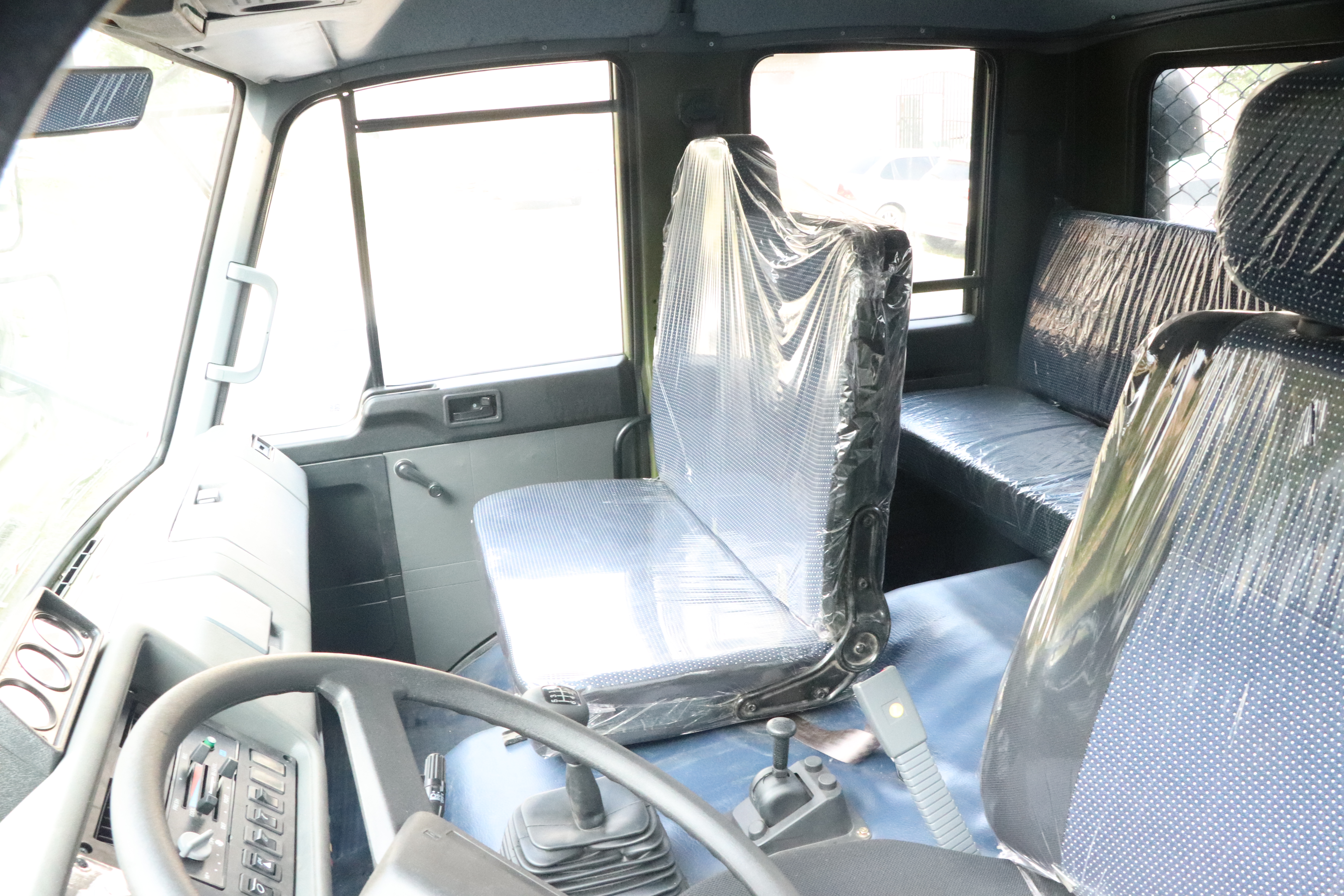

| cab | Flat head, double row, with air conditioning |
| Number of seats | 4~5 people |
| Wheelbase | 3475+1250mm |
| Frame | 860*232mm |
| engine | Cummins B190 33/B210 33 |
| Gearbox assembly | Manual 6-speed/5-speed/small eight-speed |
| transfer case assembly | High and low gears |
| Maebashi | 3.5T |
| middle bridge | 3.5T |
| rear axle | 3.5T |
| tank | 160+80L (can be adjusted according to space location) |
| circuit | 24V circuit system |
| suspension system | leaf spring |
| Braking method | Air brake |
| tire | 12.5R20 (6+1) |
| Bodywork configuration | |
| cargo box | 4400*2450*2000mm |
| engine | |
| engine | Cummins B190 33 |
| horsepower | 190 |
| emission | National Three |
| Displacement | 5.9L |
| Number of cylinders | 6 |
| Output power | 140kw |
| Torque | 640N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 88km/h |
| approach angle | 31° |
| departure angle | 28° |
| Wheelbase | 1900/1815/1830mm |
| front overhang | 1200mm |
| Rear suspension | 1585mm |
| ground clearance | 305mm |
| Obstacle clearance height | 420mm |
| Wading height | 1000mm |
| gradeability | 60% |
| standing slope | 40% |
| other | |
| other | Water barrels, oil barrels, fire extinguishers, vehicle tools |
