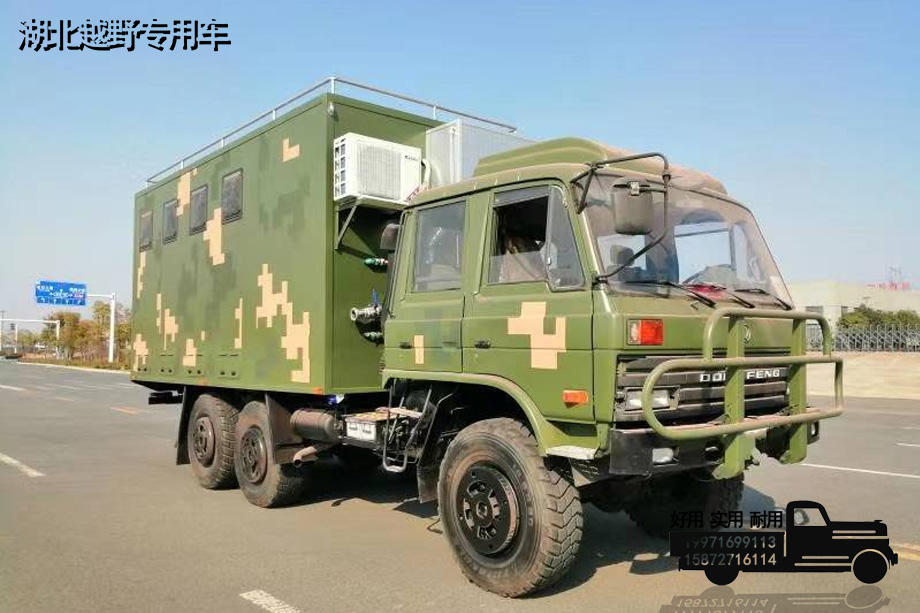

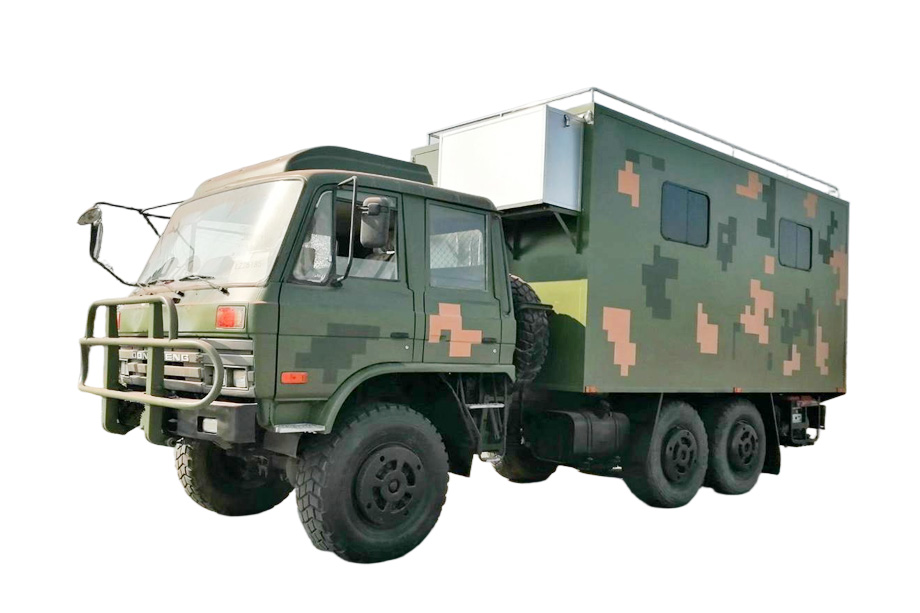

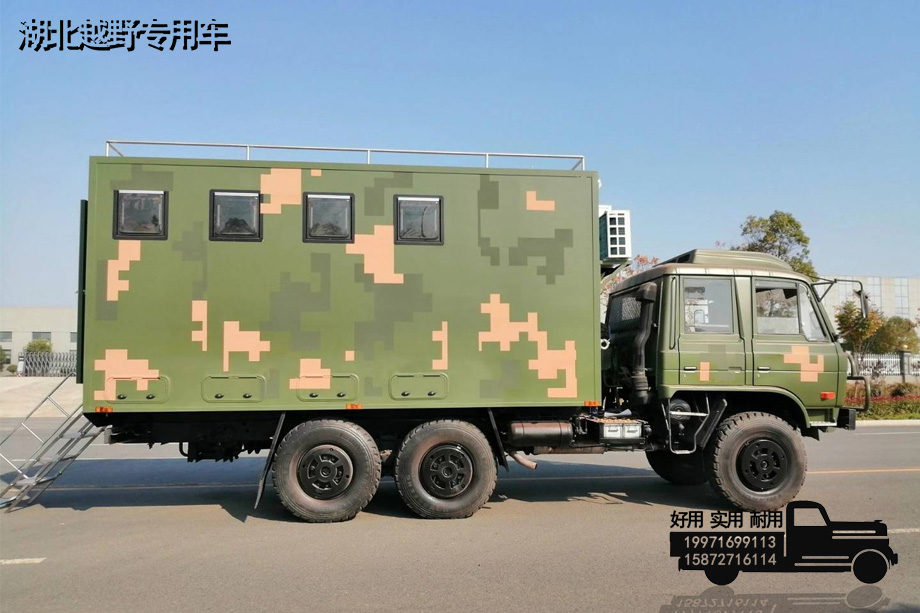

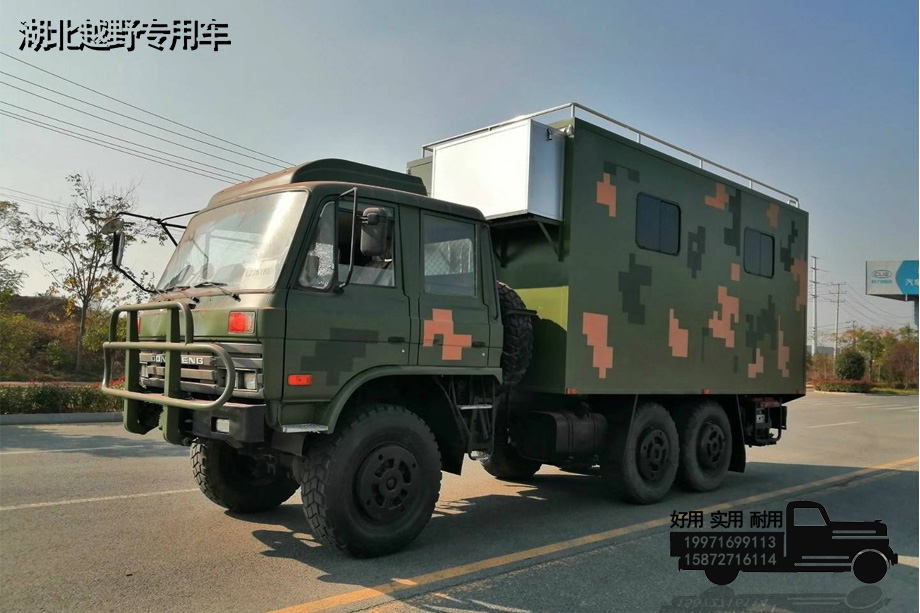

The vehicle is modified based on the DF EQ2102N 6×6 all-wheel drive off-road chassis. It is equipped with a double-row cab and overhead air conditioning. It has outstanding off-road capabilities and comfortable driving. It is specially designed to provide mobile toilet support for scenes such as field operations, emergency rescue, engineering construction, field camps, and events. It adopts the classic EQ2102N 6×6 off-road chassis and is equipped with Cummins power. It has abundant power, stable operation and can adapt to complex road conditions. The double-row, four-door cab can carry multiple workers. It is equipped with overhead on-board air conditioning as standard, which can isolate the vehicle from the scorching heat and cold, and improve the comfort of long-distance and outdoor operations. The vehicle has an all-wheel drive structure and is equipped with off-road tires. It has large ground clearance, excellent climbing and wading capabilities, and can smoothly travel on non-paved roads such as mud, mountains, and deserts. It has strong maneuverability in all areas.

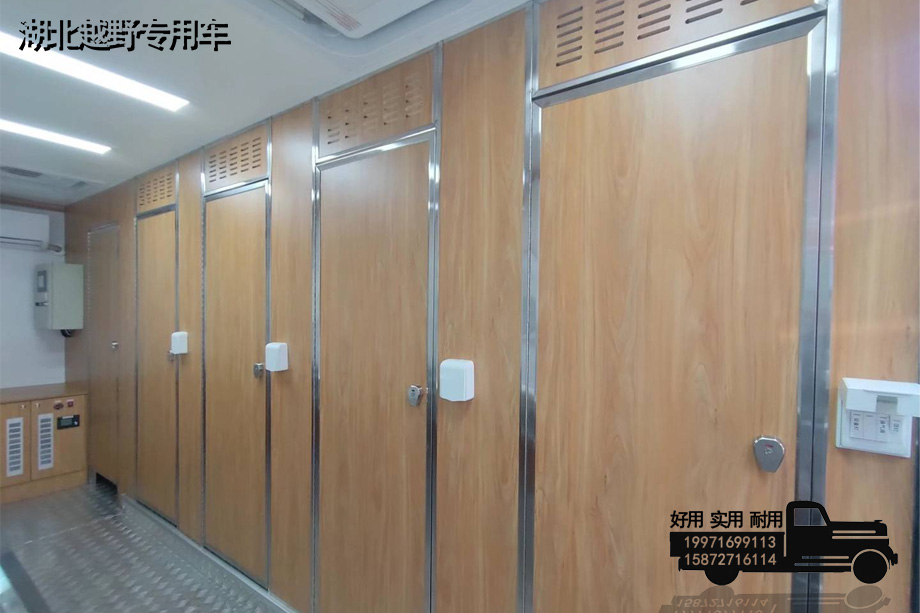

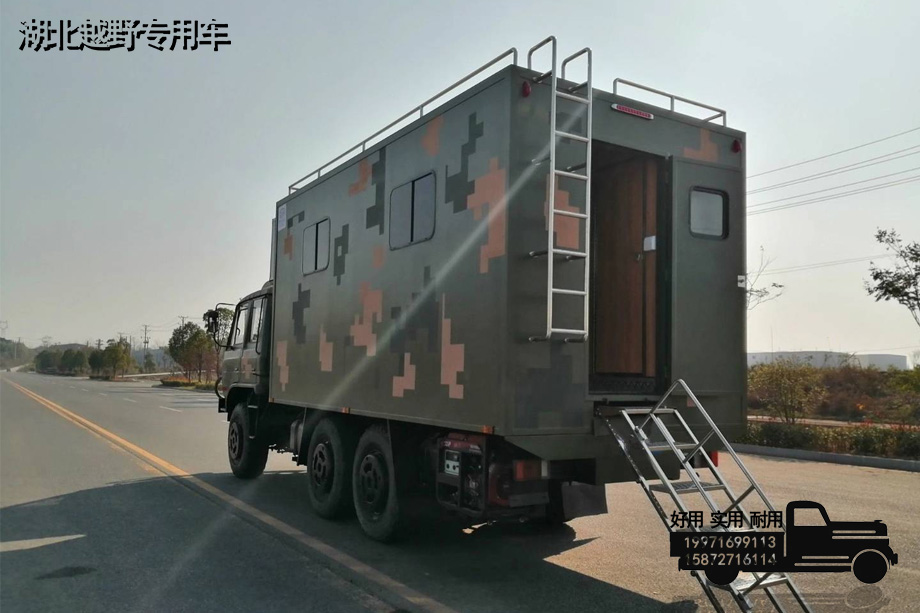

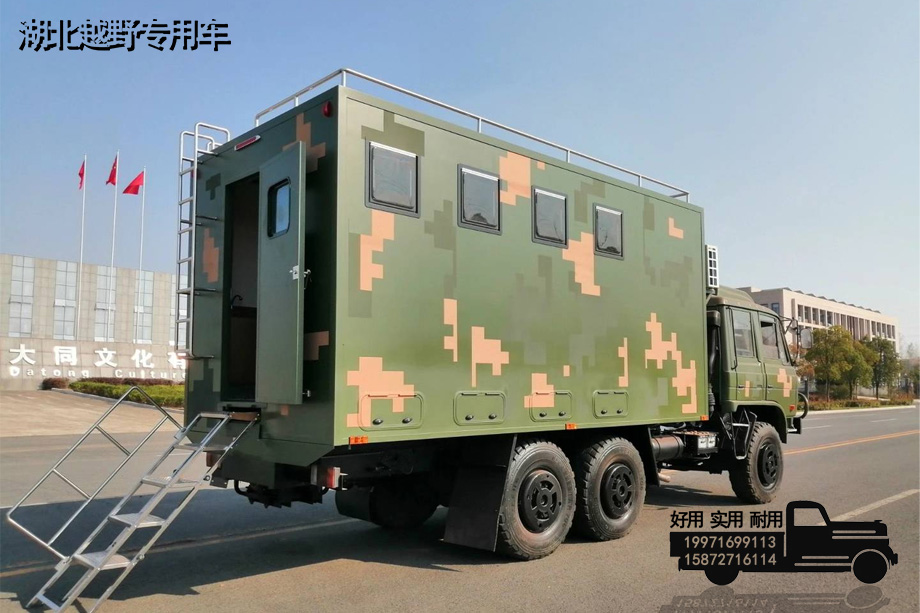

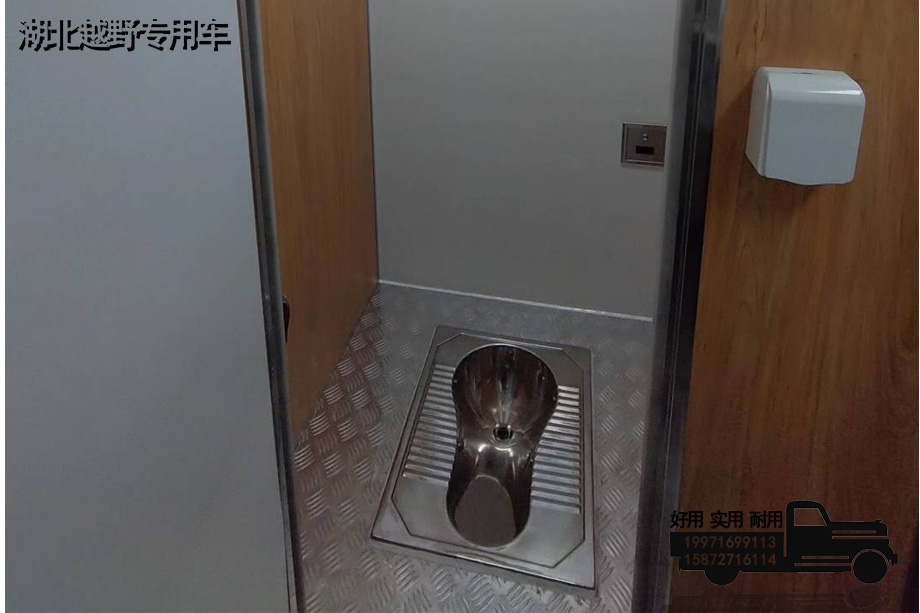

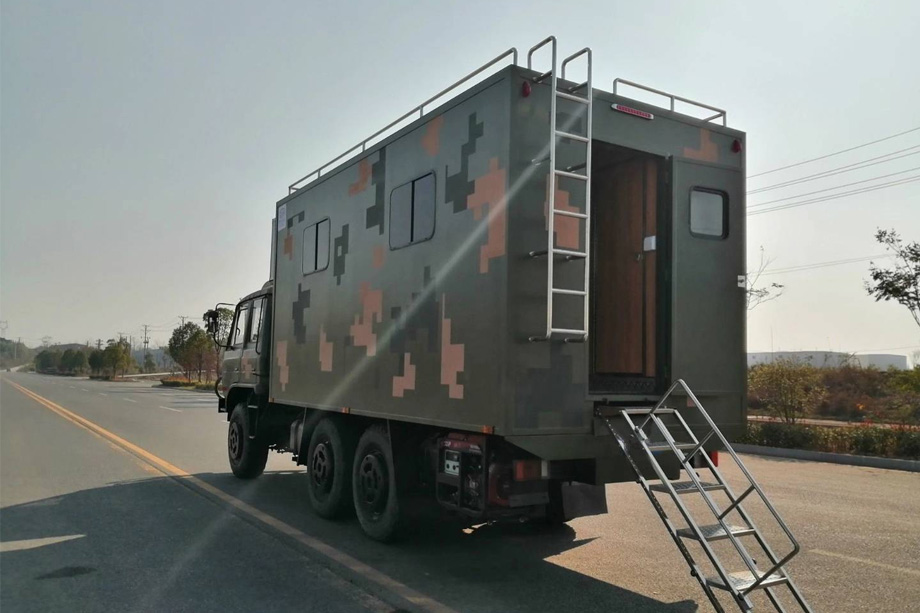

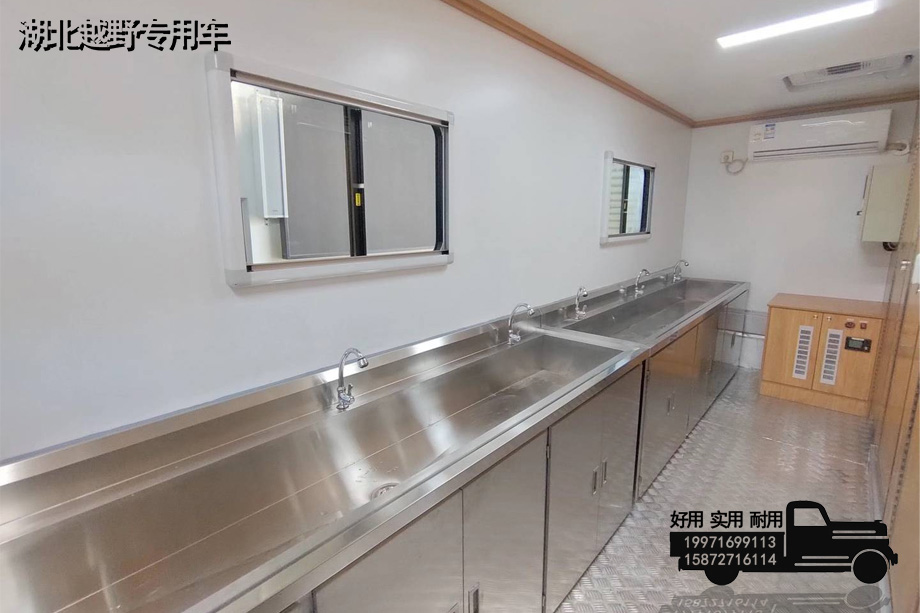

The main body of the top-mounted mobile toilet is made of lightweight insulation material, the frame is strong and durable, and it is rainproof, dustproof, anti-corrosive and soundproof. The inside and outside are neat and easy to clean. The toilet space is reasonably divided inside, and multiple squatting positions can be set up according to needs. The layout is compact and practical. Water supply system: Equipped with a clean water tank to ensure water for daily flushing and hand washing; Sewage system: Integrated large-capacity sewage collection tank, airtight storage of dirt, anti-leakage, no odor, equipped with a dedicated sewage interface, which can quickly discharge sewage at fixed points; Supporting facilities: Standard lighting, ventilation fans, wash basins, non-slip floors, privacy partitions, door locks and other basic devices, some models can be equipped with heating and emergency alarm devices.
The integrated design of the vehicle allows for flexible maneuverability and convenient transition. It does not require fixed infrastructure and can be put into use upon arrival at the site. Relying on the powerful off-road performance of the original vehicle, it can penetrate into remote wild areas, mountainous areas, forest areas and other areas that are difficult to reach by conventional vehicles. It is widely used in field engineering construction, emergency rescue and disaster relief, forest fire prevention duty, outdoor team building events, field exploration, border defense stations and other places. It is a special equipment for temporary outdoor toilet protection.
DF EQ2102N six-wheel drive off-road mobile toilet truck, double cab equipped with overhead air conditioning, comfortable driving. The original all-wheel drive off-road chassis has strong passability and can adapt to various complex terrains. The closed insulated box is equipped with multiple groups of squatting positions and integrates a complete set of facilities such as fresh water tanks, sewage tanks, ventilation, lighting, and hand washing. It is airtight, leak-proof, and clean. The vehicle is flexible and can be used anywhere. It is suitable for field construction, emergency rescue, outdoor camps, remote operating areas and other scenarios.
| Basic information | |
| drive | 6*6 |
| direction | left rudder |
| Chassis size | / |
| Vehicle size | 8500*2500*3950mm (marked) |
| total mass | 10850kg |
| curb weight | 8500kg (marked) |
| Chassis configuration | |

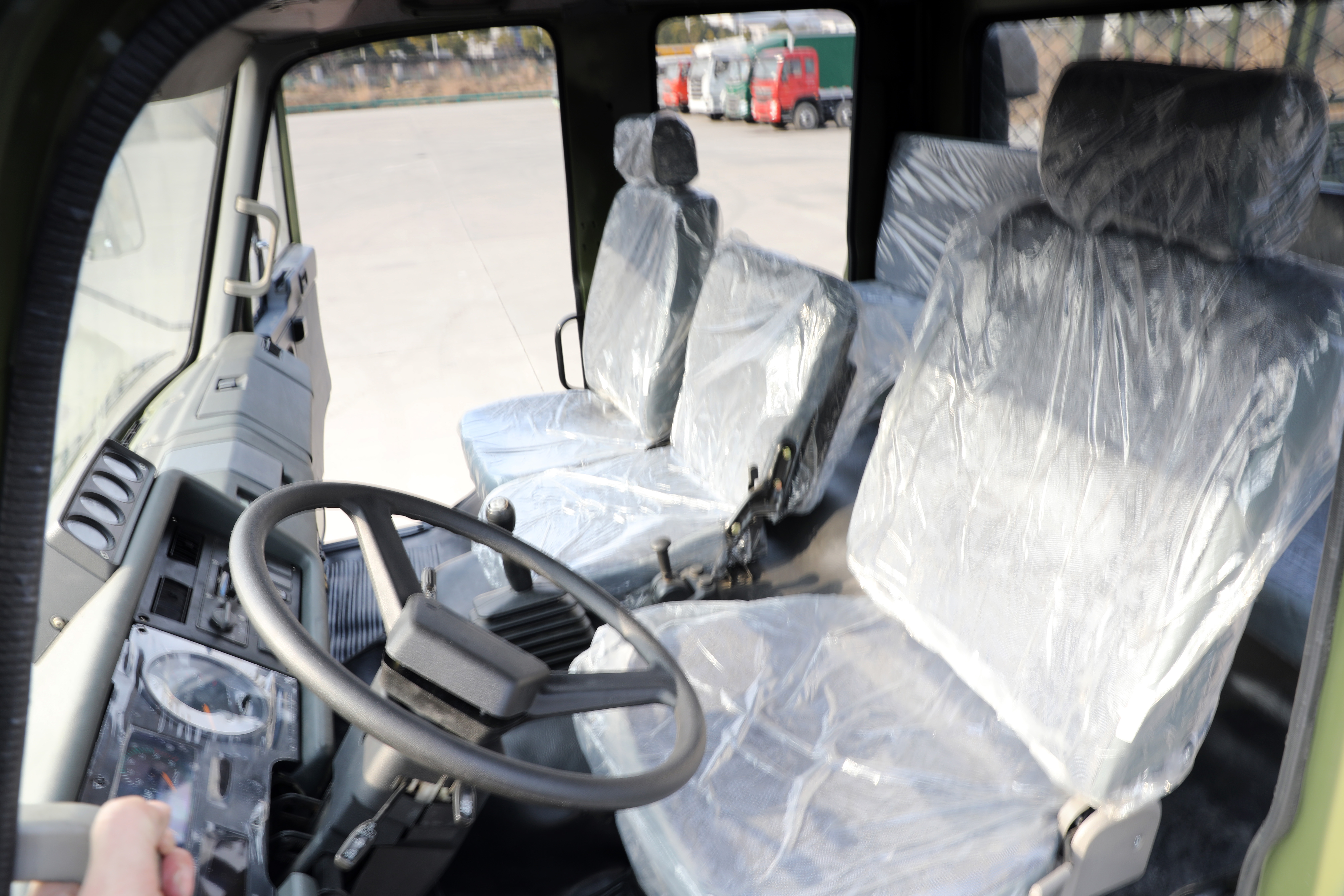

| cab | Flat head, double row, with air conditioning |
| Number of seats | 4~5 people |
| Wheelbase | 3475+1250mm |
| Frame | 860*232mm |
| engine | Cummins B190 33/B210 33 |
| Gearbox assembly | Manual 6-speed/5-speed/small eight-speed |
| transfer case assembly | High and low gears |
| Maebashi | 3.5T |
| middle bridge | 3.5T |
| rear axle | 3.5T |
| tank | 160+80L (can be adjusted according to space location) |
| circuit | 24V circuit system |
| suspension system | Leaf spring10/12 |
| Braking method | Air brake |
| tire | 12.5R20 (6+1) |
| Bodywork configuration | |
| Tops | 5200*2500*1850mm (marked) |
| engine | |
| engine | Cummins B190 33 |
| horsepower | 190 |
| emission | National Three |
| Displacement | 5.9L |
| Number of cylinders | 6 |
| Output power | 140kw |
| Torque | 640N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 90km/h |
| Wheelbase | 1890mm |
| ground clearance | 305mm |
| Obstacle clearance height | 420mm |
| Wading height | 1125mm |
| gradeability | 60% |
| standing slope | 40% |
| other | |
| other | Water barrels, oil barrels, fire extinguishers, vehicle tools |
