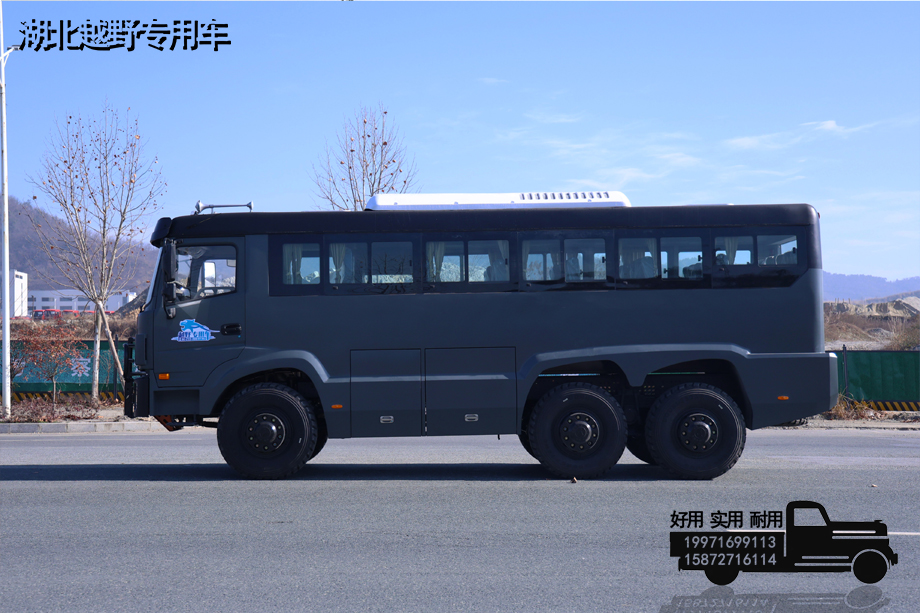

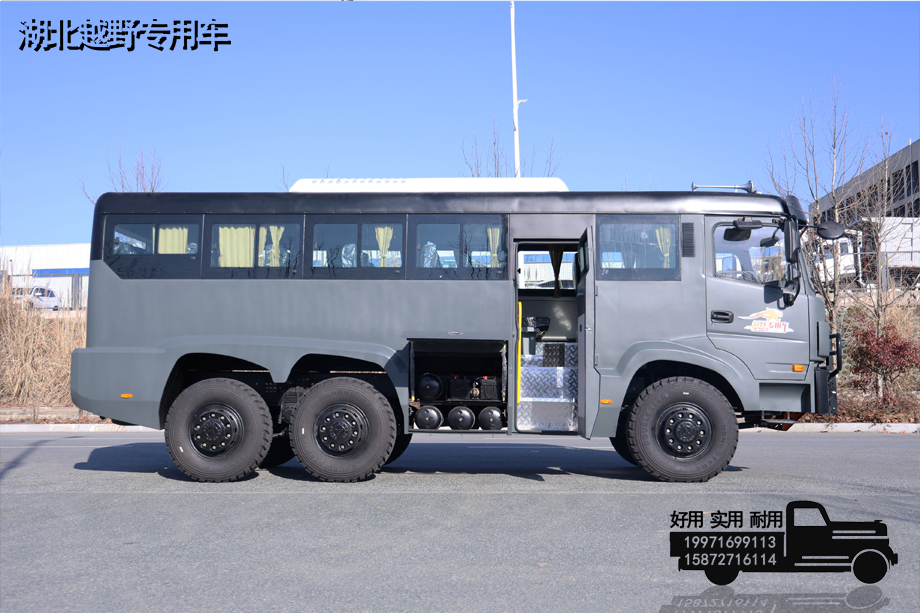

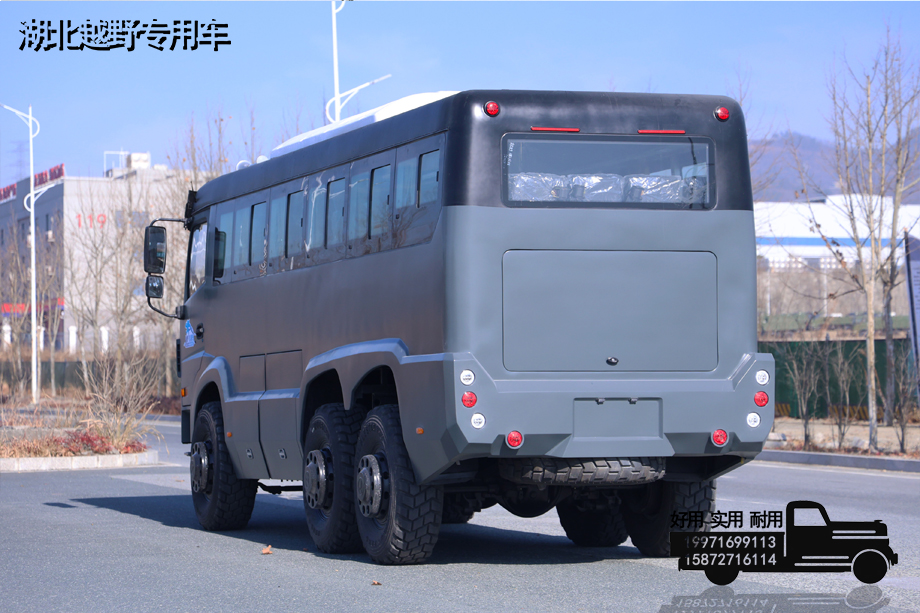

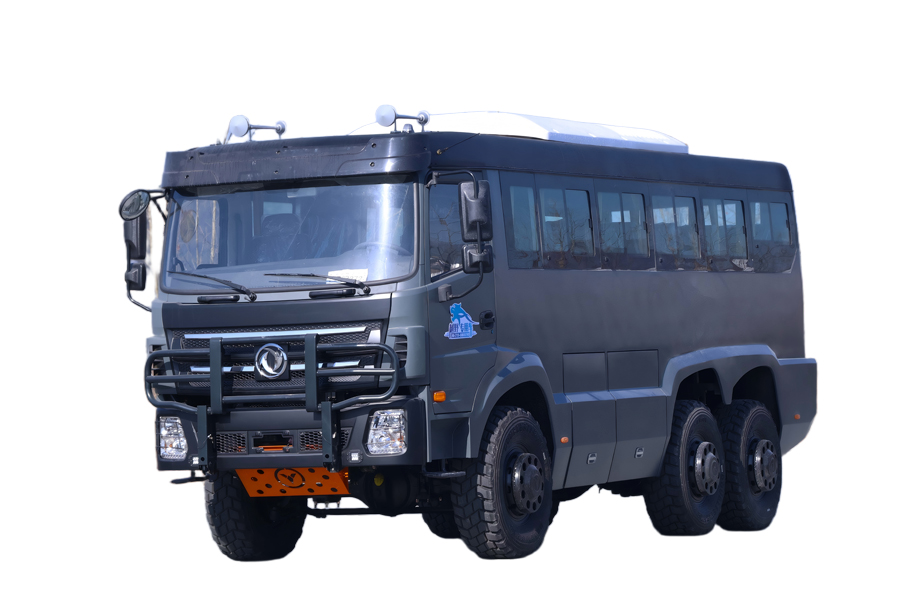

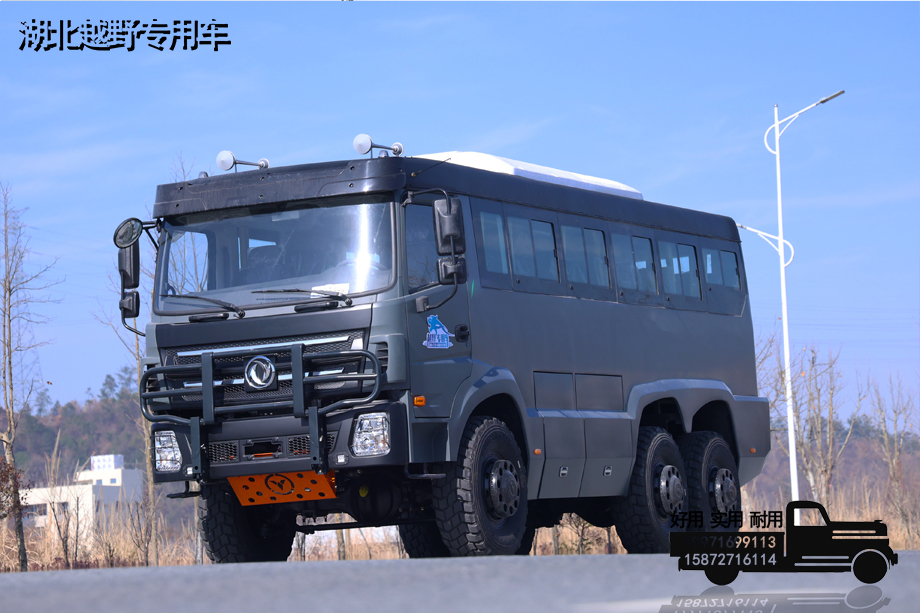

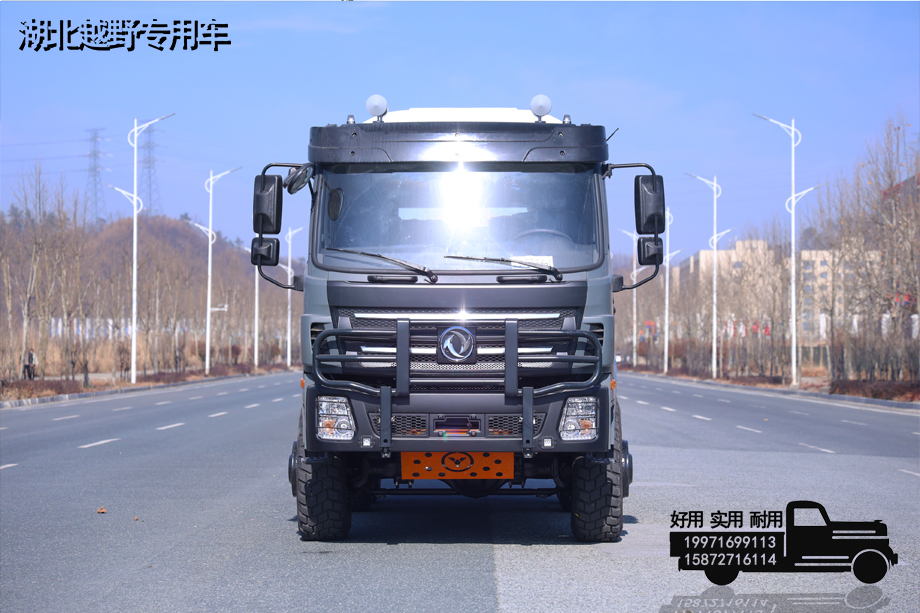

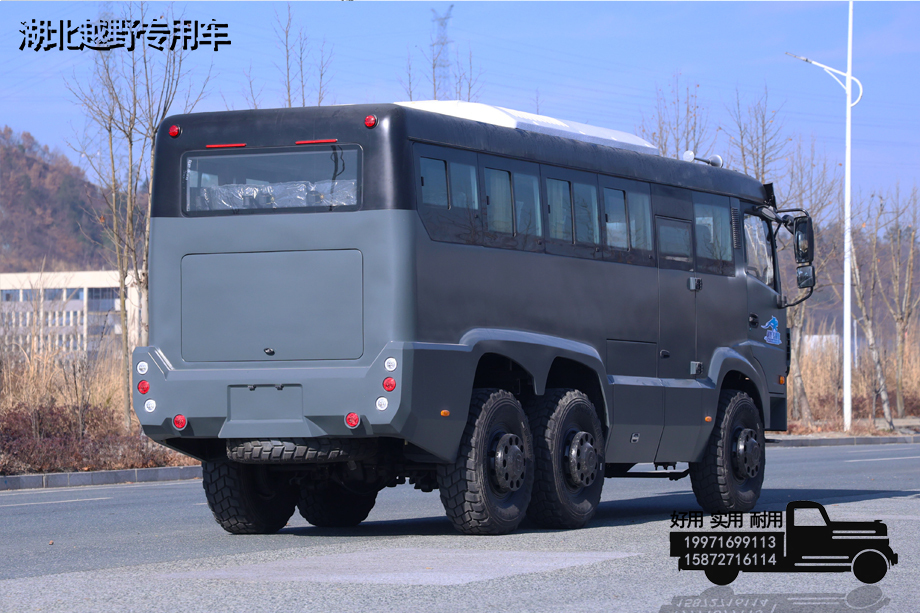

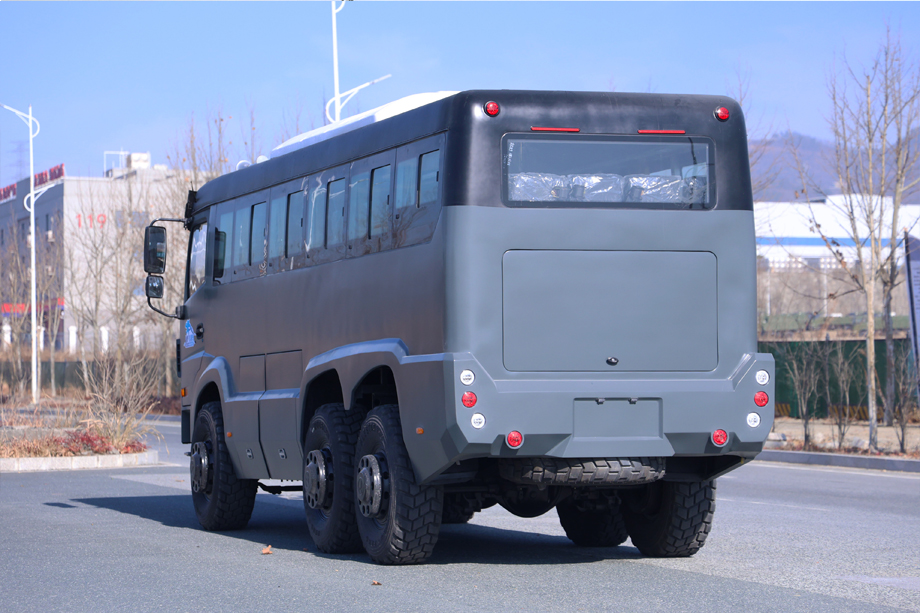

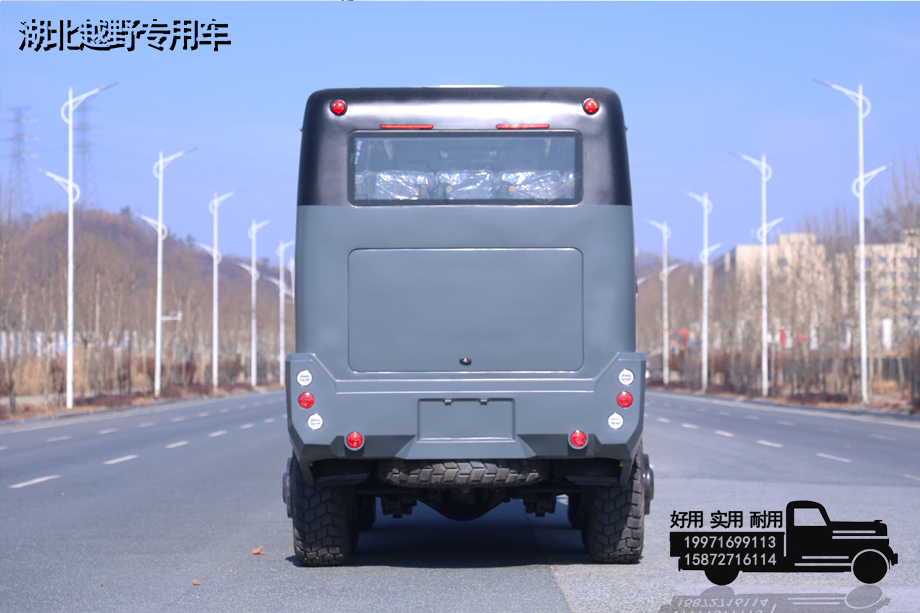

China's DF Automobile Company developed 6×6 off-road chassis. Due to various advantages, the chassis is often used to modify it into greening sprinkler trucks, dump trucks, garbage trucks, van transporters, Bus, minibuses, etc., which are also best-selling models for export.
| Basic information | |
| drive | 6*6 |
| direction | Left rudder/right rudder |
| Chassis size | / |
| Vehicle size | 8190*2480*3310mm |
| total mass | 25000kg |
| curb weight | 10220kg |
| Chassis configuration | |

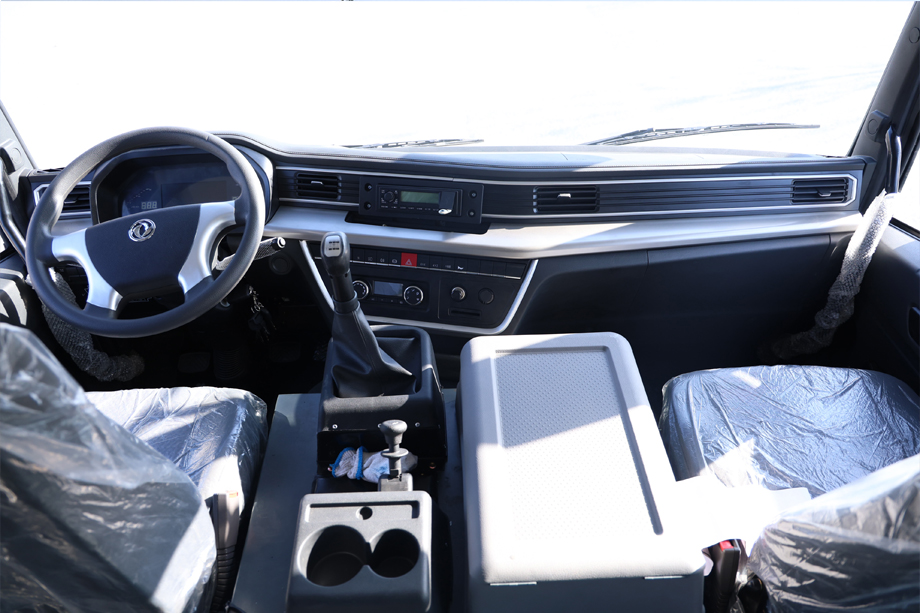

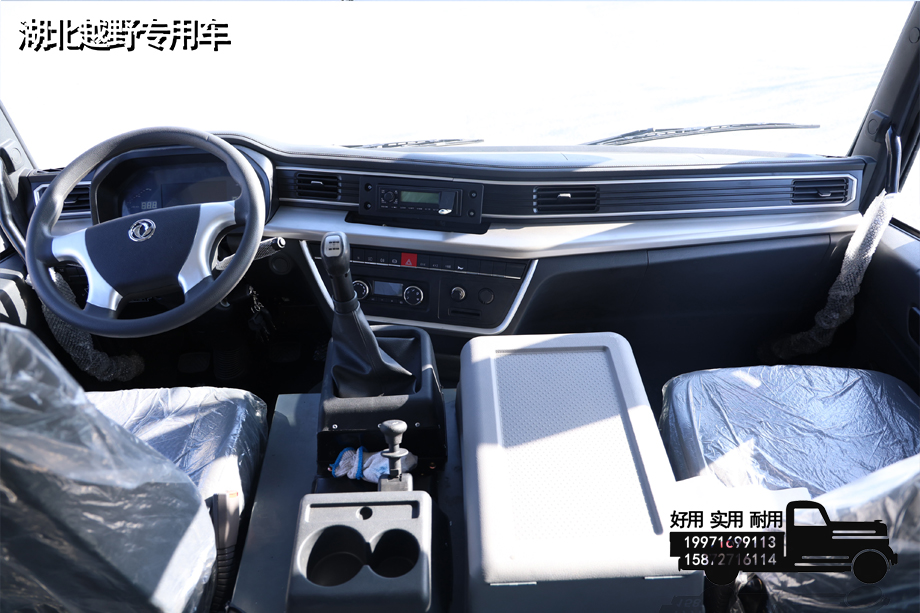

| cab | crew cut |

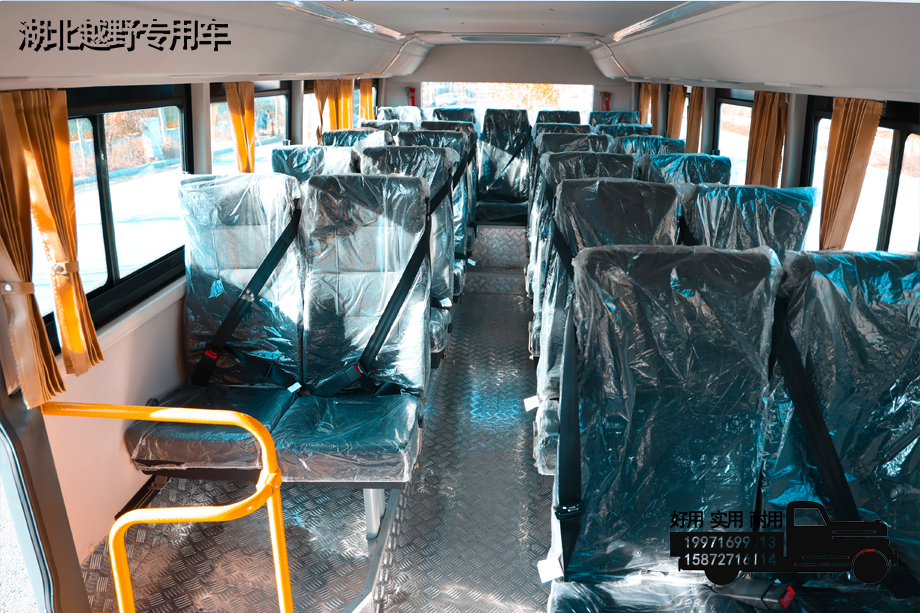

| Number of seats | 25+2 people |
| Wheelbase | 3600+1300mm |
| Frame | 860*280(8+8)mm |
| engine | Weichai WP10.340E32 |
| Gearbox assembly | Manual 12 gears |
| transfer case assembly | High and low gears |
| Maebashi | 7T |
| middle bridge | 10T |

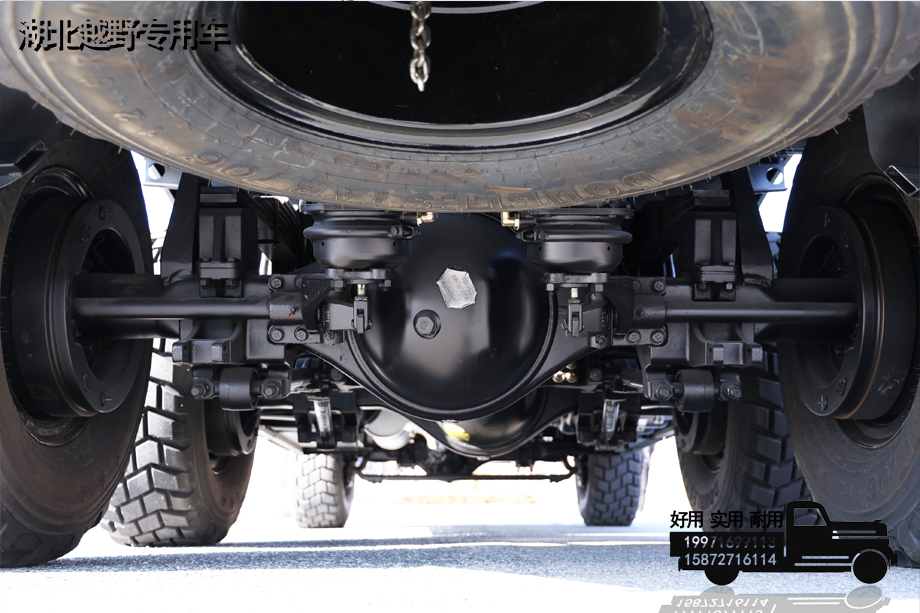

| rear axle | 10T |
| tank | 300L |
| circuit | 24V circuit system |

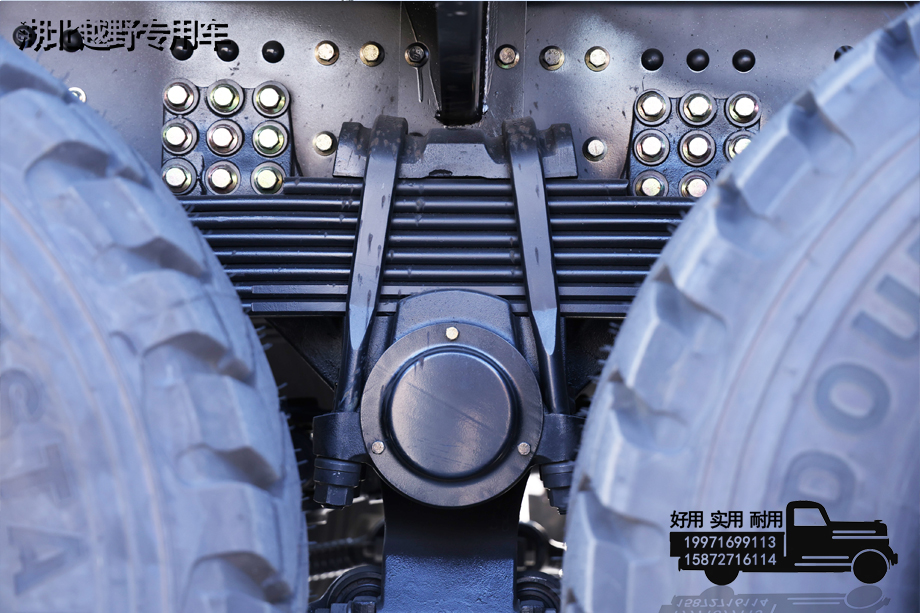

| suspension system | Leaf spring 7/8 |
| Braking method | Air brake |

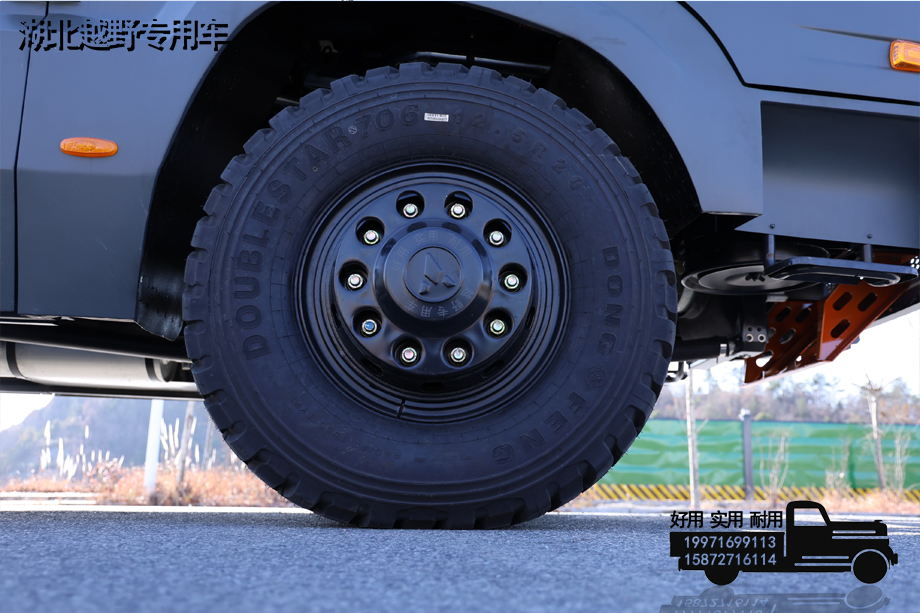

| tire | 12.5R20 (6+1) |
| Bodywork configuration | |
| cargo box | 1820mm (height inside passenger area) |
| engine | |
| engine | Weichai WP10.340E32 |
| horsepower | 340 |
| emission | National Three |
| Displacement | 9.726L |
| Number of cylinders | 6 |
| Output power | 250kw |
| Torque | 1250N.m |
| Speed | 2200rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 87km/h |
| wading depth | 410mm |
| approach angle | 23° |
| departure angle | 25° |
| front overhang | 1660mm |
| Rear suspension | 1640mm |
| Wheelbase | 2010mm |
| ground clearance | 315mm |
| gradeability | 60% |
| other | |

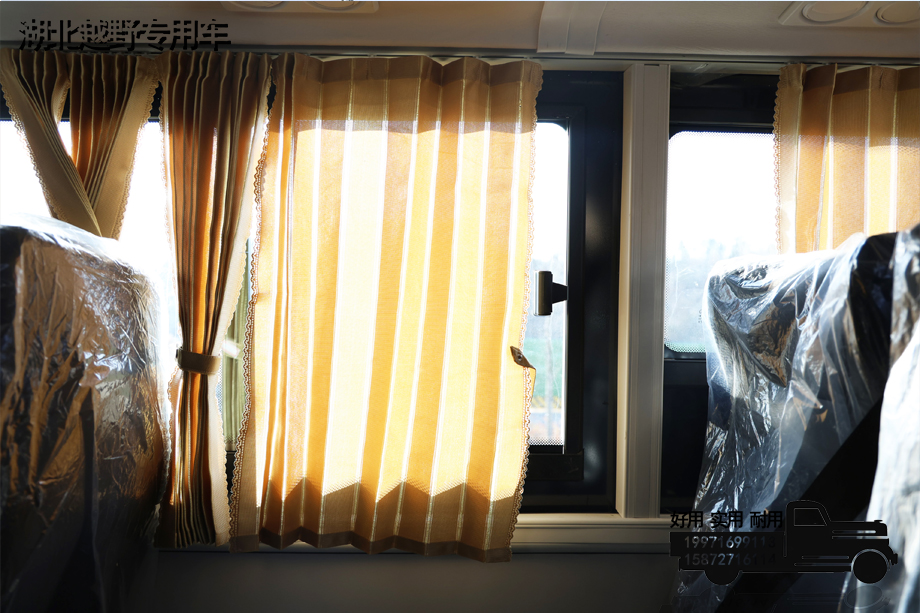

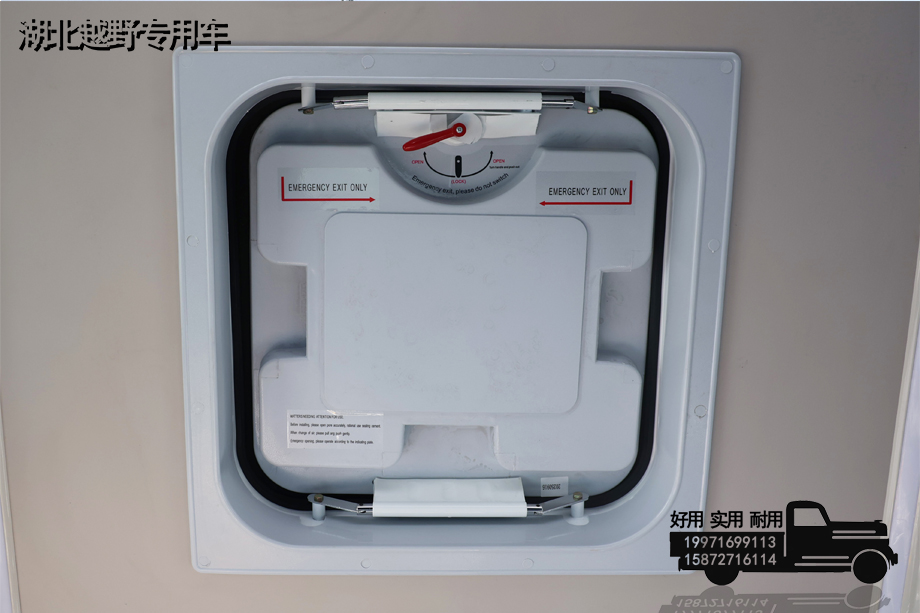

| other | The seats in the car are equipped with three-point safety belts, one-way sliding windows, curtains, safety hammers, two emergency escape sunroofs, manual doors; a one-button flameout switch outside the car, chassis protection net, and front guardrail. |
