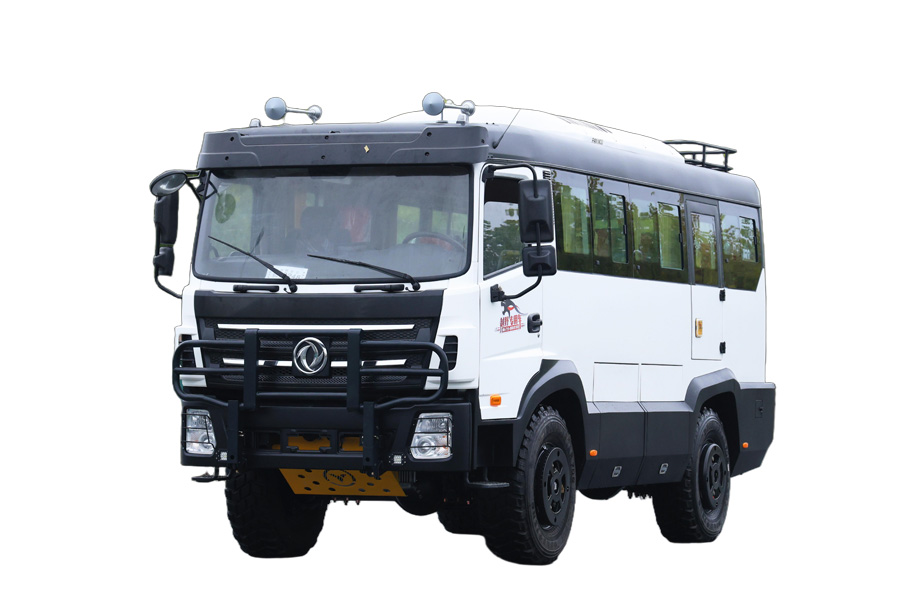

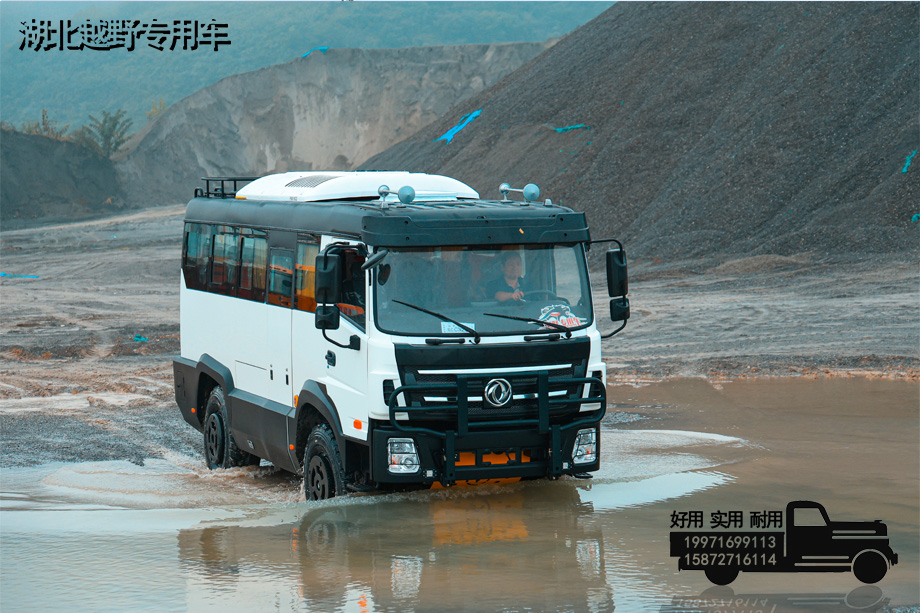

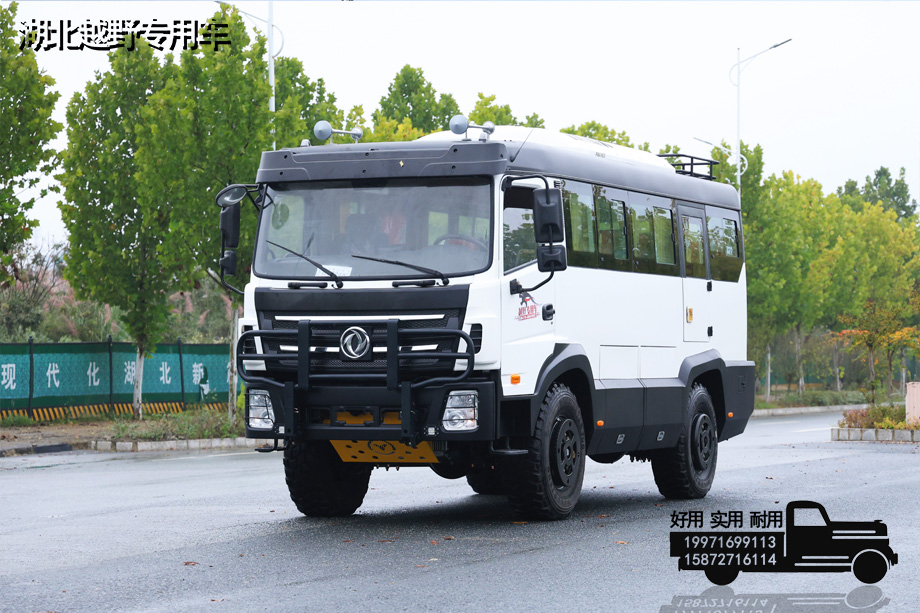

DFAs a classic domestic military vehicle, the EQ2070G cross-country personnel carrier has stable performance as its biggest feature, making the vehicle favored by countries around the world. All parts are made of military standards. As a military vehicle chassis, durability and excellent off-road performance are the most basic. Due to various advantages, this chassis is often used to modify it into greening sprinklers, dump trucks, garbage trucks, van transporters, etc. It is also a best-selling model for export.
| Basic information | |
| drive | 4*4 |
| direction | Left rudder/Customizable right rudder |
| Vehicle size | 7230×2370×3312mm |
| total mass | 7910kg |
| curb weight | 7020kg |
| Chassis configuration | |
| cab | crew cut |
| Number of seats | 21+2 |
| Wheelbase | 3600mm |
| Frame | 860*232mm |
| engine | Cummins B210 33/B170 33/B190 33 |
| Gearbox assembly | Manual 6-speed/5-speed/8-speed |
| transfer case assembly | High and low gears |
| Maebashi | 3.6T |

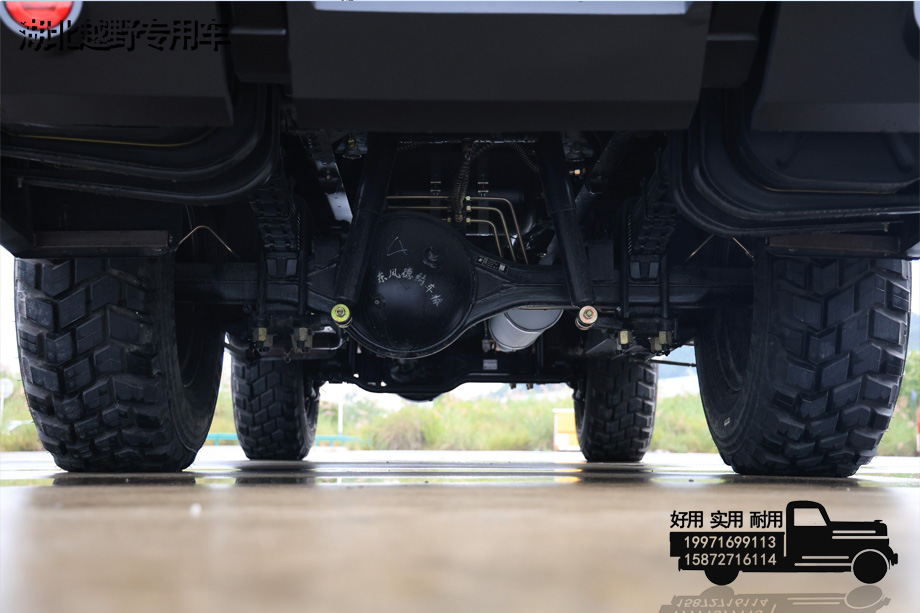

| rear axle | 4.1T |
| tank | 160L (can be increased according to space location) |
| circuit | 24V circuit system |
| suspension system | Leaf spring8/12 |
| Braking method | Air brake |
| tire | 12.5R20 (4+1) |
| Bodywork configuration | |
| Tops | One-piece, passenger area height 1820mm |
| engine | |
| engine | Cummins B210 33 |
| horsepower | 210 |
| emission | National Three |
| Displacement | 5.9L |
| Number of cylinders | 6 |
| Output power | 155kw |
| Torque | 700N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 87km/h |
| approach/departure angle | 33°/25° |
| front/rear suspension | 1570/1640mm (spare tire rack plus 420mm) |
| Wheelbase | 1876mm |
| ground clearance | 315mm |
| gradeability | 60% |
| standing slope | 40% |
| wading | 480mm |
| Overcome obstacles | 420mm |
| other | |

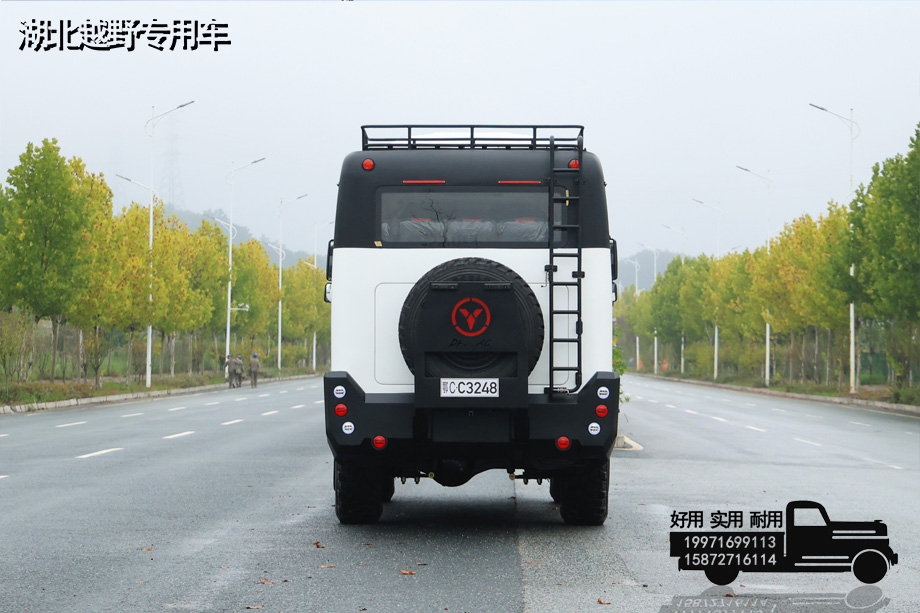

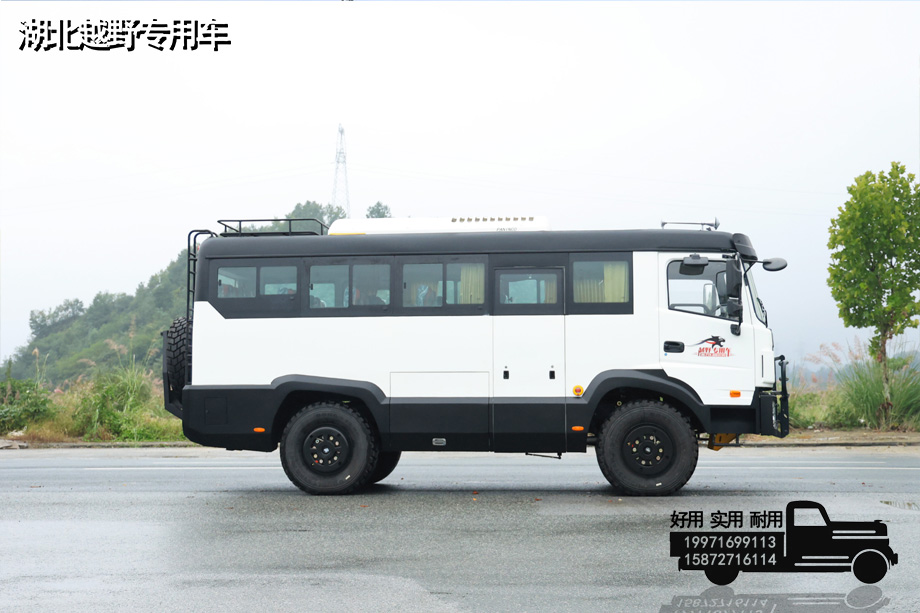

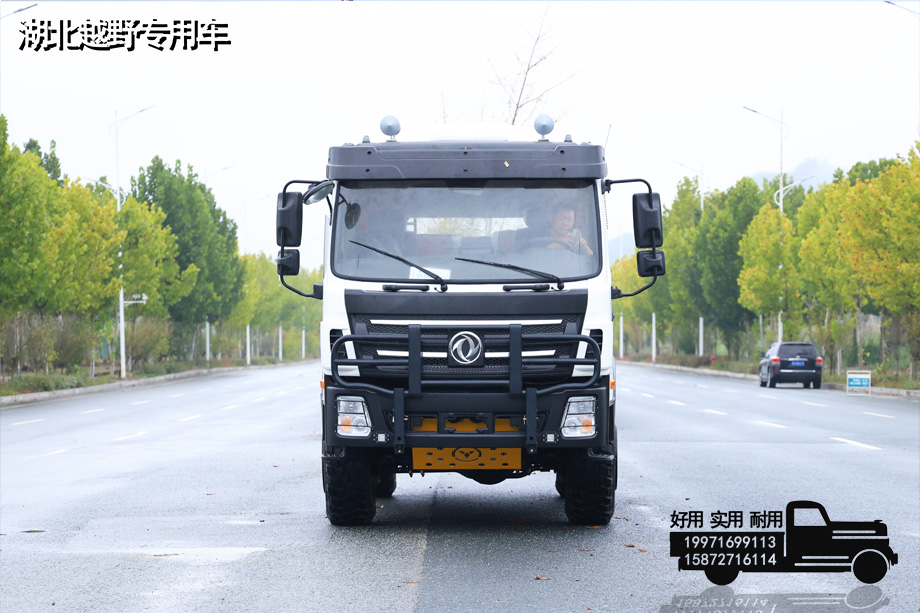

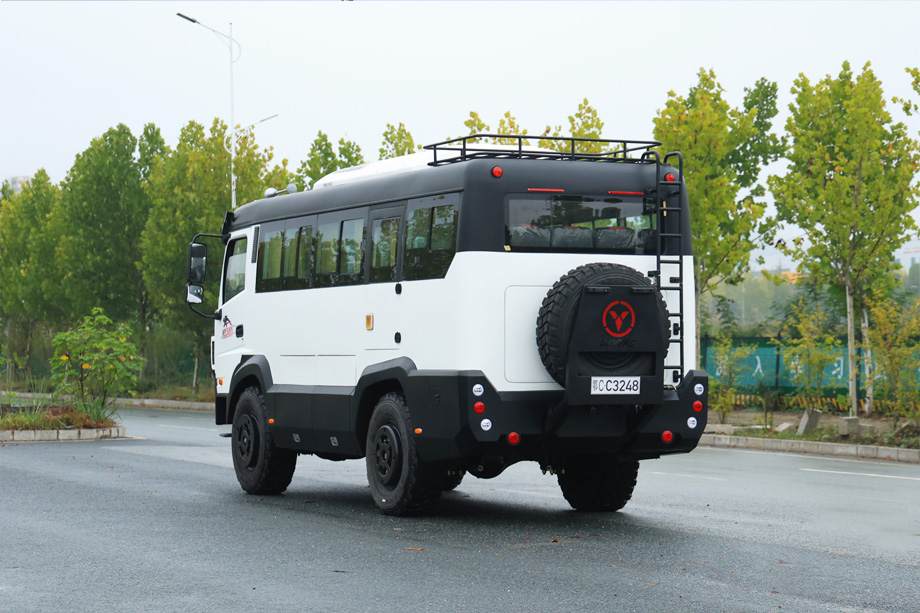

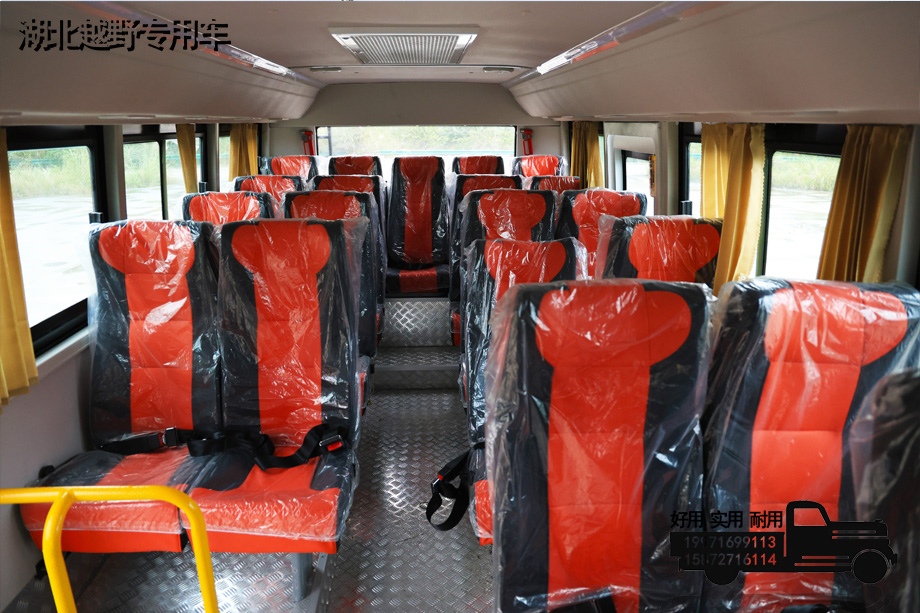

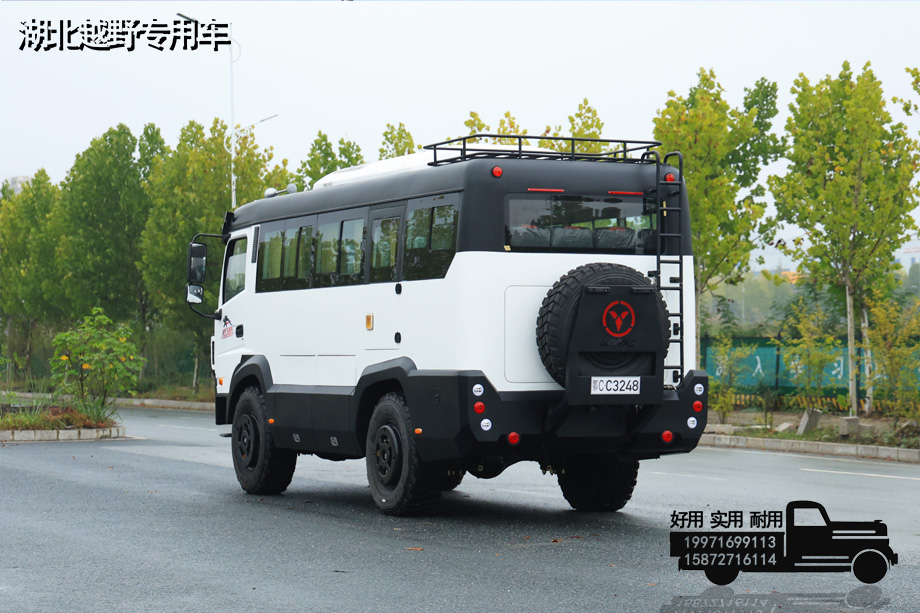

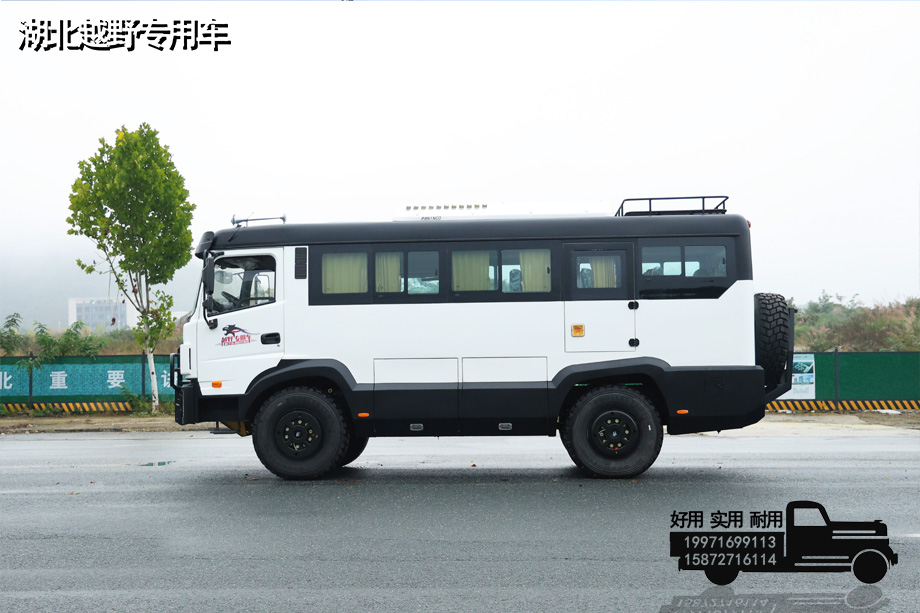

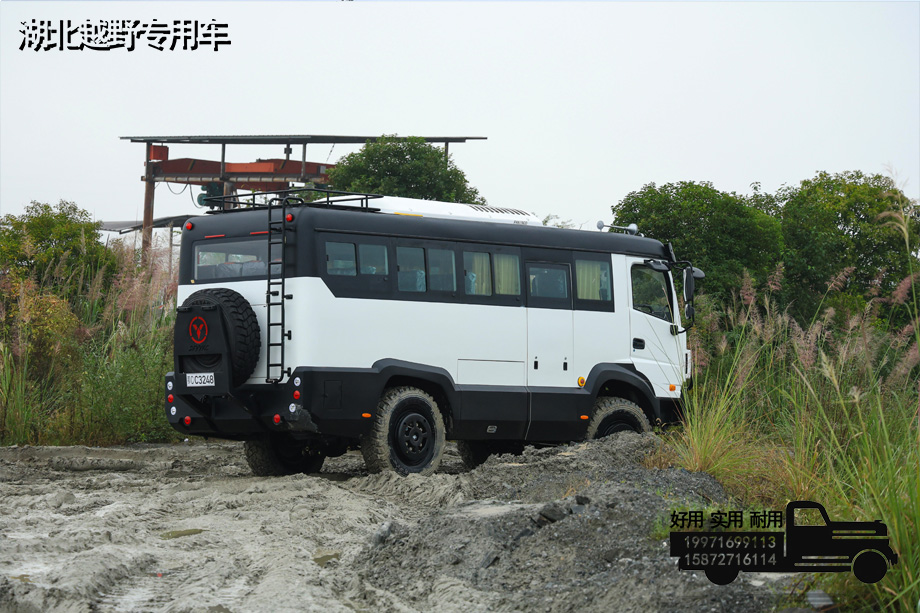

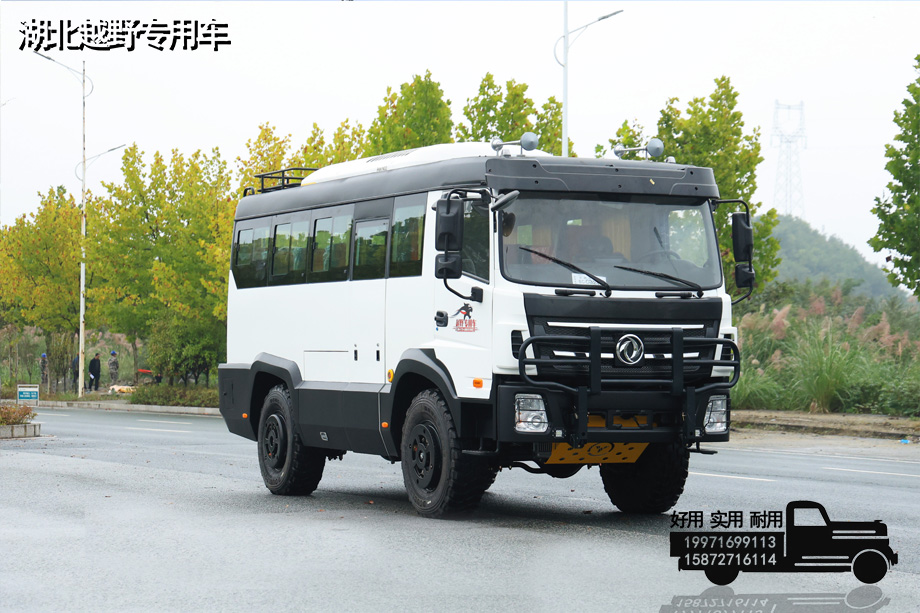

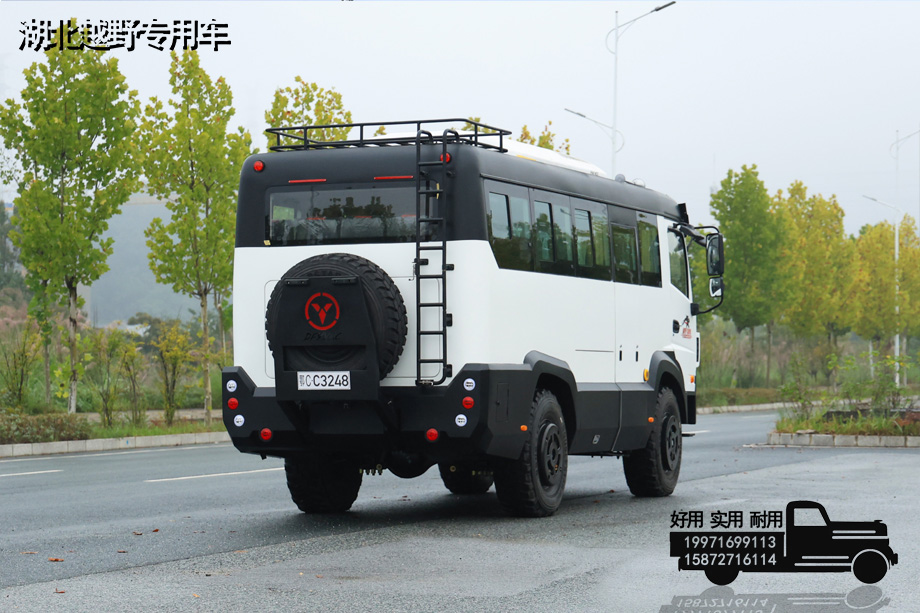

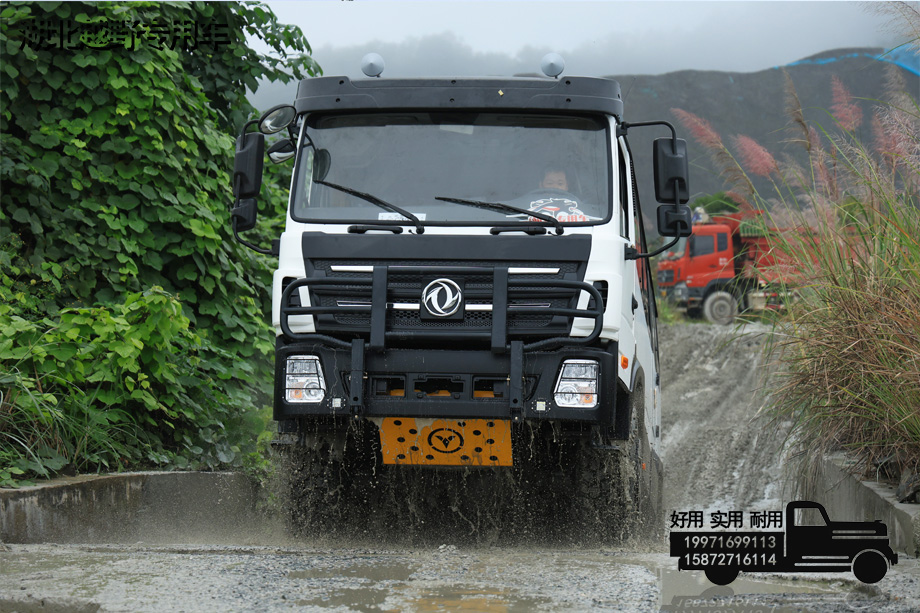

| other | There is a protective barrier in front of the vehicle; The right side of the car body is equipped with a passenger door, fuel filler, and spare tire rack controller. The passenger door is opened by side translation, and there are emergency switches inside and outside; The left side of the vehicle body is equipped with an access hatch, luggage compartment, water filling port, and emergency door; The rear of the car is equipped with an electric spare tire rack, ladder and luggage compartment; The roof is equipped with a luggage rack, overhead air conditioner, and escape sunroof; There is a handrail at the door of the passenger area; the floor is made of aluminum alloy anti-slip pattern plates and aluminum alloy edging; the passenger area windows are single-sliding windows with curtains and safety hammers; the tires have inflating and deflating functions. |
