The Chinese Automobile Company initially developed a long-distance off-road vehicle called the EQ140 (25Y), which achieved many achievements on the battlefield and was dubbed a 'hero vehicle'.

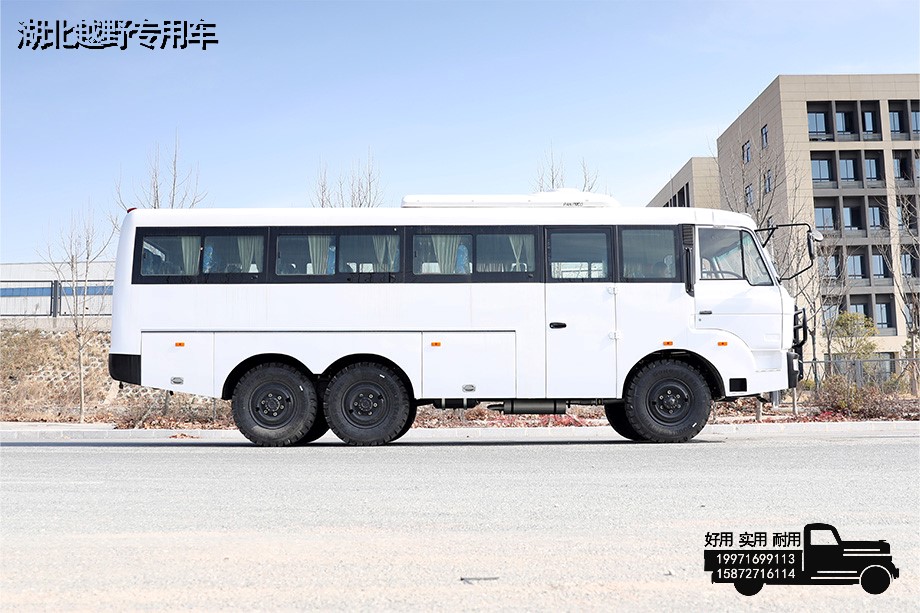

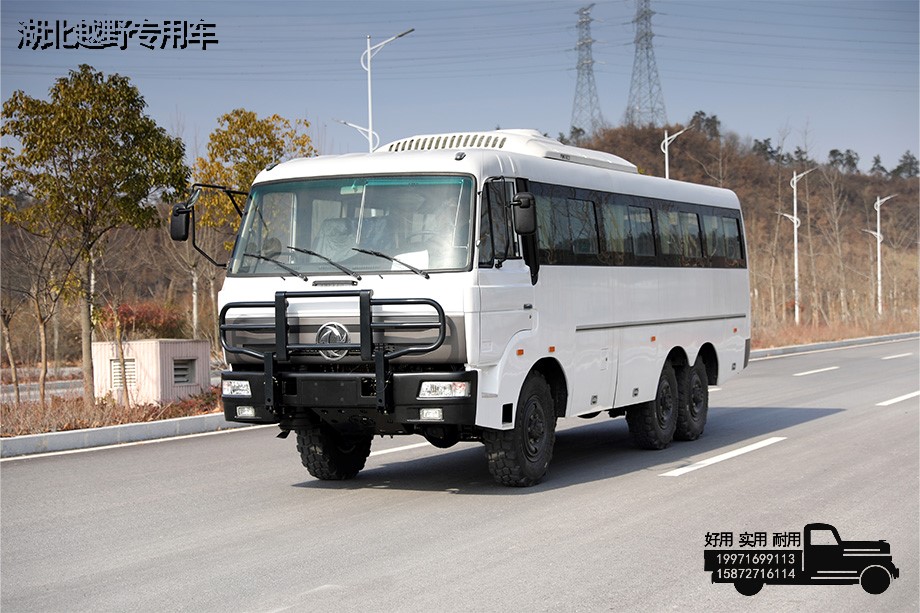

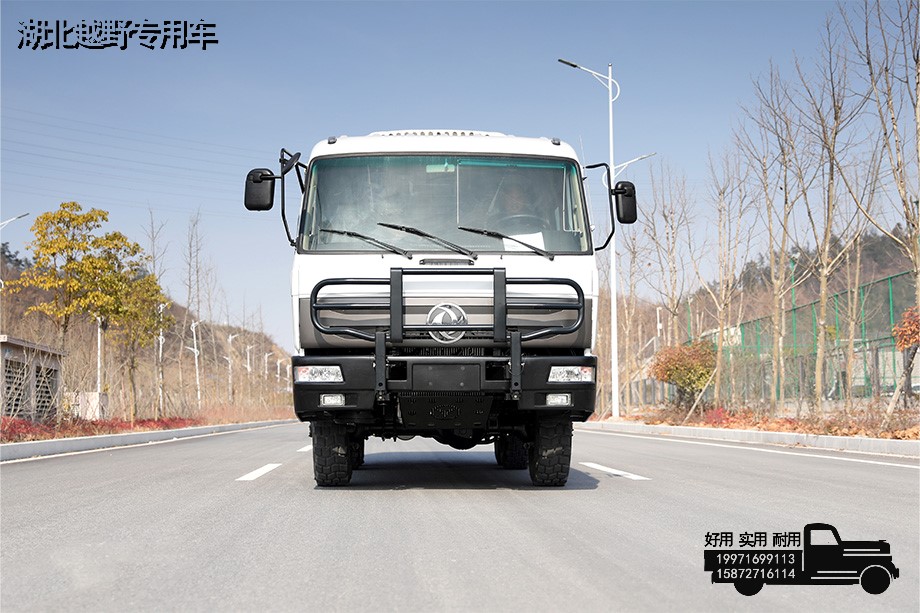

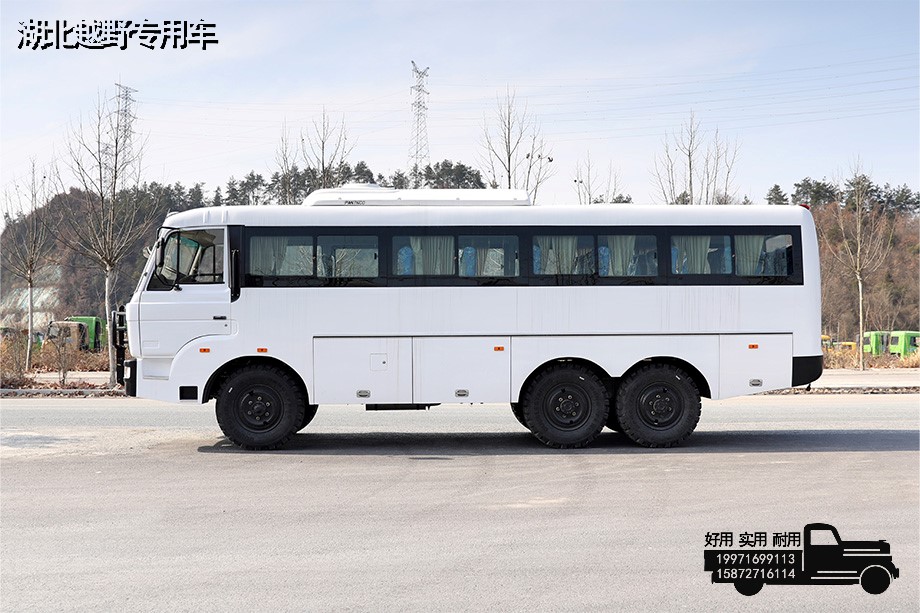

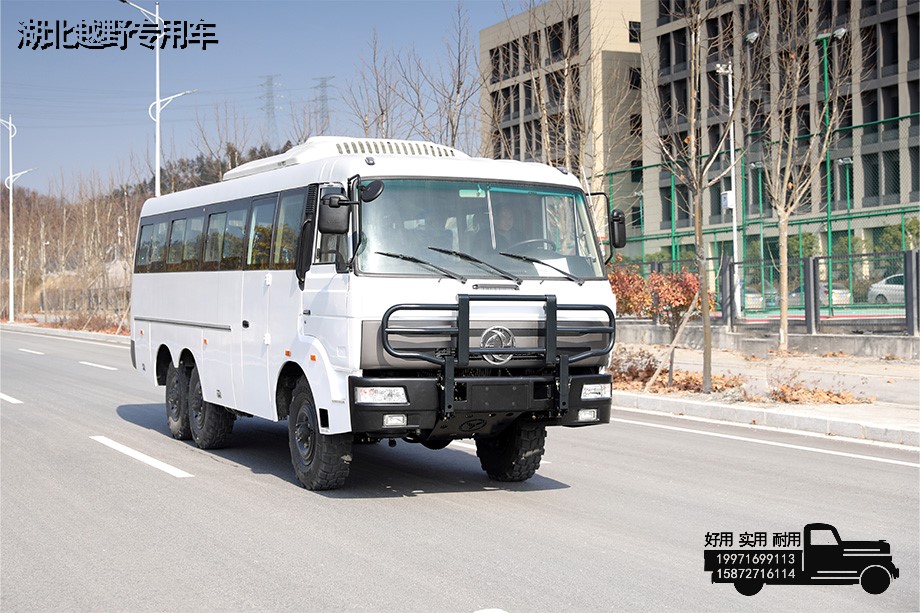

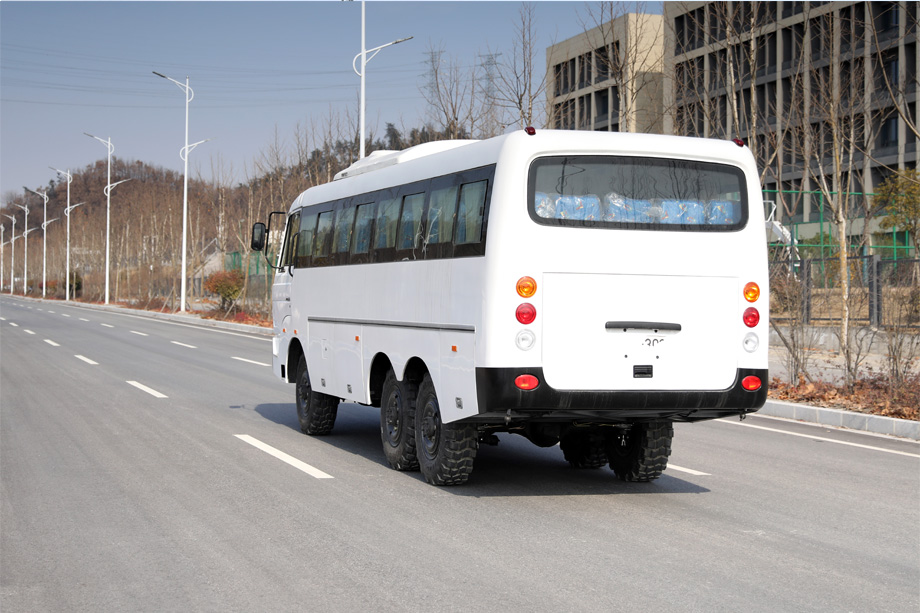

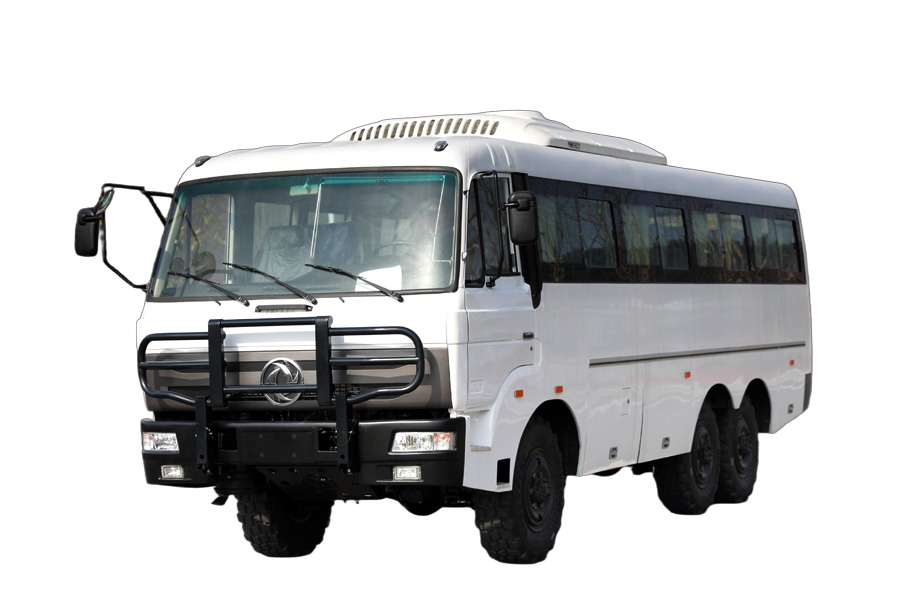

EQ2082E6D, also called EQ240 or 25Y, is a 2.5-ton six-wheel-drive military long-head diesel off-road vehicle developed early by DF company. It was once called a 'hero car'. Its features include a winch, light net, protective net, anti-aircraft lights, gun rack, towing device, and dual fuel tanks. Because it has undergone actual combat testing and its off-road properties have been recognized, it was later put into civilian use. Due to various advantages, this chassis is often used to convert into greening sprinkler trucks, dump trucks, garbage trucks, van transport trucks, minibuses, etc., which are also best-selling models for export.
| Basic information | |
| drive | 6*6 |
| direction | left rudder |
| Chassis size | / |
| Vehicle size | 8100*2300*3100mm |
| total mass | 7800kg |
| curb weight | 6860kg |
| Chassis configuration | |

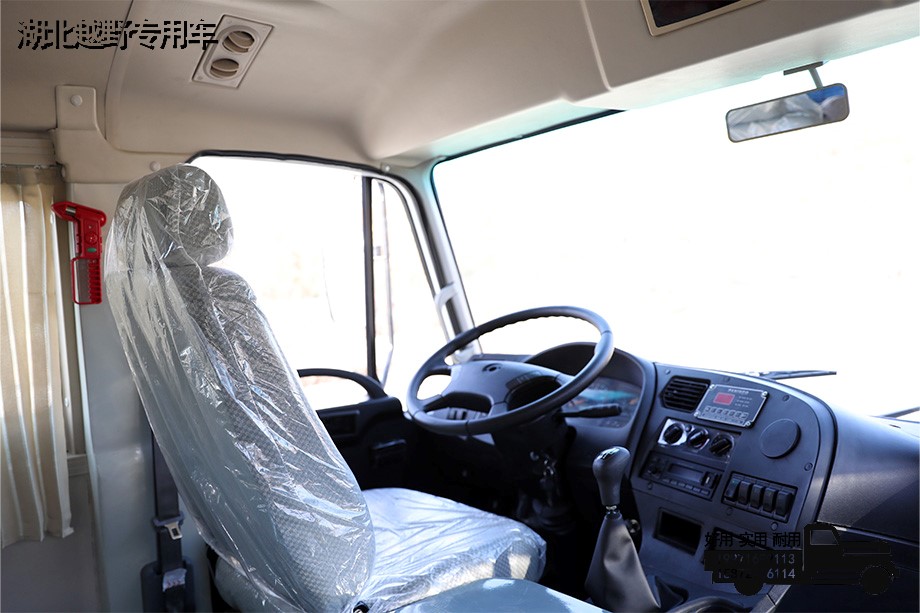

| cab | crew cut |

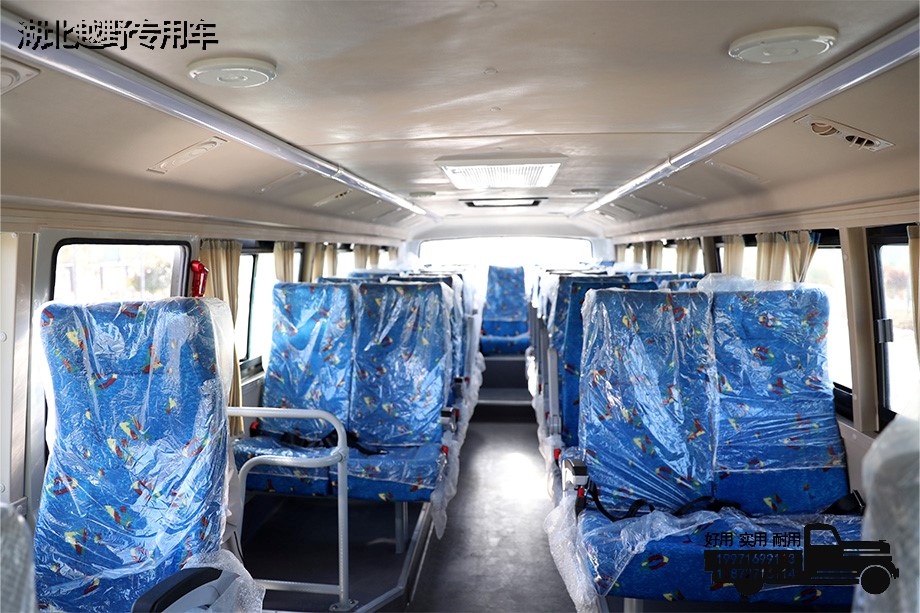

| Number of seats | 28+2 people |
| Wheelbase | 3500+1080mm |
| Frame | 860*232mm |
| engine | Cummins B190 33 |
| Gearbox assembly | Manual 6 speed |
| transfer case assembly | High and low gears |
| Maebashi | 2.5T |
| middle bridge | 2.5T |
| rear axle | 2.5T |
| tank | 150L |
| circuit | 24V circuit system |

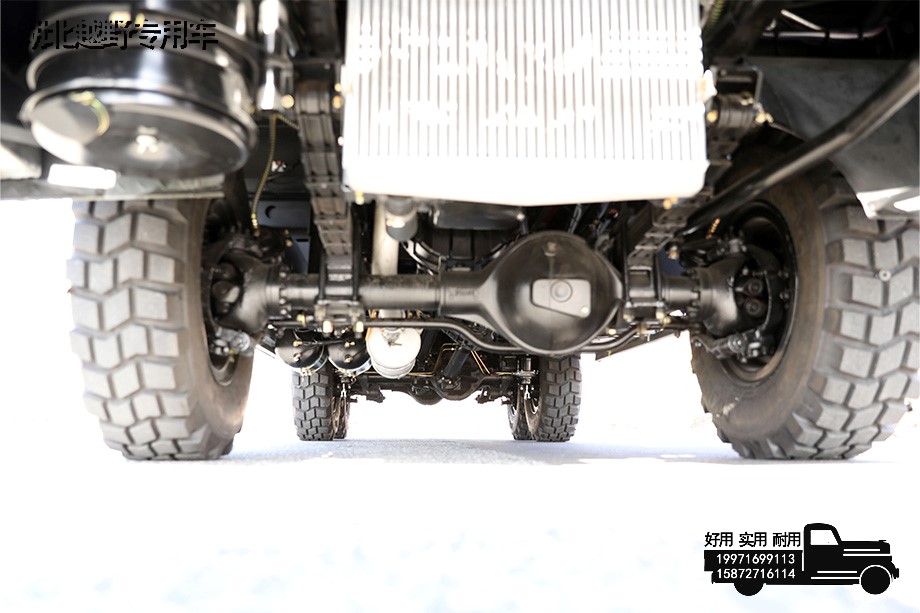

| suspension system | Leaf spring10/13 |
| Braking method | Air brake |
| tire | 11R18 (6+1) |
| Bodywork configuration | |

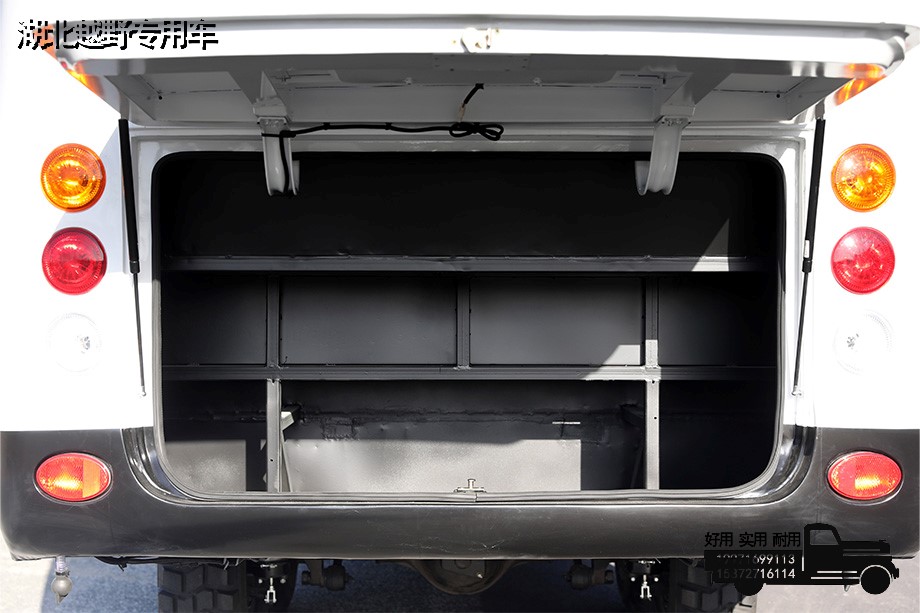

| cargo box | 1730mm (height inside passenger area) |
| engine | |
| engine | Cummins B190 33 |
| horsepower | 190 |
| emission | National Three |
| Displacement | 5.9L |
| Number of cylinders | 6 |
| Output power | 140kw |
| Torque | 640N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 87km/h |
| wading depth | 410mm |
| approach angle | 22° |
| departure angle | 21° |
| front overhang | 1720mm |
| Rear suspension | 1950mm |
| Wheelbase | 1774mm |
| ground clearance | 320mm |
| gradeability | 60% |
| other | |

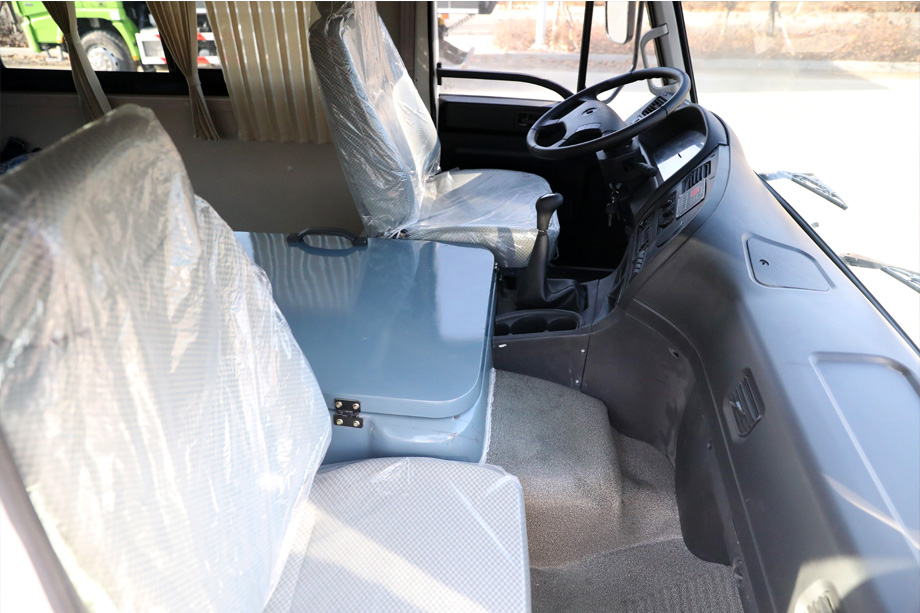

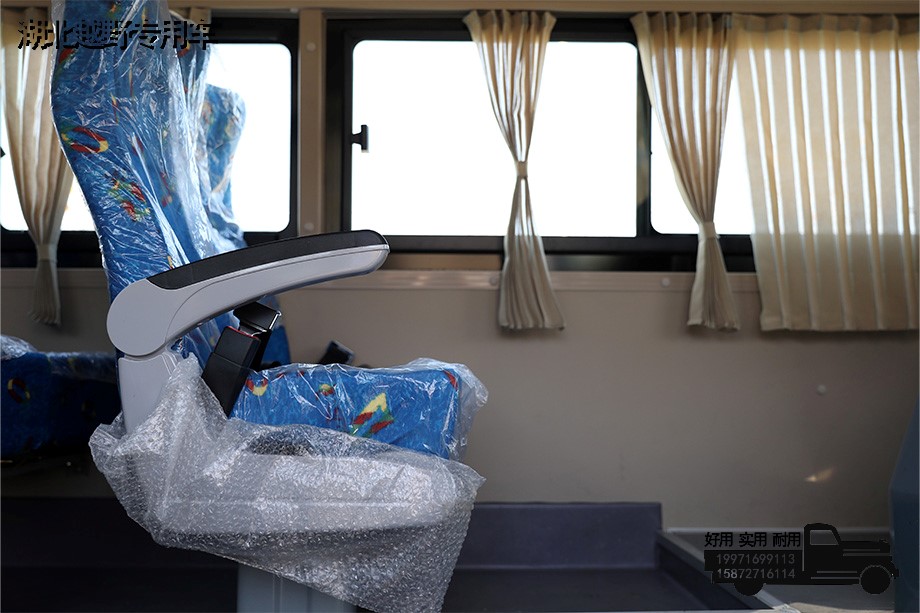

| other | Includes overhead air conditioner, curtains, folding armrests, escape skylight, safety hammer |
