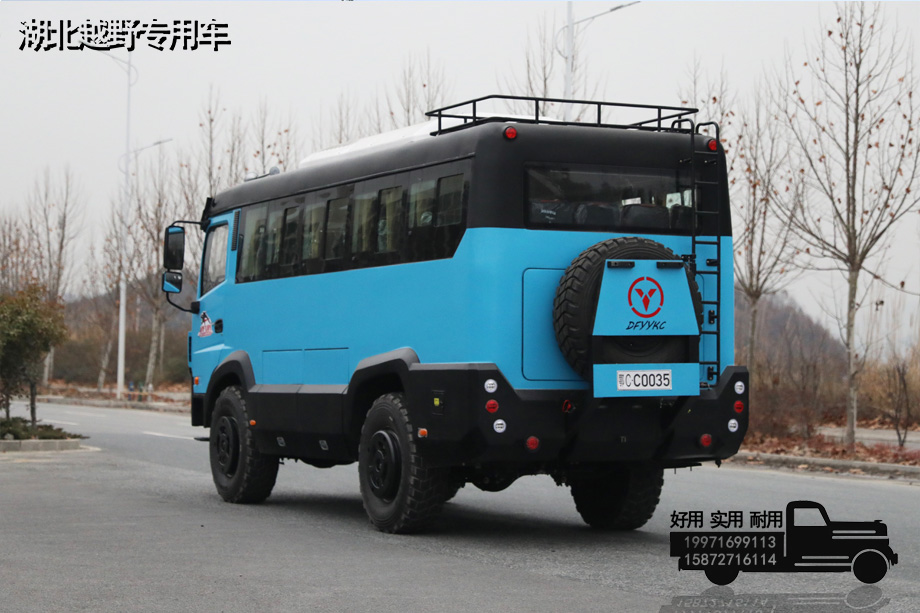

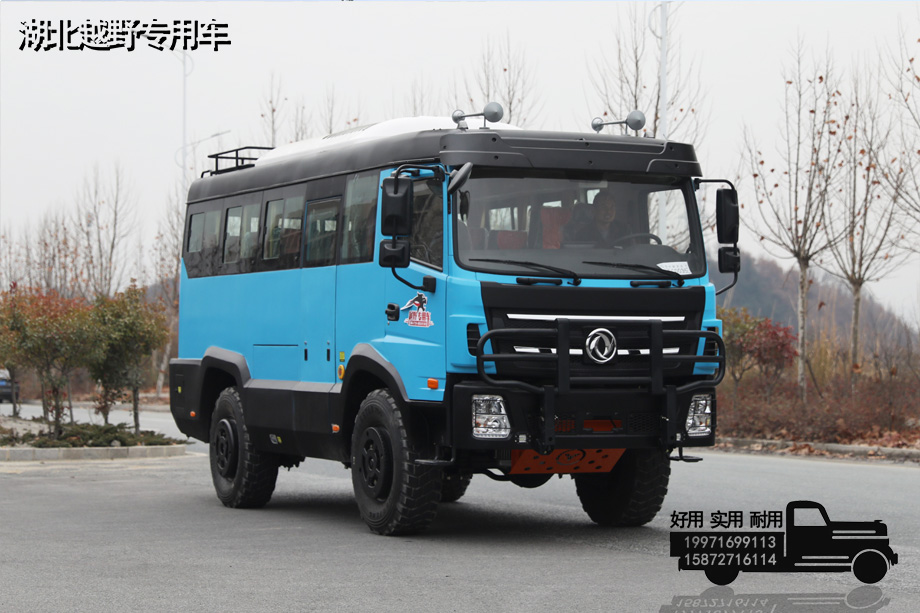

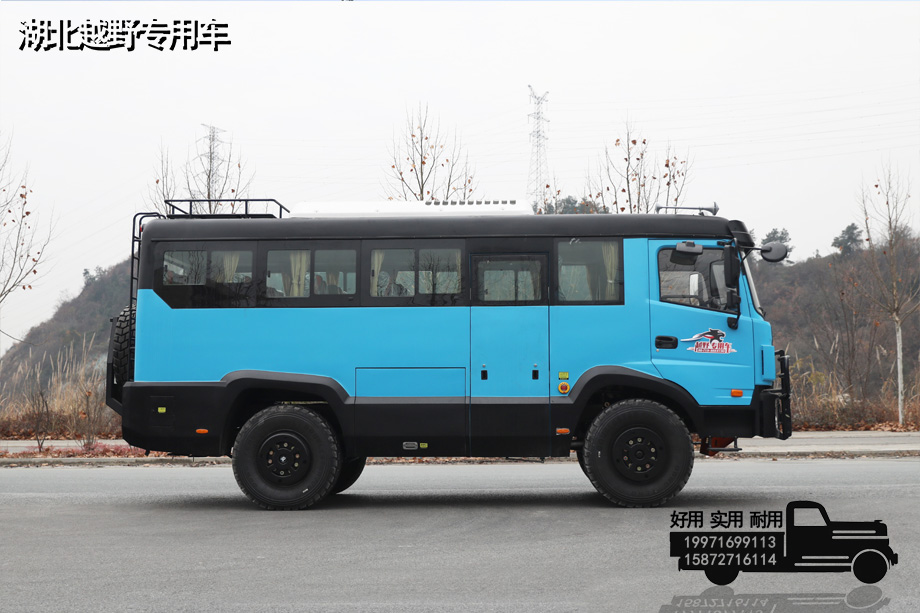

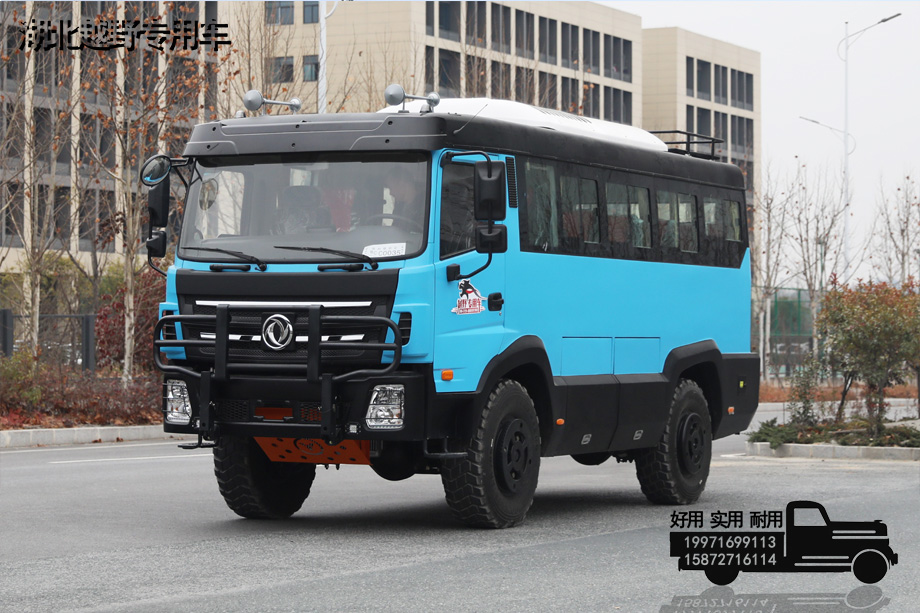

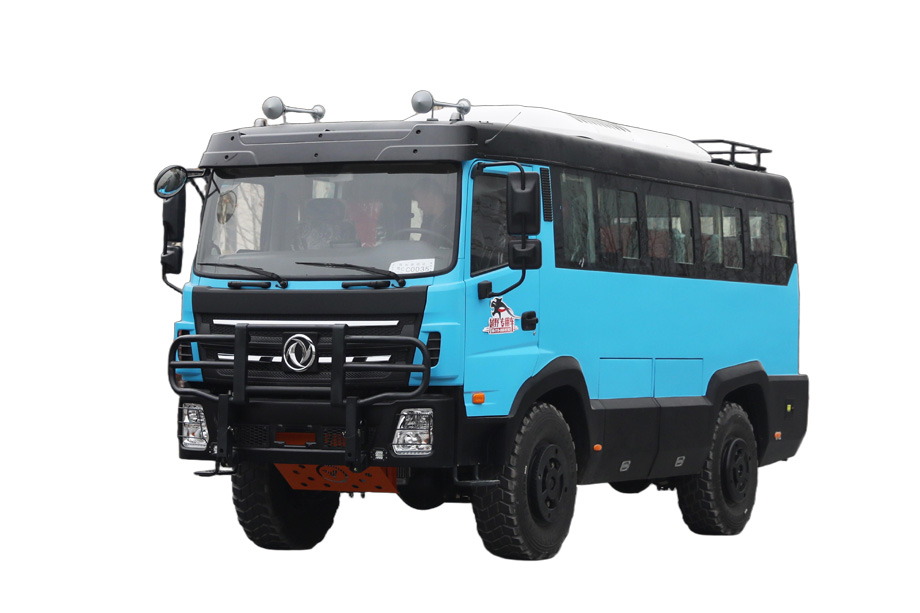

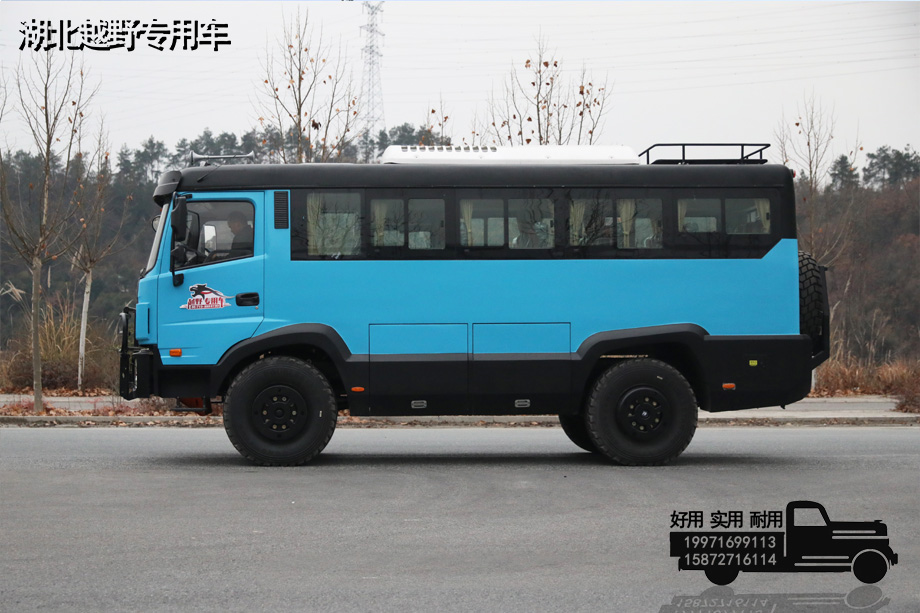

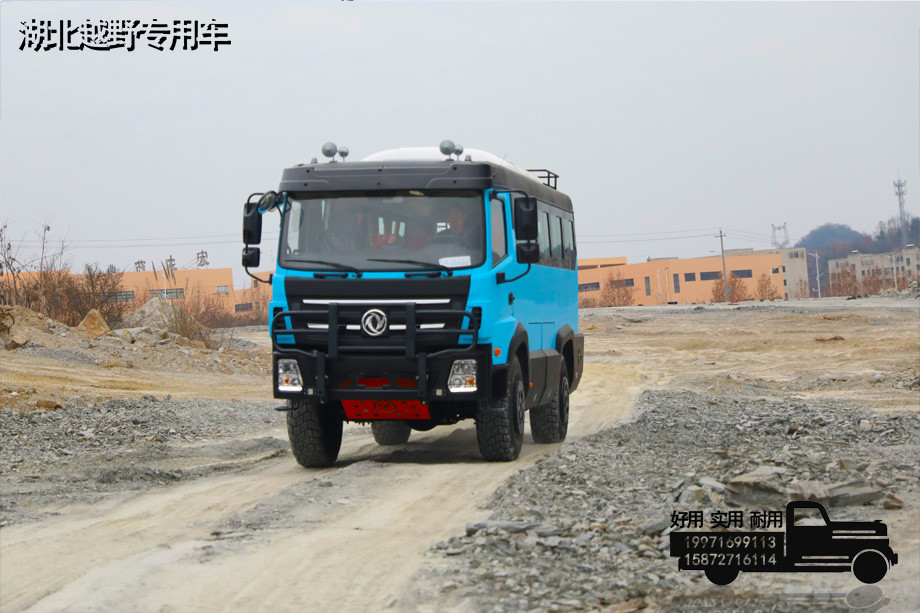

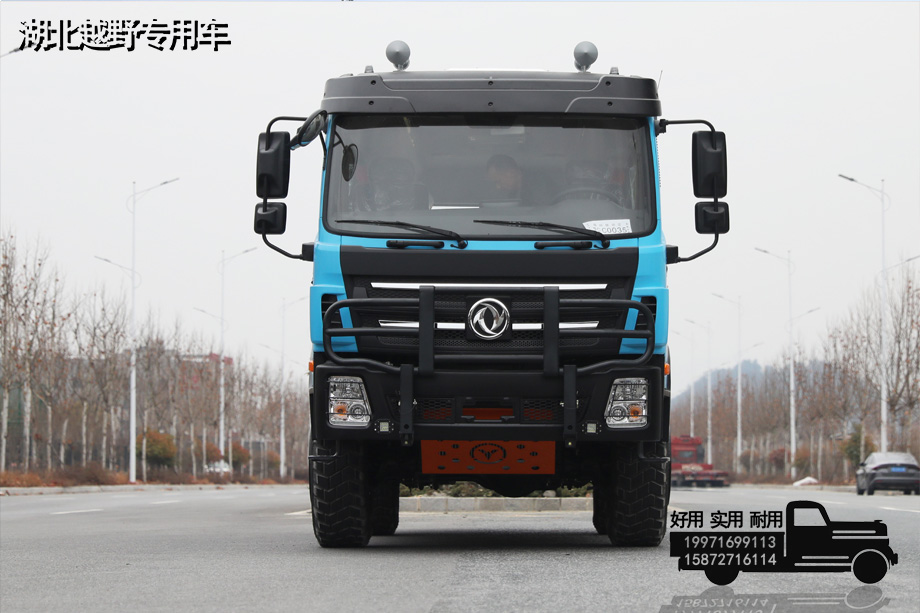

DFAs a classic domestic military vehicle, the EQ2070G cross-country personnel carrier has stable performance as its biggest feature, making the vehicle favored by countries around the world. All parts are made of military standards. As a military vehicle chassis, durability and excellent off-road performance are the most basic. Due to various advantages, this chassis is often used to modify it into greening sprinklers, dump trucks, garbage trucks, van transporters, etc. It is also a best-selling model for export.
| Basic information | |
| drive | 4*4 |
| direction | Left rudder/Customizable right rudder |
| Vehicle size | 7360×2370×3260mm |
| total mass | 7910kg |
| curb weight | 6920kg |

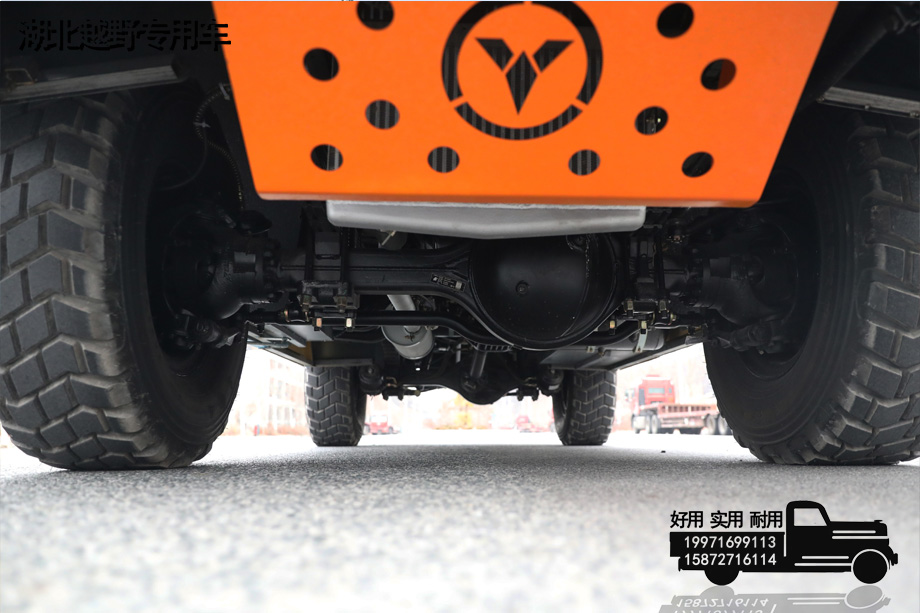

| Chassis configuration | |
| cab | crew cut |

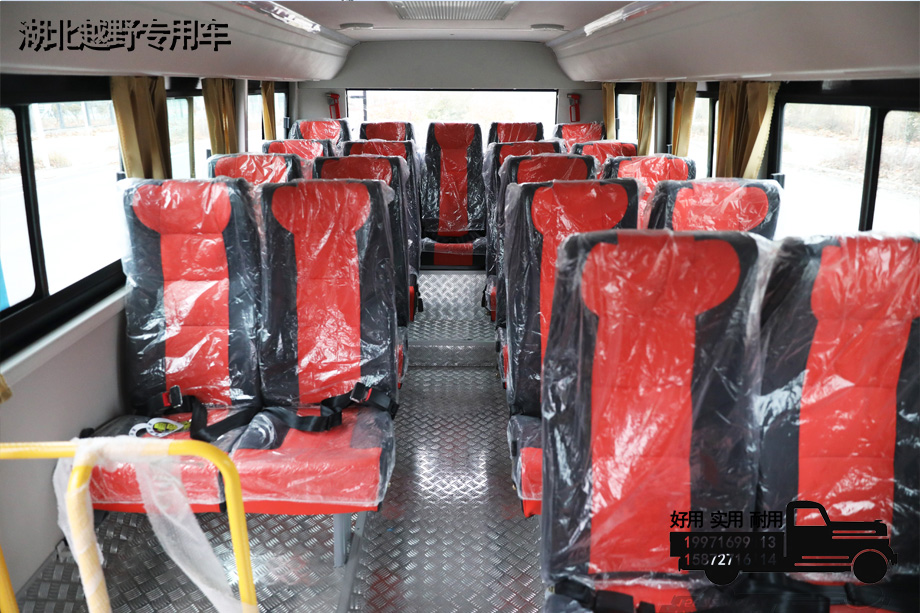

| Number of seats | 21+2 |
| Wheelbase | 3600mm |
| Frame | 860*232mm |
| engine | Cummins B190 33/B170 33/B210 33 |
| Gearbox assembly | Manual 8-speed/5-speed/6-speed |
| transfer case assembly | High and low gears |
| Maebashi | 3.6T |
| rear axle | 4.1T |
| tank | 160L (can be increased according to space location) |
| circuit | 24V circuit system |
| suspension system | Leaf spring 9/10 |
| Braking method | Air brake |
| tire | 12.5R20 (4+1) |
| Bodywork configuration | |
| Tops | One-piece, passenger area height 1820mm |
| engine | |
| engine | Cummins B190 33 |
| horsepower | 190 |
| emission | National Three |
| Displacement | 5.9L |
| Number of cylinders | 6 |
| Output power | 140kw |
| Torque | 640N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 87km/h |
| approach/departure angle | 23°/20° |
| front/rear suspension | 1890/2060mm (including spare tire rack) |
| Wheelbase | 1876mm |
| ground clearance | 315mm |

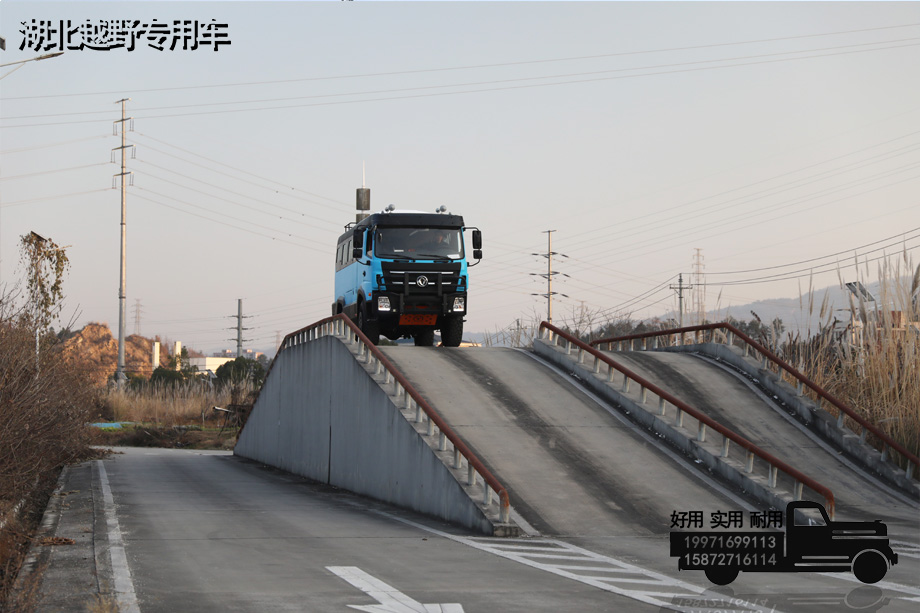

| gradeability | 60% |
| standing slope | 40% |

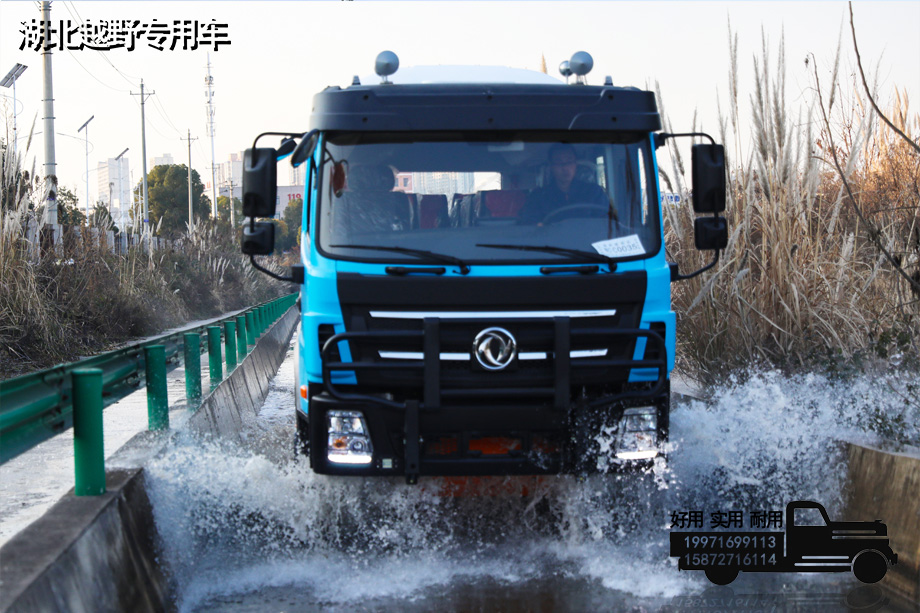

| wading | 550mm |
| Overcome obstacles | 435mm |
| other | |

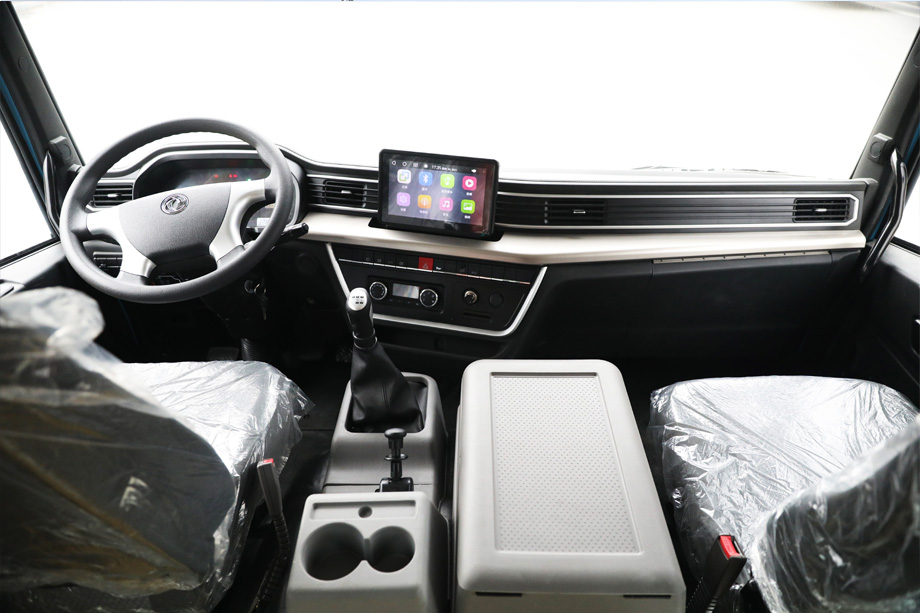

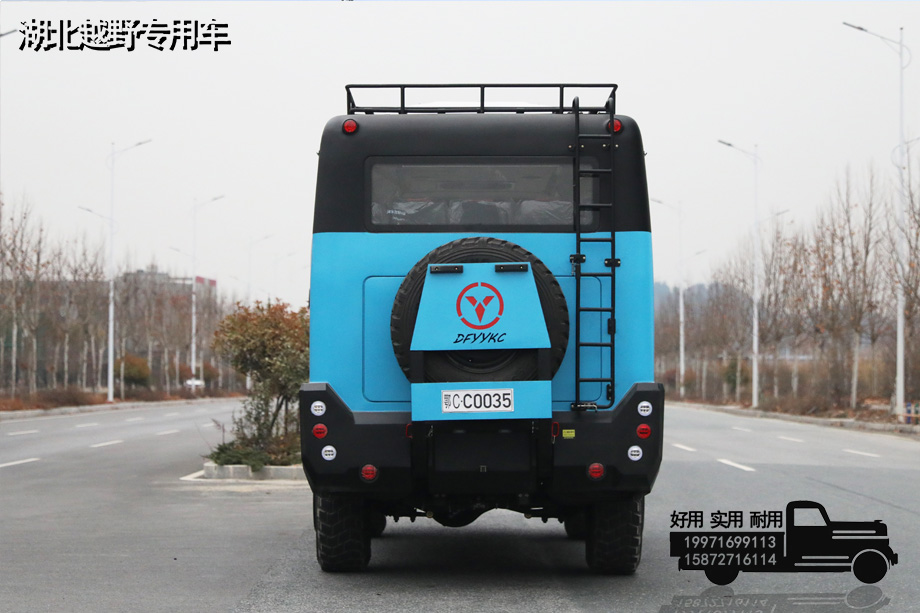

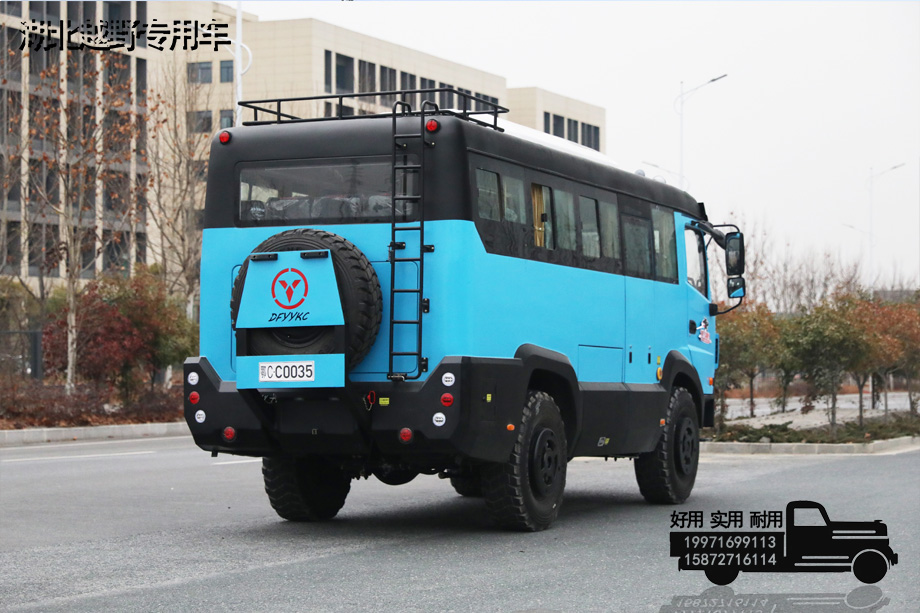

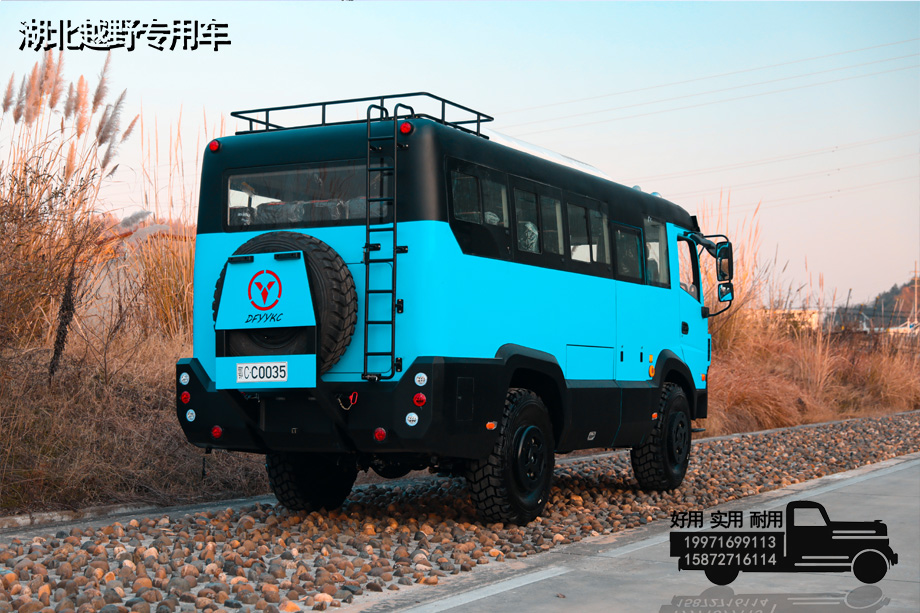

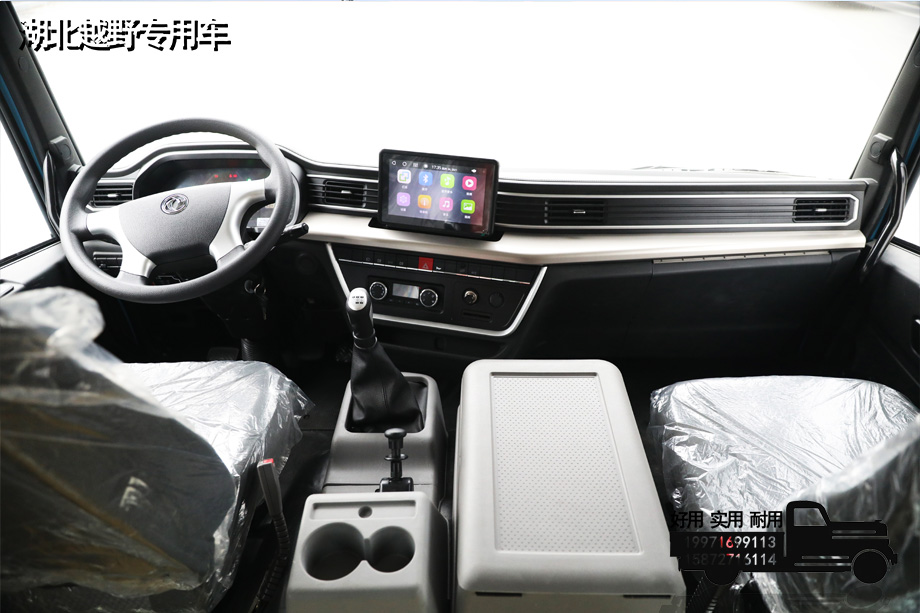

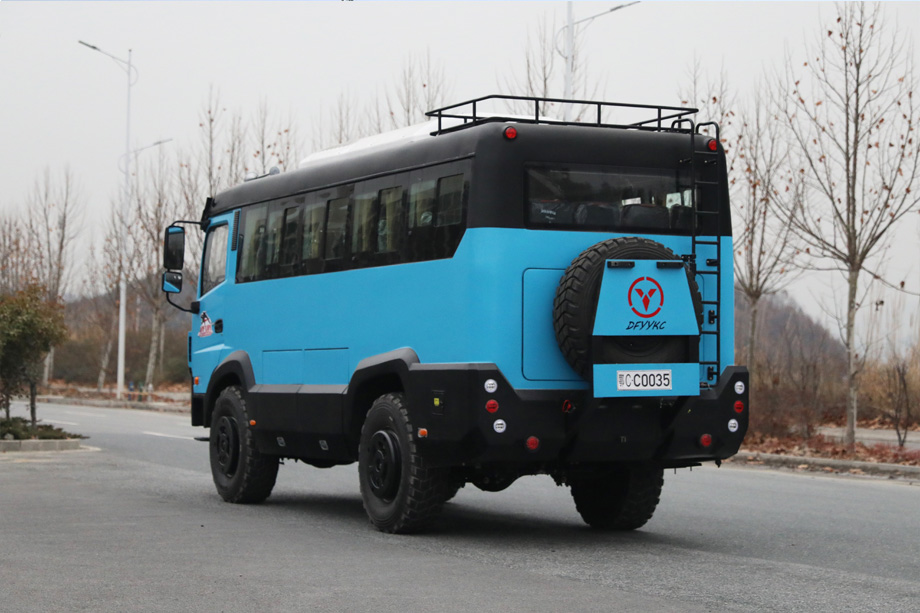

| other | The car is equipped with Bus special air conditioning, emergency escape sunroof, leather seats, multimedia, reversing image, and driving recorder; The exterior of the car is equipped with a luggage compartment, luggage rack, protective rails, spare tire rack, and water tank. |
