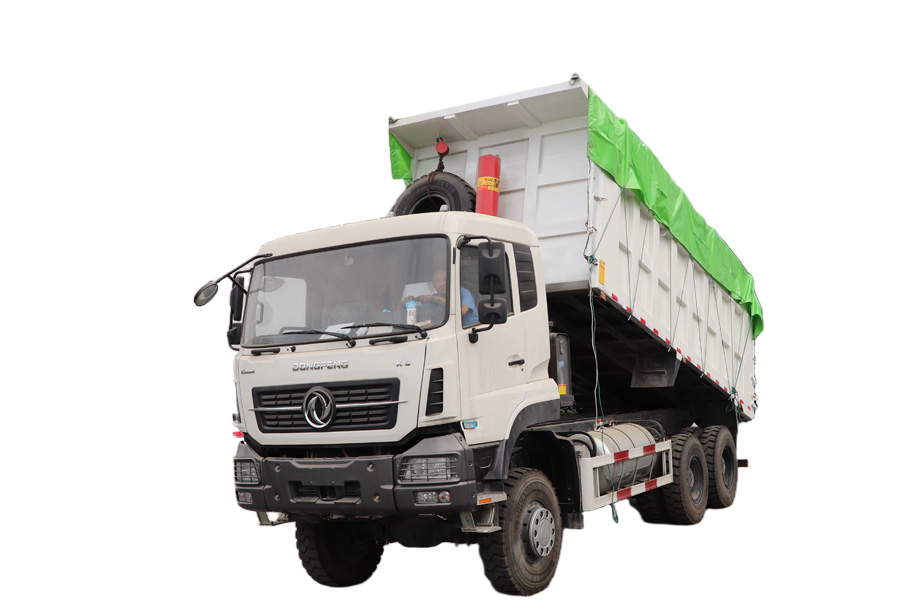

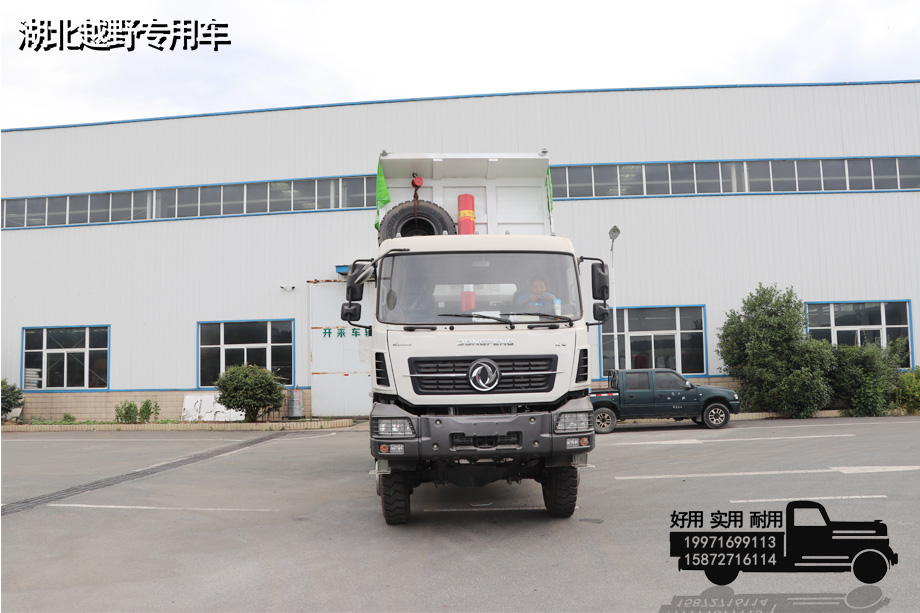

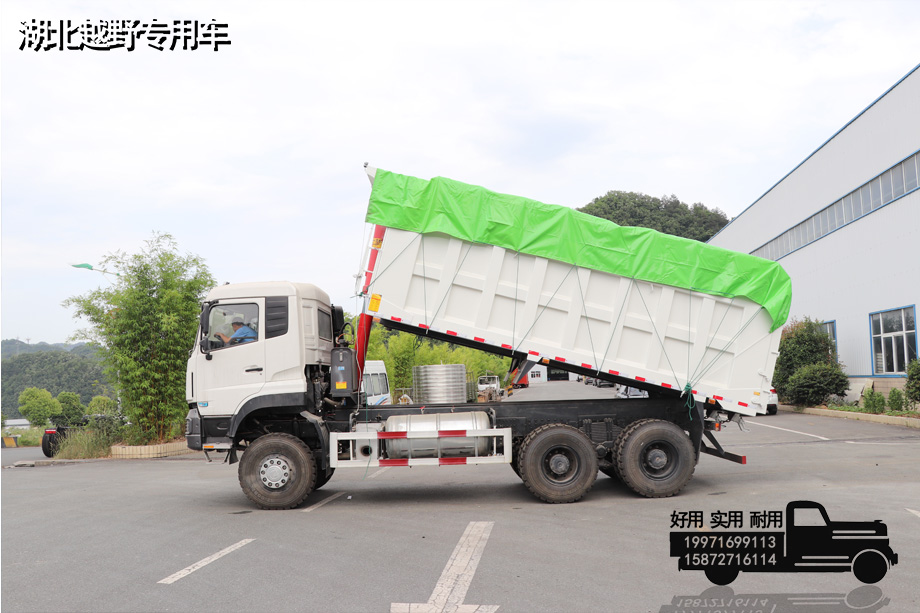

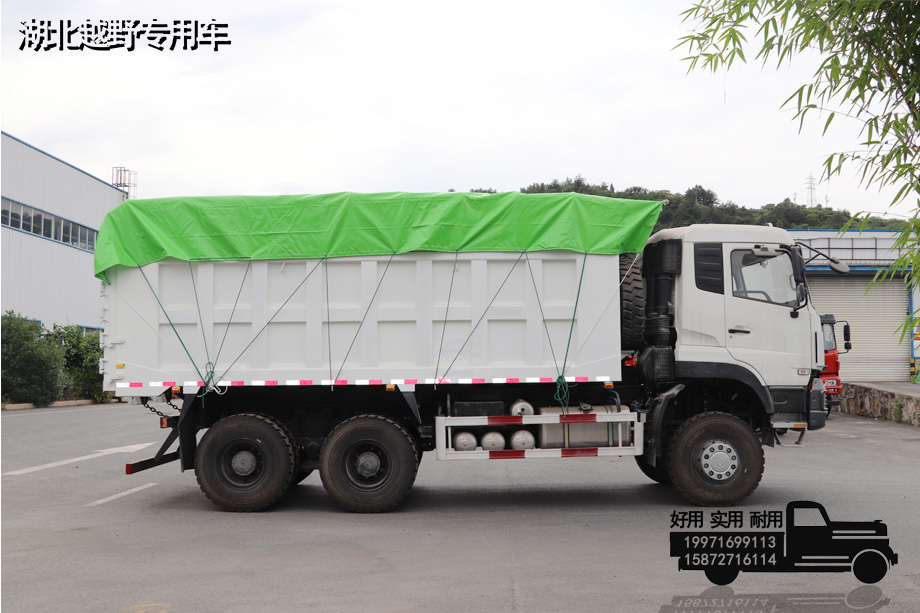

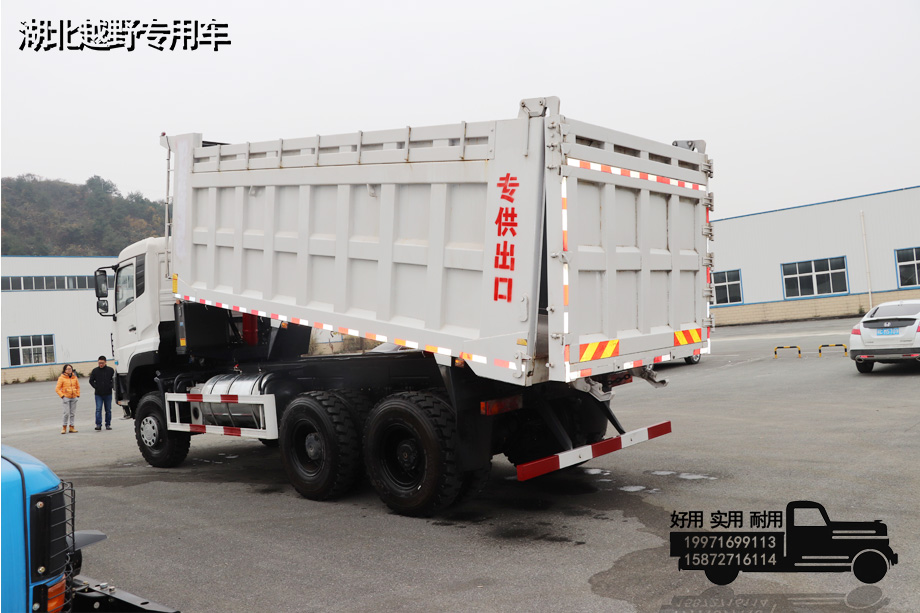

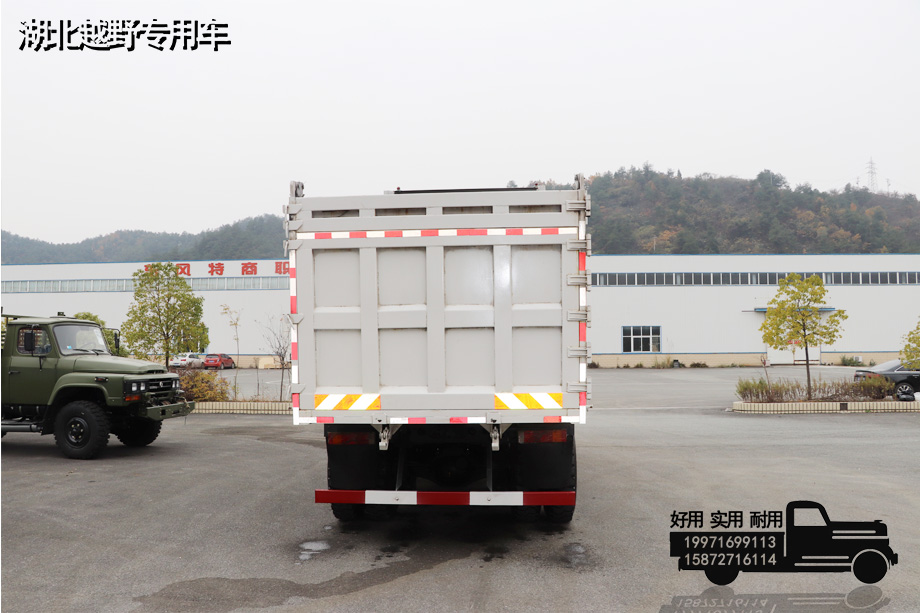

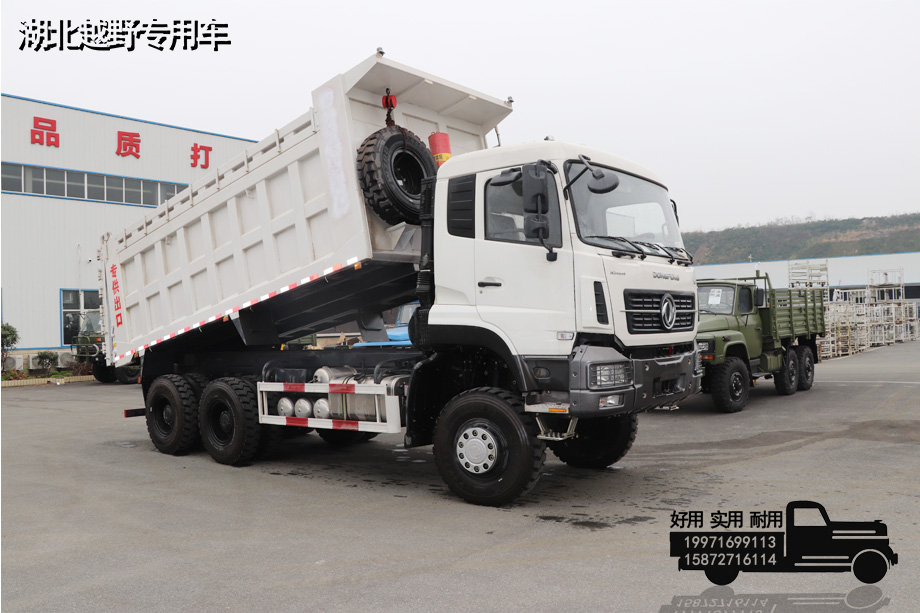

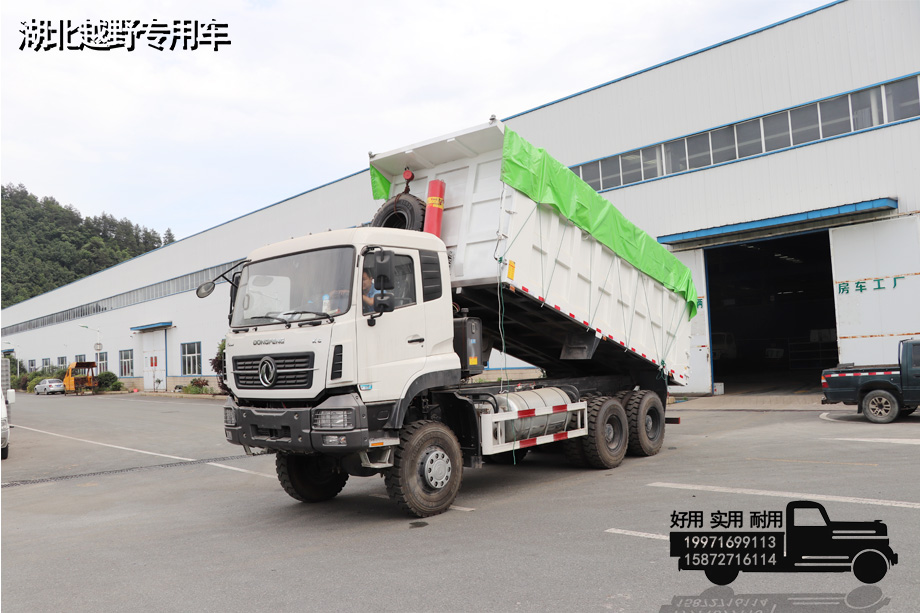

6×6 all-wheel drive 40 tons Dump truck, large-tonnage and heavy-duty off-road transport equipment, with a rated load of 40 tons. The all-wheel drive has excellent passing performance and can be adapted to muddy, steep slopes, and non-paved mining sites. The strong load-bearing frame and wear-resistant cargo box, high-power powertrain and efficient hydraulic unloading system are safe and comfortable, and intelligent operation and maintenance. It is suitable for mining, water conservancy, large-scale infrastructure earthwork, and ore transfer operations, achieving efficient and stable continuous transportation in harsh environments.
| Basic information | |
| drive | 6*6 |
| direction | Left rudder/right rudder |
| Chassis size | / |
| Vehicle size | 8400*2630*3530mm |
| total mass | 40000kg |
| curb weight | 15500kg |
| Chassis configuration | |

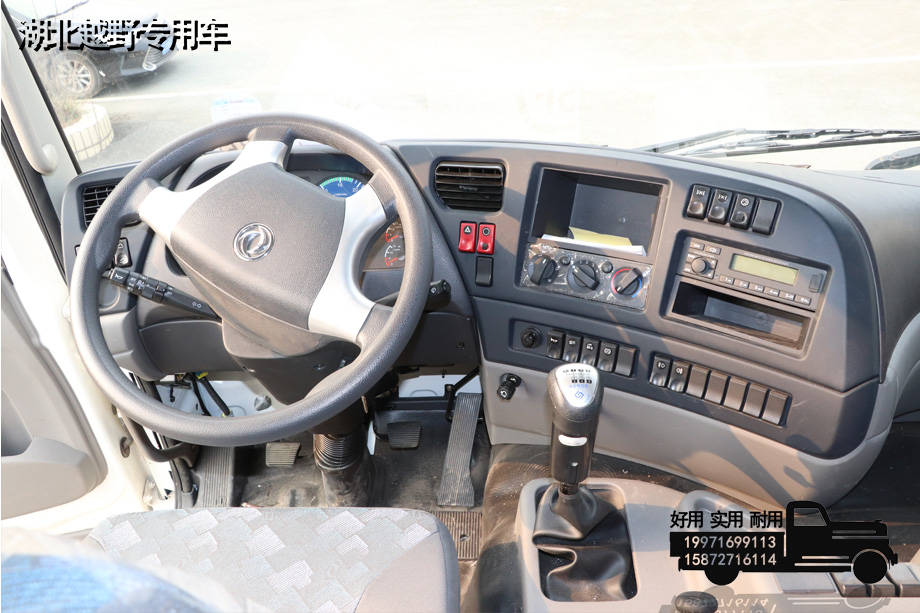

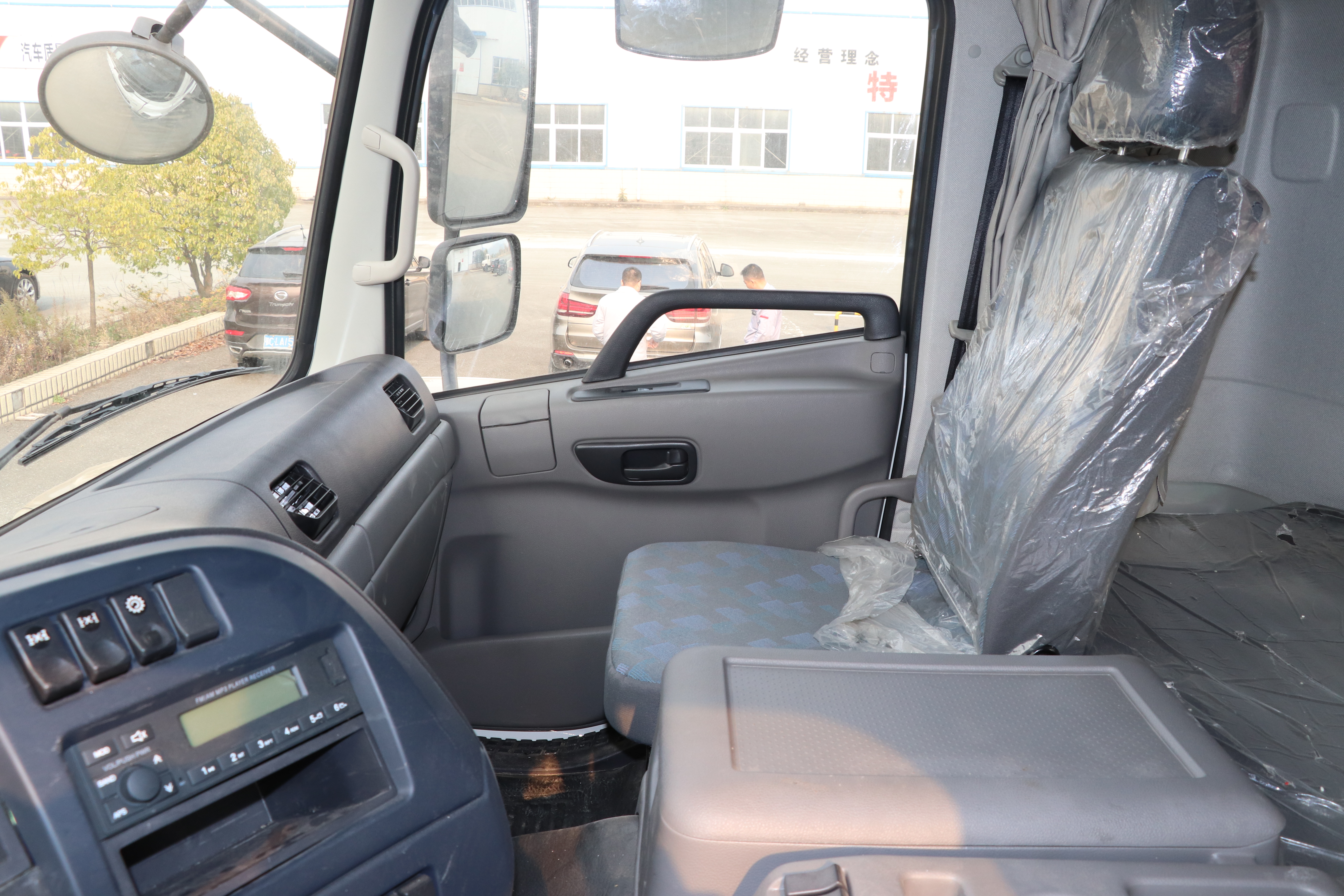

| cab | Flat head, one and a half rows, with air conditioning |
| Number of seats | 3 people |
| Wheelbase | 4150+1450mm |
| Frame | 860*300(8+6)mm |
| engine | Weichai WP10.340E32 |
| Gearbox assembly | Manual 9 speed |
| transfer case assembly | High and low gears |
| Maebashi | 7T |
| middle bridge | 16T |
| rear axle | 16T |
| tank | 400L (can be made as large as possible according to space location) |
| circuit | 24V circuit system |
| suspension system | leaf spring |
| Braking method | Air brake |
| tire | 10.00R20 (10+1) |
| Bodywork configuration | |

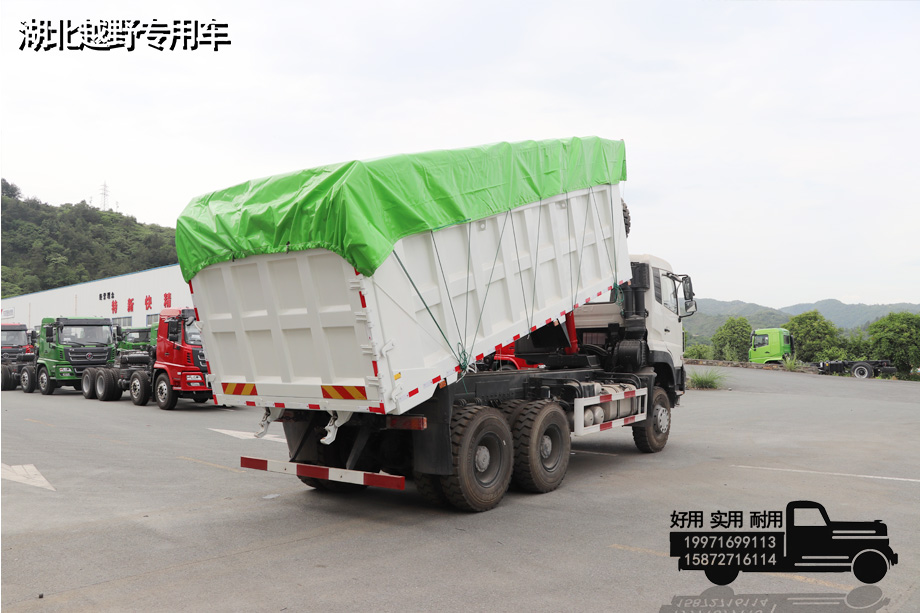

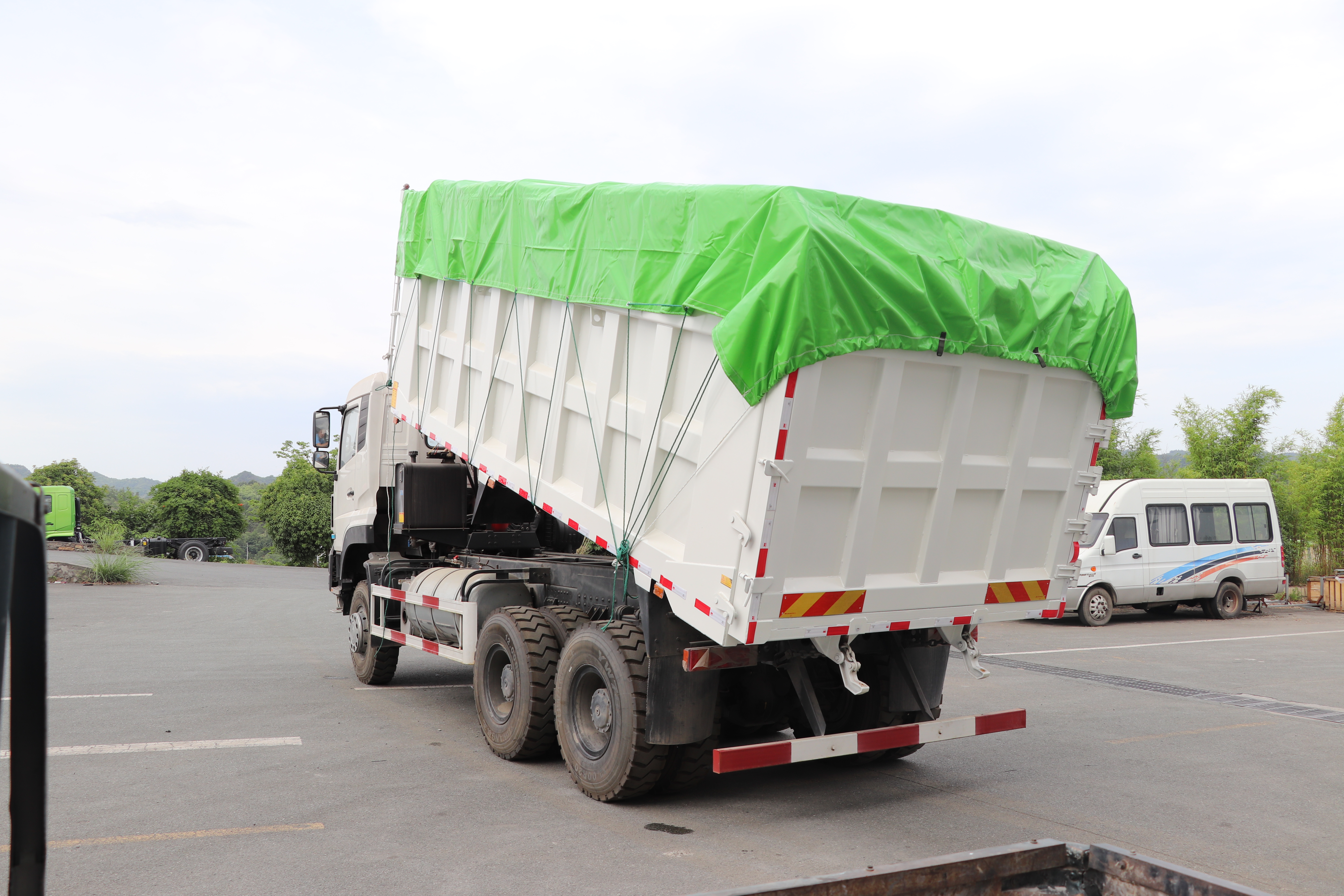

| cargo box | 5600*2300*1800mm |
| engine | |
| engine | Weichai WP10.340E32 |
| horsepower | 340 |
| emission | National Three |
| Displacement | 9.726L |
| Number of cylinders | 6 |
| Output power | 250kw |
| Torque | 1250N.m |
| Speed | 2200rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 88km/h |
| approach angle | 36° |
| departure angle | 39° |
| front/rear suspension | 1458/1837mm |
| Wheelbase | 2020/1950/1950mm |

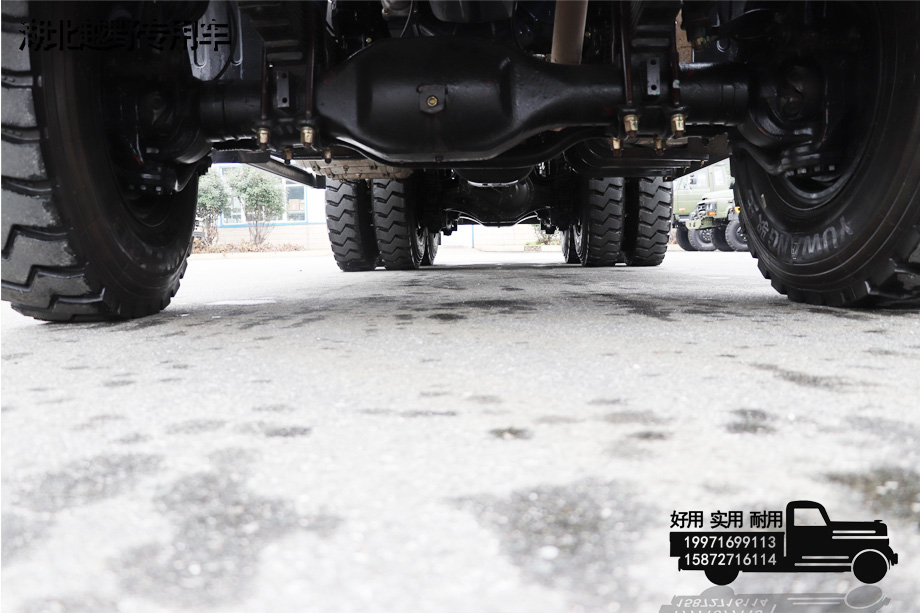

| ground clearance | 380mm |
| Obstacle clearance height | 400mm |
| Wading height | 760mm |
| gradeability | 60% |
| standing slope | 40% |
| other | |
| other | Fire extinguishers, vehicle tools |
