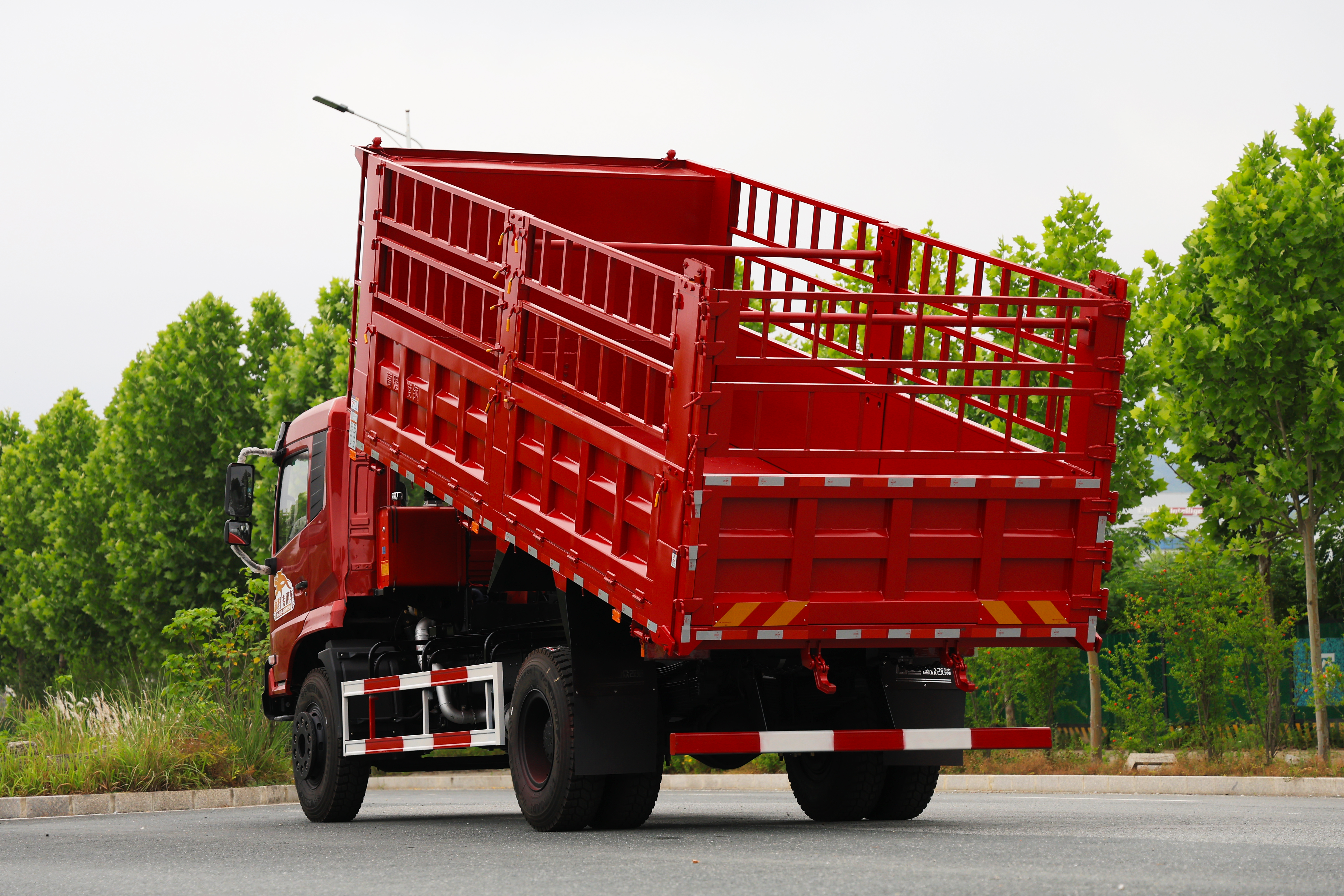

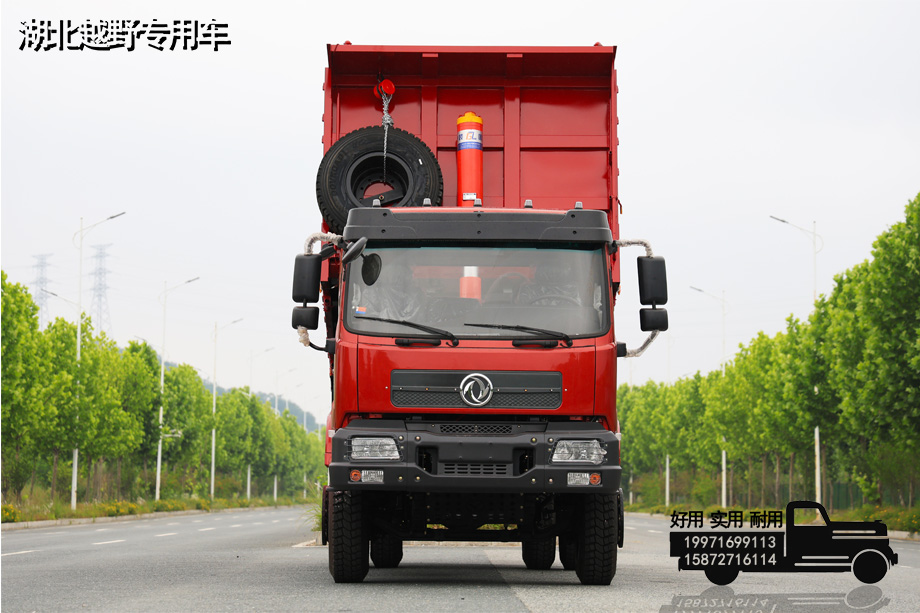

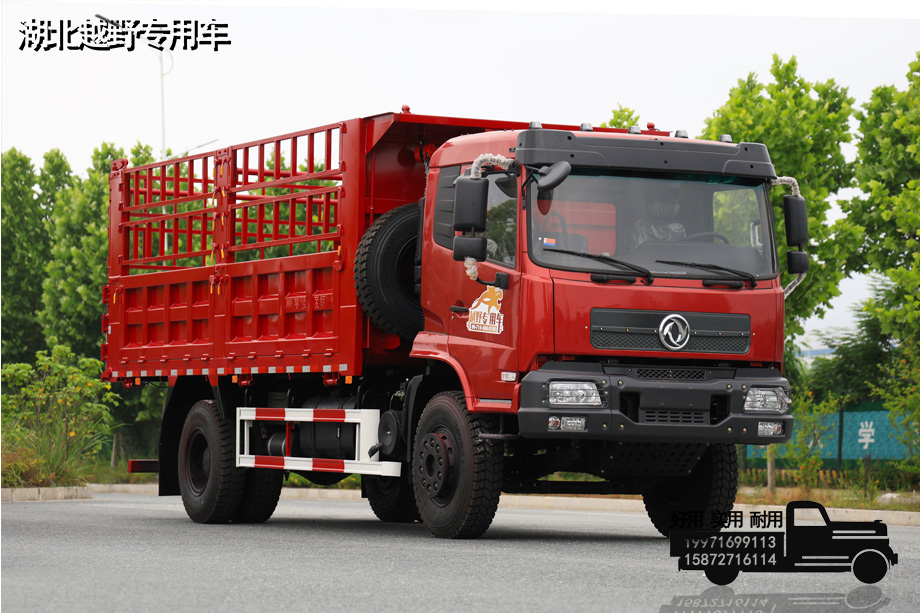

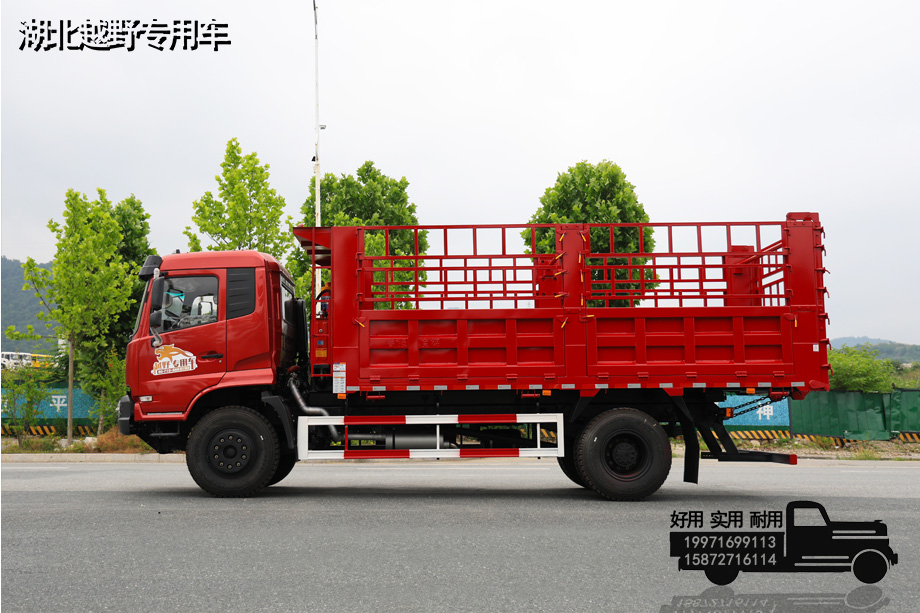

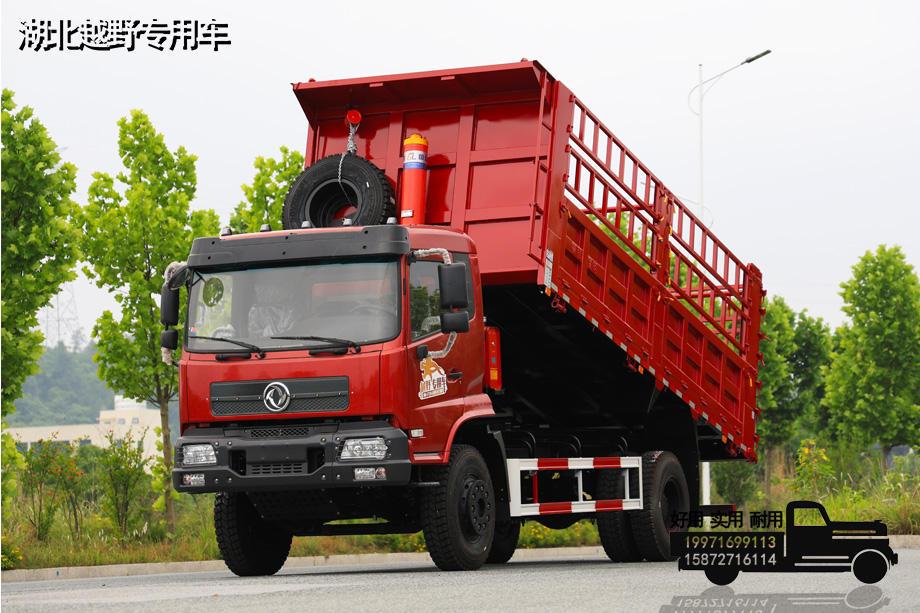

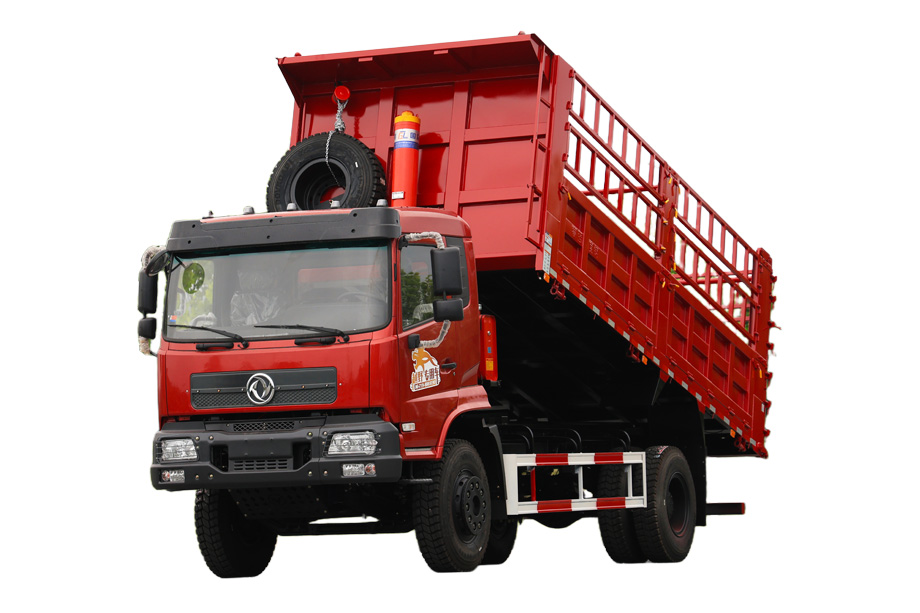

The 4×2 warehouse Dump truck is a single-axle dual-purpose vehicle, a two-axle model, with a front steering axle and a rear drive axle. It is built on a mainstream chassis and is the preferred model for urban and rural freight, building materials and waste, agricultural and sideline products, and bulk material transportation.
The core features of the whole vehicle: the vehicle structure is 4×2 single-axle design, the body is light and flexible, and it can turn easily. It has no pressure to pass through urban and rural roads, it is easy to get the license plate, and it has wide right of way. Warehouse railing protection to prevent cargo from spilling. Economical and durable, low fuel consumption, cheap maintenance, quick return on short-distance transportation.
| Basic information | |
| drive | 4*2 |
| direction | Left rudder/right rudder |
| Chassis size | 6870*2460*2980mm |
| Vehicle size | 8640*2640*3290mm |
| total mass | 18000kg |
| curb weight | 9220kg |
| Chassis configuration | |

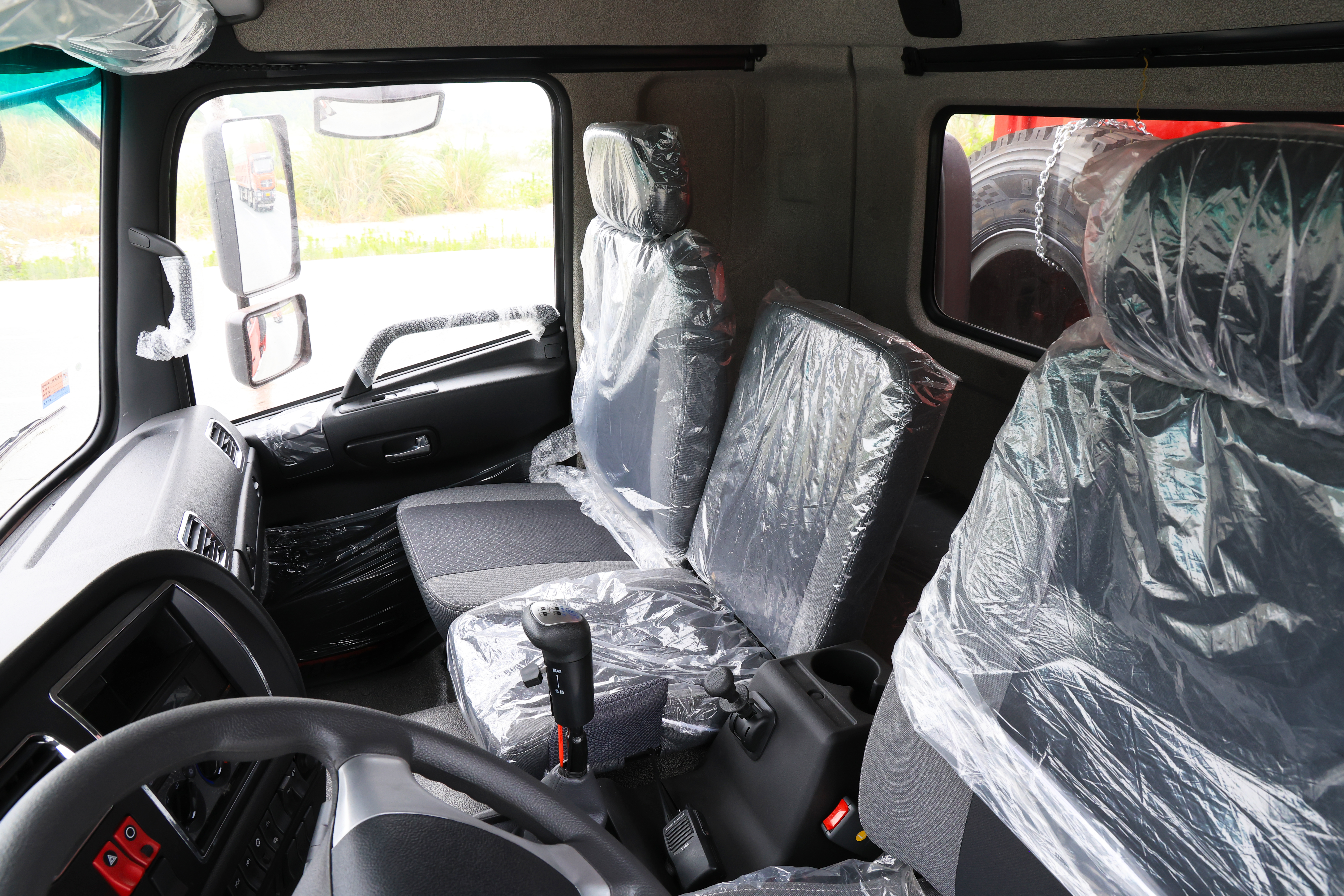

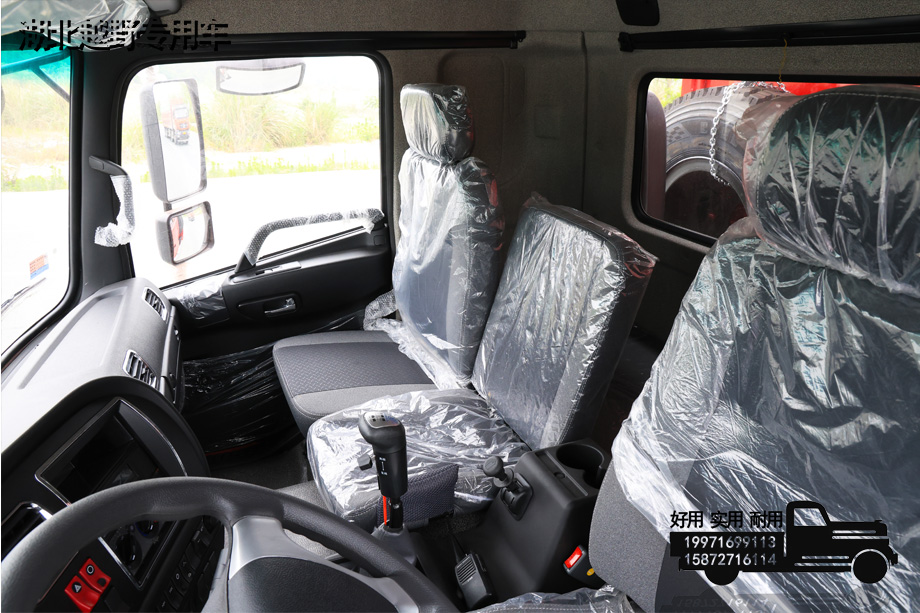

| cab | Flat head, one and a half rows, with air conditioning |
| Number of seats | 3 people |
| Wheelbase | 4500mm |
| engine | Weichai 210 horsepower |
| Gearbox assembly | Manual 10-speed/6-speed/small eight-speed |
| transfer case assembly | / |
| Maebashi | 5T |

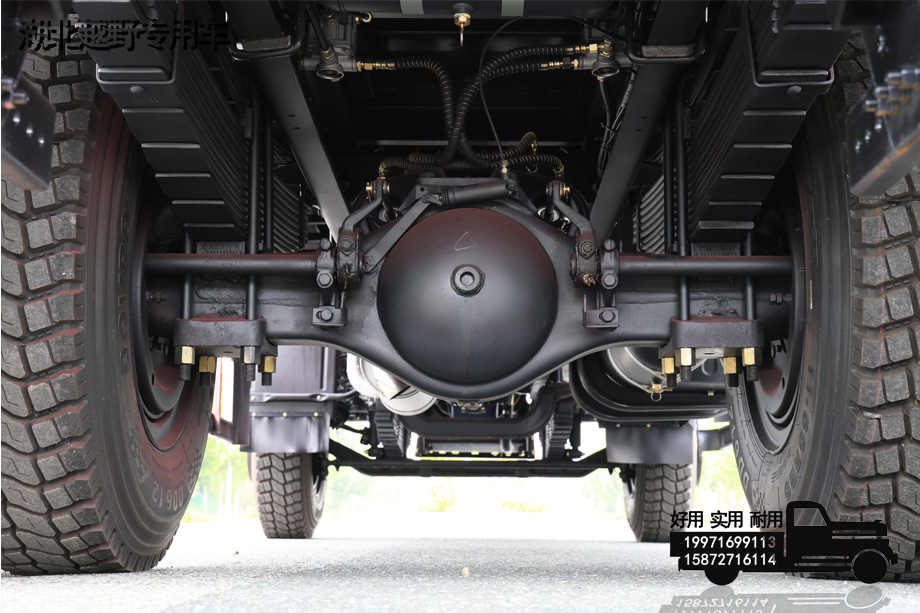

| rear axle | 13T |
| tank | 300L (can be adjusted according to space layout) |
| circuit | 24V circuit system |
| suspension system | leaf spring |
| Braking method | Air brake |

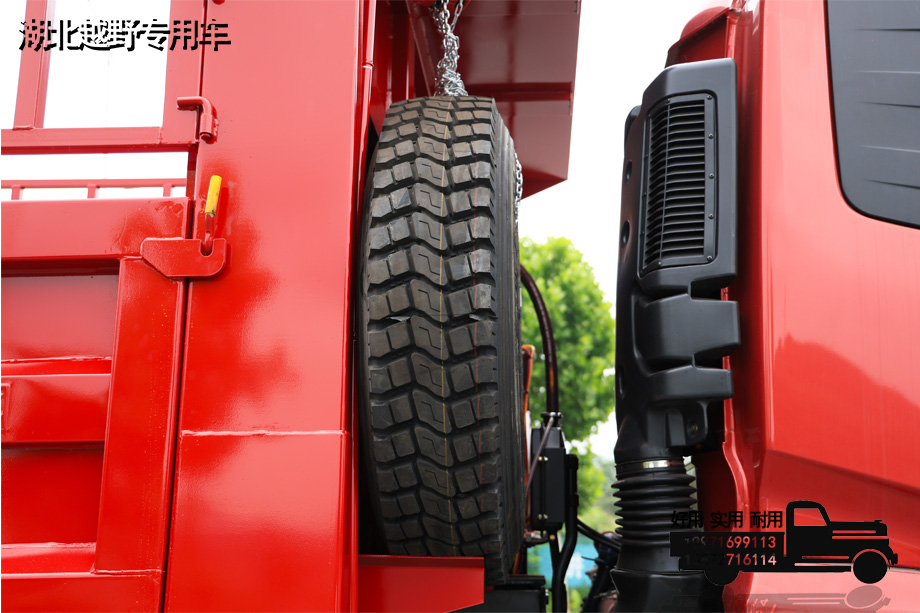

| tire | 11.00R20 (6+1) |
| Bodywork configuration | |

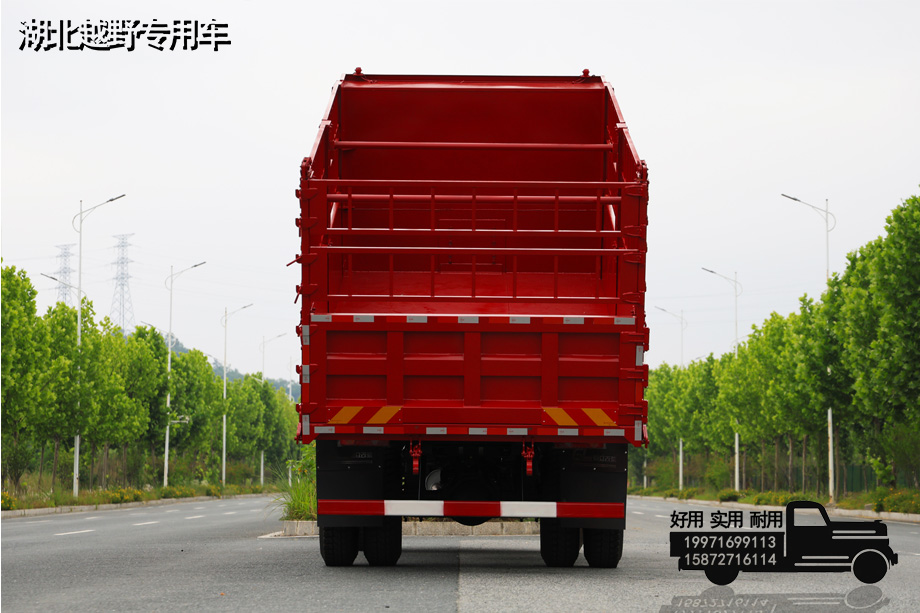

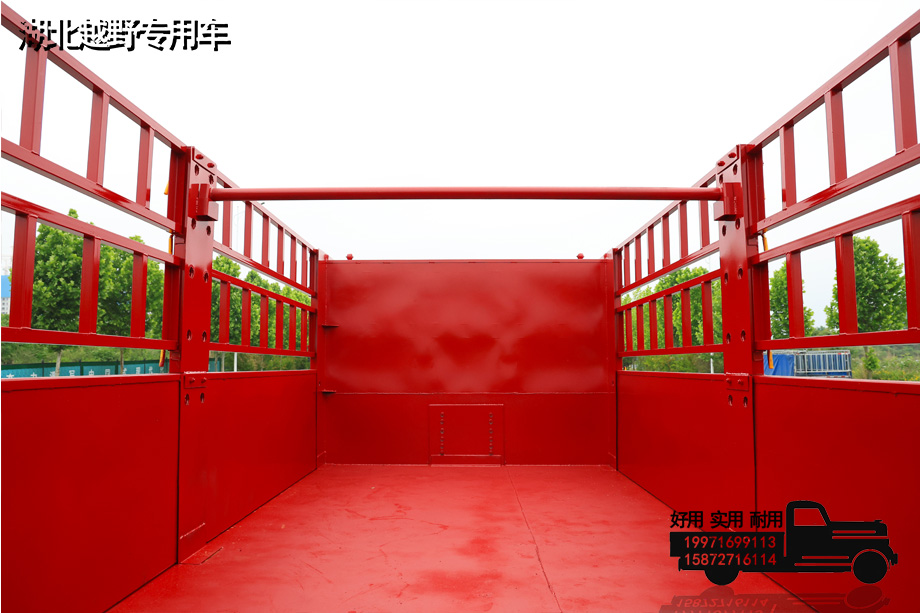

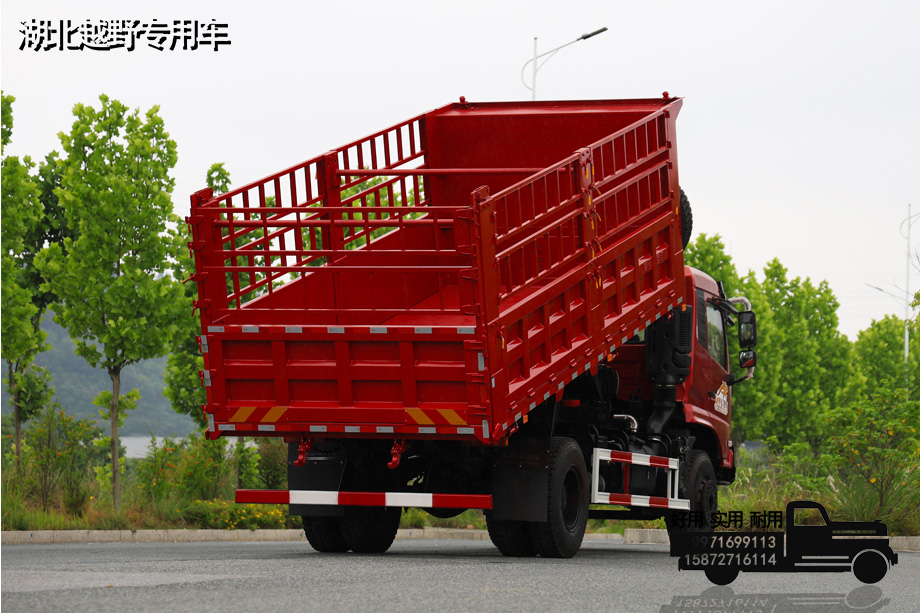

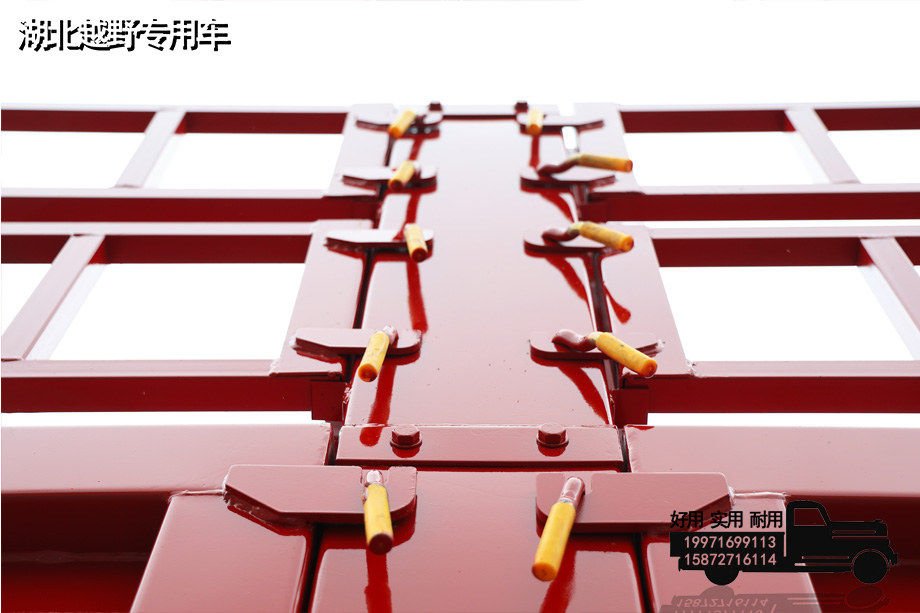

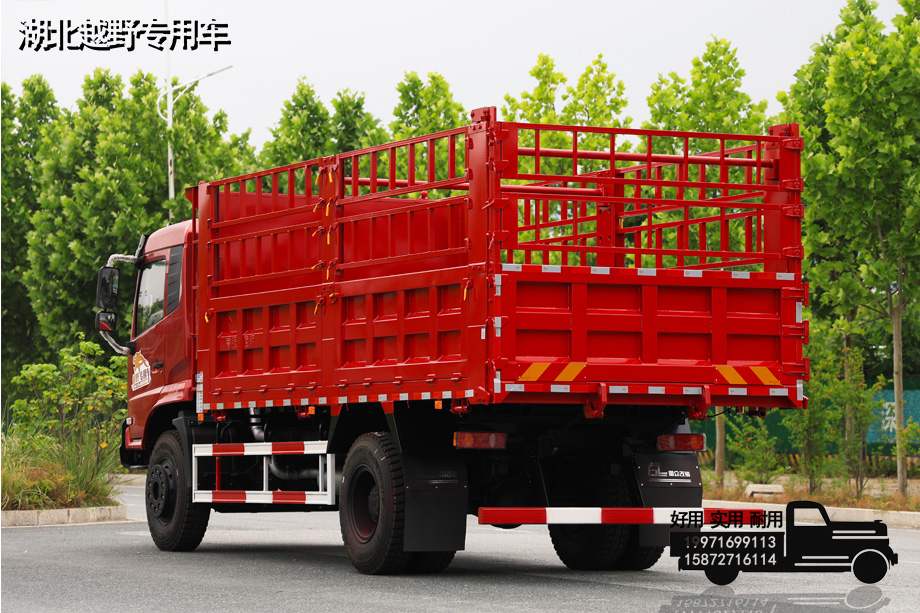

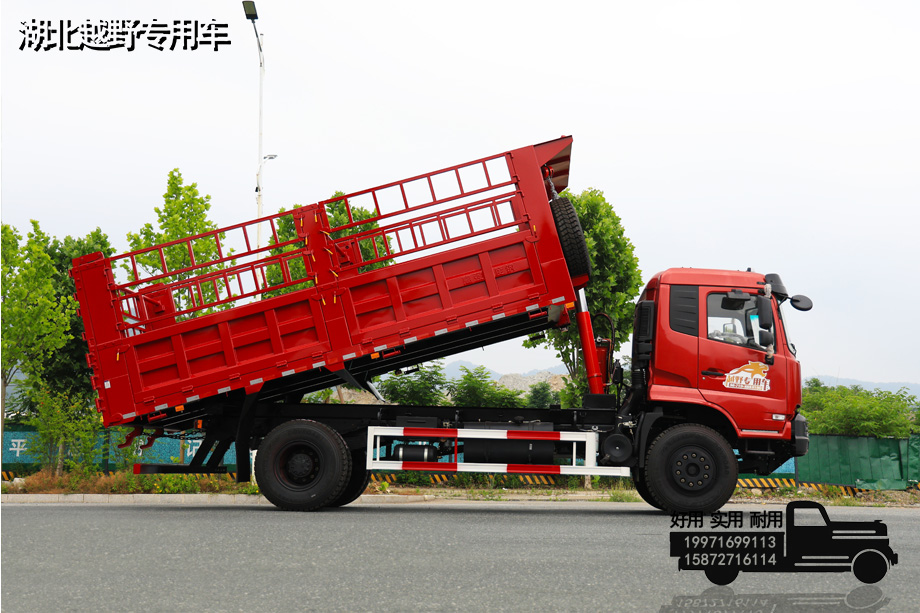

| Dump | 5600*2400*800 (side panel) mm, the cargo box has five doors, the height of the warehouse rail is 1000mm, and the warehouse rail can be opened separately. |
| engine | |
| engine | Weichai 210 |
| horsepower | 210 |
| emission | National Three |
| Displacement | 6.23L |
| Number of cylinders | 6 |
| Output power | 155kw |
| Torque | 750N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 85km/h |
| approach angle | 28° |
| departure angle | 13° |
| Wheelbase | 1955/1815mm |
| ground clearance | 305mm |
| Overcome obstacles | 485mm |
| wading | 500mm |
| gradeability | 60% |
| standing slope | 40% |
| other | |
| other | Fire extinguishers, vehicle tools |
