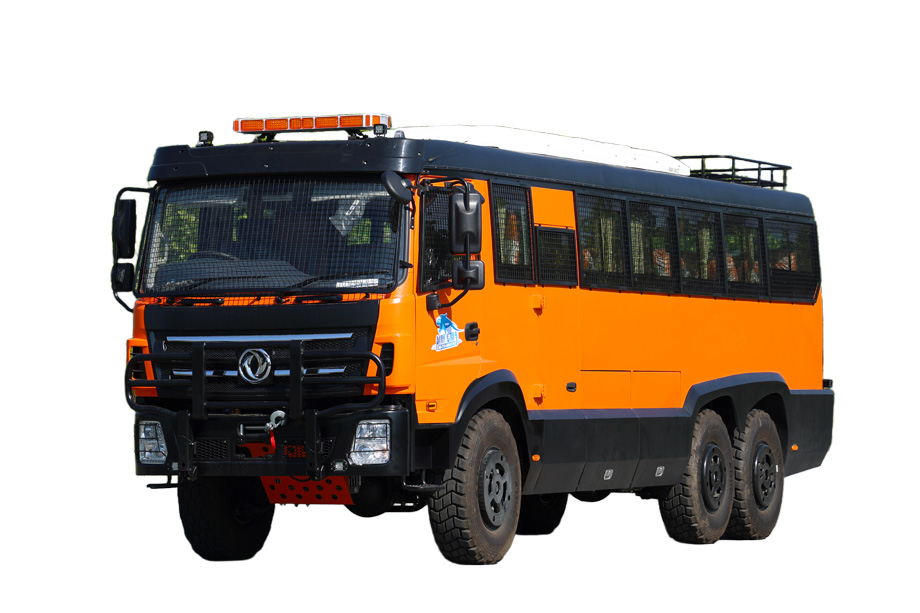

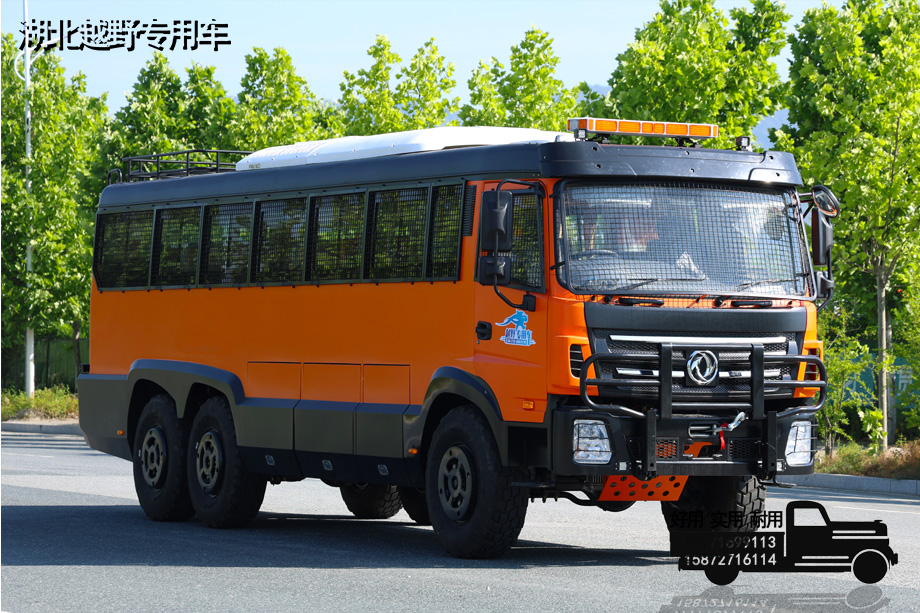

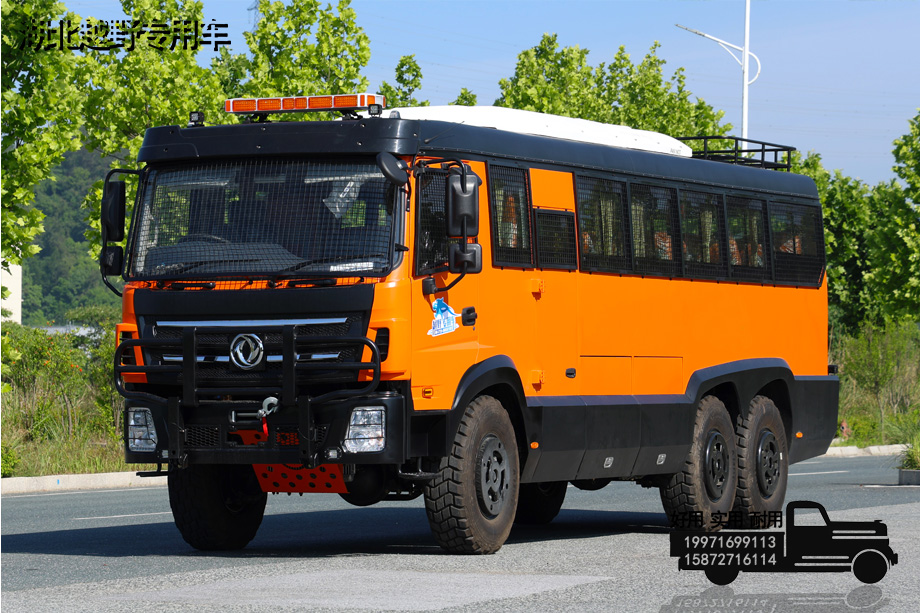

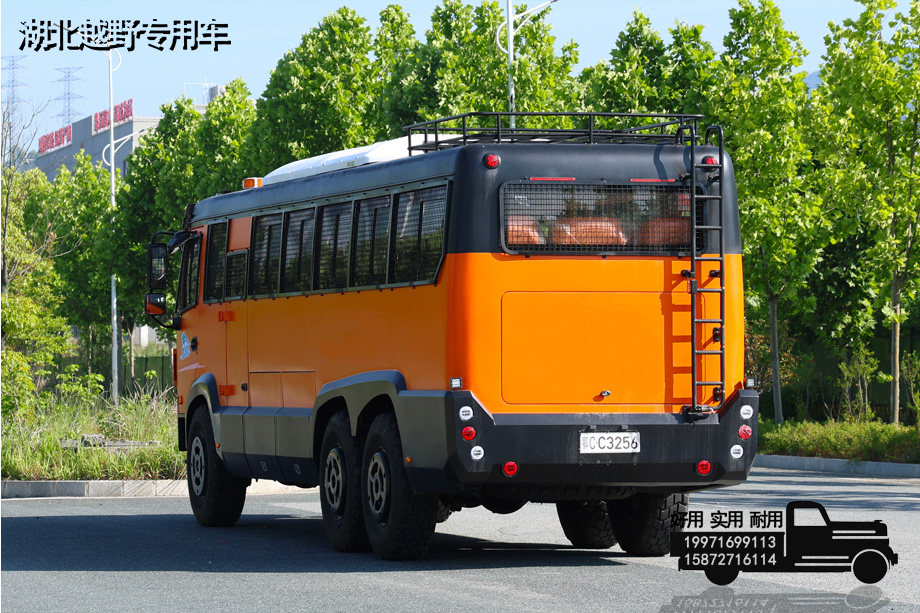

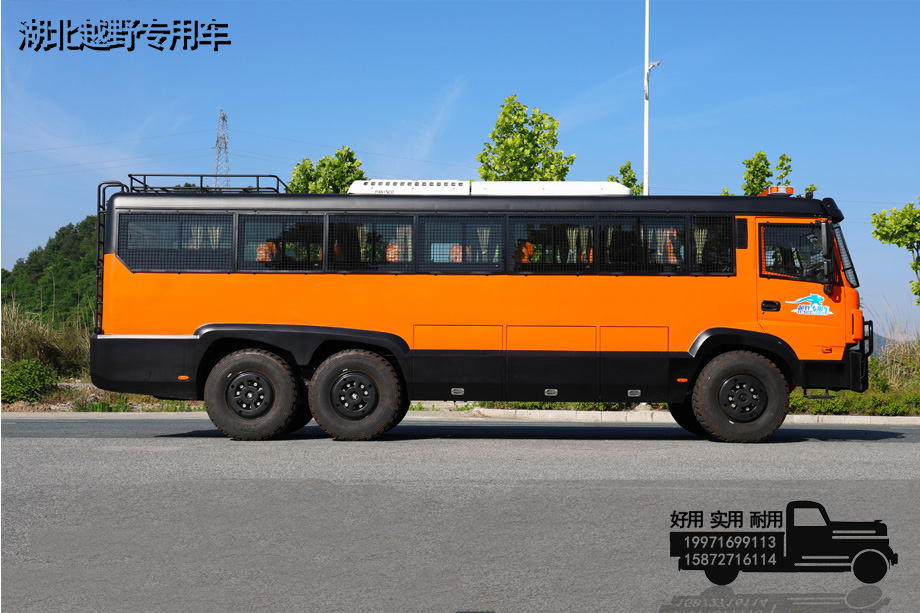

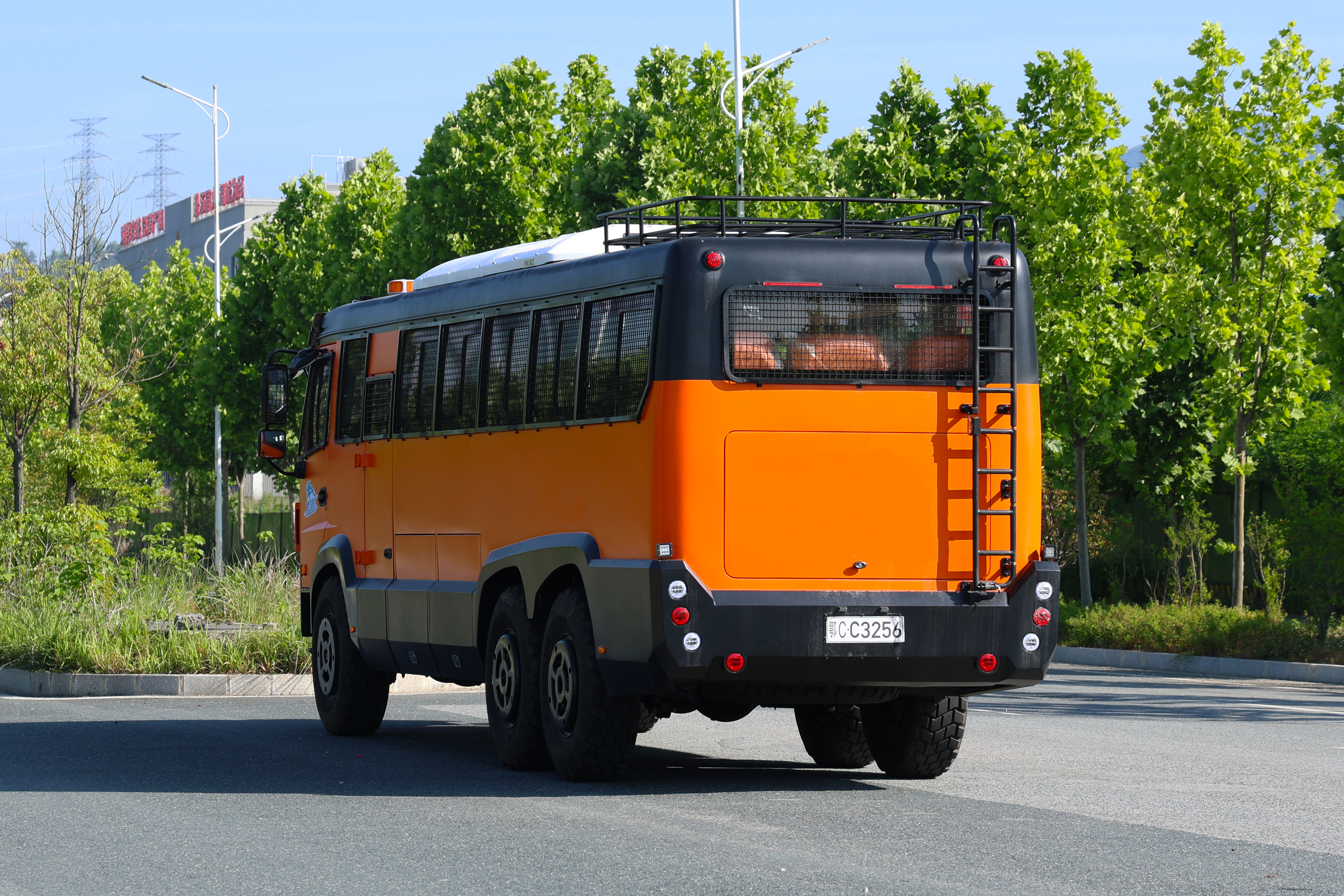

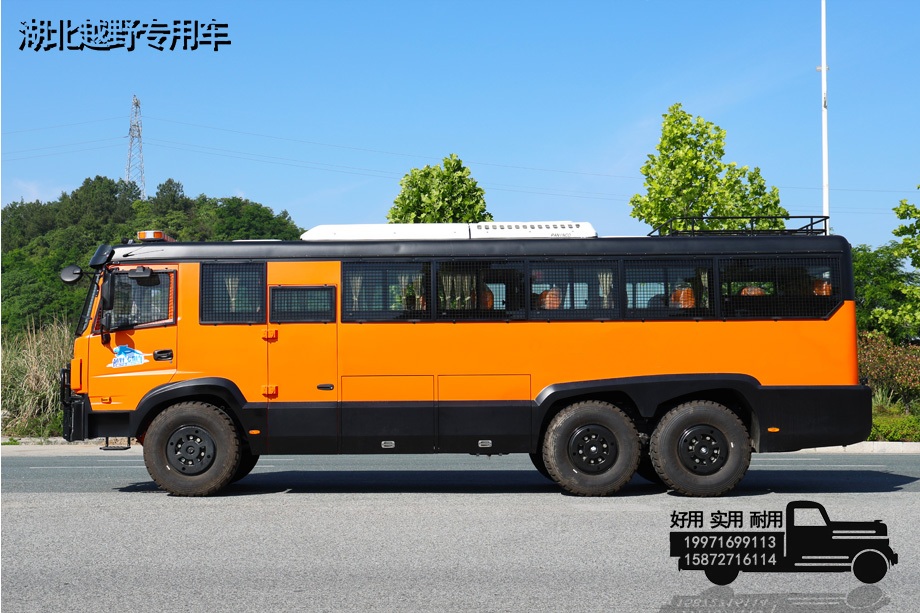

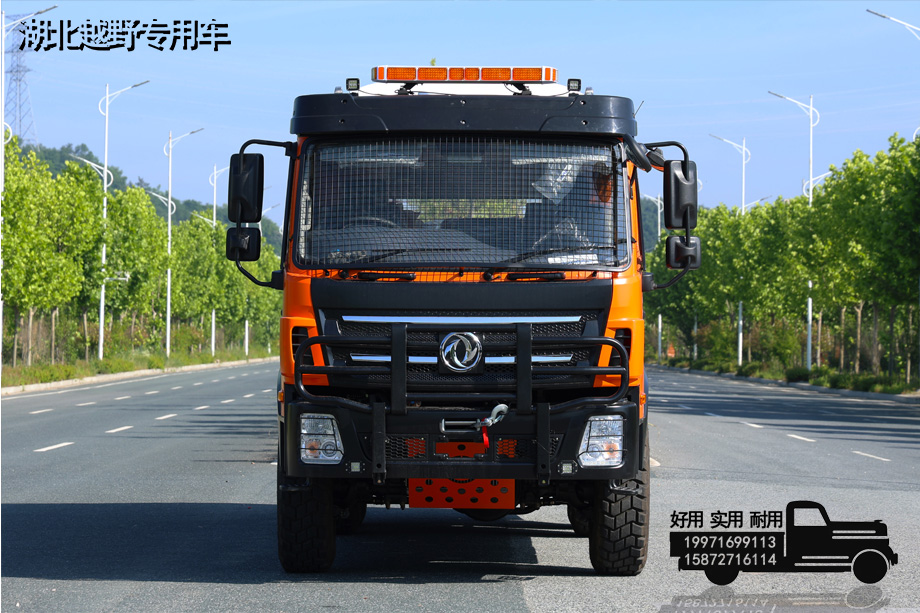

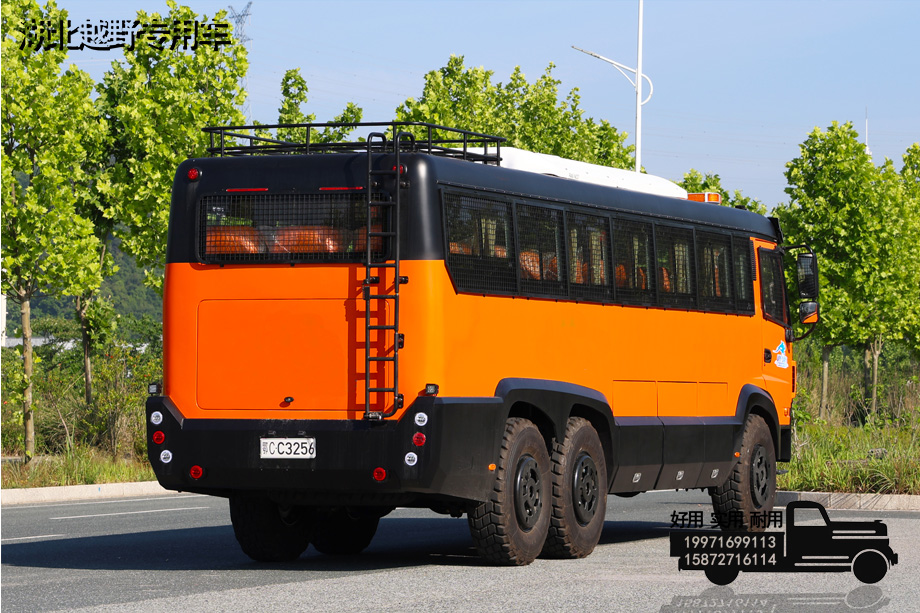

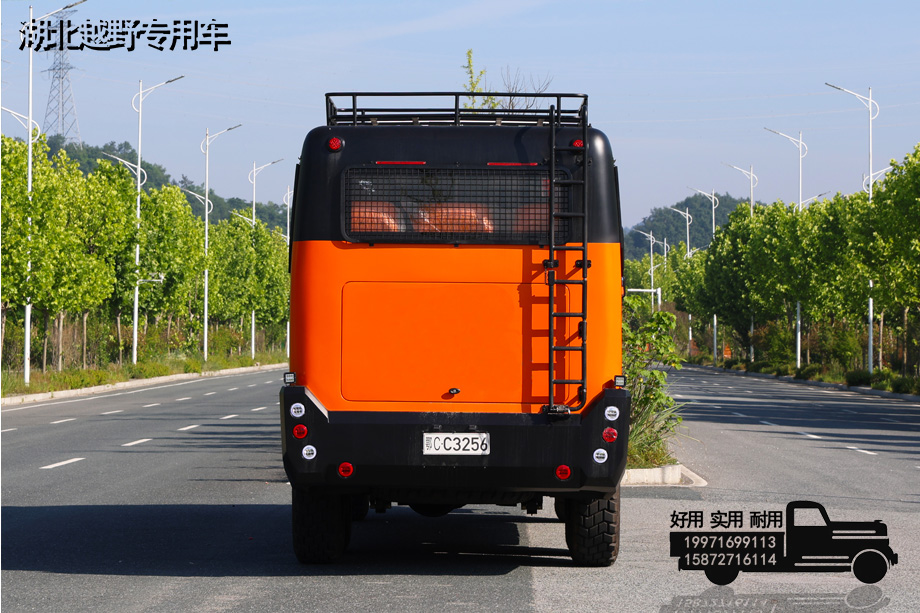

China's DF Automobile Company developed 6×6 off-road chassis. Due to various advantages, the chassis is often used to modify it into greening sprinkler trucks, dump trucks, garbage trucks, van transporters, Bus, minibuses, etc., which are also best-selling models for export.
| Basic information | |
| drive | 6*6 |
| direction | Left rudder/right rudder |
| Chassis size | / |
| Vehicle size | 9470*2280*3400mm |
| total mass | 10850kg |
| curb weight | 9470kg |
| Chassis configuration | |

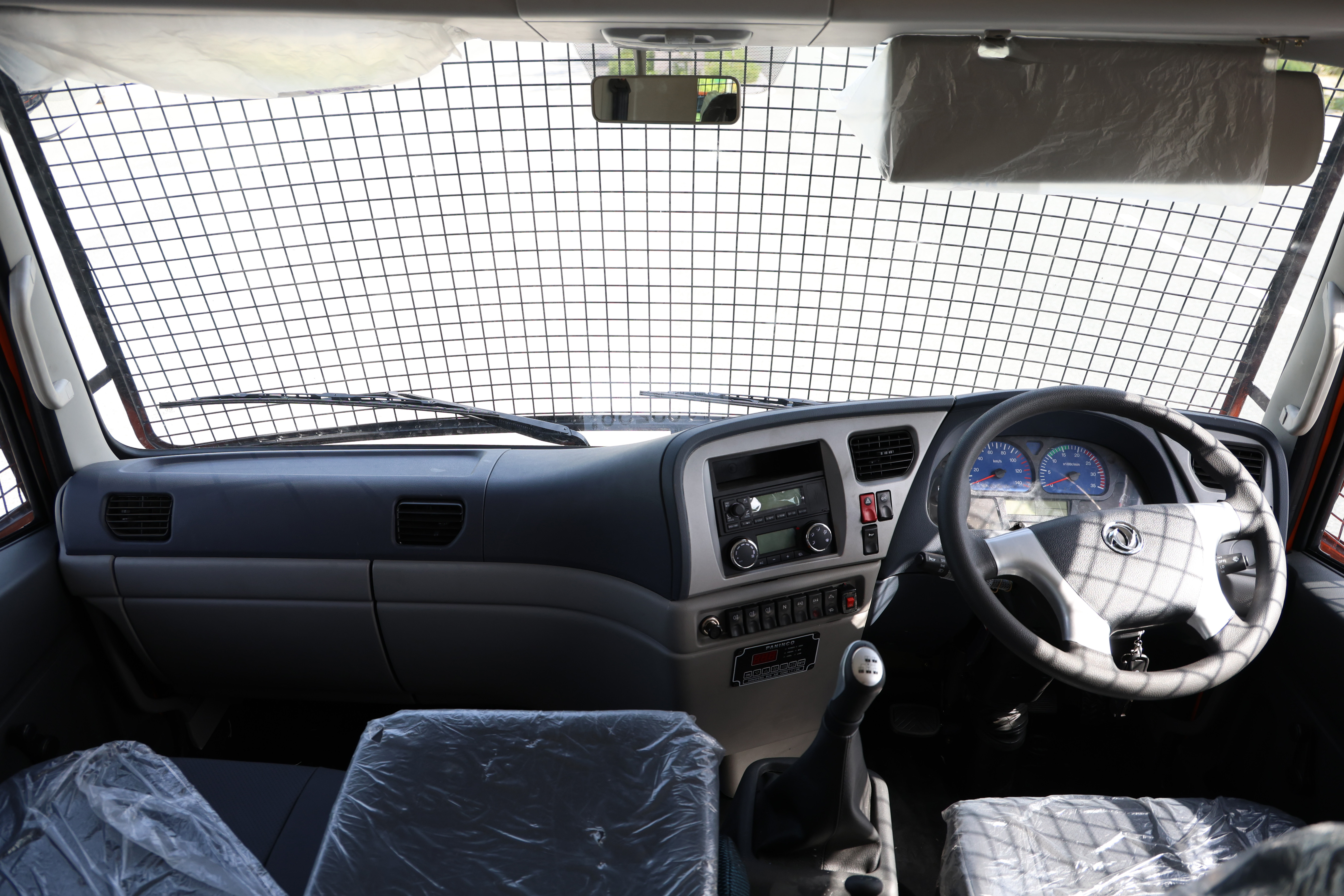

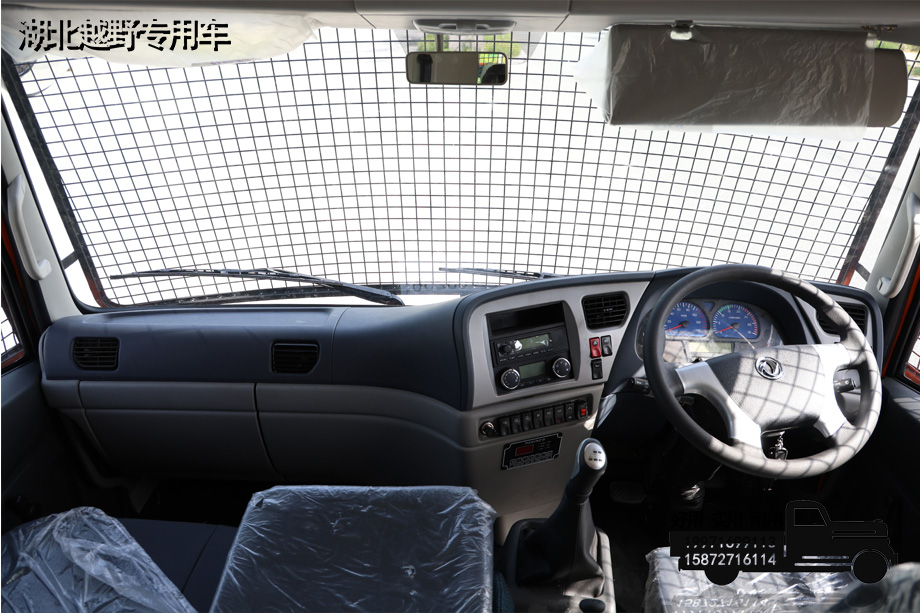

| cab | Flat head, non-load-bearing |

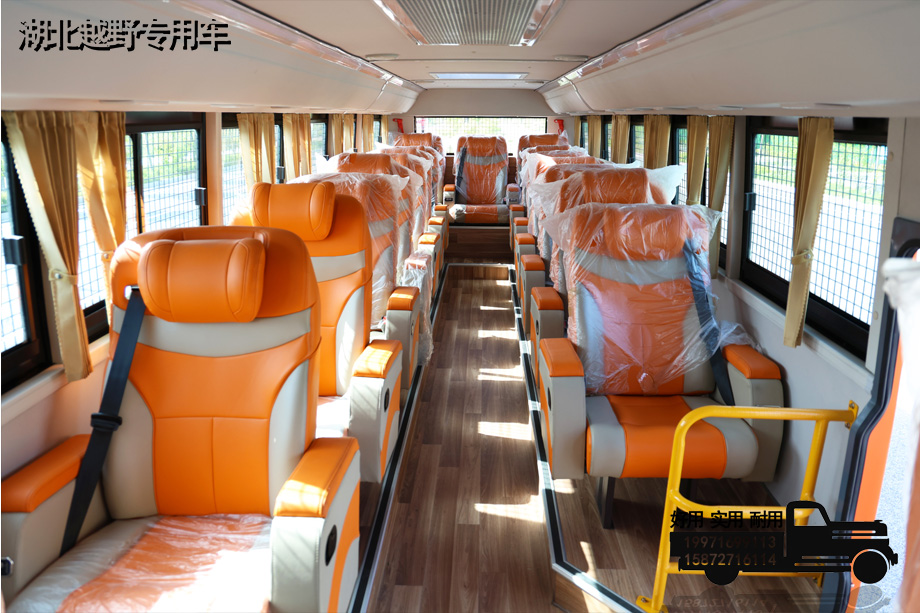

| Number of seats | 18+3 people |
| Wheelbase | 4600+1300mm |
| Frame | 860*232mm |
| engine | Cummins B210 33 |
| Gearbox assembly | Manual 8-speed, Fast 8JS 85E |
| transfer case assembly | High and low gears |

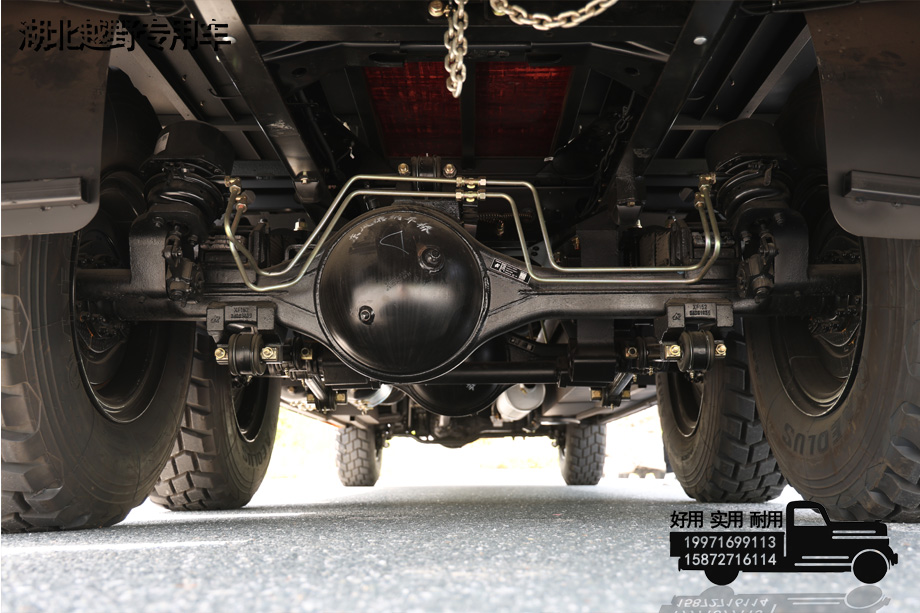

| Maebashi | 3.5T |
| middle bridge | 3.5T |
| rear axle | 3.5T |
| tank | 160L (can be increased according to space location) |
| circuit | 24V circuit system |
| suspension system | Leaf spring10/12 |
| Braking method | Air brake |
| tire | 12.5R20 (6+1) |
| Bodywork configuration | |

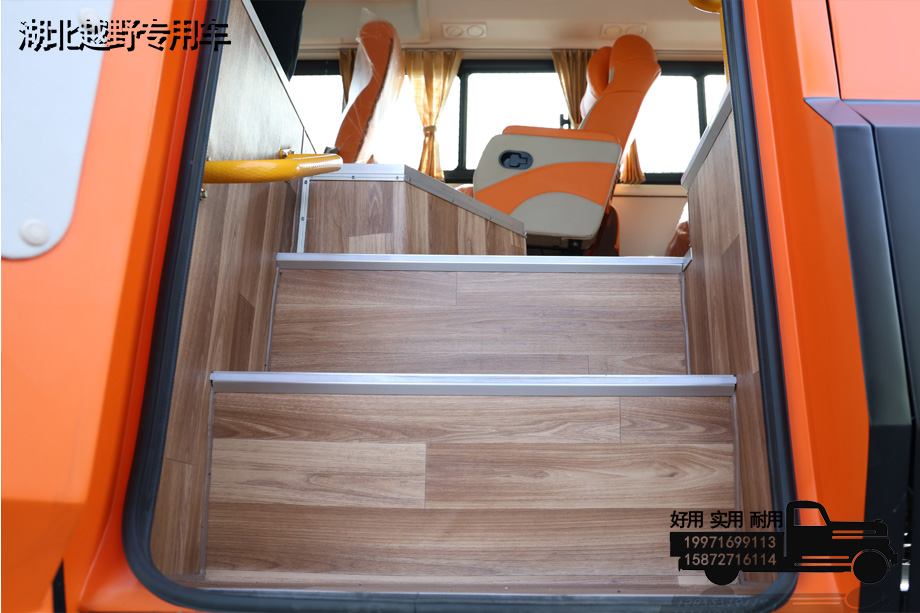

| cargo box | 1820mm (height inside passenger area) |
| engine | |
| engine | Cummins B210 33 |
| horsepower | 210 |
| emission | National Three |
| Displacement | 5.6L |
| Number of cylinders | 6 |
| Output power | 155kw |
| Torque | 700N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 90km/h |
| wading depth | 620mm |
| approach angle | 28° |
| departure angle | 22° |
| front overhang | 1680mm |
| Rear suspension | 1890mm |
| Wheelbase | 1970mm |
| ground clearance | 340mm |
| Obstacle clearance height | 490mm |
| gradeability | 60% |
| other | |

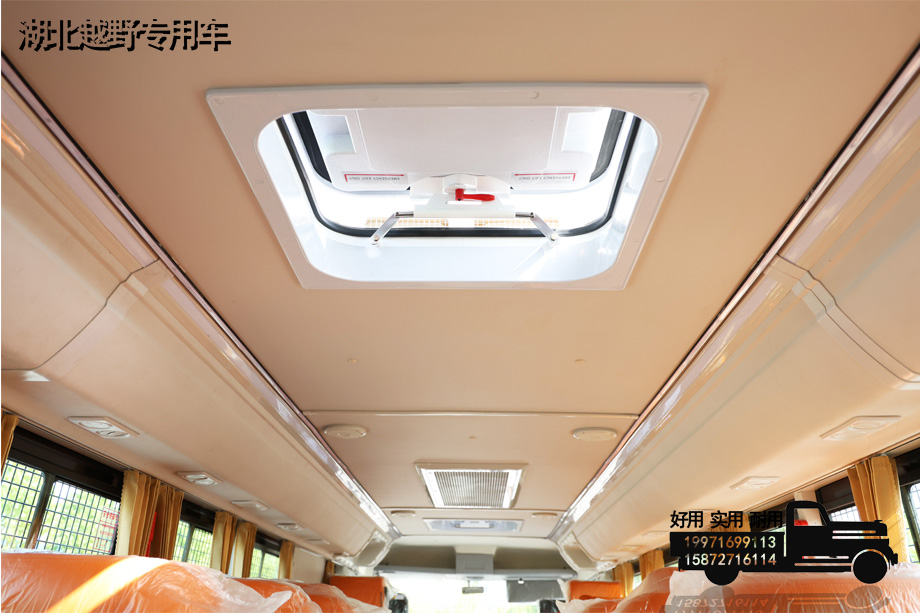

| other | Steel wire protective cover, gravel slab, interior ceiling light strip, step light strip, reversing reminder, front and rear 8-ton winches, overhead air conditioning, two safety escape skylights, and curtains. |
