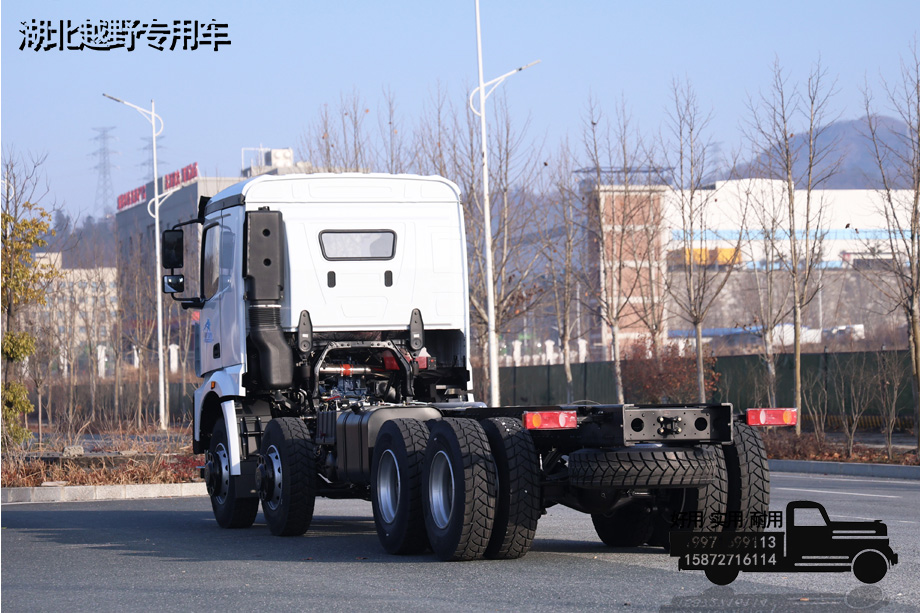

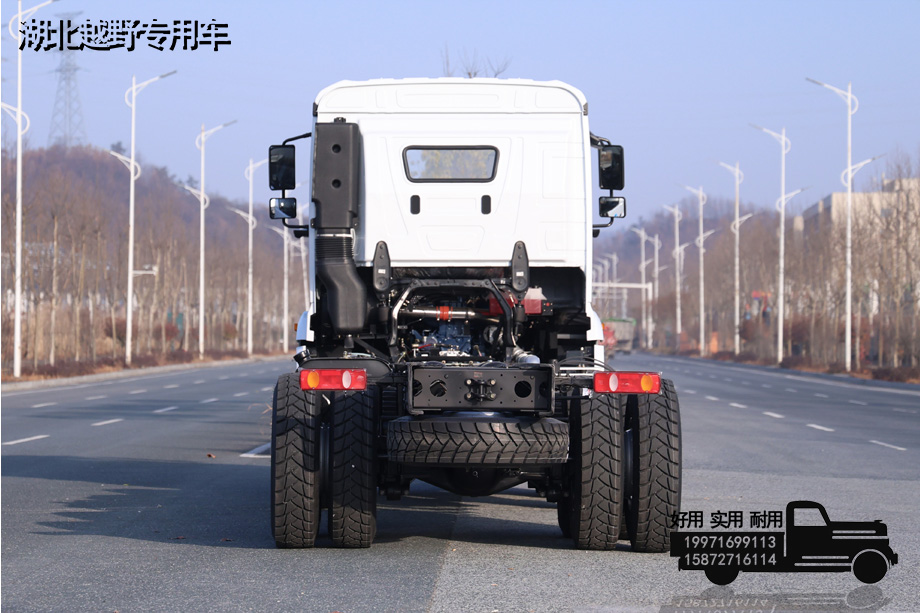

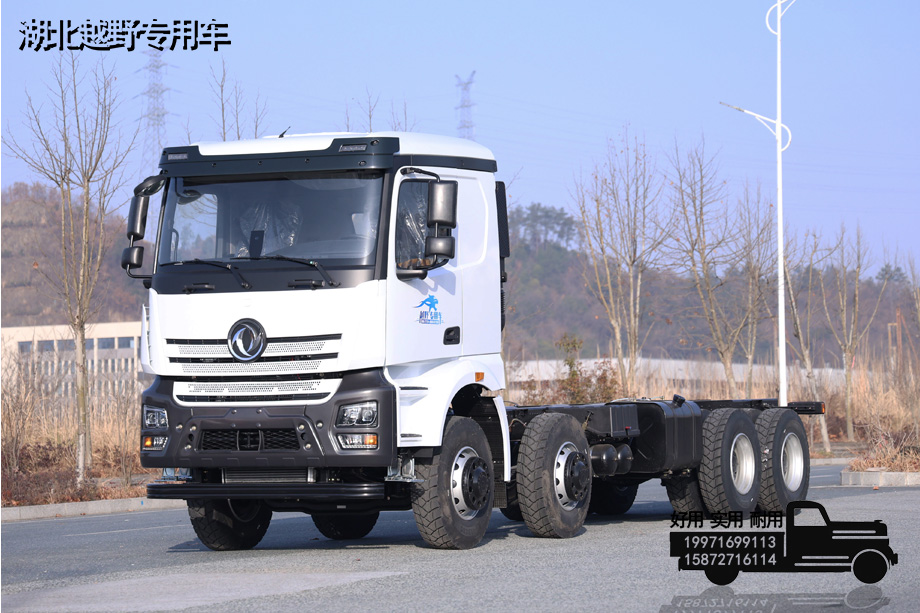

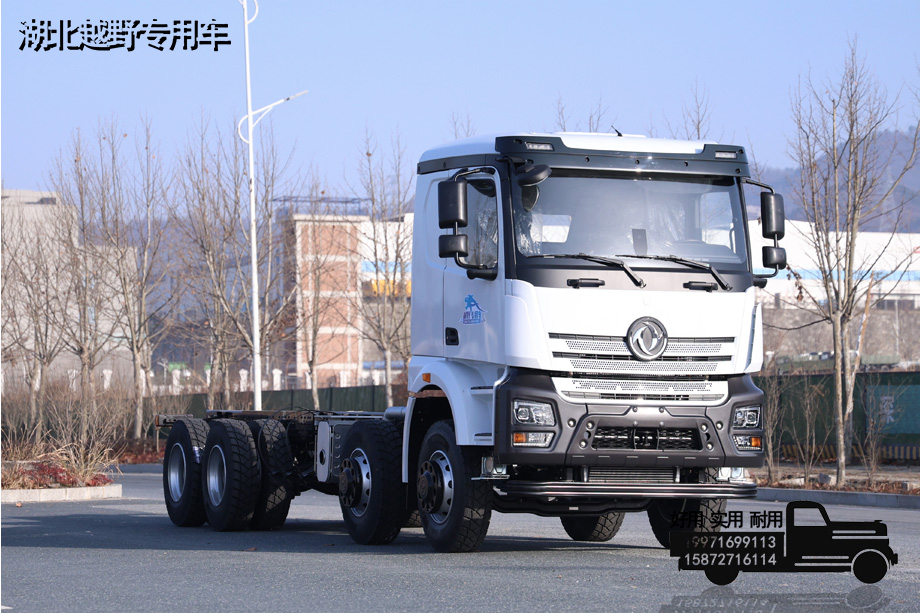

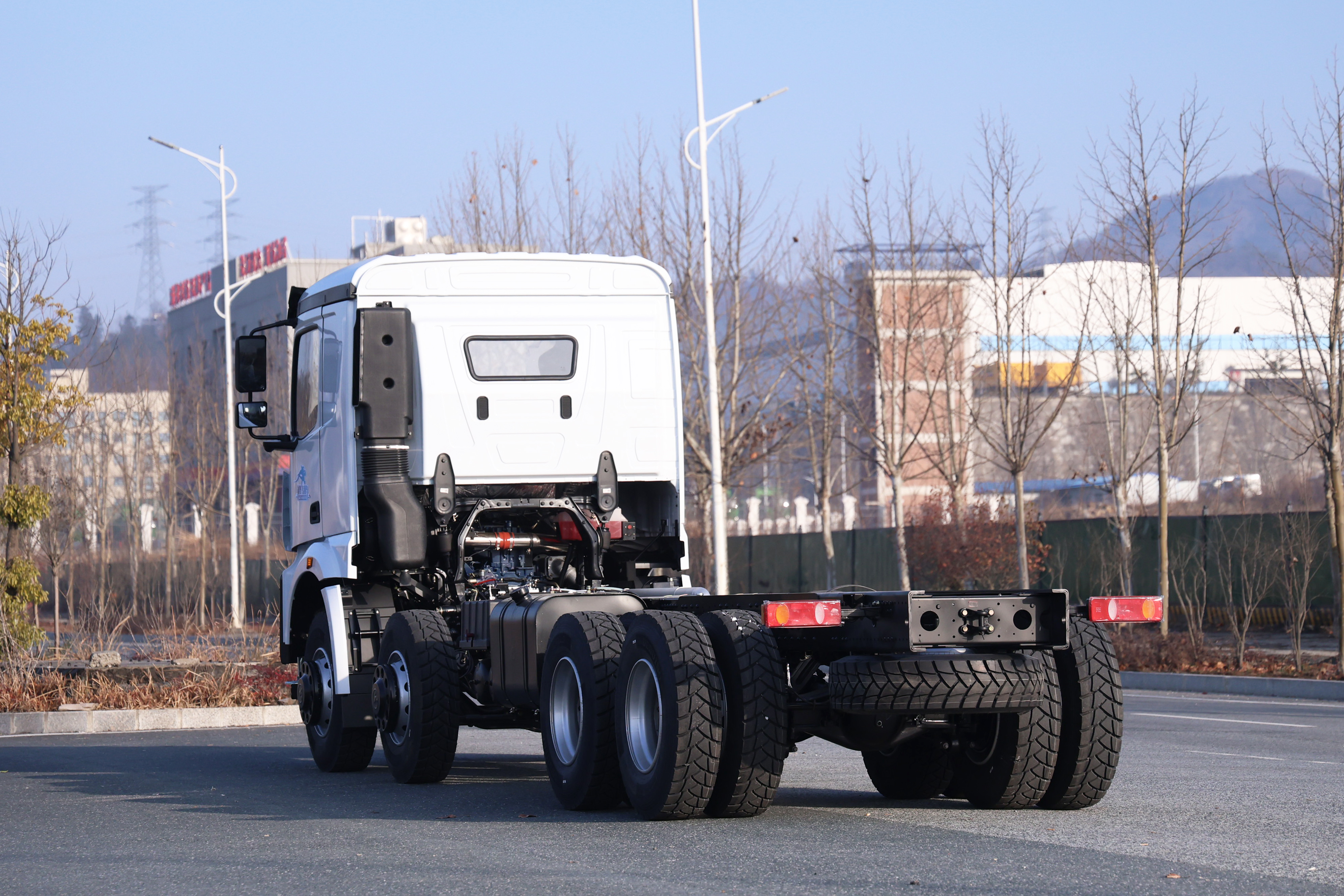

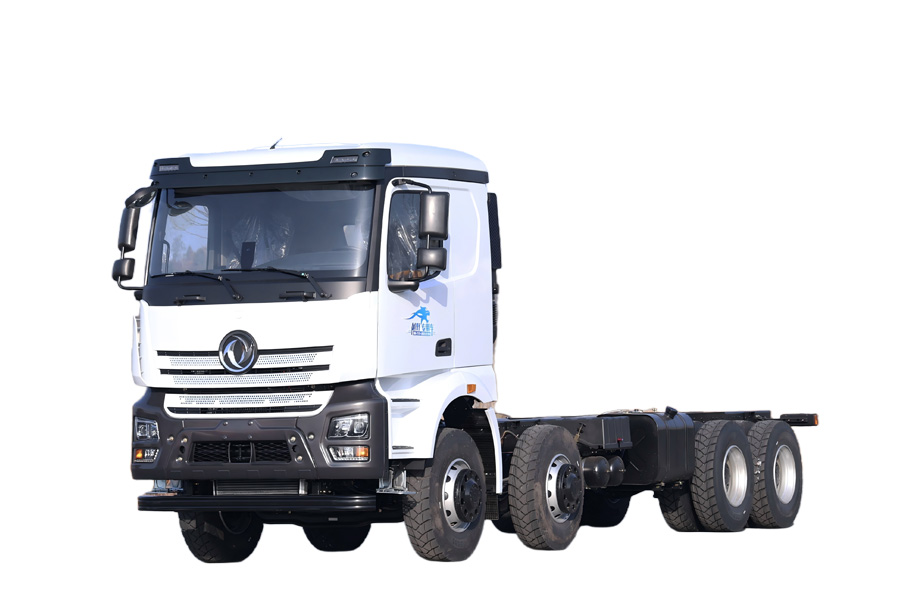

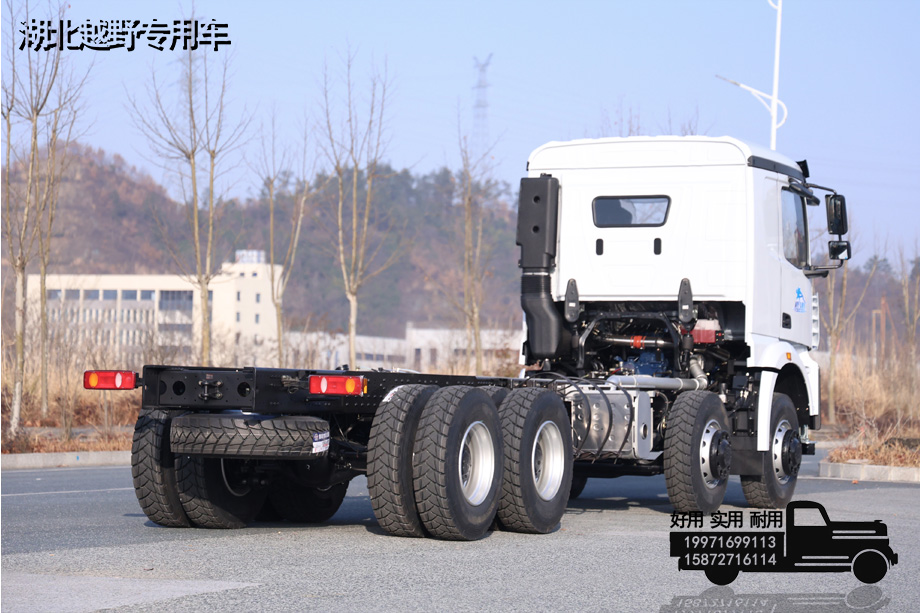

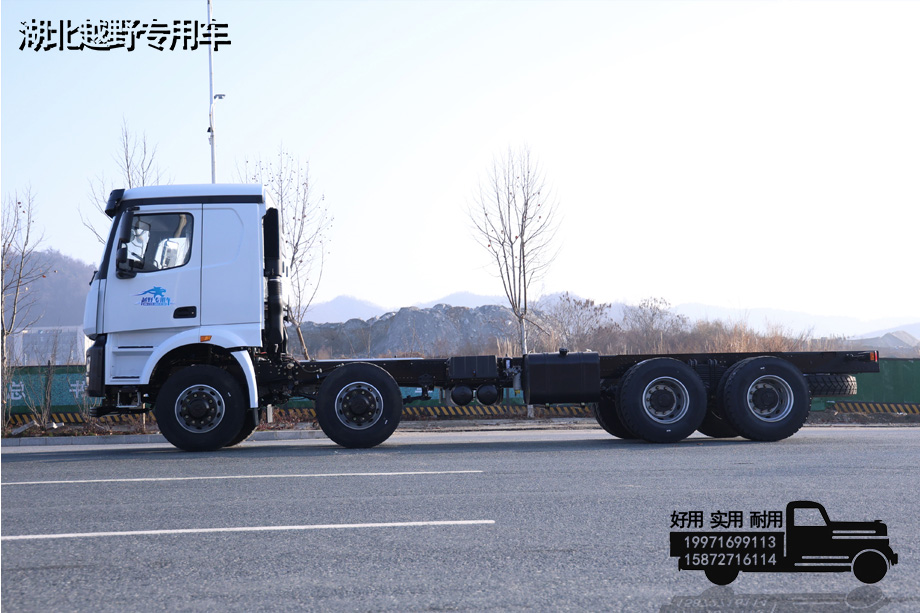

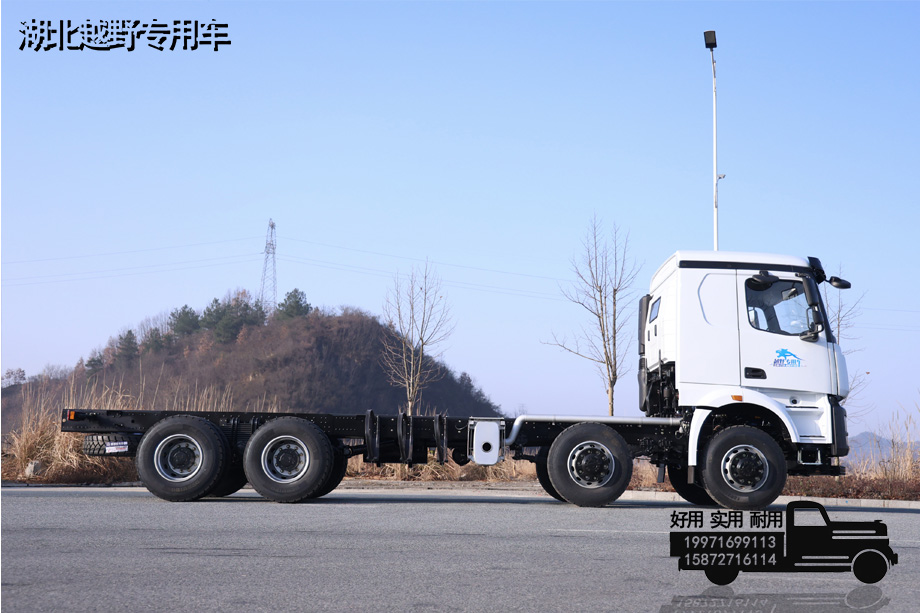

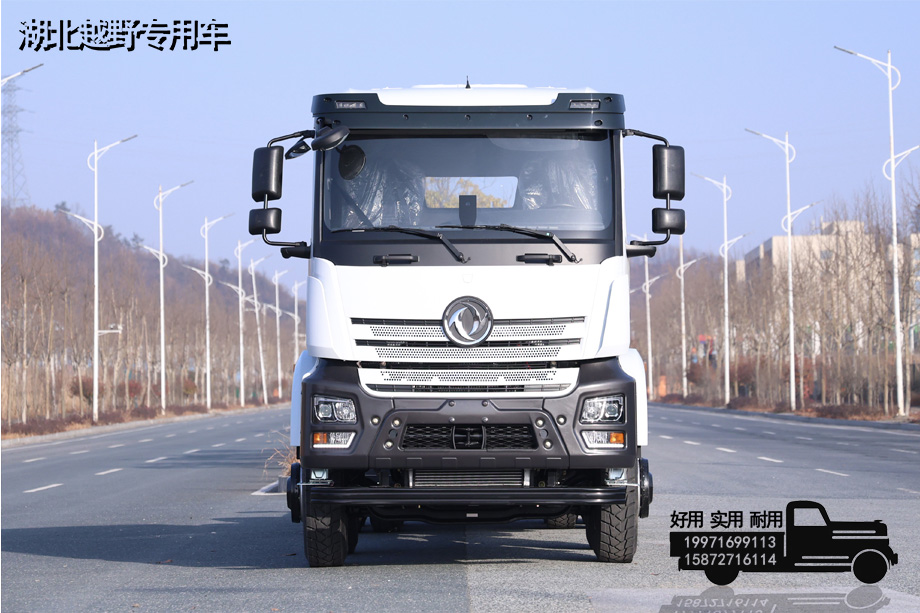

The 8×4 excavator plate (four front excavator and eight rear excavator flatbed transport truck) is a special vehicle for heavy-duty engineering machinery. The core is 8×4 drive (front double steering axle, rear double drive axle). It has a low center of gravity and high load capacity. It can legally pull 25-60 tons of excavator/pile driver/roller and other equipment. It is customized according to specific requirements.
| Basic information | |
| drive | 8*4 |
| direction | Left rudder/right rudder |
| Chassis size | 10190*2520*3420mm |
| Vehicle size | 10625*2600*3450mm (excavator plate) |
| total mass | 31000kg |
| curb weight | 11010kg (full vehicle 14610kg) |
| Chassis configuration | |

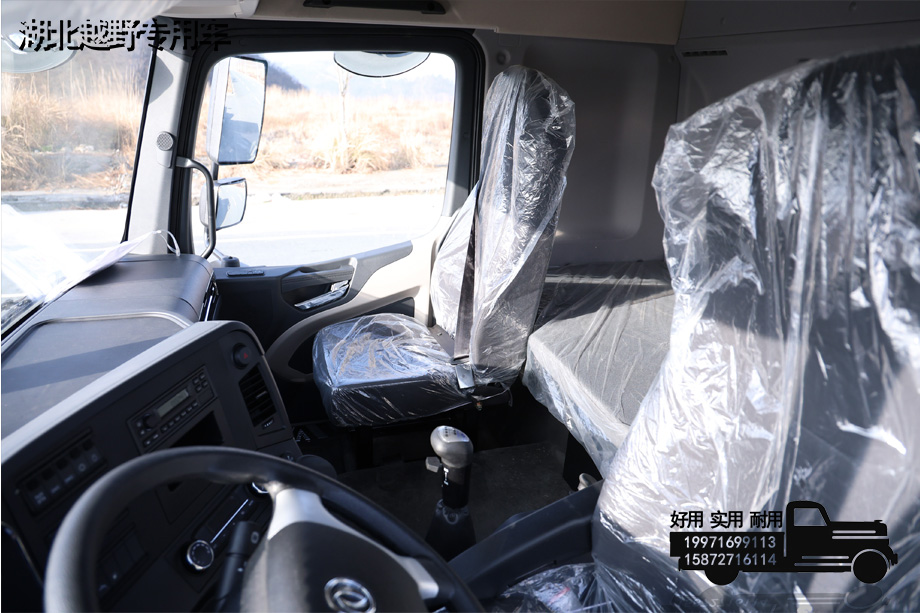

| cab | Flat head, one and a half rows, with air conditioning |
| Number of seats | 3 people |
| Wheelbase | 1950+3800+1350mm |
| engine | Weichai WP13.500E201 |
| Gearbox assembly | Manual 12 gears |
| Qian Shuangqiao | 7T/7T |

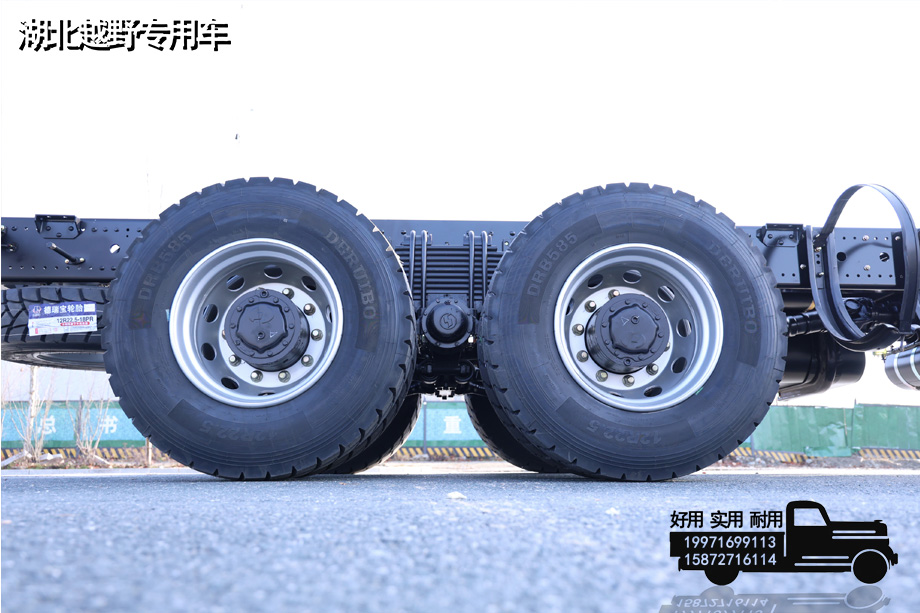

| Rear double bridge | 16T/16T |
| tank | 380L (can be made as large as possible according to space location) |
| circuit | 24V circuit system |

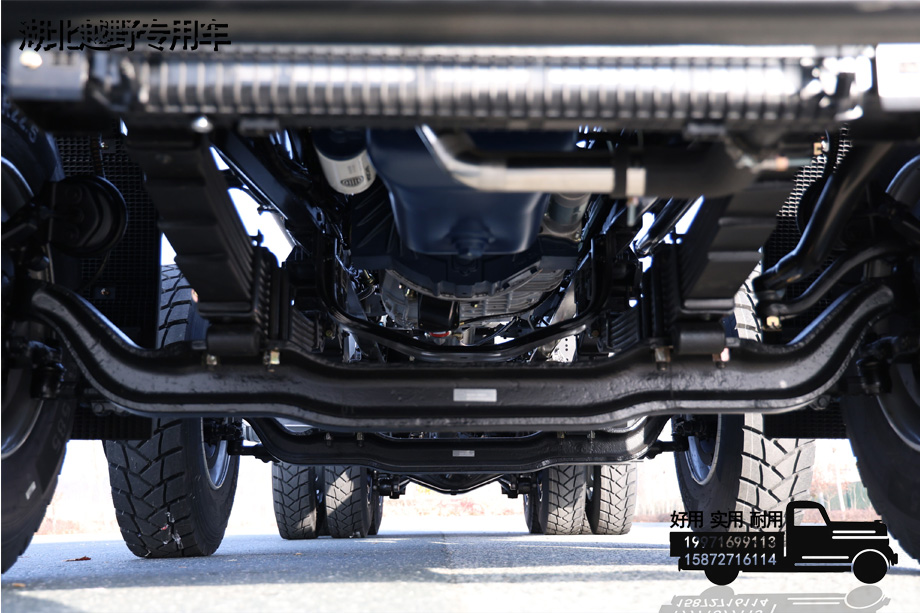

| suspension system | Leaf Spring9/9/10 |
| Braking method | Air brake |
| tire | 12R22.5 (12+1) |
| Bodywork configuration | |
| cargo box | 7600*2600mm (can be extended to 3140mm) |
| engine | |
| engine | Weichai WP13.500E201 |
| horsepower | 500 |
| emission | Second grade |
| Displacement | 12.54L |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 90km/h |
| Wheelbase | 2020/1820mm |
| ground clearance | 290mm |
| Obstacle clearance height | 465mm |
| Wading height | 680mm |
| approach angle | 20° |
| departure angle | 14° |
| gradeability | 60% |
| standing slope | 40% |
| other | |
| other | Fire extinguishers, vehicle tools |
