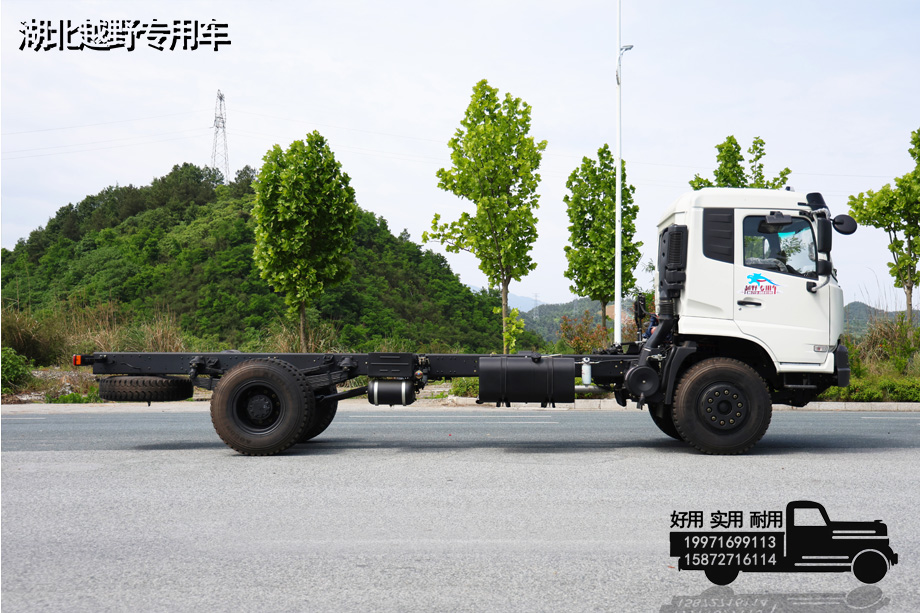

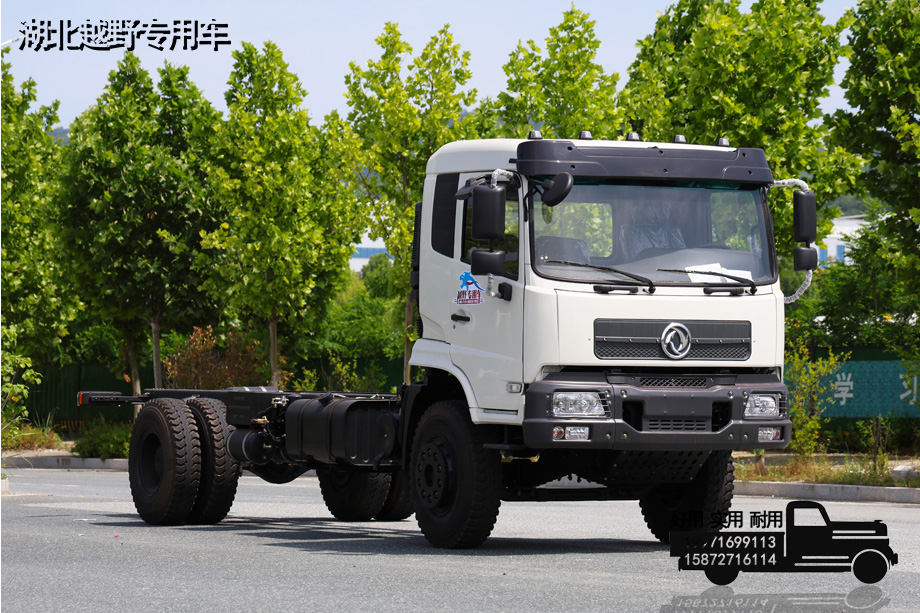

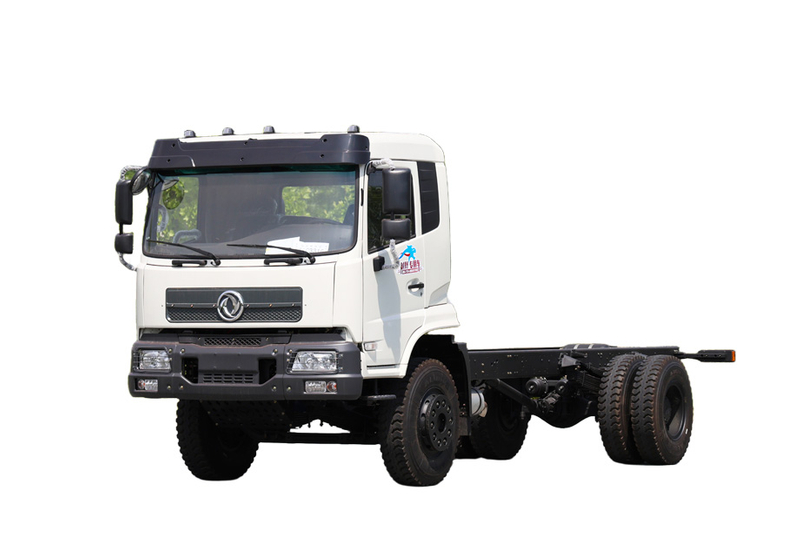

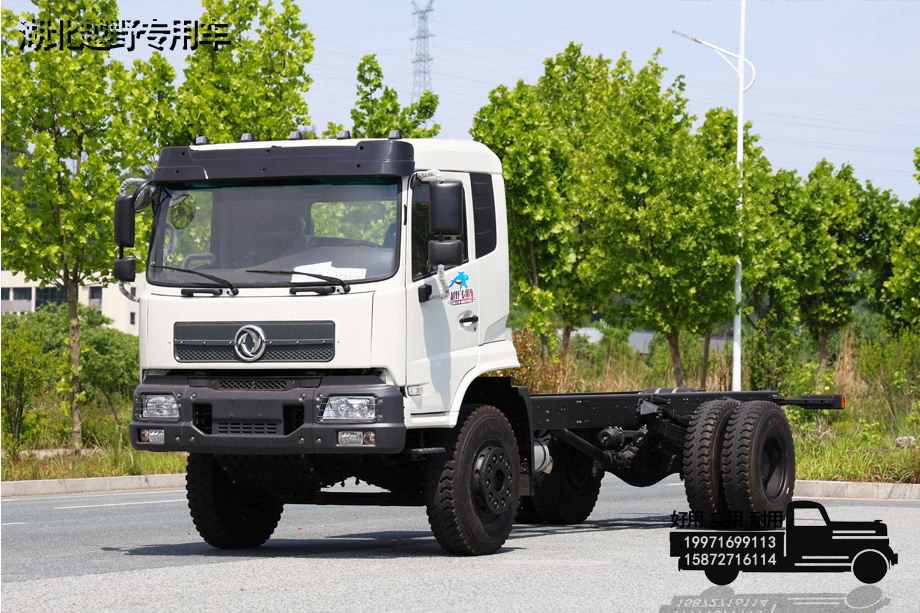

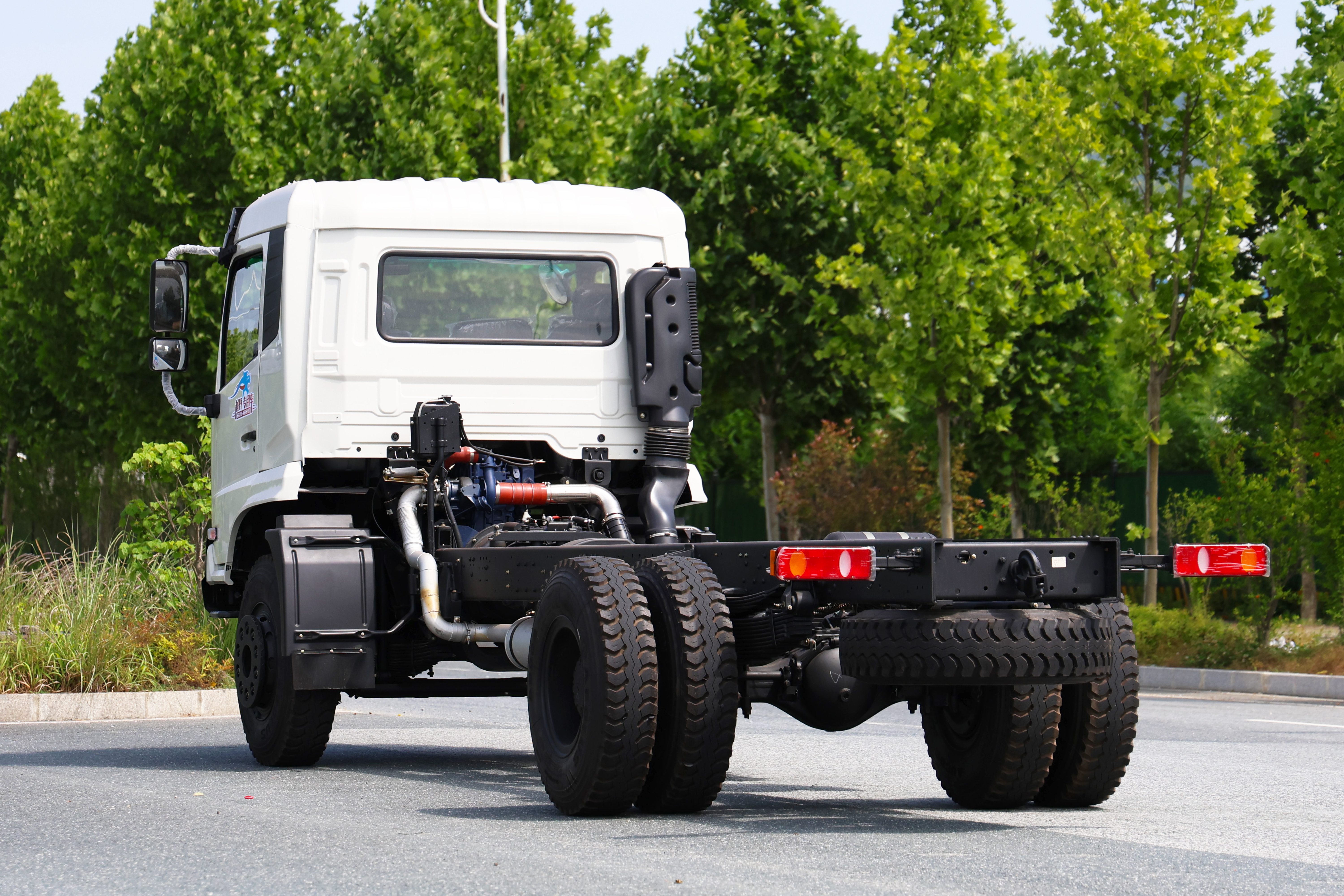

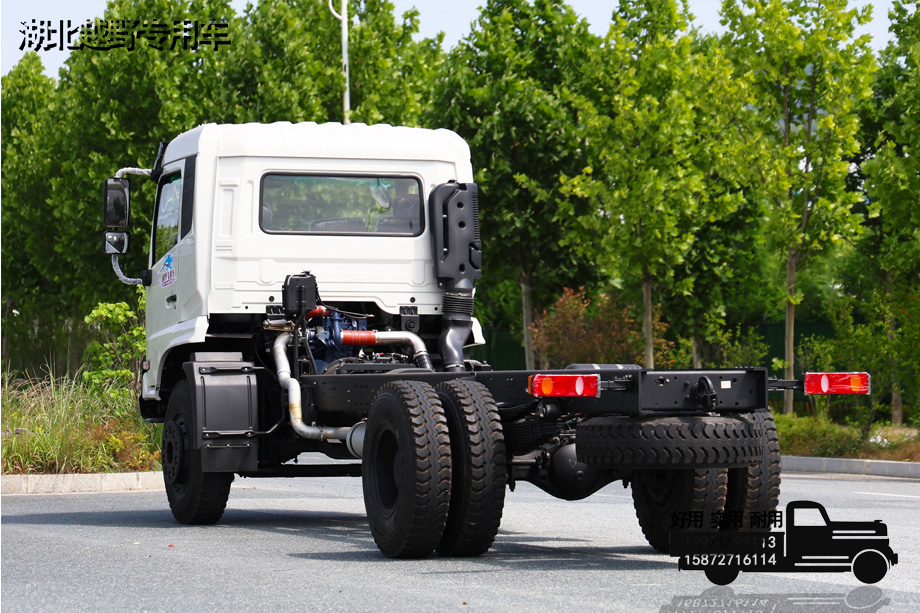

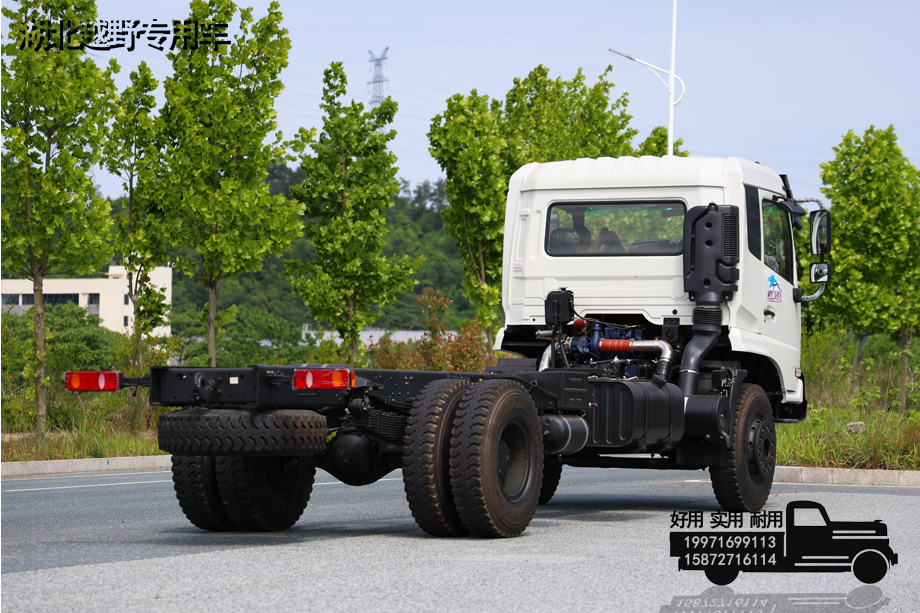

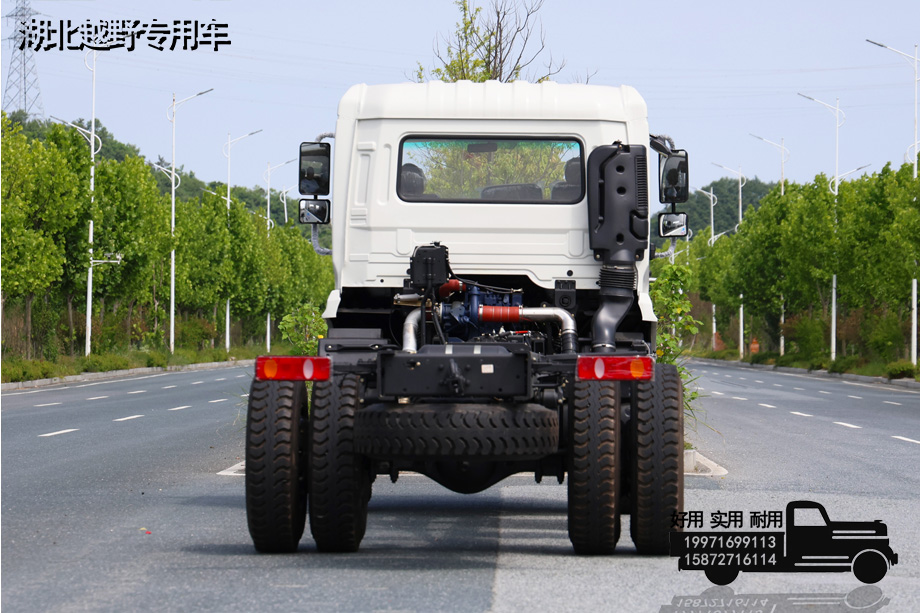

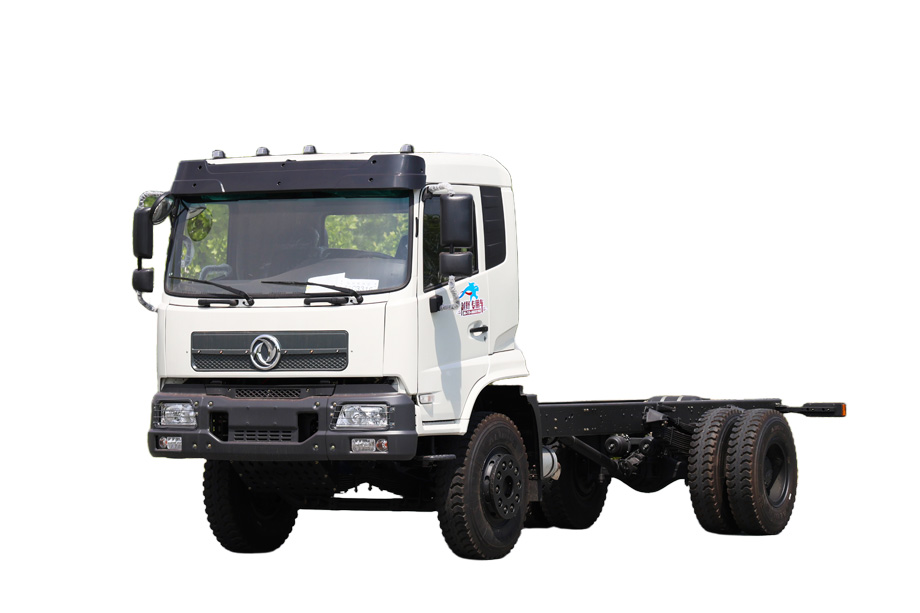

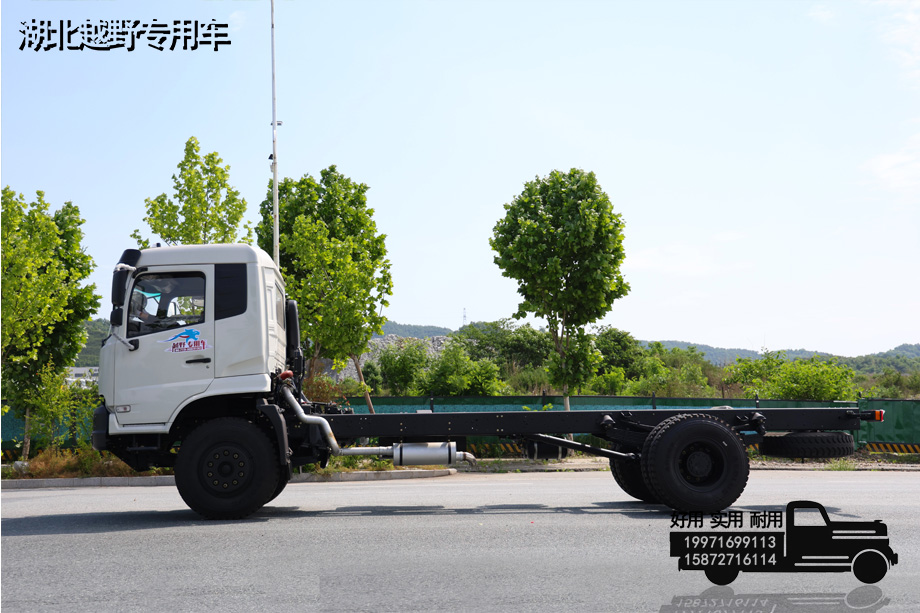

The 4×2 Tianjin chassis (single axle) is our company’s classic medium-sized special-purpose vehicle chassis. It features lightweight, reliable, durable, and highly modifiable features. It is widely used in excavator boards, flatbeds, vans, warehouses, sanitation, engineering vehicles, etc.
| Basic information | |
| drive | 4*2 |
| direction | Left rudder/right rudder |
| Chassis size | 8740*2470*3010mm |
| total mass | 21000kg |
| curb weight | 6800kg |
| Chassis configuration | |

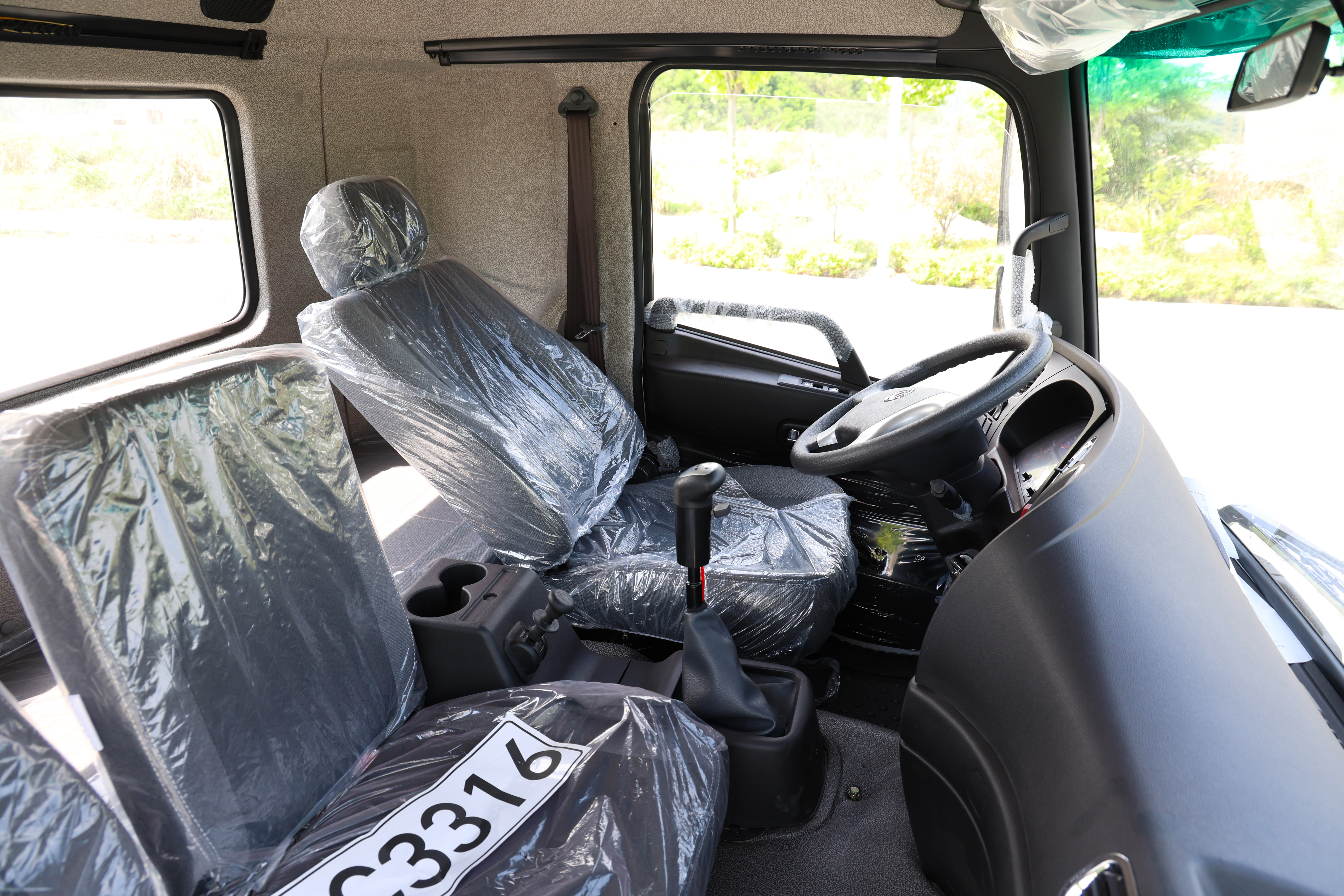

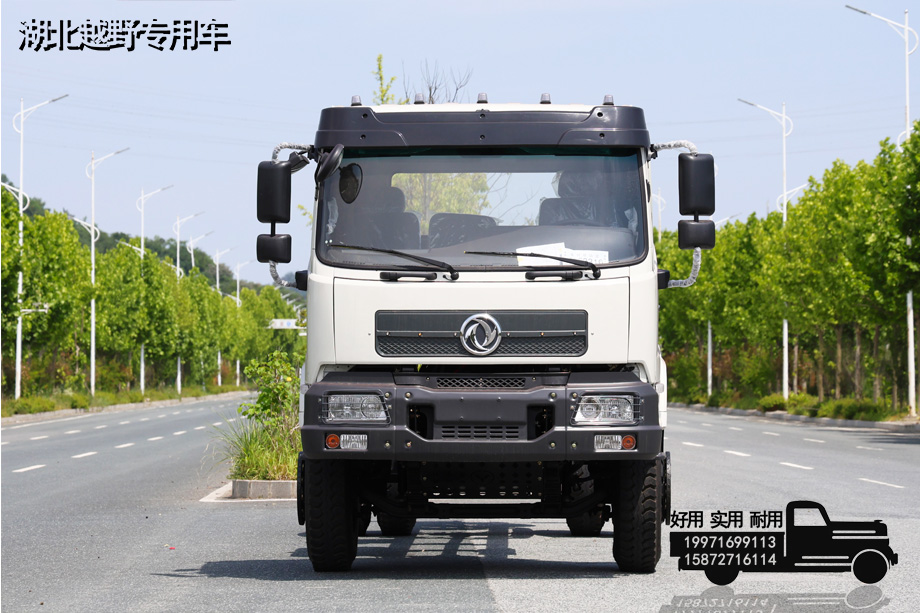

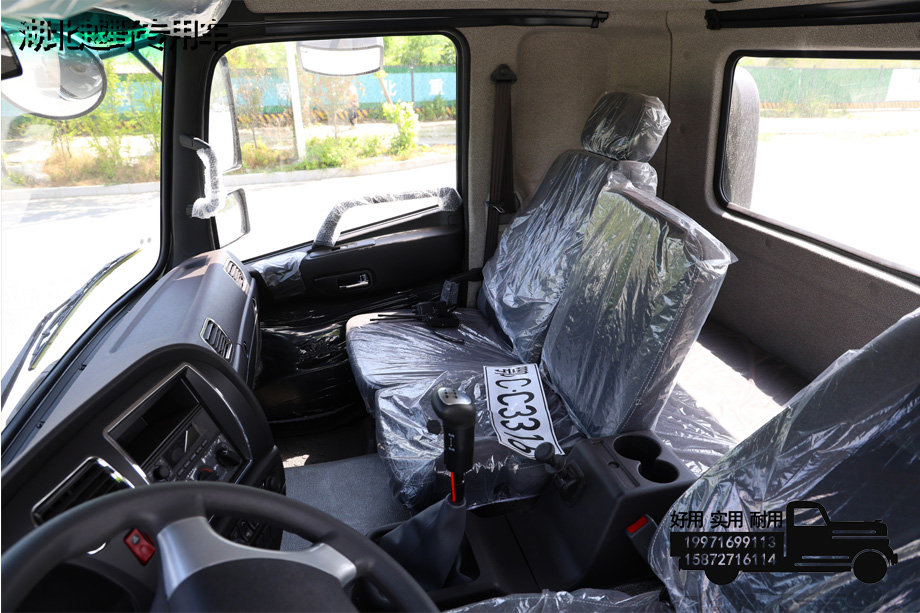

| cab | Flat head, one and a half rows, with air conditioning |
| Number of seats | 3 people |
| Wheelbase | 5100mm |
| Frame | 860*250(8+8)mm, partially strengthened |
| engine | WP6.210E32Z/Cummins B190 33/B170 33/B210 33 |
| Gearbox assembly | Manual 8-speed/6-speed/5-speed |
| transfer case assembly | / |
| Maebashi | 5T |

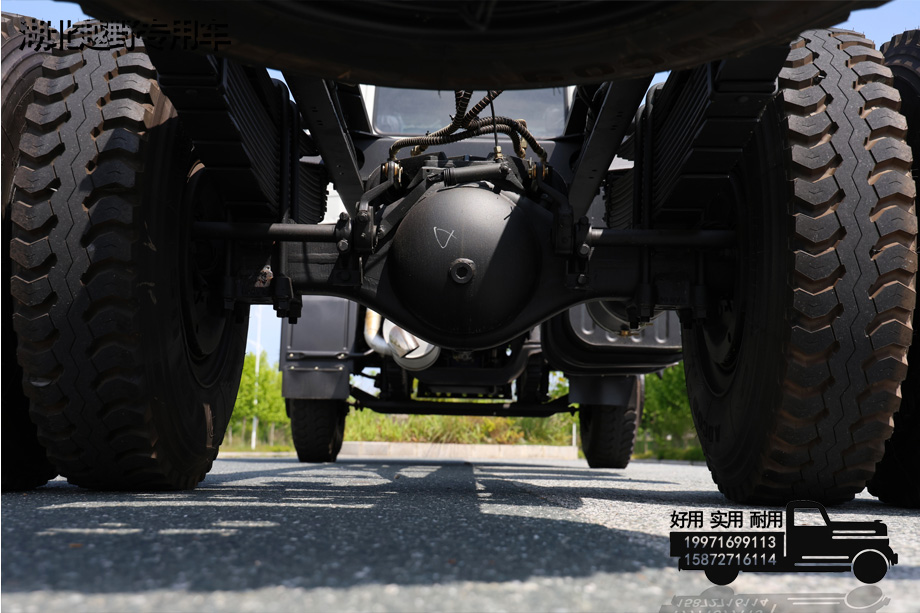

| rear axle | 16T |
| tank | 300L (can be adjusted according to space location) |
| circuit | 24V circuit system |

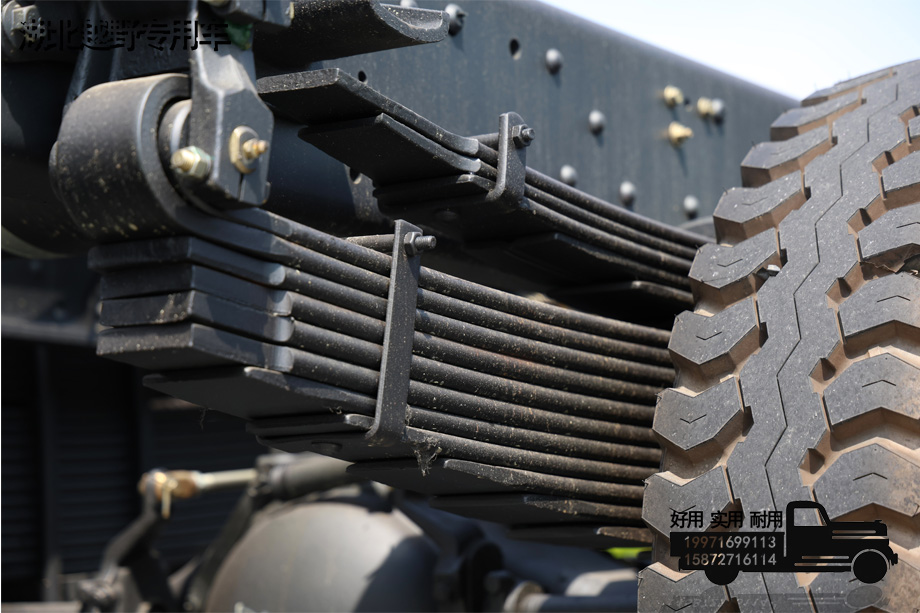

| suspension system | Leaf spring 12/10+8 |
| Braking method | Air brake |

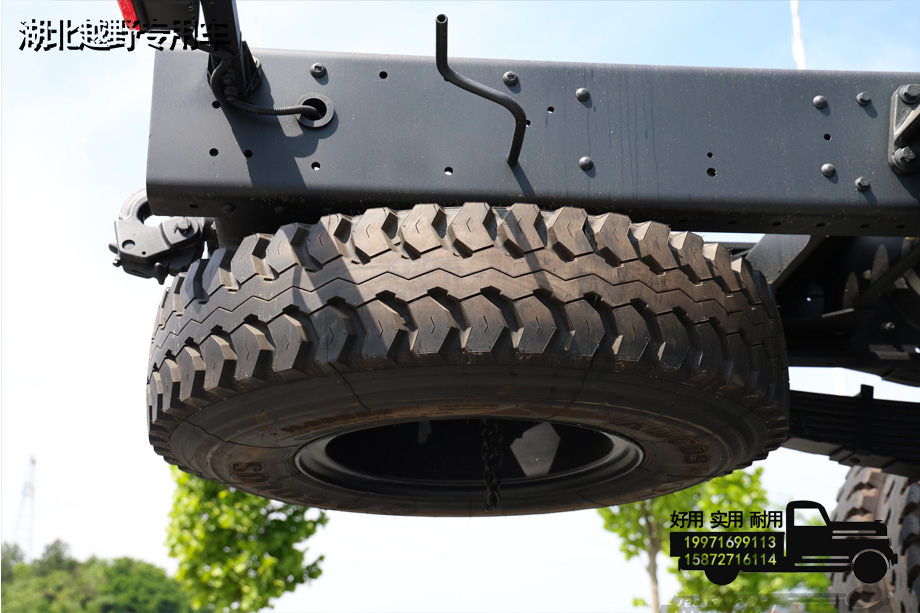

| tire | 11.00R20 (6+1) |
| Bodywork configuration | |
| Tops | ≥5900mm |
| engine | |
| engine | Weichai 6.210E32Z |
| horsepower | 210 |
| emission | National Three |
| Displacement | 6.23L |
| Number of cylinders | 6 |
| Output power | 155kw |
| Torque | 750N.m |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 85km/h |
| approach angle | 26° |
| departure angle | 16° |
| Wheelbase | 1950/1850mm |
| ground clearance | 330mm |
| gradeability | 60% |
| standing slope | 40% |
| wading | 480mm |
| Overcome obstacles | 340mm |
| other | |
| other | Fire extinguishers, vehicle tools |
