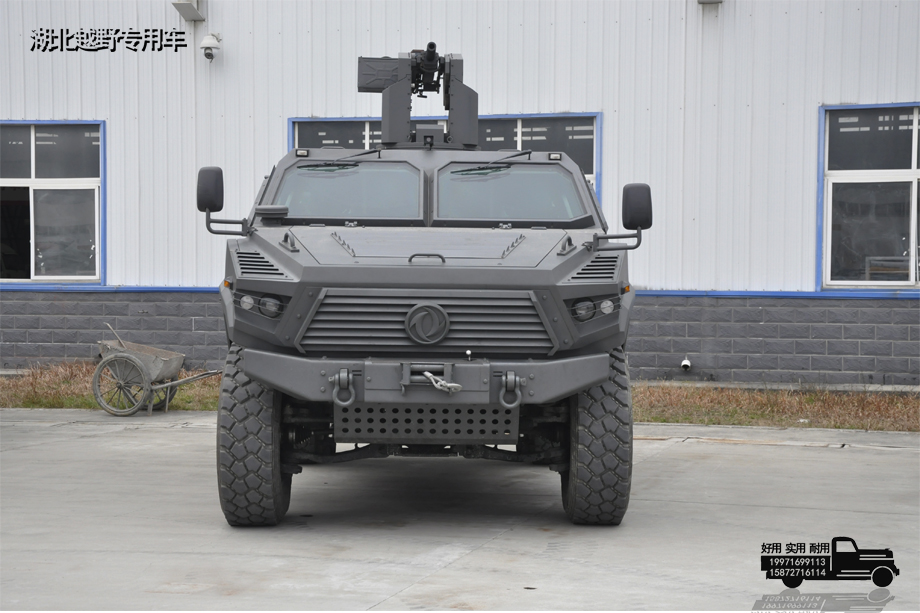

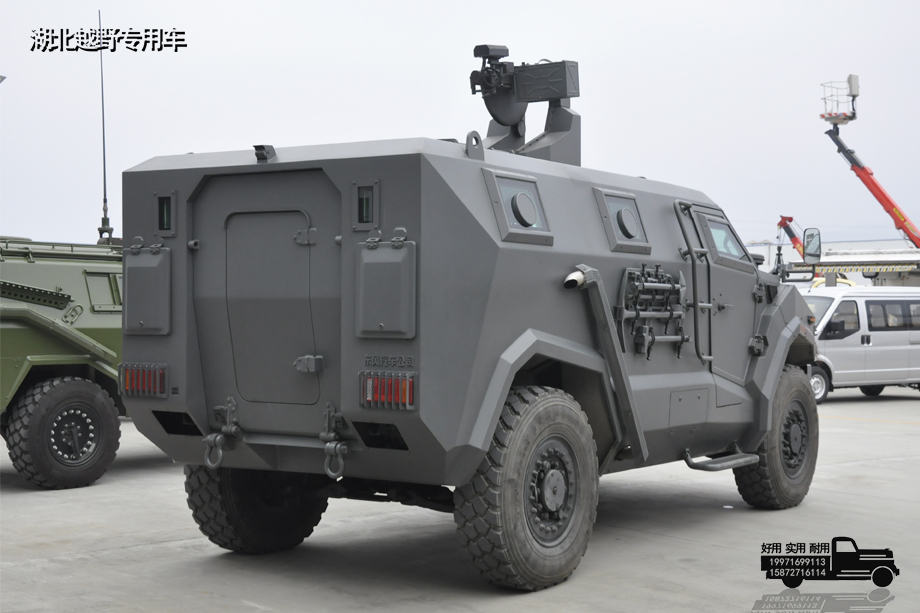

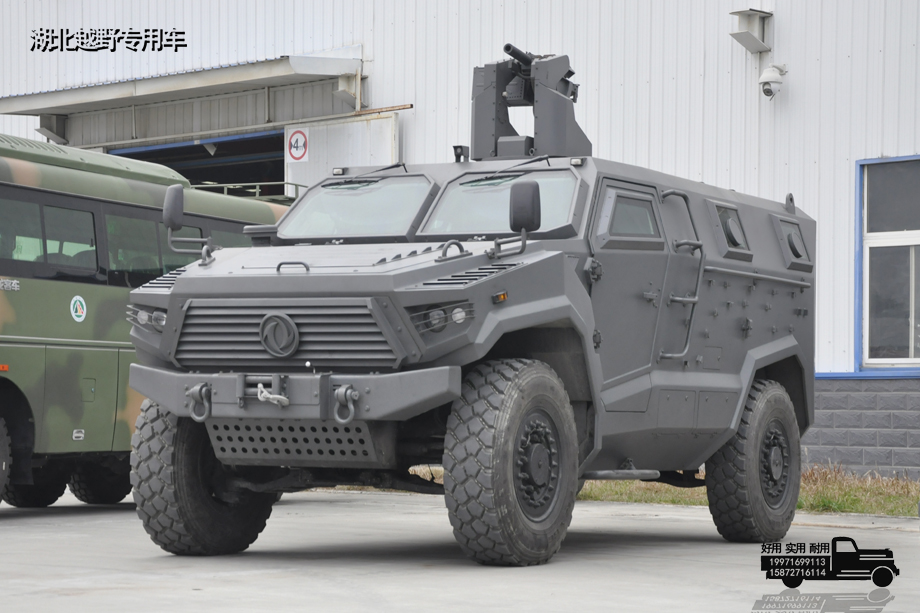

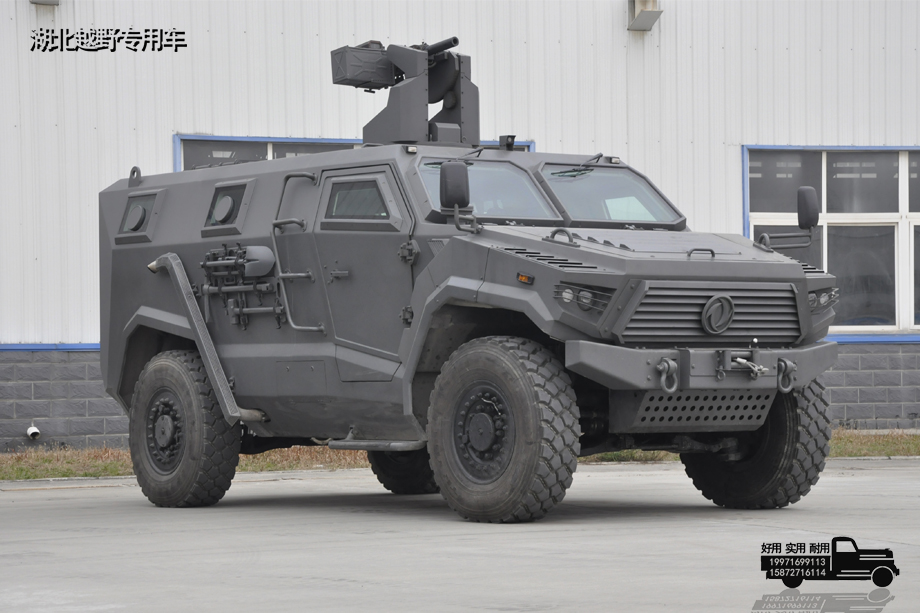

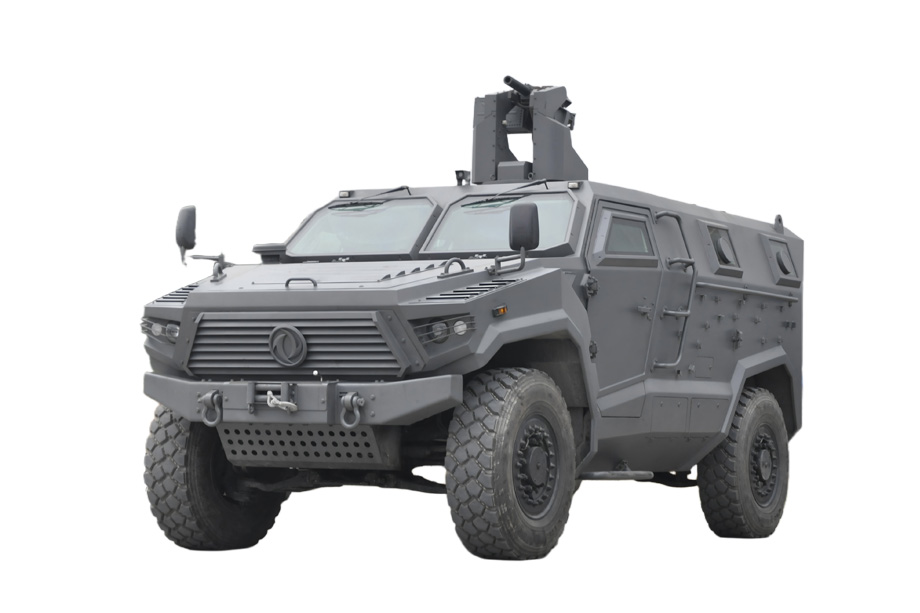

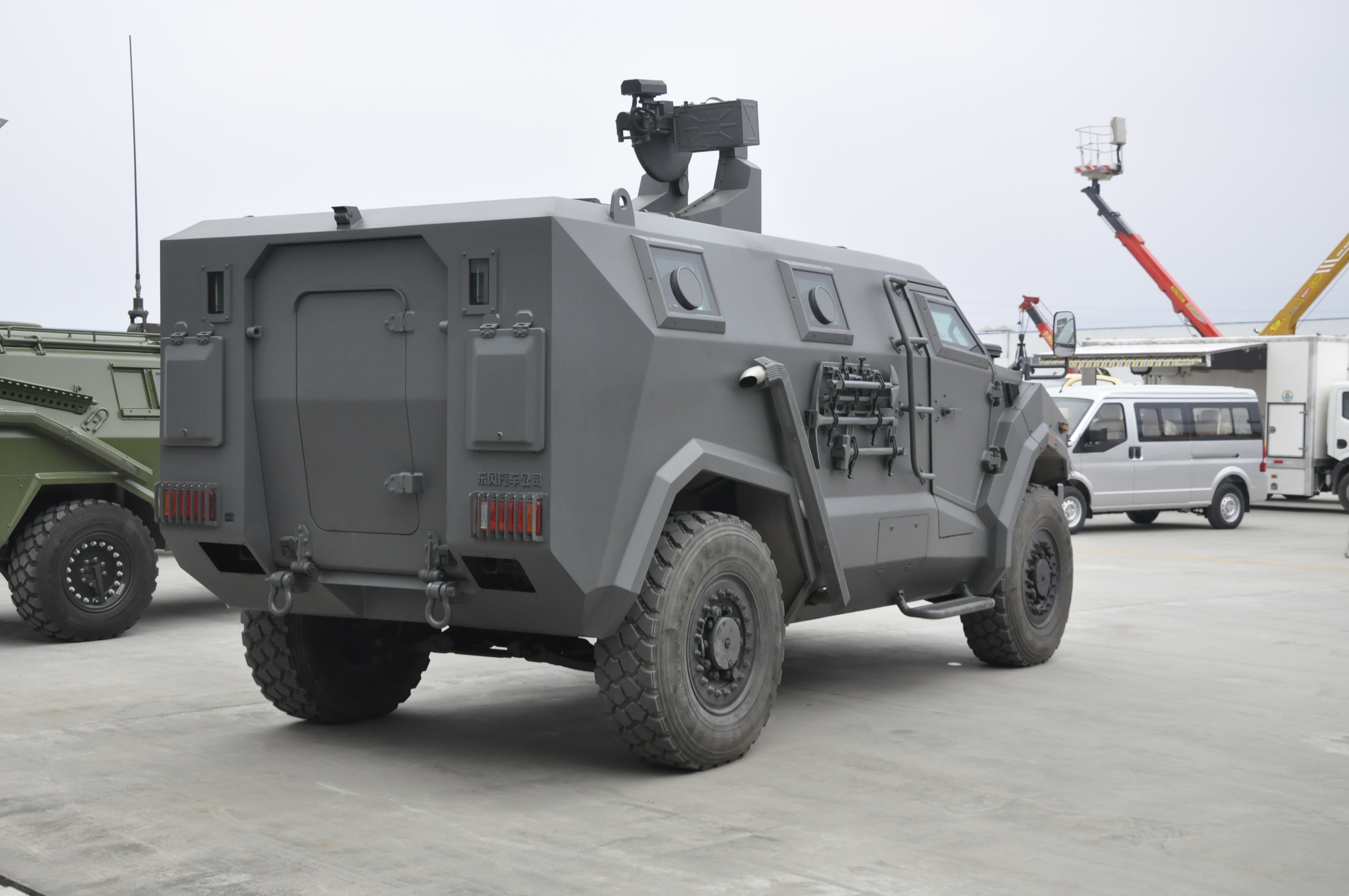

The four-wheel drive 'Warrior' protective armored vehicle is mainly used for border patrol, anti-terrorism and riot prevention. It can also be used for special tasks such as battlefield rescue, peacekeeping and rescue, communication command, armed escort, rescue and disaster relief.
1. High mobility
-The powertrain adopts DF Cummins 1SDe210 40 engine; rated power 155kW/2500rpm.
-Fully load-bearing body and integral axle.
-The working environment temperature is -41°C~+46°C, which can meet the plateau altitude of 5000m and various complex road conditions. -The maximum speed is 120km/h, the average off-road speed is not less than 60km/h, the acceleration performance from 0-60km/h is less than 25S, the maximum gradeability is 60%, and the minimum turning diameter is less than 16m. -Passability: ground clearance 300mm, approach angle 50°, departure angle 47°, longitudinal passage angle 30°
2. Strong protection
-The entire vehicle is made of 4mm bulletproof steel plates and ultra-thin composite bulletproof glass. The surrounding area of the vehicle body can withstand 100-meter Type 53 7.62mm steel core bullets.
-There are reserved hanging interfaces around the car body to further enhance the level of protection.
3. Excellent controllability
-Adopts a mechanical six-speed gearbox (flexible shaft control) and a two-speed transfer case (electrical control) -The steering adopts a hydraulic power steering system, which is easy to operate and has good stability on high-speed and off-road roads.
4. Comfortable human-machine environment

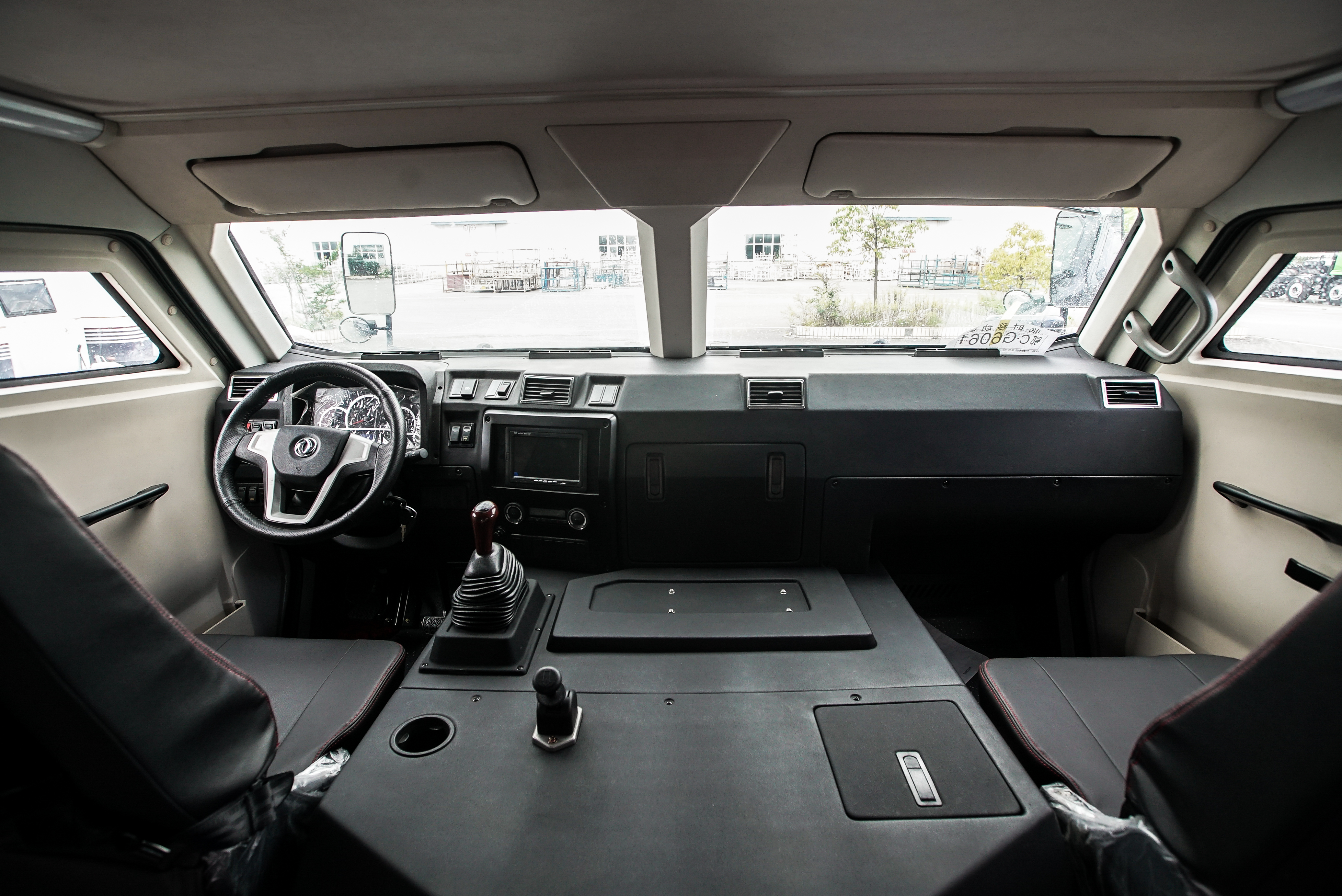

-The combined instrument panel is an integrated design, with a humanized layout of switch buttons for easy and fast operation.
-The color matching of the vehicle interior is scientific and reasonable, simple and elegant.
-The internal space is reasonably laid out and utilized to accommodate more equipment or on-board supplies.
-The vehicle adopts automatic heating and cooling air conditioning, which can meet the needs of different harsh environmental climates.
5.Deformation ability
-According to different combat missions, it is equipped with different weapons and equipment, and can be transformed into personnel carriers, communications and command vehicles, patrol vehicles, reconnaissance vehicles, field medical ambulances and transport vehicles, etc. -Personalized vehicles and special transportation vehicles can be customized according to user needs.
| Basic information | |
| drive | 4*4 |
| direction | left rudder |
| Chassis size | / |
| Vehicle size | 6085*2475*2520mm |
| total mass | 9000kg |
| curb weight | 7500kg |
| Chassis configuration | |
| cab | Long head, air-conditioned |
| Number of seats | 2~14 people |
| Wheelbase | 3700mm |
| Frame | / |
| engine | Cummins ISDe210 40 |
| Gearbox assembly | Manual 6 speed |
| transfer case assembly | Full-time drive, high range: 0.91; low range: 2.08; with high and low range switch |
| Maebashi | 4T |
| rear axle | 5T |
| tank | 230L |
| circuit | 24V circuit system |
| suspension system | leaf spring |
| Braking method | Air brake |
| tire | 365/80R20(6+1) |
| Bodywork configuration | |
| Tops | / |
| engine | |
| engine | Cummins ISDe210 40 |
| horsepower | 210 |
| emission | Country 4 |
| Displacement | 6.7L |
| Number of cylinders | 6 |
| Output power | 155kw |
| Torque | 800N.m |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 120km/h |
| approach angle | 50° |
| departure angle | 47° |
| Wheelbase | 2040/2035mm |
| ground clearance | 300mm |
| gradeability | 60% |
| standing slope | 40% |
| turning radius | ≤16m |
| trench width | ≥70mm |
| wading | 1200mm |
| Overcome obstacles | 450mm |
| other | |
| other | Fire extinguishers, vehicle tools |
