EQ2050 is the first-generation Warrior 1.5-ton high-mobility 4×4 military off-road vehicle completely independently developed by DF Automobile. The project was established in 2002. All 15 combat technical indicators surpassed the US military Hummer in 12 items. In 2008, it won the first prize of the National Science and Technology Progress Award. It is my country's third-generation light tactical off-road platform.

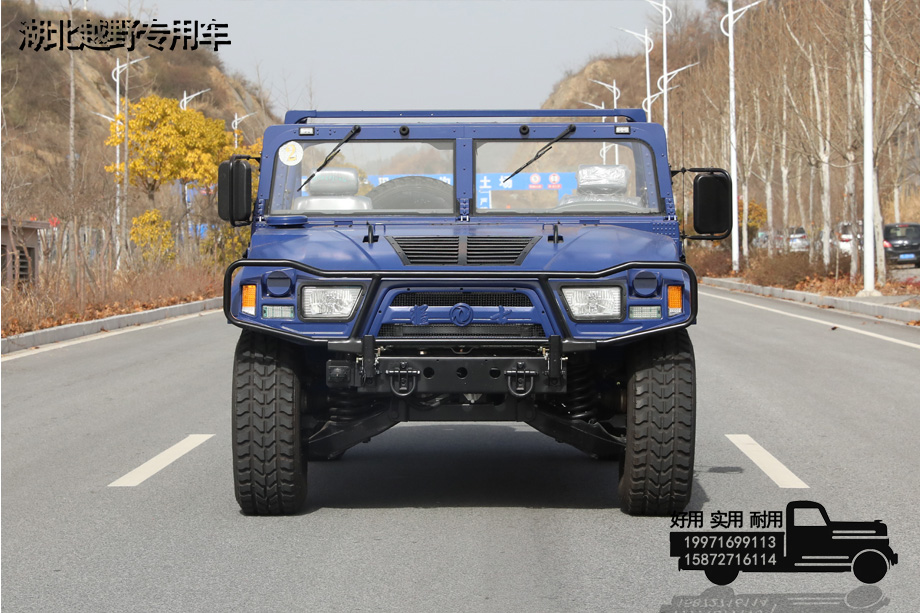

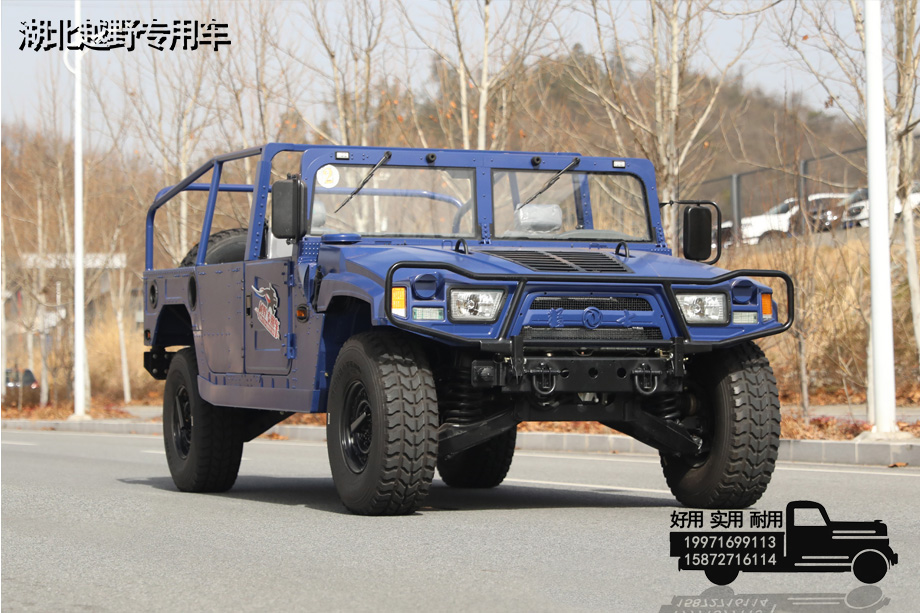

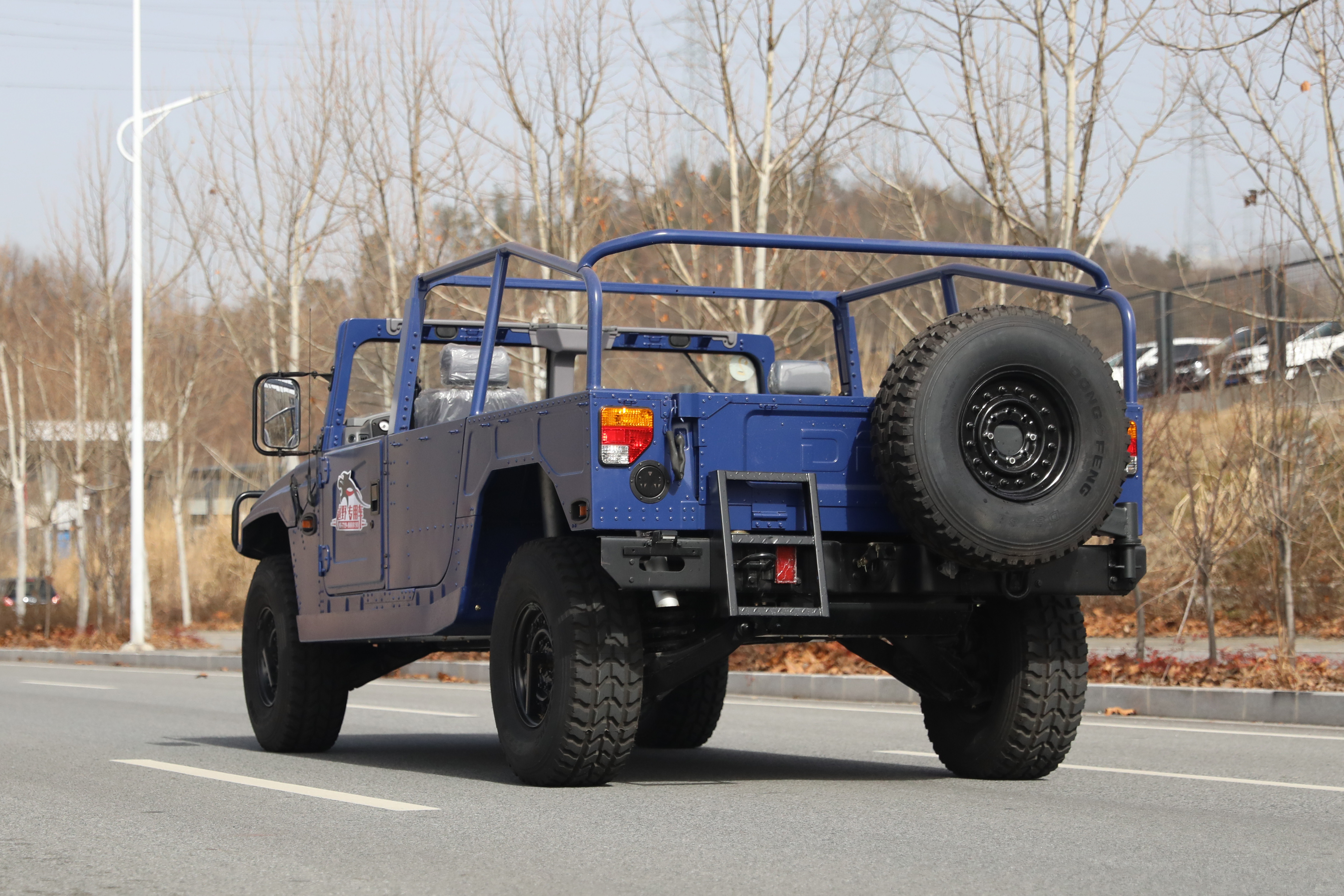

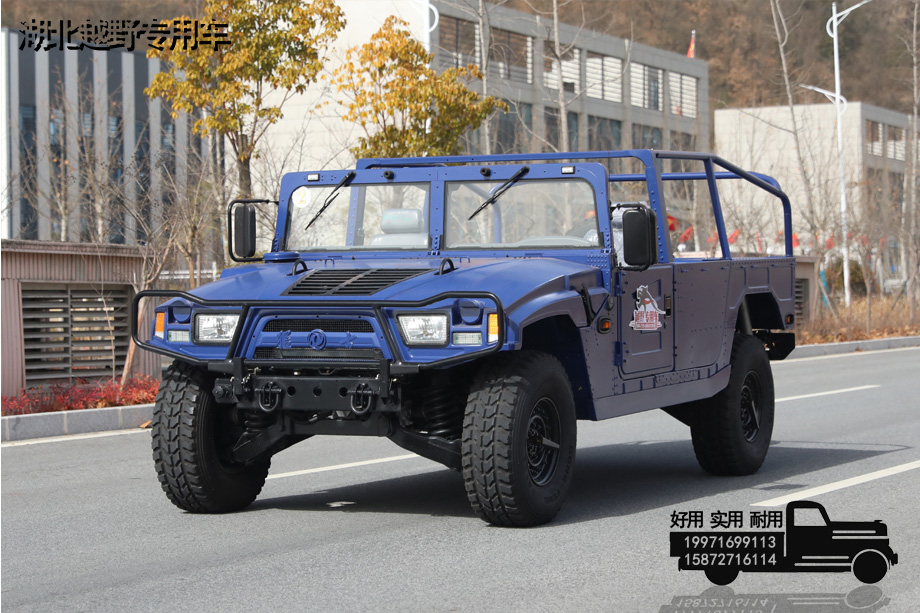

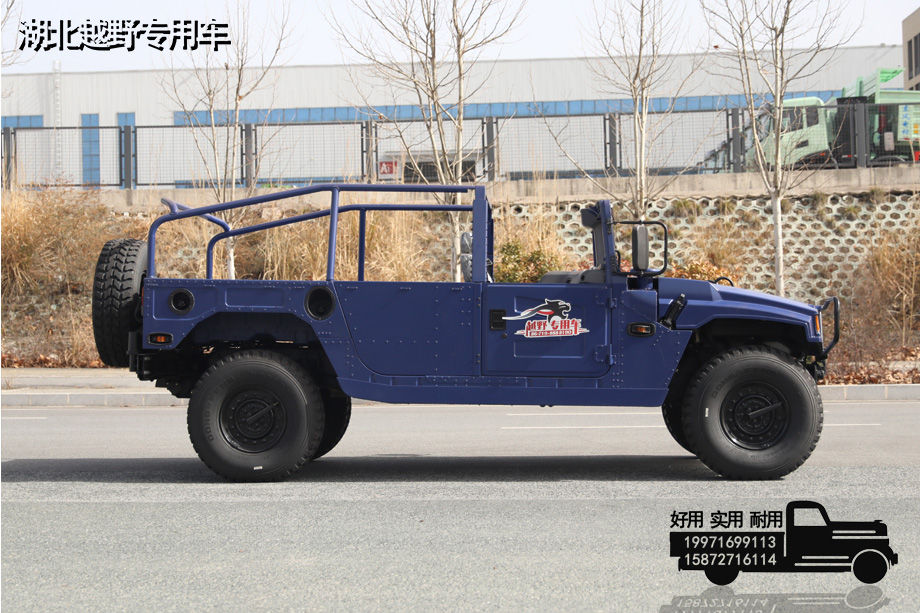

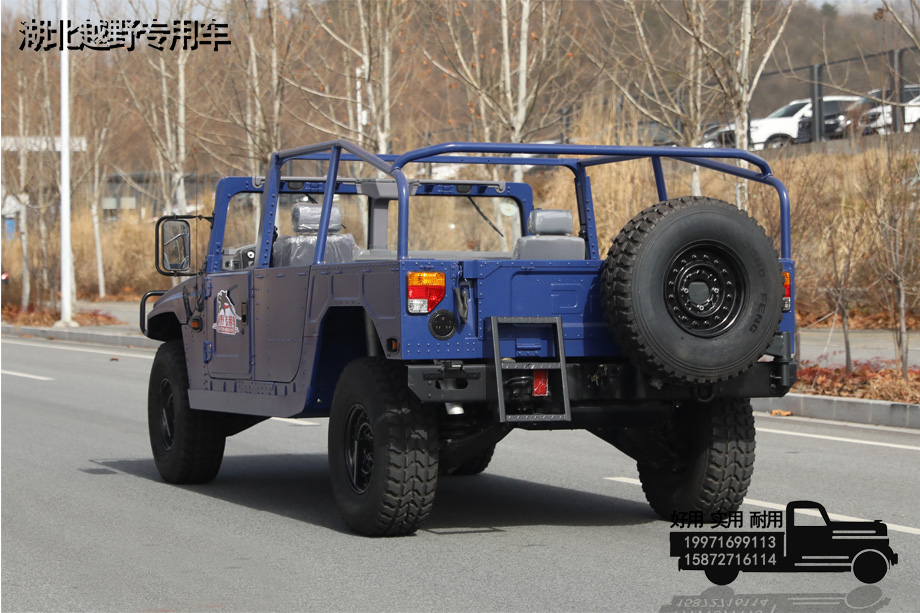

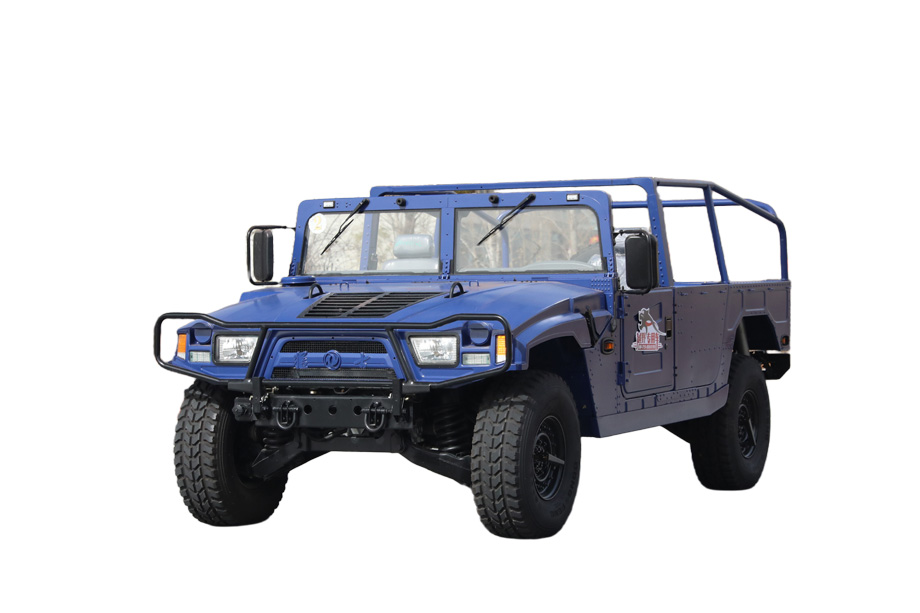

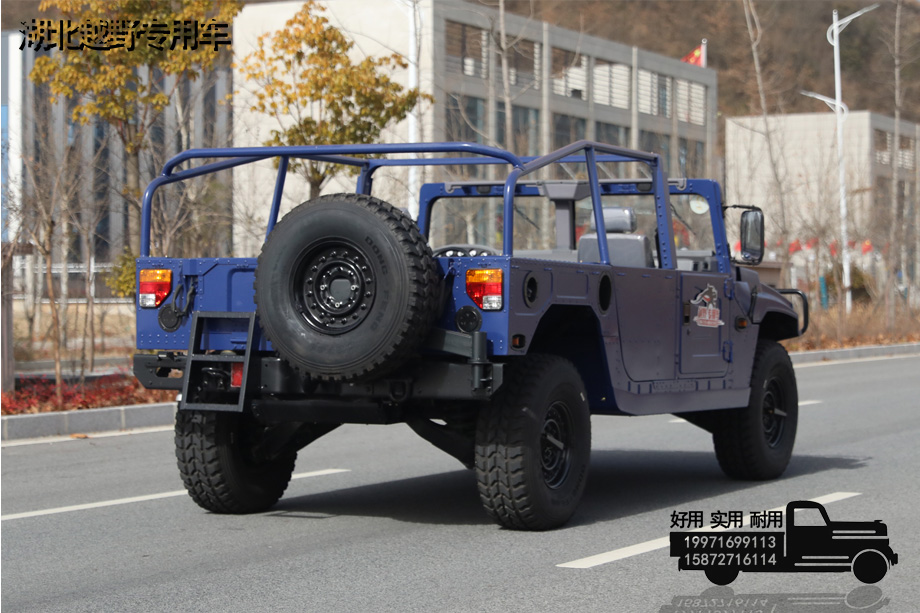

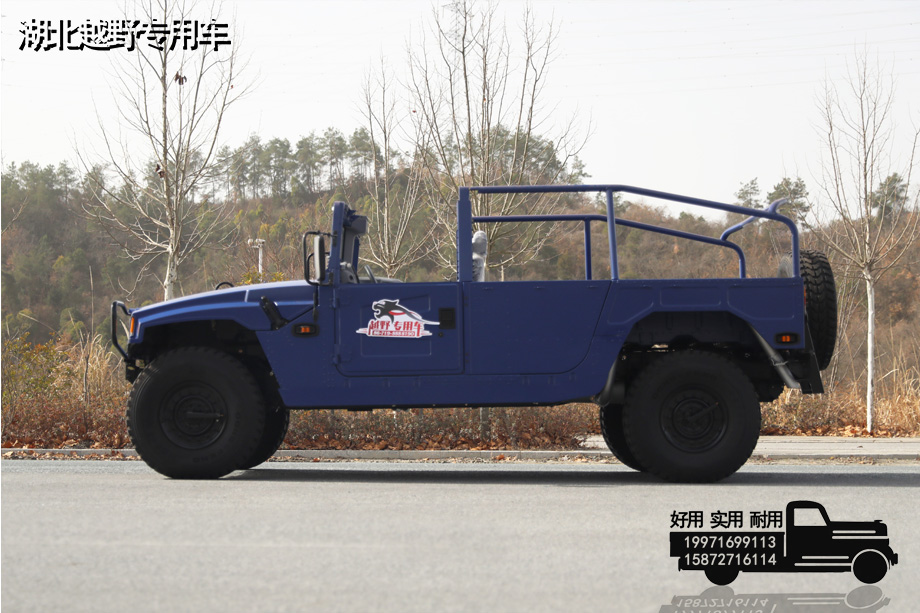

The single-row open-top parade model is based on the specially modified EQ2050 single-row soft-top chassis and is specially built for national-level military parades, troop reviews, and chiefs' inspection missions. It made its first large-scale appearance in the 60th anniversary of the National Day in 2009. Since then, it has been installed in batches in all major military parades. It is used as a formation guide vehicle, a special vehicle for generals' review, and a battle flag carrier. It is an iconic model of domestic military review vehicles.
| Basic information | |
drive | 4*4 |
| direction | Left rudder/right rudder |
| Overall vehicle size (mm) | 5995*2210*1995 |
| Total mass (kg) | 5000 |
| Curb weight (kg) | 3235 |
| Loading mass (kg) | 1500 |
| engine | |
| engine | DFCummins B150-20 |
| horsepower | 150 |
| emission | Country 2 |
| Number of cylinders | 4 |
| Displacement(L) | 3.92 |
| Output power (kw) | 110 |
| Torque(Nm) | 502 |
| Fuel type | diesel fuel |
| Chassis configuration | |
| Wheelbase (mm) | 3300 |
| Frame (mm) | Ladder frame structure, box longitudinal beam section |
| Gearbox assembly | Manual 5 speed |
| transfer case assembly | High and low gears |
| Front axle (T) | 2 |
| Middle Bridge (T) | / |
| Rear axle (T) | 3 |
| Fuel tank (L) | Chief and deputy 76/39 |
| circuit | 24V |

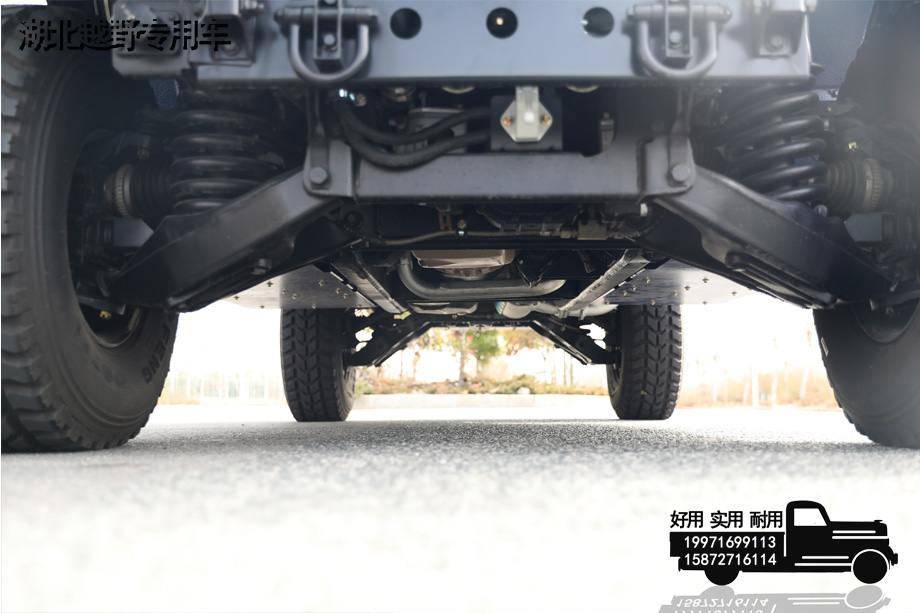

| suspension system | independent suspension |
| Braking method | disc brake |

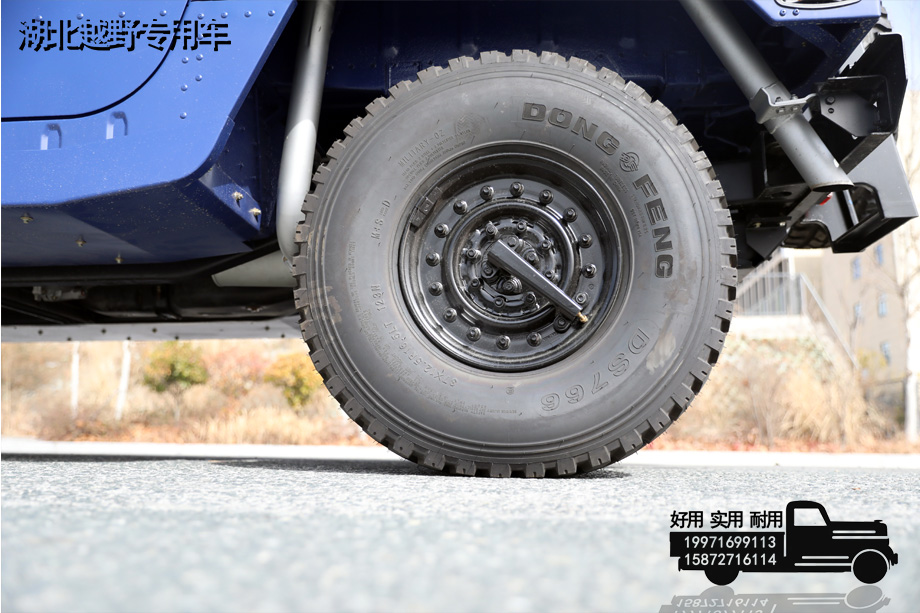

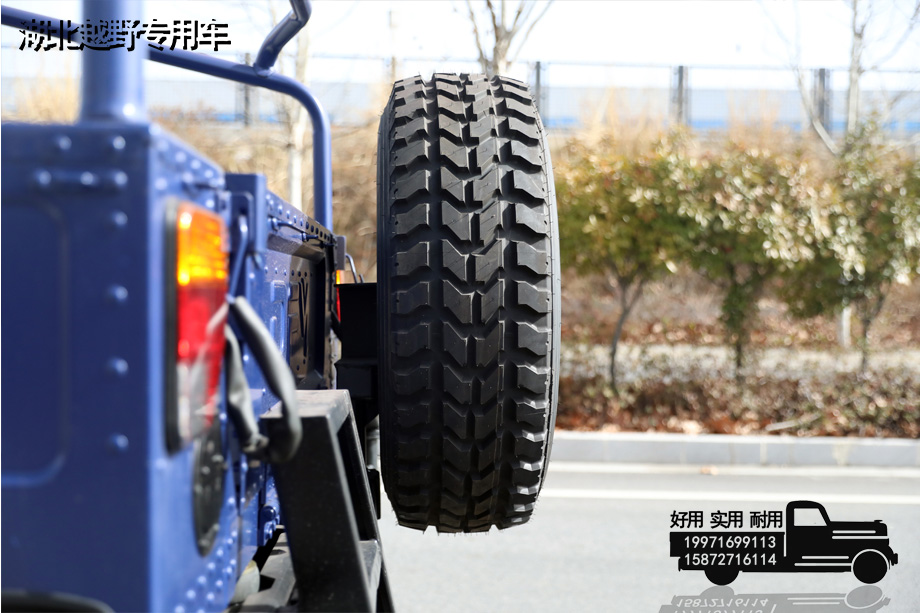

| tire | 37×12.5R16.5 |
| Bodywork configuration | |

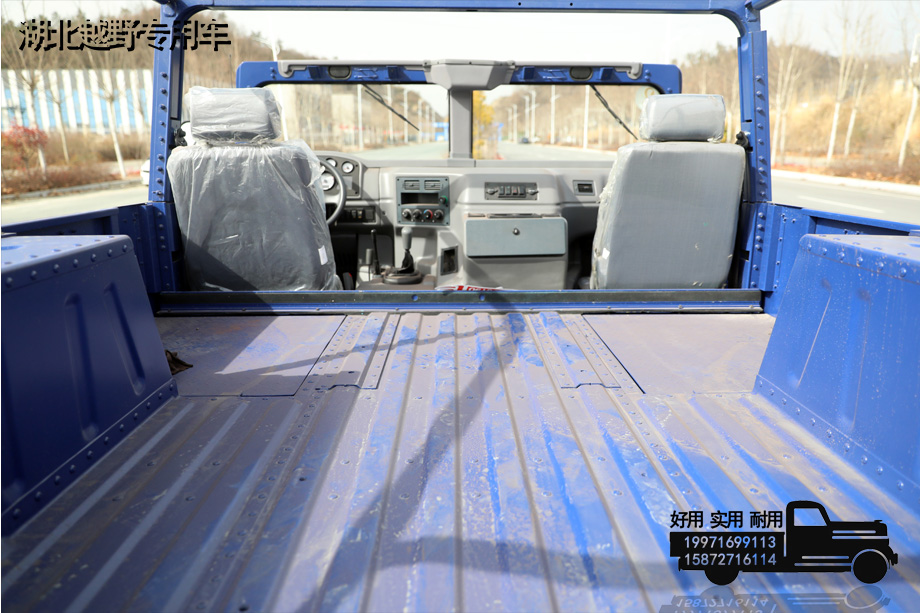

| Cargo box inner dimensions | 2080*2150*380mm |
| Performance parameters | |
| Vehicle speed (km/h) | 105 |
| Wading depth (mm) | 750 (can be retrofitted to 1200) |
| Obstacle clearance height (mm) | 450 |
| Approach angle (°) | 72 |
| Departure angle (°) | 45 |
| ambient temperature | -41℃-46℃ |
| Wheelbase (mm) | 1820 |
| Turning diameter (m) | 15 |
| Trench width (mm) | 700 |
| Ground clearance (mm) | 410 |
| Fuel (L/100km) | 19 |
| Gradient (%) | 60 |
| Slope holding ability (%) | 40 |
| other | |
| other | Optional winch |
