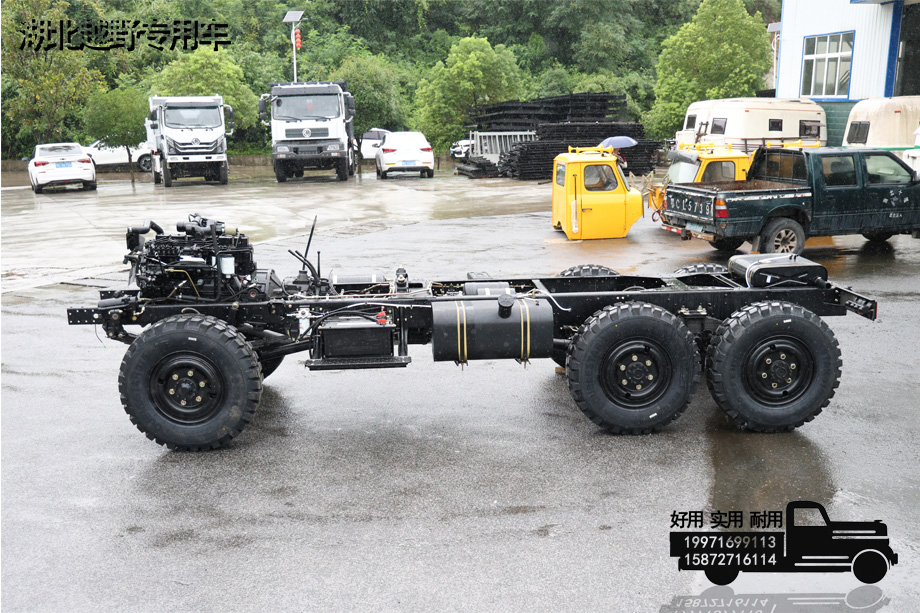

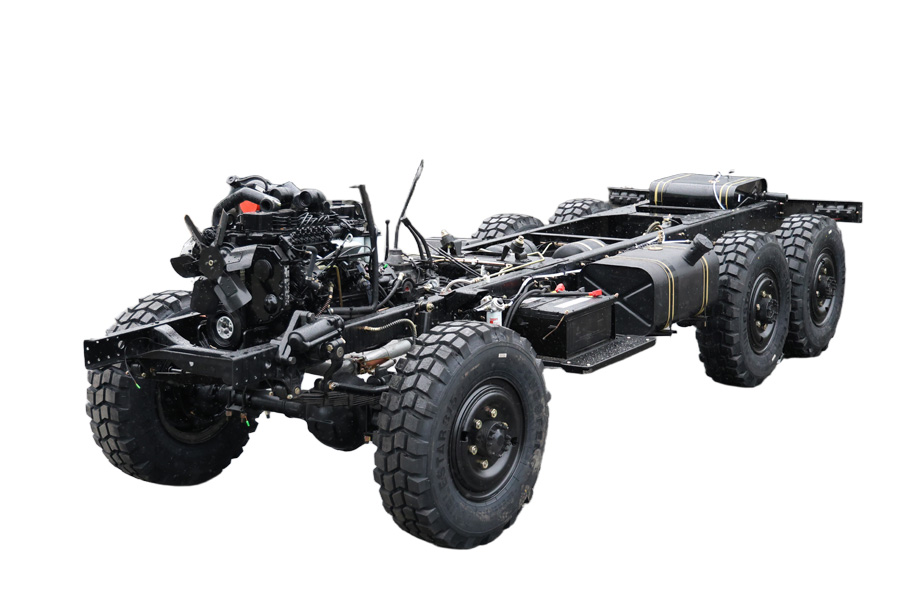

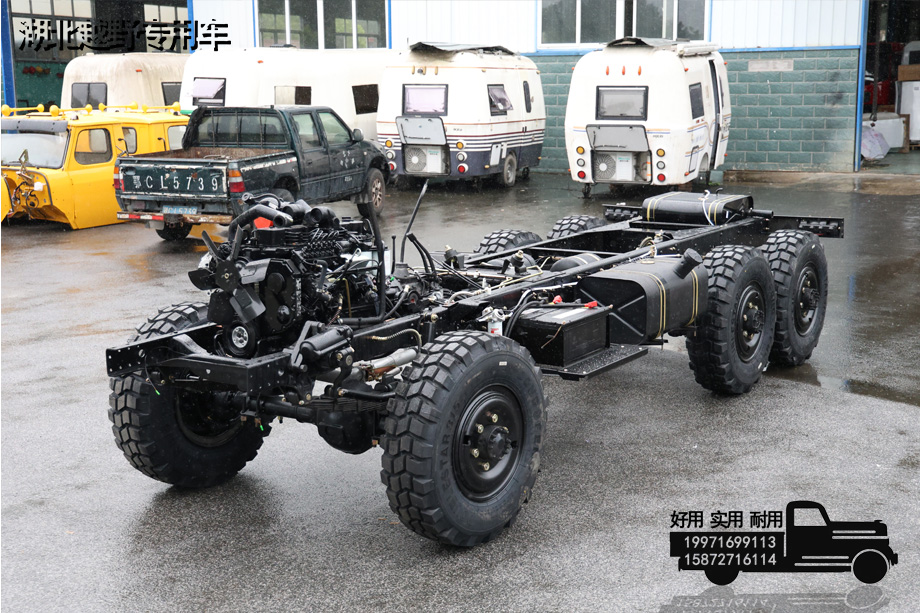

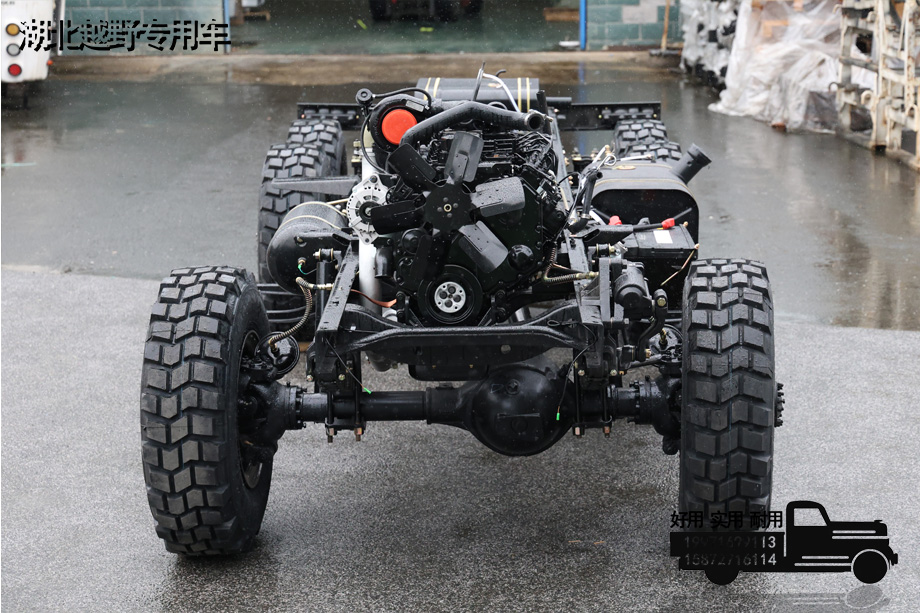

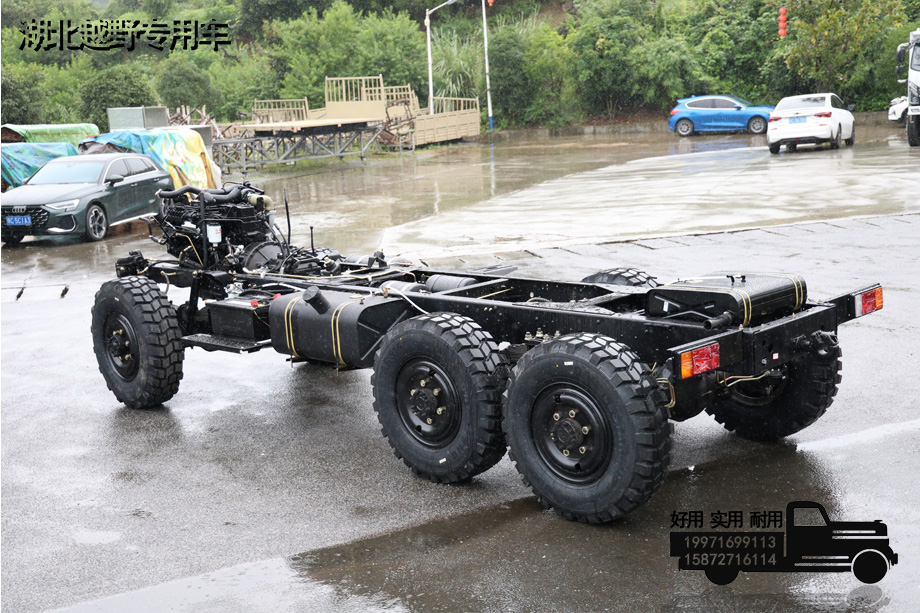

DF EQ2082 is a Category III special modified chassis derived from the classic long-nose pointed 6×6 part-time six-wheel drive Category II chassis. It is commonly known as a two-and-a-half-ton off-road chassis. It is developed based on mature military off-road assembly and is specially designed for upper body modification. The chassis has a complete modification installation interface reserved. It is widely used in modified operation vehicles such as special equipment, firefighting, engineering, exploration, and communication shelters.
This type III chassis only retains the basic driving assembly and does not have the original cargo box. Sufficient installation space and mounting holes are reserved on the beam, making it suitable for installing shelters, water tanks, equipment cabins, engineering machinery and other tops. The vehicle has a mature structure, versatile accessories, and simple maintenance. It has long been used as the basic chassis for special vehicle modifications in field engineering, forest firefighting, emergency rescue, geological exploration, and communication support. It can also be used to modify special vehicles for export.
| Basic information | |
| drive | 6*6 |
| direction | left rudder |
| Chassis size | Length: 6005mm |
| total mass | 7800kg |
| Chassis configuration | |
| Wheelbase | 3190+1100mm |
| Frame | 860*232mm |
| engine | / |
| Gearbox assembly | Manual 5 speed |
| transfer case assembly | High and low gears |
| Maebashi | 2.5T |
| middle bridge | 2.5T |
| rear axle | 2.5T |
| tank | 160L |
| circuit | 24V circuit system |
| suspension system | Leaf spring 9/13 |
| Braking method | Air brake |
| tire | 11R18 (6+1 items) |
| Bodywork configuration | |
| Tops | ≥3700mm |
| Performance parameters | |
| wading depth | 1100mm |
| approach angle | 27° |
| departure angle | 43° |
| front overhang | 1340 |
| Rear suspension | 770 |
| Wheelbase | 1774mm |
| ground clearance | 285mm |
| gradeability | 60% |
| Slope holding ability | 40% |
| other | |
| other | Vehicle tools |





The first step: Negotiate purchase requirements
Customers can inform us of their needs by phone/WeChat or on-site inspection.
Step 2: Customize the plan
The company will recommend corresponding models or customize vehicle configurations according to your needs.
Step Three: Sign the Contract
Both parties sign a vehicle purchase and sale contract and pay the contract deposit in advance (the contract can be signed by fax or in person).
Step 4: Arrange production
Issue production plans and arrange production.
Step Five: Vehicle Completion
After the vehicle is offline for inspection, the remaining balance of the vehicle must be paid and relevant procedures completed.
Step Six: Logistics Departure
Customers can pick up the vehicle from the factory, or negotiate with our company to arrange delivery to a designated location.
other :
1. The company can provide customers with export customs declaration services.
2. Complete after-sales service station to solve your worries!
