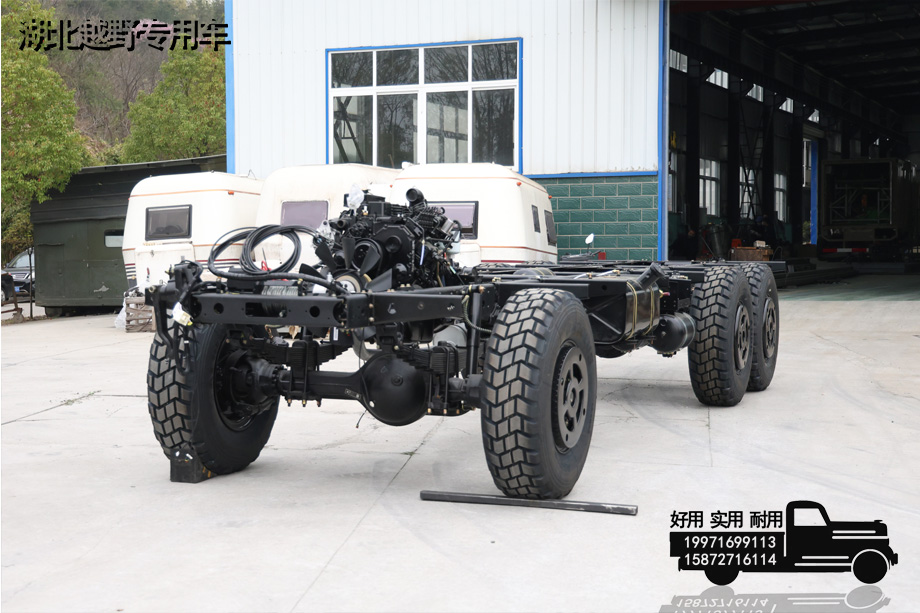

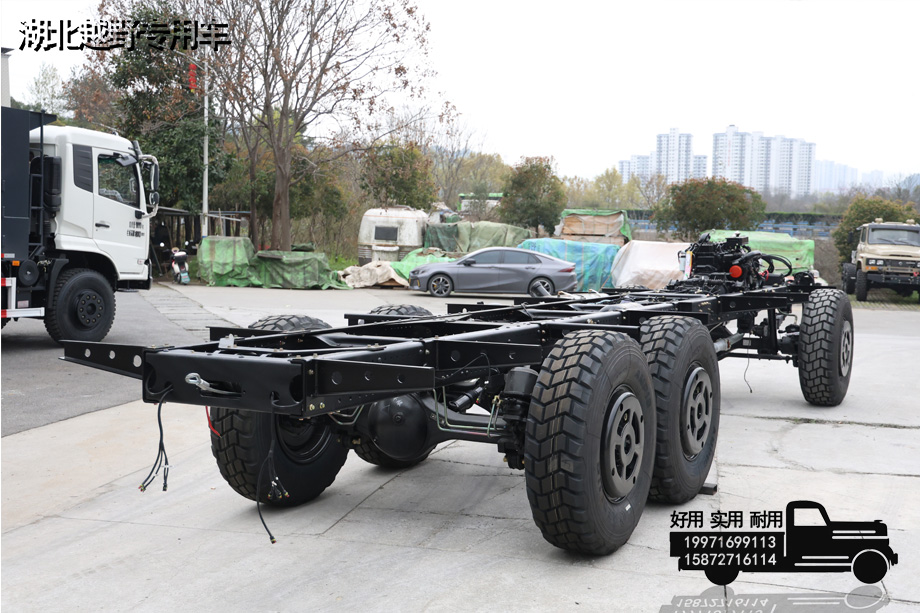

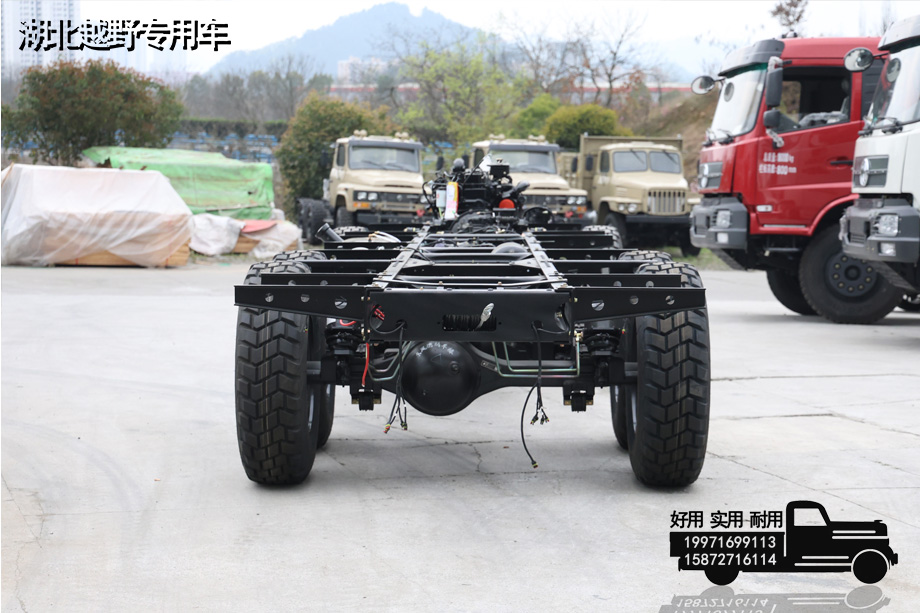

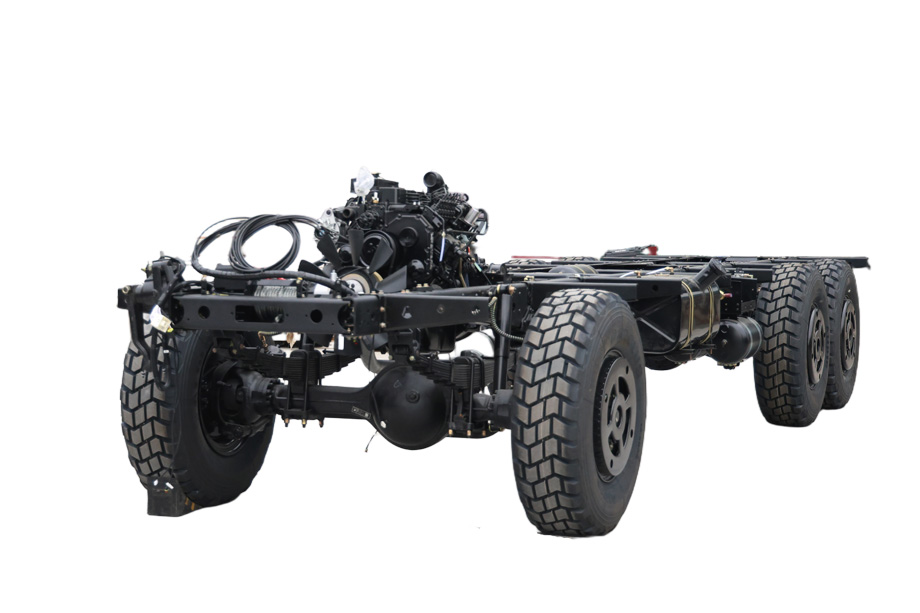

China's DF Automobile Company developed 6×6 off-road chassis. Due to various advantages, the chassis is often used to modify it into greening sprinkler trucks, dump trucks, garbage trucks, van transporters, Bus, minibuses, etc., which are also best-selling models for export.
| Basic information | |
| drive | 6*6 |
| direction | Left rudder/right rudder |
| Vehicle size | 9470*2280*3400mm (Bus size) |
| total mass | 10850kg |
| Chassis configuration | |
| Wheelbase | 4600+1300mm |
| Frame | 860*232mm |
| engine | Cummins B210 33 |
| Gearbox assembly | Manual 8-speed, Fast 8JS 85E |
| transfer case assembly | High and low gears |
| Maebashi | 3.5T |
| middle bridge | 3.5T |
| rear axle | 3.5T |
| tank | 160L (can be increased according to space location) |
| circuit | 24V circuit system |
| suspension system | Leaf spring10/12 |
| Braking method | Air brake |
| tire | 12.5R20 (6+1) |
| Bodywork configuration | |
| cargo box | / |
| engine | |

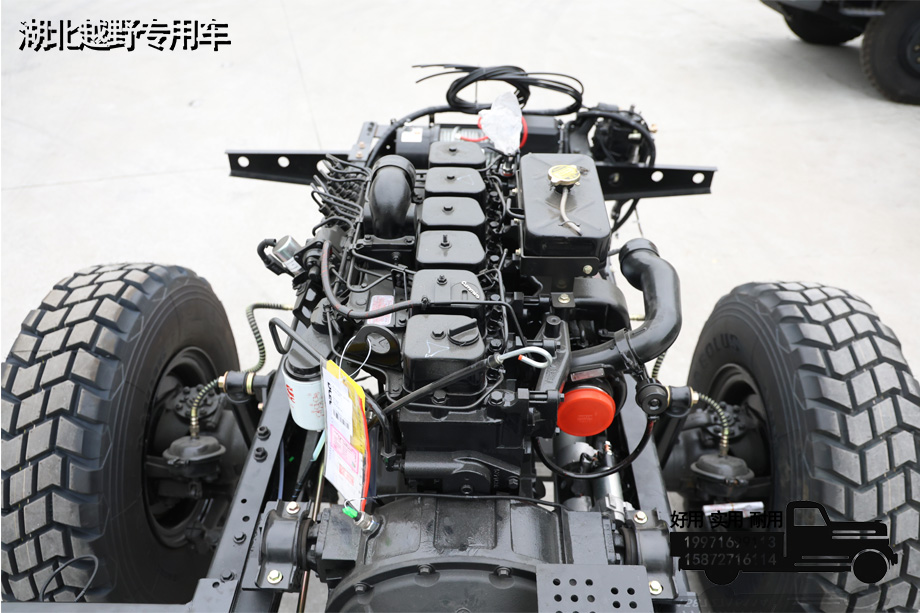

| engine | Cummins B210 33 |
| horsepower | 210 |
| emission | National Three |
| Displacement | 5.6L |
| Number of cylinders | 6 |
| Output power | 155kw |
| Torque | 700N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 90km/h |
| wading depth | 620mm |
| Wheelbase | 1970mm |
| ground clearance | 340mm |
| Obstacle clearance height | 490mm |
| gradeability | 60% |
| other | |
| other | Vehicle tools |







The first step: Negotiate purchase requirements
Customers can inform us of their needs by phone/WeChat or on-site inspection.
Step 2: Customize the plan
The company will recommend corresponding models or customize vehicle configurations according to your needs.
Step Three: Sign the Contract
Both parties sign a vehicle purchase and sale contract and pay the contract deposit in advance (the contract can be signed by fax or in person).
Step 4: Arrange production
Issue production plans and arrange production.
Step Five: Vehicle Completion
After the vehicle is offline for inspection, the remaining balance of the vehicle must be paid and relevant procedures completed.
Step Six: Logistics Departure
Customers can pick up the vehicle from the factory, or negotiate with our company to arrange delivery to a designated location.
other :
1. The company can provide customers with export customs declaration services.
2. Complete after-sales service station to solve your worries!
