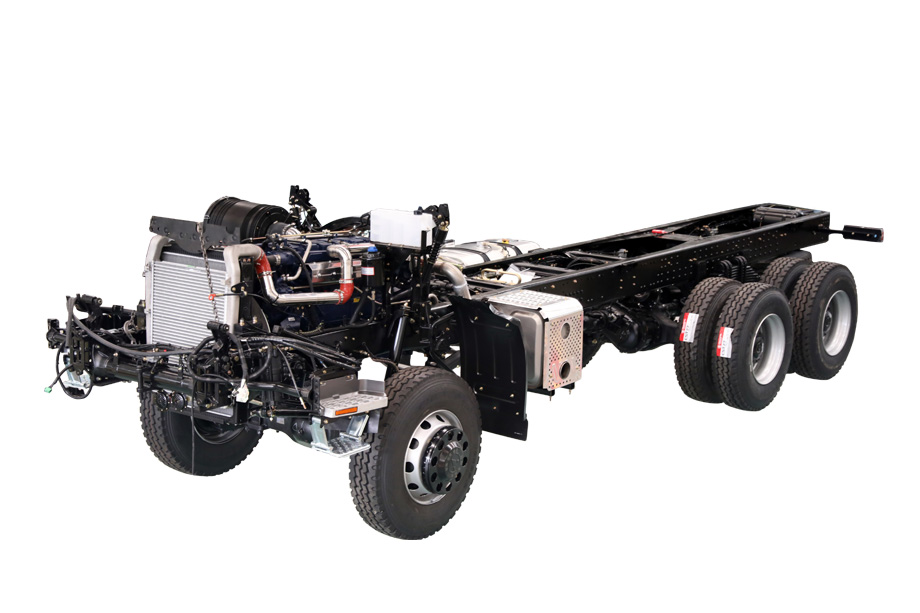

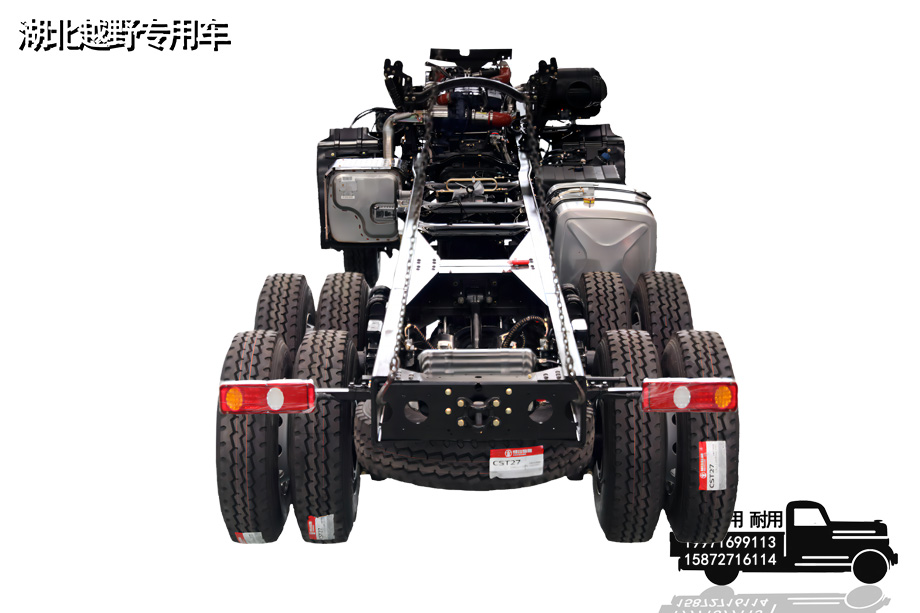

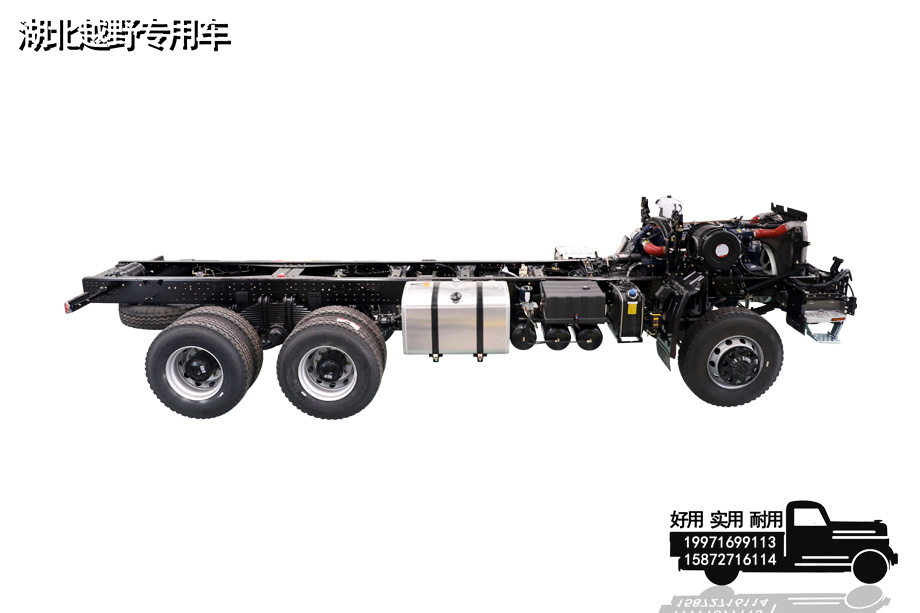

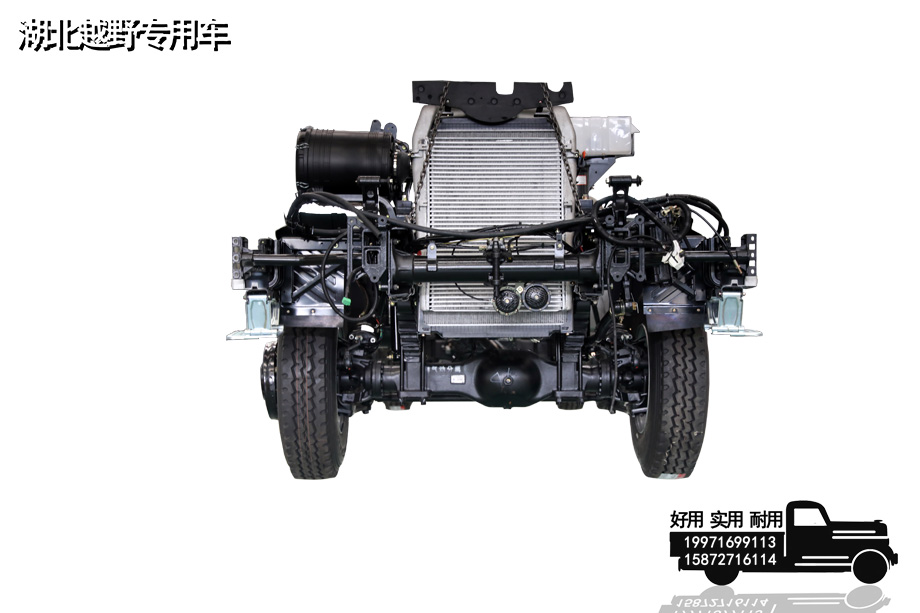

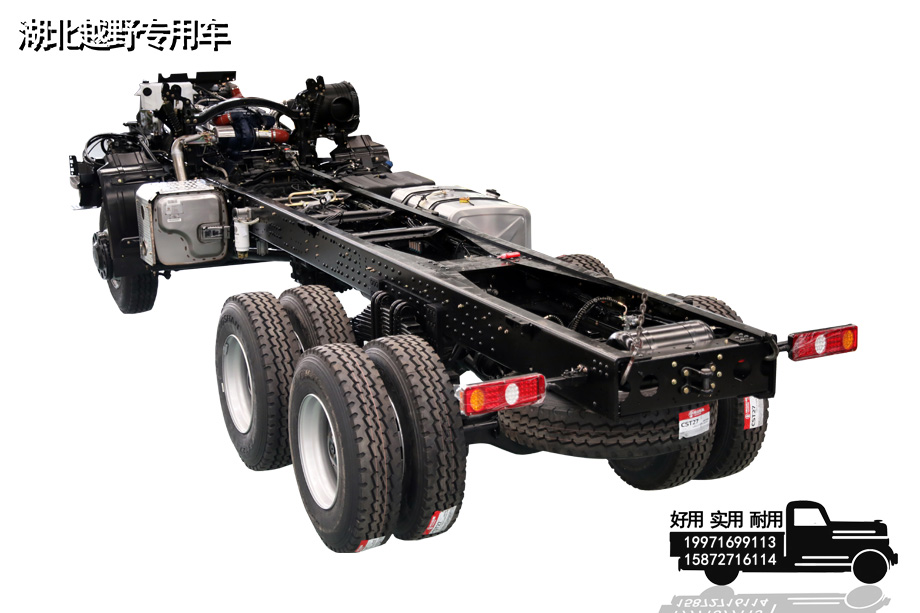

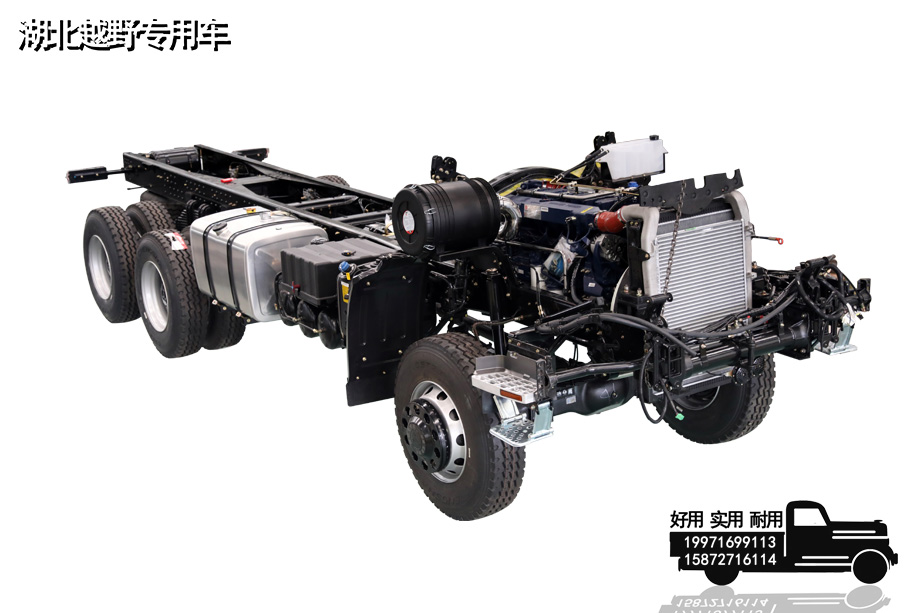

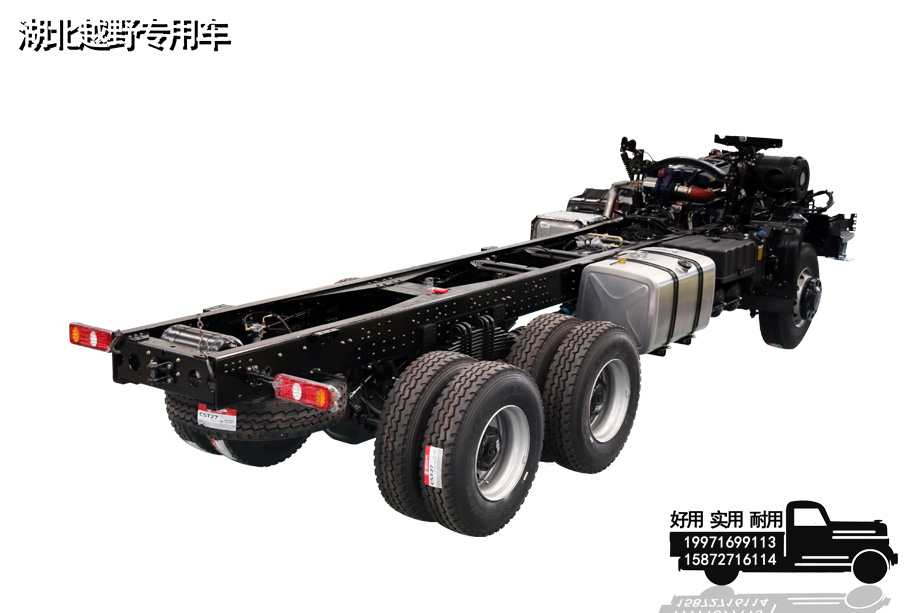

The 6×6 Category III special chassis is an all-wheel drive, highly adaptable heavy-duty special modified chassis. It is a basic supporting chassis for special vehicles. It retains the complete frame, walking, power and transmission systems, and has no bodywork configuration. It can meet the installation and modification needs of various special equipment, and is widely adapted to special vehicle modification scenarios such as engineering operations, emergency rescue, and field operations.
The chassis adopts a six-wheel all-wheel drive structure, is equipped with a high-power diesel engine, and is matched with a multi-speed manual transmission. It has sufficient power reserve, high transmission efficiency, and excellent starting and climbing performance. The chassis is equipped with a high-strength overall frame, special off-road suspension, large-pattern off-road tires, and large-loading front and rear drive axles. It has strong load-bearing capacity and excellent shock absorption performance. It can easily adapt to complex and harsh road conditions such as mud, sand, mountain roads, and mining areas. Its passability and stability are far superior to ordinary chassis.
The overall design adopts a modular design, with a regular structure, sufficient space reserved for modification, and standardized interfaces to facilitate the later installation of cargo boxes, tooling equipment, rescue devices, etc. At the same time, the chassis has the characteristics of good low-temperature starting performance, low failure rate, strong durability, wide adaptability to working conditions, and outstanding reliability and practicality. It is the core basic chassis for heavy-duty special purpose vehicle modification.
| Basic information | |
| drive | 6*6/6*4 |
| direction | Left rudder/right rudder |
| Chassis size | Category II chassis 8508*2520*3300mm (the widest point is the edge of the rear wheel) |
| total mass | 25000kg |
| curb weight | /kg |
| Chassis configuration | |
| cab | Flat head, one and a half rows, with air conditioning |
| Number of seats | 3 people |
| Wheelbase | 4140+1400mm |
| Frame | 860*300(8+8)mm |
| engine | Weichai WP10.350E52/Yuchai YC6L340-33/Cummins C280 33 |
| Gearbox assembly | Manual 10 gear |
| transfer case assembly | High and low gears |
| Maebashi | 7T |
| middle bridge | 13T |
| rear axle | 13T |
| tank | 400L (can be made as large as possible according to space location) |
| circuit | 24V circuit system |
| suspension system | Leaf spring 9/10 |
| Braking method | Air brake |
| tire | 12R22.5 (10+1) |
| Bodywork configuration | |
| Tops | Category II chassis＞5900mm |
| engine | |
| engine | Weichai WP10.350E52 |
| horsepower | 350 |
| emission | Country 5 |
| Displacement | 9.726L |
| Number of cylinders | 6 |
| Output power | 257kw |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 90km/h |
| approach angle | 18° (Class II chassis) |
| departure angle | 25° (Class II chassis) |
| front/rear suspension | 1383/1585mm (Class II chassis) |
| Wheelbase | 1910/1810/1880mm |
| ground clearance | 340mm |
| Obstacle clearance height | 530mm |
| Wading height | 700mm |
| The upper plane of the frame is off the ground | 1278mm |
| gradeability | 60% |
| standing slope | 40% |
| other | |
| other | Fire extinguishers, vehicle tools |
