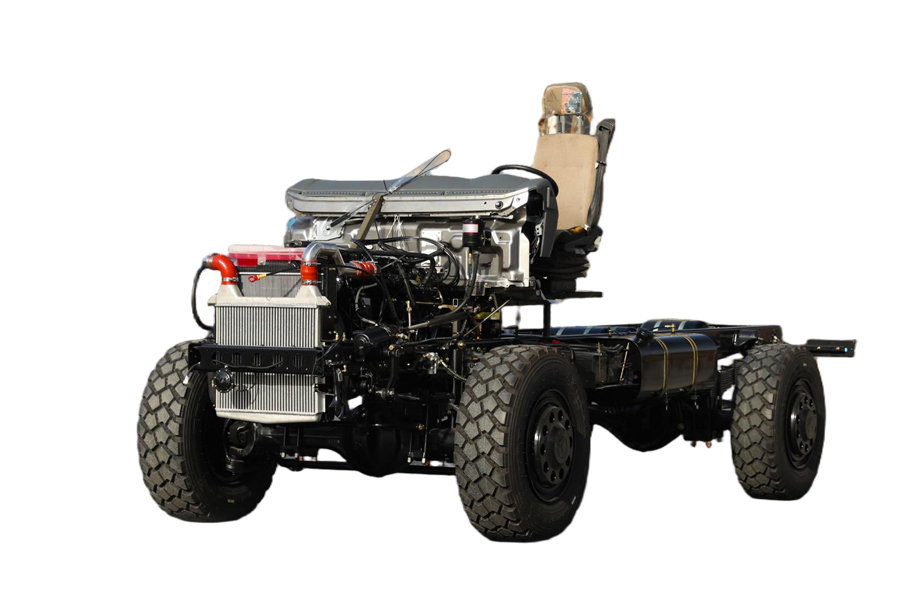

The biggest feature of this Category III chassis is its stable performance, which makes it favored by countries all over the world. All parts and components adopt DF process standards, which are durable and have excellent off-road performance. It is a best-selling model for export.
| Basic information | |
| drive | 4*4 |
| direction | Left rudder/right rudder |
| Chassis size | 6690*2440*2770mm (ground to seat) |
| total mass | 16000kg |
| curb weight | 5150kg |
| Chassis configuration | |
| cab | / |
| Number of seats | 3 people |
| Wheelbase | 3800mm |
| Frame | 860*212mm |
| engine | Cummins ISDe210 30 |
| Gearbox assembly | Automatic 6-speed, double special FC6A140 |
| transfer case assembly | High and low gears |
| Maebashi | 6T |
| rear axle | 10T |
| tank | 200L (can be adjusted according to space location) |
| circuit | 24V circuit system |
| suspension system | Leaf spring 11/12 |
| Braking method | Air brake |
| tire | 365/80R20 (4+1) |
| Bodywork configuration | |
| Tops | / |
| engine | |
| engine | Cummins ISDe210 30 |
| horsepower | 210 |
| emission | National Three |
| Displacement | 6.7L |
| Number of cylinders | 6 |
| Output power | 155kw |
| Torque | 800N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 85km/h |
| approach/departure angle | 26°/32° |
| front/rear suspension | 1220/1670mm |
| Wheelbase | 1990mm |
| ground clearance | 366mm |
| gradeability | 60% |
| Frame off the ground | 1260mm |
| wading | 570mm |
| Overcome obstacles | 570mm |
| other | |
| other | Fire extinguishers, vehicle tools |
