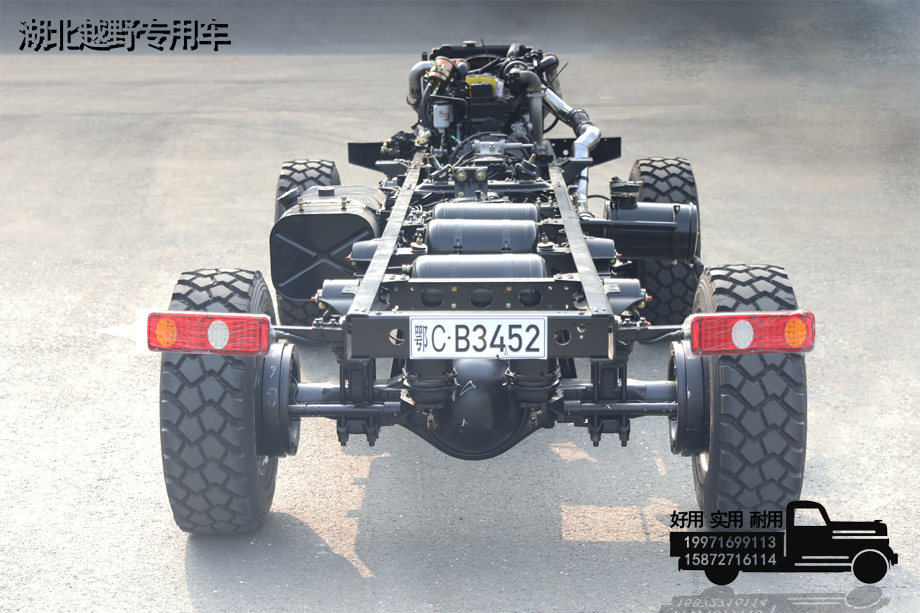

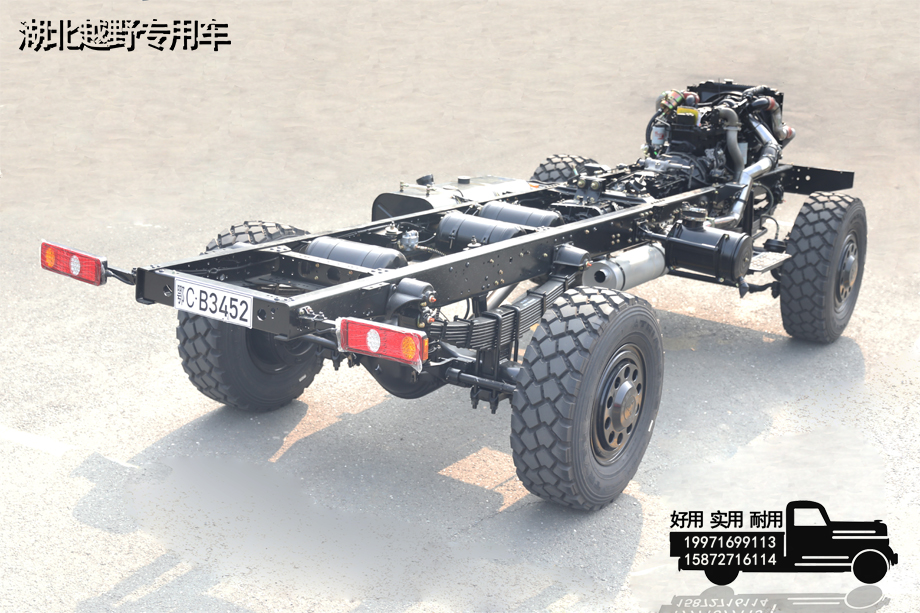

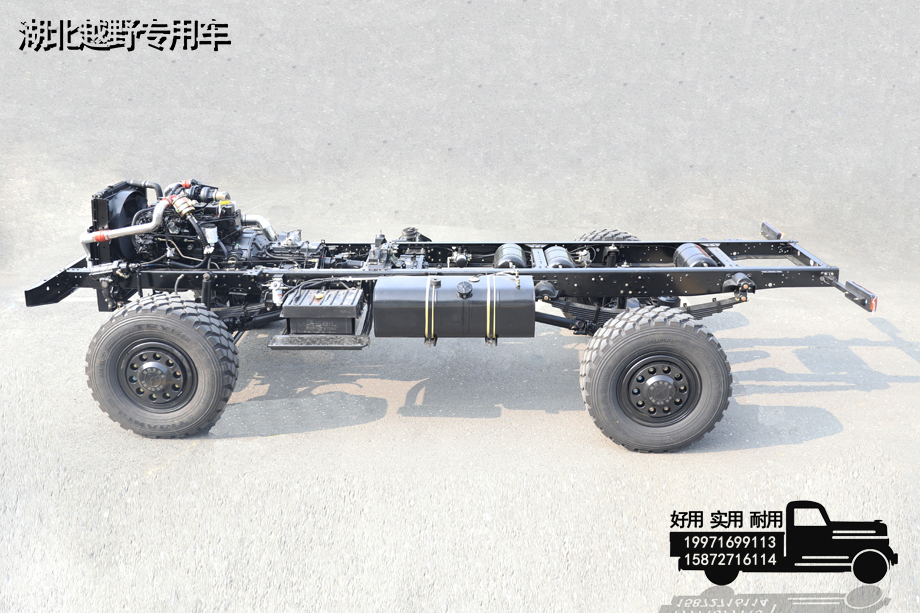

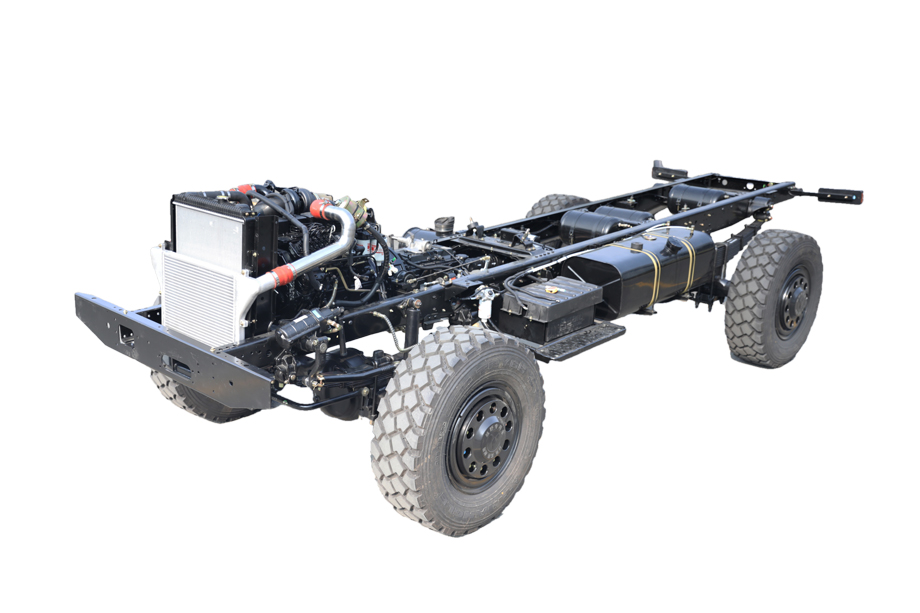

The biggest feature of this type III chassis is its stable performance, which makes it favored by countries all over the world. All parts and components adopt DF process standards, which are durable and have excellent off-road performance. It is a best-selling model for export.
| Basic information | |
| drive | 4*4 |
| direction | Left rudder/right rudder |
| Chassis size | 6480*2530*2710mm (highest point of seat) |
| total mass | 16000kg |
| curb weight | 4360kg |
| Chassis configuration | |
| cab | / |
| Number of seats | 3 people |
| Wheelbase | 3800mm |
| Frame | 860*250mm |
| engine | Cummins B210 33/B170 33/B190 33 |
| Gearbox assembly | Manual 6-speed/5-speed/8-speed |
| transfer case assembly | High and low gears |
| Maebashi | 6T |
| rear axle | 10T |
| tank | 210L (can be increased according to space location) |
| circuit | 24V circuit system |

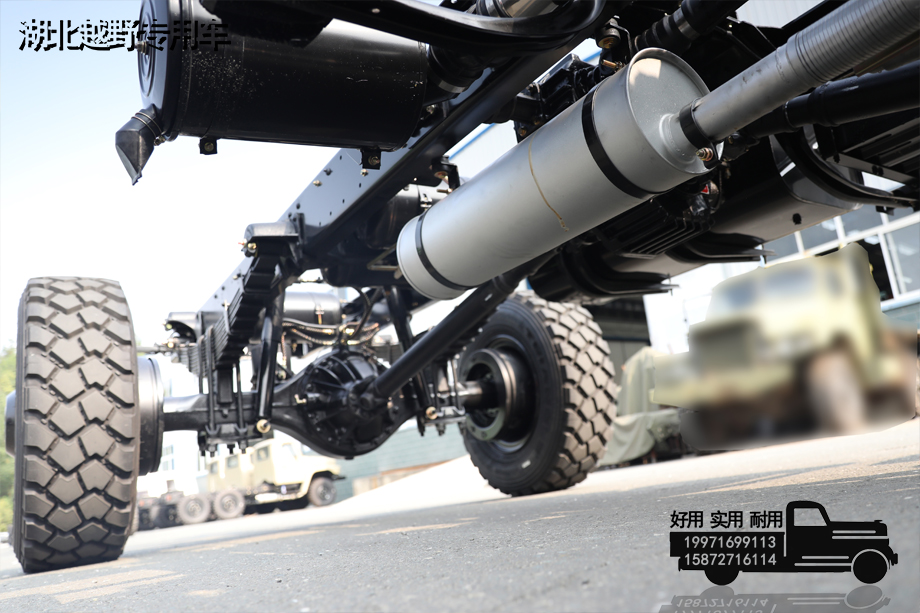

| suspension system | Leaf spring 9/10 |
| Braking method | Air brake |

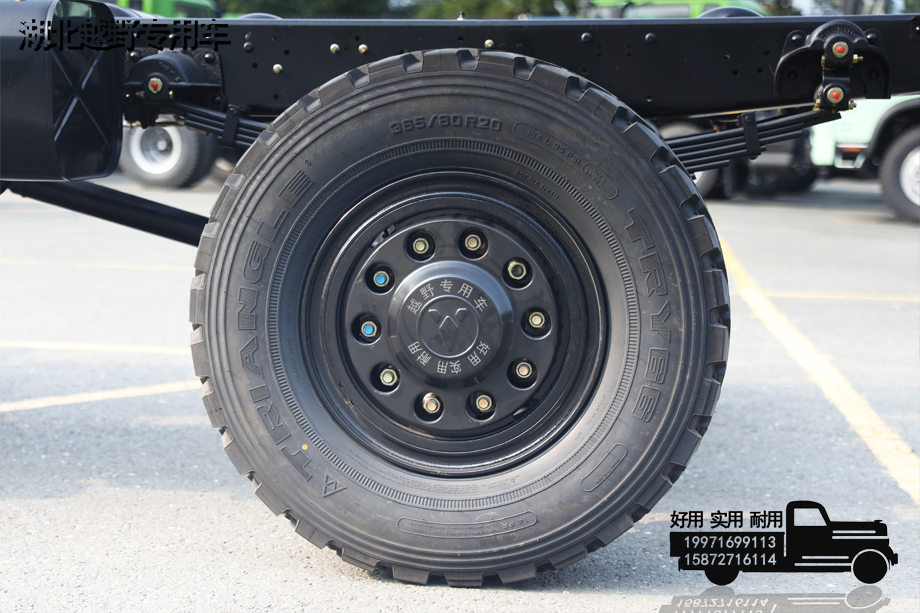

| tire | 365/80R20 (4+1) |
| Bodywork configuration | |
| Tops | / |

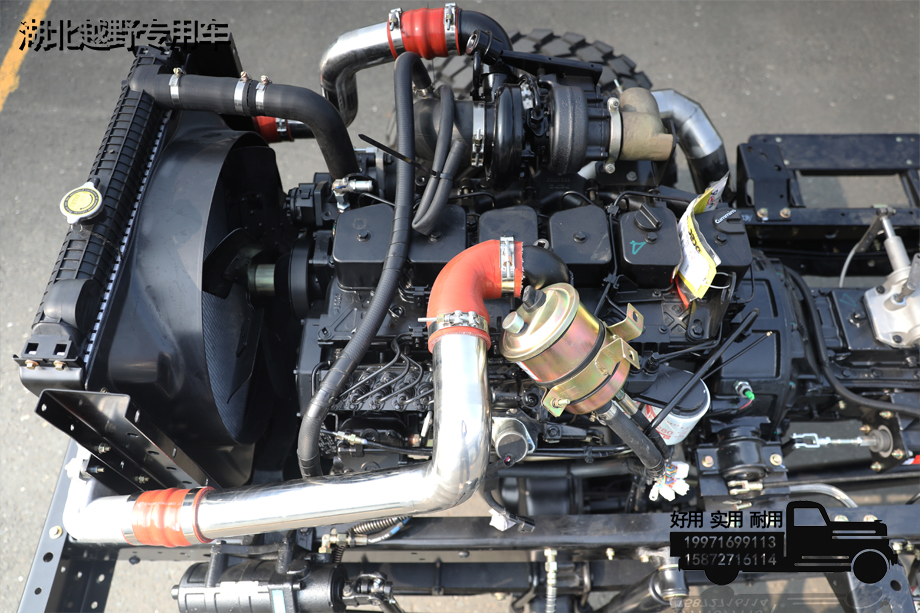

| engine | |
| engine | Cummins B210 33 |
| horsepower | 210 |
| emission | National Three |
| Displacement | 5.9L |
| Number of cylinders | 6 |
| Output power | 155kw |
| Torque | 700N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 87km/h |
| approach/departure angle | 32°/33° |
| front/rear suspension | 1080/1600mm |
| Wheelbase | 2100mm |
| ground clearance | 300mm |
| gradeability | 60% |
| Frame off the ground | 1210mm |
| wading | 675mm |
| Overcome obstacles | 570mm |
| other | |
| other | Fire extinguishers, vehicle tools |
