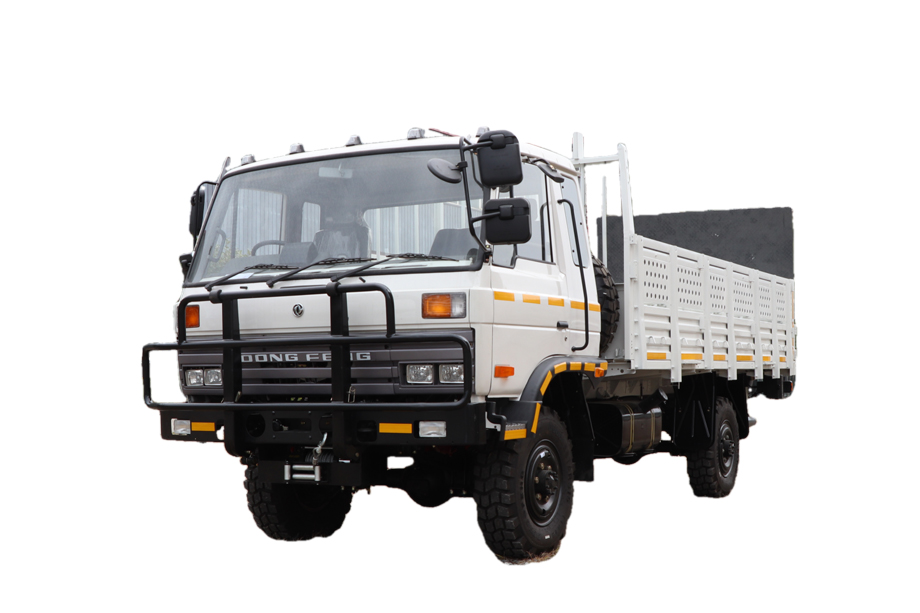

DF The cargo box of the four-wheel drive 2070 hydraulic tailgate truck is 5 meters long, and the tailgate of the cargo box can be opened outwards on both sides. There is an electric lifting platform at the rear of the car with a size of 1800*2340mm, which can bear a maximum load of 1.5 tons. There are fixed seats on the inside of the cargo box (folding seats are optional). This vehicle is mainly used in port terminals, express logistics, furniture distribution and other fields.
| Basic information | |
| drive | 4*4 |
| direction | Left rudder/right rudder |
| Vehicle size | 7800*2500*3050mm |
| total mass | 7910kg |
| curb weight | 5600kg |
| Chassis configuration | |
| Cab | Flat head, one and a half rows, with air conditioning |
| Number of seats | 3 people |
| Wheelbase | 3600mm |
| Frame | 860*232mm |
| engine | Cummins B190 33/B170 33/B210 33 |
| Gearbox assembly | Manual 6-speed/8-speed |
| transfer case assembly | High and low gears |
| Maebashi | 3.6T |
| rear axle | 4.1T |
| tank | 145+70L (can be increased according to space location) |
| circuit | 24V circuit system |
| suspension system | Leaf spring 9/11 |
| Braking method | Air brake |
| tire | 12.5R20 (4+1) |
| Bodywork configuration | |
| Tops | 5000*2300*900mm, 1.5 tons electric hydraulic tailgate |
| engine | |
| engine | Cummins B190 33 |
| horsepower | 190 |
| emission | National Three |
| Displacement | 5.9L |
| Number of cylinders | 6 |
| Output power | 140kw |
| Torque | 640N.m |
| Speed | 2500rpm |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 87km/h |
| approach/departure angle | 23°/17° |
| front/rear suspension | 1210/2080mm |
| Wheelbase | 1876/1860mm |
| ground clearance | 285mm |
| gradeability | 60% |
| standing slope | 40% |
| wading | 1100mm |
| Overcome obstacles | 550mm |
| other | |
| other | Fire extinguishers, vehicle tools |
