EQ2082 off-road special category four chassis_DF Six-wheel drive 2.5-ton chassis design and customization_6×6 three-axle chassis configuration export

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

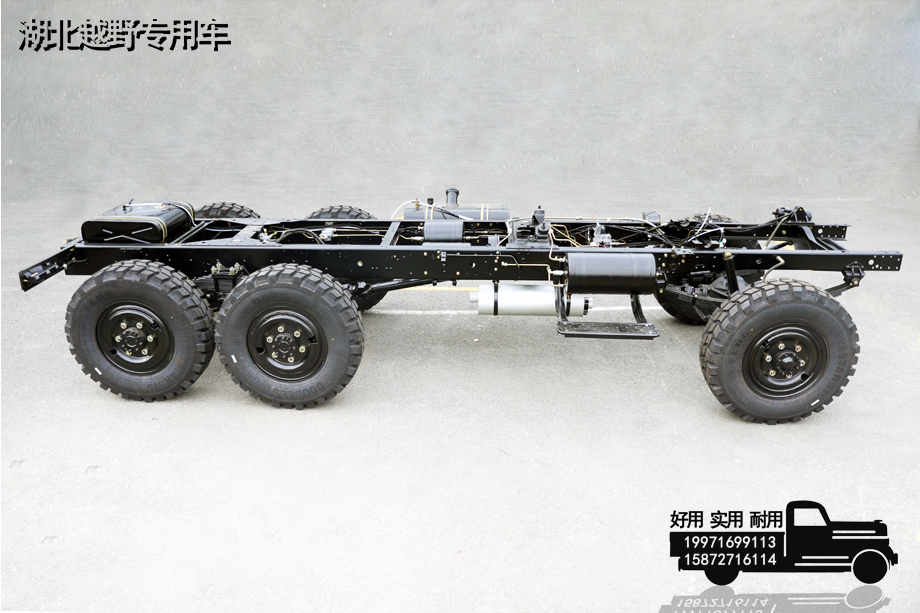

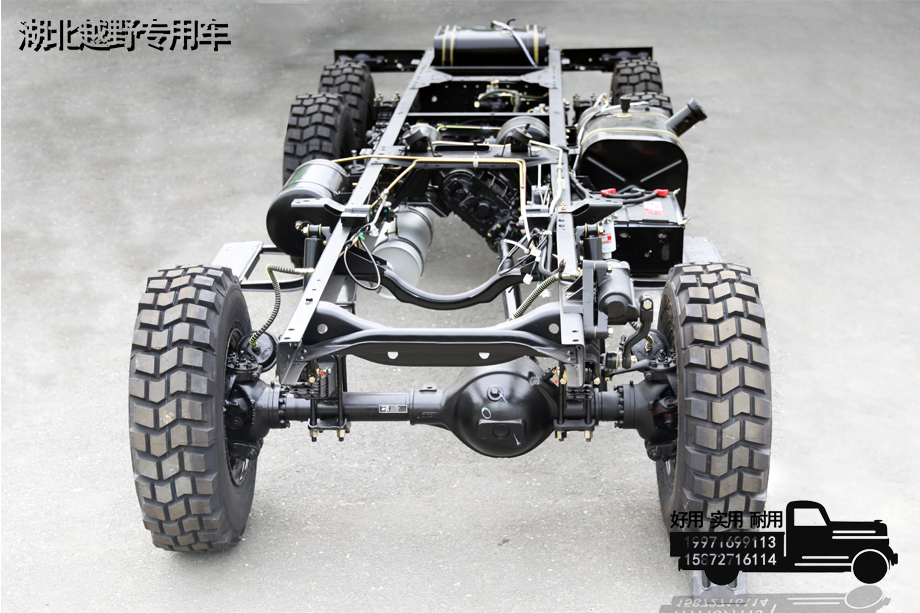

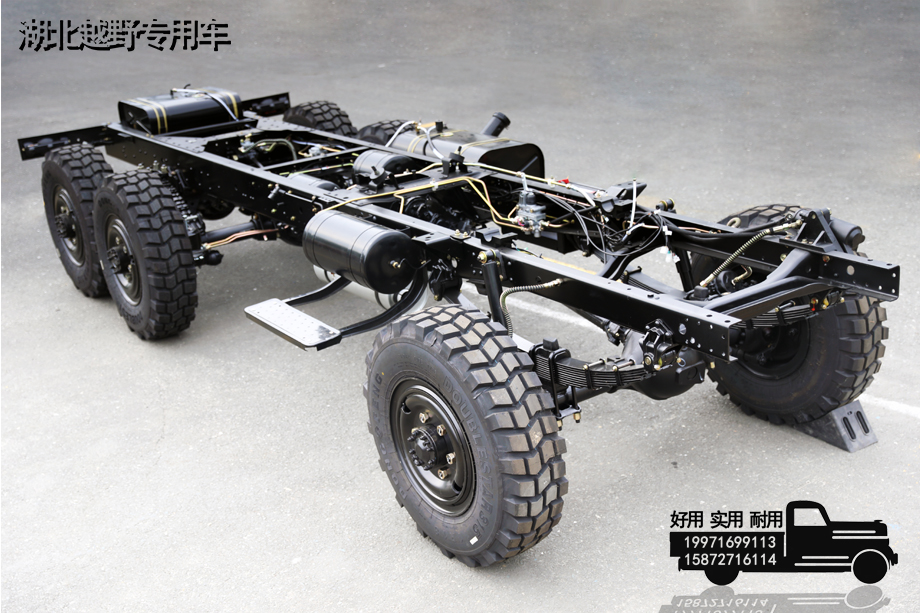

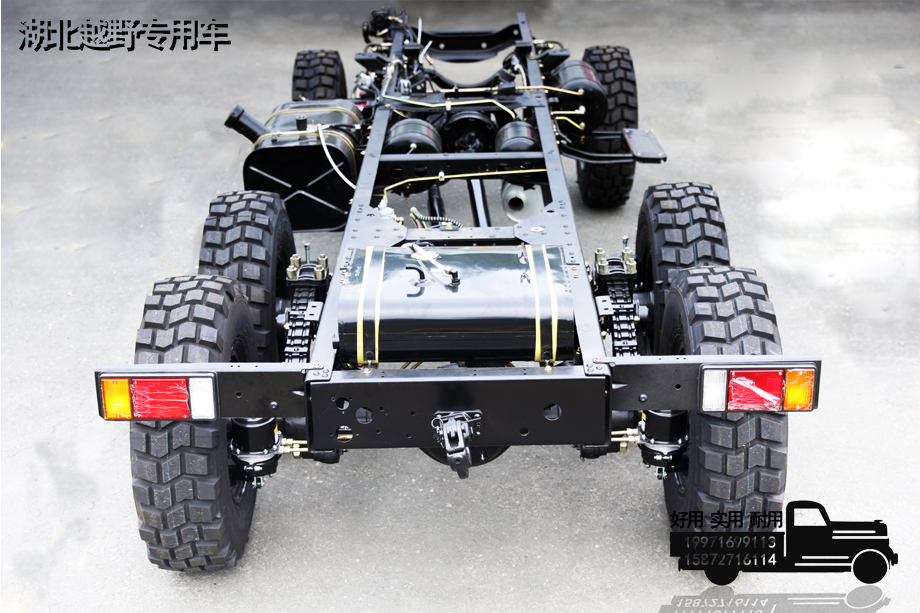

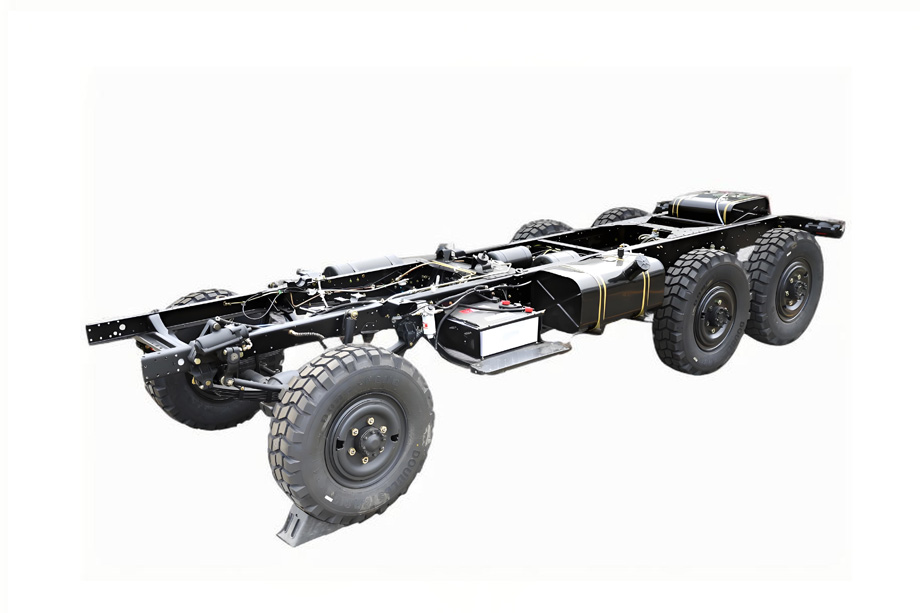

This model is the chassis of the 'Hero Car' 25Y, which is the Category 4 chassis of the classic model EQ2082E6D two-and-a-half-ton diesel off-road vehicle.


Basic information
drive 6*6
direction left rudder
Chassis size

Length: 6005mm

total mass
7800kg
Chassis configuration
Wheelbase 3190+1100mm
Frame 860*232mm
engine /
Gearbox assembly Manual 5 speed
transfer case assembly High and low gears
Maebashi 2.5T
middle bridge 2.5T
rear axle

2.5T

tank 160L
circuit 24V circuit system
suspension system Leaf spring 9/13
Braking method Air brake
tire

11R18 (6+1 items)

Bodywork configuration
Tops

≥3700mm

Performance parameters
wading depth
1100mm
approach angle 27°
departure angle 43°
front overhang 1340
Rear suspension 770
Wheelbase 1774mm
ground clearance 285mm
gradeability 60%
Slope holding ability 40%
other
other Vehicle tools



1234

The first step: Negotiate purchase requirements

Customers can inform us of their needs by phone/WeChat or on-site inspection.


Step 2: Customize the plan

The company will recommend corresponding models or customize vehicle configurations according to your needs.


Step Three: Sign the Contract

Both parties sign a vehicle purchase and sale contract and pay the contract deposit in advance (the contract can be signed by fax or in person).


Step 4: Arrange production

Issue production plans and arrange production.


Step Five: Vehicle Completion

After the vehicle is offline for inspection, the remaining balance of the vehicle must be paid and relevant procedures completed.


Step Six: Logistics Departure

Customers can pick up the vehicle from the factory, or negotiate with our company to arrange delivery to a designated location.


other :

1. The company can provide customers with export customs declaration services.

2. Complete after-sales service station to solve your worries!
