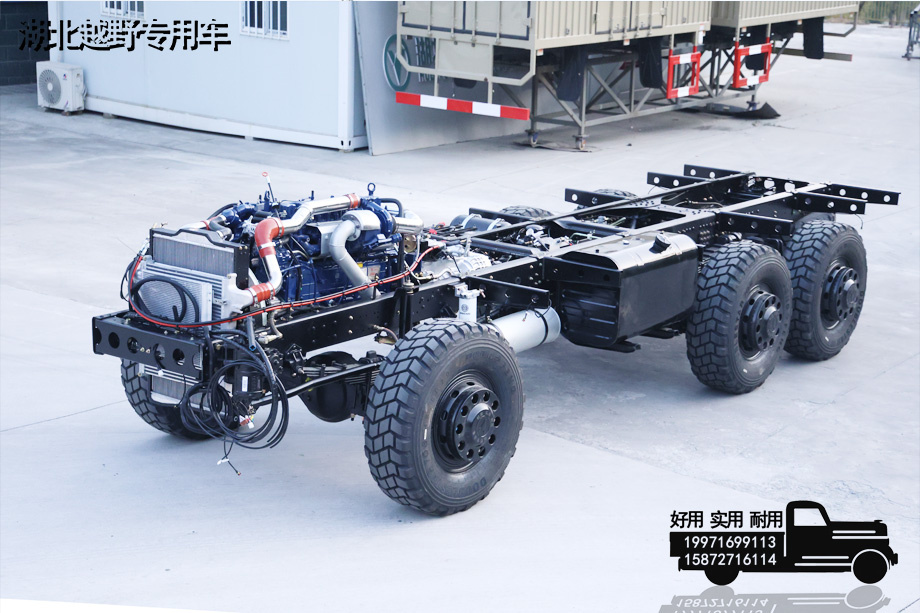

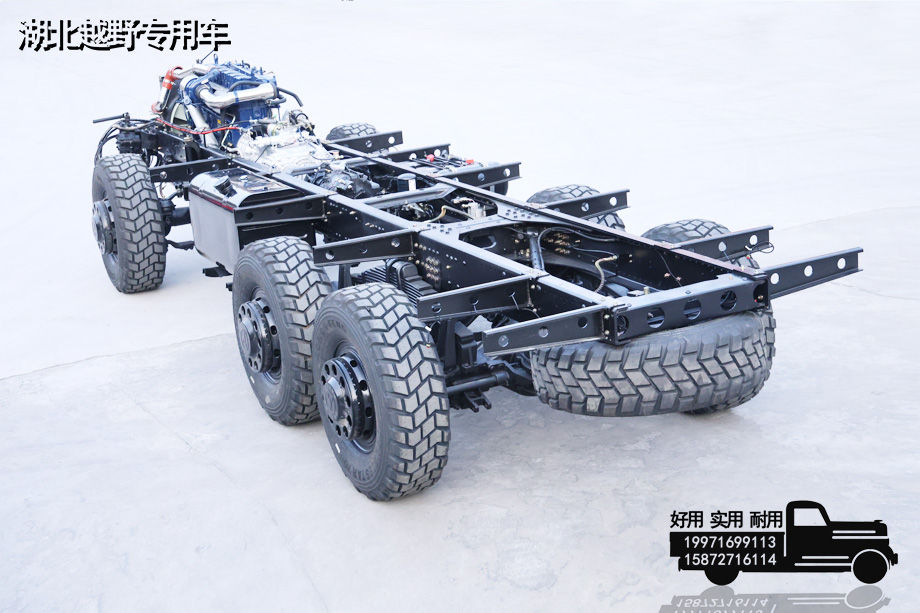

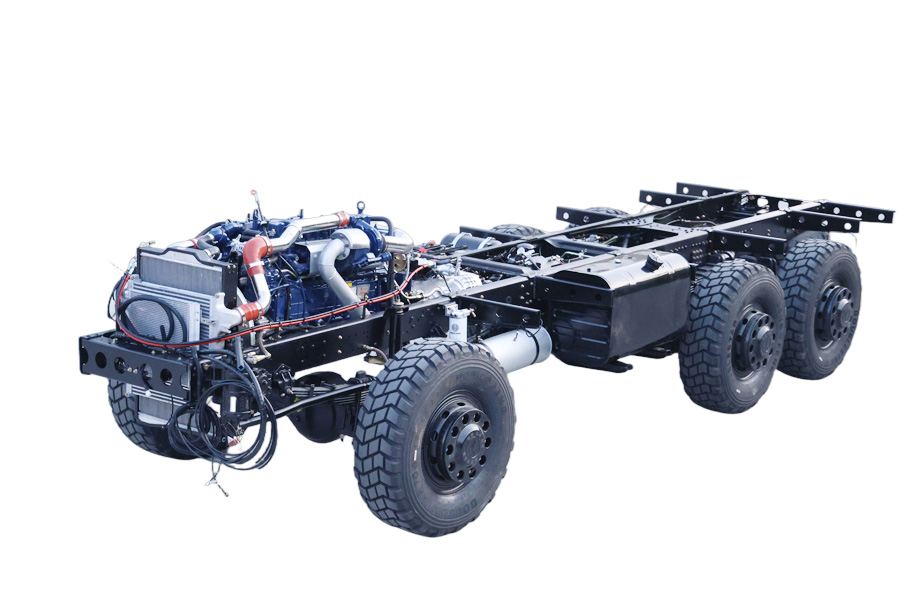

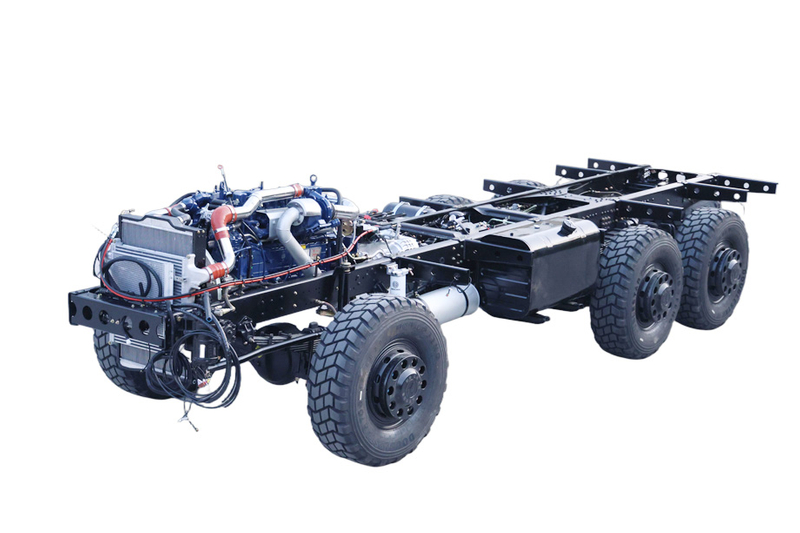

Our company has developed a high-horsepower six-wheel drive off-road vehicle Bus. The vehicle is upgraded based on the chassis of DF's six-wheel-drive military diesel off-road vehicle. DFMilitary vehicles have experienced actual combat tests and have been recognized for their off-road capabilities. Due to various advantages, this chassis is often used to transform into greening sprinkler trucks, dump trucks, garbage trucks, van transport trucks, Bus, minibuses, etc., which are also best-selling models for export.
| Basic information | |
| drive | 6*6 |
| direction | Left rudder/Customizable right rudder |
| total mass | 25000kg |
| Chassis configuration | |
| Wheelbase | 3600+1300mm |

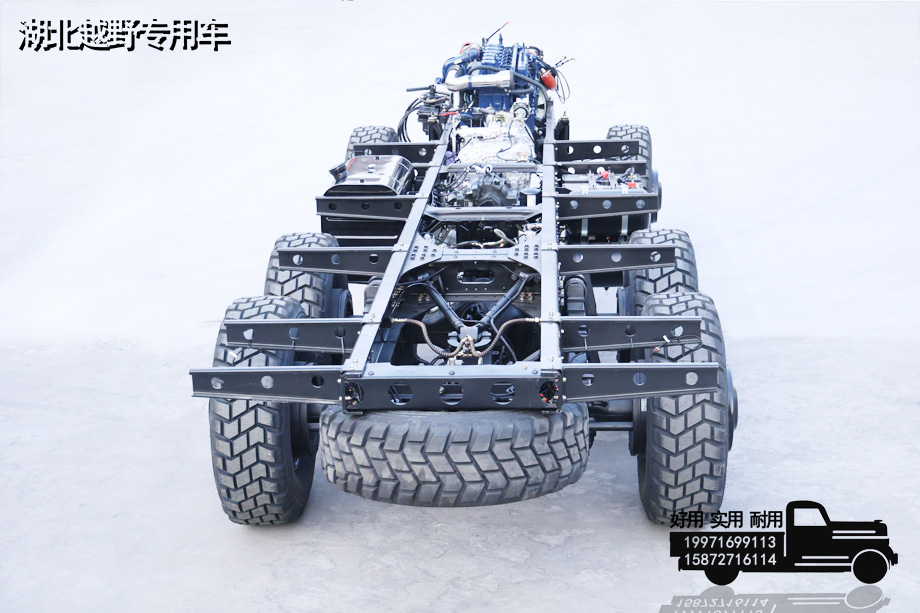

| Frame | 860*280(8+8)mm |
| engine | Weichai WP10.340E32 |
| Gearbox assembly | Manual 12 gears |
| transfer case assembly | High and low gears |

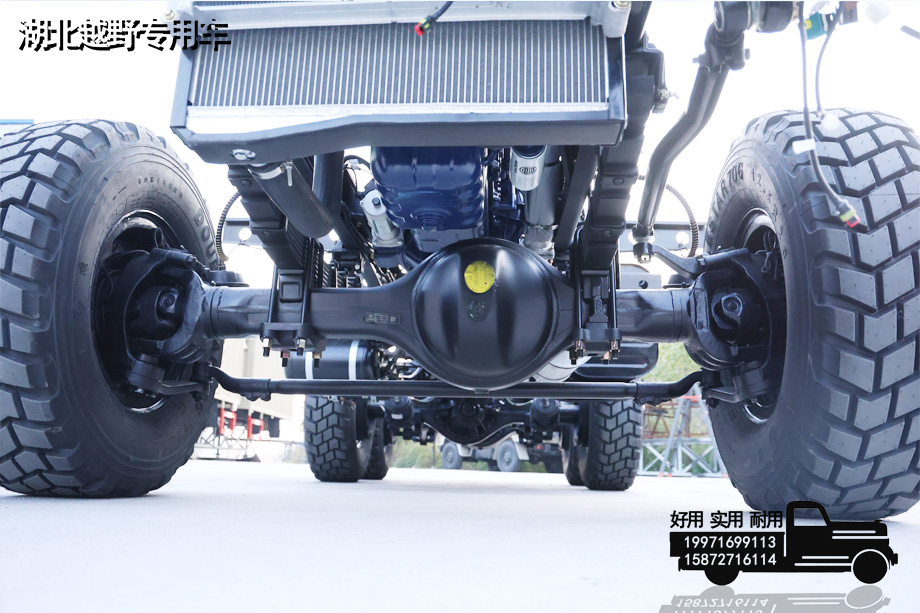

| Maebashi | 7T |
| middle bridge | 10T |
| rear axle | 10T |
| tank | 300L |
| circuit | 24V circuit system |

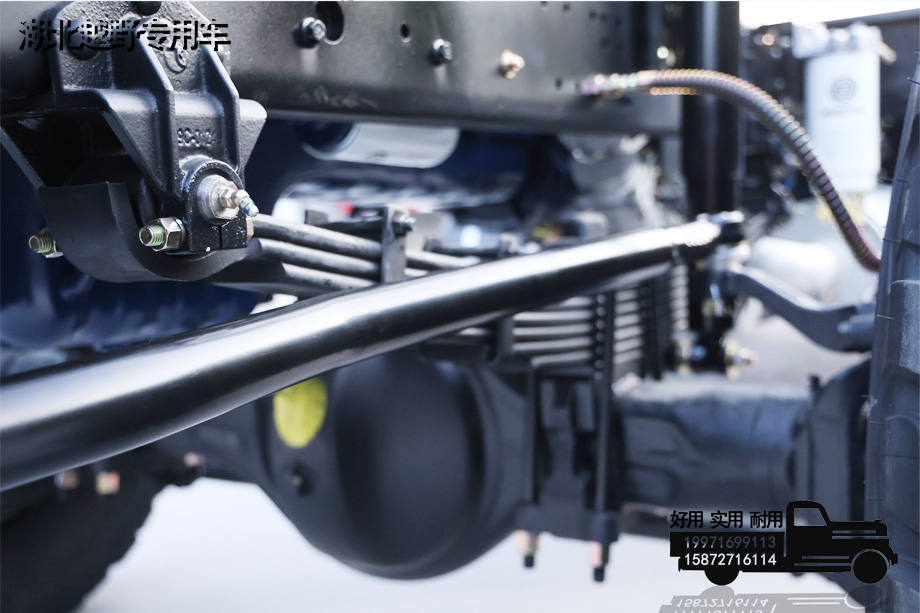

| suspension system | Leaf spring 7/8 |
| Braking method | Air brake |
| tire | 12.5R20 (6+1) |
| Bodywork configuration | |
| cargo box | 1820mm (height inside passenger area) |
| engine | |
| engine | Weichai WP10.340E32 |
| horsepower | 340 |
| emission | National Three |
| Displacement | 9.726L |
| Number of cylinders | 6 |
| Output power | 250kw |
| Torque | 1250N.m |
| Fuel type | diesel fuel |
| Performance parameters | |
| speed | 85km/h |
| Overcome obstacles | 420mm |
| Wheelbase | 2010mm |
| ground clearance | 315mm |
| gradeability | 60% |
| other | |
| other | Vehicle tools |
